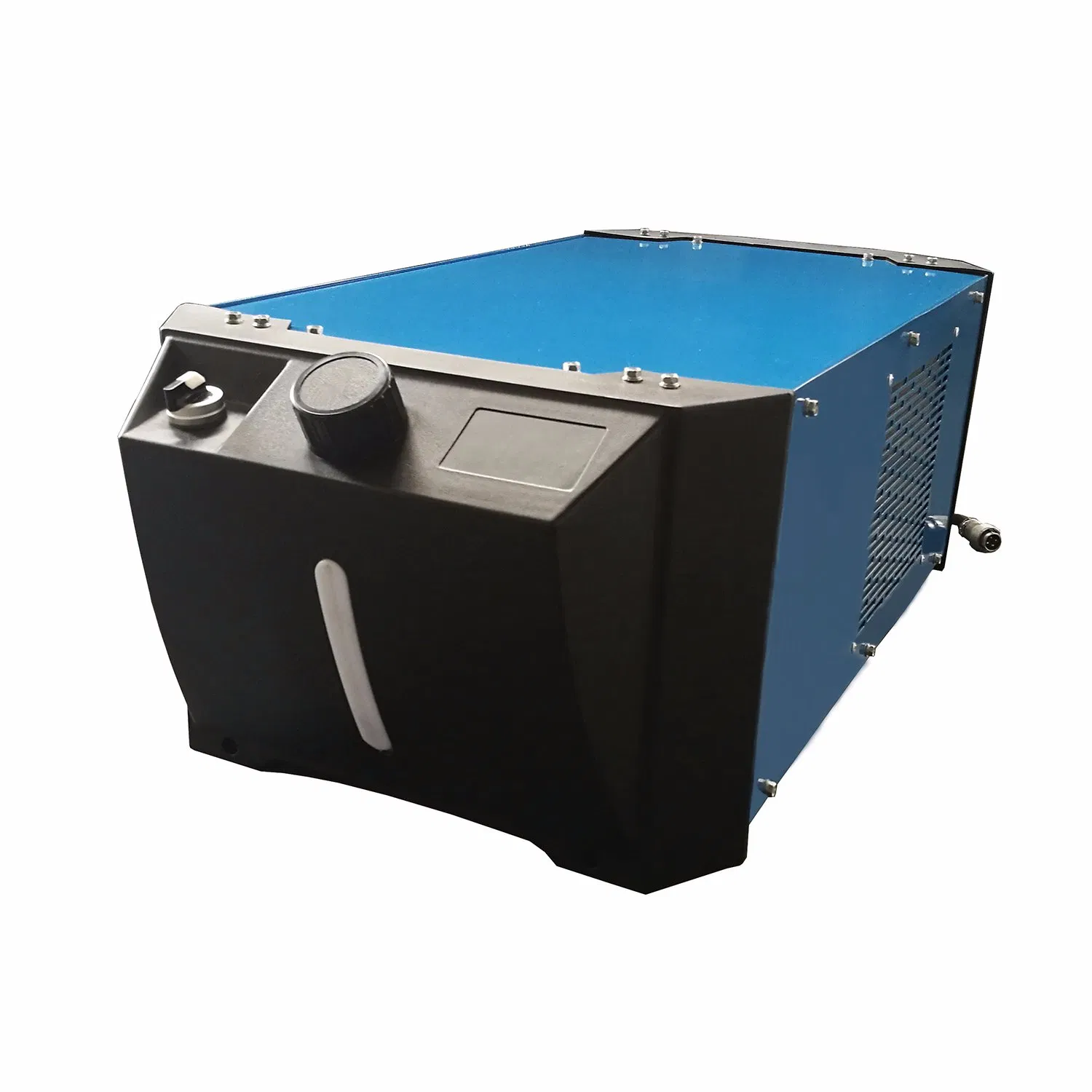

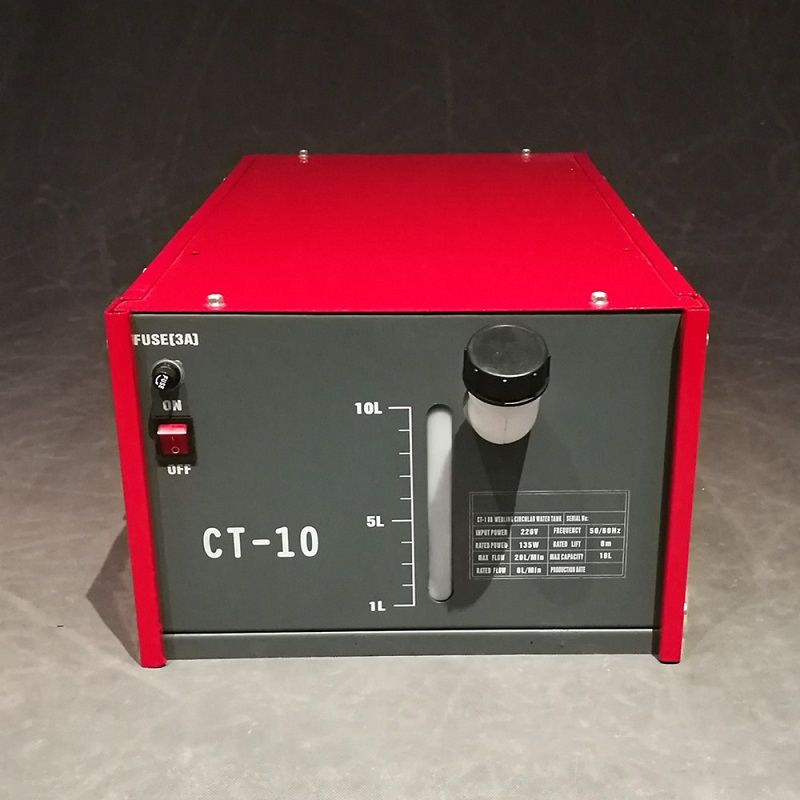

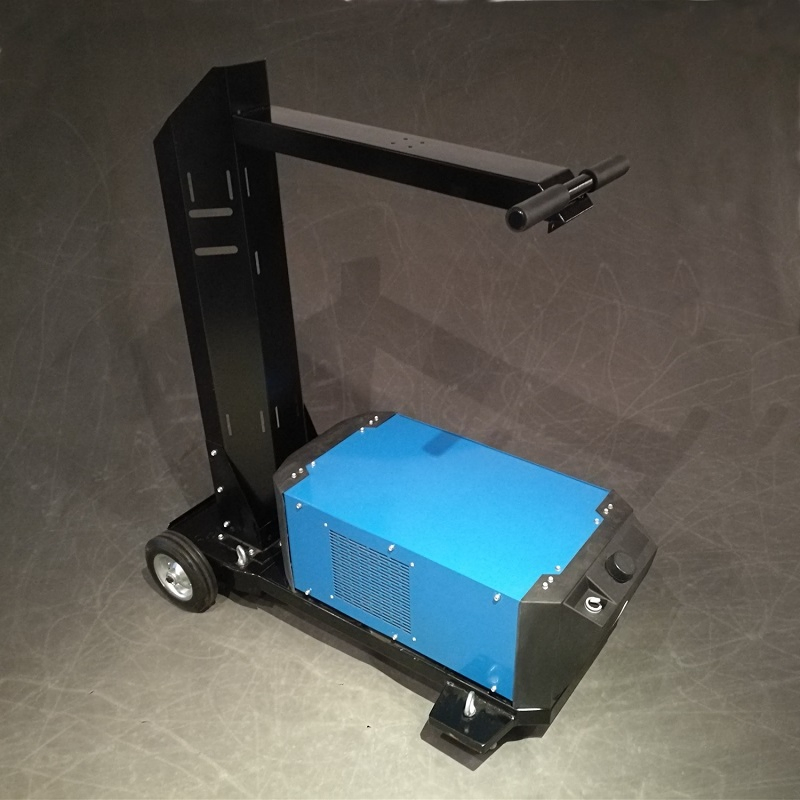

10L Plastic Outer Shell Liquid Cooling Systems for Welder

1 / 5

10L Plastic Outer Shell Liquid Cooling Systems for Welder

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CT-10

System Type

Closed System

Fans Species

Single-speed Fan

Noise Level

Low

Application

Welding

Certification

ISO, CE, Eac

Supply Voltage

AC220V

Cooling Power

1.7kw

Max. Lift

48m

Max. Flow

5L/Min

Dimensions

770mm*390mm*270mm

HS Code

8419500090

Packaging & Delivery

Package Size

63.00cm * 41.00cm * 46.00cm

Gross Weight

19.000kg

Transport Package

Cartons

Product Description

Strong cooling capacity and compact design for easy mobility.
User-friendly operation: No exhaust required during initial use.

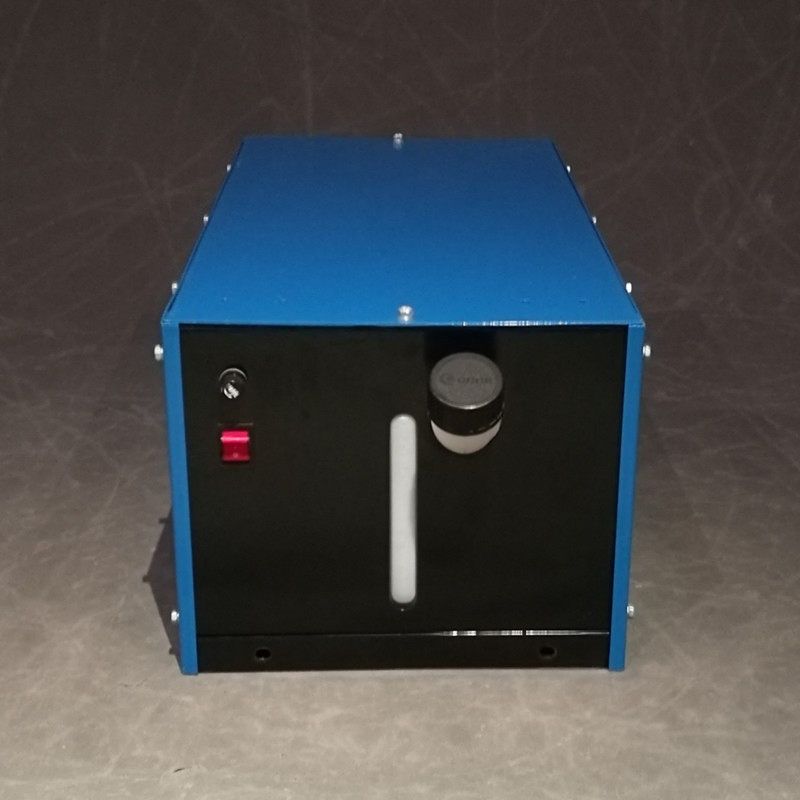

LED water level display window for remote monitoring of the tank.
Real-time water flow monitoring with alarm function to protect welding equipment.
Integrated intelligent control board, transformer, and independent fan for stable heat dissipation.
Built-in overload protection to ensure long-term operational safety.

Model	CT-10
Supply Voltage	1-220V±10%, 50/60Hz
Rated Input Power	120W
Cooling Power (1L/min)	1.8KVA
Suction	5m
Rated Lift	30m
Max Pressure	0.42Mpa
Rated Water Capacity	10L
Protection Degree	IP21
Weight	20Kg

Frequently Asked Questions

What is the primary application for the CT-10 cooling system?

The CT-10 is specifically designed for welding applications, providing efficient liquid cooling for welding torches and related equipment to prevent overheating.

Does the system require special maintenance for the water level?

The unit features an LED water level display window, allowing operators to easily monitor the tank level from a distance and ensure the 10L capacity is maintained.

Is the CT-10 protected against electrical or flow issues?

Yes, it includes a real-time water flow monitoring system with an alarm function and built-in overload protection to safeguard the equipment during long-term use.

What are the power requirements for this cooling unit?

The system operates on a standard supply voltage of AC220V (±10%) at 50/60Hz, with a rated input power of 120W.

How portable is the device for field use?

With a weight of approximately 19-20kg and compact dimensions (770mm*390mm*270mm), the system is designed to be easy to move within a workshop environment.

What is the cooling capacity and pressure rating?

The CT-10 offers a cooling power of 1.7kw to 1.8KVA and can reach a maximum pressure of 0.42Mpa with a maximum lift of 48 meters.
