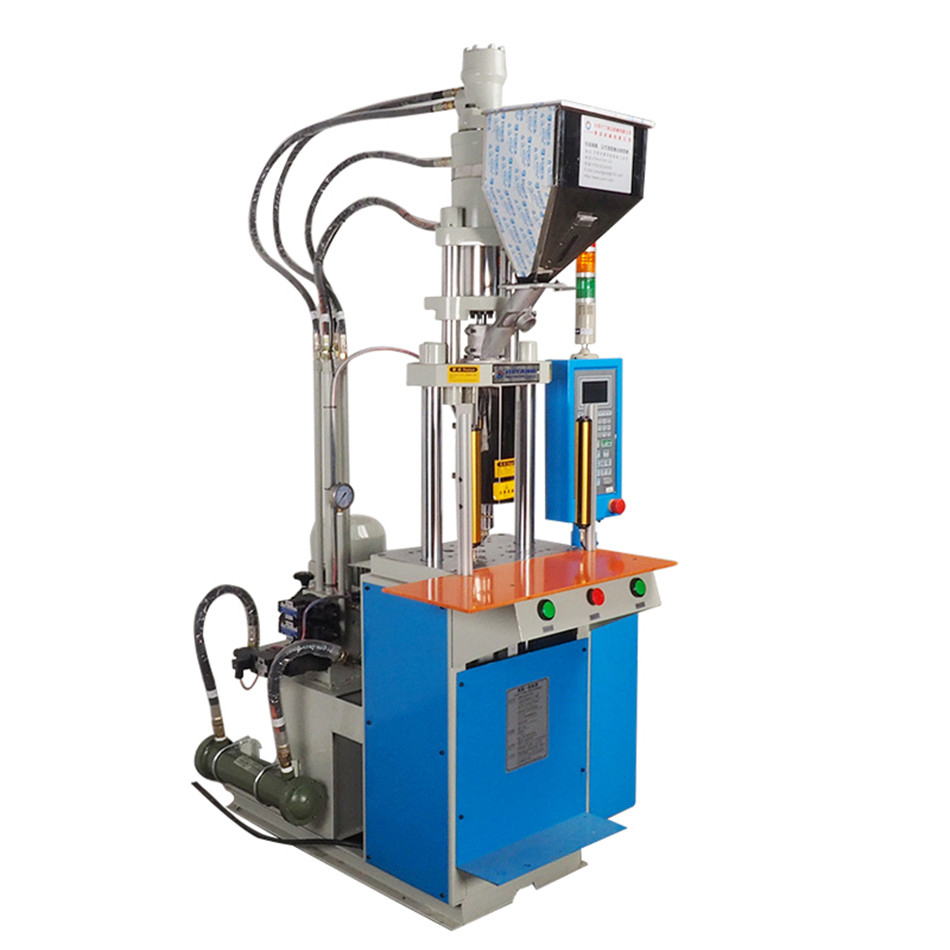

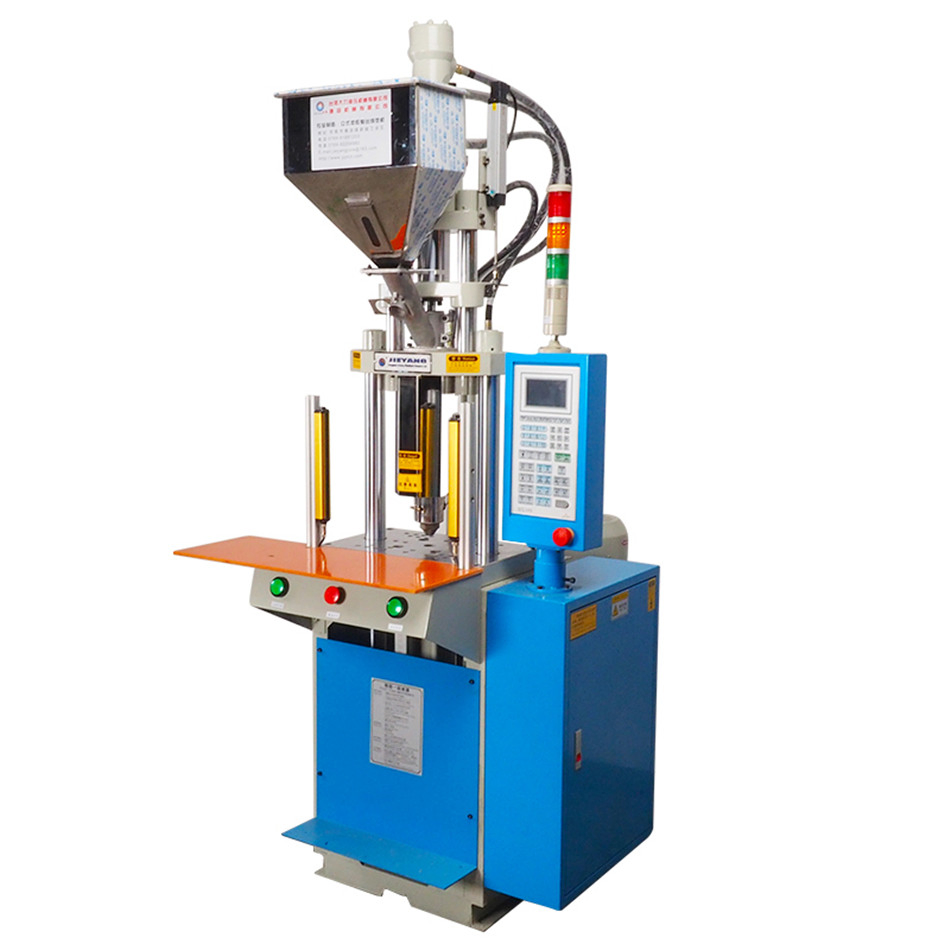

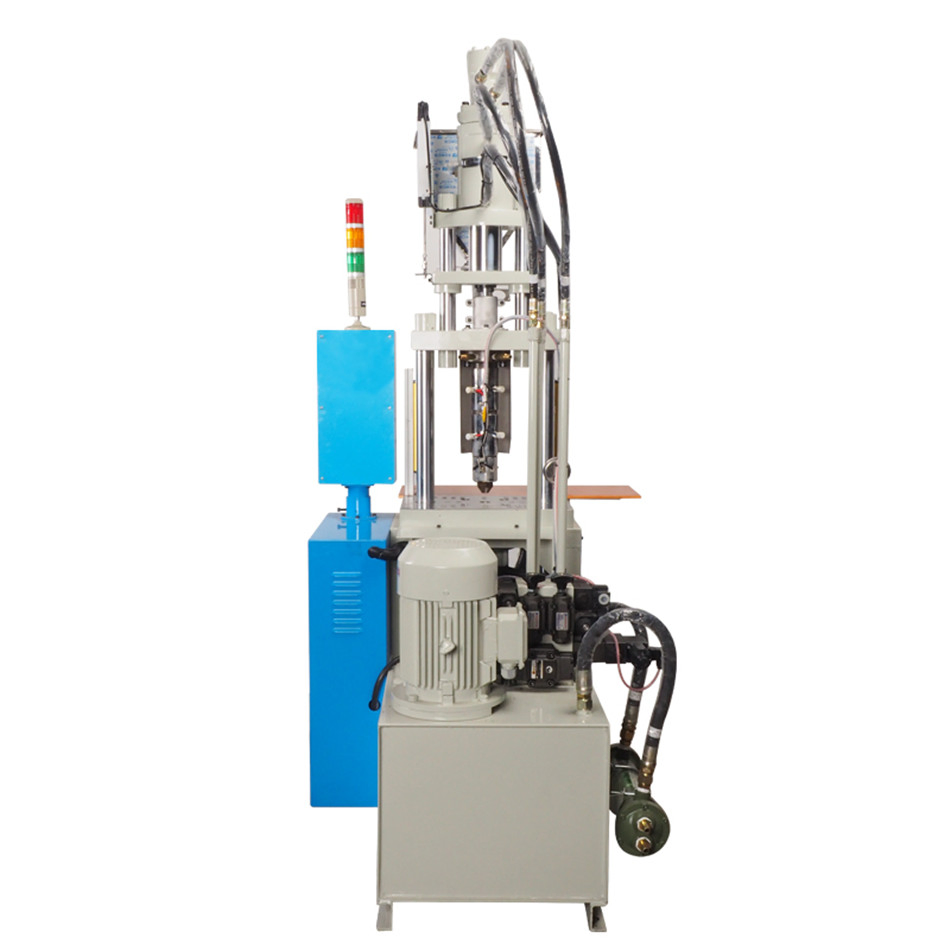

15ton Hand Standard Vertical Plastic Injection Moulding Machine

1 / 4

15ton Hand Standard Vertical Plastic Injection Moulding Machine

Customization:	Available
Type:	Tube Head Injection
Structure:	Vertical

Send Inquiry

Product Description

Basic Specifications

Model NO.

JY-160S2

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic

Automation

Automatic

Certification

CE, ISO9001:2008

Machine Weight

0.6t

HS Code

8477101090

Production Capacity

200 Set/Month

Product Overview

15 Ton Hand Standard Vertical Plastic Injection Moulding Machine

🛡️

Extended Warranty Service

Total 18 months warranty provided for your peace of mind.

Product Application & Features

Vertical Clamping & Injection: Ideal for producing general electrical plugs, electronic components, and small insert moldings. Options for double sliding or rotary tables available.
Brand Components: Equipped with famous brand pump material feeders for environmental protection, precision, and stability.
High Precision: Accurate dosage of silica gel and traces of pigment mixed equally with high viscosity silica gel.
Advanced Control: Heat shield device with independent temperature controller; multi-injection pressure and speed settings for precision plastic accessories.
Efficient Design: Lower plate fixed/upper plate movable design provides excellent positioning for mold inserts. Includes a hydraulic ejector for easy product removal.

Technical Parameters

Model Technique Specification		Units	JY-160S2
Injection System	Screw Diameter	mm	Φ26 - Φ28
	Injection Pressure	Kg/cm2	1183 - 1019
	Theoretical Shot Volume	cm3	55.7 - 64.6
	Max. Shot Weight (P.S)	g/Oz	50/1.7 - 58/2.0
Clamping System	Clamping Force	T	15
	Platen Size	mm	450*280
	Distance Between Tie Bar	mm	265
	Opening Stroke	mm	190
Power/Hydraulic	Max. Hydraulic Pressure	Kg/cm2	140
	Pump Motor Power	Kw	2.2 / 3HP
	Total Wattage	Kw	4.2

Key Components List

Part Name	Brand	Origin	Features
Computer	Star Denshi	Japan	Precise Control, TFT Color
Servo Motor	YASKAWA	Japan	Energy Saving
Solenoid Valve	Yuken	Japan	High Sensitive
Servo Pump	Eckerle	Germany	Low Noise
Electrical Ruler	Gefran	Italy	High Precise
Seal	HALLITE	UK	Long Life Span

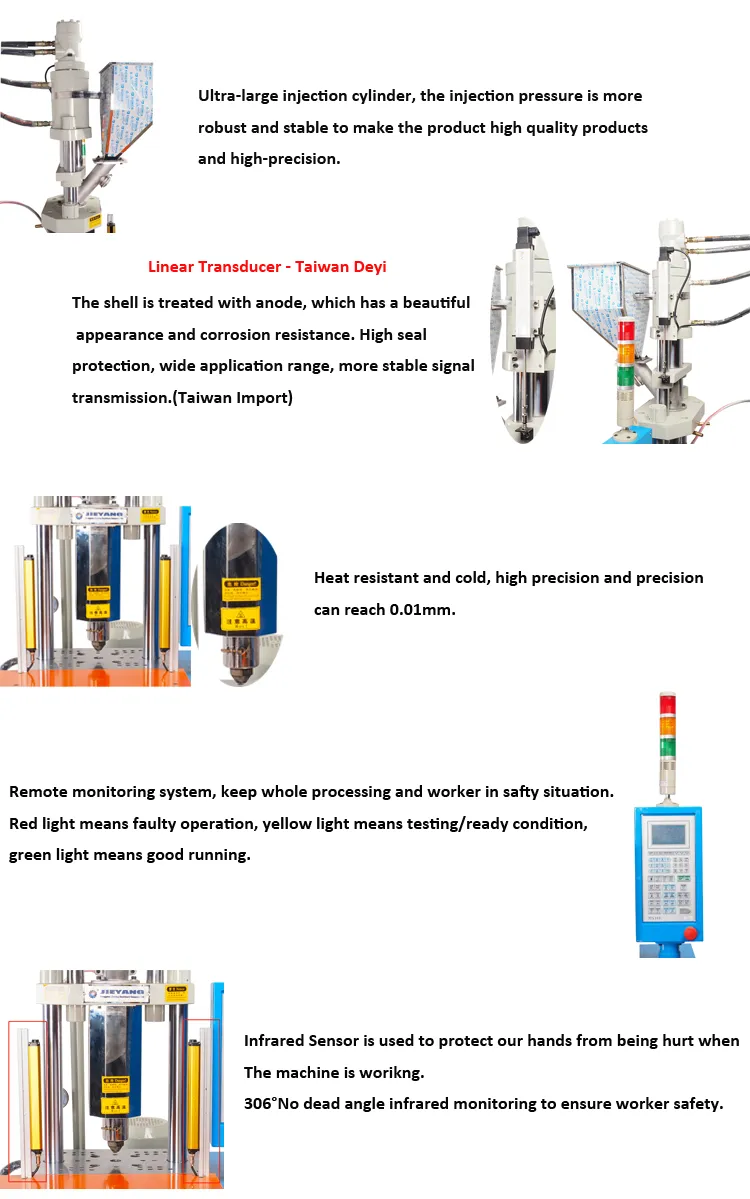

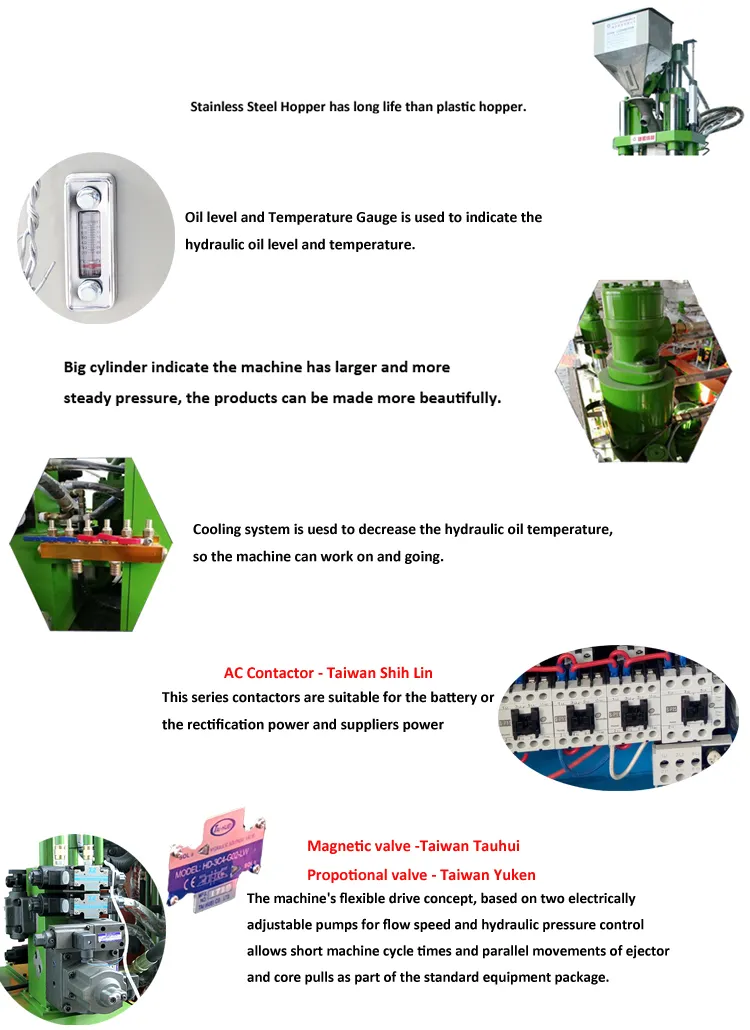

Machine Details & Applications

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a factory, and all machines are manufactured by ourselves. We also provide customization services based on your specific requirements.

What is the warranty coverage for this machine?

We provide a comprehensive warranty where all machine parts can be replaced within the warranty period free of charge (excluding man-made damage), along with life-time maintenance support.

What is the typical delivery time?

Usually, it takes 3-5 days if the machine is in stock. If not, the delivery time ranges from 10-25 days depending on the required quantity and current production season.

Can I visit the production facility?

Yes, our facility is conveniently located near major transport hubs in Guangdong. We can provide transportation from nearby railway or bus stations upon your arrival.

What materials are compatible with this vertical injection machine?

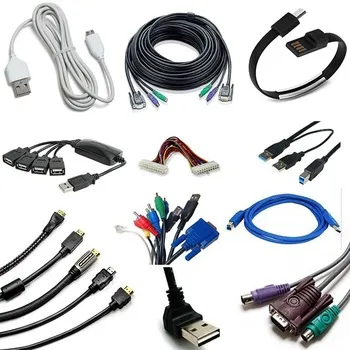

This machine is designed for thermoplastics and liquid silicone, making it highly suitable for electrical plugs, electronic components, and precision plastic accessories.

Does the machine support OEM color customization?

Yes, any machinery color is available through our OEM service to match your branding or factory requirements.
