75K Plasticthermoforming Machine Plastic Cup Making Machine Automatic Cup Thermoforming Machine/PP Mineral Water/PLA Pet Cup Making Machine
1 / 5
75K Plasticthermoforming Machine Plastic Cup Making Machine Automatic Cup Thermoforming Machine/PP Mineral Water/PLA Pet Cup Making Machine

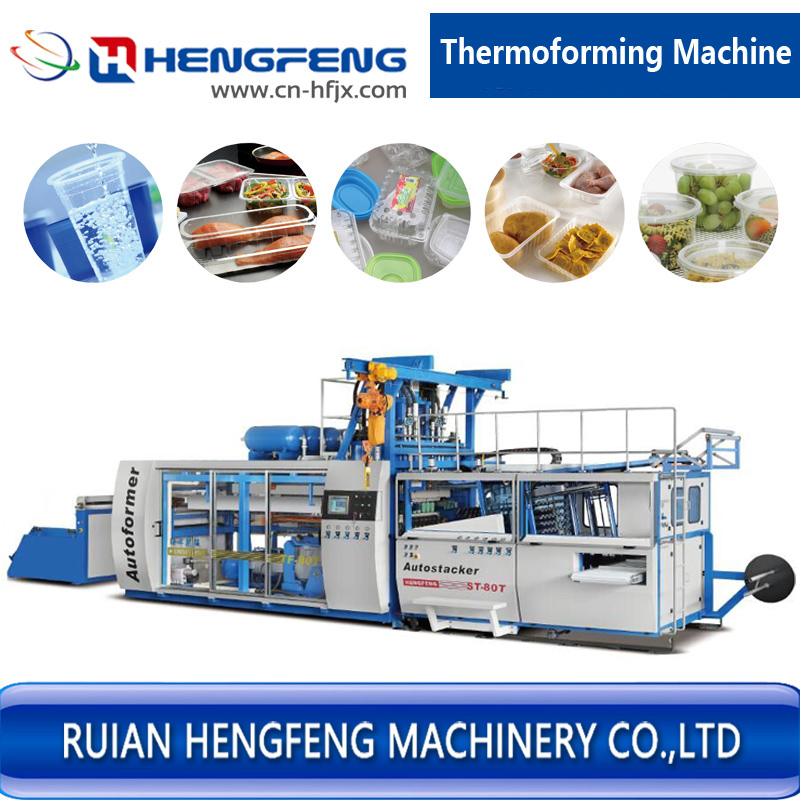

Plastic PP/PET/PLA Cup Tilting Mould Thermoforming Machine
This high-efficiency Water Cup Making Machine is engineered to produce premium plastic containers such as cups, bowls, and square boxes. It is compatible with a wide range of materials including PP, HIPS, PVC, and PET.
Key Design Features:
Advanced In-mould Cutting technology
High accuracy and superior product yield
Sanitary pick-up stacking system to save labor
Servo motor for plug assist and sheet feeding
Efficient two-station unwinder system
Rapid mould changing device
Mould automatic memory system
User-friendly PLC design for easy operation
Main Specifications
Max. Forming Area
762 × 470mm (30" × 18.5")
Max. Forming Height
≤130mm
Mold Clamping Force
500KN
Sheet Width
Max 820mm; Min 650mm
Sheet Thickness
0.4mm - 2.0mm
Heater Specification
Ceramic Heater (Up/Down 70/80kw)
Heater Control
Omron Temp Module & PLC Control
Material Feeding
Servo Motor 4.4kw
Main Motor Power
11kw
Stretching Servo Power
11kw
Max. Sheet Roll Diameter
Φ1500mm
Air Consumption
4000L/min
Max. No-Load Speed
40 Cycles/min
Machine Weight
14500kg
Machine Dimension
14500 × 3850 × 4250mm
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturing factory. Our team is dedicated to providing quick responses within 24 hours for all inquiries.
What materials can this thermoforming machine process?
The machine is designed to work with various materials including PP, HIPS, PVC, PET, and PLA, making it ideal for diverse container production.

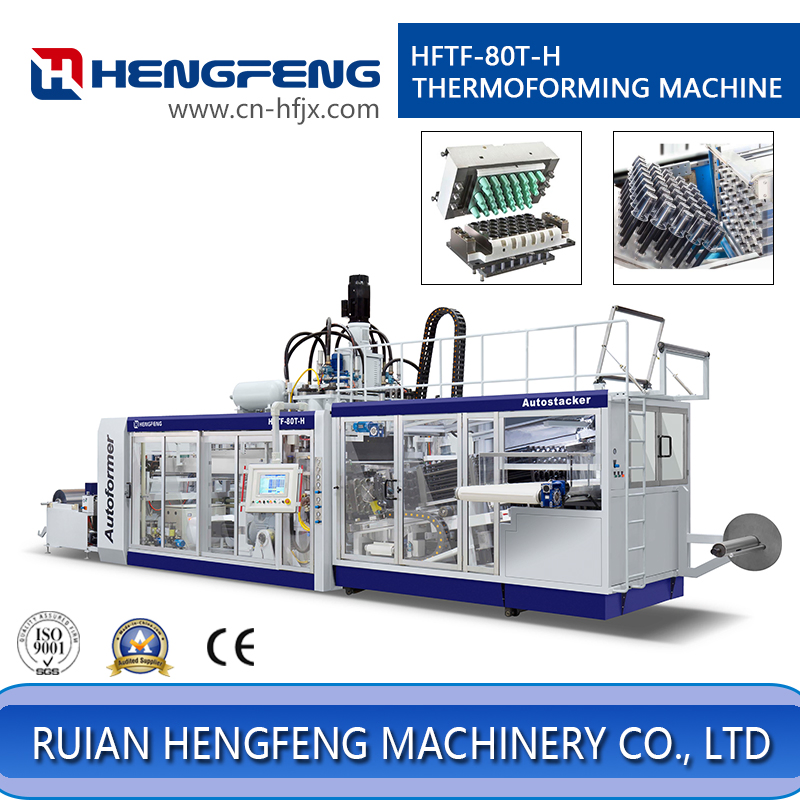

What is the production capacity of the HFTF-80T?
The machine features a high-speed production capability of up to 40 cycles per minute under no-load conditions.
What kind of technical support and warranty do you offer?
We provide a full running system including design, development, and installation. We offer a one-year quality guarantee and life-time technical service.
Has your machinery passed international quality certifications?
Yes, our equipment has successfully passed CE and ISO certifications, ensuring compliance with international safety and quality standards.
Can this machine produce containers with custom logos?
Yes, the machine supports logo forming during the thermoforming process, allowing for customized branding on cups and boxes.
