Industrial Chiller 50ton to 100ton Air to Water Cooling System for Plastic Manufacturing Global B2B Suppliers

Customization:	Available
After-sales Service:	7 X 24 Hours
Warranty:	15 Months

i

Basic Specifications

Type:

Air-Cooled

Cooling Method:

Air-cooled

Unit Structure:

Integral

Selected Voltage:

380V/50HZ

Compressor Number:

1

Noise Level:

Low

Application Fields:

Plastic

Refrigerant:

R22/R407c/R404A/R410A

Compressor Brand:

Hanbell

Cooling Capacity:

280kw

Compressor Type:

Screw

Evaporator Type:

Shell and Tube

P

Product Description

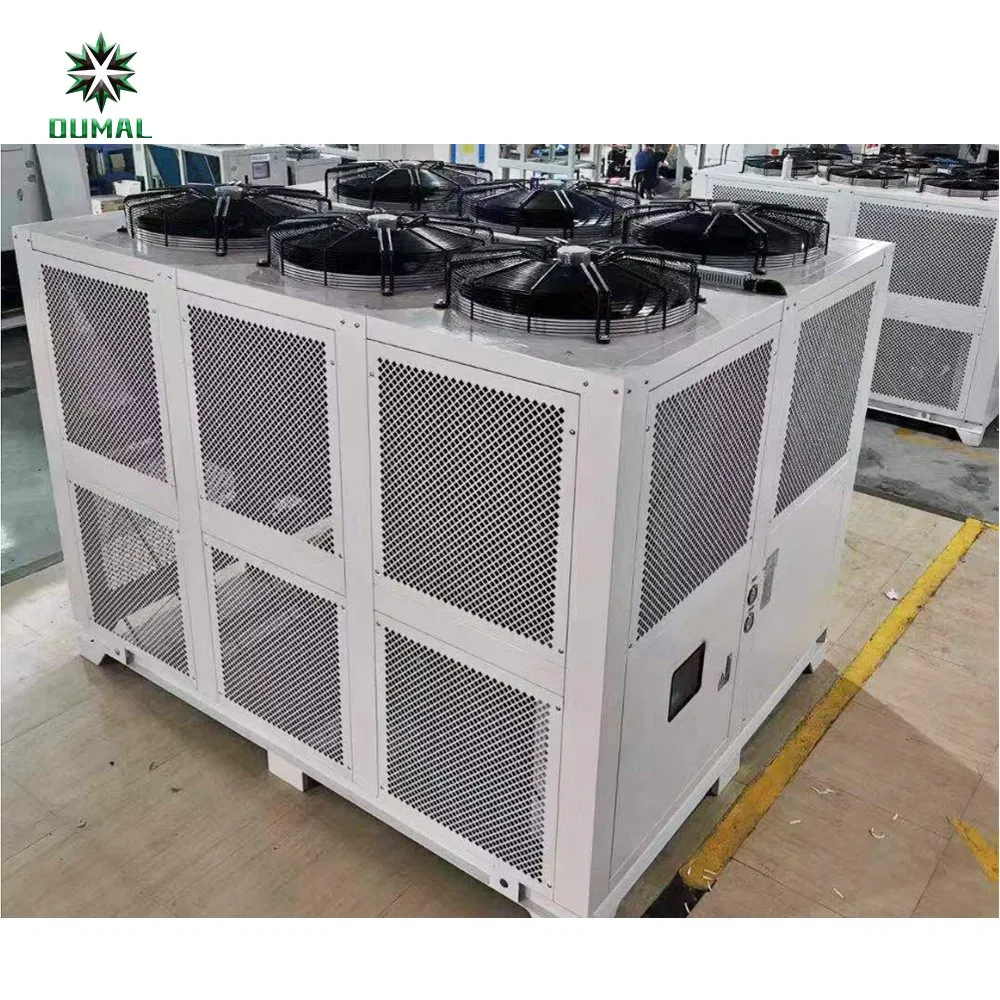

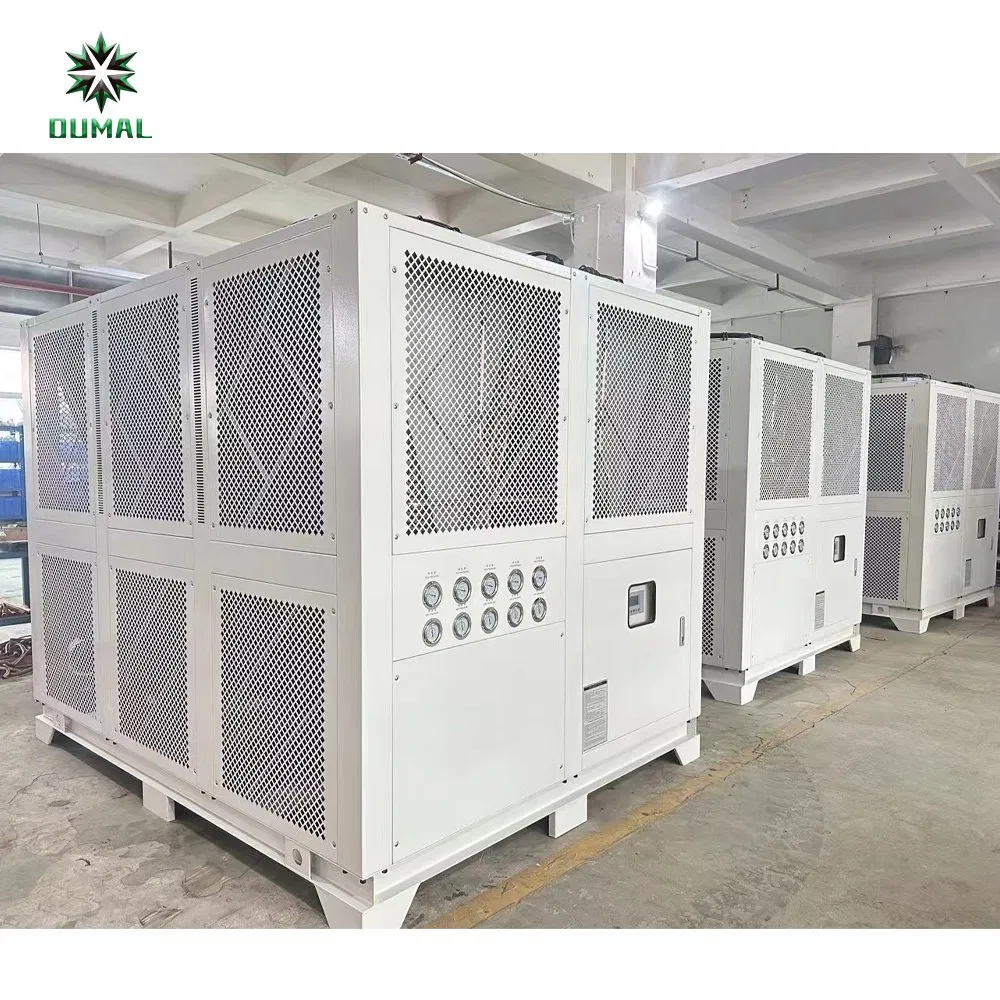

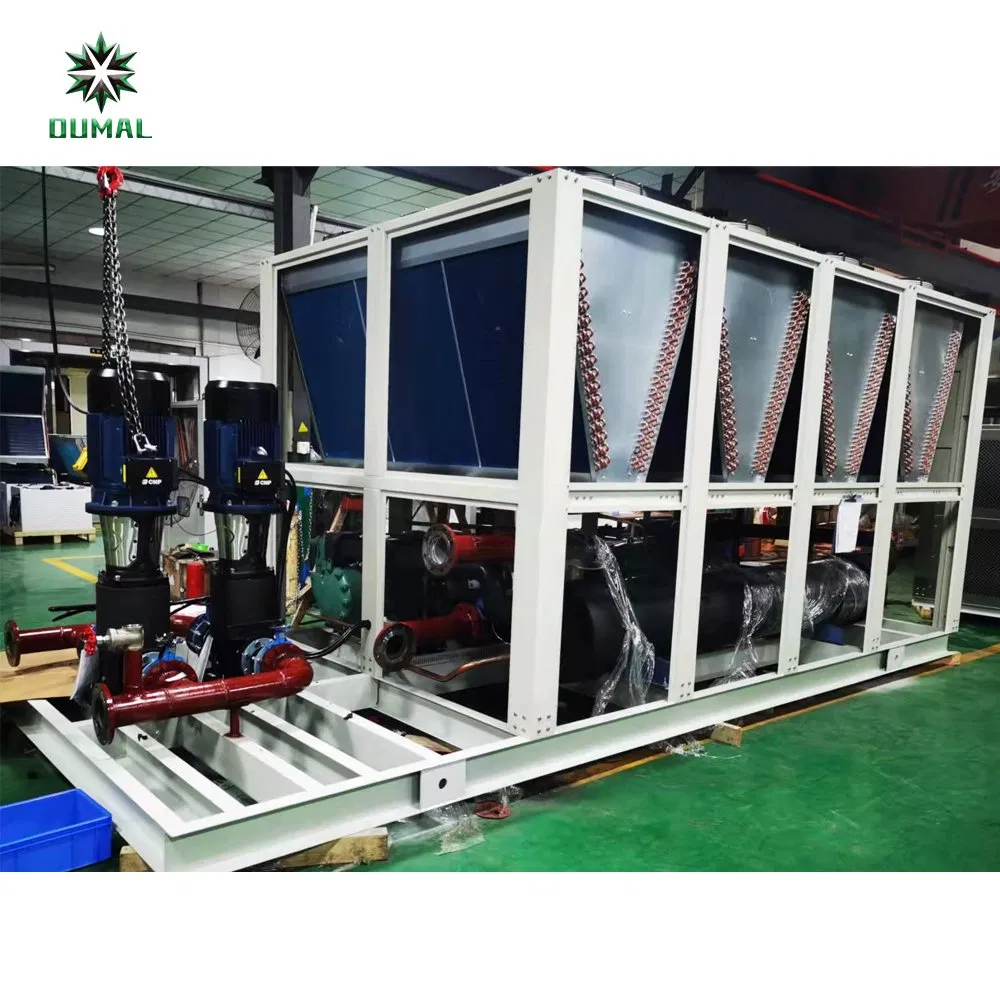

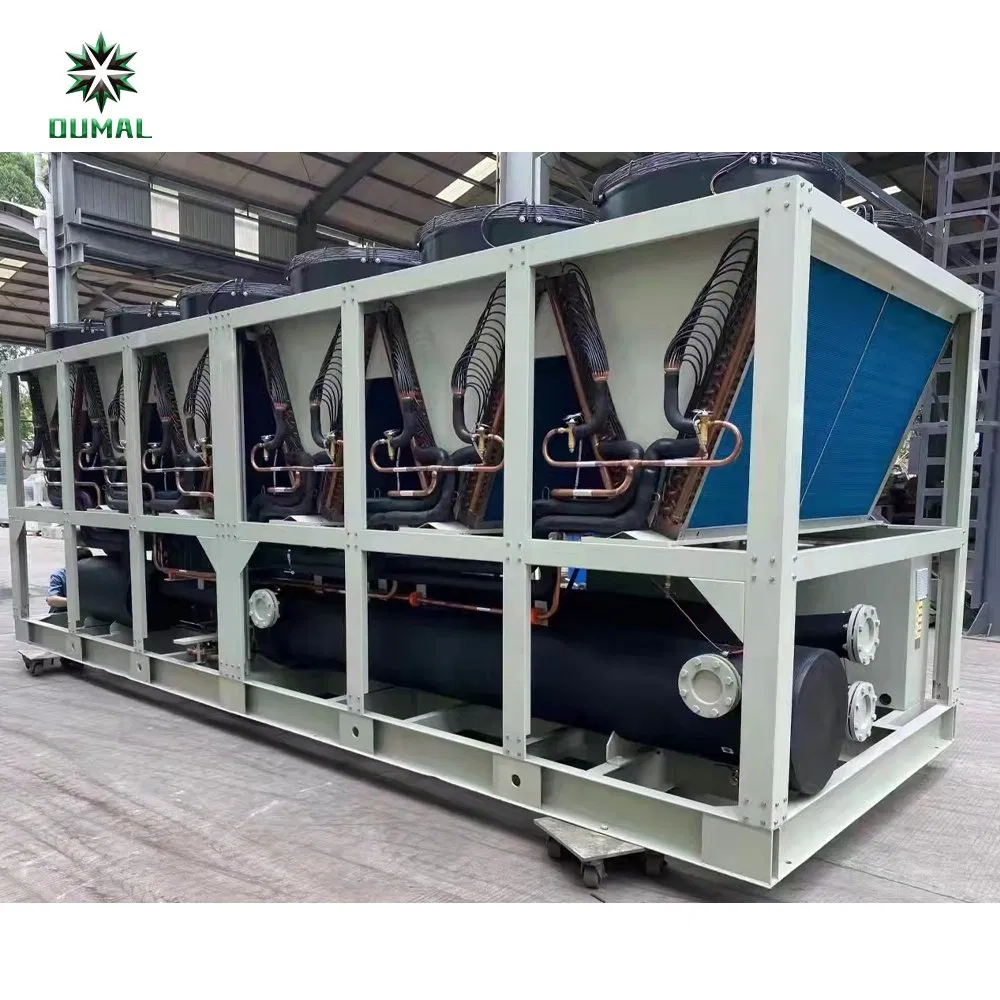

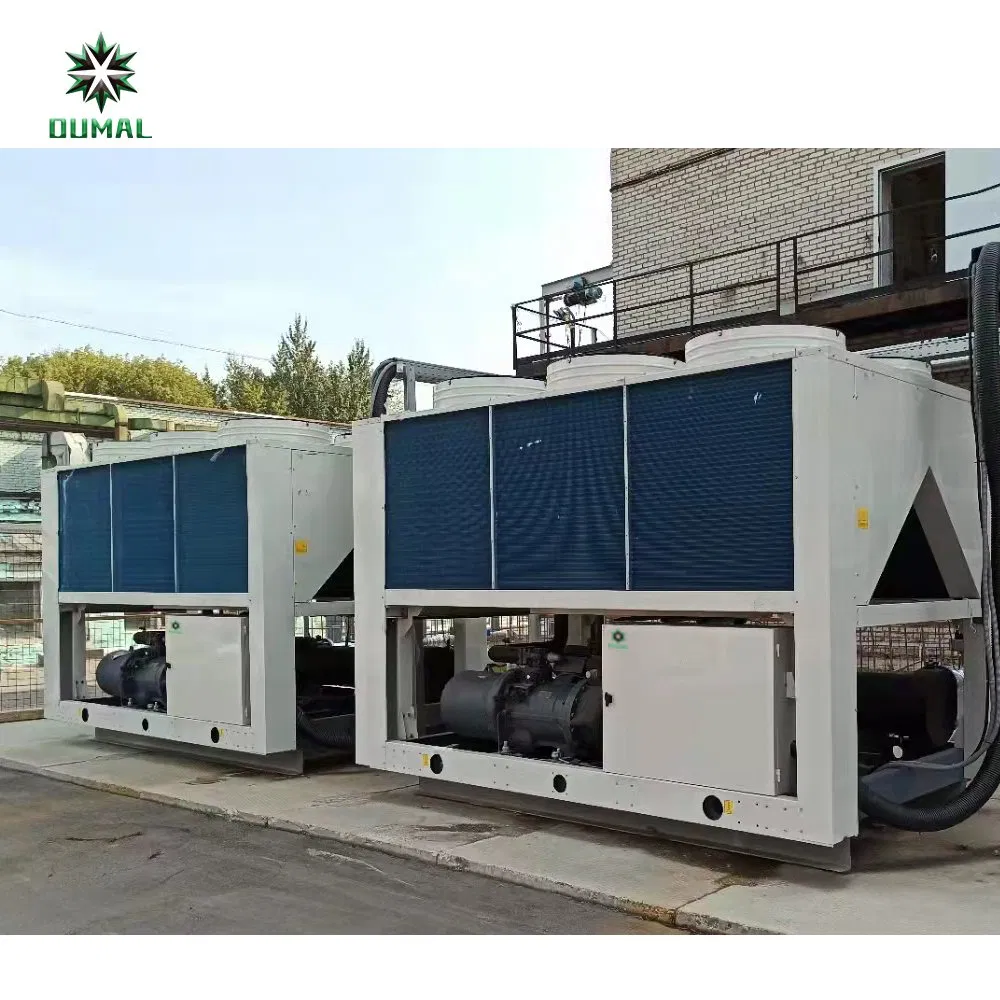

Product Name: 50Ton-100Ton air to water cooled industrial chiller water cooling system for plastic industry

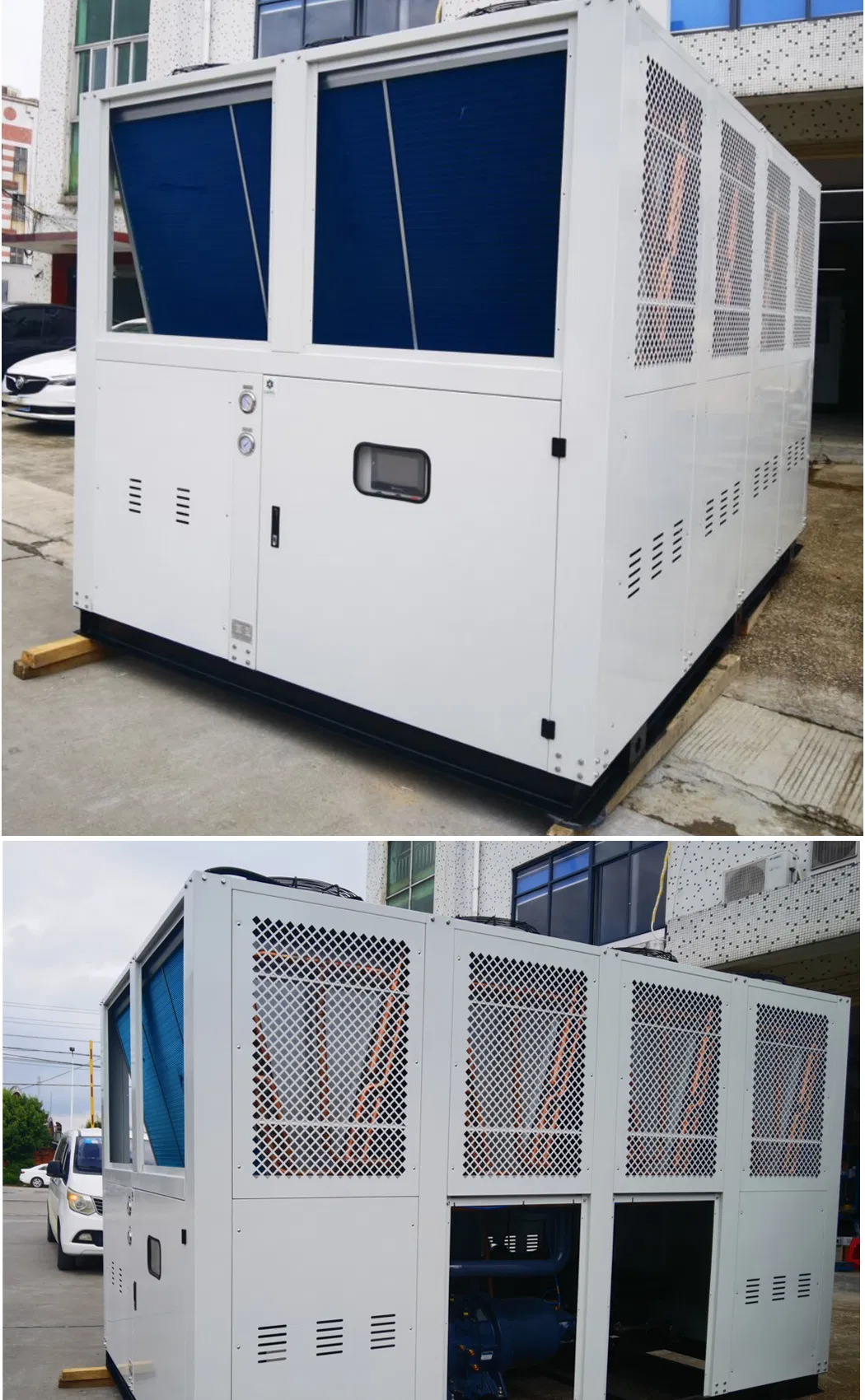

The 80Ton Industrial Water Chiller with Hanbell Single Screw Compressor is a high-performance cooling solution designed for various industrial applications. With a cooling capacity of 80TR/80RT/100HP, this air-cooled screw chiller is easy to install and ideal for use in plastic factories, chemical plants, and commercial air conditioners.

Key System Features

High Cooling Capacity: Engineered to handle the requirements of large-scale industrial operations.
Multiple Cooling Zones: Designed to handle multiple zones simultaneously for precise temperature control.
Energy Efficiency: Optimized components that maximize performance while minimizing power consumption.
Durability & Reliability: Capable of continuous operation under demanding industrial conditions.
Advanced Safety: Includes over-temperature protection, high-pressure protection, and fault alarms.
Precision Control: Equipped with advanced control systems for remote monitoring and parameter adjustments.

A

Advantages of Air Cooled Screw Chillers

Efficient and Stable: Features advanced screw compressors with high energy efficiency.
Wide Adjustment Range: Allows seamless adjustment of cooling capacity to meet varying refrigeration needs.
User-Friendly Operation: Intelligent control system with remote monitoring and self-diagnosis.
Low Noise Technology: Designed to operate quietly, meeting environmental standards.
Low Maintenance: Constructed with durable materials for a long service life and minimal upkeep costs.

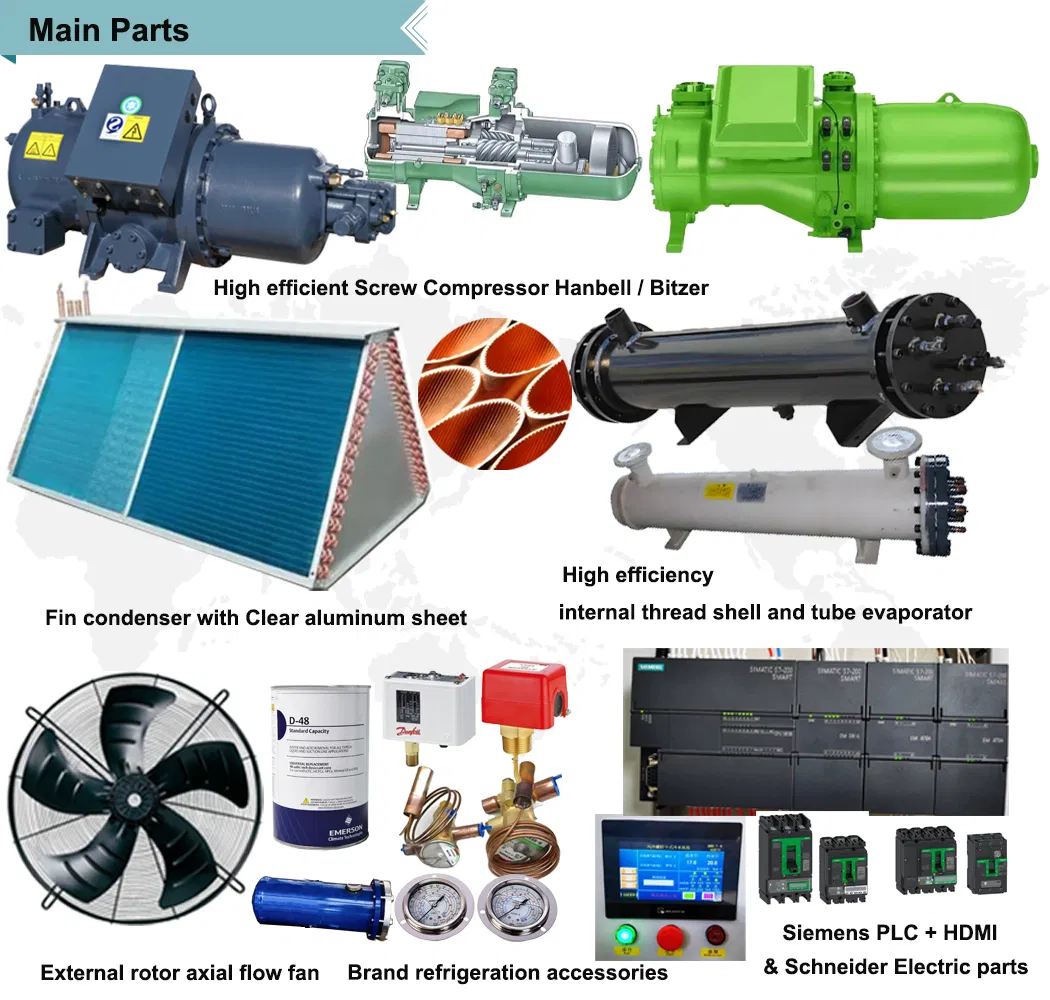

System Components & Protection

The system utilizes SIEMENS PLC program control with an LED touch panel for human-computer interaction. The hardware includes high-efficiency copper condensers and eco-friendly R-407c refrigerant options.

T

Technical Specifications

Model	OMC-100ADH	OMC-120ADH	OMC-150ADH	OMC-170ADH	OMC-200ADH	OMC-240ADH
Cooling Capacity (KW)	328	351.6	470	555.8	653.8	765.6
Cooling Capacity (Ton)	93.3	100.0	133.6	158.0	185.9	217.7
Input Power (KW)	99.4	112.6	152.2	179	210.4	238.4
Compressor Type	Semi-Hermetic Screw
Refrigerant	R22 / R407C
Evaporator Type	Shell and Tube
Length (mm)	4000	4800	6200	6800	7800	8400
Net Weight (kg)	2860	3250	4200	4450	4850	5300

S

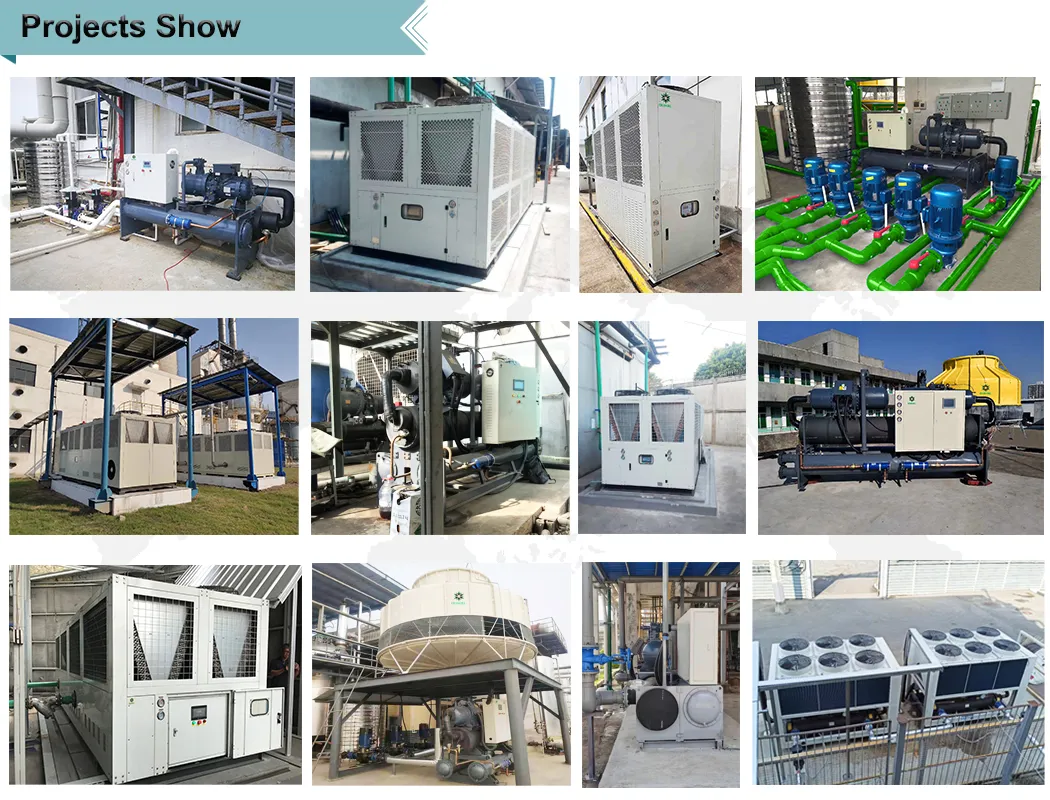

Applications & Benefits

Air cooled screw chillers use ambient air as the cooling medium, eliminating the need for a separate cooling water source or cooling towers. This provides extreme flexibility for installations in:

Industrial Processes: Plastic manufacturing, pharmaceutical production, and chemical processing.
Data Centers: Maintaining critical temperatures for servers and electronics.
Commercial Buildings: HVAC for office buildings, hotels, and shopping malls.
Medical Facilities: Precise cooling for operating rooms and medical equipment.

?

Frequently Asked Questions

How do I choose the right chiller model?

Engineers recommend the ideal model based on your specific requirements, including required cooling capacity (Ton/KW), refrigerant type, and the specific industrial application.

What are the main advantages of an air-cooled system over water-cooled?

Air-cooled chillers do not require a cooling tower or constant water supply, which simplifies installation, reduces water consumption, and lowers overall maintenance costs.

What is the warranty period for these industrial chillers?

All products come with a 15-month warranty covering any quality-related damages or performance issues.

Which safety protections are built into the system?

The chillers include comprehensive protection for compressor overheating, overloading, high/low pressure, reversed phase, and anti-freezing.

Can the cooling capacity be adjusted during operation?

Yes, the screw compressors allow for stepped capacity control (e.g., 0-25-50-75-100%) to match varying refrigeration loads efficiently.

What control system is used for monitoring?

The system utilizes a SIEMENS PLC program control with a multi-language LED touch panel and industrial interfaces for remote computer monitoring.
