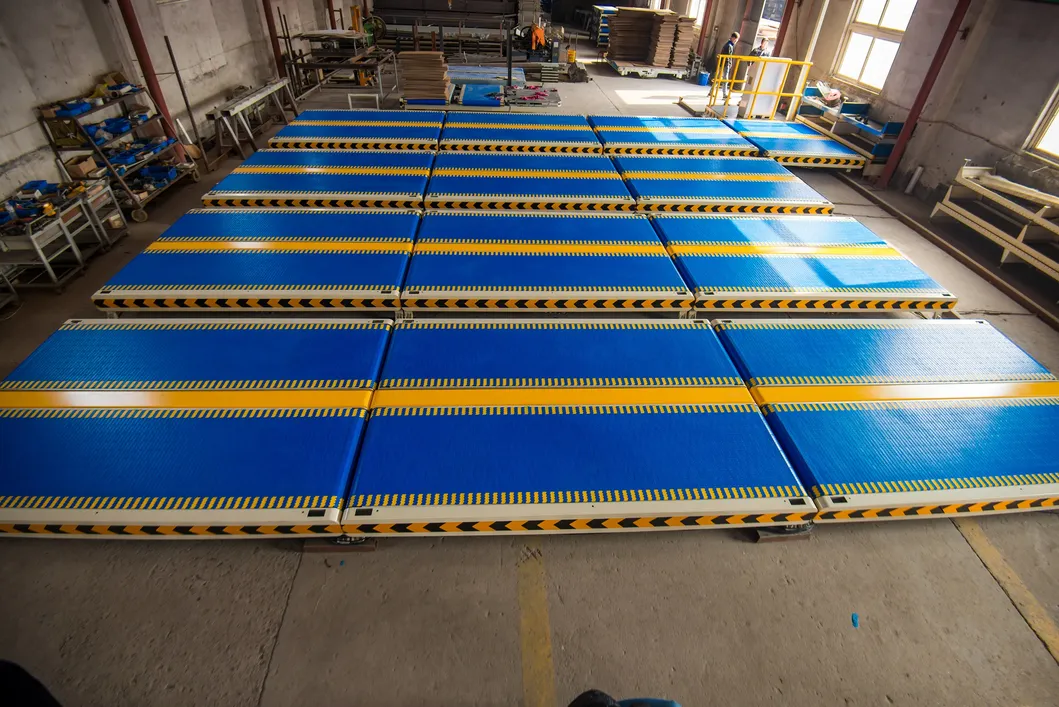

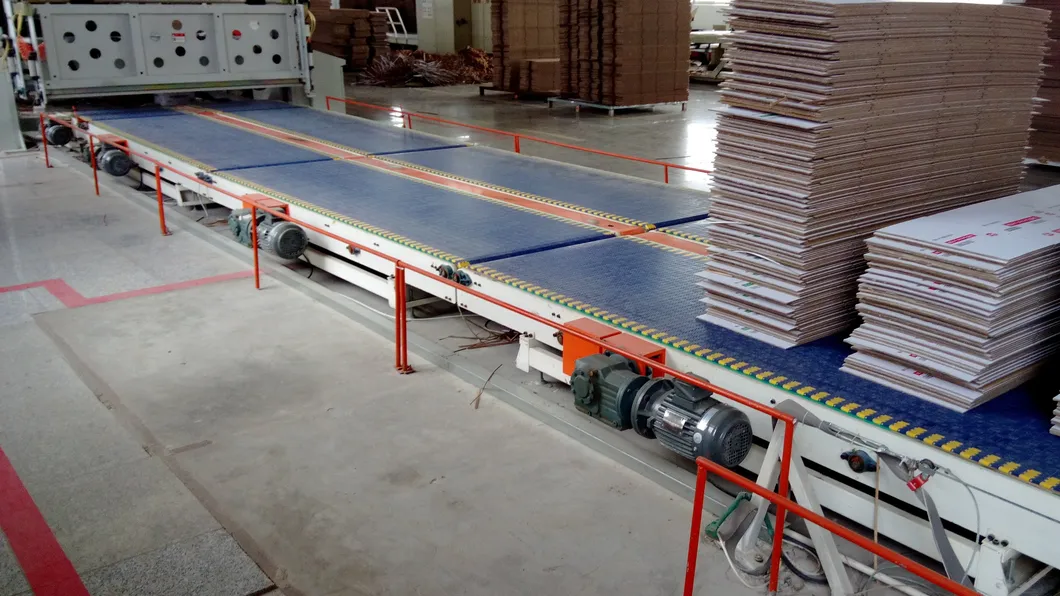

Module Belt Conveyor Short Description:

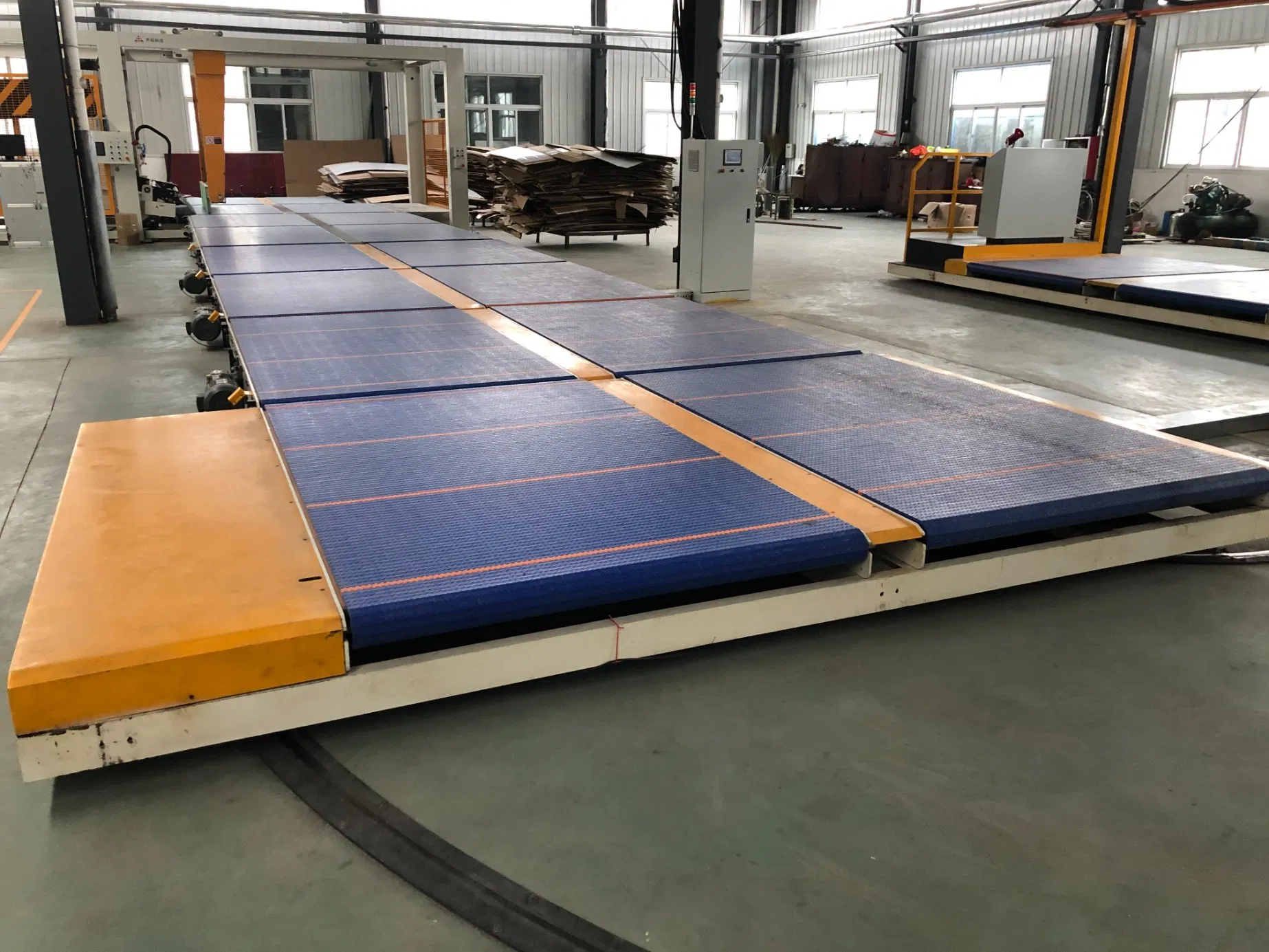

The Auto Module Conveyor System is a high-efficiency downstream and processing system for modern corrugated cardboard and carton box factories. Through plant-wide layout design, it realizes automatic cardboard conveying, significantly reducing manpower and material resource requirements.

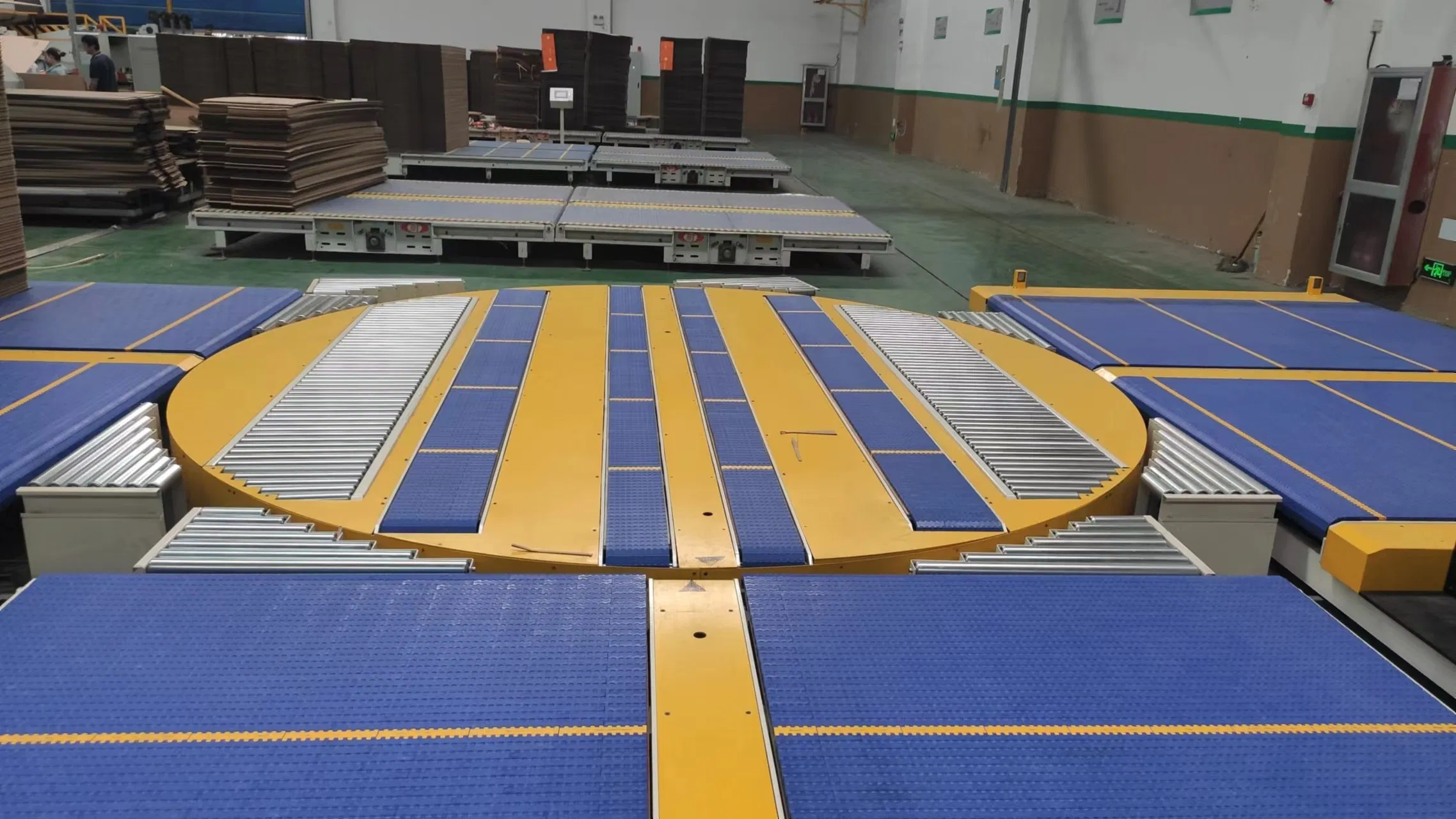

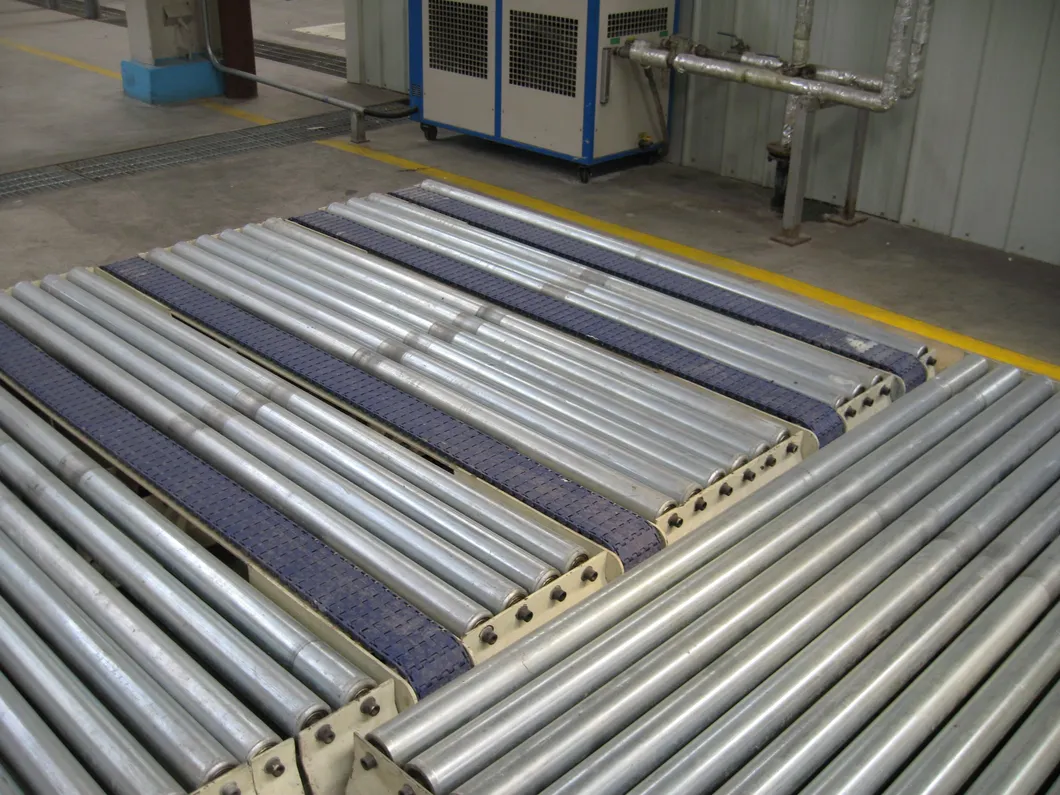

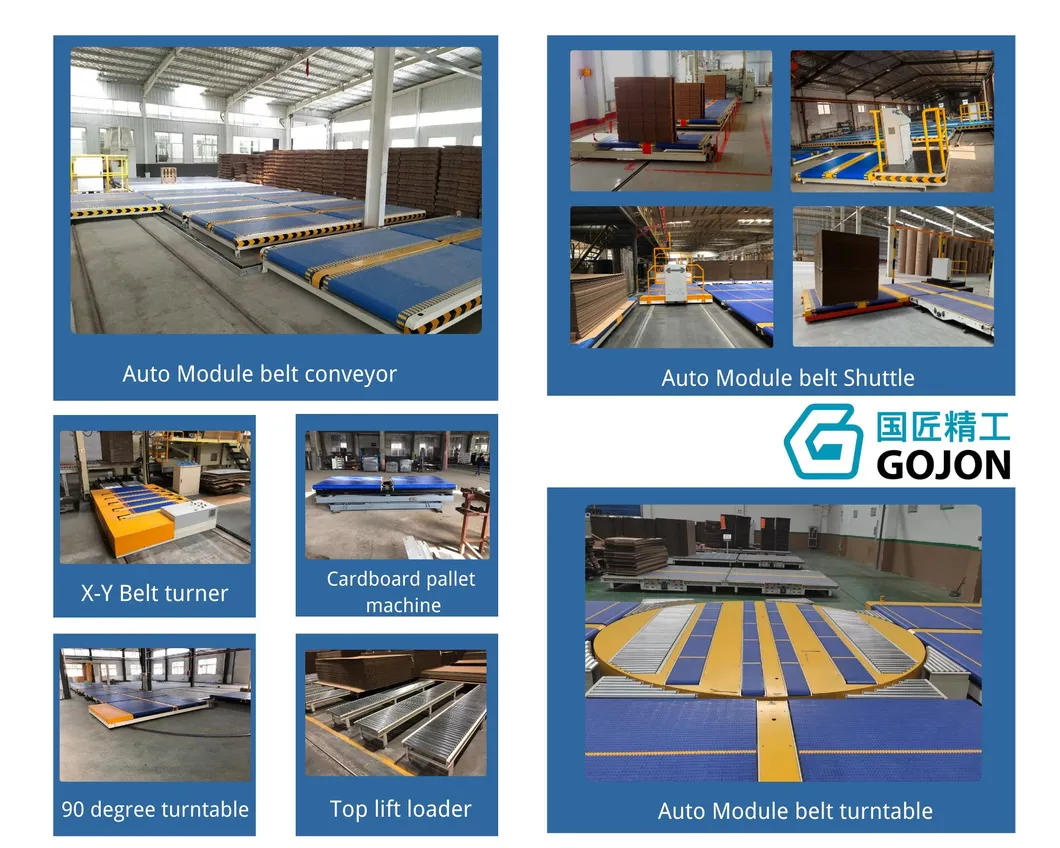

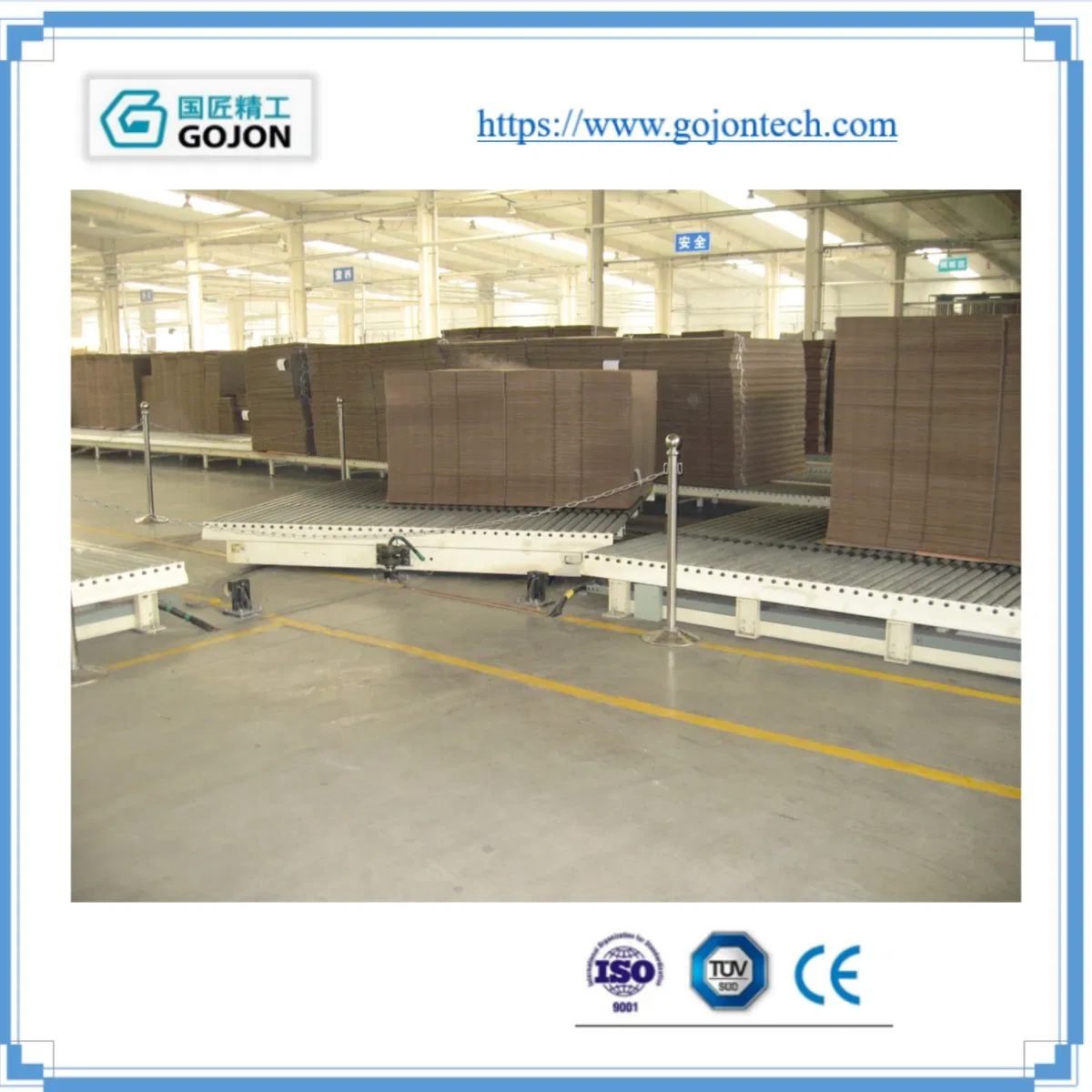

This system meets various requirements for corrugated cardboard conveying of different widths and lengths. The modular belt platform, electric distributor, XY turner, and auto roller conveyor lines can all be customized according to specific production needs.
| No. | Item | Requirement |
|---|---|---|
| 1 | Control Voltage | 24VDC |
| 2 | Climate Condition | Interior: 10-40°C |
| 3 | Humidity | Avg 60%; Max 95% |
| 4 | Compressed Air Pressure | 0.5 ~ 0.7 MPa |
| 5 | Filter | 40μm |

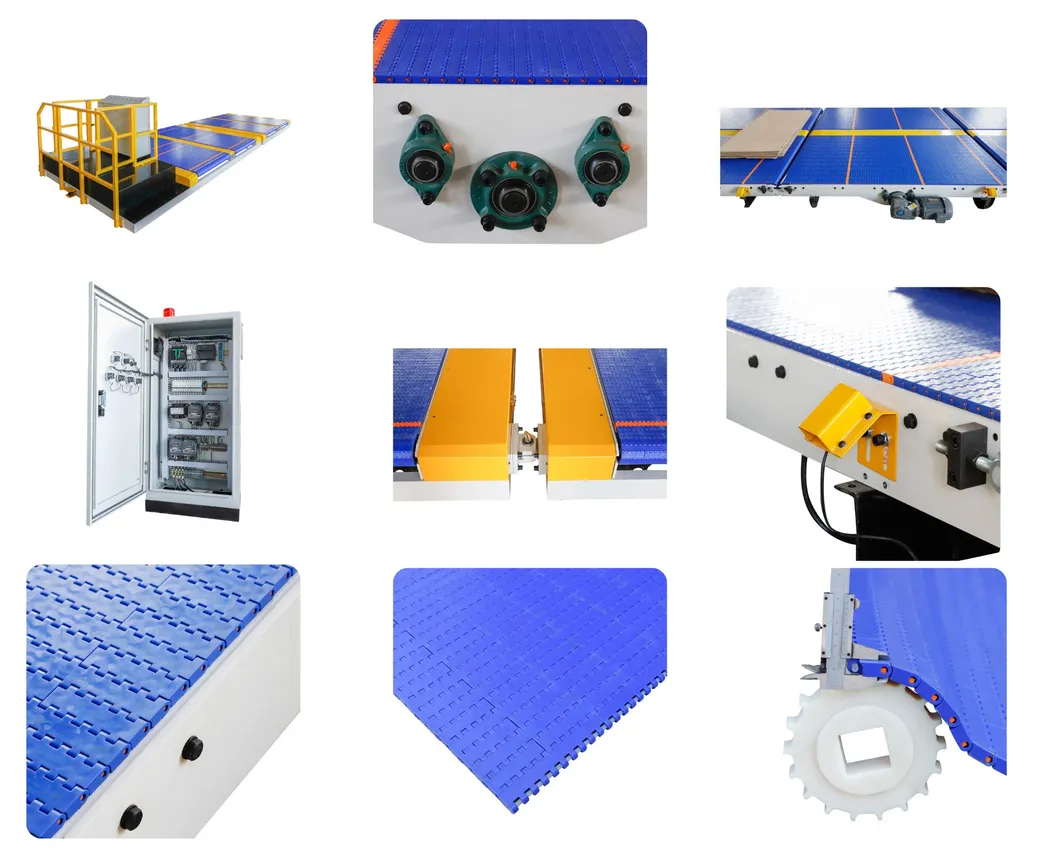

| No. | Feature | Description |
|---|---|---|
| 1 | Conveyed Belt | Imported POM material module network belt (12mm) |
| 2 | Conveyor Support | Composite wooden board |
| 3 | Equipment Material | 10T iron plate laser processing |
| 4 | Net Belt Speed | Max 30M / min (Inverter control) |
| 5 | Motor Power | 2.2KW |
| 6 | Controller | Programmable Logic Controller (PLC) |
Intelligentized Conveyor System: Reduces labor costs, facilitates easy operation, and satisfies modern enterprise management needs.
Optimization: Our software expands storage space, lowers transportation costs, and improves operating efficiency, ensuring workshop tidiness.
Efficiency: Solves human handling fatigue and low conveying efficiency, realizing intelligent operation in processing areas.
