Zhida Plastic Machinery
Zhida Plastic Machinery
| Parameter / Model | TTF-700AF | TTF-700A | TTF-520AF | TTF-520A |
|---|---|---|---|---|
| Station | Four stations | Three station | Four stations | Three station |
| Forming Area | 700mm x 550 mm | 520mm x 400 mm | ||
| Forming Depth (Max.) | 120mm | 110mm | ||
| Sheet Thickness | 0.2-2.0mm | |||
| Forming Speed (Max.) | 35 times/min | 30 times/min | ||
| Used Power | 105Kw | 95Kw | 55Kw | 50Kw |
| Weight | About 25.0T | About 19.0T | About 11.0T | About 9.0T |
| Parts Name | Brand / Origin |
|---|---|
| Filter | CKD (Japan) |
| Forming Valve | NORGREN (UK) |
| Proximity Switch | ROCKWELL (USA) |
| Temperature Control Module | WEST (UK) |
| AC Contactor / Circuit Breaker | SCHNEIDER (France) |
| PLC / Servo Motor | DELTA (Taiwan) |
| Intermediate Relay | IDEC (Japan) |
| Sheet Sagging Detection | SICK (Germany) |

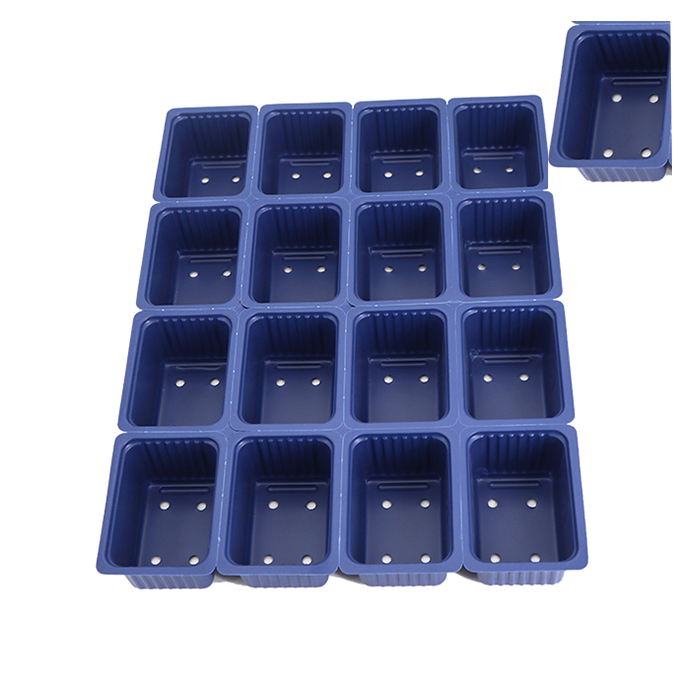

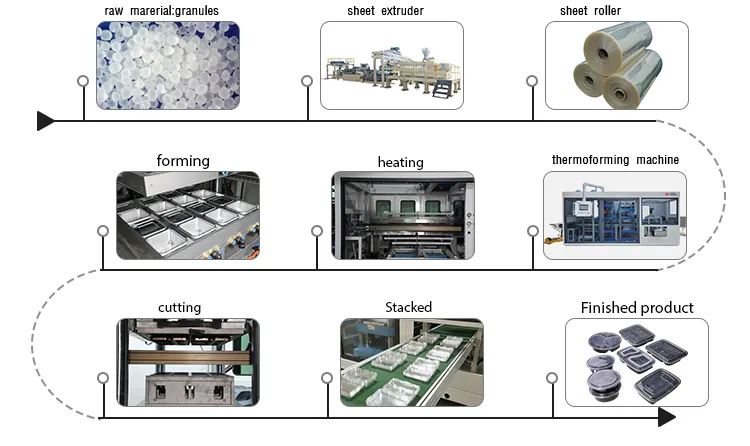

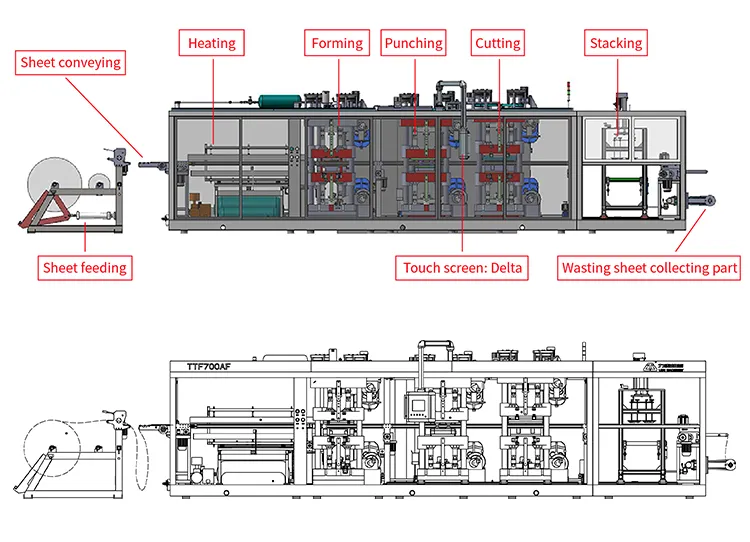

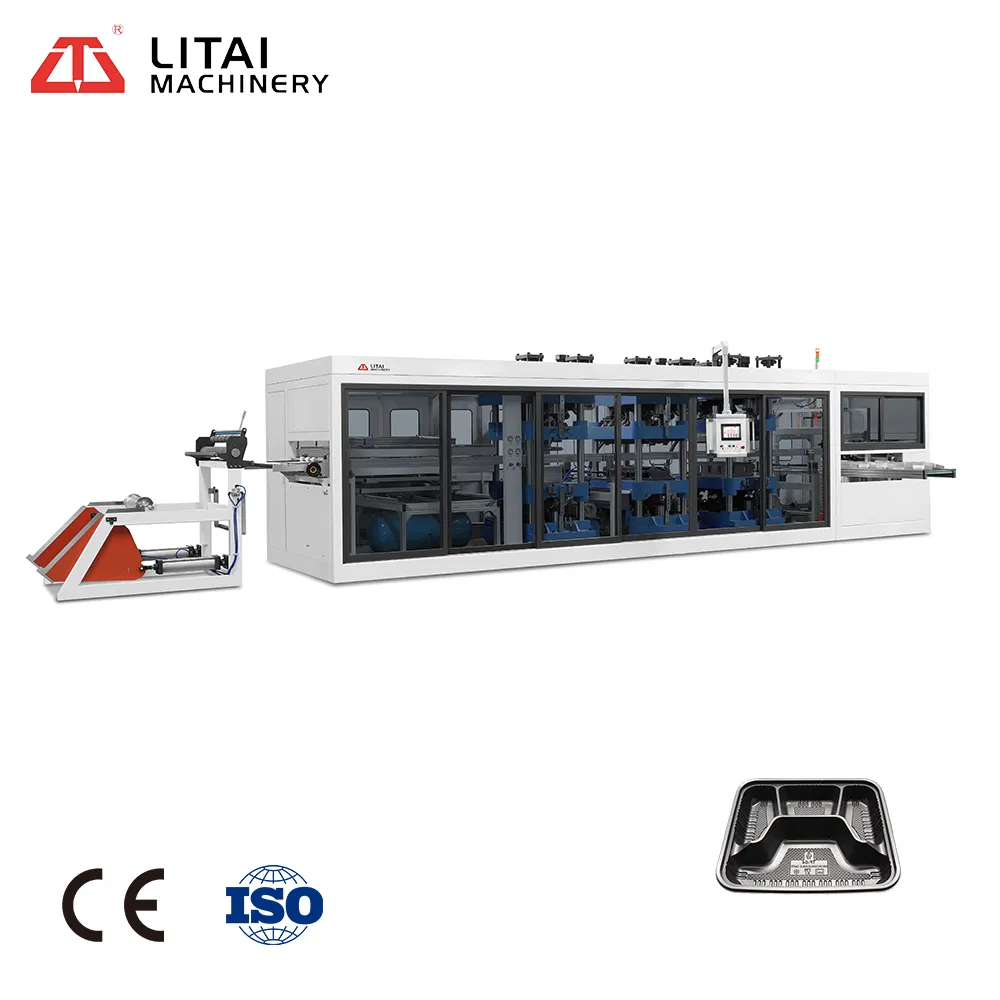

The TTF series full-automatic thermoforming machine is a high-performance solution that integrates forming, punching, cutting, and stacking into a single process. It is widely used for producing plastic trays, containers, boxes, lids, and other disposable packaging products. The system is completely driven by servo motors to ensure stable operation, low noise, and high efficiency.

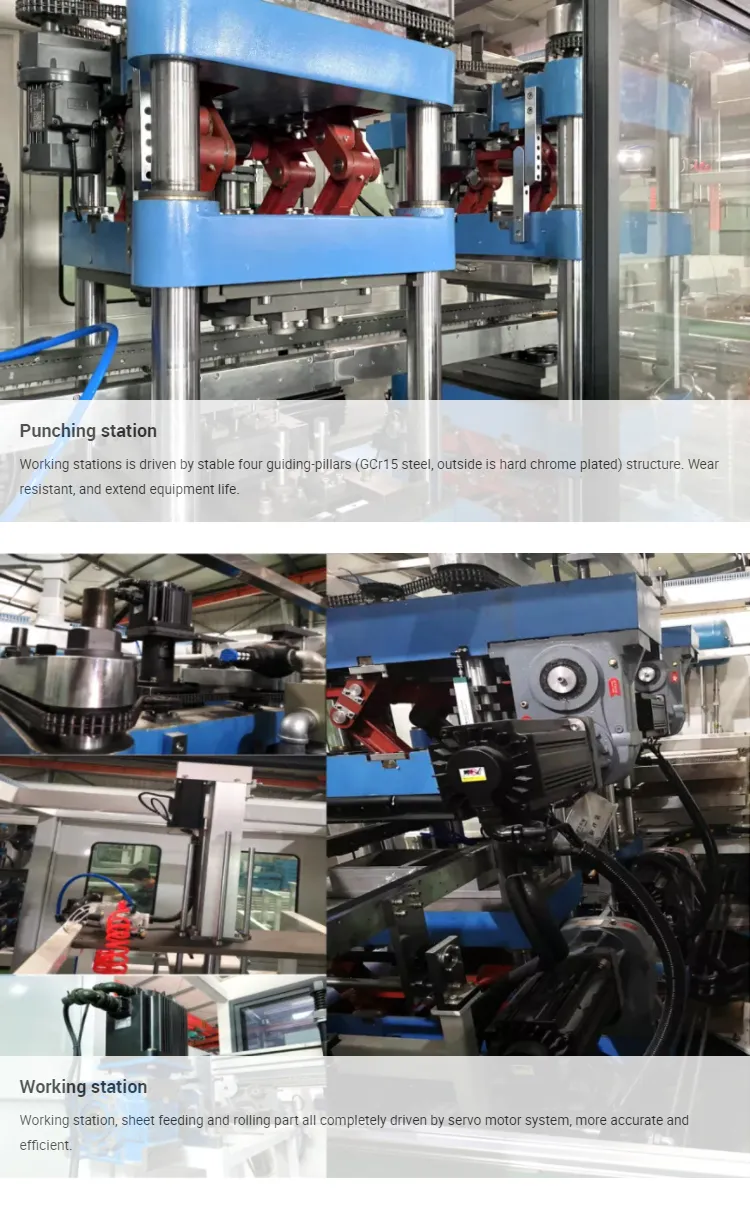

No noise, no vibration. Ensures high-speed and high-quality thermoforming results.
Equipped with a rapid mould change device, significantly reducing downtime during production shifts.
Advanced system with tolerance <1ºC, ensuring uniform heating for various sheet materials.
Highly automated process requiring only 1-2 workers for final product packing.
