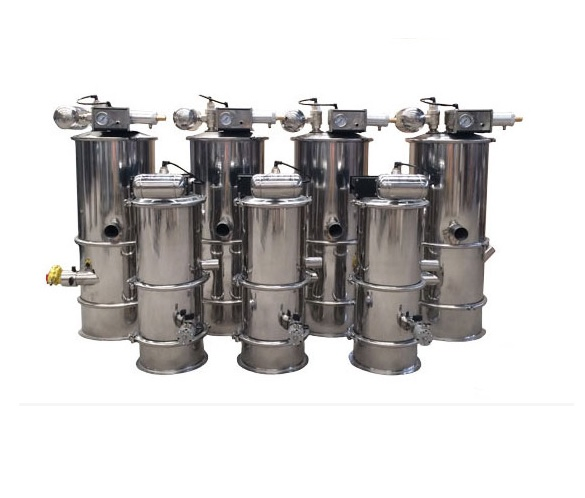

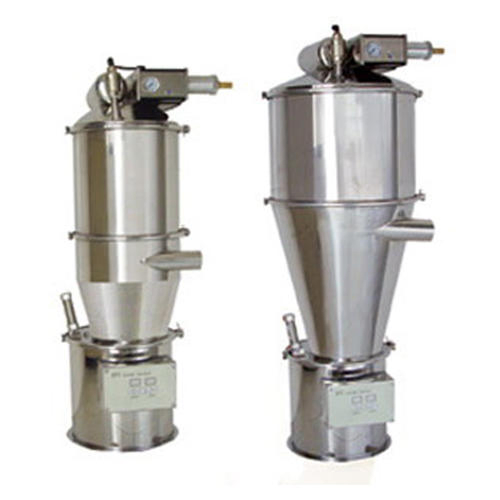

Introducing the RX Pneumatic Vacuum Conveyor. This innovative conveyor system offers six standard types to suit various conveying needs: RX-2, RX-3, RX-7, RX-14, RX-33, and RX-56. Each model is carefully selected based on conveying distances, volumes, and material densities, ensuring optimal performance.
The vacuum automatic feeder conveyor is constructed from high-quality 304/316L material with a 0.6 μ Mirror treatment on the inner surface. The standard model features intermittent conveying, with the specifications indicating the suction volume per cycle. Simply open the bottom flap valve after reaching the rated volume, discharge the material, close the valve, and initiate the next suction cycle.
| Model Parameter | QXL-200 | QXL-300 | QXL-400 |
| Volume (L) | 13 | 38 | 68 |
| Power (W) | 200 | 200 | 200 |
| Compressed air consumption/pressure(L/min)/MPa | 50/0.6 | 80/0.6 | 100/0.6 |
| Vacuum pumping interface | Quick installation 1.5 inch | Quick installation 2.5 inch | Quick installation 3.5 inch |
| Feeding interface | Quick installation 1.5 inch | Quick installation 2.5 inch | Quick installation 3.5 inch |
| Blow back interface | Quick installation 1 inch | Quick installation 1 inch | Quick installation 1 inch |
| Production capacity Kg/h | 50-900 | 300-2500 | 600-3500 |
| Weight (Kg) | 72 | 96 | 125 |
| Overall dimensions (mm) D×H | φ350×1100 | φ450×1300 | φ480×1400 |
Experience the efficiency and reliability of our products for your industrial needs through our innovative features:
For more information on the Vacuum Conveyor, please refer to the technical specifications and operational guidelines provided.

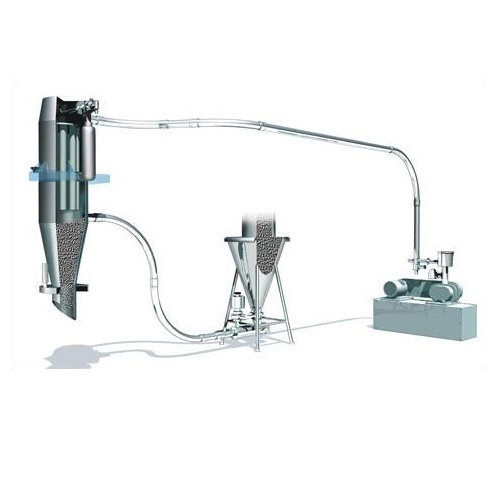

Introducing the Vacuum Conveyor Machine for Bulk Material Handling. This innovative machine is designed for efficient and reliable powder transfer and bulk material conveying.
