Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
1 / 5
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine
Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine

Full Automatic Disposable Food Containers Plastic PS Foam Thermoforming Machine

Customization: Available
After-sales Service: 24 Hours
Warranty: One Year
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
HLRCH-1300/1420
Certification
CE, ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Applied Sheet
PS Foam/PP/Pet
Clamping Force
60tons
Dry Forming Speed
30cycles/Min
Max.Forming Area
1270mmx1420mm
Oven Length
5600mm
Dry Cutting Speed
150cycles/Min
Origin
China
🚀 Machine Features
01. High Speed Performance The molding speed reaches up to 30 molds/min, with a blanking speed of 120 molds/min, ensuring high production efficiency.
02. Large Molding Area Specially designed for high-speed molding and blanking of wide sheets in various widths (44", 48", 52", 54", and 60").
03. Advanced Energy Saving Utilizes patented technology that reduces power consumption by nearly half compared to standard machines.
04. Superior Product Quality Large mold clamping force allows for air pressure (positive pressure), compression, or comprehensive molding for high-grade results.
05. Highly Automated Significant labor savings as the entire production line typically requires only one operator (excluding packing).
06. Intelligent Data Storage Capability to store various production datasets. Post-mold changes, production resumes instantly by simply inputting the mold number.
07. Remote Diagnosis Real-time remote fault diagnosis capability to minimize downtime.
📊 Technical Specifications
Station One: Thermoforming Machine Part
Model/Parameters Unit HLRCH-760/1010 HLRCH-1060/1300 HLRCH-1100/1300 HLRCH-1300/1300 HLRCH-1300/1420
Max. forming area mm² 762x1016 1065X1295 1120X1295 1270X1295 1270X1420
Max. forming depth mm 127 127 127 127 127
Mold clamp force t 40 60 60 60 60
Max. forming speed s/mold 1.8 2 2 2 2
Install(LxWxH) m 10x2x2.5 14x2.2x2.5 14x2.2x2.5 14x2.35x2.5 15x2.35x2.5
Station Two: In-Line Cutting Machine Part
Model/Parameters Unit HLZCZ-760 HLZCZ-1060 HLZCZ-1100 HLZCZ-1300
Max. cutting area mm² 762x400 1065X400 1120X400 1270X500
Max. cutting force t 20 35 35 35
Max. cutting speed cycle/min 160 160 160 160
🖼️ Production Procedures & Visuals

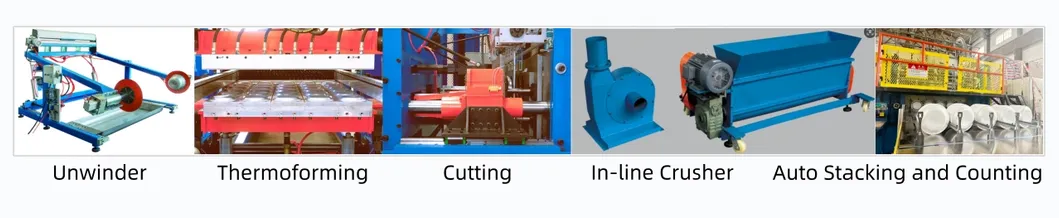

Work Flow Diagram:

Procedures

Final Products and Machine Details:

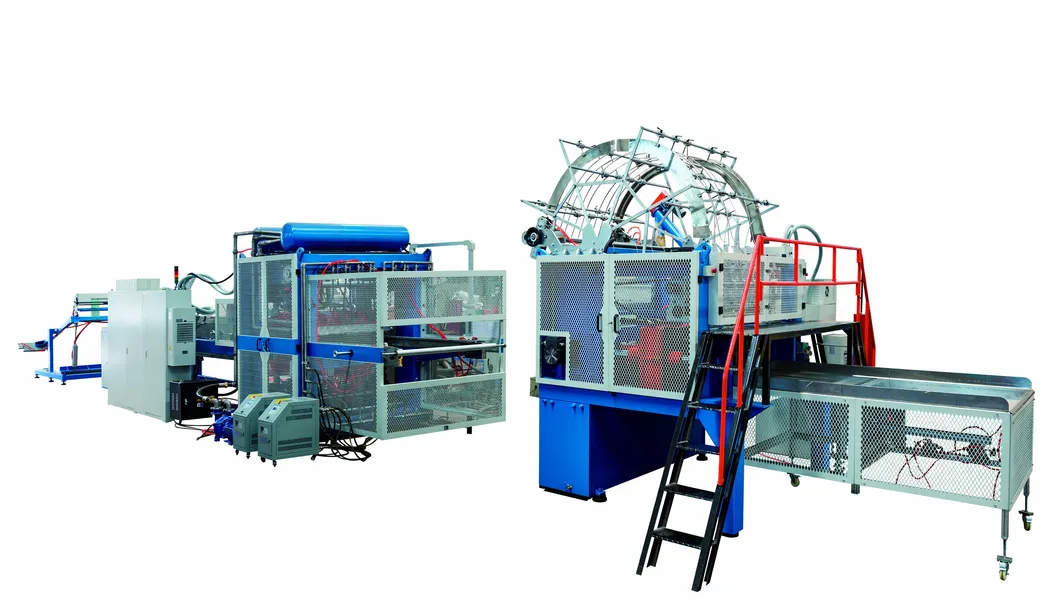

Machine Photo Final Products Display Product Samples Food Containers
🛠️ After-Sales Service
  • ✅ On-site installation and commissioning at the customer's facility.
  • ✅ 1-Year Warranty for all main machine components.
  • ✅ Permanent long-term technical support and expertise.
  • ✅ Lifetime maintenance services provided for all machine units.
❓ Frequently Asked Questions (FAQ)
What materials are suitable for this thermoforming machine?
The machine is designed to process PS Foam, PP, and PET sheets efficiently for making disposable food containers and trays.
How does the machine achieve energy savings?
Through advanced patent technology, this machine unit consumes approximately half the power of traditional thermoforming equipment without sacrificing speed.
Can the machine handle different sheet widths?
Yes, it supports high-speed molding and blanking for wide sheets ranging from 44 inch up to 60 inch widths.
Is technical support available if the machine malfunctions?
Absolutely. The machine features remote fault diagnosis capabilities, and we provide long-term technical support and lifetime maintenance.
How many operators are required to run the production line?
Due to the high level of automation, the entire production line typically requires only one worker to manage the operations, excluding the final packing staff.
Are custom machine specifications available?
Yes, we can customize machine parameters and features based on specific production requirements and requests.
