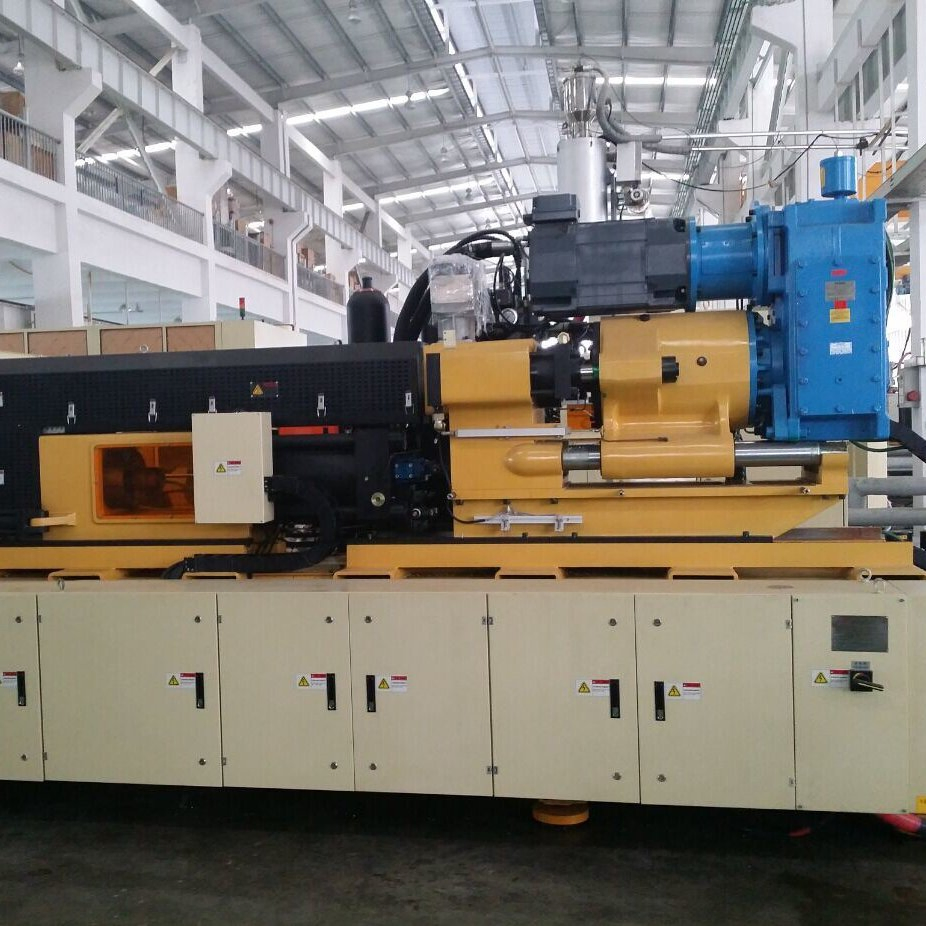

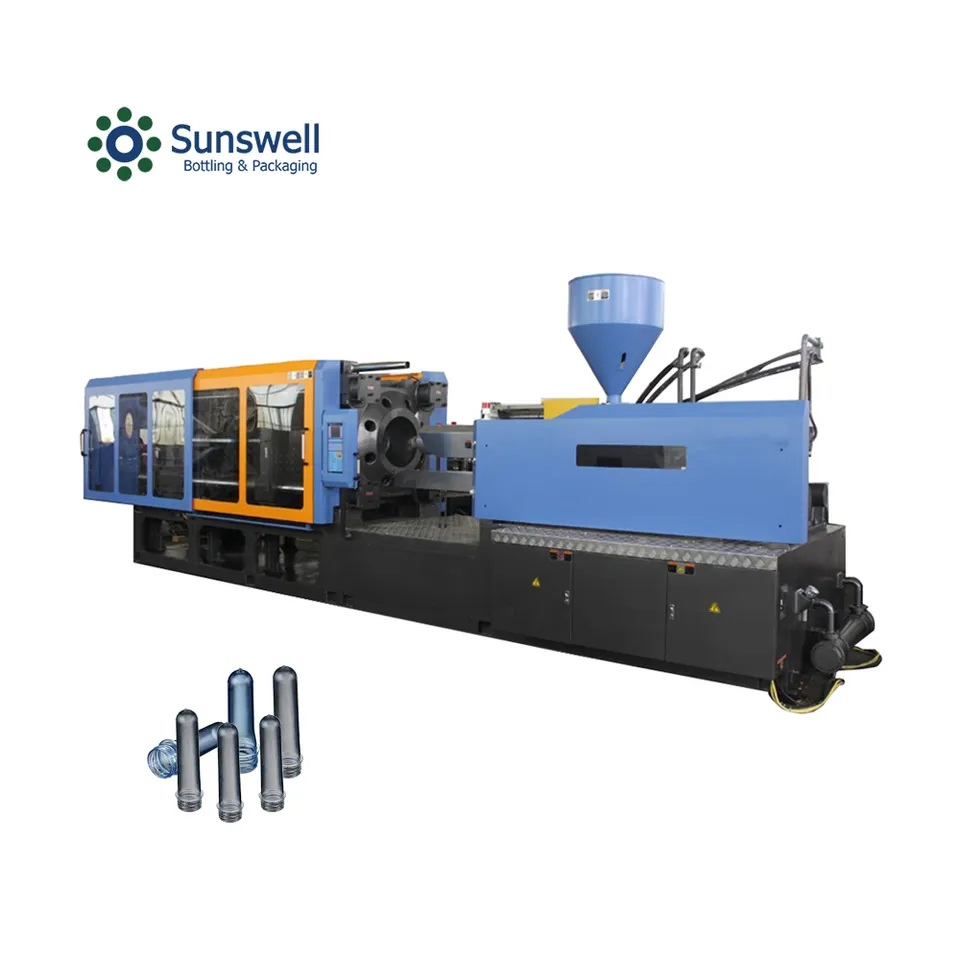

Full Automatic Plastic Pet Bottle Preform Injection Molding Machine

1 / 5

Full Automatic Plastic Pet Bottle Preform Injection Molding Machine

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Type

Volumetric Filling Machine

Automatic Grade

Fully Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Filling Principle

Vacuum

Structure

Rotary

Packaging

Bottle

Packaging Material

Plastic

Application

Beverage, Food, Machinery

Driven Type

Electric

Voltage / Power

380V / 2.2kw-3.7kw

Certification

CE, UL, ISO, SGS

Production Capacity

20000bph

Material Construction

Stainless Steel SUS304, SUS 316

★

PET Bottle Preform Injection Molding

System Components:

Dehumidifying dryer and auto loader system for material.
Environment dehumidifying dryer system.
Chiller system.
Mold and hot runner temperature controller system.
Fully automatic operation system.

INJECTION DEVICE	Unit	S2100	S3200	S2500
Screw Diameter	MM	82	95	82
Screw L/D	L/D	24:1	24:1	24:1
Theoretical Shot Volume	CM3	2000	3100	2000
Injection Weight (PET)	G	2050	3160	2050
Injection Pressure	MPA	132	133	132
CLAMPING UNIT
Clamping Force	KN	3600	3600	4000
Toggle Stroke	MM	660	660	730
Space Between Tie Bars	MM	680*680	680*680	720*720
Mold Height (Min-Max)	MM	280-680	280-680	280-750

✔

Key Features & Advantages

Special injection construction designed to optimize plasticizing performance.
High precision linear potentiometer (L/P) for injection and clamping (Deviation < 0.01mm).
Advanced PID temperature controller with screw cold start protection and broken wire detection.
Microprocessor controller supporting 4-stage injection and 3-stage holding/back pressure.
Built-in memory capable of storing up to 100 preset mold data profiles.
Enhanced stability ensuring lower defect rates in PET preform dimensions.

⚙

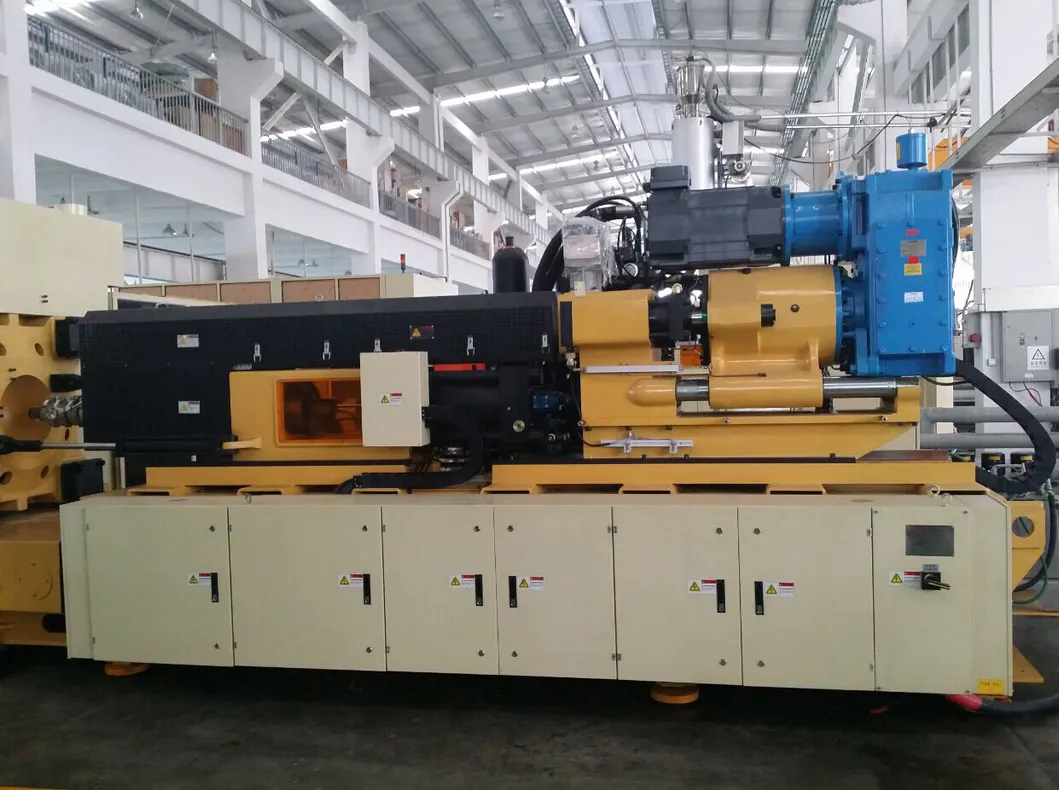

Technical Display

Frequently Asked Questions

What materials can this injection molding machine process?

This machine is specifically designed for PET (Polyethylene Terephthalate) material, primarily for producing bottle preforms for beverages and food packaging.

How precise is the injection control system?

The machine utilizes a high-precision linear potentiometer with a deviation of less than 0.01mm, combined with a PID temperature controller accurate to within ±1°C.

Is the machine easy to operate for different bottle sizes?

Yes, the microprocessor controller features a shut-down memory that can store up to 100 sets of mold data, allowing for quick transitions between different production requirements.

What safety features are included for the screw and heating system?

The PID temperature control system includes limitations for screw cold starts and broken wire detection to prevent mechanical damage and ensure consistent heating.

Does the system include auxiliary equipment?

The full setup includes a dehumidifying dryer, auto-loader, chiller system, and mold temperature controllers to provide a complete production environment.

What is the construction material of the machine?

Key components and contact parts are made from high-quality Stainless Steel (SUS304 and SUS316) to ensure durability and food-grade safety standards.
