Customization: Available
After-sales Service: 3year
Warranty: 3year
Send Inquiry

Product Description

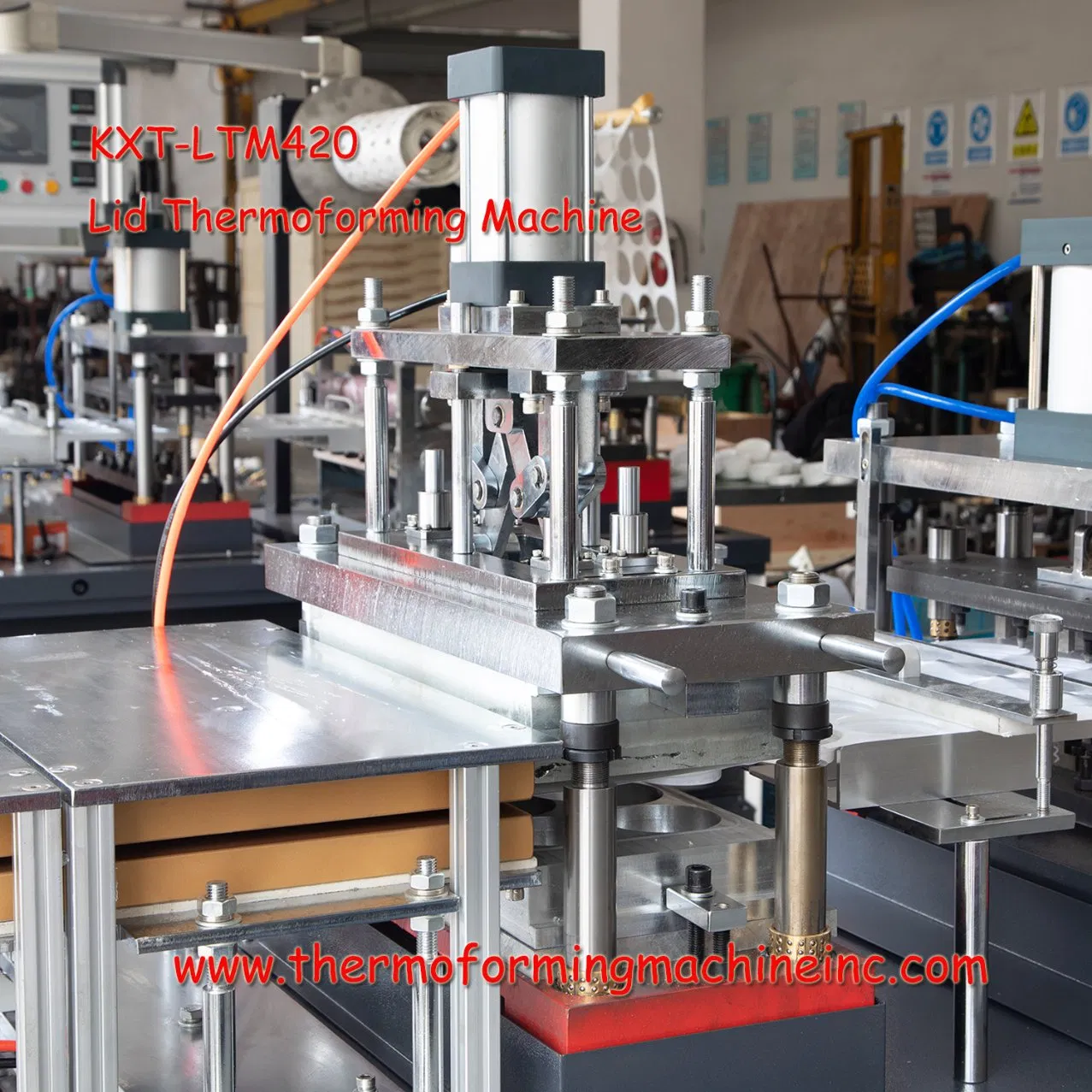

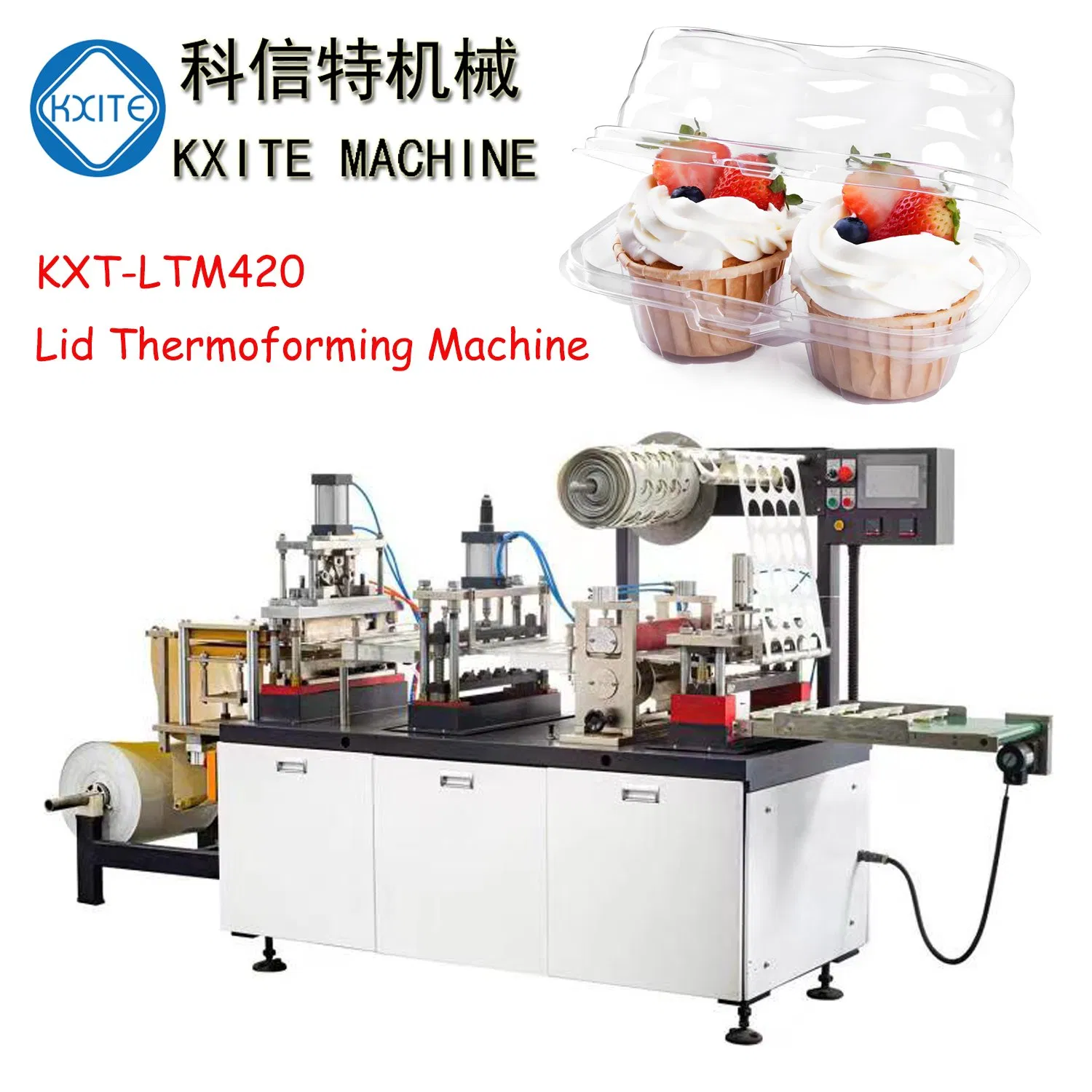

PRODUCT Plastic Lid Thermoforming Machine

Professional automatic solution for HIPS, PS, PVC, PET and other plastic sheets molding.

Basic Information

Model NO.
KXT-LTM420
Certification
CE
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Punch Frequency
8-30 Time/Min
Max Formed Area
520×300mm
Max.Forming Depth
55mm
Air Pressure
0.5-0.7MPa
Total Power
380V/220V 50Hz
Heating Power
12kw
HS Code
8422400090

Product Description

Automatic plastic tray / lid making machine manufacturer is invented based on the mature technology of plastic thermoforming machinery. It is an improved model, smarter and easier to operate. It is mainly suitable for the molding of HIPS, PS, PVC, PET and other plastic sheets to produce various milk cup lids, milk tea cup lids, cola cup lids, coffee cup lids, spoons (soup spoons), saucer lids, snack trays, etc.

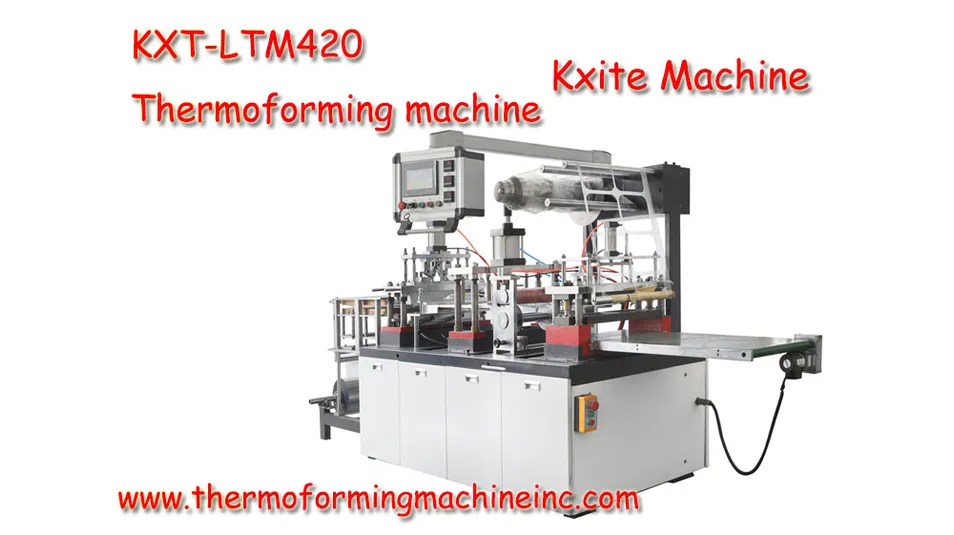

Plastic Lid Thermoforming Machine

Key Features & Applications

1
Adopts sheet roll feeding, heating, molding, hole or cross punching, trimming, and finished products transmission automatically, saving labor and avoiding pollution.
2
Controlled by PLC with an intuitive interface for easy operation and maintenance.
3
Adjustable journey and easy-to-change moulds for different product sizes.
4
Low electricity consumption, small workshop requirement, and high output.

Core Configurations

Unwinding/Heating Station

Unwinding/Heating

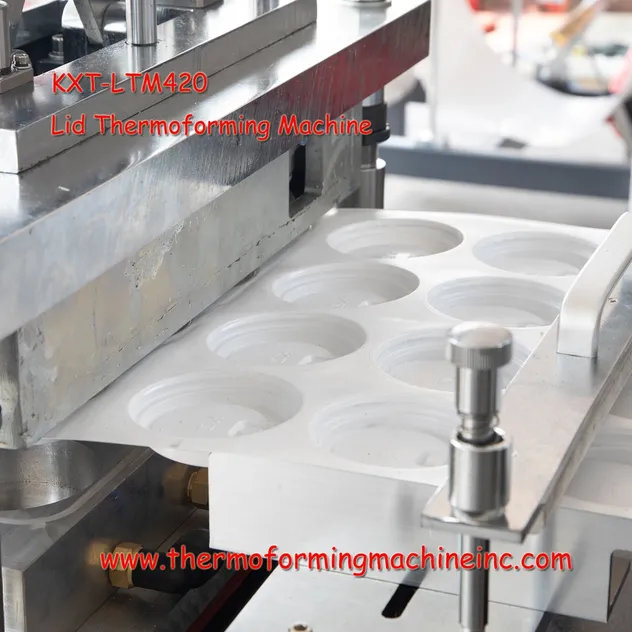

Forming Station

Forming Station

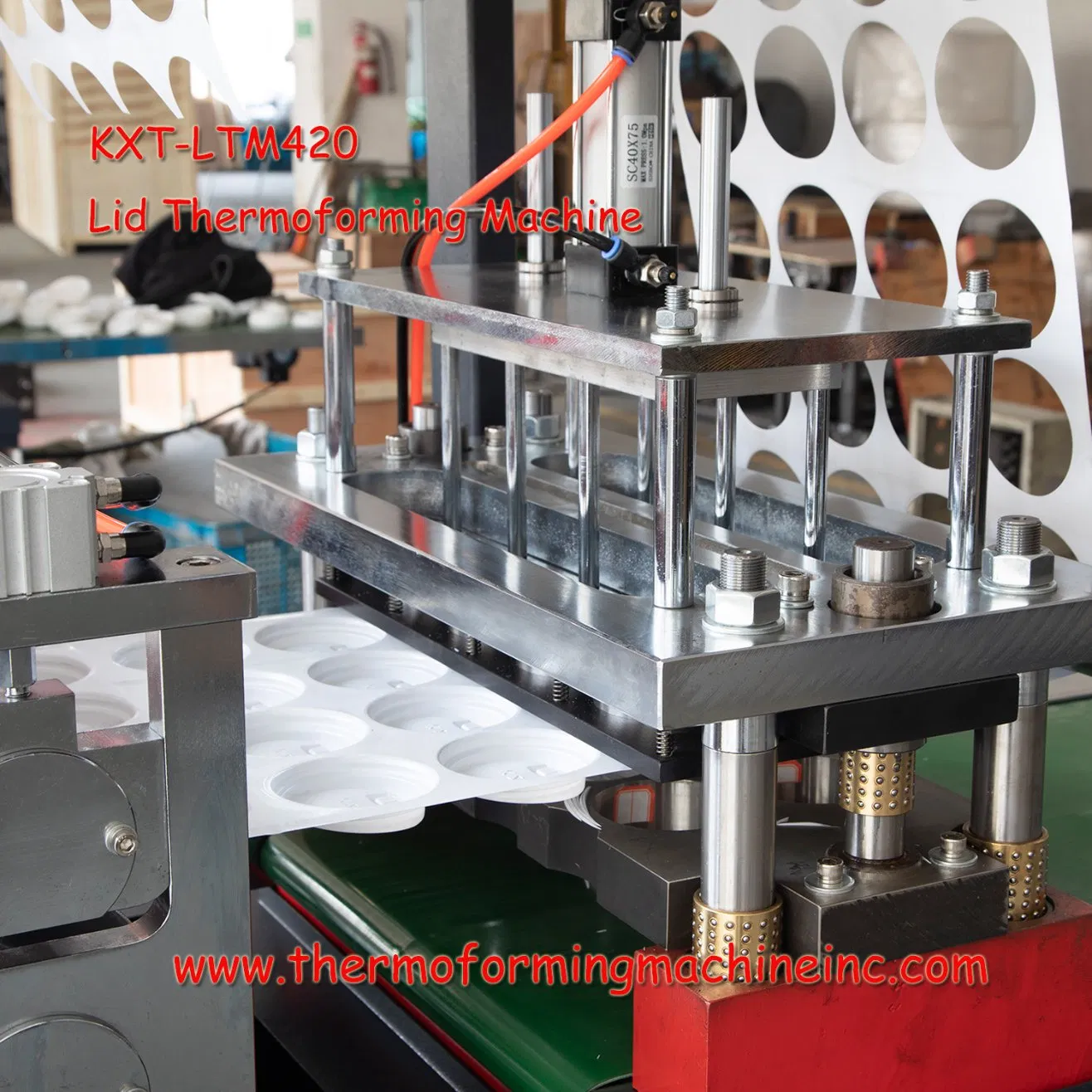

Punching Station

Punching Station

Cutting Station

Cutting Station

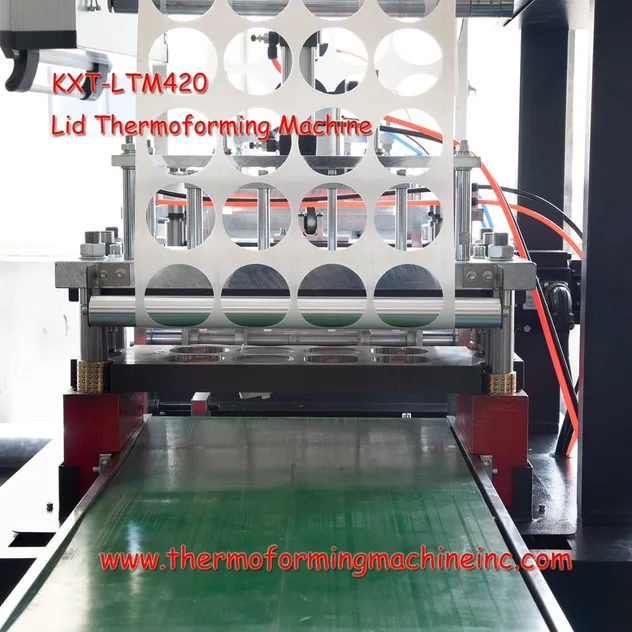

Stacking Robot

Stacking Robot

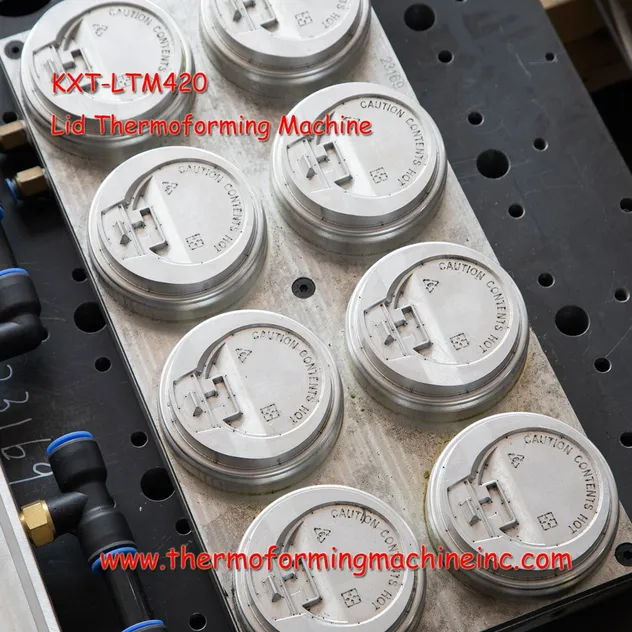

Thermoforming Mould

Thermoforming Mould

Technical Specifications

Model KXT-LTM420 KXT-LTM420F KXT-LTM450
Cutting Frequency8--30 times/min8--32 times/min15--45 times/min
Stroke Adjustable Range60--180mm60--320mm0-260 mm
Max. Forming Depth50mm50mm45mm
Max. Forming Area170×410mm310×420mm430×280mm
Weight850kg1250kg1700 kg
Overall Dimension2700*840*1700mm3800*920*1750mm3440*1833*930 mm

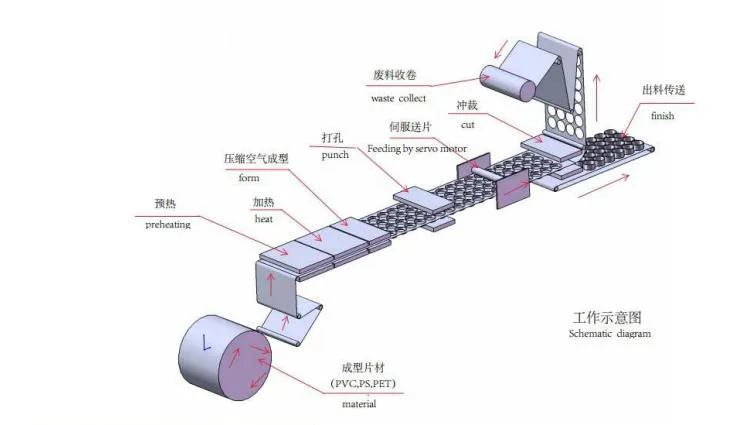

Machine Drawings

Service & Support

Pre-Sales

We provide technical guidance and customized solutions based on feasibility and production costs for non-standard equipment requirements.

Production

Order tracking by professional personnel with regular progress reports. Strict internal and external inspection processes ensure quality.

After-Sales

One-year warranty with lifetime maintenance. Support via spare parts, remote assistance, or dispatching personnel to the factory.

Factory Overview

Frequently Asked Questions

What materials can be processed by this machine?
The machine is designed to work with HIPS, PS, PVC, PET, and other similar plastic sheets to produce various lids and trays.
What are the payment terms and delivery time?
A 30% advance payment is required upon signing the contract. Standard machines are delivered within 60 working days, while non-standard machines take about 90 working days.
How do you handle quality control during production?
We adopt strict inspection processes, including internal component checks and whole-machine testing, to ensure all technical requirements are met before delivery.
What is the warranty period for the thermoforming machine?
The product warranty period is generally one year, and we provide lifetime maintenance services.
How do you provide support if the machine has a problem?
We offer multiple solutions: sending spare parts, providing remote maintenance assistance, notifying local agents, or dispatching our own personnel to your facility.
What should I do if there are problems during operation?
Our after-sales department responds immediately to inquiries. A decision on the necessary response measures is typically made within 24 hours.
