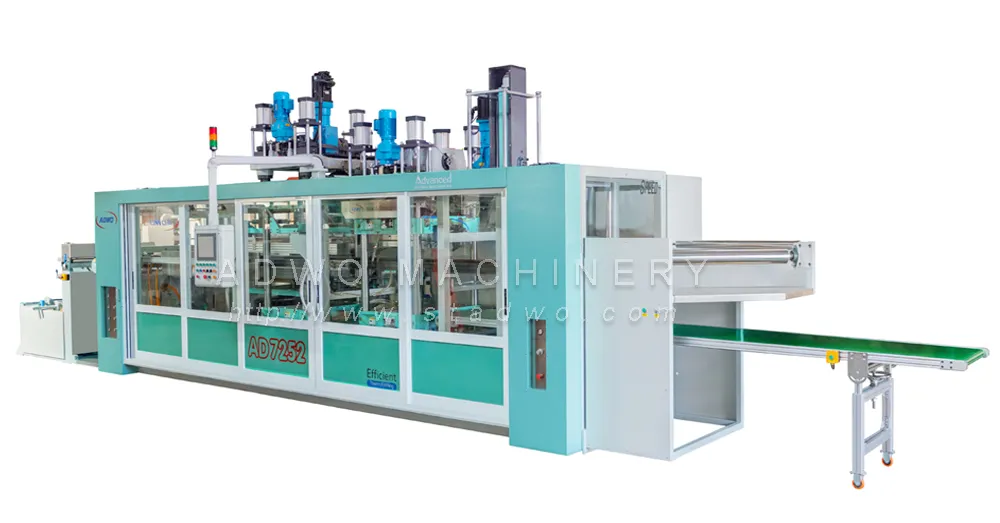

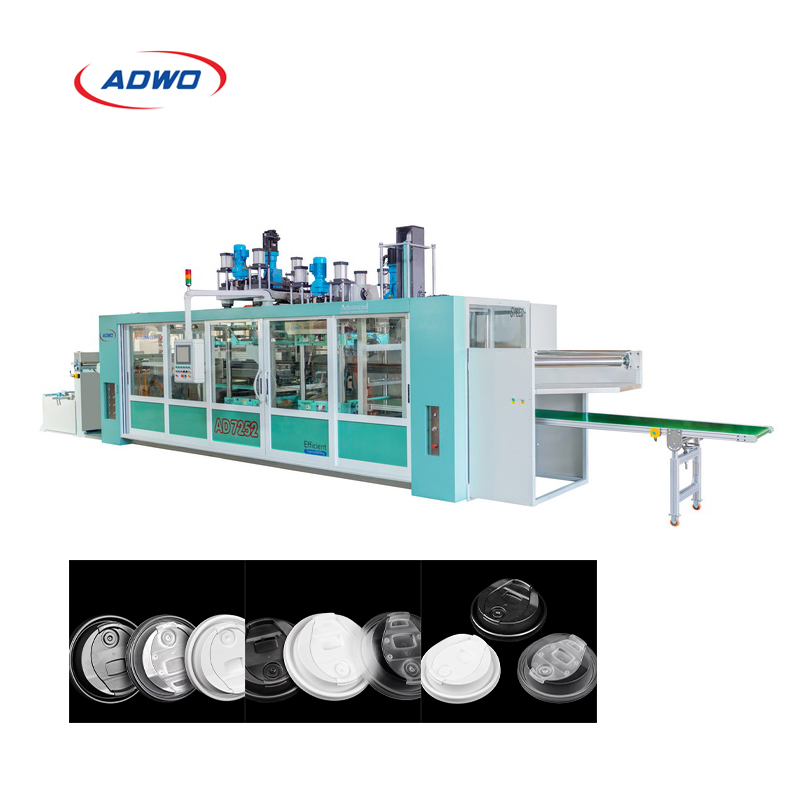

This positive and negative pressure high-speed thermoforming machine is a state-of-the-art solution developed for the production of high-quality plastic containers. It is compatible with a wide range of materials including PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, and corn starch. This versatile equipment is widely utilized in producing fast food boxes, fruit trays, bowl lids, medical packaging, and electronic industrial packaging.
| Parameter Item | Details |
|---|---|
| Model | AD7252 |
| Molding Method | Pultrusion / Vacuum Forming |
| Automatic Grade | Fully Automatic |
| Sheet Thickness | 0.12 - 2.0 mm |
| Max Formed Area | 720 x 520 mm |
| Max Cutting Area | 700 x 500 mm |
| Max Sheet Width | 760 mm |
| Max Formed Speed | 50 cycles/min |
| Air Pressure | 0.6 - 0.8 MPa |
| Main Motor Power | 5.5 kw |
| Total Power | 168 kw (Servo 28kw + Heating 140kw) |

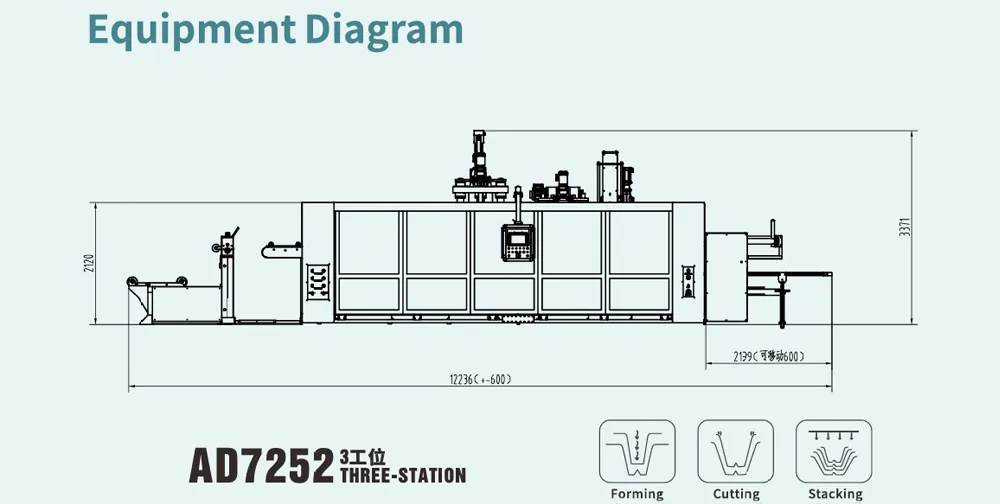

| Machine Dimensions | 12500 x 2360 x 3280 mm |
| Machine Weight | Approx. 14,000 kg |

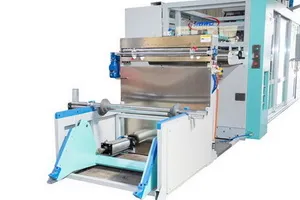

Driven by a gear reducer, sheet feeding is controlled by infrared sensors to prevent fall-off and contamination. Supports rolls up to 1000kg with pneumatic feeding for easy operation.

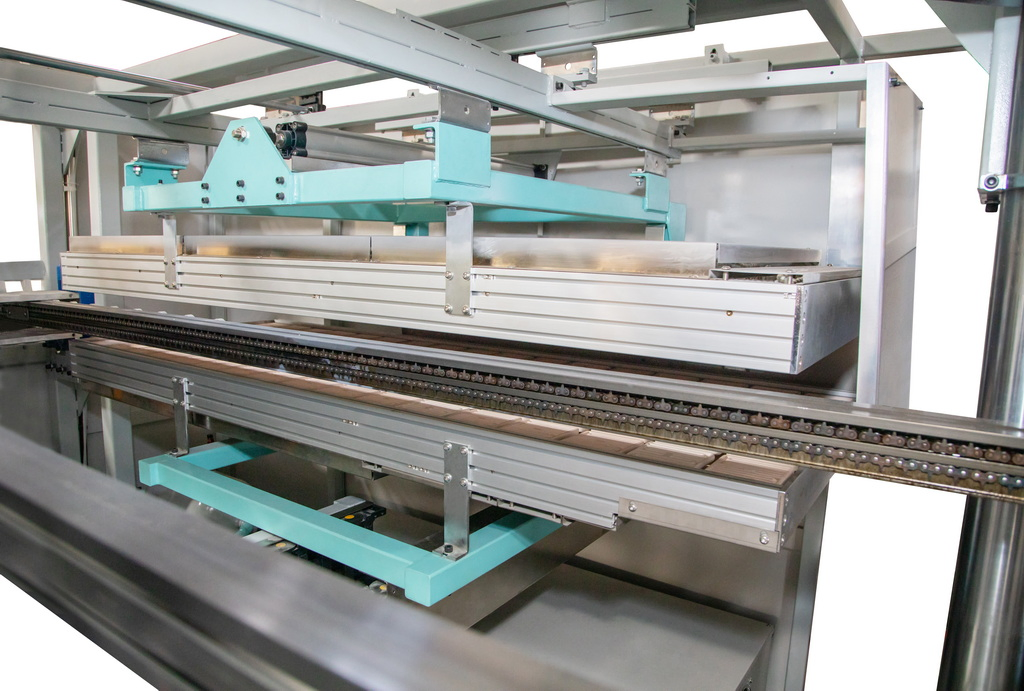

Features 4-section heating for precise temperature control, improved production efficiency, and reduced energy consumption.

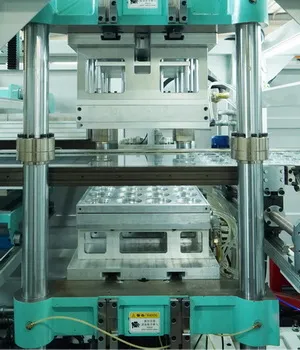

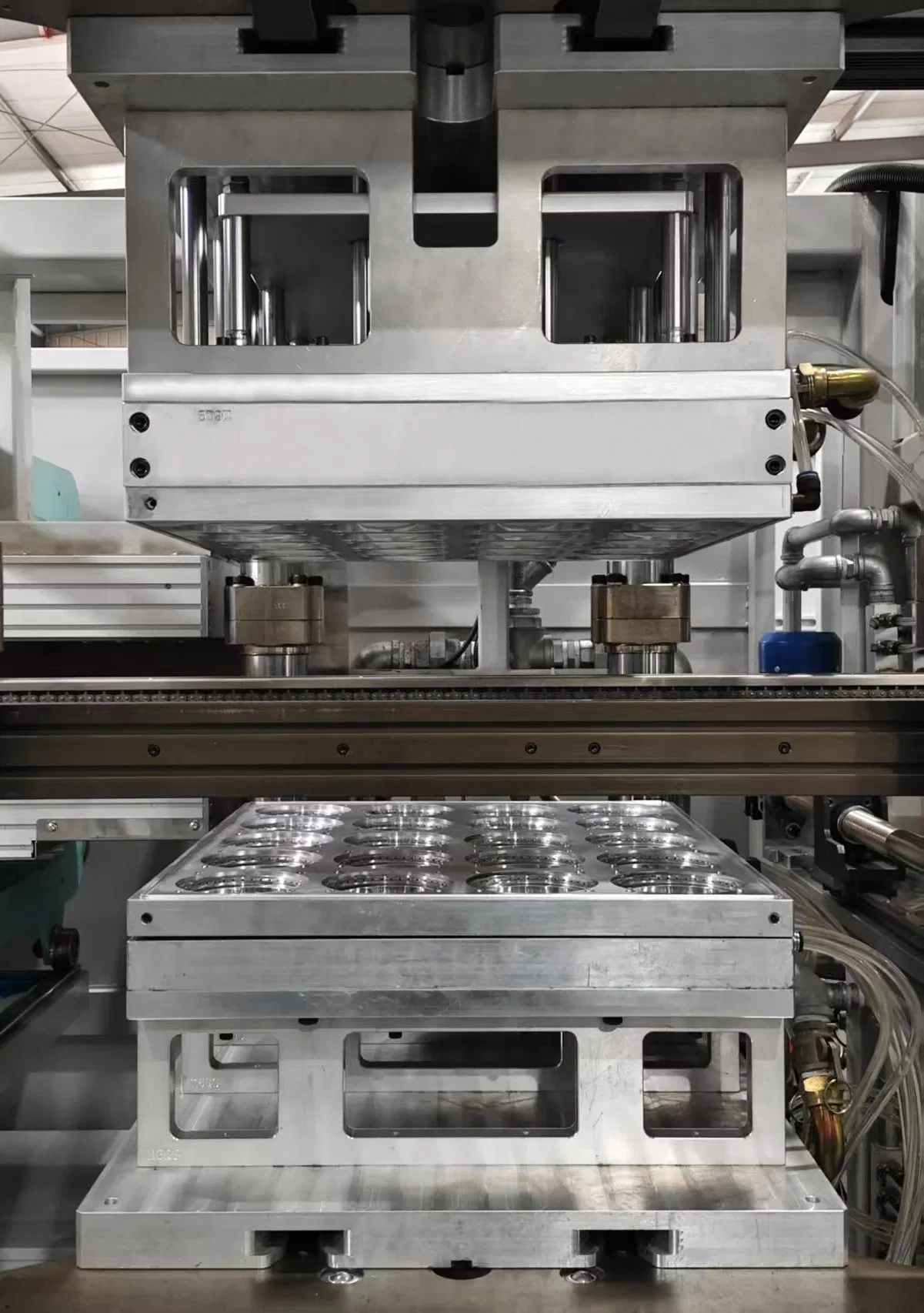

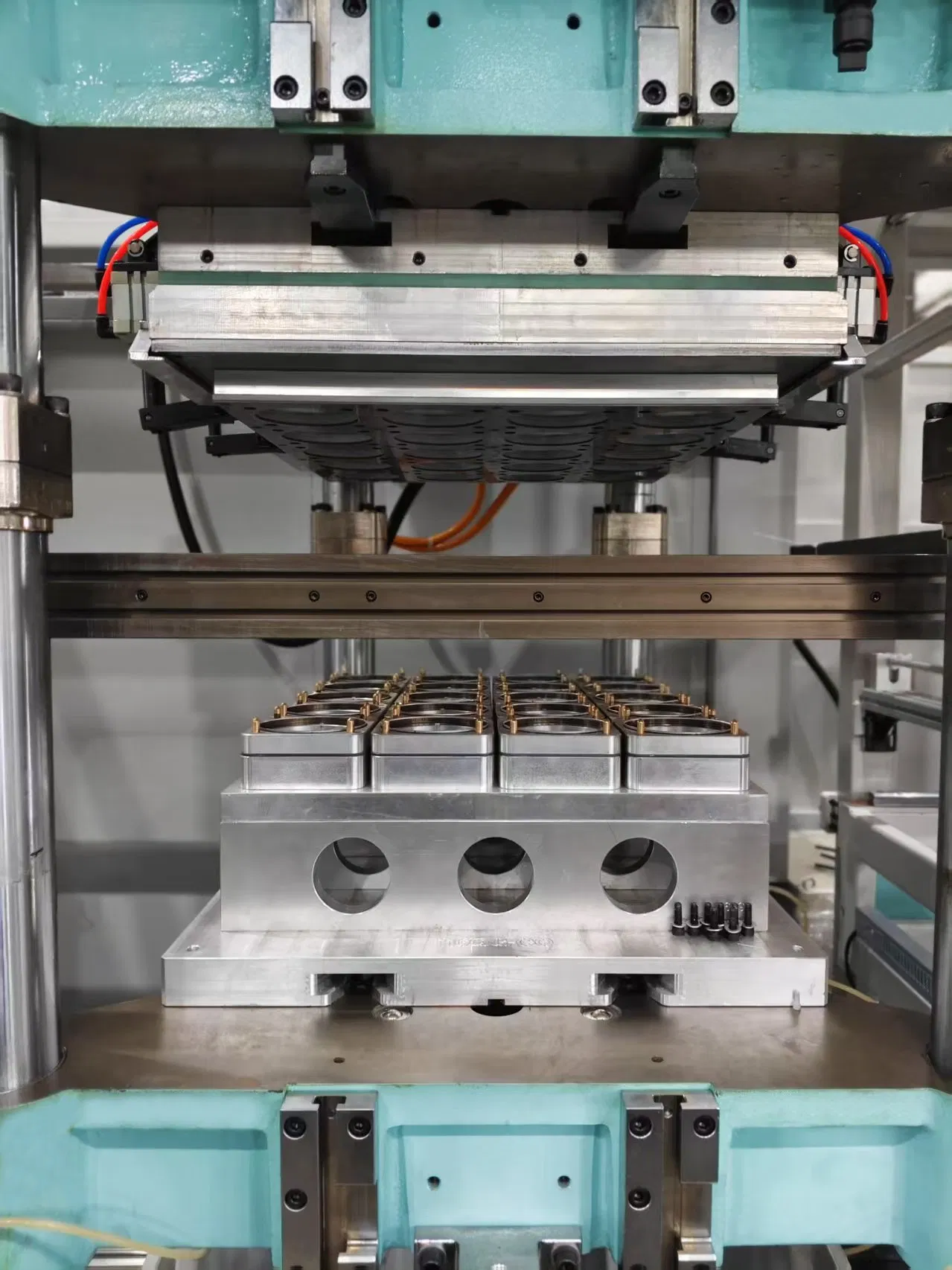

Processed with plane finish machining for high precision. Compatible with international standard molds (KIEFEL compatible).

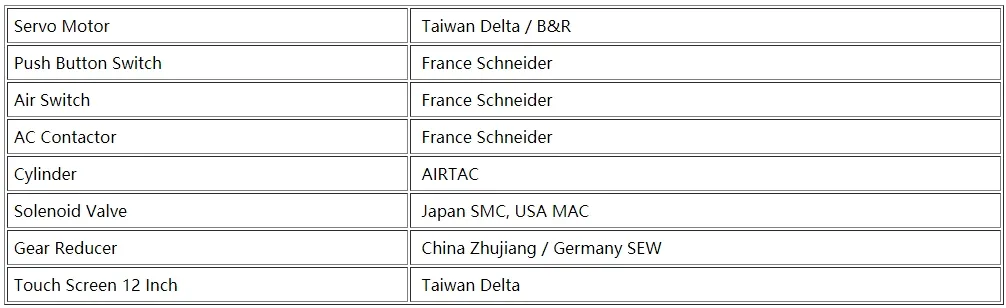

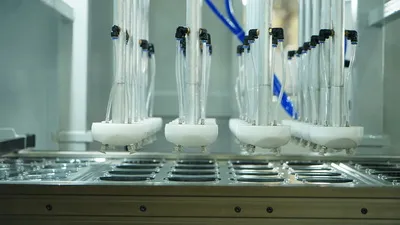

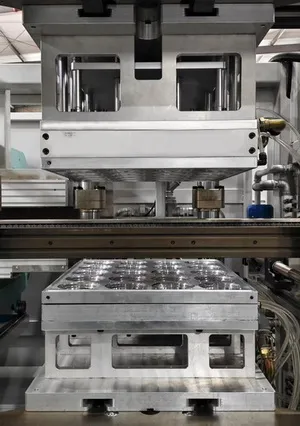

Adopts Delta servo drives with customized reducers. Features quick mold installation and auxiliary stretching for high-quality thick sheet production.
Cutting Station
High-power servo drive for stable and accurate slicing.

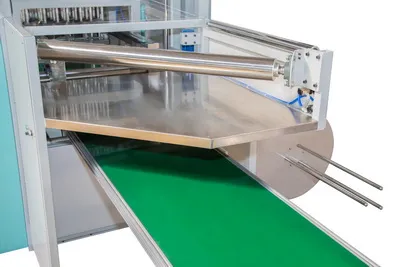

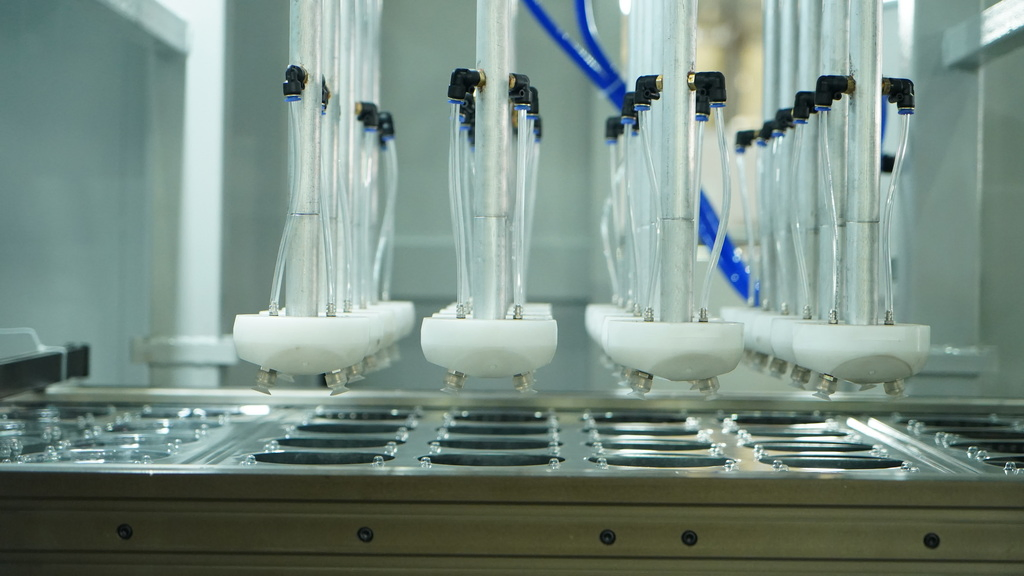

Stacking & Counting
Aluminum alloy transmission rack with frequency speed control.
Scrap Winder
Independent pneumatic motor reducer for easy scrap handling.
With over 20 years of industry experience, our technical team provides complete solutions including thermoforming technology, equipment, and molds. We utilize high-efficiency transmission systems and mature intelligent controls. Our pre-sales and after-sales service teams are committed to technical guidance, personnel training, and fast response maintenance.

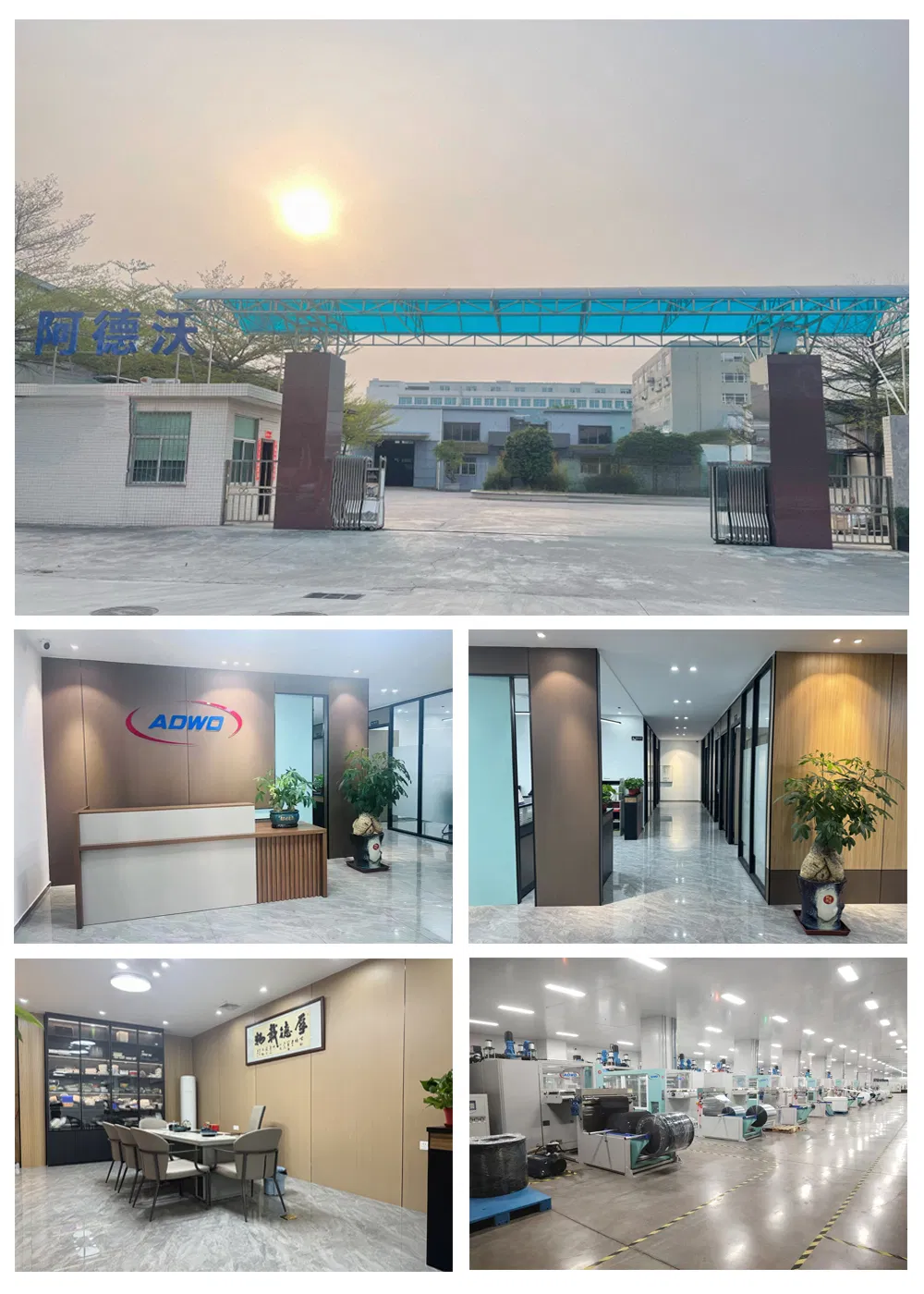

Our company is a national high-tech enterprise integrating research, development, production, and sales. We adhere to the philosophy of building a brand through quality and expanding the market through brand recognition. By gathering advantages from global equipment standards, we provide high-quality thermoforming solutions for various industries.
