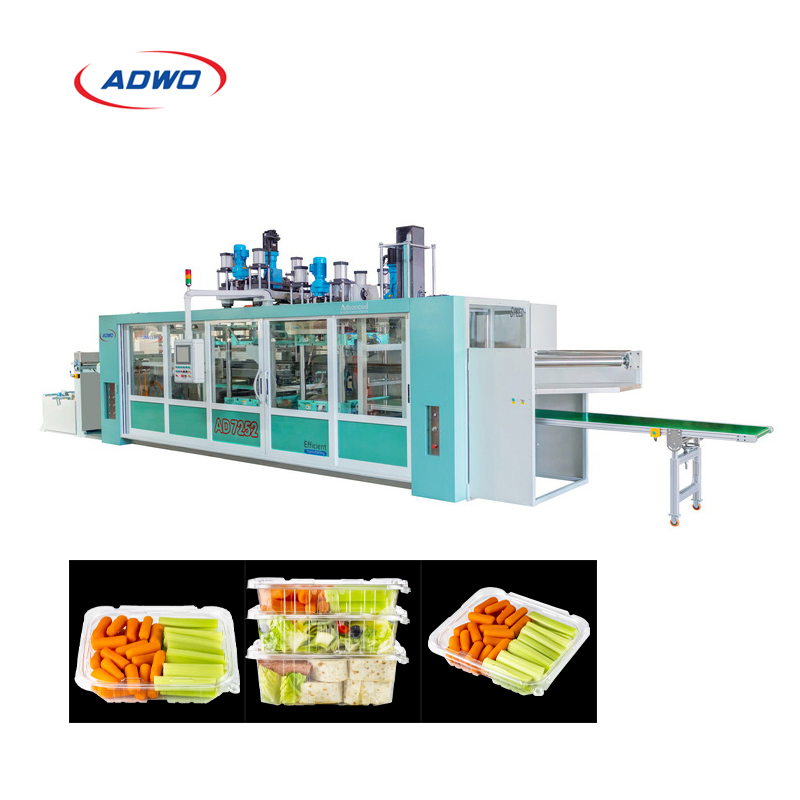

Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
1 / 5
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine

Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine

Customization: Available
After-sales Service: Lifetime Warranty
Warranty: 12 Months
Send Inquiry

Product Description

i
Basic Information
Model NO.AD7252
Column numberFour Column
Molding MethodPultrusion
Automatic GradeAutomatic
ApplicationPlastic Food Box Thermoforming Machine
ProcessForming-Cutting-Stacking
Available MaterialPP, Pet, BOPS, HIPS, OPS, PVC, Cpla, Cpet, APET
Sheet Thickness0.12-2mm
Max Formed Speed50cycle/Min
Max Formed Area720X520mm
Max. Cutting Area700X500mm
Max Sheet Width760mm
Power Supply380V/50Hz 3 Phase 4 Line
Air Pressure0.6-0.8MPa
Gas Consumption4500~5500L/Min
Main Motor Power5.5kw
Total Power168kw
Specification12500× 2360× 3280mm
P
Product Description
Three Stations Automatic Plastic Fast Food Box Container Thermoforming Vacuum Forming Machine. The positive and negative pressure high speed thermoforming machine is a new model developed based on advanced thermoforming equipment technology, which is suitable for the production of PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, corn starch and other plastic products. It is widely used in plastic fast food boxes, fruit boxes, bowl lids, baking bread boxes, hardware electronic industrial packaging products, food bowls, frozen products packaging boxes, medical packaging, and other disposable plastic products.
Thermoforming Machine Overview
Four Stations Equipment
T
Technical Parameters
Available SheetPP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, corn starch
Formed Area (mm)720×520
Formed Depth (mm)≤ 150
Max Cutting and Punching Area (mm)700×500
Max Sheet Width (mm)760
Sheet Thickness (mm)0.12-2
Formed Speed (cycles/min)≤ 50
Main Motor Power (kw)5.5
Total Power (kw)Servo Motor 28kw + Heating Power 140kw
Air Pressure (Mpa)0.6-0.8
Gas Consumption (L/min)4500~5500
Dimension (mm)12500×2360×3280
Weight (kg)About 14000kg

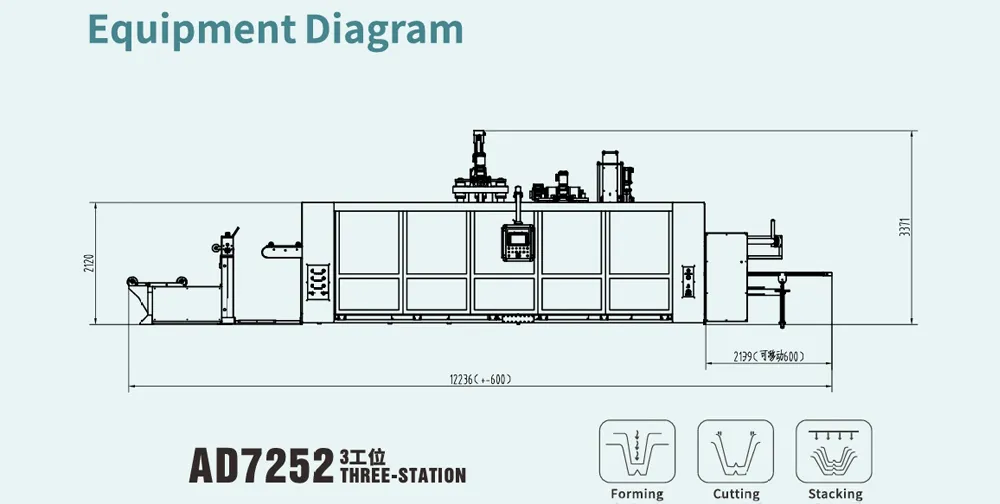

Machine Structure
F
Key Features
European Design Complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic.
Wide Application Range Suitable for plastic lunch boxes, trays, plates, cup lids, egg trays, medical blister and electronic packaging.
Reliable Quality Equipped with five-pivot structure and high-performance electrical components for stable operation.
Precise Temperature Control Adopts 4-section heating method to precisely control temperature and ensure product quality.
Efficient Production Multi-station design allows loading, heating, and forming simultaneously, reducing waiting time.
Fully Automatic Integrates online labeling, automatic stacking, and continuous feeding to save labor costs.
H
Hot Products
Hot Product 1

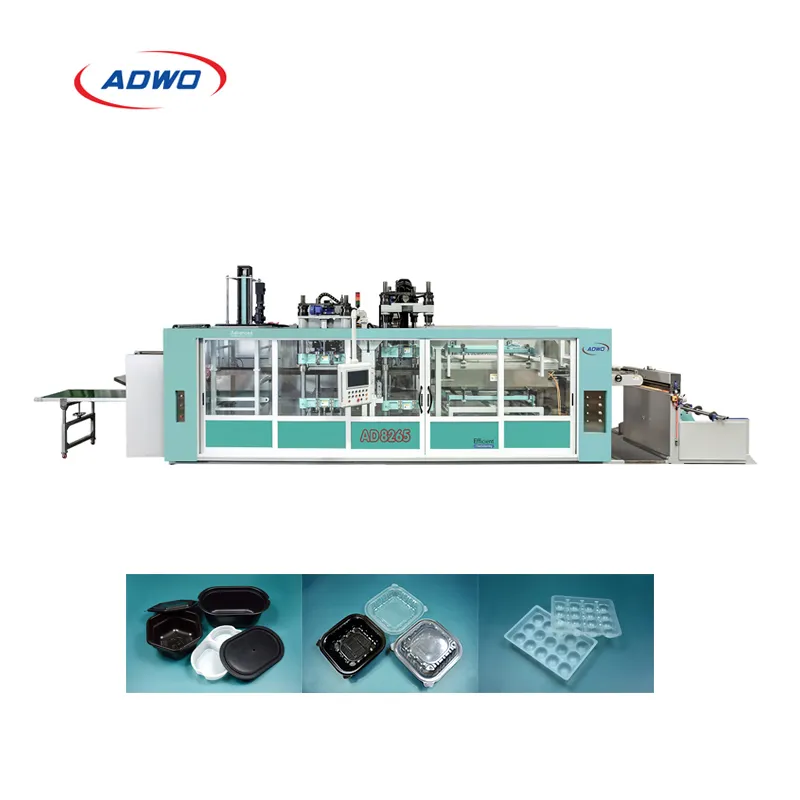

Hot Product 2
Hot Product 3
D
Detailed Photos

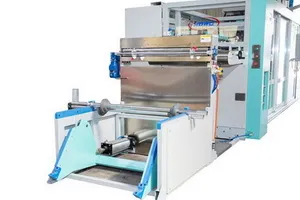

Sheet Unwinder
Sheet Unwinder

Driven by reduction motor, controlled by infrared sensor. Maximum sheet diameter 1000mm, width 760mm. Pneumatic feeding device allows single operator loading up to 1000kg.

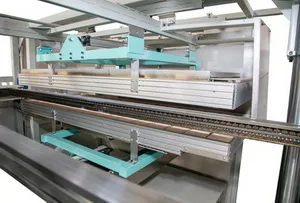

Ceramic Heating Oven

4-section heating for precise temperature control, improved production efficiency, higher product quality, and reduced energy consumption.

Heating Oven

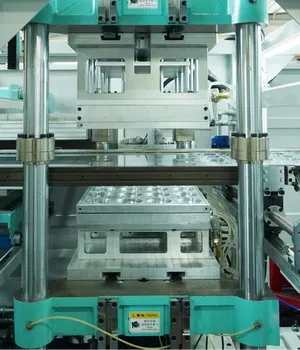

Mold Table
Mold Table

Made of nodular cast iron with plane finish machining. Features high precision and compatibility with KIEFEL molds.

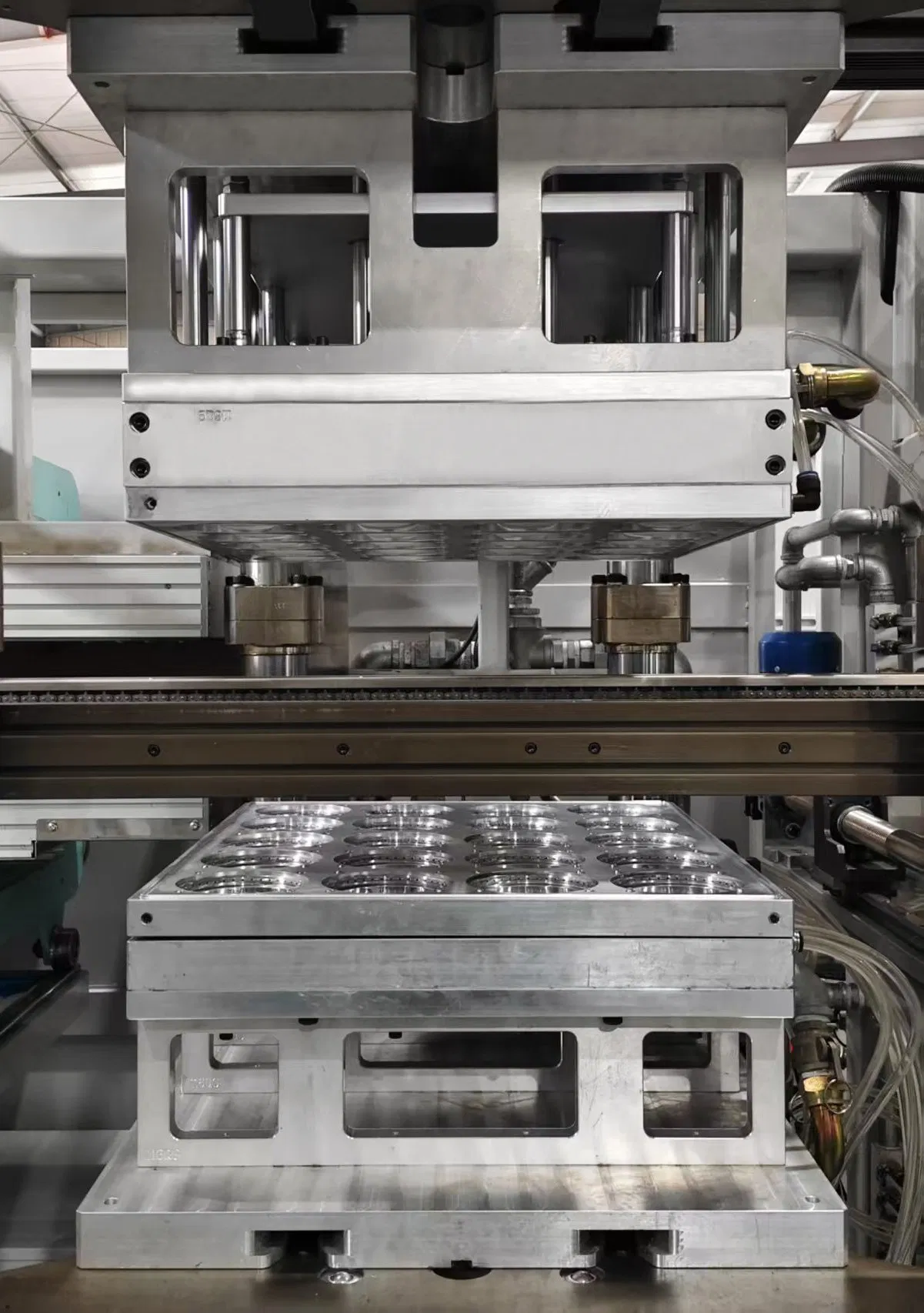

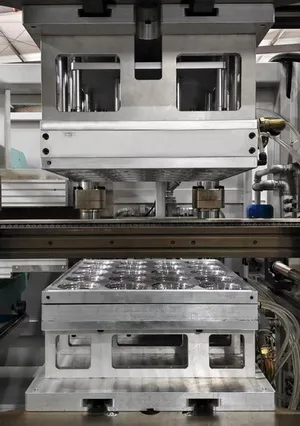

Forming Station

Adopts Delta servo drive with customized reducer. Features quick mold installation and auxiliary stretching for thick sheets and deep cavities.

Forming Station

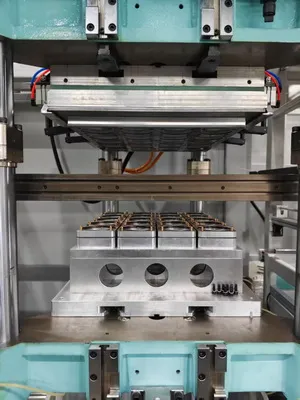

Cutting Station
Cutting Station

High-power Delta servo drive. PLC touch screen adjustment. Steel knife mold with heating device ensures clean cuts without burrs.

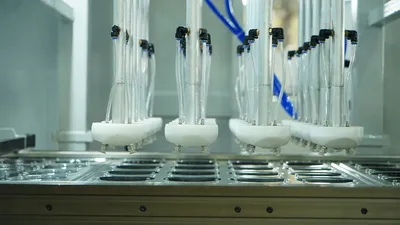

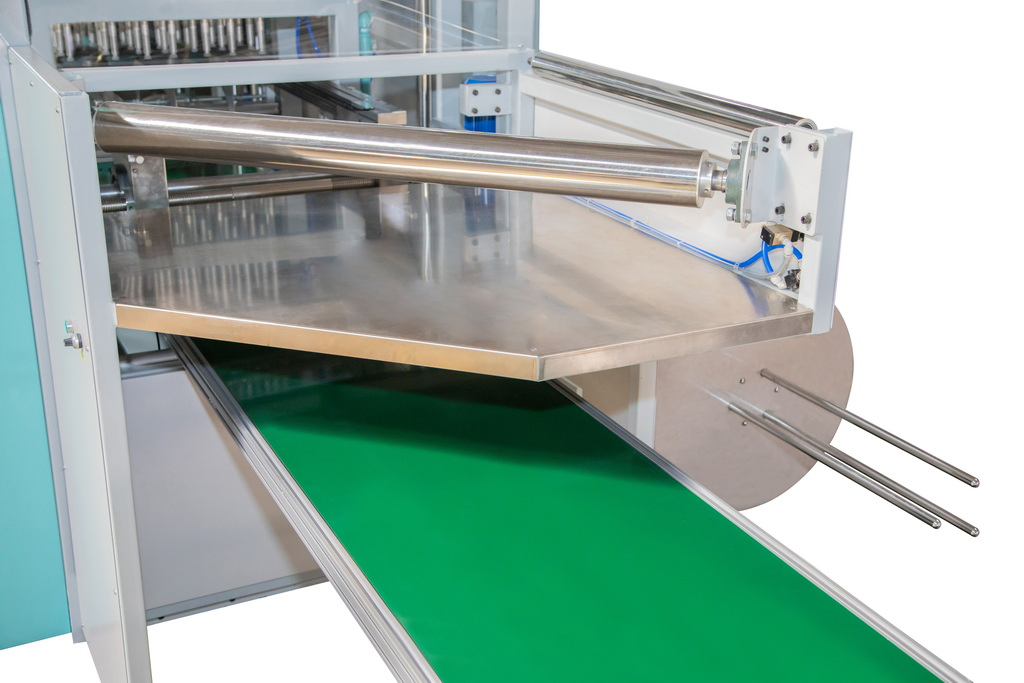

Stacking & Counting Station

Servo motor drive with aluminum alloy transmission rack. Frequency speed reducer ensures smooth stacking and conveying.

Stacking Station
Scrap Winder
Scrap Winder

Independent winder using regulating pneumatic motor reducer for easy operation and reduced labor intensity.

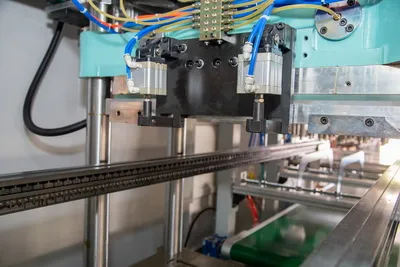

Guide Rail Chain Feeding

Water-cooling rail made of one-piece die-cast aluminum. Anodized treatment for high hardness and low friction. Driven by Taiwan Delta servo motor.

Feeding Device
E

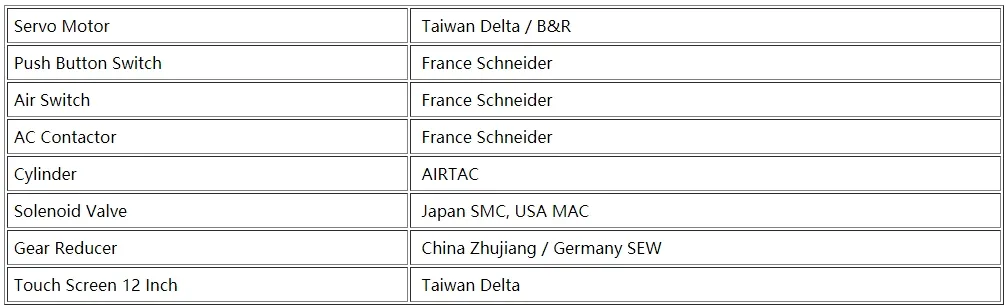

Main Electrical Components
Electrical Components
A
Our Advantages
Our team consists of professional technical personnel with over 20 years of experience in the thermoforming industry. We offer complete solutions including technology, equipment, and molds. We utilize high-efficiency transmission systems and intelligent control systems to ensure high standards of quality control. Our pioneering four-stage electric furnace combined with precise temperature control ensures even heating and excellent plasticizing effects.

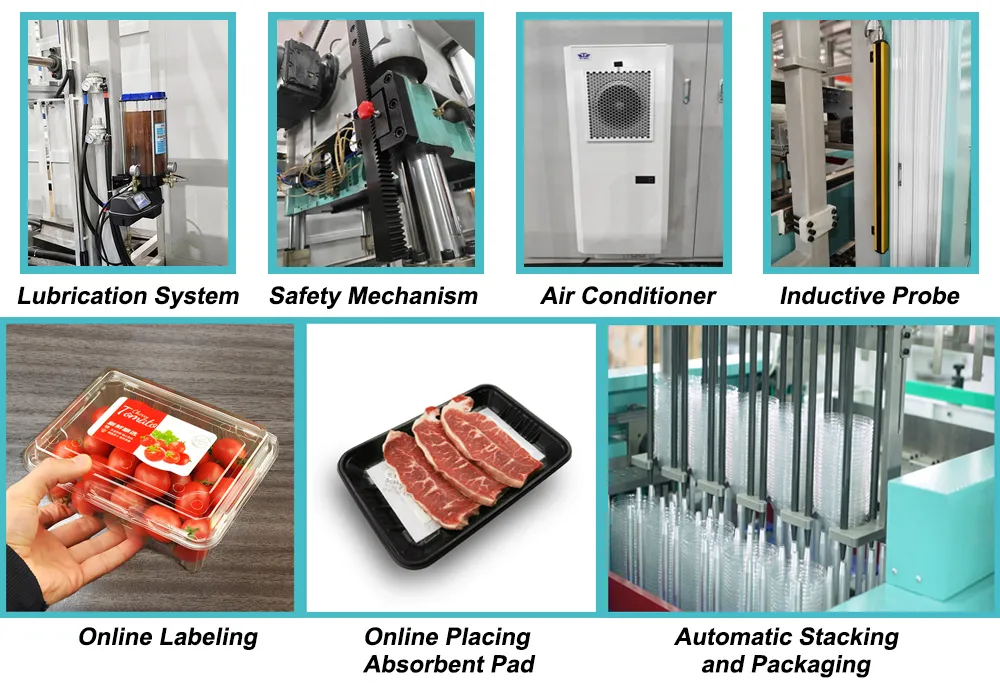

Service Advantages

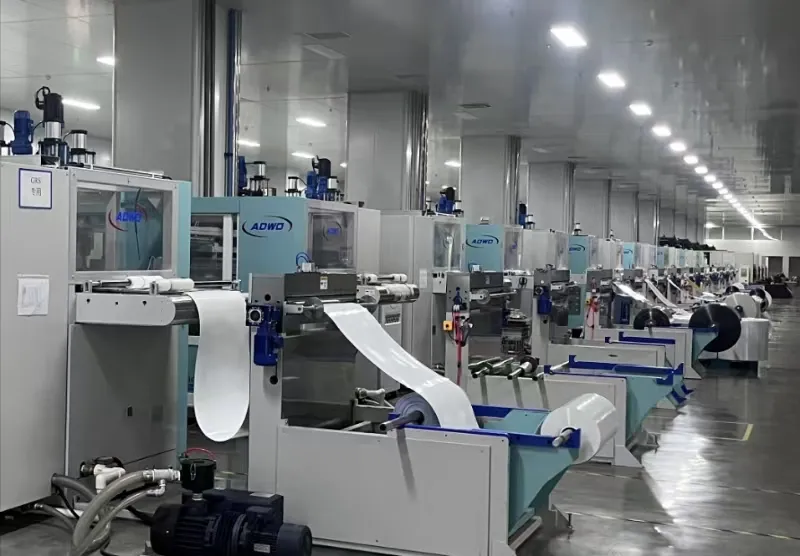

Customer Factory
C
Company Profile
We are a national high-tech enterprise integrating research, development, production, and sales. Adhering to the objective of building brand with quality, we focus on a service-oriented and innovation-driven corporate culture. With years of technology accumulation, we provide the industry with high-quality thermoforming equipment.
Company Cert
Company Facility
Production Line
P
Packaging & Shipping

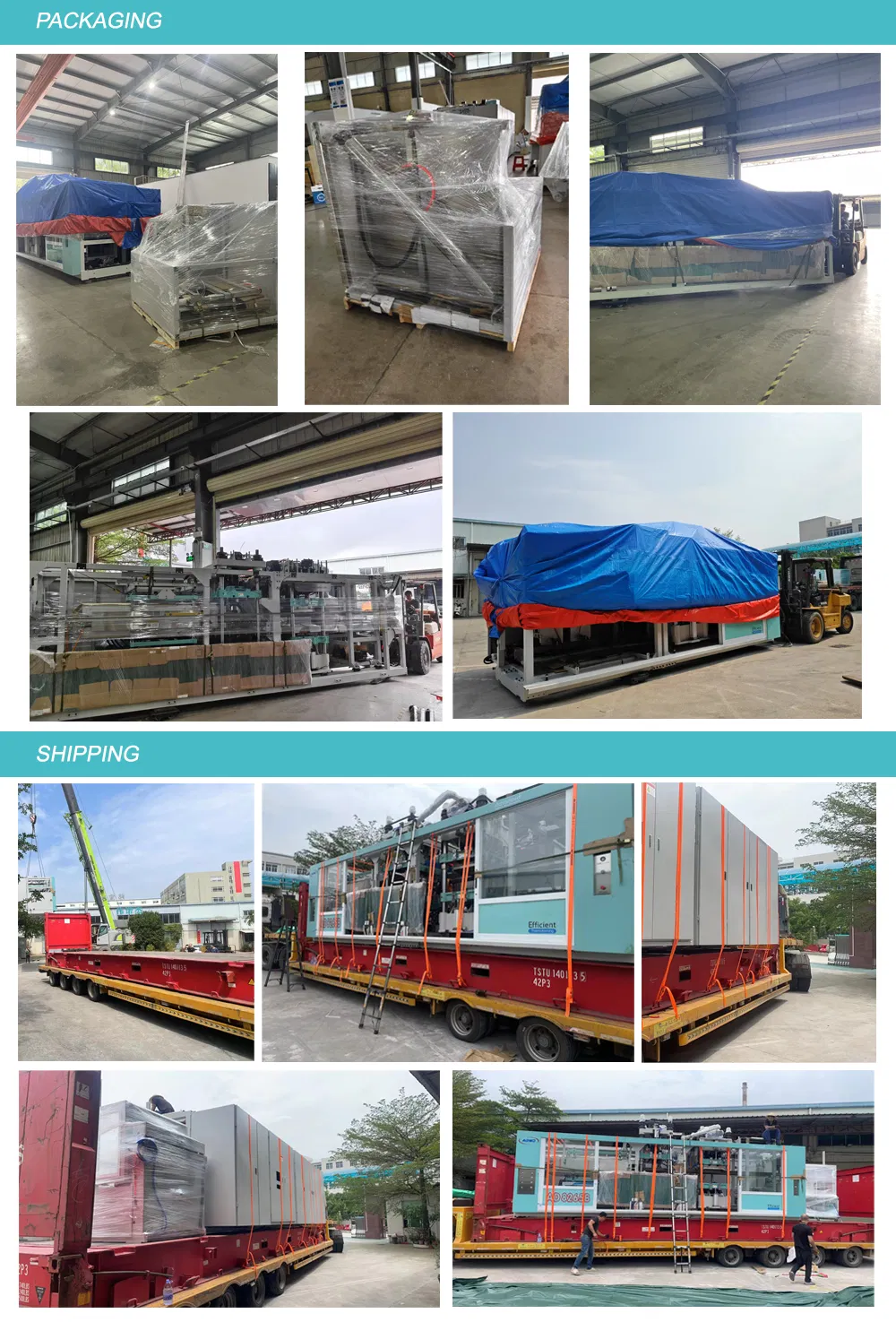

Packaging Process
Shipping Information
?
Frequently Asked Questions
Are you a factory or trading company?
We are a factory with a special QC department in charge of raw material and product quality.
What is the typical production time?
Normally, we require around 80 days for the production of the machine.
How long is the warranty period for your products?
All products have a 12-month warranty calculated from the date of shipment from our factory.
How do you handle machine installation?
We send professional technicians to your factory to install the machine and train your workers on how to use it.
What kind of after-sales services do you offer?
We offer a one-year guarantee and comprehensive maintenance options. Technical support is available 24 hours via e-mail.
Should the customer provide samples?
Yes, if available. If not, customers can send drawings or photos with sizes for us to provide a confirmation drawing.
