Zhida Plastic Machinery
Zhida Plastic Machinery
It is mainly used to process waste plastic film (industrial packaging film, agricultural plastic film, greenhouse film, handbags, etc.), woven bags, agricultural convenient bags, basins, barrels, beverage bottles, furniture, daily necessities, etc. It is suitable for the most common waste plastics. It is a widely used and popular plastic recycling machine in the waste plastic recycling industry.

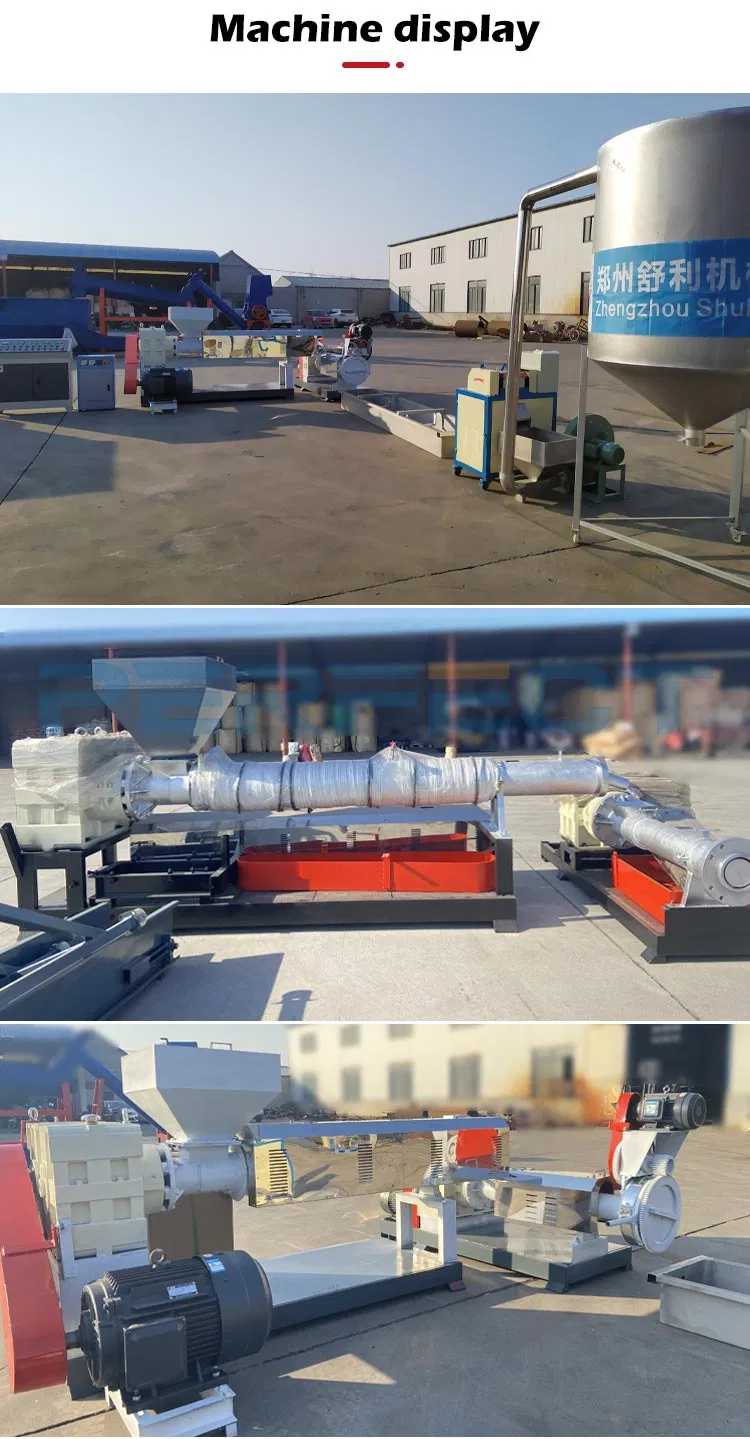

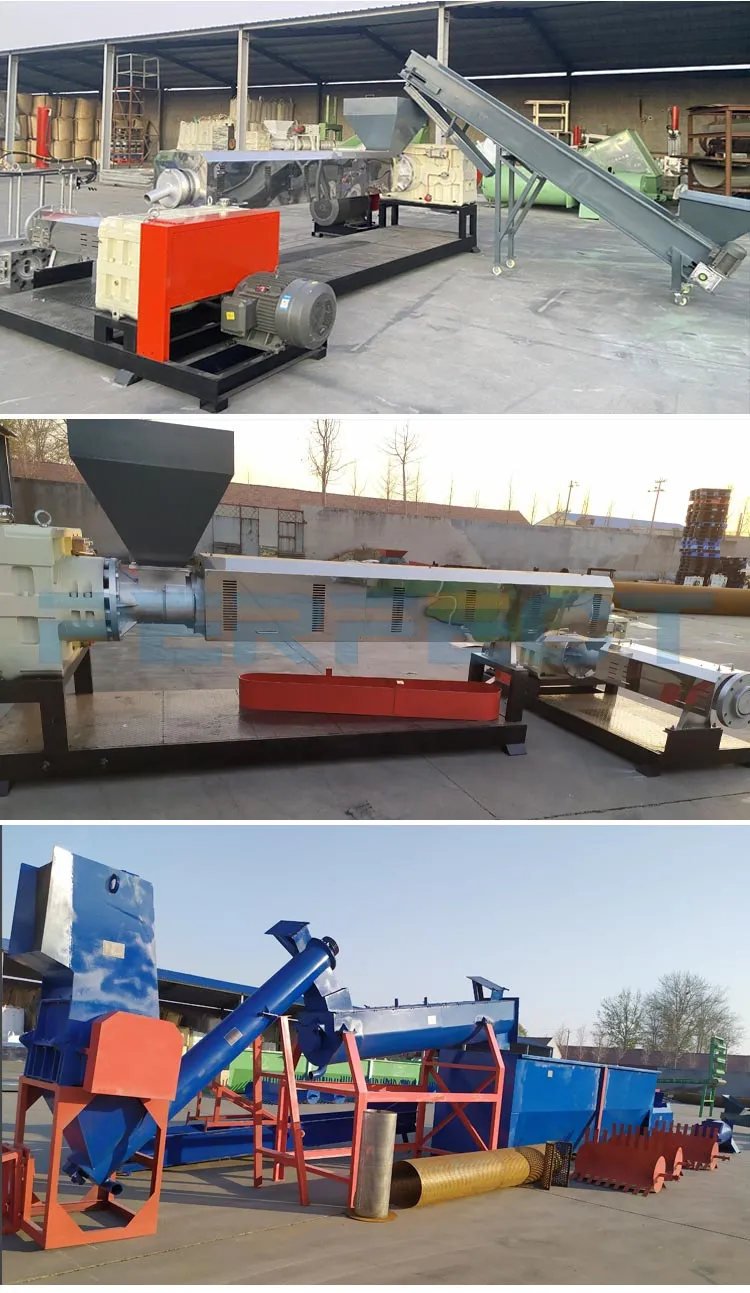

Plastic Bottle Recycling Machine is mainly composed of crushers, cleaning tanks, dryers, plastic granulators and other equipment. The whole set of equipment has a high degree of automation. Only one employee is needed to operate the whole process, saving labor costs.
| No. | Component | Details |
|---|---|---|
| 1. | Washing Tank | Length: 5m, Width: 1.3m, Height: 1.2m, Tank thickness: 4mm. Include grapples, chain and motor. |
| 2. | Vertical material lifter | Power: 7.5kw, Φ:530, Height: 1.8m. Fast speed, dynamic balance adjustment. |
| 3. | Horizontal dewatering machine | Power: 11kw, Φ:500mm, Height: 2.5m. Good drying effect, no vibration. |
| 4. | Control cabinet | With inverter, Star delta start. |
| 5. | Auto feeding conveyor | Length: 3.5m, Belt Width: 50cm, Power: 0.75kw. Magnetic roller to remove metals. |
| 6. | Host stage extruder | Model: SL-180, Power: 55kw, Screw diameter: 180mm, 280 hardened gear reducer. |
| 7. | Second stage extruder | Model: SL-150, Power: 30kw, Screw diameter: 150mm, 250 hardened gear reducer. |
| 8. | Electric screen changer | Model: SL-380, Power: 3kw. Changer mesh non-stop machine. |
| 9. | Cooling tank | Material: Stainless steel, Length: 3m. Automatic separation of material strips. |
| 10. | Strip shaking and blowing machine | Power: 2.2kw, Stainless steel. Blow and remove moisture. |
| 11. | Pellet cutter | Model: SL-180, Power: 3kw, Hob knives, frequency converter speed regulation. |
| 12. | Electric control cabinet | Well-known electrical appliances, safety protection, Chinese and English panels. |
| 13. | Mixer | Stainless steel, Capacity: 500kg/h. |
| 14. | Truck scale | 3*13m, 3 sections, 6 pieces, 8 slabs, 300mm beams, 6 tracks. |

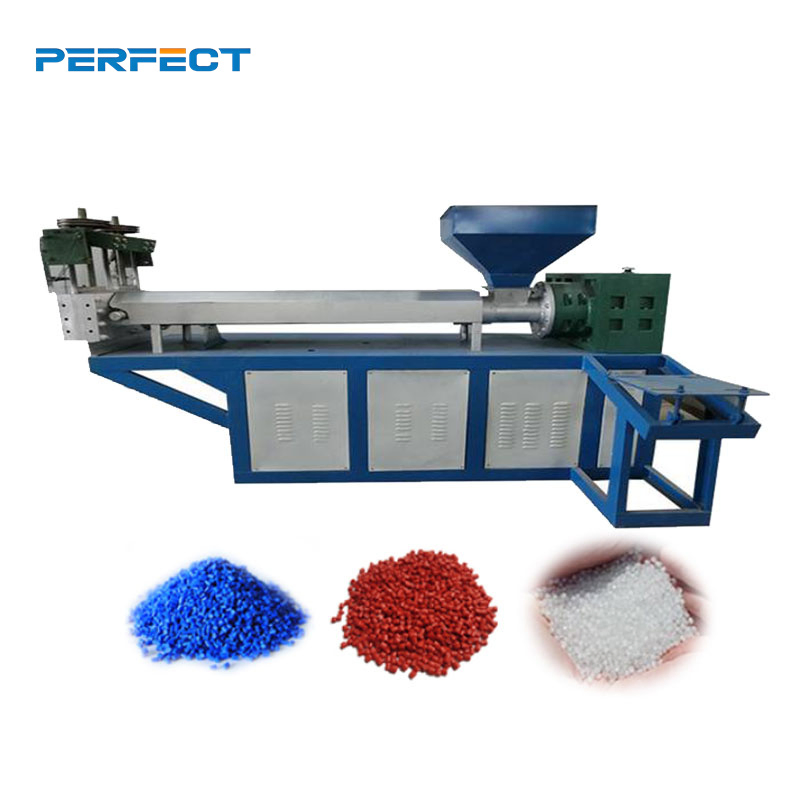

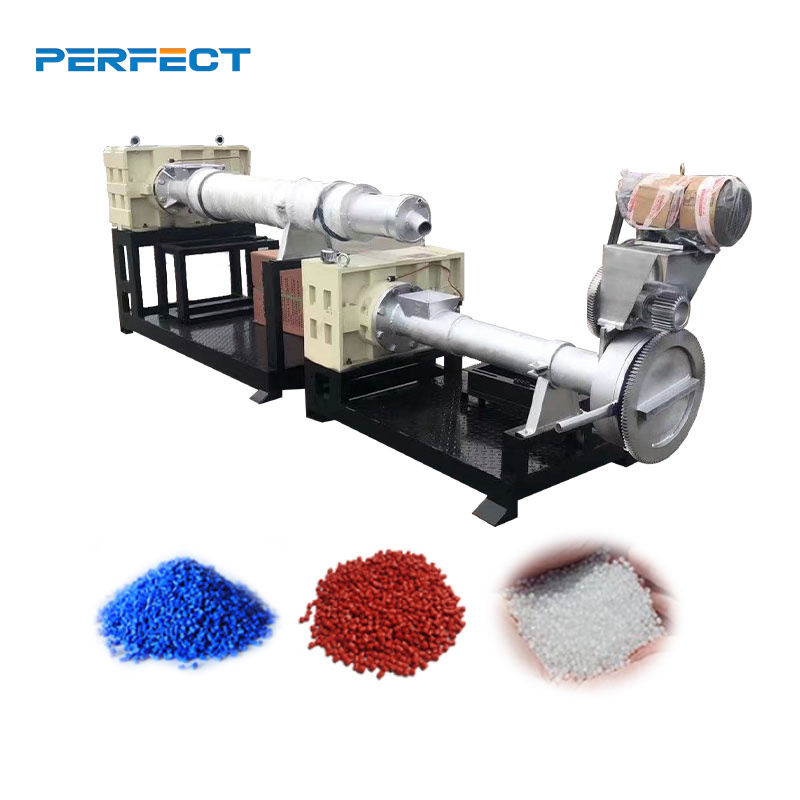

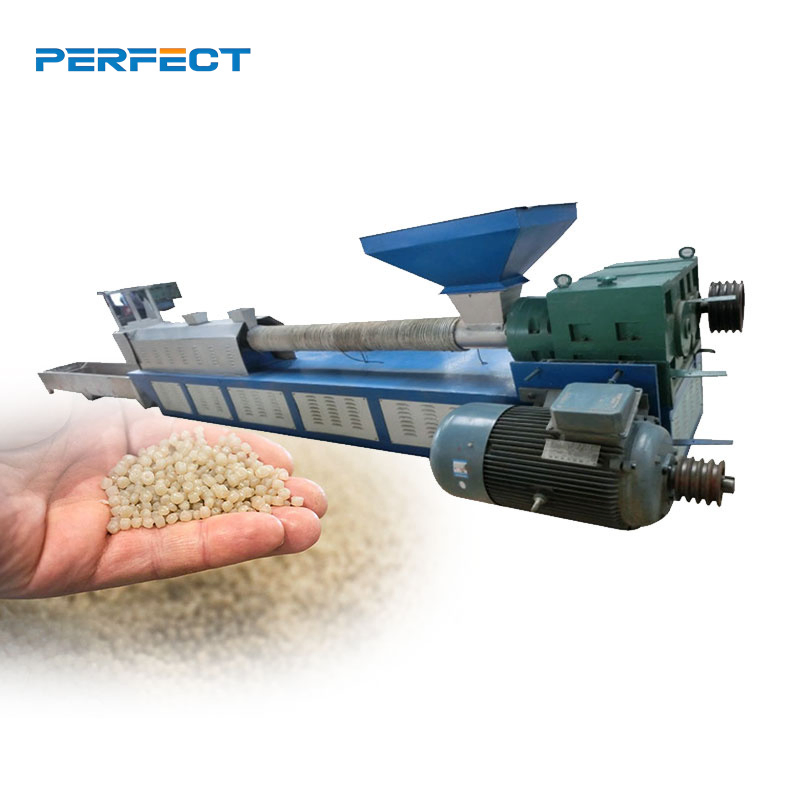

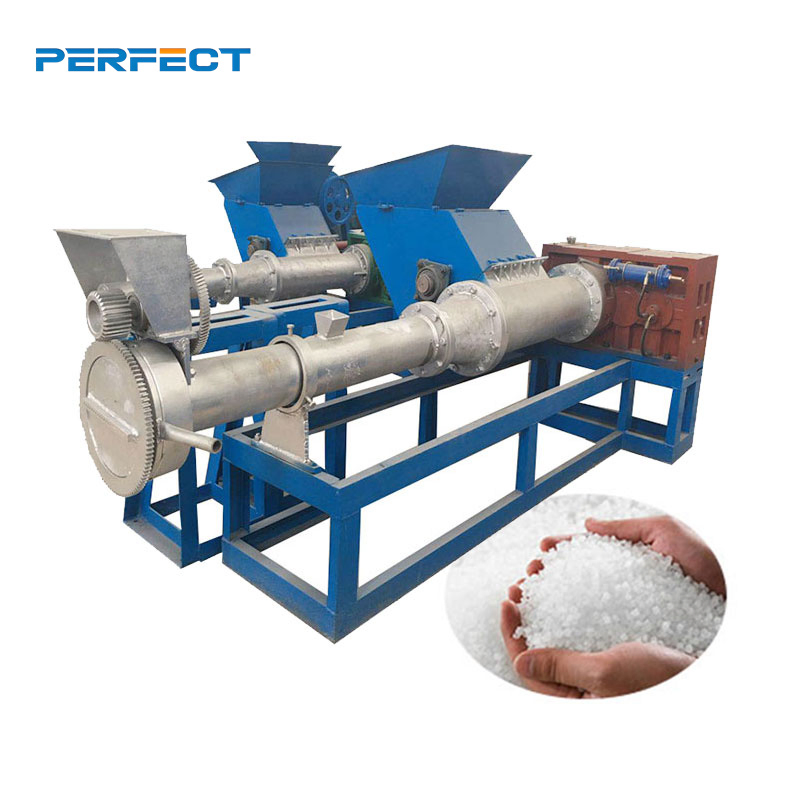

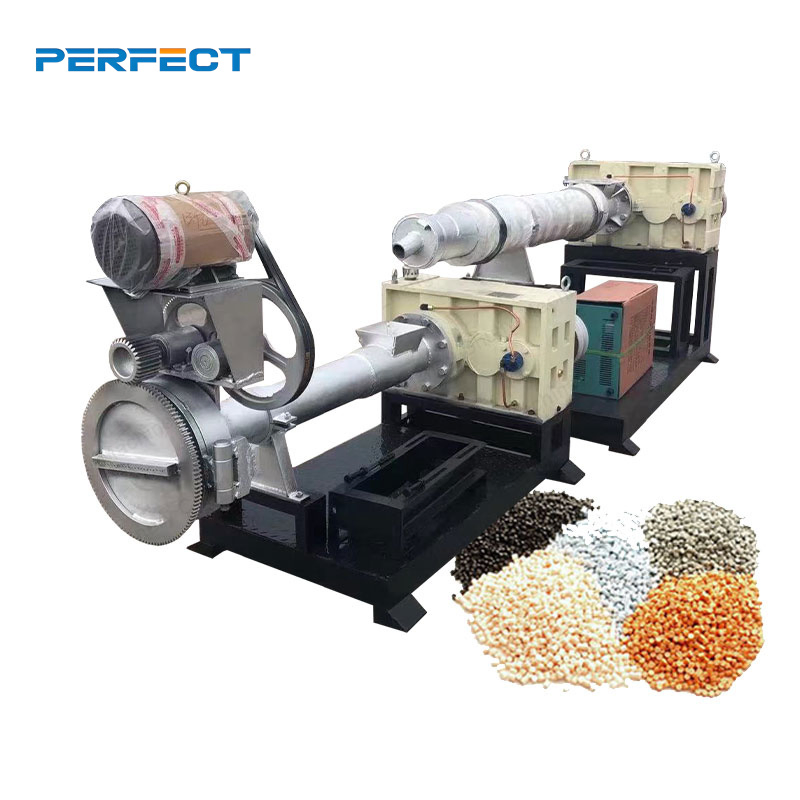

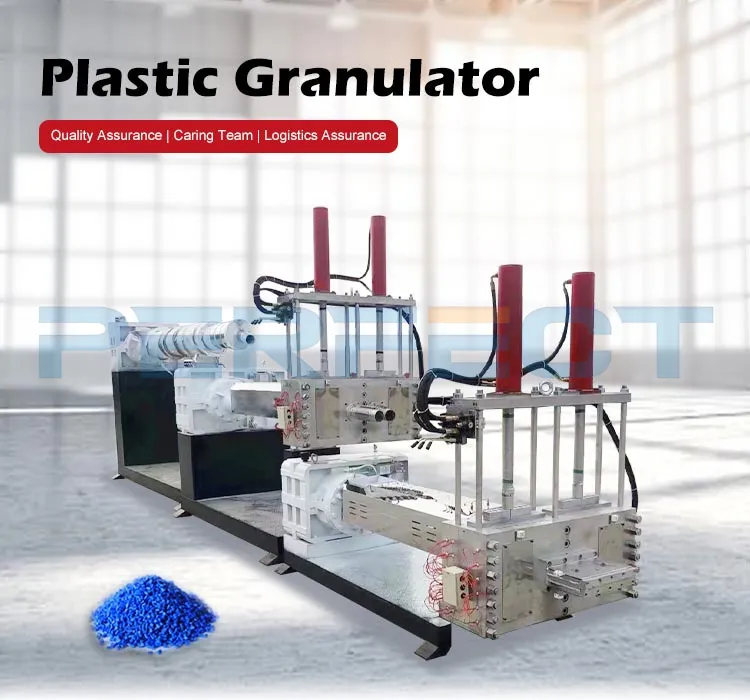

With special double-stage screw design and different configurations, it is suitable for the production of PET, PP, PE, PS, ABS, PA, PVC, PC, POM, EVA, LCP, PMMA and other plastic recycling granulation. The reduction box adopts the design of high torque, which realizes the performance of noiseless and smooth operation. The screw and barrel are specially hardened for wear resistance and high output. Vacuum exhaust design ensures stable discharge and strong colloidal particles.
The plastic granulation production line has low energy consumption and high production efficiency. The recycled plastic particles produced have a smooth surface and uniform size.
Principle: Use the process of high-temperature melting, plasticization and extrusion to change the physical properties of plastics.

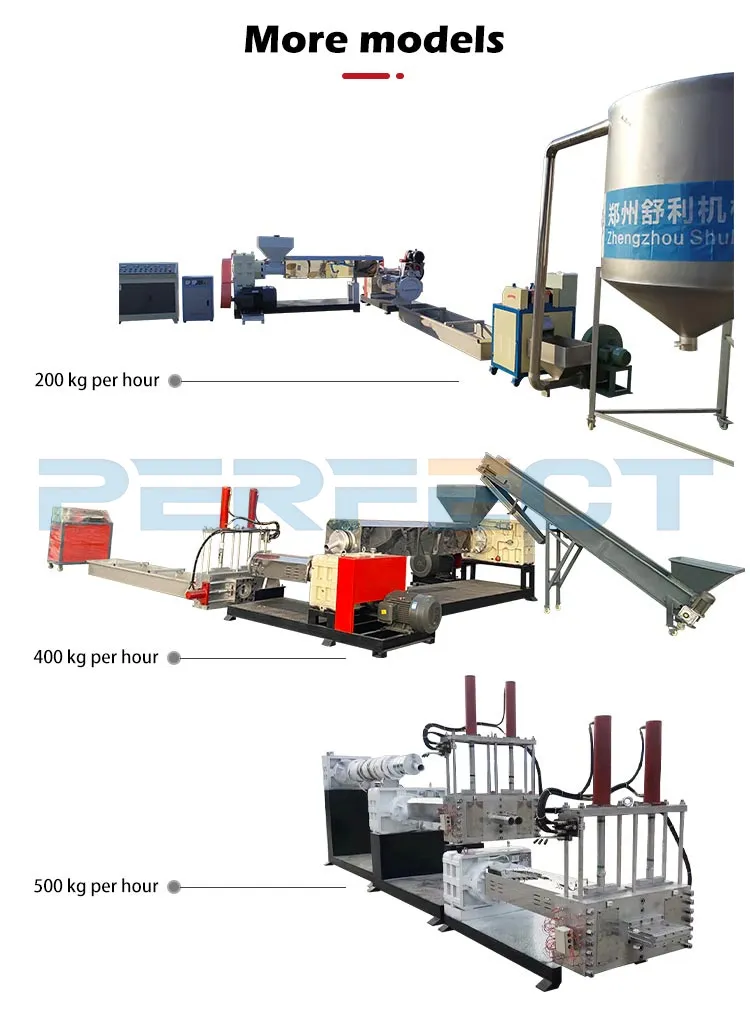

Range: 100kg/h to 5t/h capacity options. Features certified hard-toothed reducers with high transmission efficiency and low noise.
