| Model NO. | HFS-F 1200/600 | Type | Hard Plastic Crusher |
|---|---|---|---|
| Raw Material | PP | Structure | Tangential Feed |
| Knife Classification | Claw Knife Crusher | Knife Roll | Solid Knife Roller |
| Automation | Automatic | Computerized | Computerized |
| Certification | CE, ISO9001:2008 | Function | Crushing Washing Drying Plastic |
| Usage | Plastic Crusher Line | Name | Plastic Crusher Machine |
| Power | 75-90kw | Roter Diameter | 600mm |

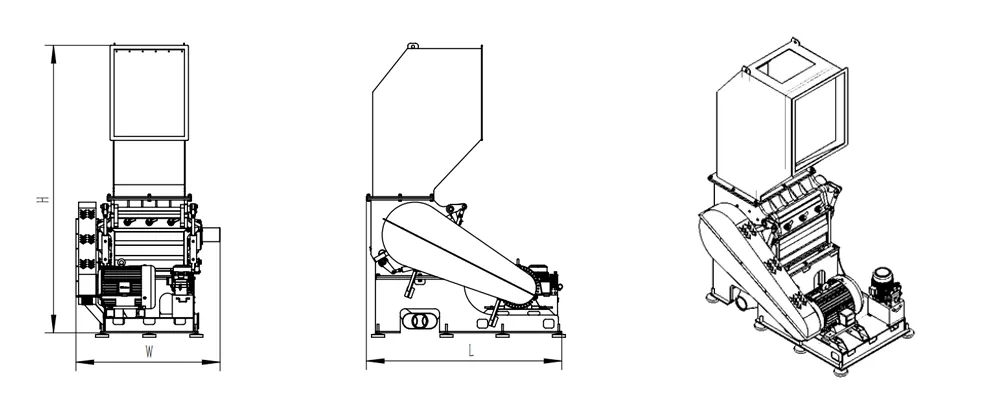

| Chamber Size | 1200X1000mm | Weight | 5200kg |
| HFS-F1200/600 Heavy Duty Crusher Details | |

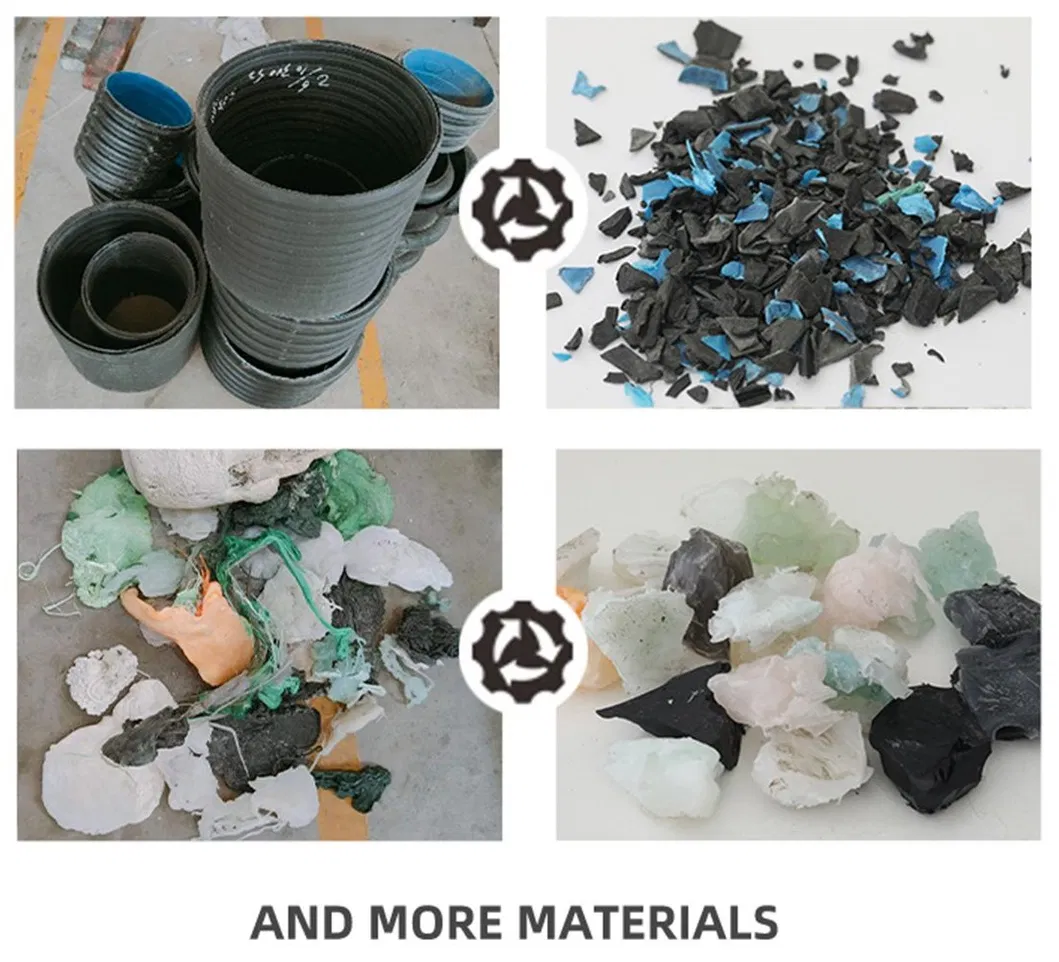

| Raw Material | Film, woven bags, pipes, profiles, waste material of injection machine, plastic bottle, pallet, etc all kinds of plastics. |
| Capacity | 500-3500kg/h (depends on material condition) |
| Electric Current | 3×380V, 50Hz (Customizable) |
| Particle Size | 10mm - 60mm (Customizable) |
| Main Shaft Speed | 520 rpm |
| Rotor/Stator Knives | 2/3 Rotor pcs, 5/7 Stator pcs |

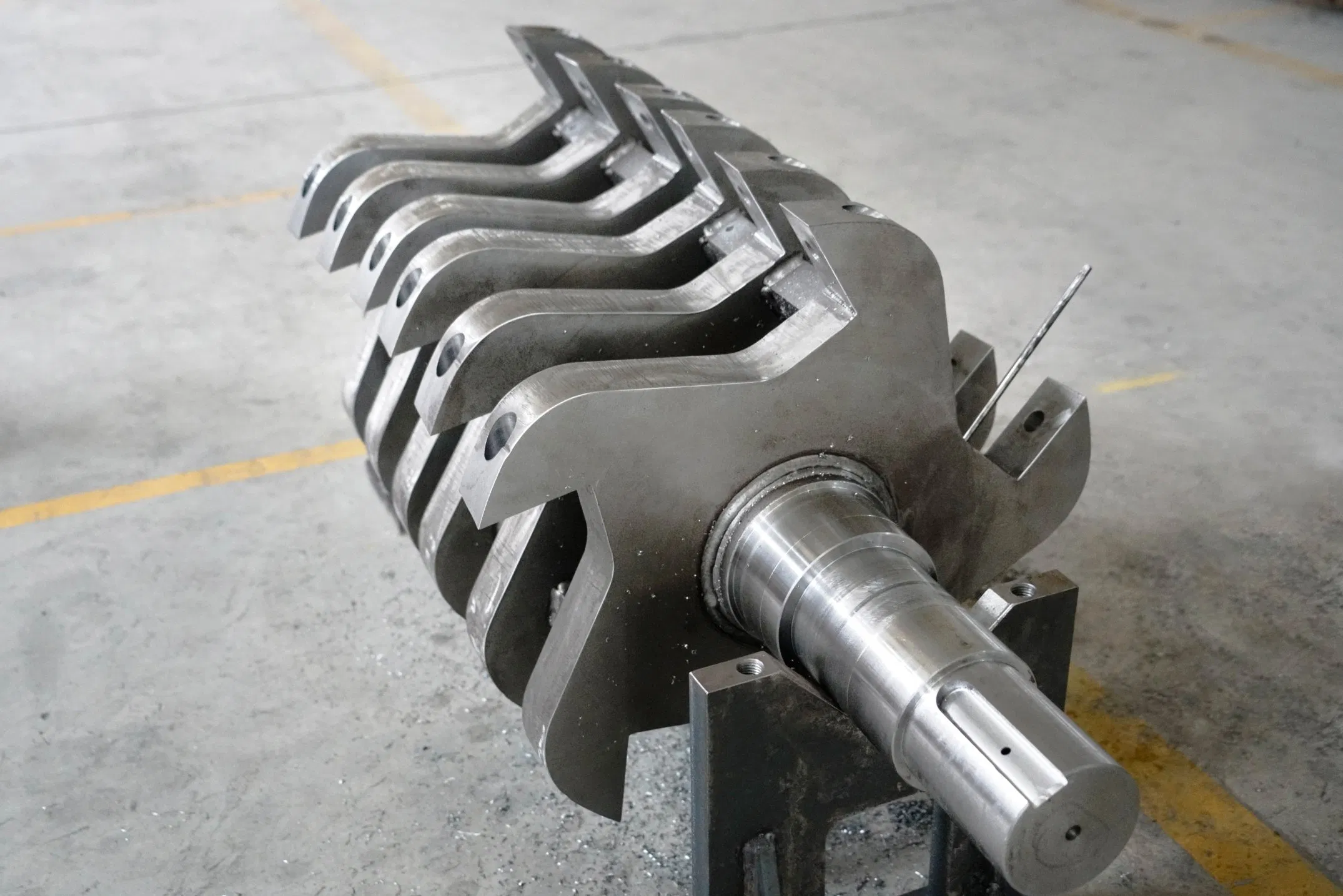

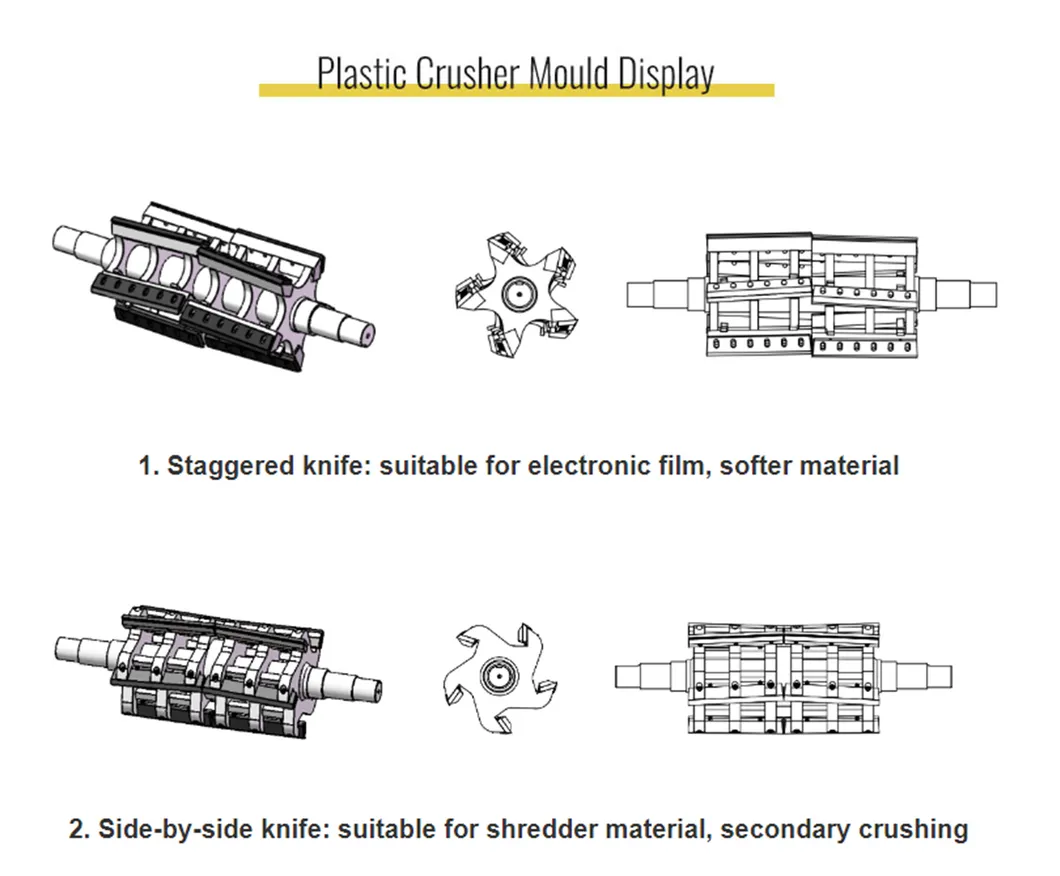

Suitable for most types of materials and can withstand greater impact. The V-shaped arrangement effectively forms two-way shear, concentrating material in the center to avoid build-up on the sides and reduce wear on the box walls.

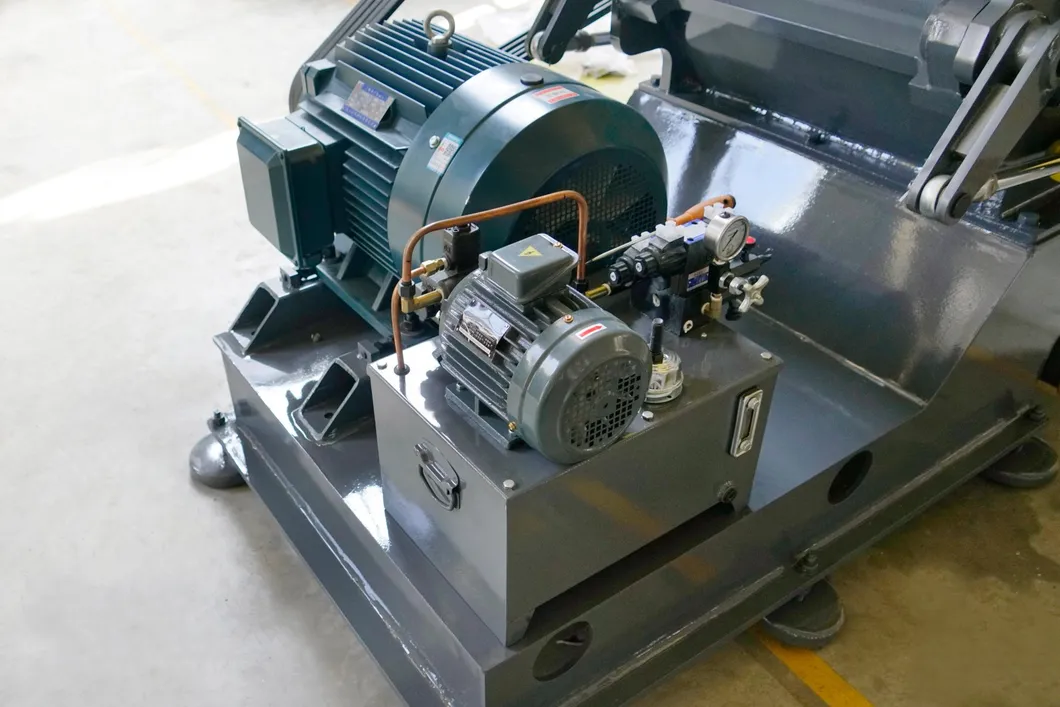

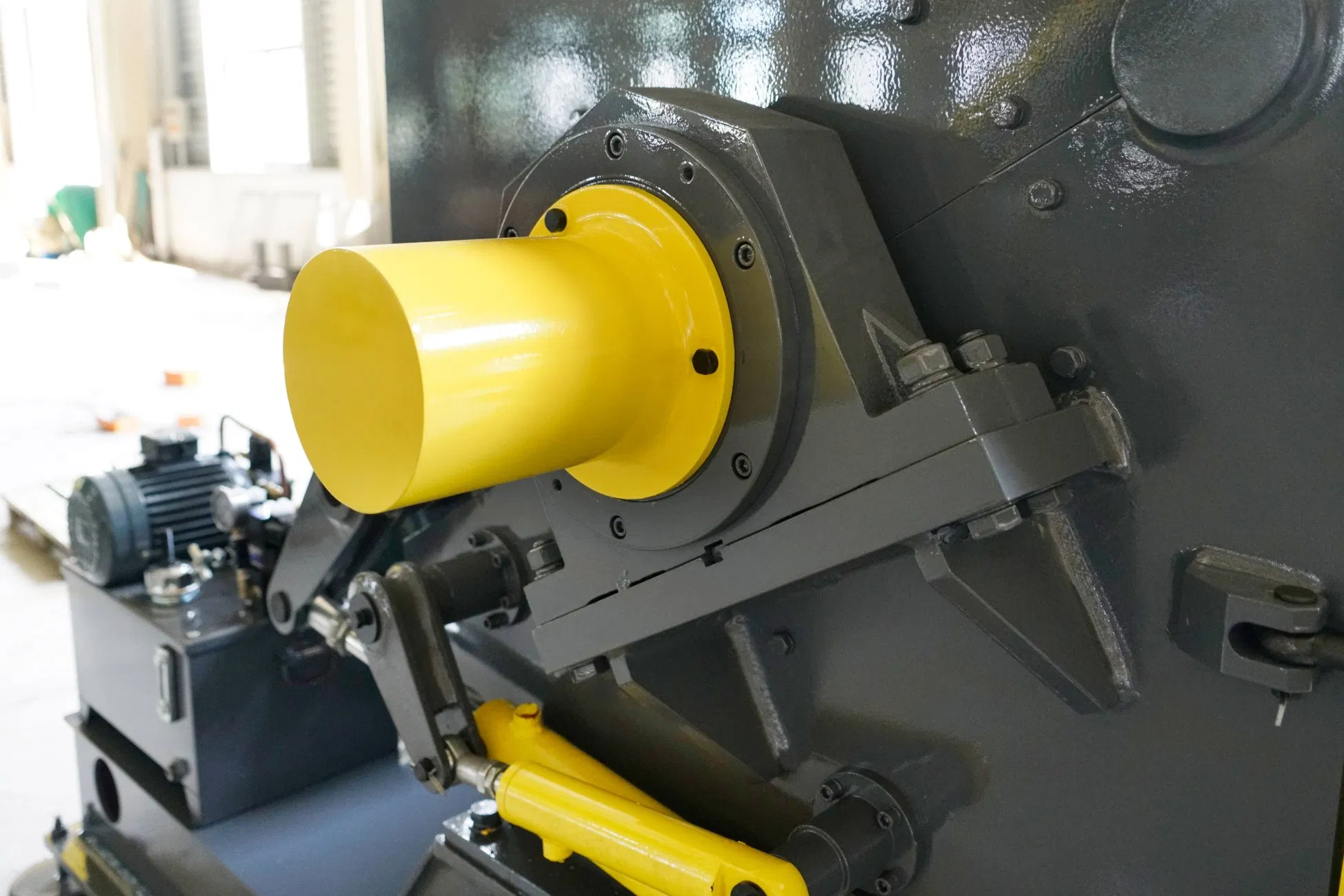

Equipped with a hydraulic opening and closing device for easy maintenance. Blade maintenance and screen replacement are made fast and safe by using hydraulic drive to open the chamber and screen frame.

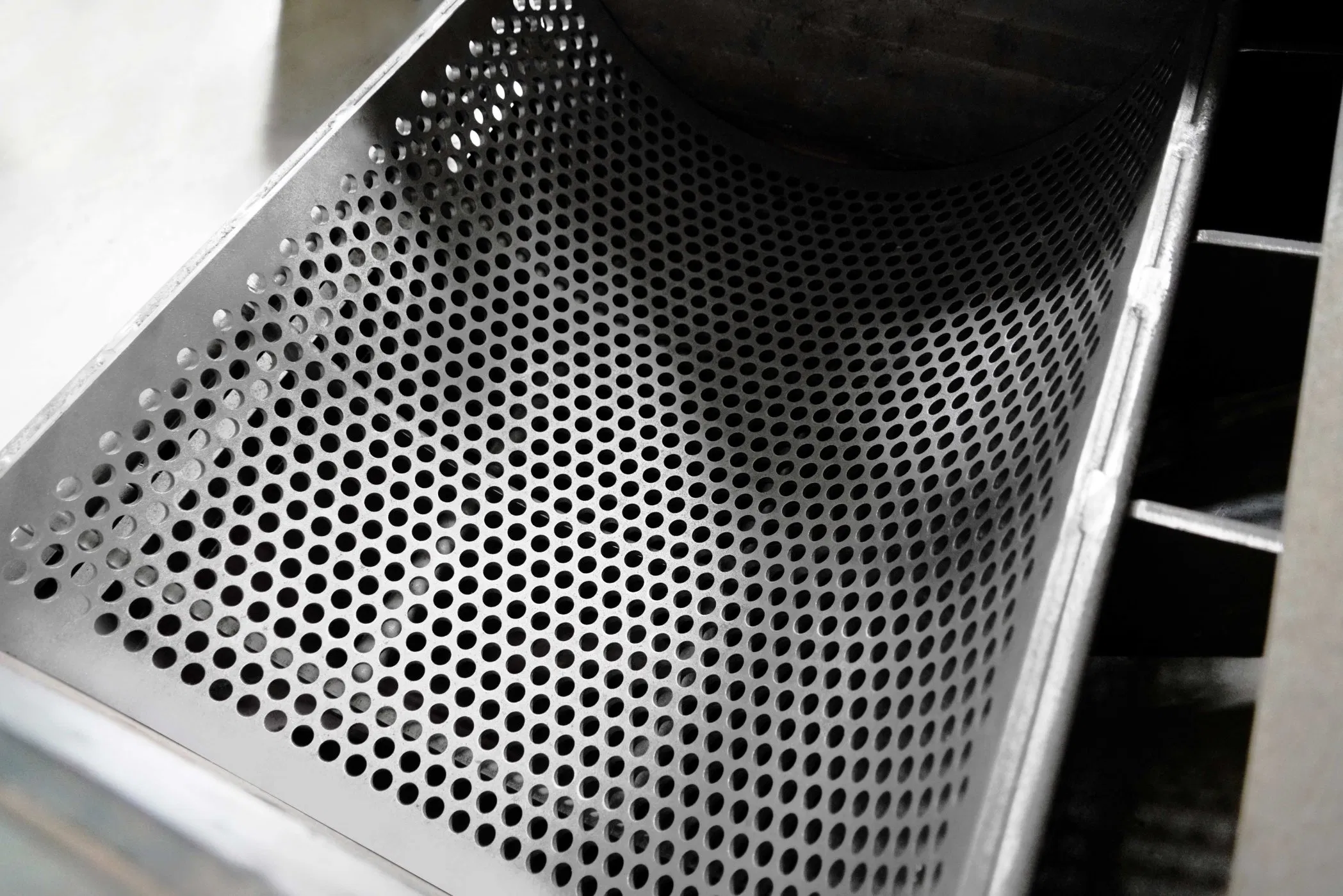

Different aperture screens can be replaced according to specific needs. The replacement process utilizes hydraulic drive to ensure safety and solve manpower shortage issues during maintenance.
High-strength bearings from well-known brands are installed externally. This design separates the bearing from the crushing chamber, preventing dust and material from entering, which significantly extends bearing life and protects the rotor.

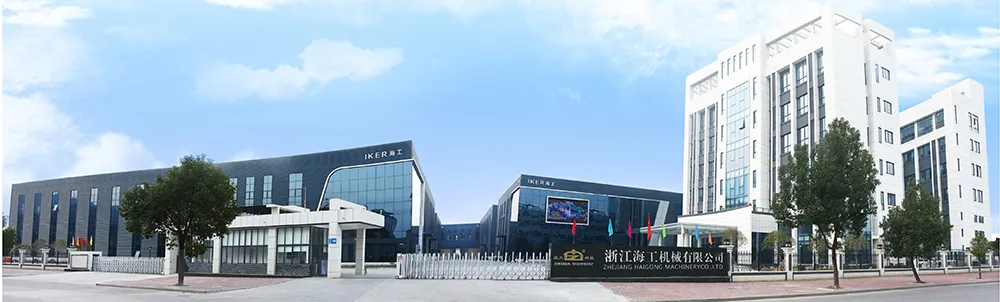

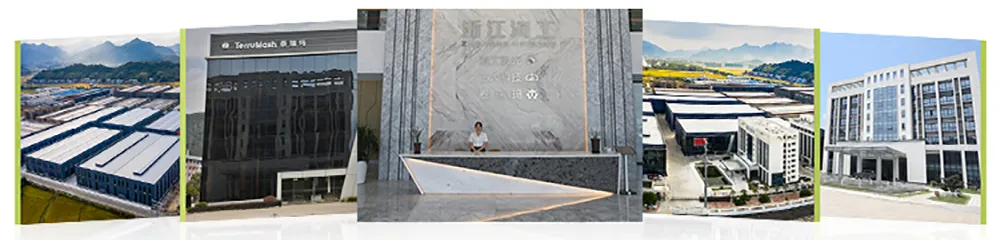

Our company is a leading technology enterprise specializing in R&D, manufacturing, sales, and after-sales service of innovative environmental protection equipment. Covering an area of more than 60,000 square meters, we adhere to a "people-oriented, innovation-driven" philosophy. By introducing world-class production equipment and selecting high-quality global components from partners like Mitsubishi, Omron, and Delta, we ensure "zero defect" production.
Our product range includes various industrial shredders and customized full-line recycling systems. We are committed to providing superior industrial pollution prevention solutions and promoting sustainable green development worldwide.
