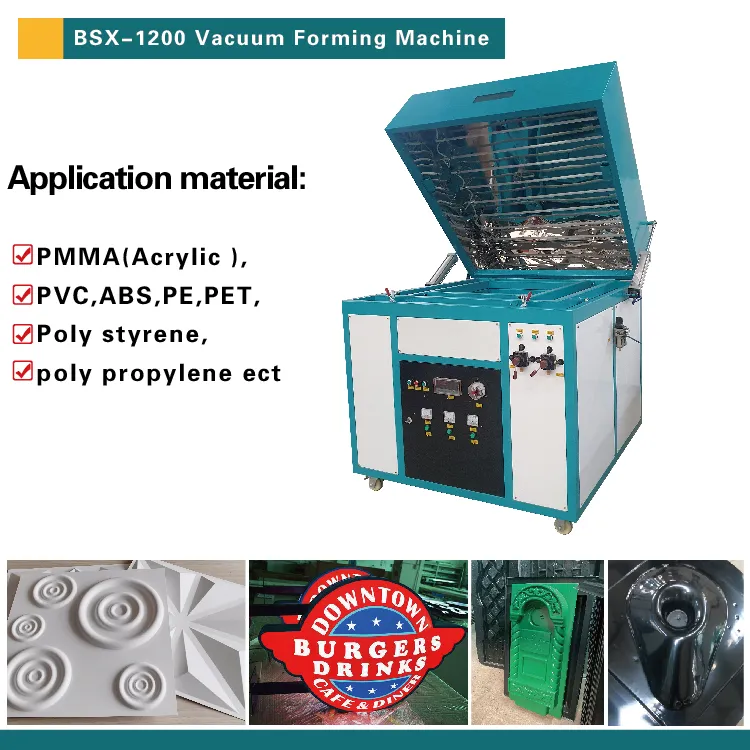

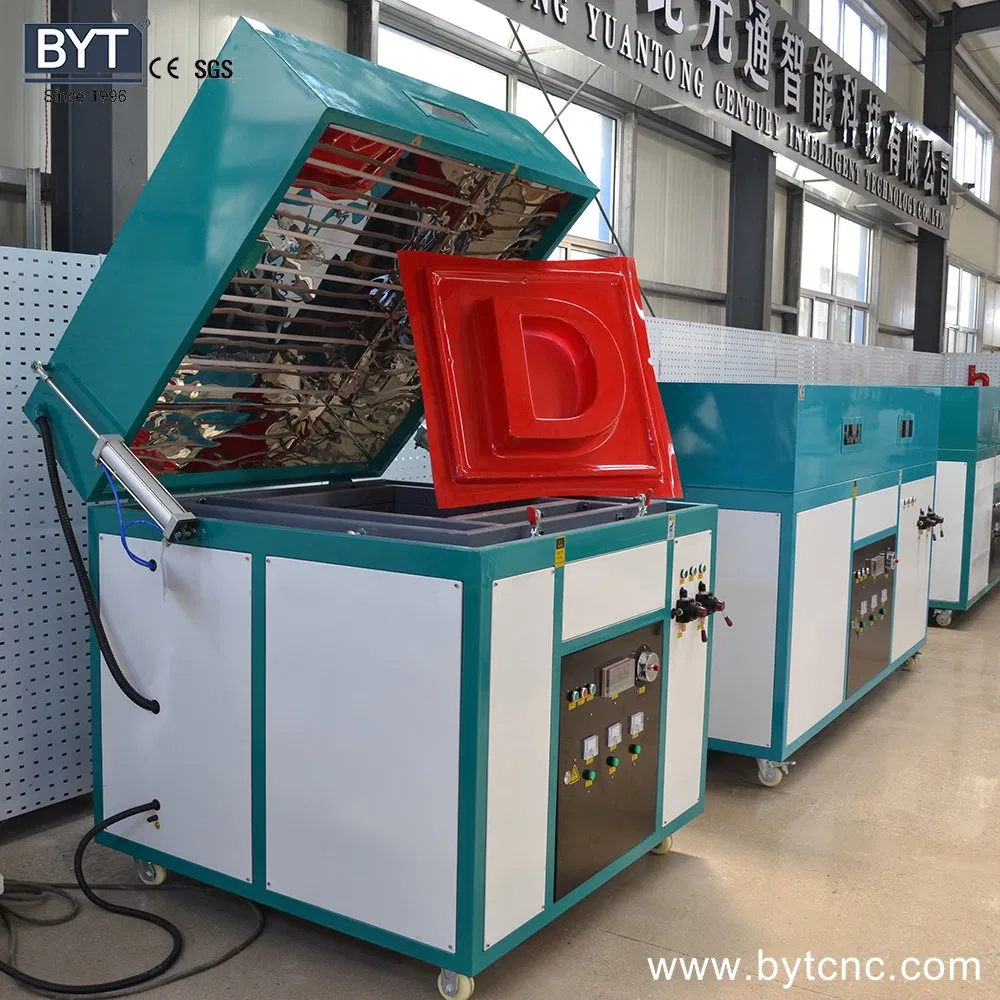

BSX-1200 Deepness Vacuum Forming Machine is specifically designed for Advertising Signs, Light Boxes, and various thermoplastic industrial applications. It features high precision and robust construction for consistent manufacturing quality.
Application Industry and Material:

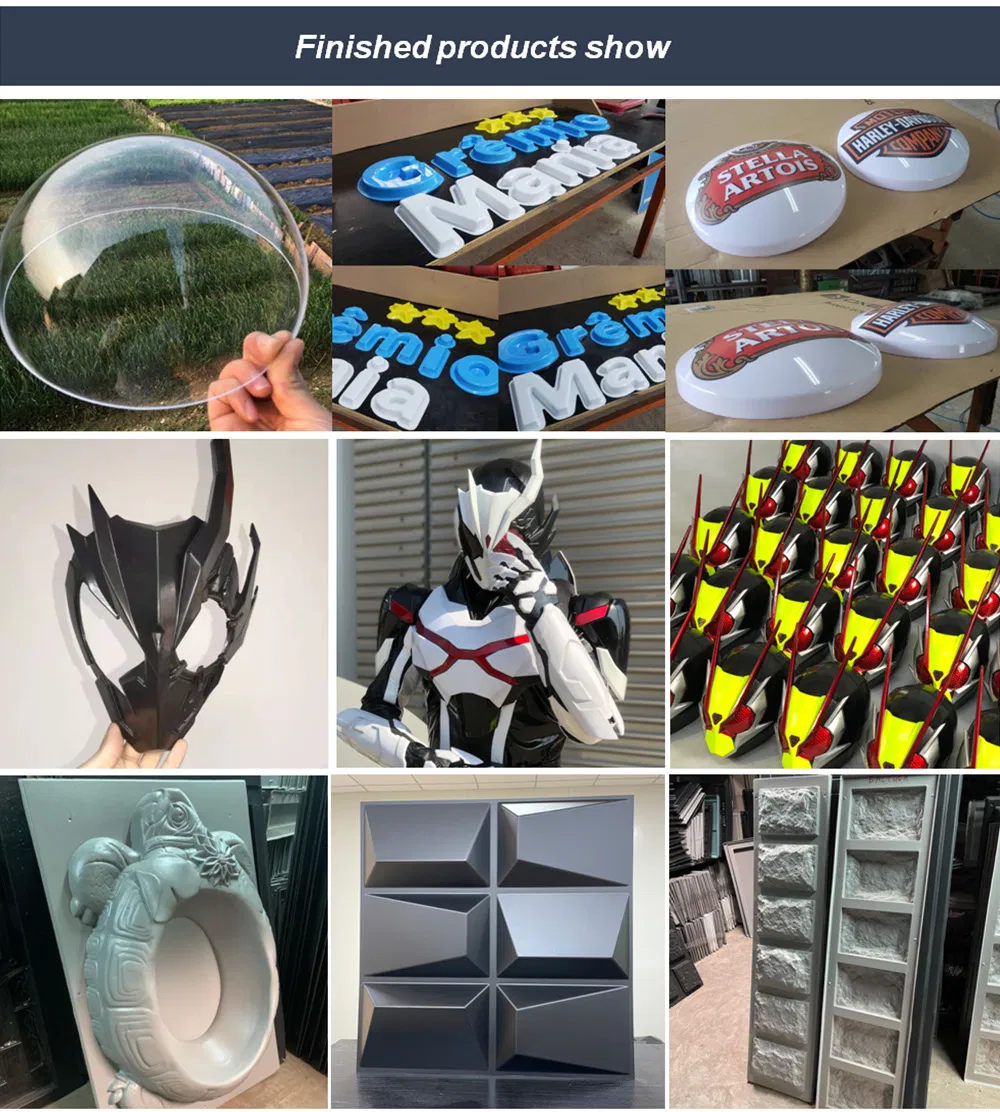

- Plastic moulding & mask making
- Advertising signage making
- University or research institutions teaching experiments
- Chocolate and cake package box making
- Industrial & automobile decoration
- Application materials: PMMA (Acrylic), PVC, ABS, PE, PET, Polystyrene, Polypropylene, etc.

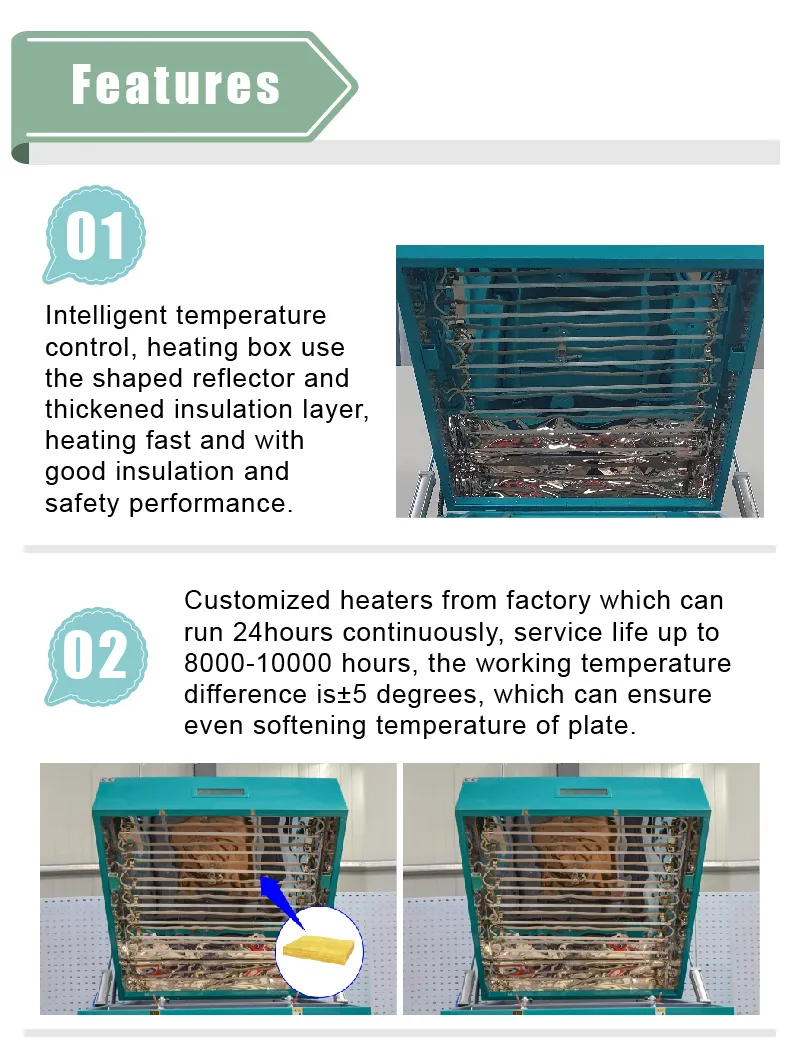

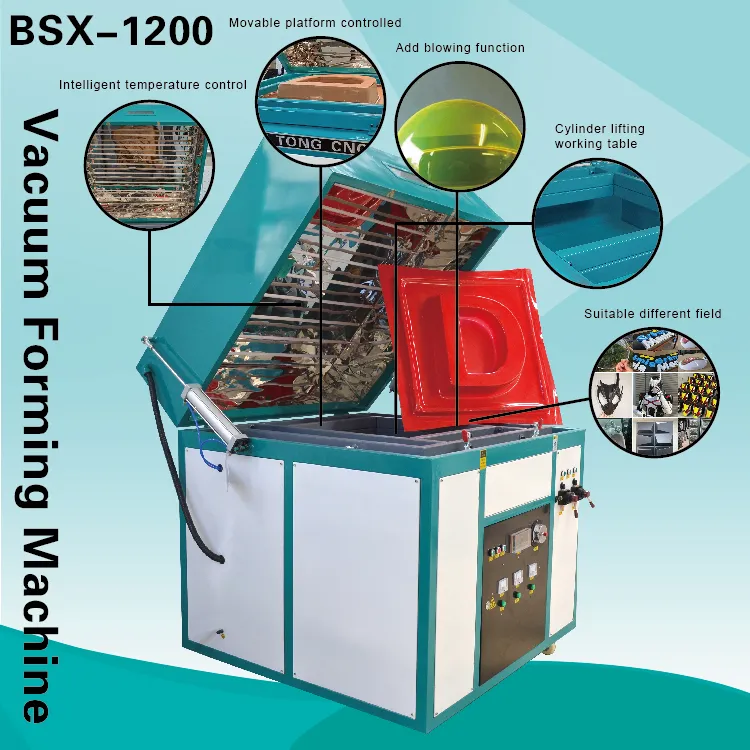

Intelligent Temperature Control: Heating box utilizes shaped reflectors and thickened insulation for fast heating and safety.
Continuous Operation: Customized heaters can run 24 hours continuously with a service life up to 10,000 hours.

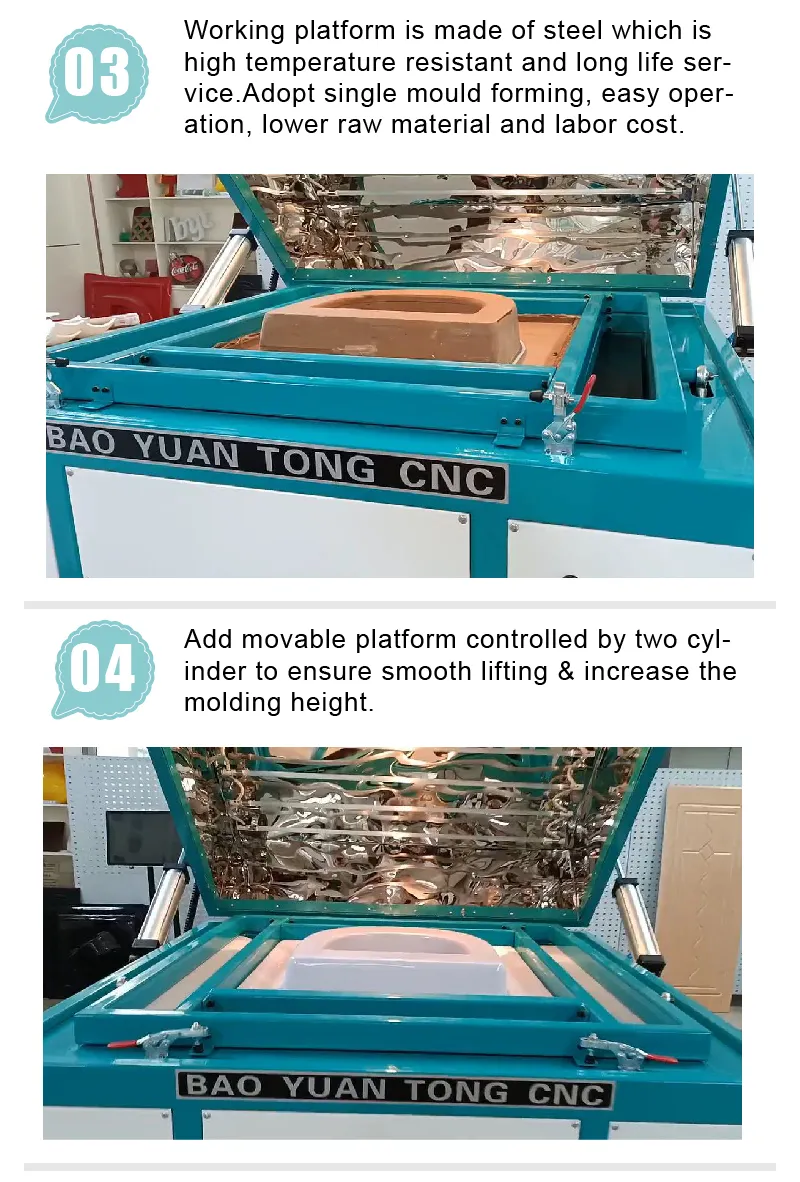

High-Strength Platform: Working platform made of high-temperature resistant steel for long-term durability.
Pneumatic Control: Aluminum alloy press frame controlled by two cylinders for improved sealing and forming effects.
Stable Lifting: Movable platform ensures smooth lifting and increases the maximum molding height.

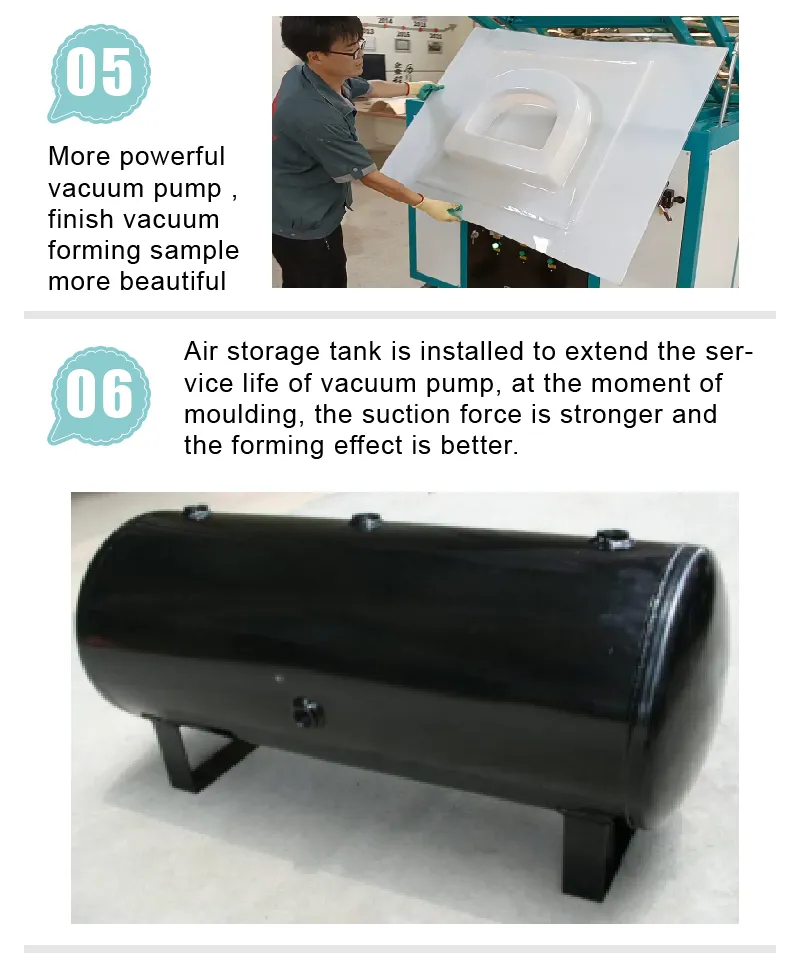

Powerful Vacuum System: Equipped with an air storage tank to extend pump life and provide stronger suction.
Dual Function: Includes both suction and blowing functions for easy demoulding and ball blow molding.
Frequently Asked Questions
Q: What materials are compatible with the BSX-1200?
A: The machine works with PMMA (Acrylic), PVC, ABS, PE, PET, Polystyrene, Polypropylene, and other thermoplastic materials.
Q: What is the maximum forming depth achieved by this machine?
A: The maximum suction forming depth for the BSX series is 300mm.
Q: How does the temperature control system work?
A: It uses an intelligent temperature control system with shaped reflectors and thickened insulation, maintaining a working temperature difference within ±5 degrees for even plate softening.
Q: Can this machine be used for ball blow molding?
A: Yes, the machine includes a blowing function that facilitates both easy demoulding and ball blow molding.
Q: What are the power requirements for the BSX-1200?
A: The machine operates on AC380V at 50Hz (3 Phase) with a total power consumption of 11kw.
Q: Is the heating oven manual or automatic?
A: The machine is equipped with an automatic open style oven for improved efficiency and ease of use.
