Customization: Available
After-sales Service: Lifelong Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specification
Model NO.
SPC-760
Certification
CE
Column number
Four Column
Molding Method
Thermoforming
Automatic Grade
Automatic
Forming Area
760X420mm
Voltage
380V/50Hz
Weight
9000kg
Control Method
PLC
Transport Package
Plastic Film
Origin
Wenzhou, China
HS Code
8477409000
Production Capacity
100 Sets Per/Year
Product Description

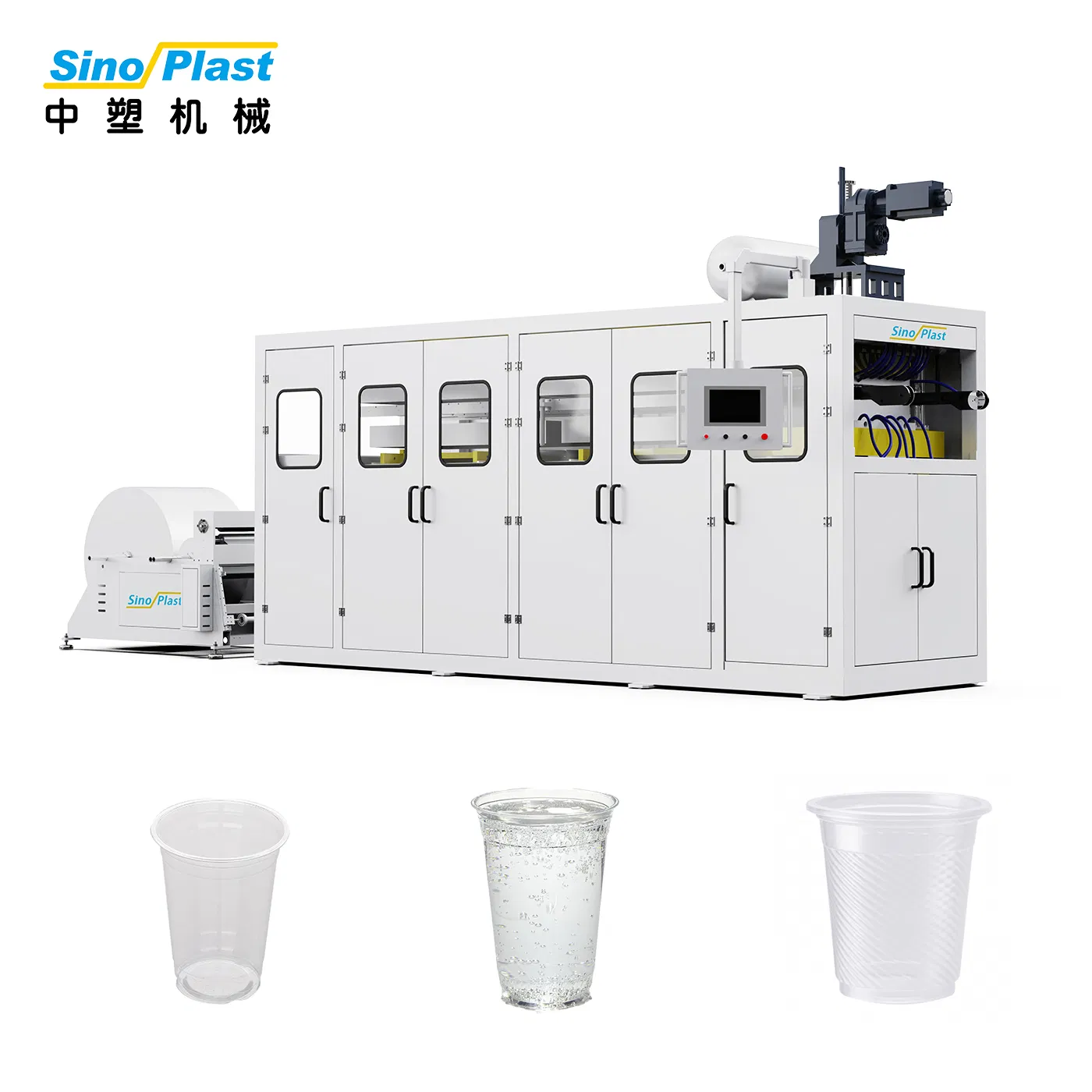

SPE-760 Series Automatic Plastic Cup Thermoforming Machine

(Mainly for making plastic cups, bowls, plates, lids without holes, etc)

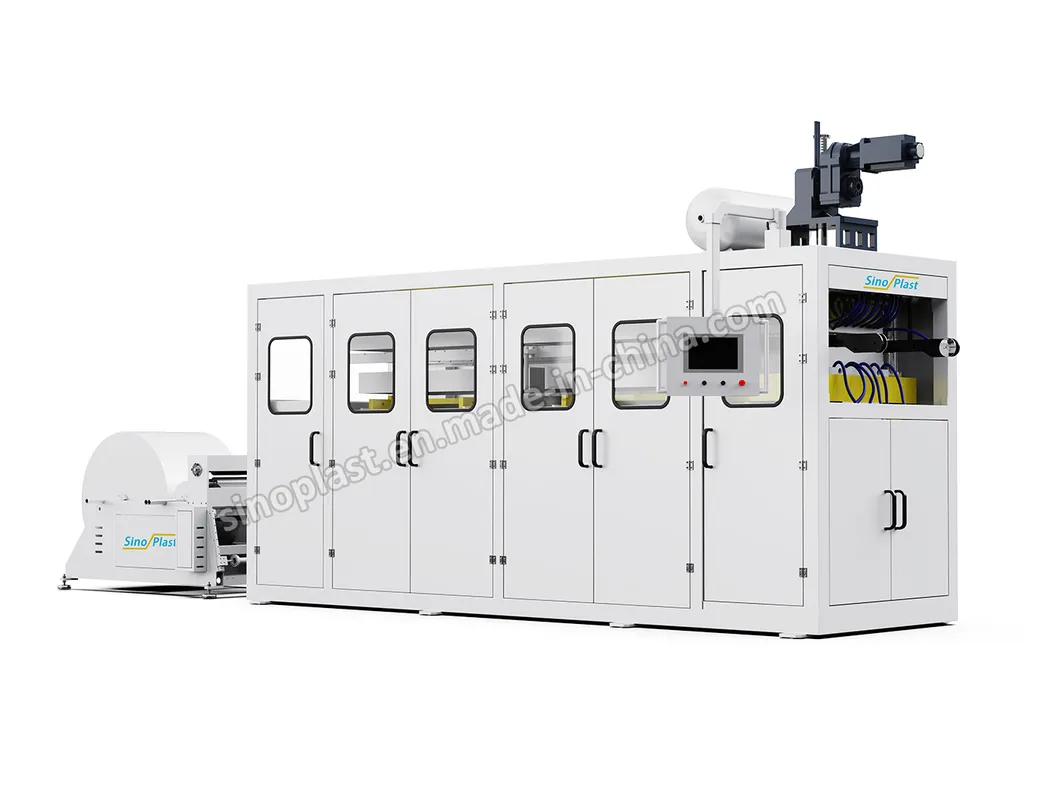

Automatic Plastic Cup Thermoforming Machine
I. Usage

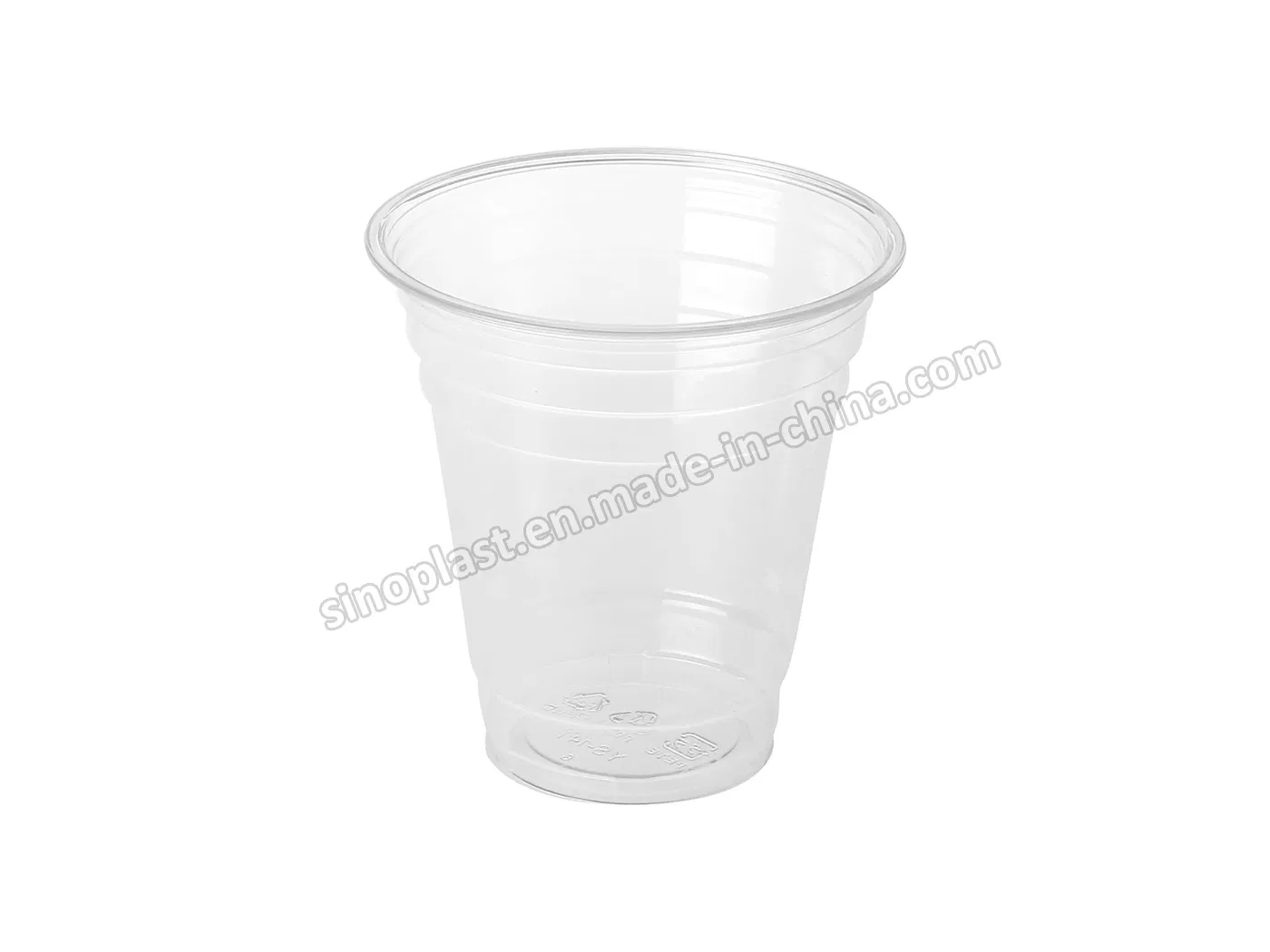

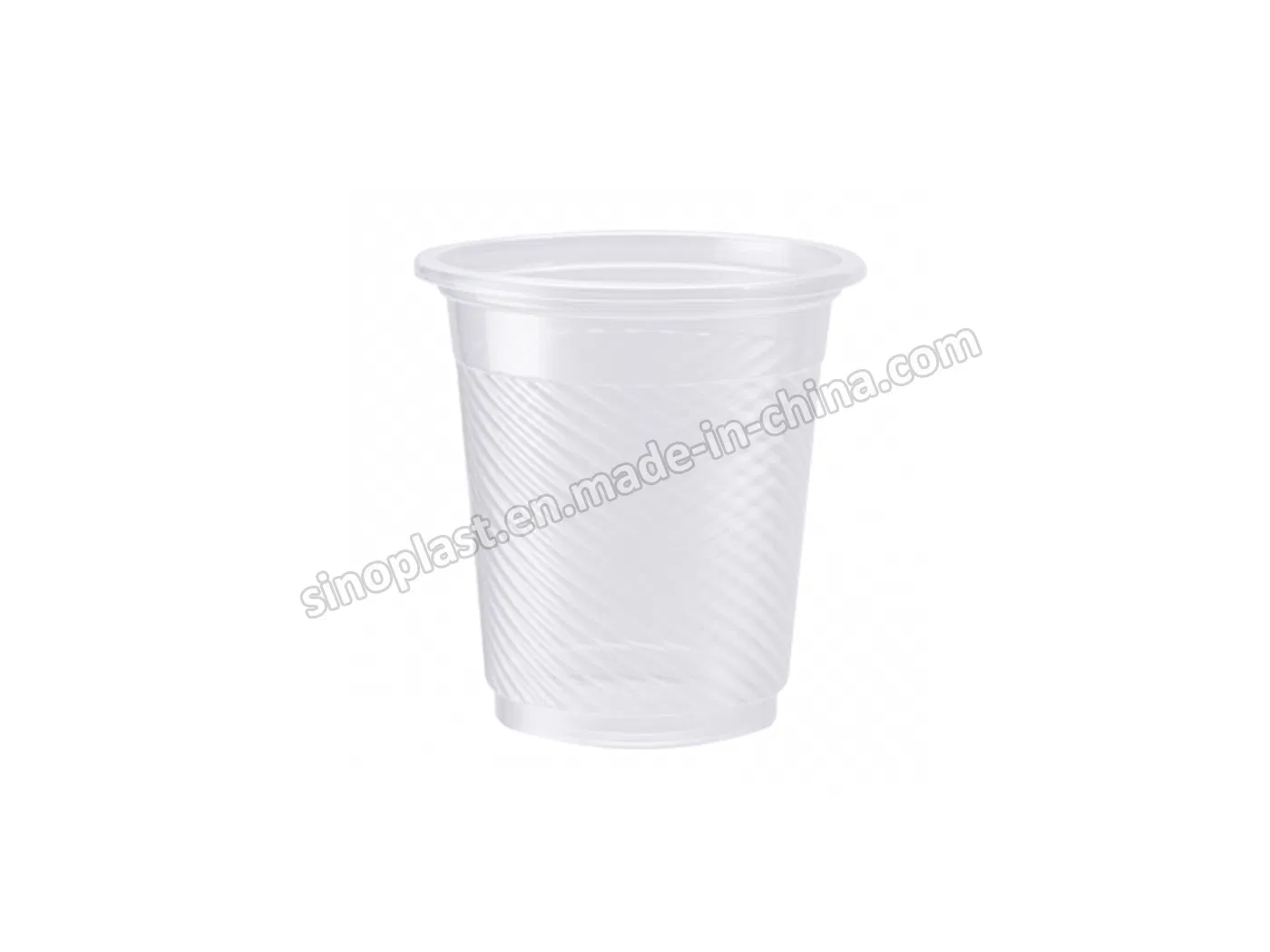

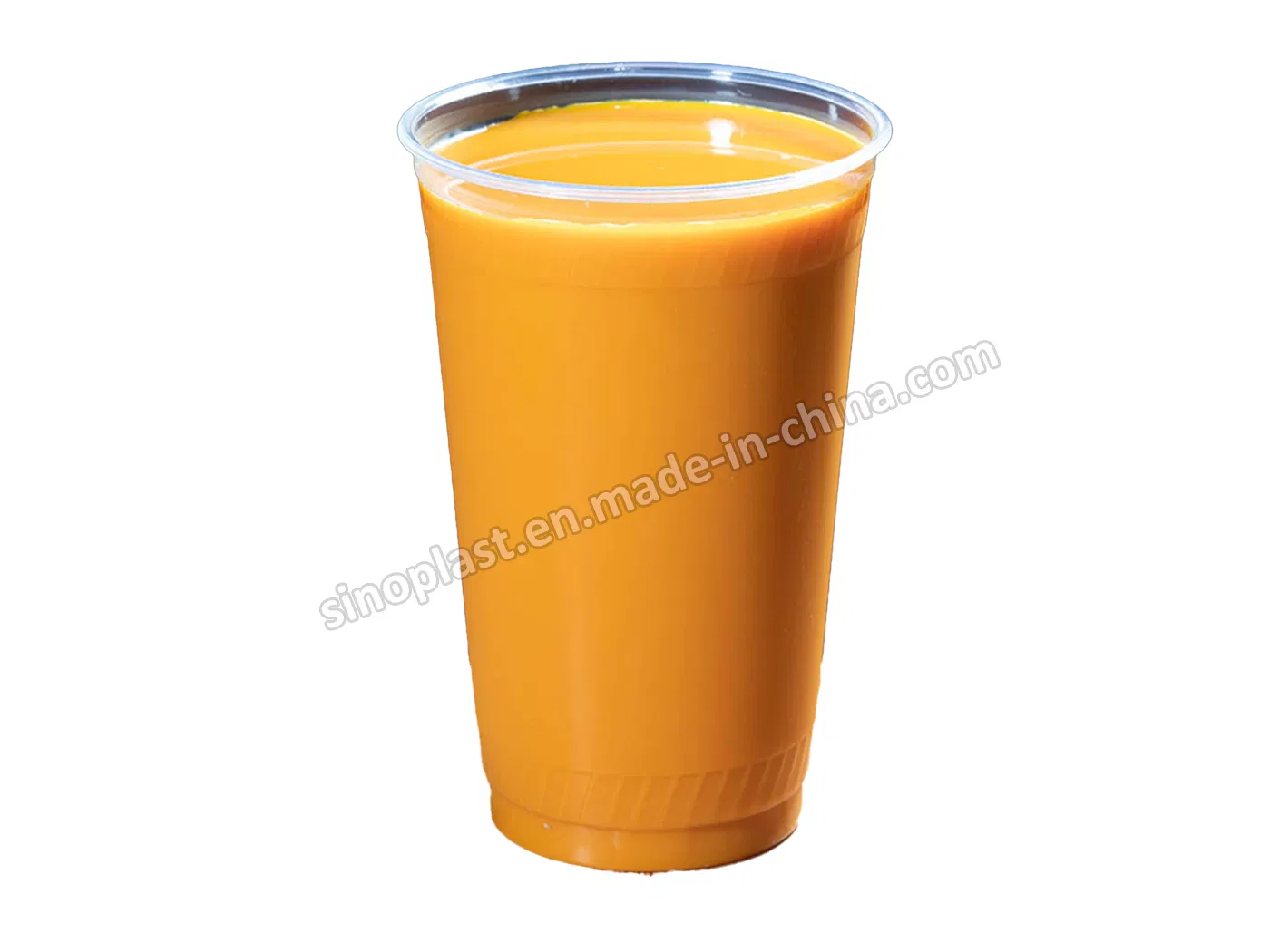

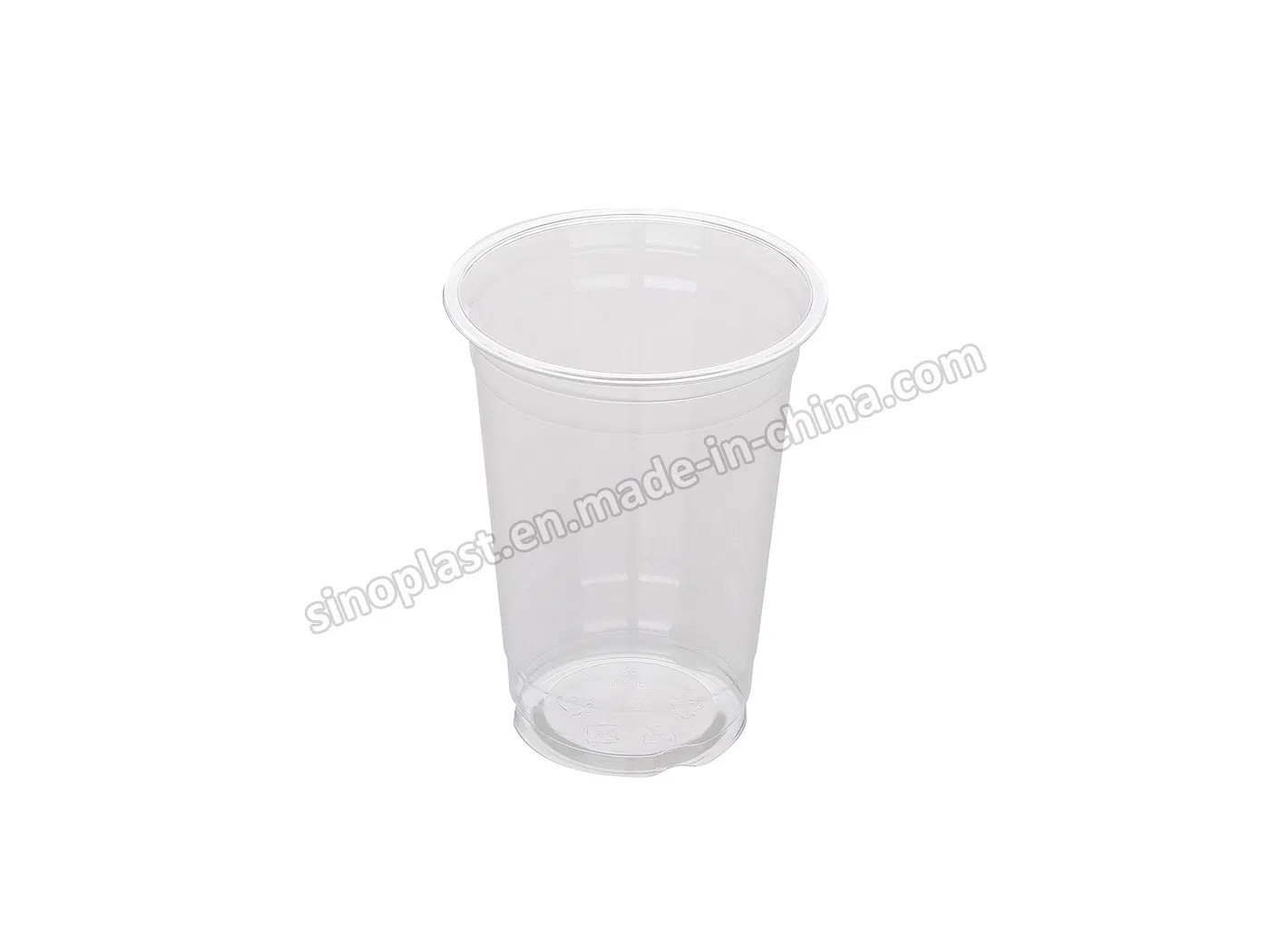

SPE-760 Automatic Plastic Cup Thermoforming Machine is mainly used to form PP/HIPS/PET/PLA/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.

II. Main Features
✓The stretching of plugs inside of the upper mould are controlled by air cylinder or servomotor.
✓Sheet feeding driven by pin chain, controlled by motor with inverter or servomotor; length set via touch screen.
✓Adopts four pillars to fix the mould for enhanced stability.
✓The up mould is fixed and the mould plate movement is driven by servomotor.
✓Temperature of each zone is precisely controlled by specialized Temperature control modules.
✓Integrated process: feeding, heating, stretching, forming, in-mould cutting, and product ejection.
✓Stronger machine frame construction using high-quality square steel.
✓Fully automated control via PLC and intuitive touch screen interface.
III. Main Technical Parameters
Model SPE-760A SPE-760B SPE-760C SPE-760D
Max. Forming Area 760 x 320 mm 760 x 320 mm 760 x 420 mm 760 x 420 mm
Example (75mm Cup) 24 cavities/mold 32 cavities/mold
Running Speed 15-32 cycles/min (varies by material/thickness)
Sheet Thickness 0.20 - 2.0 mm
Materials PP, GPPS, HIPS, PET, PVC, PLA, Biodegradable Sheet
Max. Forming Depth 160 mm (Customizable)
Mold Movement 11KW Servomotor 15KW Servomotor
Heating System 171pcs IR Ceramic Heaters (800W) 171pcs IR Ceramic Heaters (800W)
Weight 8000KG 9000KG
Auxiliary Machines

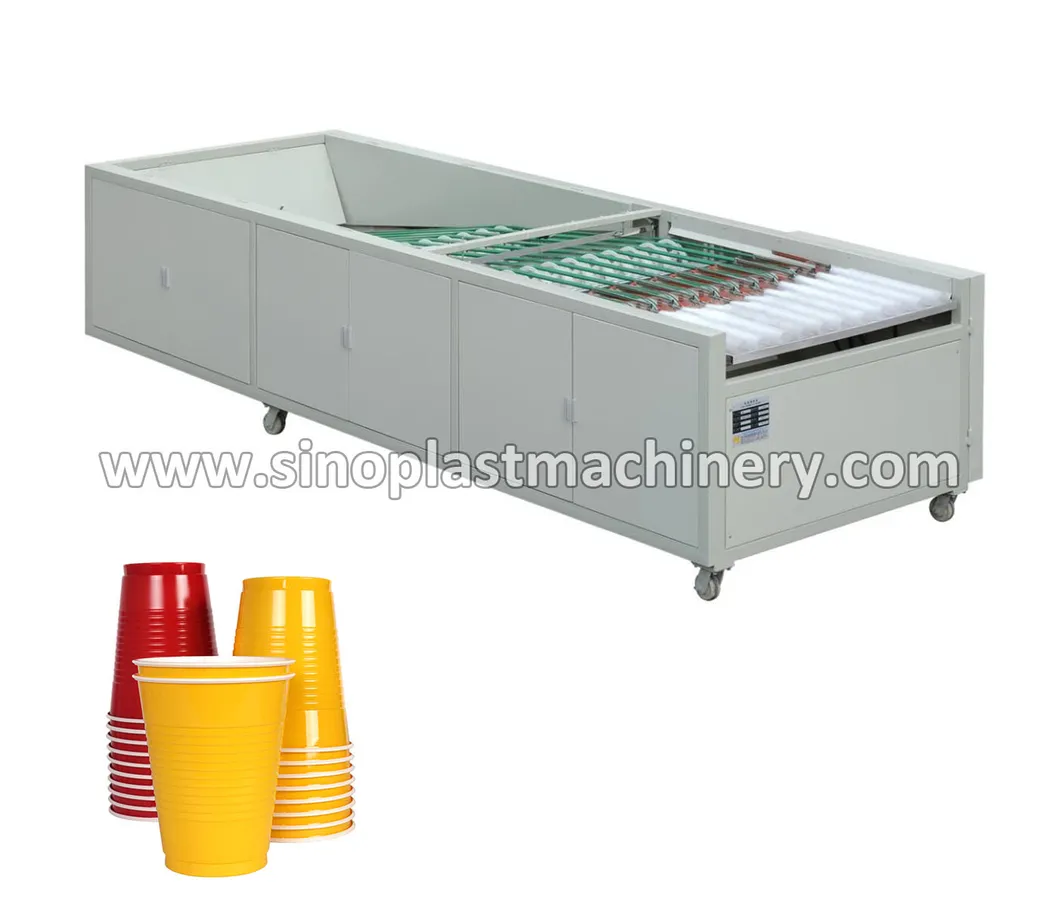

Stacking Machine

1) Stacking Machine

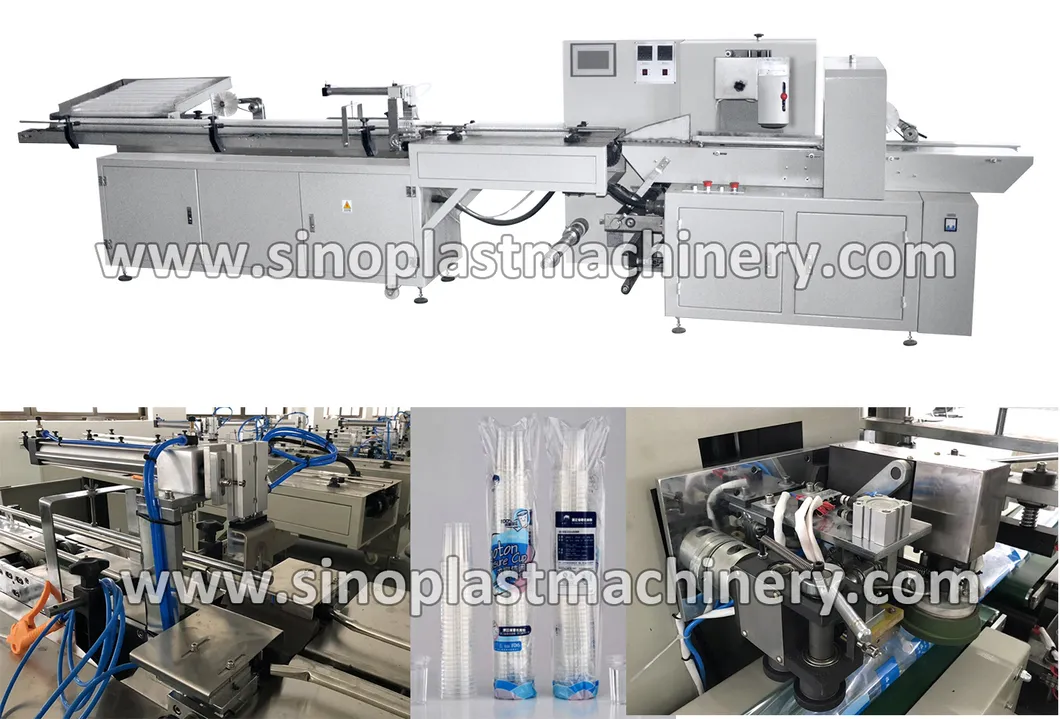

Cup Counting & Packing Machine

2) Cup Counting & Packing Machine

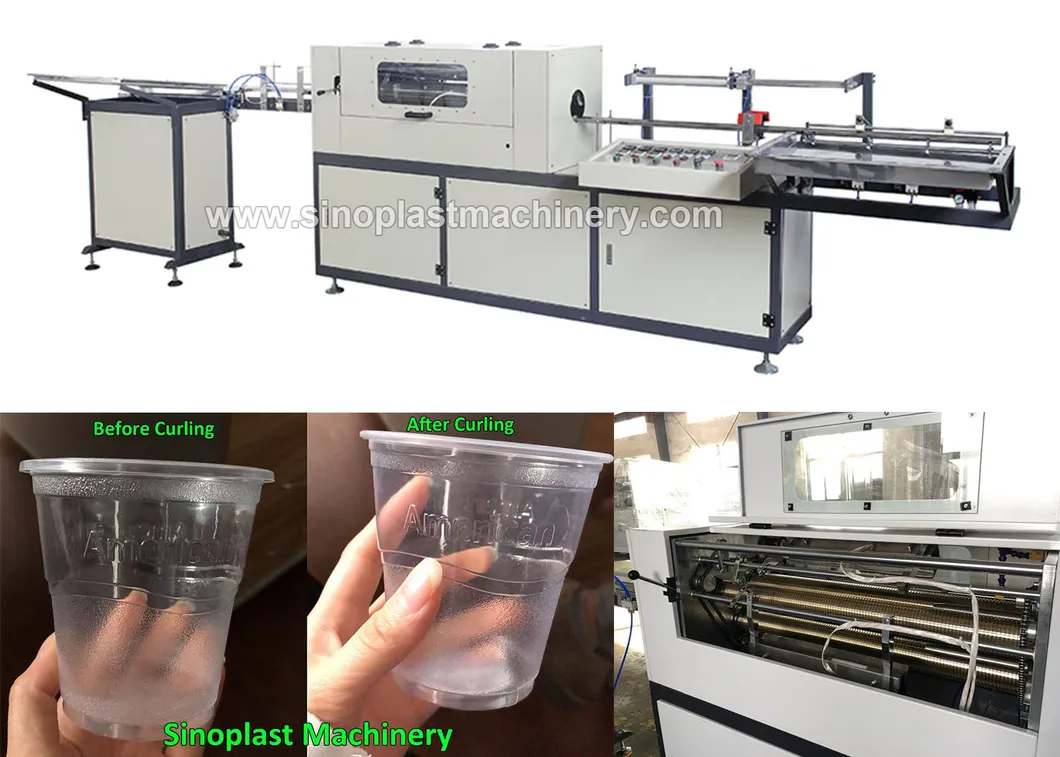

Automatic Cup Curling Machine

3) Automatic Cup Curling Machine

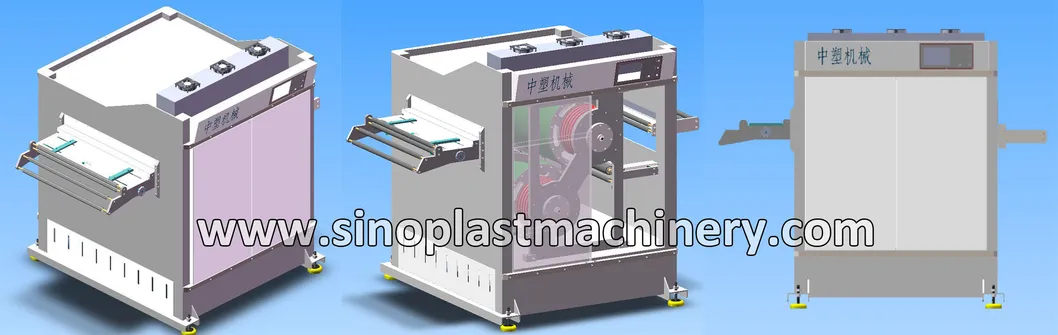

Preheating Machine

4) Preheating Machine

Frequently Asked Questions
What plastic materials can this machine process?
The SPE-760 is compatible with a wide range of sheets including PP, HIPS, PET, PLA, PVC, and various biodegradable materials.
What types of products can be manufactured?
It is primarily designed for disposable plastic cups (hot/cold, yogurt, ice cream), but can also produce bowls, plates, lids, dishes, and boxes using different moulds.
How is the stretching process controlled?
Depending on your precision needs, the plug stretching inside the upper mould can be controlled by either an air cylinder or a high-precision servomotor.
What is the production speed of the SPE-760 series?
The machine operates at a speed of 15-32 cycles per minute, depending on the sheet thickness, material type, and the specific shape of the product.
Is the forming depth adjustable?
The standard maximum forming depth is 160mm, but it can be custom-made to meet specific requirements for deeper containers.
How is the temperature regulated during production?
The machine uses IR Ceramic Heaters distributed across the top and bottom, with each zone individually managed by a Temperature Control Module for maximum consistency.
