● Basic Information
Working Speed
~ 23 Cycles/Min
Max. Forming Area
730X500mm
Transport Package
Wooden Pallet
Production Capacity
700,000 PCS/Day
● Key Features
✔
Highly Energy-Efficient: Consumes only 10 kilowatts per hour in total, significantly cutting down electricity costs.
✔
High Production Capacity: For 98 mm PET cup lids, it can produce 700,000 pieces per day.
✔
In-Mold Cutting Technology: Ensures products have no breakpoints, guaranteeing a seamless and high-quality finish.
✔
Versatile Material Compatibility: Capable of producing PLA, PET, PVC, and PS cup lids to meet eco-friendly demands.
● Main Technical Parameters
| No. |
Description |
Specification |
| 1 | Suitable Products | Disposable plastic lids, egg trays, clamshell boxes, plates etc. |
| 2 | Suitable Materials | PET, PVC, PS, PLA sheet |
| 3 | Thickness Range | 0.1-1.2mm |
| 4 | Stroke Range | 30-440mm |
| 5 | Max. Forming Depth | 100mm |
| 6 | Max. Forming Area | 730×500mm |
| 7 | Industry Voltage | 380V/50Hz (Three Phase, Four Wires) |
| 8 | Total Power | 30kW |
| 9 | Max. Speed | 10-35 Cycles/Min (Robot max 25 cycles/Min) |
| 10 | Max. Cutting Force | 30Ton/0.8Mpa |
| 11 | Air Pressure | 0.5-0.7MPa |
| 12 | Air Consumption | ≥ 0.3 m3/h |
| 13 | Cooling Water | Normal Tap Water Recycle Cooling |
| 14 | Noise | <75Db |
| 15 | Machine Dimension | 5300×1200×1900mm |
| 16 | Machine Weight | 6300kg |
● Machine Details

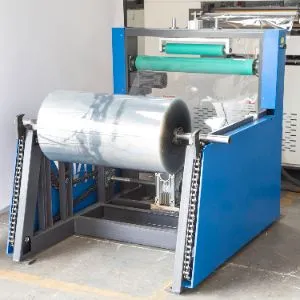

Sheet Loading Area

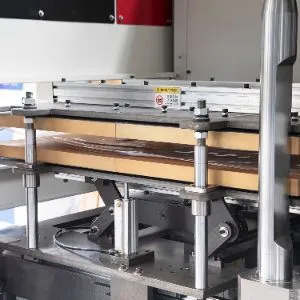

Precision Heaters

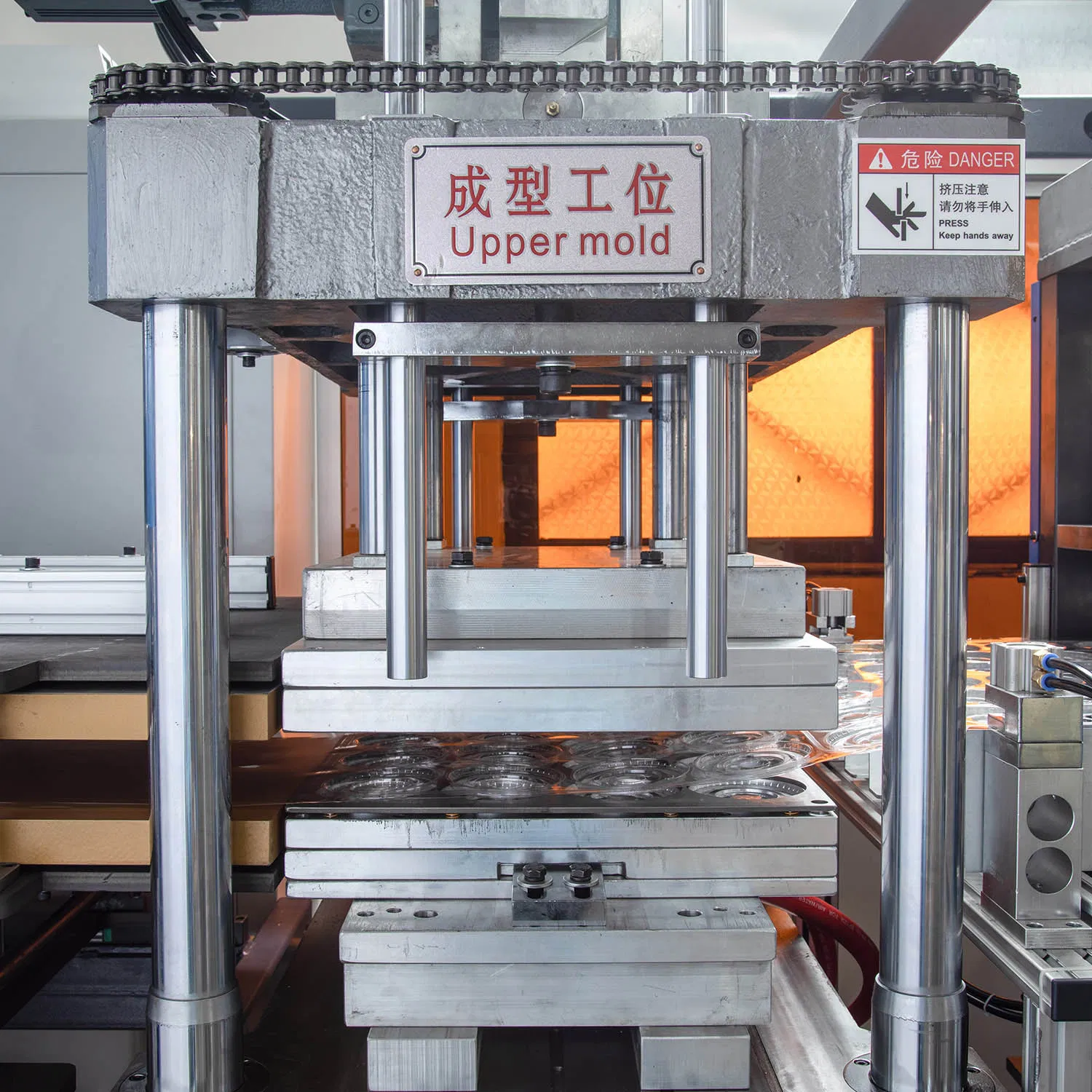

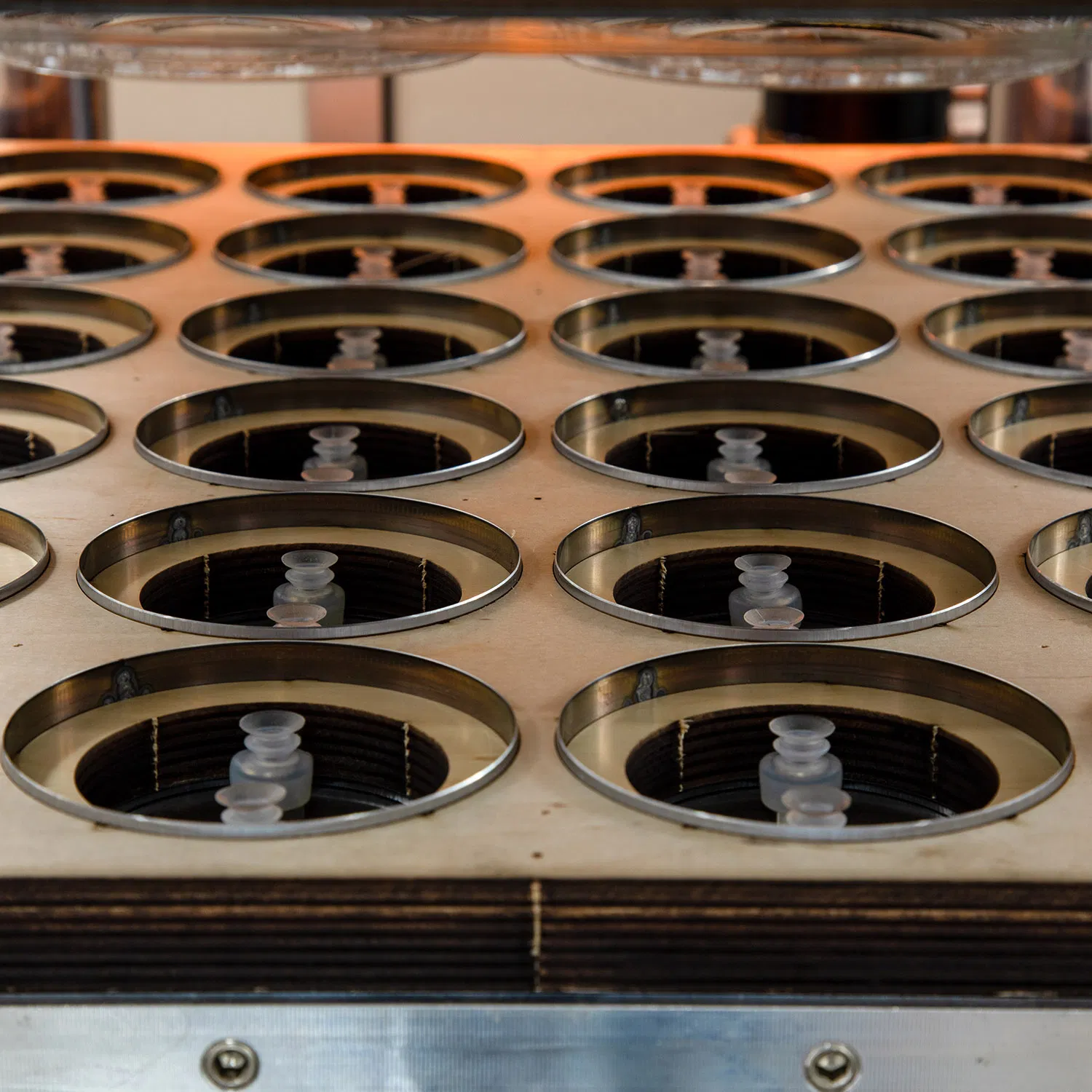

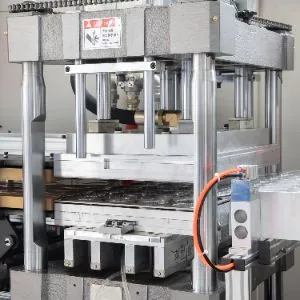

Forming Mould

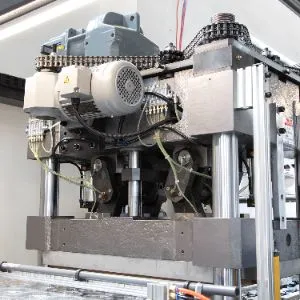

Fully Servo Driving System

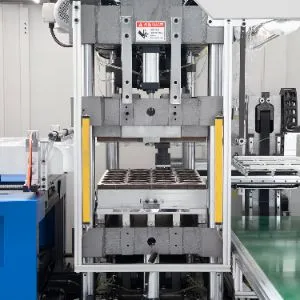

Laser Cutting Knife

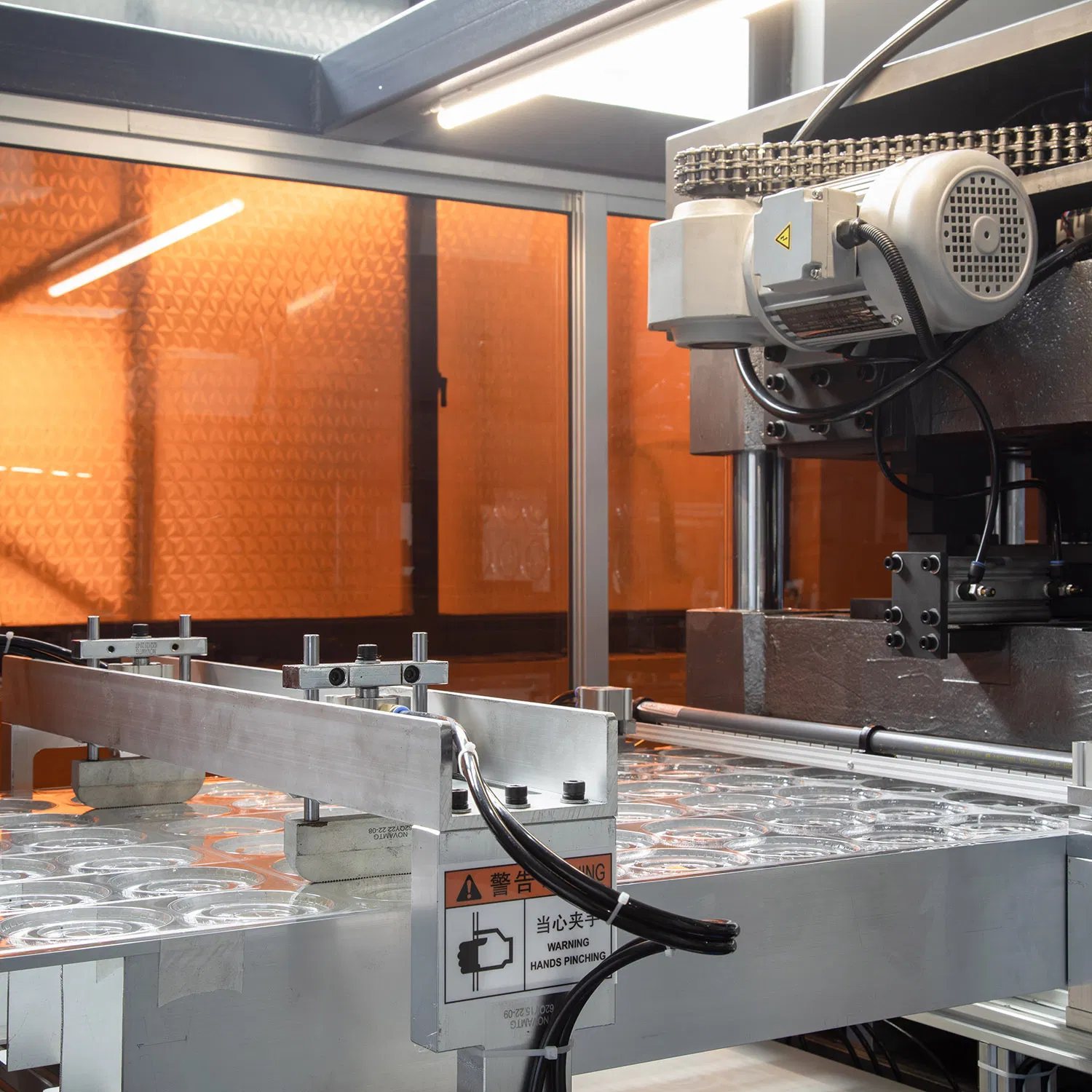

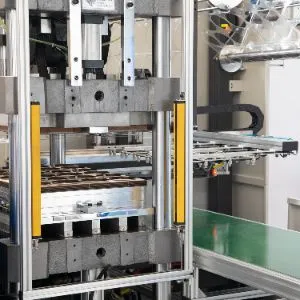

Stacking Robot

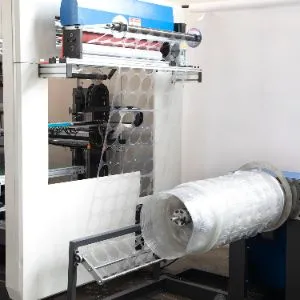

Waste Rewinder

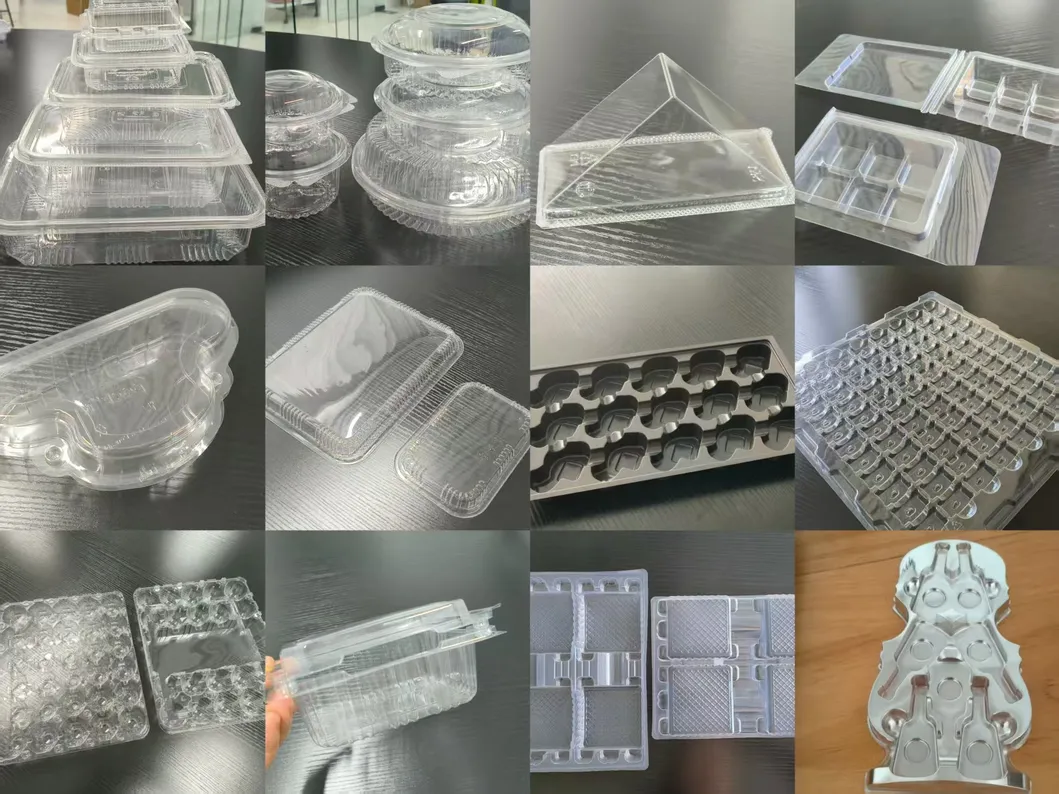

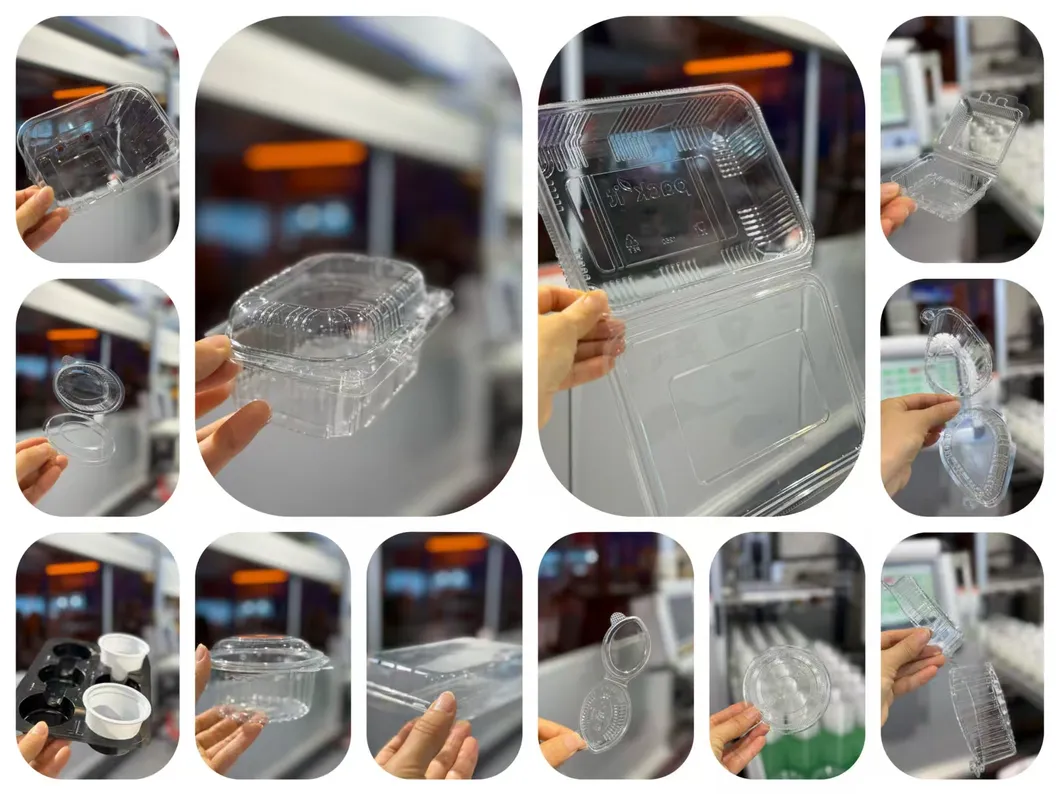

● Samples Show

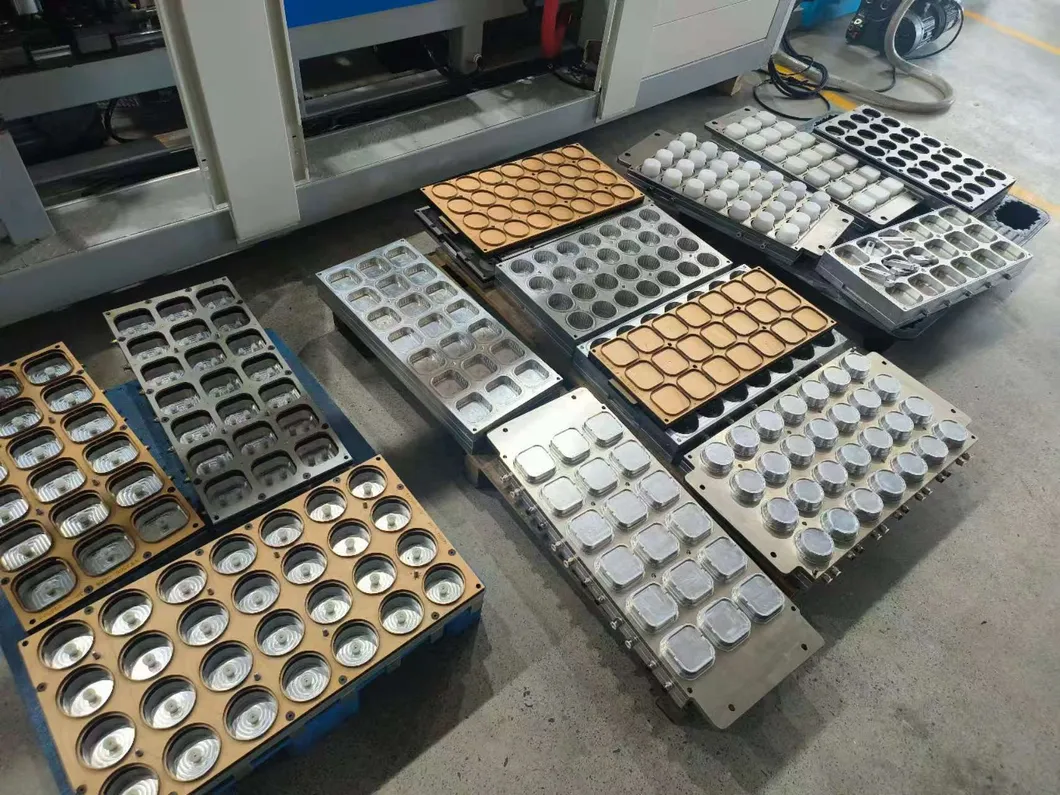

● Mould Show
● Packaging & Shipping
● Trade Show
Frequently Asked Questions
Q1: What types of products can the S750 thermoforming machine produce?
The machine is ideal for manufacturing disposable plastic lids, egg trays, clamshell boxes, and various plastic plates.
Q2: Which materials are compatible with this equipment?
It supports a wide range of materials including PET, PVC, PS, and eco-friendly PLA sheets.
Q3: How energy-efficient is this thermoforming machine?
The S750 is highly efficient, with a total power consumption of only approximately 10 kW/h.
Q4: What is the production capacity for standard cup lids?
For 98mm diameter PET lids, the machine can reach a production capacity of up to 700,000 pieces per day.
Q5: What is the benefit of in-mold cutting technology?
In-mold cutting ensures that the final products have no breakpoints, resulting in a smoother edge and a higher quality finish.
Q6: What is the maximum forming depth and area?
The machine offers a maximum forming depth of 100mm and a maximum forming area of 730 × 500mm.
