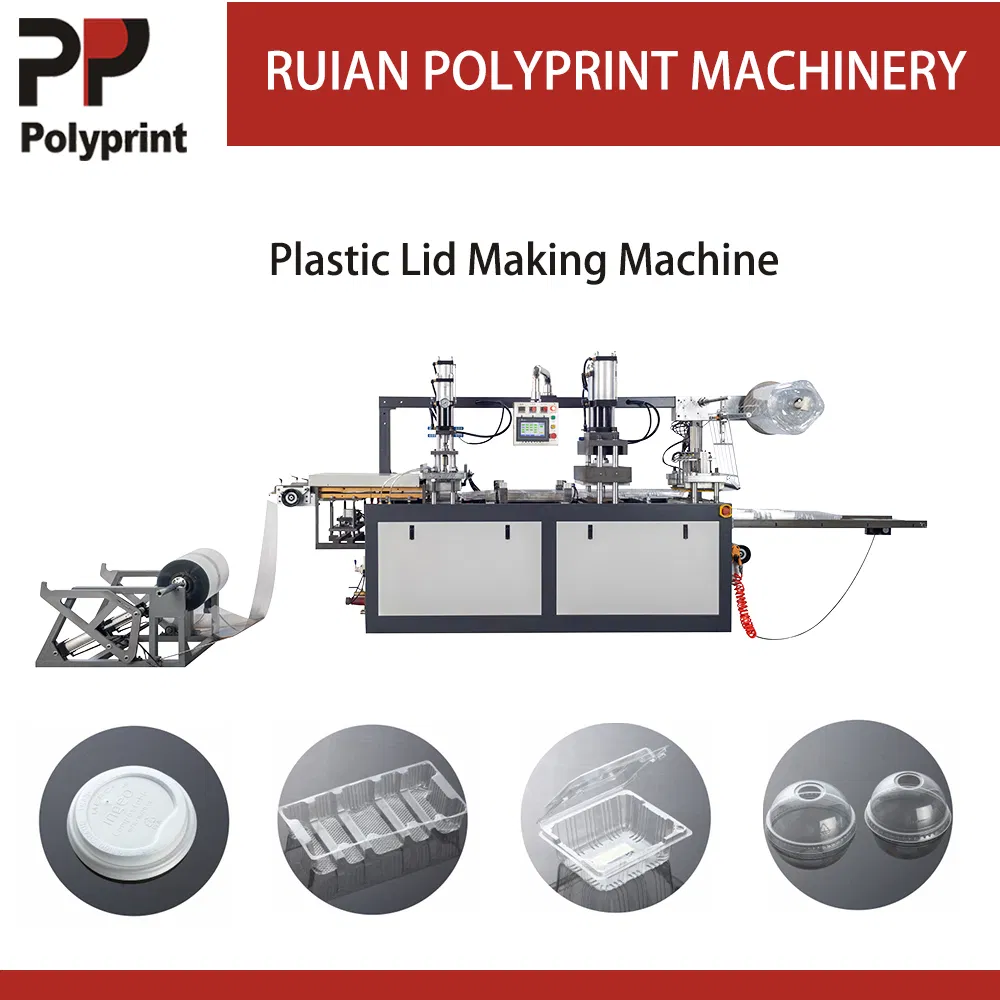

Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
1 / 5
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine

Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine

Customization: Available
Warranty: 1year
Certification: CE, ISO
Send Inquiry

Product Description

i

Basic Information

Model NO.
PPBG-500
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Working Speed
10-32 Cycles/Min
Stroke Range
30-340mm
Max. Forming Depth
50mm
Max. Forming Area
480X320mm
Main Motor Power
3kw
Heating Power
12kw
HS Code
84774090
Capacity
10000-15000PCS/Hr
⚙

Product Details

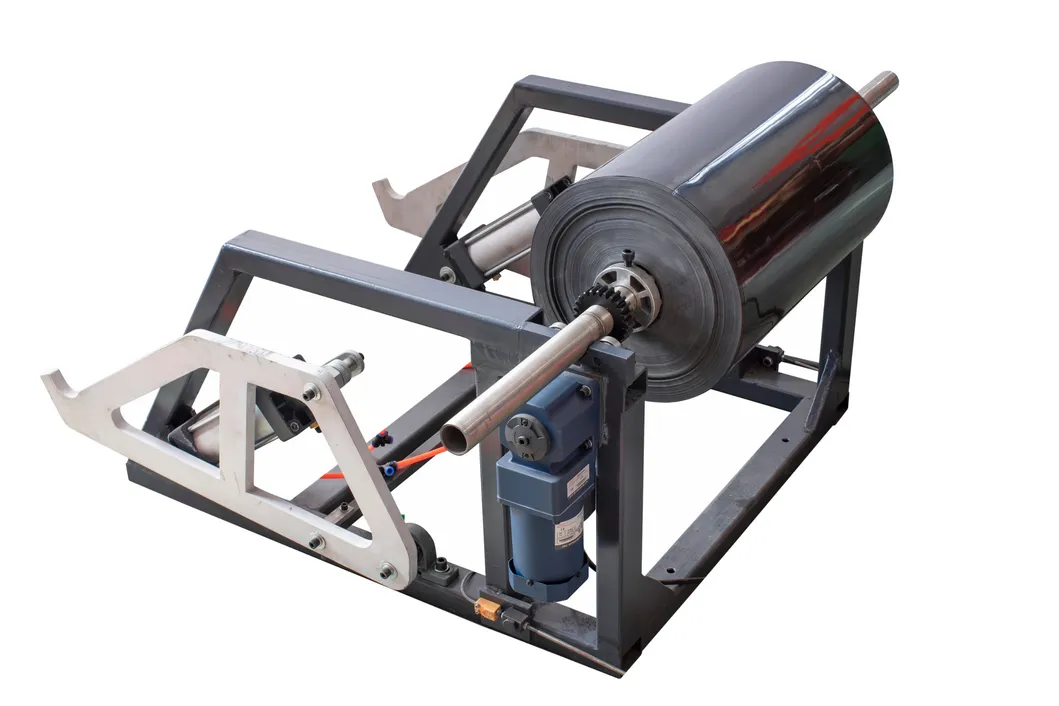

Unwinding Station
Unwinding Station

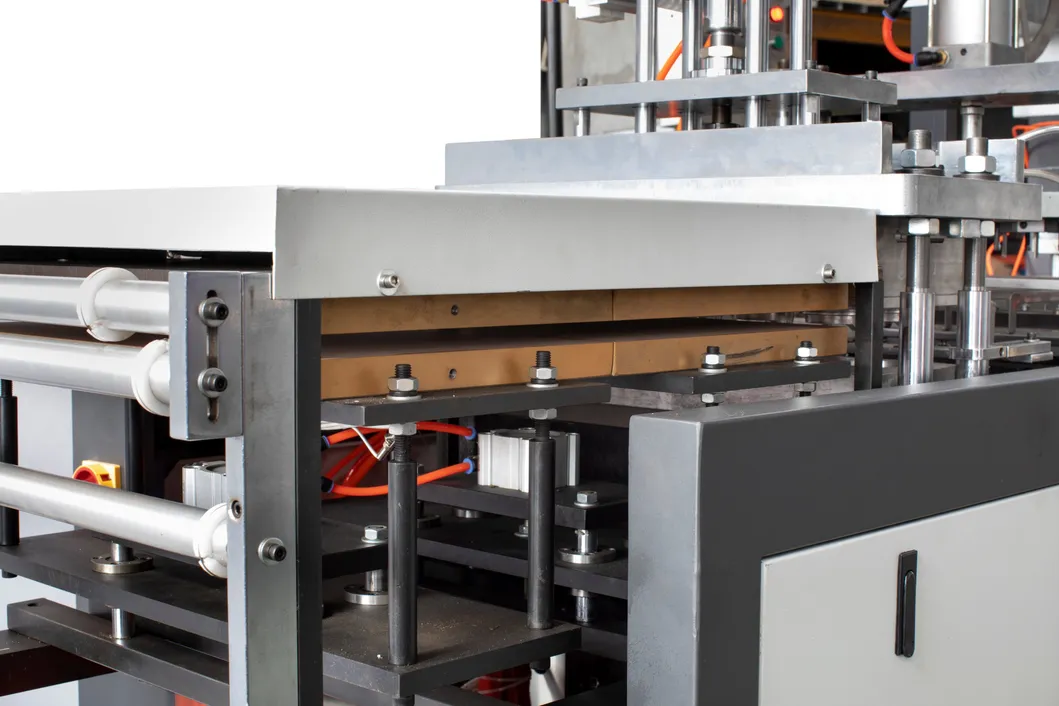

Heating Station
Heating Station

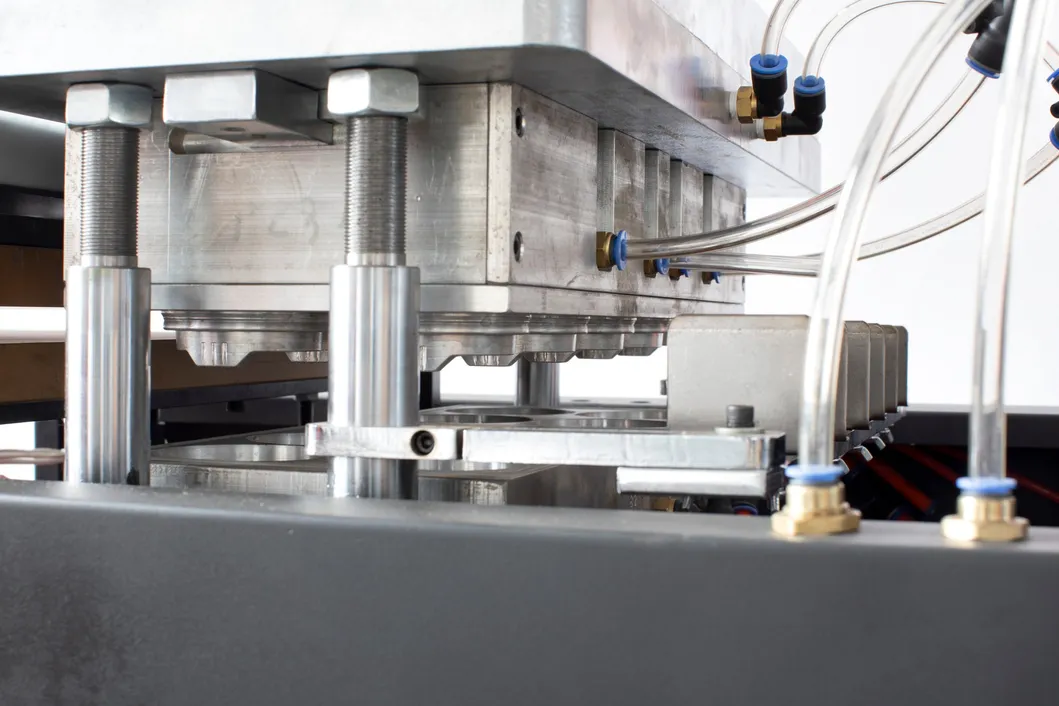

Forming Station
Forming Station

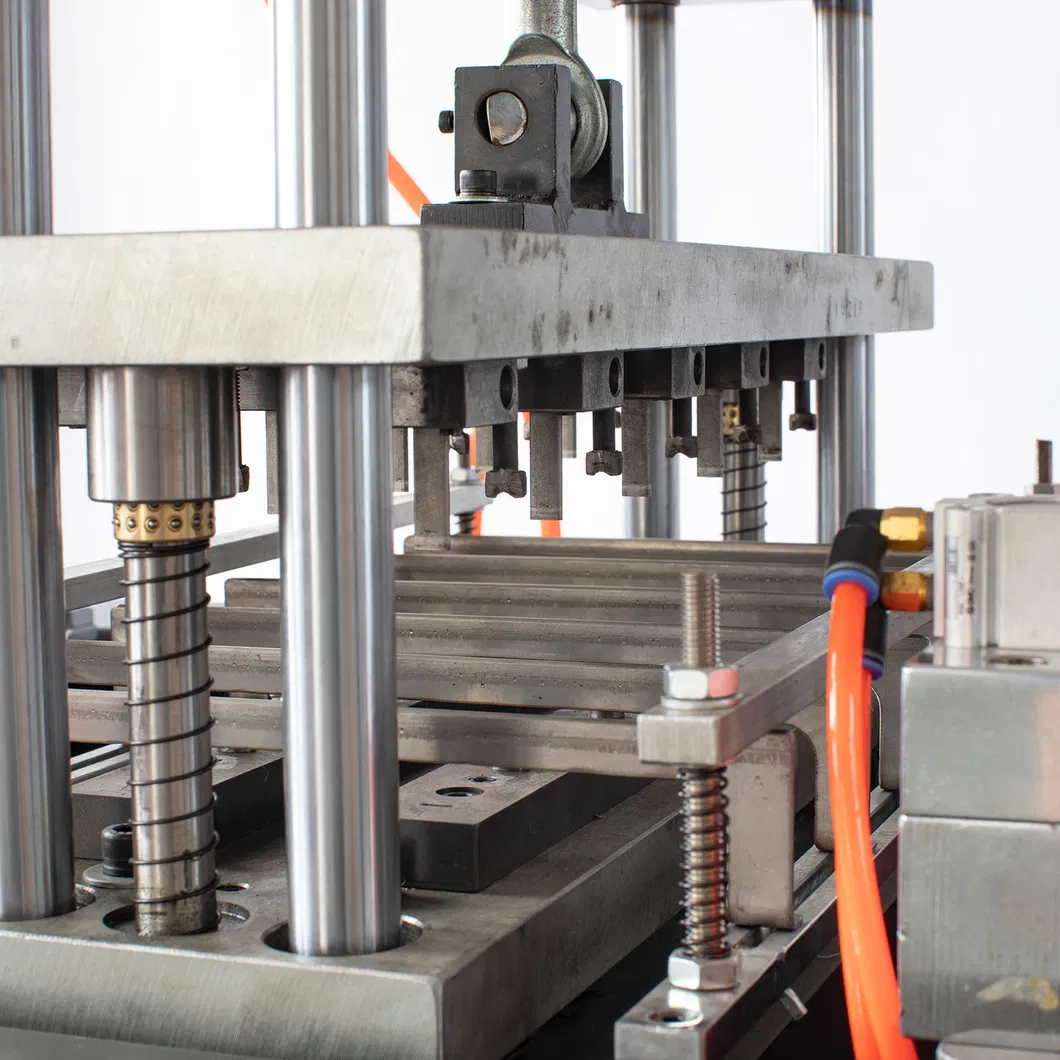

Punching Station
Punching Station

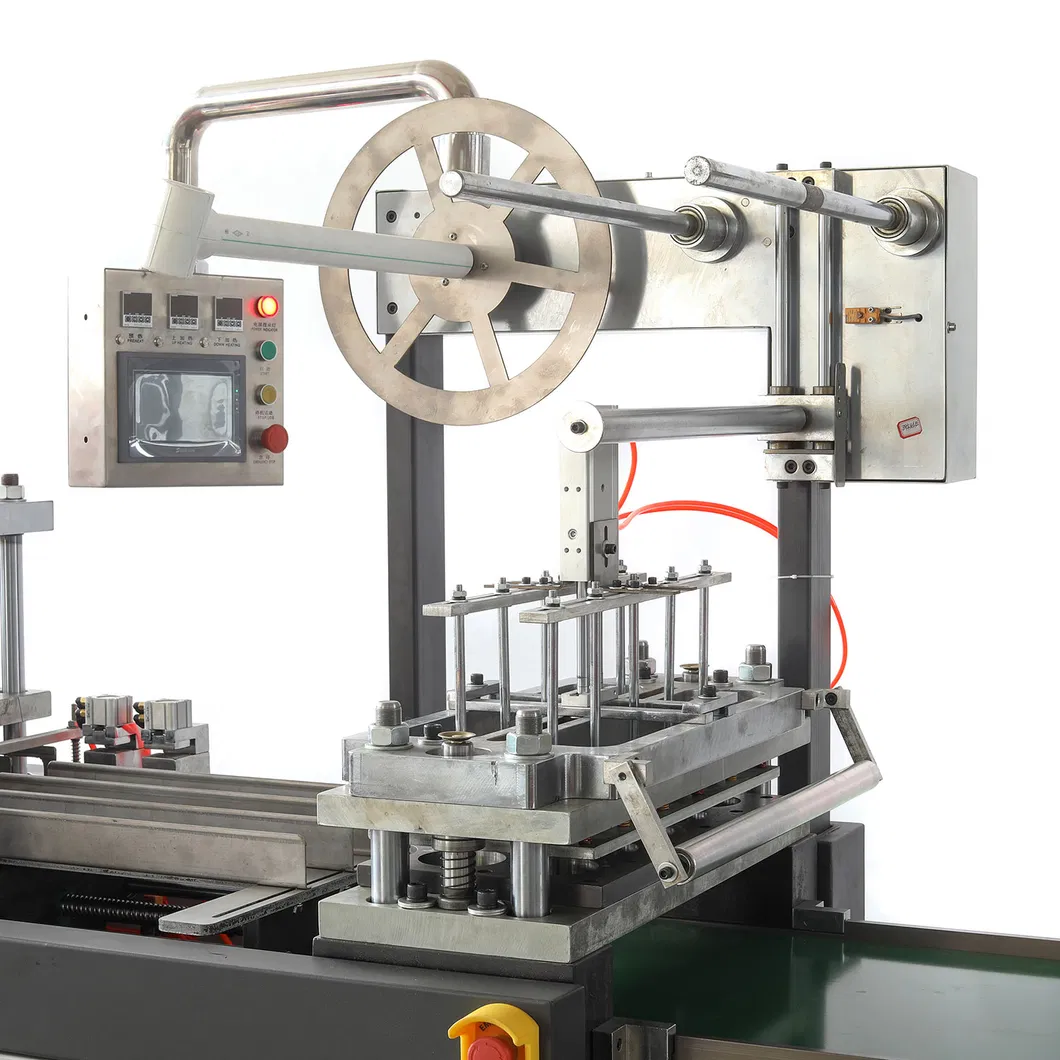

Stacking Robot
Stacking Robot
★

Key Features

  • PPBG-500 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
  • With easy operation, calm running, convenient maintenance and stable function.

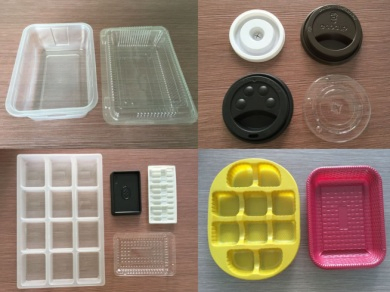

  • Universal compatibility: It can produce PVC, PS, PET etc. All kinds of covers.
📋

Technical Parameters

No. Parameter Item Specification
1Working Speed10-32 Cycles/min
2Stroke Range30-340mm
3Max. Forming Depth50mm
4Max. Forming Area480×320mm
5Voltage380V/50Hz (Three Phase, Four Wires)
6Main Motor Power3kw
7Heating Power12kw
8Servo Power0.75kW
9Air Pressure0.5-0.7MPa
10Air Consumption≥ 0.22 m³/h
11Noise Level75Db
12Machine Dimension2760×950×1720mm
13Weight1900kg
🛠

Our Services

  • Warranty: 1-year warranty after installation. Spare parts broken within the period will be replaced free of charge.
  • Installation & Training: Professional engineers can be dispatched for setup and training (costs to be covered by the buyer).
  • Quotation Validity: All quotes are valid for 60 days.
📦

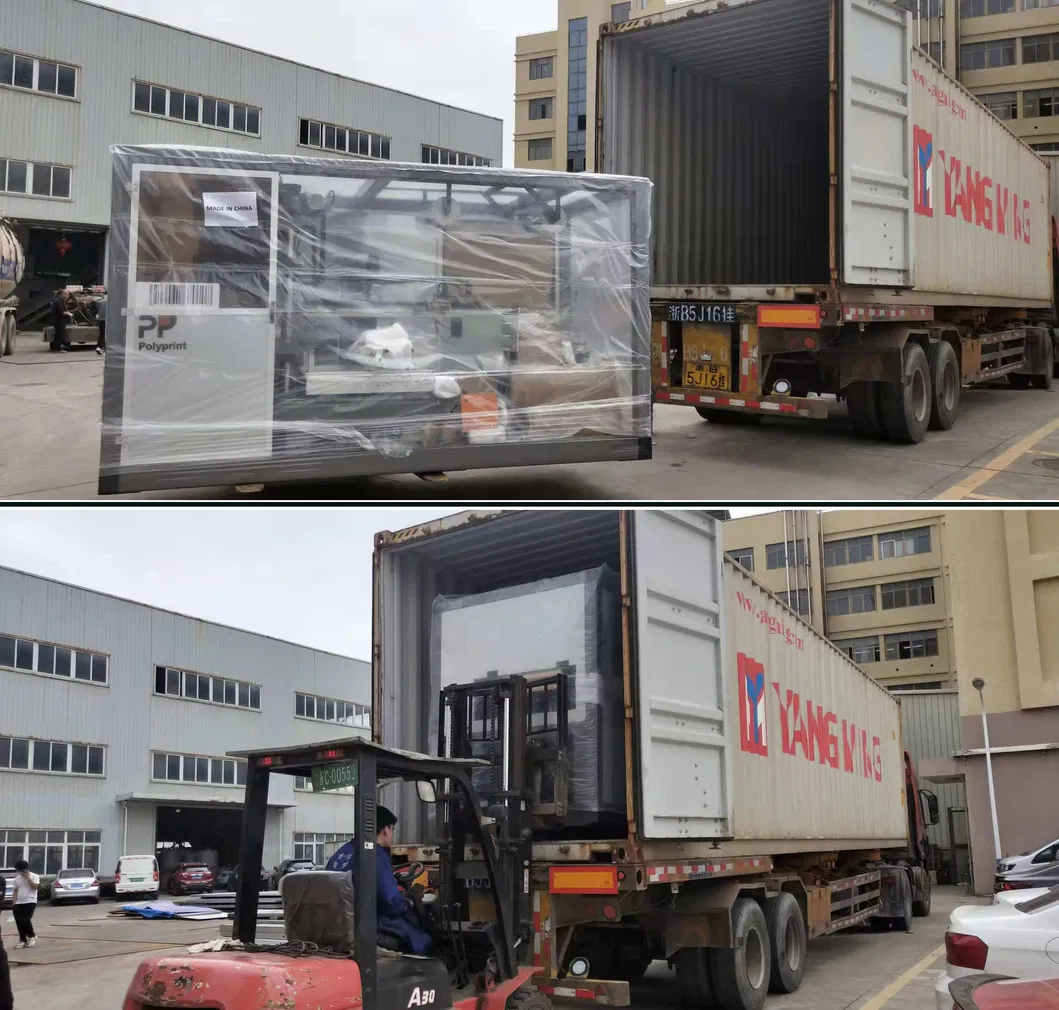

Packaging & Shipping

Packaging and Shipping

Our machinery is specialized in manufacturing sheet extruders, thermoforming machines, plastic cup making machines, lid forming machines, cup lip curling machines, and cup packing machines, delivering quality solutions since 2006.

?

Frequently Asked Questions

What materials are suitable for the PPBG-500 machine?
The machine is highly versatile and can process PVC, PS, PET, and other similar plastic materials to produce various types of lids and covers.
What is the production capacity per hour?
Depending on the material and product dimensions, the production capacity ranges from 10,000 to 15,000 pieces per hour.
Does the machine require specialized cooling?
The system uses normal tap water recycle cooling, which is cost-effective and easy to maintain.
Can I adjust the forming depth for different products?
Yes, the machine supports a maximum forming depth of 50mm, and the stroke range is adjustable between 30-340mm to suit various design needs.
Is the machine easy to operate for new technicians?
Yes, it is designed for easy operation and stable function. We also offer engineer-led installation and training services to ensure your team is fully proficient.
What are the power requirements?
The machine operates on a 380V/50Hz three-phase, four-wire system with a main motor power of 3kw and heating power of 12kw.
