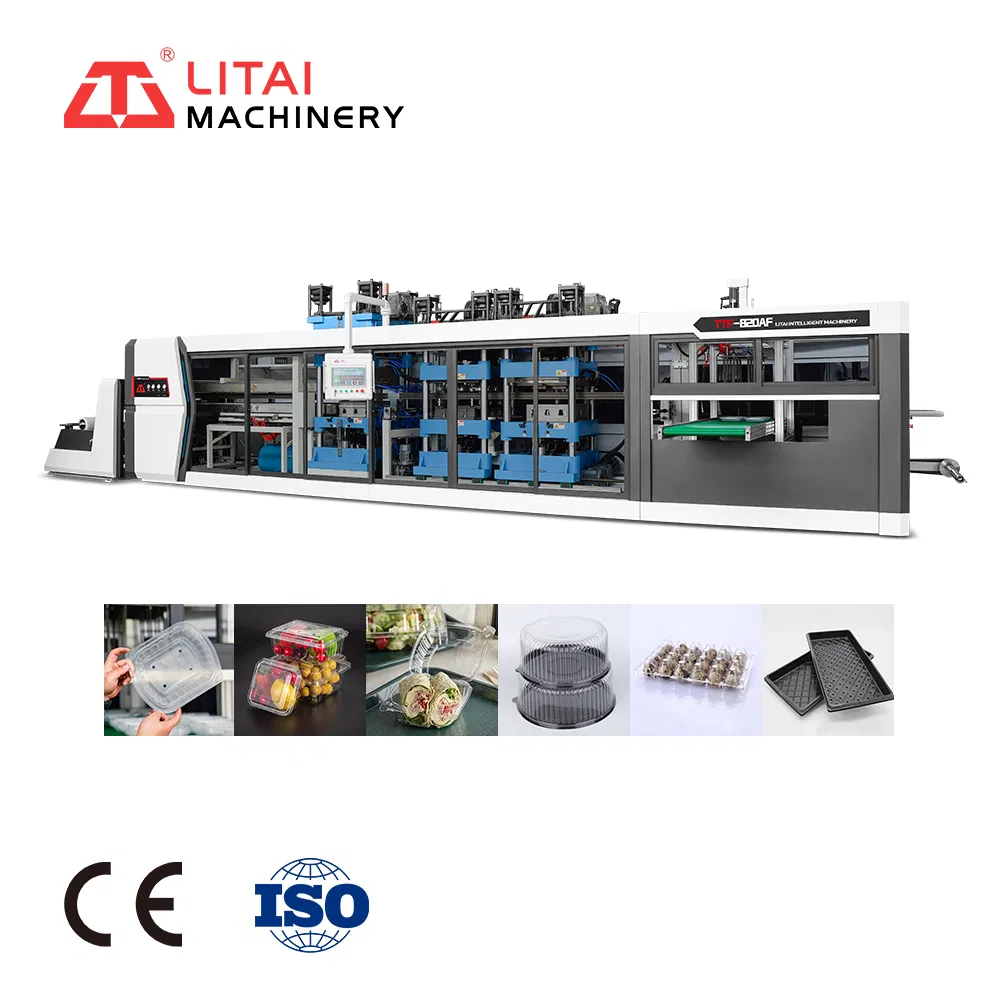

Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
1 / 5
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine
Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine

Fully Automatic 4 Stations Disposable PP Plastic Yogurt Trays Container Forming Thermoforming Production Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
TTF-820AF
Certification
CE, ISO
Column number
Four Column
Molding Method
Pultrusion
Automatic Grade
Automatic
Material
PP/PS/Pet/PVC/HIPS/Corn Starch
Drive System
Servo Motor Drive
Function
Forming - Punching - Cutting - Stacking

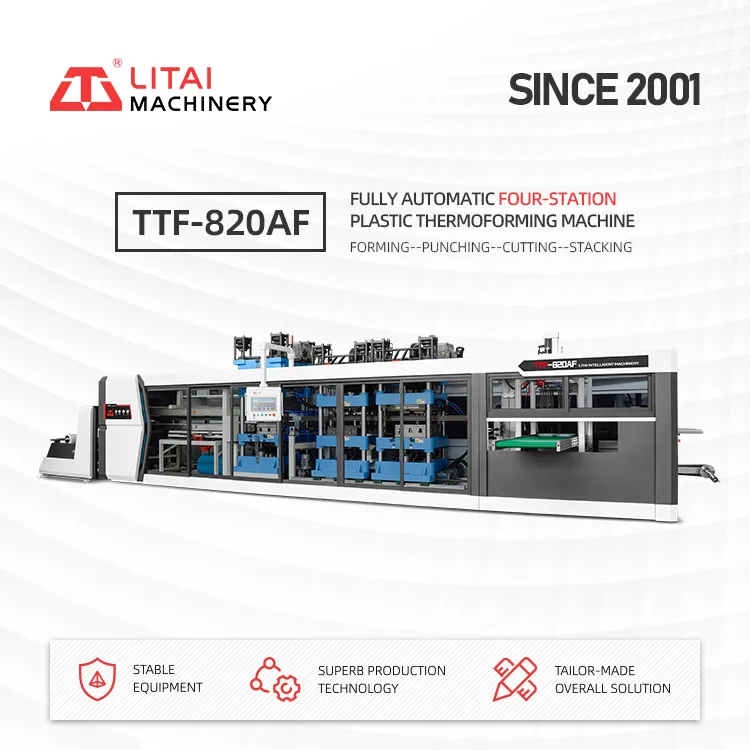

Plastic Thermoforming Machine
Technical Parameters
Model TTF-820AF TTF-700AF TTF-520AF
Mould Size (Max.)820*650mm700*550 mm520*400mm
Forming Depth (Max.)140mm120mm110mm
Sheet thickness0.2-1.6mm
Forming Speed (Max.)30times/min
Air consumption4.2m³/min3.6m³/min3.0m³/min
Suitable SheetPP, PS, HIPS, PET, PVC, PLA etc.
Rated power246Kw211Kw136Kw
Heating power171Kw118Kw75Kw
WeightAbout 21.0TAbout 25.0TAbout 11.0T
Main Functions & Application

TTF series multi-step high-speed thermoforming machine adopts big forming area and high efficiency drive. It integrates positive and negative pressure thermoforming with Delta brand servo motor systems and auxiliary stretching for high precision and perfect performance.

  • Positive and negative pressure forming device
  • Vacuum forming capability
  • Touch screen point-to-point temperature control
  • Automatic punching and cutting function
  • Automatic stack counting and edge rewinding
  • Integrated cooling and die temperature control

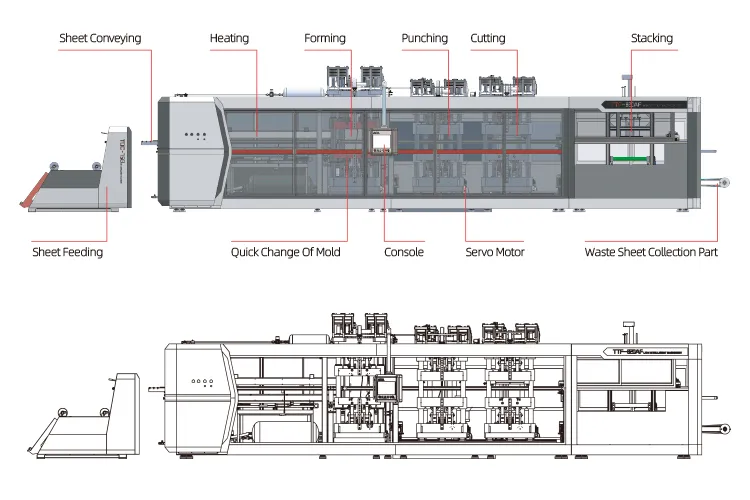

Machine Application
Machine Summary

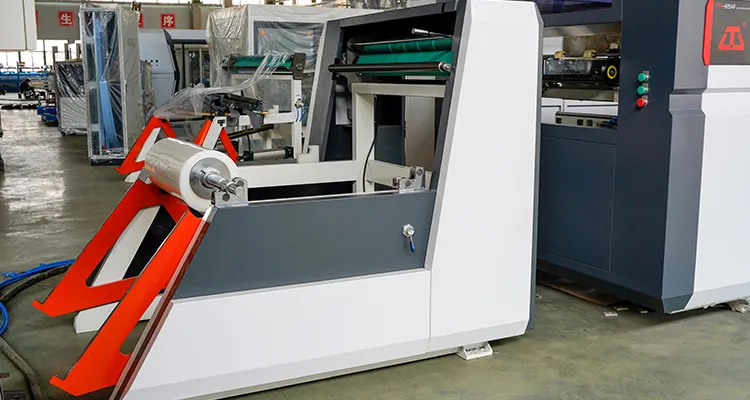

Feeding Part:

Automatic loading reduces human resource costs. Features double stations with big diameters to reduce coil changing frequency and improve efficiency.

Feeding Part

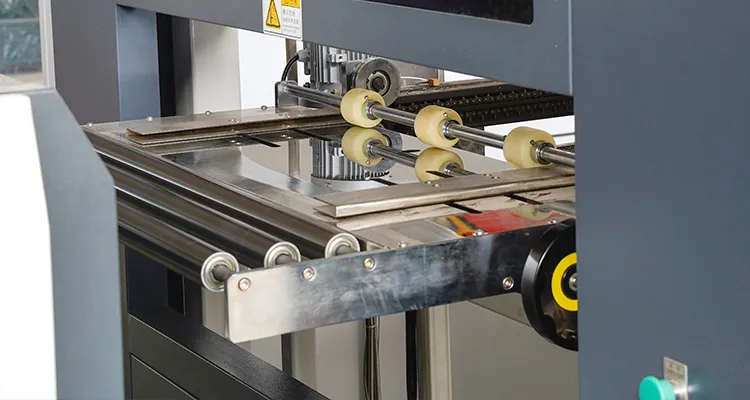

Conveying Part

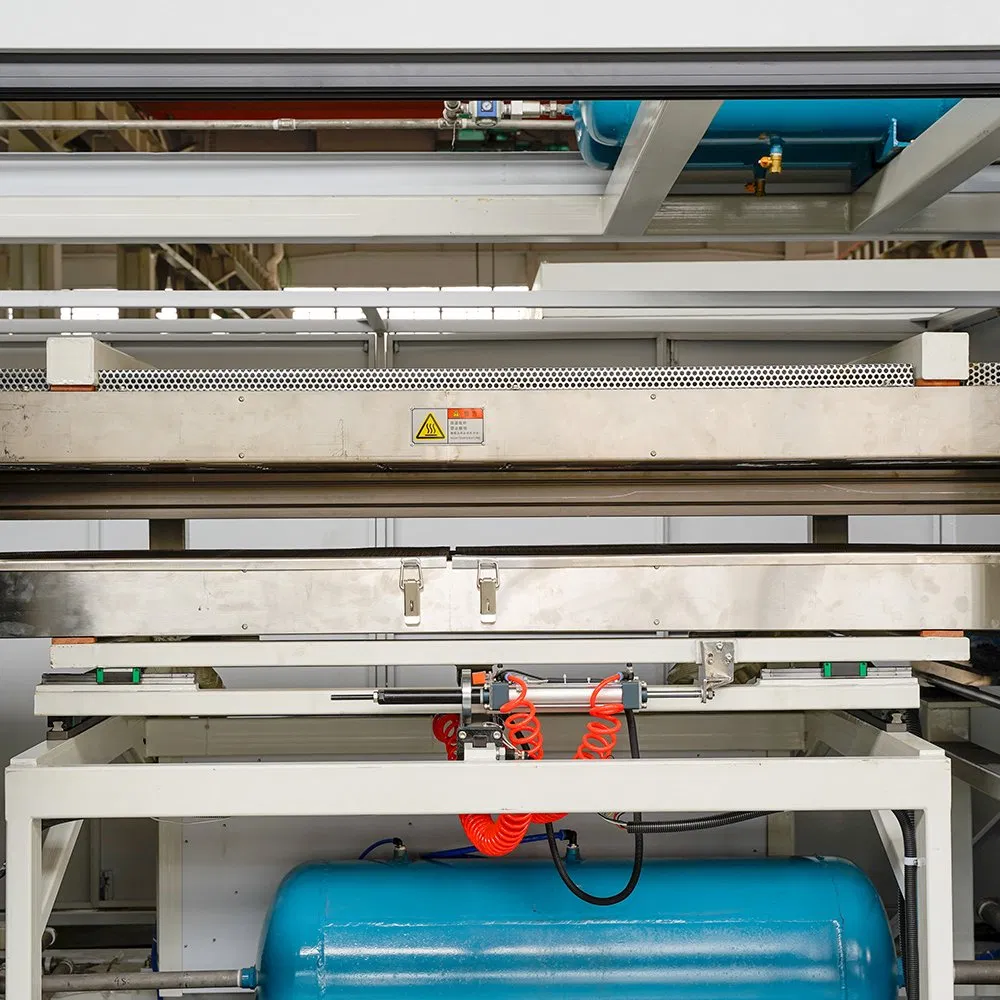

Heating Part:

Adopts German Elstein heating tiles. Divided into 44 separate units with 1°C accuracy. Saves over 30% energy and increases speed by 50%.

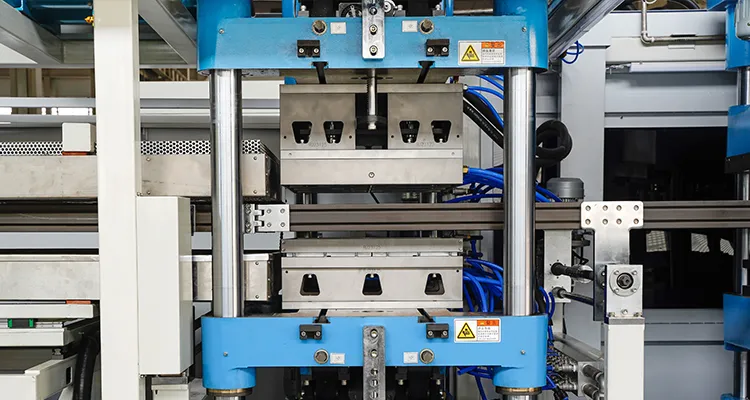

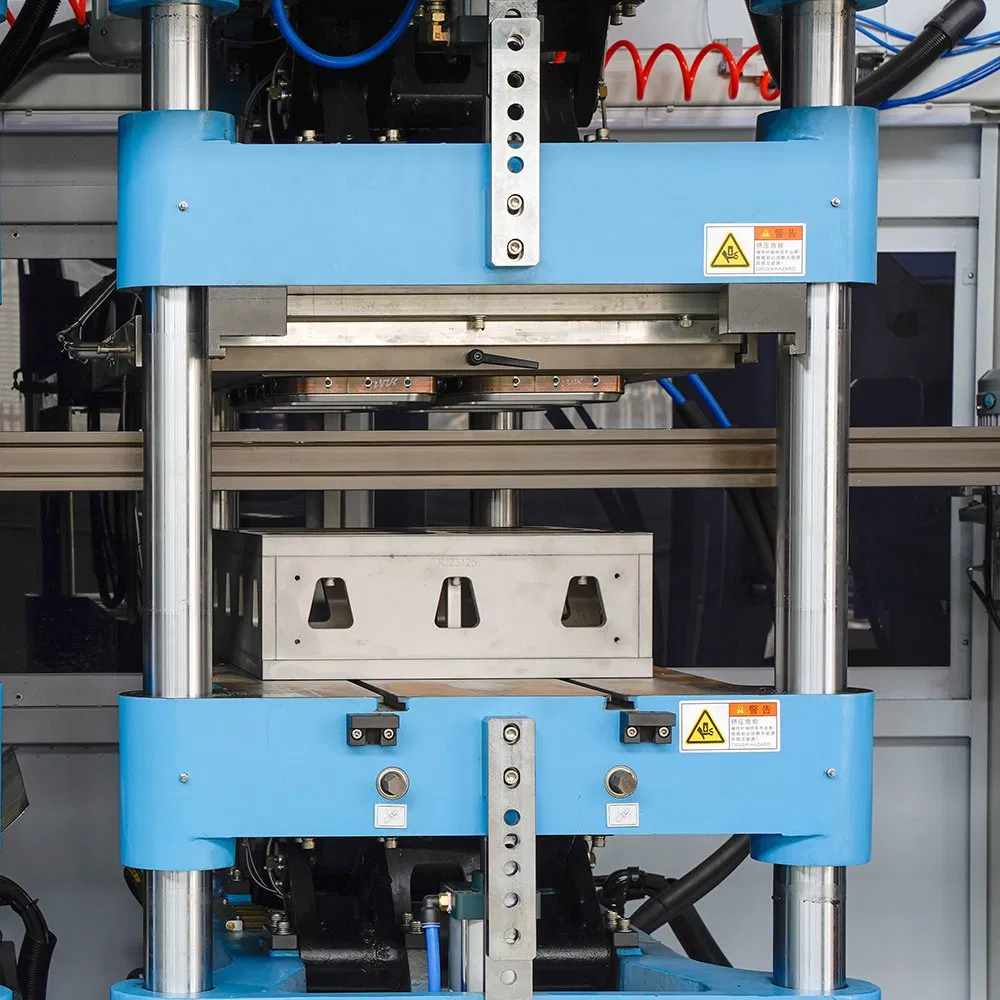

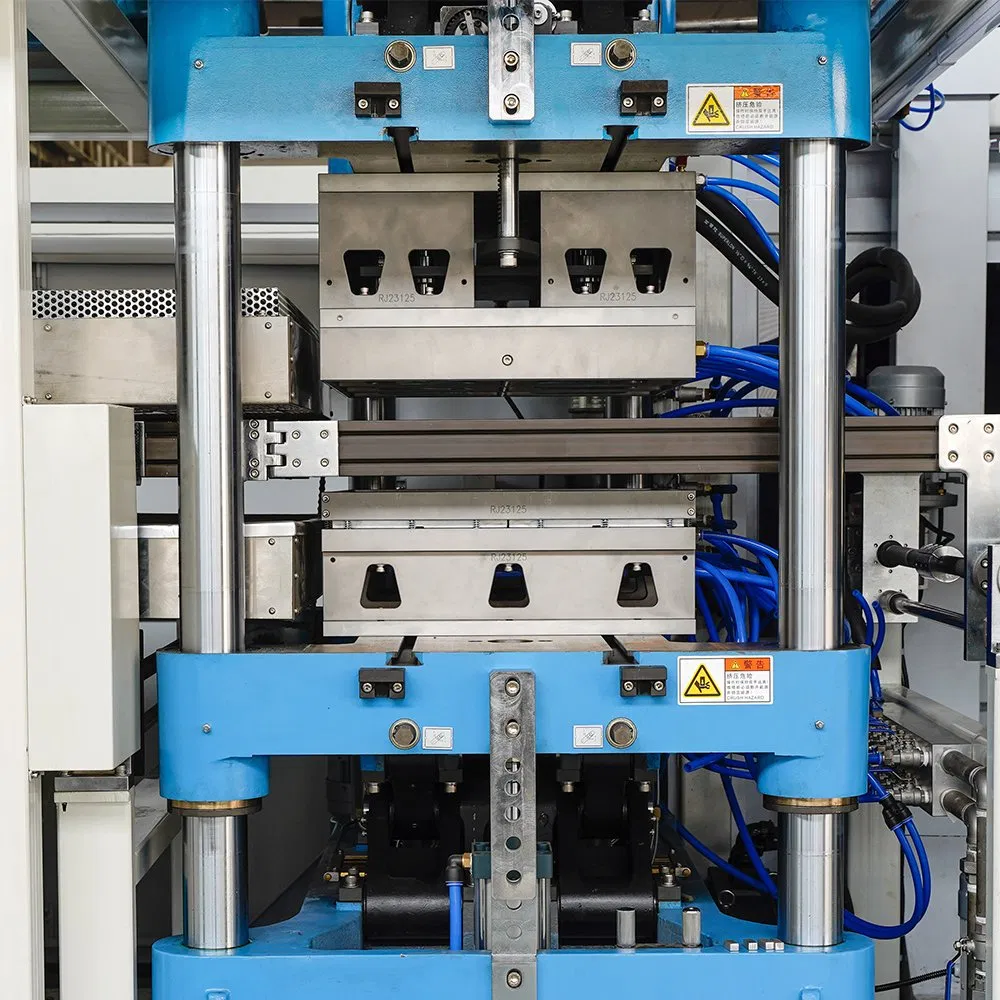

Forming Station:

Four-pillar structure (40Cr steel) with intelligent lubrication. High-power servo motor drive ensures super precision and low noise.

Forming Station

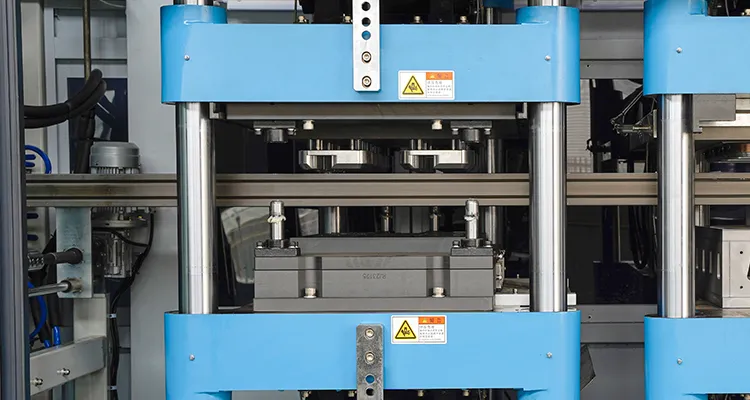

Punching Station

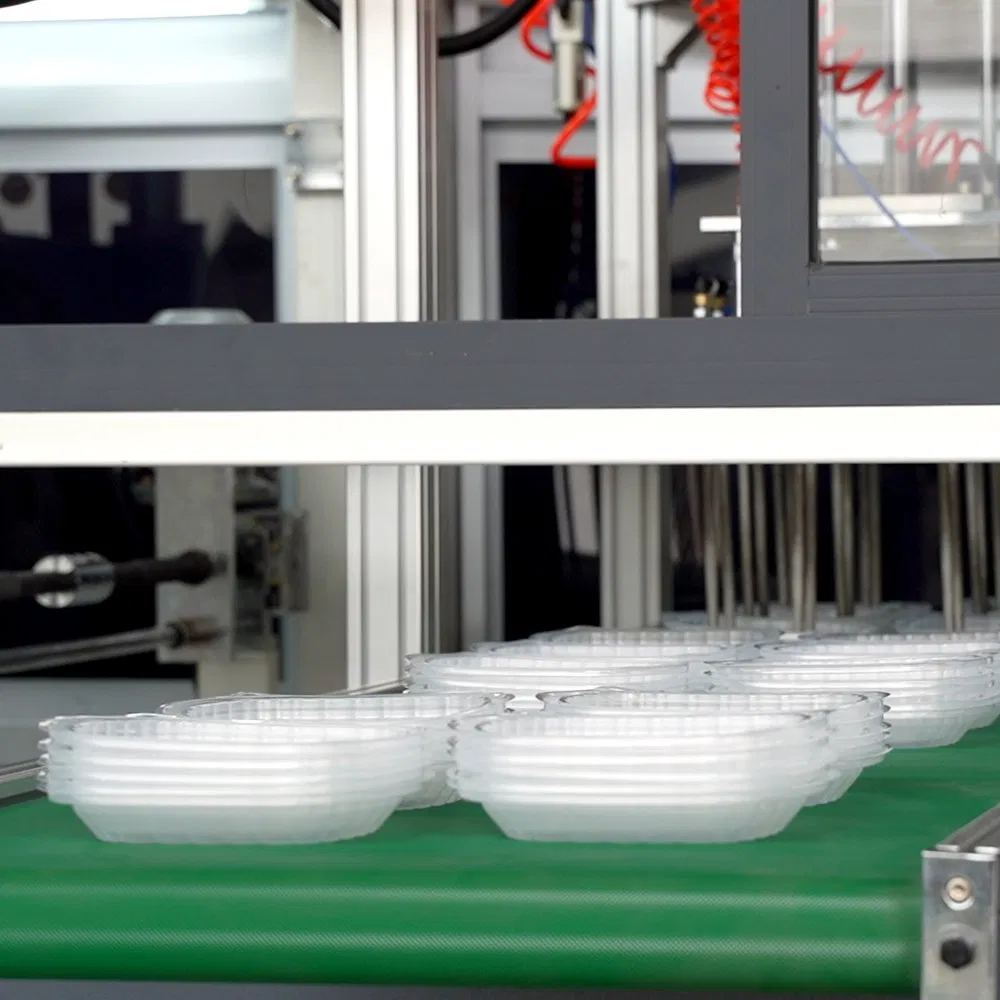

Stacking Station:

Push-down stacking type driven by servo motor. Equipped with replaceable conveyor belts and muffler devices to reduce noise.

Cooperation & Packaging
Cooperation Brand Transport Packaging Factory Display
Frequently Asked Questions
Q1: Which materials are suitable for this thermoforming machine?
The machine is compatible with a wide range of plastic sheets, including PP, PS, HIPS, PET, PVC, and PLA.
Q2: What is the main drive system of the machine?
It is a fully servo-driven system which ensures high precision, low noise, and no vibration during the thermoforming process.
Q3: How energy-efficient is the heating system?
By using German Elstein heating tiles and intelligent automatic compensation control, the machine can save more than 30% energy and increase speed by over 50%.
Q4: What is the warranty period for the machinery?
The warranty period is 13 months, calculated from the date of shipment from the factory.
Q5: Do you provide installation and training services?
Yes, technicians can be sent to your factory to install the machine and provide training for your operators.
Q6: What are the main stations included in the machine?
The fully automatic machine includes four primary stations: Forming, Punching, Cutting, and Stacking.
