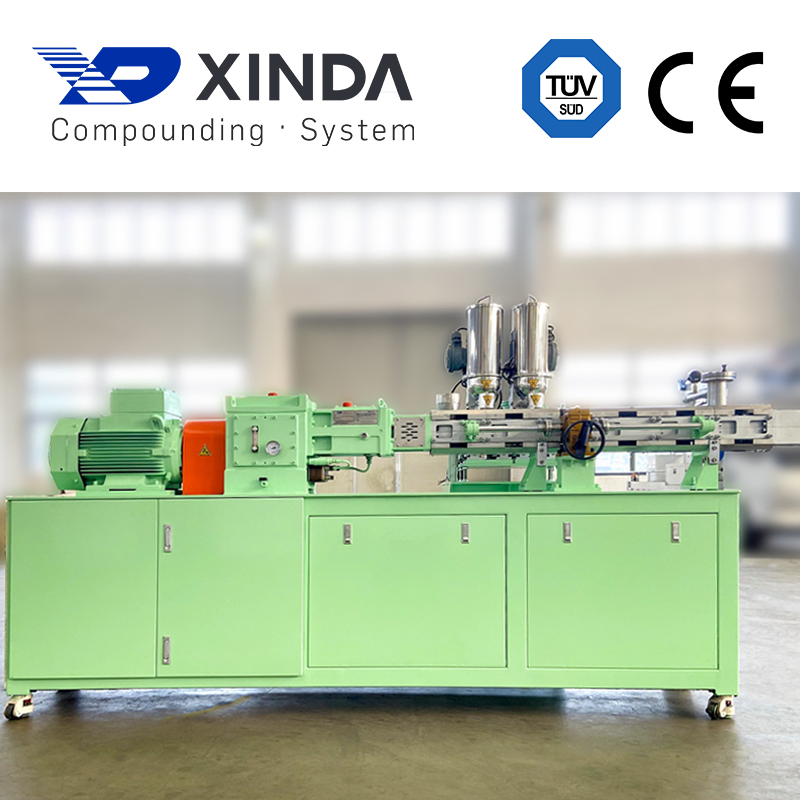

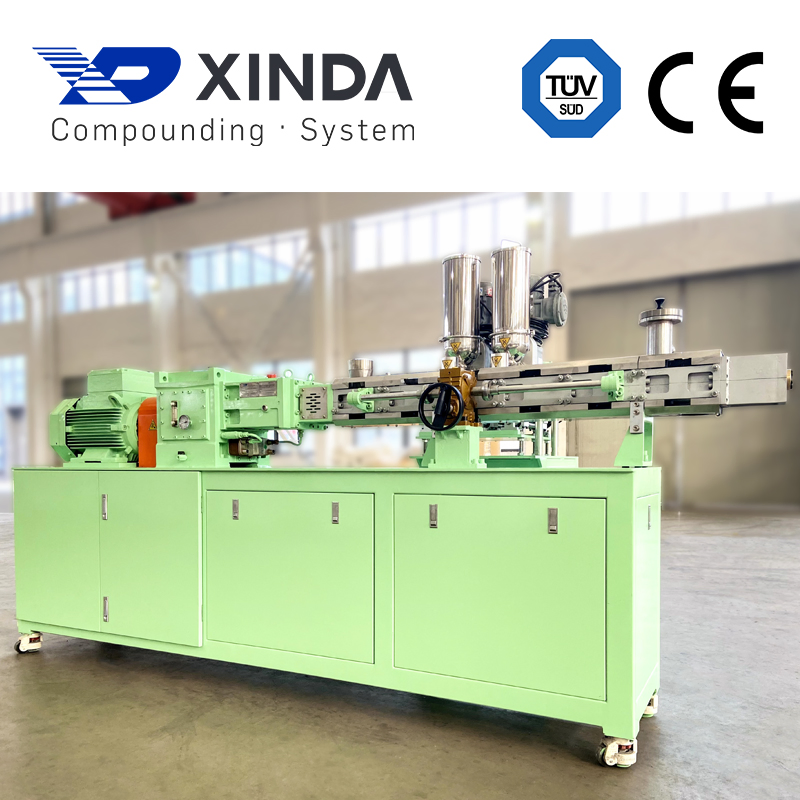

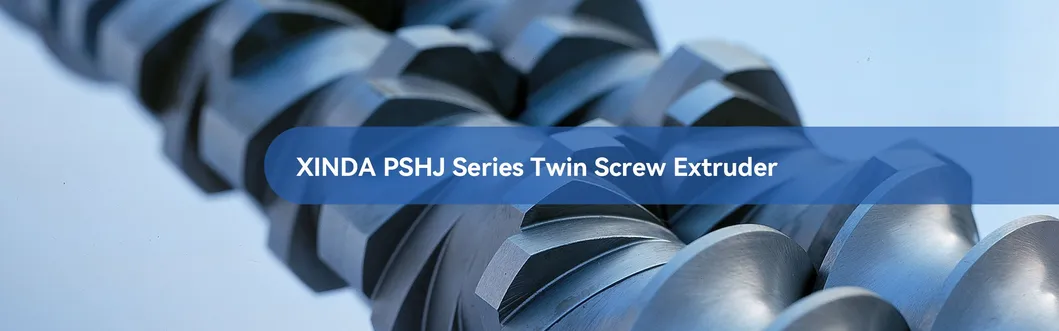

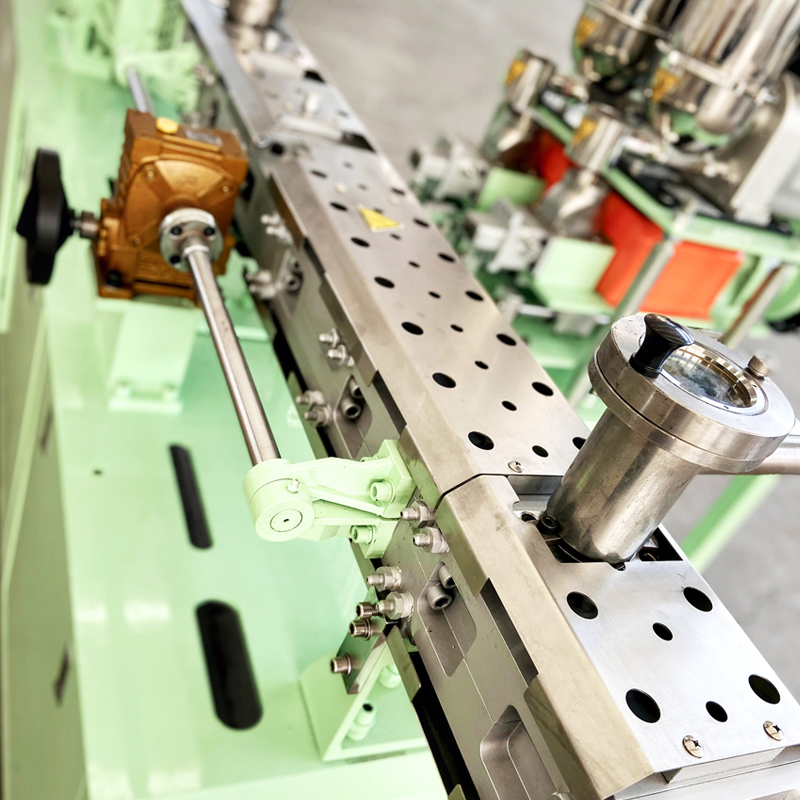

The twin screw extruders are built on a modular system. Screw elements with different lengths and functions are mounted to the main splined shaft. The screw combination is changeable. Thus, with a few screw elements and barrel variations, different processing tasks can be finished on the same machine. Maintenance costs are reduced as only worn parts need replacement.

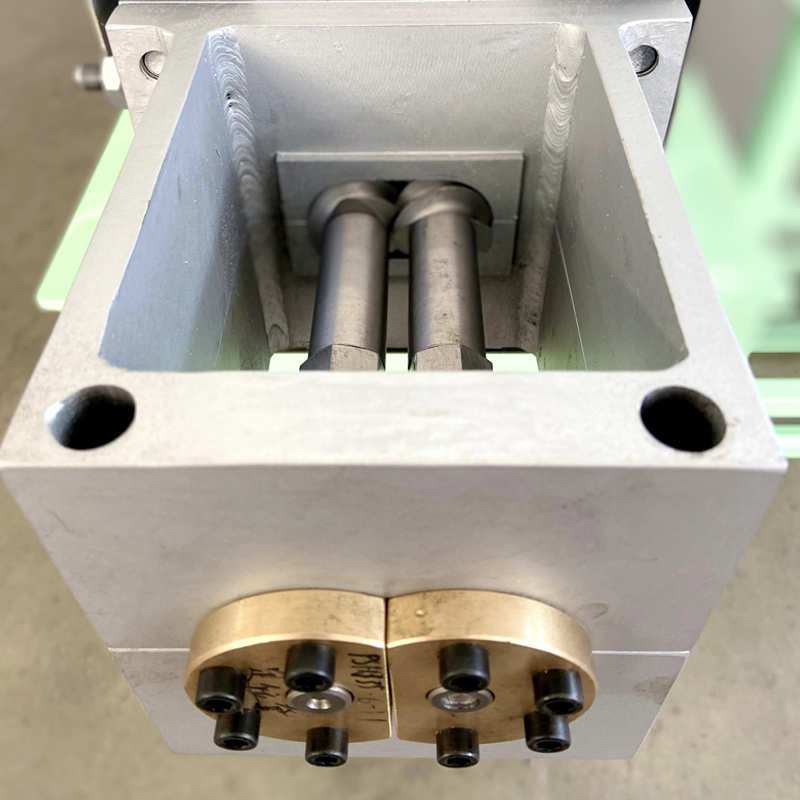

The modular principle of the barrel permits precise sequencing for each application. Each barrel section's temperature can be set separately. Electrical heaters provide heating, and cooling is obtained with water. Barrels and elements are made out of nitride steel or wear-resistant materials for standard and specialized requirements.
Selectable order of screw elements assures mating with process configurations. Different process zones can be set up for Conveying, Kneading, Mixing, Shearing, Homogenizing, Degassing, and Pressure building.
The barrel can be opened in minutes. This makes product changeover, maintenance, and research fast and easy.
| Model | PSHJ-20 | PSHJ-35 | PSHJ-50 | PSHJ-65 | PSHJ-75 | PSHJ-95 | PSHJ-127 | PSHJ-132 |
|---|---|---|---|---|---|---|---|---|
| Diameter (mm) | 21.7 | 35.6 | 50.5 | 62.4 | 71 | 92 | 126 | 132 |
| Screw Distance (mm) | 18 | 30 | 42 | 52 | 60 | 78 | 102 | 110 |
| Length (L/D) | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 13-18 | 13-18 |
| Motor Power (KW) | 4-5.5 | 18.5-30 | 55-110 | 75-200 | 95-250 | 250-450 | 160-200 | 200-280 |
| Max Speed (rpm) | 600 | 600/800 | 600/800 | 600/800 | 600/800 | 600/800 | 300 | 300 |
| Output (KG/H) | 5-10 | 30-120 | 100-300 | 250-450 | 350-700 | 800-2000 | 1000-2000 | 1500-3000 |

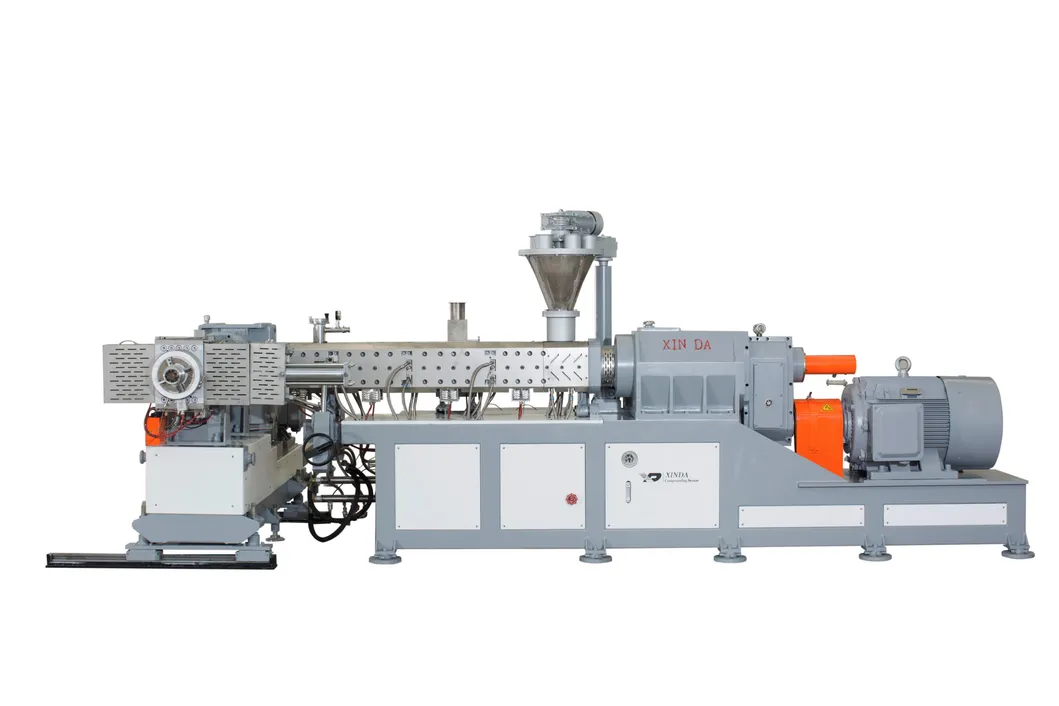

Features uniform shearing, high dispersion, and high filling capabilities. Combines the advantages of single and twin-screw designs.

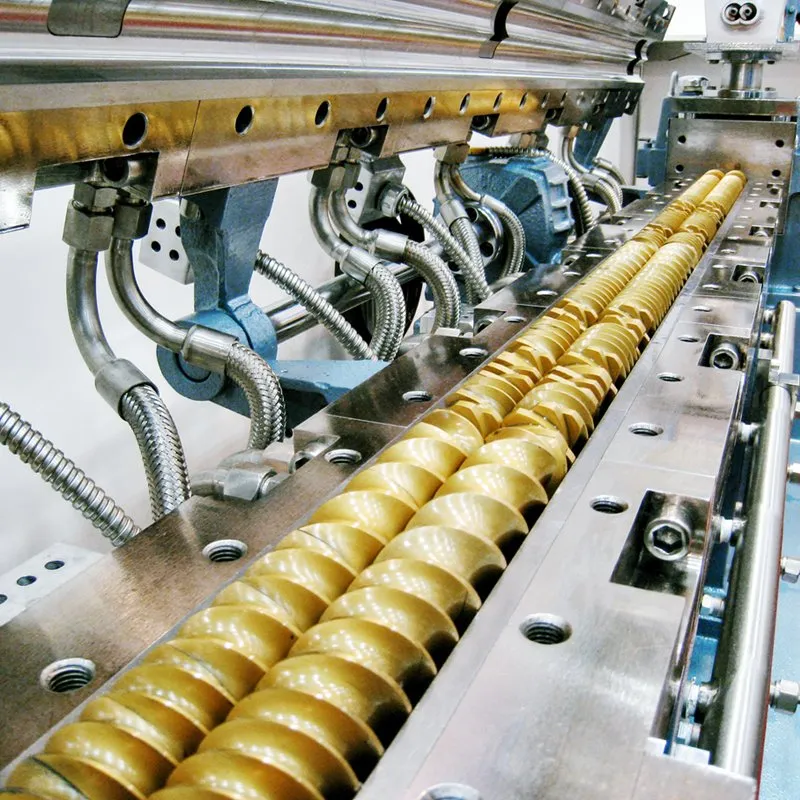

Equipped with segmented screws that can be quickly reconfigured. Clamshell design allows for easy cleanout and versatility.

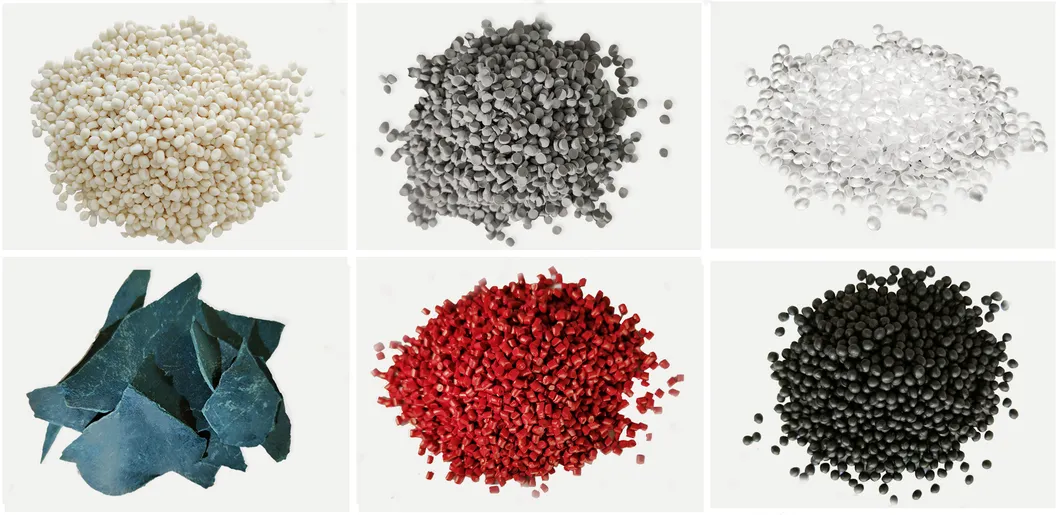

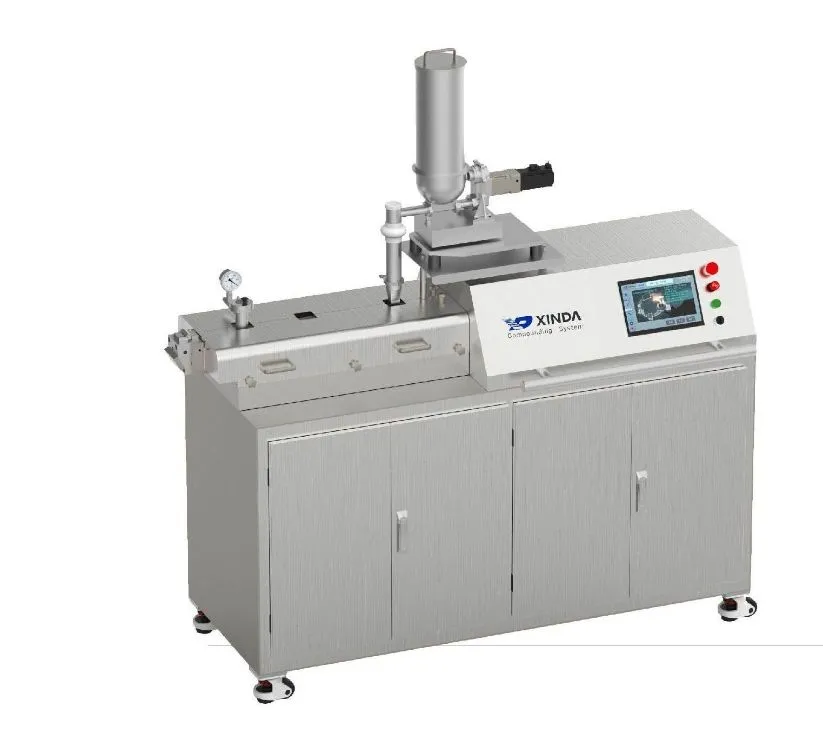

Used for producing granules, pellets, and controlled-release tablets. Utilizes HME technology approved for global pharmaceutical markets.
