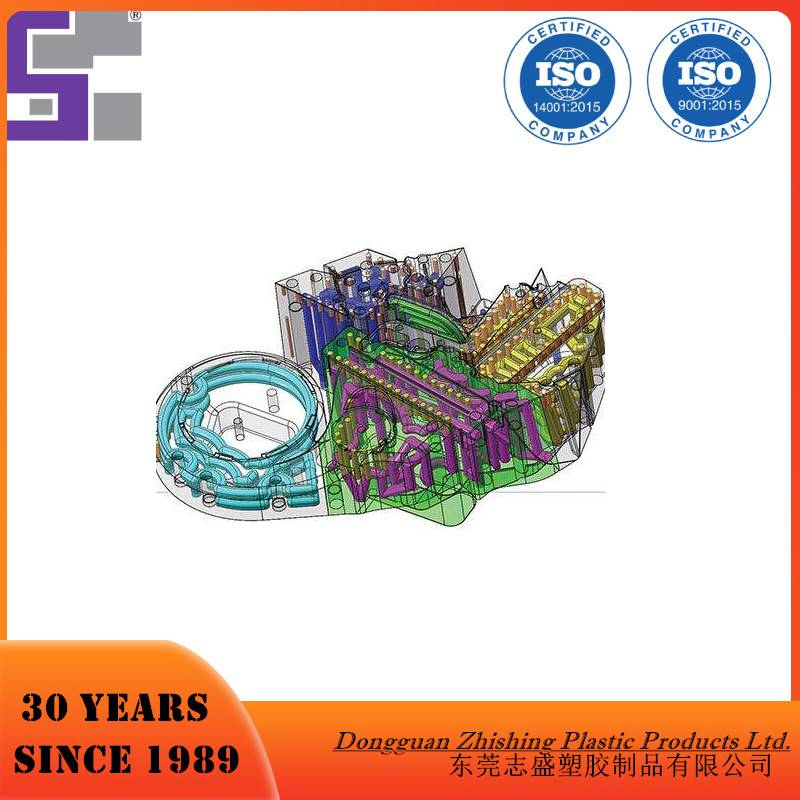

Optimized Conformal Cooling Solutions for Plastic Injection Molding Parts and Inserts for Global B2B Buyers

Basic Specification

Model NO.

ZSM-3696

Specification

Custom

HS Code

8480719090

Capacity

2000 Sets/Year

Plastic Injection Mold Technical Data

Product Material	ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA, PVC, TPE, TPU etc
Material of Steel	738, 718, NAK80, S136, P20 etc
Surface Requirement	Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing, Brushing
Tolerance Request	Up to (±0.005mm)
Mould Life	500,000 - 1,200,000 shots
Multi Injection	Single / Double / Multi color
Design Software	Pro/E, UG, Catia, Woodwork, Moldflow, AutoCad
Injection System	Hot / Cold Runner
Inserts (Cavity & Core)	H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or required material
Mold Cavity	11, 1+1, 12, 1+1+1, etc
Gate Type	Side gate, Sub gate, Pin point gate, Edge gate etc
Ejector System	Stripper plate, Lifter, Push bar, Ejection pin etc
Steel Standard	FINKL, Assab, DAIDO, LKM, Buderus
Cooling	Baffles / Spring Pipe / 3D printing water line
Standard Parts	DME / HASCO / PROGRESSIVE / MISUMI / Parker / HP / Merkle
Design Capability	DFM, Mould flow analysis, Product optimization, Full 2D & 3D mould design, Reverse engineering
Reports Provided	Fully drawing, Weekly Processing Report, Steel Dimension report, Processing Report, Sample Dimension Report
Certificate	ISO9001, ISO14001
Lead Time	6-10 weeks or according to order requirement

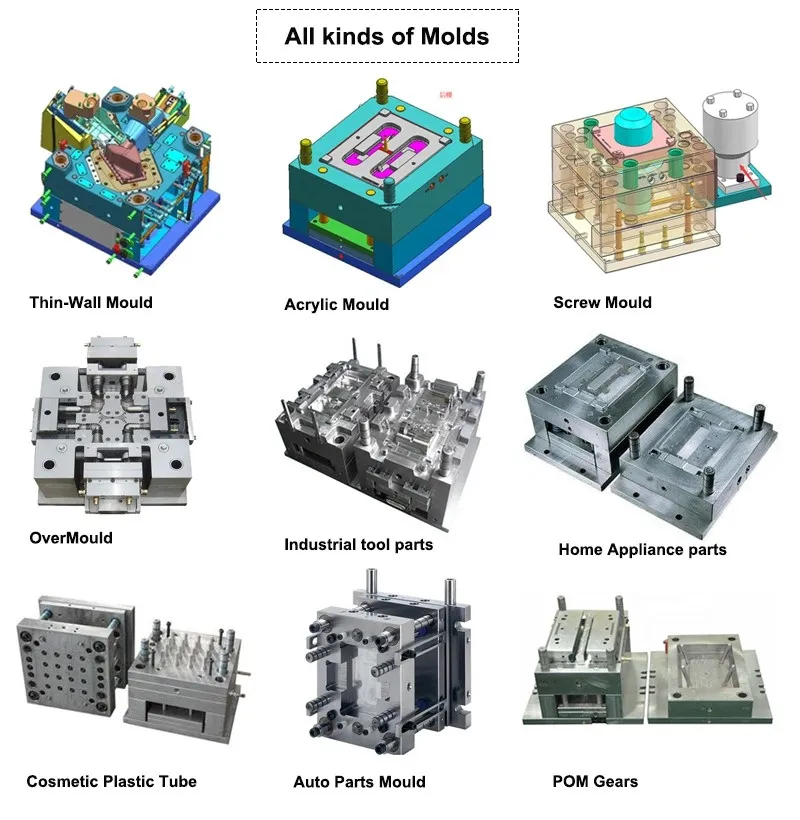

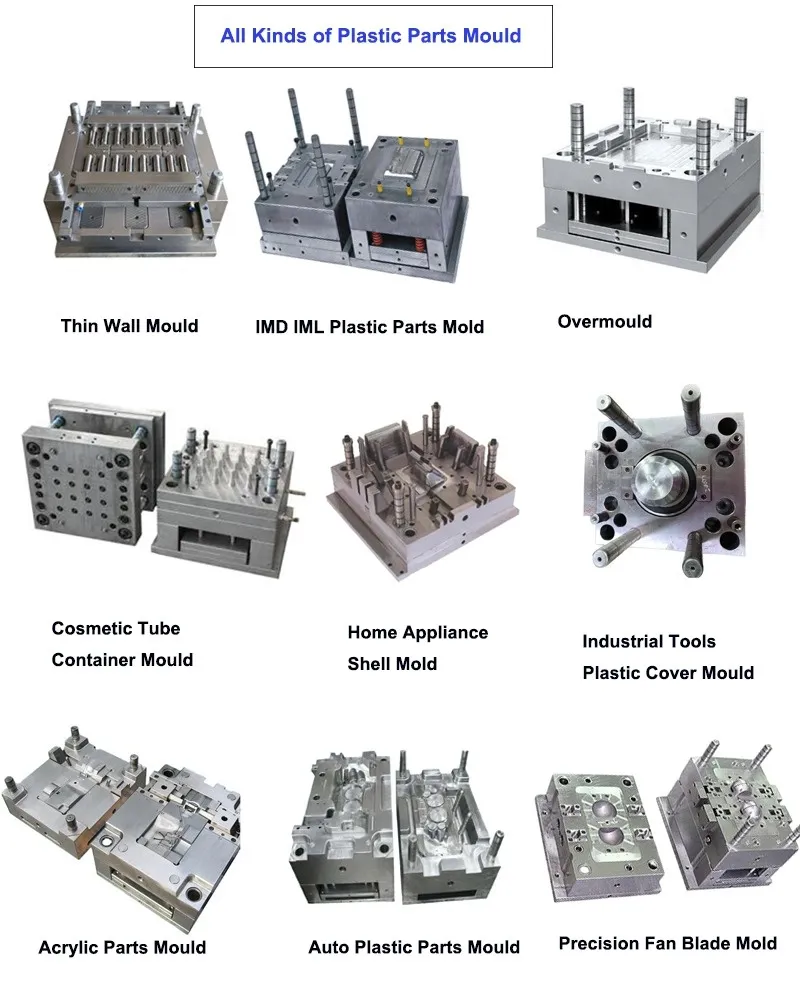

Product Showcase

Our Professional Expertise

Cooperate with relevant vocational and technical colleges to provide internship opportunities for graduates. We select top-tier talent (top 20%) to ensure that our precision technology is passed on and maintained with creative new blood.

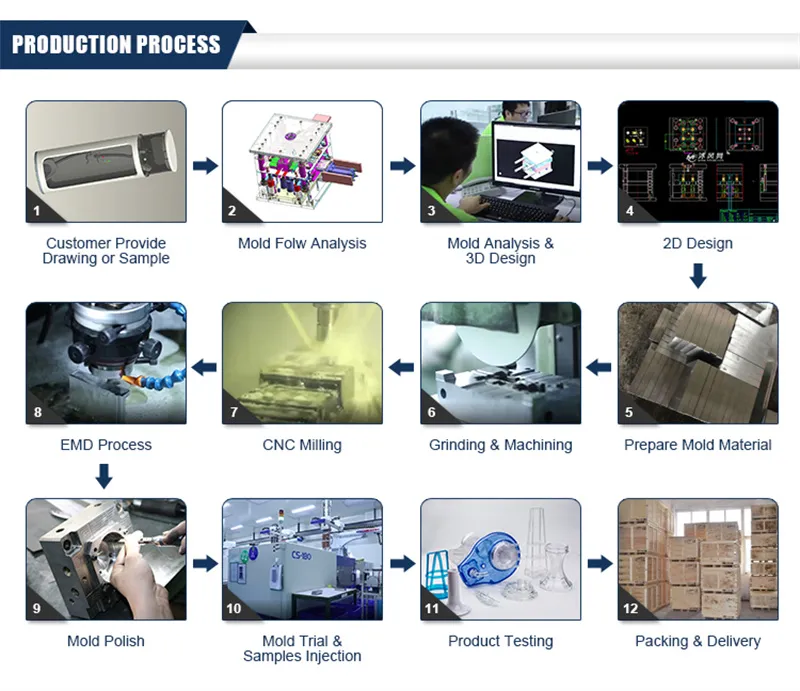

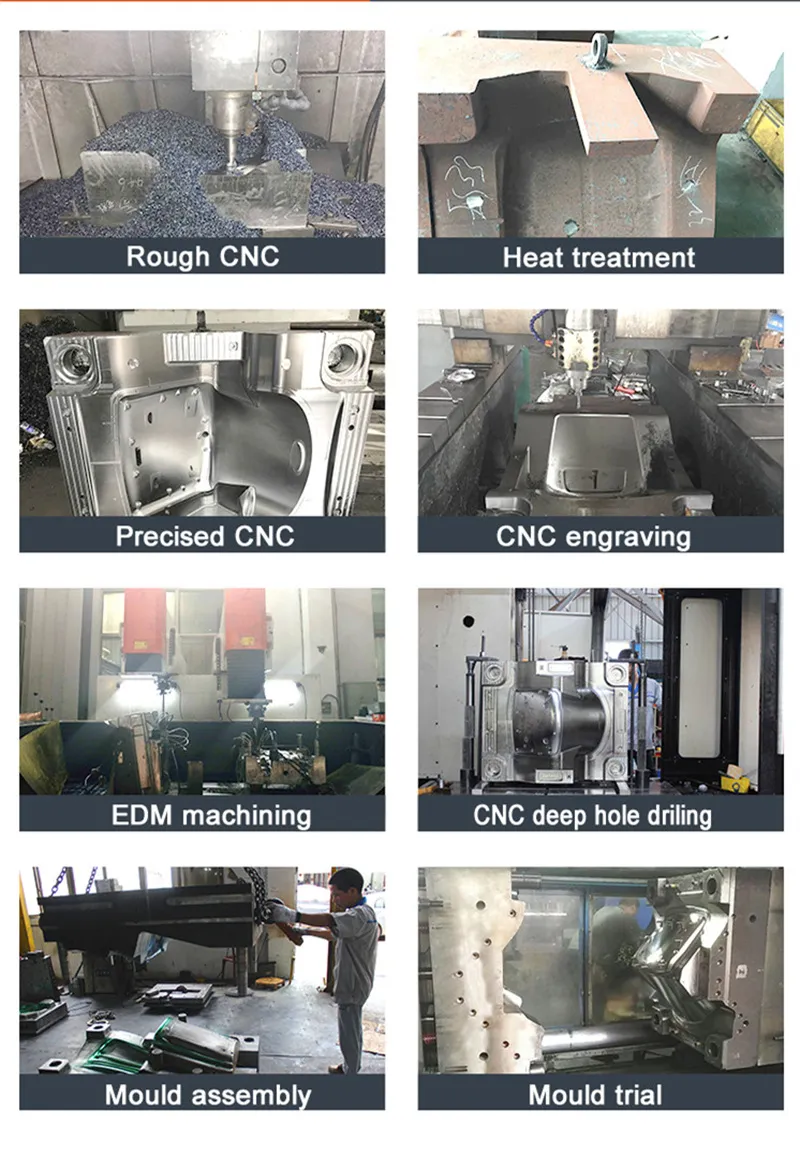

Mould Trade Process

Frequently Asked Questions

QAre you a manufacturer or a trading company?

We are a professional manufacturer specializing in injection molds with over 30 years of industry experience.

QDo you provide assembly services for the finished products?

Yes, our facility includes a dedicated assembly room to handle complete product assembly for our clients.

QCan you help with the design feasibility of a new product idea?

Absolutely. We work closely with customers to evaluate technical feasibility and provide advice on materials, tooling requirements, and potential setup costs.

QWhich CAD file formats do you support for mold production?

We can utilize DWG, DXF, IGES, Solidworks, and Rhino files to generate accurate quotes, models, and professional mould tools.

QCan I test a prototype before proceeding to full-scale mold manufacturing?

Yes, we use CAD drawings to create physical models and prototypes for functional evaluation and design verification before tooling begins.

QWhat is the typical lead time for a custom mold?

The standard lead time is generally between 6 to 10 weeks, depending on the complexity of the project and specific order requirements.
