PVC Plastic Pipe Making Machine
The PVC pipe production line is mainly used for the production of PVC pipes of various diameters and wall thicknesses for agricultural water supply, building drainage, and cable auxiliaries. The system consists of a conical twin-screw extruder, vacuum sizing box, haul-off machine, cutting machine, and stacking frame. The main components are available with imported AC frequency conversion or domestic high-performance motors.
Components & Configuration
| Production Line Component |
Quantity |
| 1. PVC raw material Auto Loader | 1 set |
| 2. High speed Mixer unit | 1 set |
| 3. Raw material Mixture Auto Loader | 1 set |
| 4. Main extruder | 1 set |
| 5. Mould/Die head | 1 set |
| 6. Vacuum calibration tank | 1 set |
| 7. Haul off machine | 1 set |
| 8. Cutting machine | 1 set |
| 9. Stacker | 1 set |
| 10. Words Printing machine | 1 set |
| 11. PVC pipe Crusher/Grinder | 1 set |
Technical Advantages
- Optimized Plasticizing: Specified screw design for better material mixing. For high filling formulas, bimetallic screws and barrels guarantee longevity.

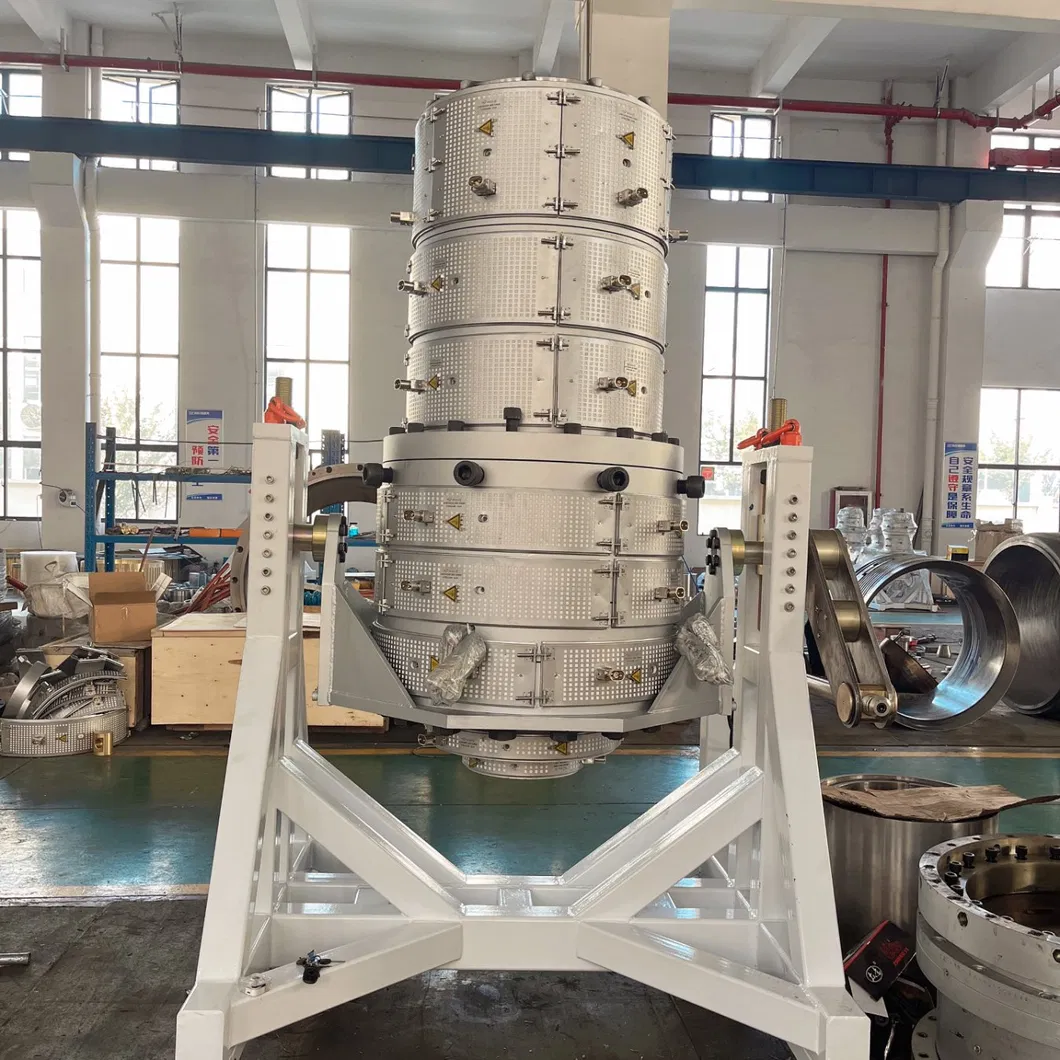

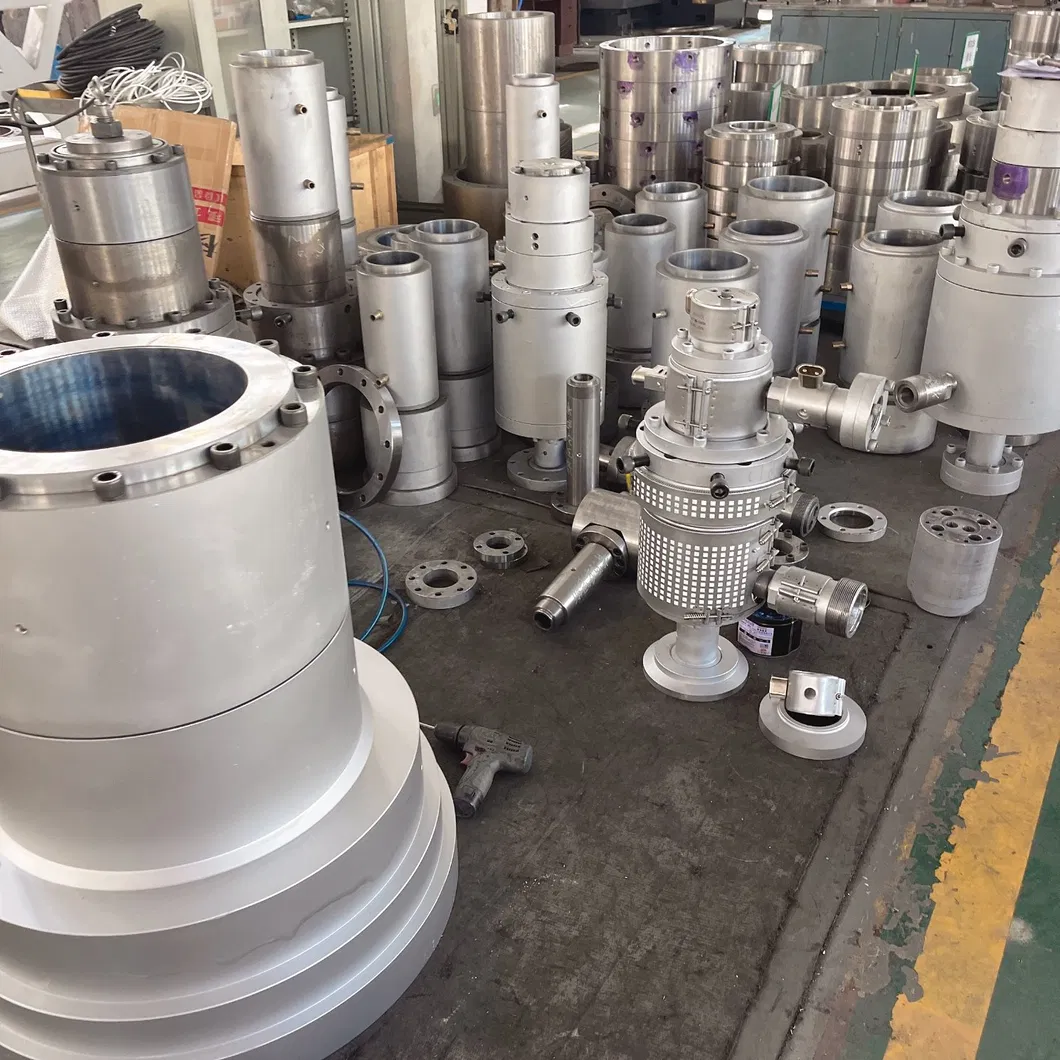

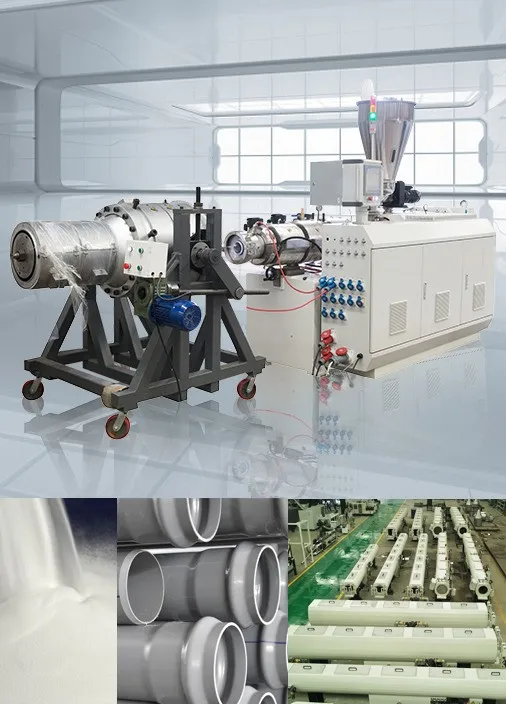

- Advanced Die Head: Spider type die head reduces joint lines of melt material with optimized compression ratios.
- Stable Operation: Vertical integrated structured gear box with high-grade bearings ensures long service life.
- Efficient Cooling: Vacuum calibration tank uses a high-efficiency two-chamber design for faster pipe calibration.

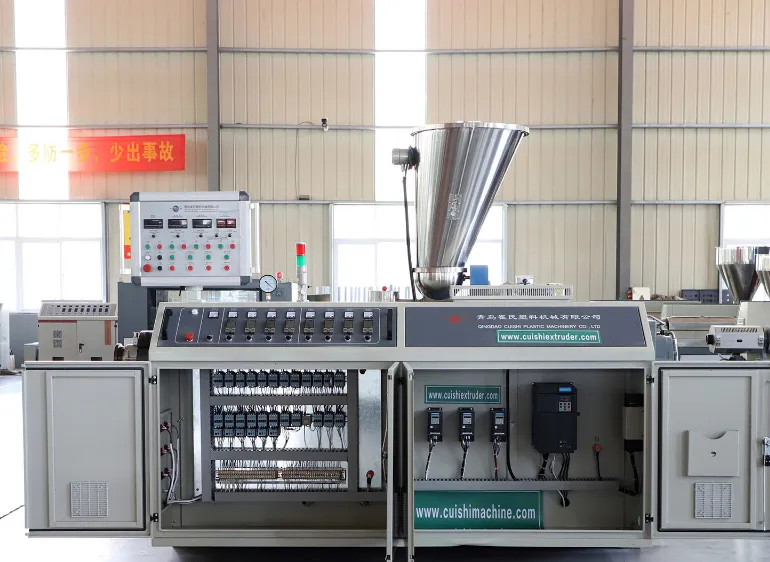

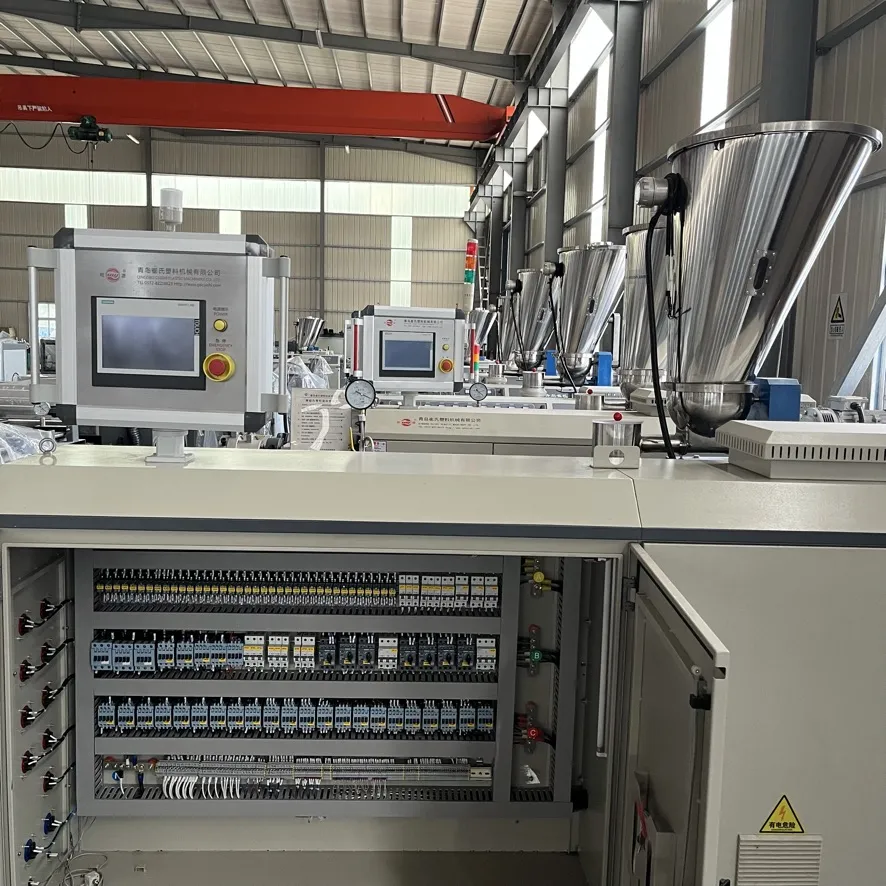

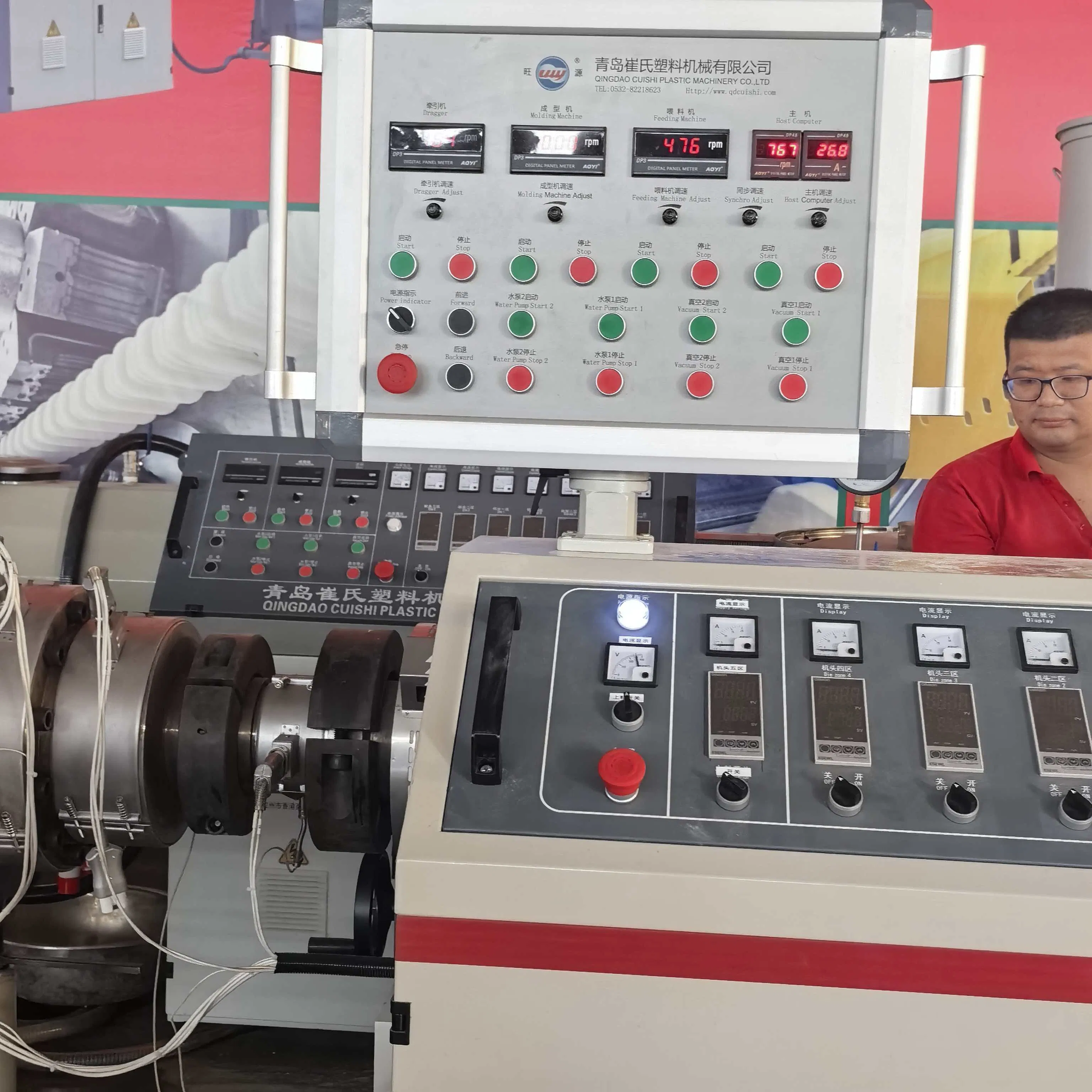

- Intelligent Control: PLC controlling system with a human-friendly interface makes operation simple and convenient.
Main Features
Our lines can produce pipes in PVC materials with diameters starting from 16mm up to 630mm. We offer complete pipes extrusion lines, tailor-made according to the customers' requirements, assuring high performance and competitive prices.
Process Flow & Machine Details

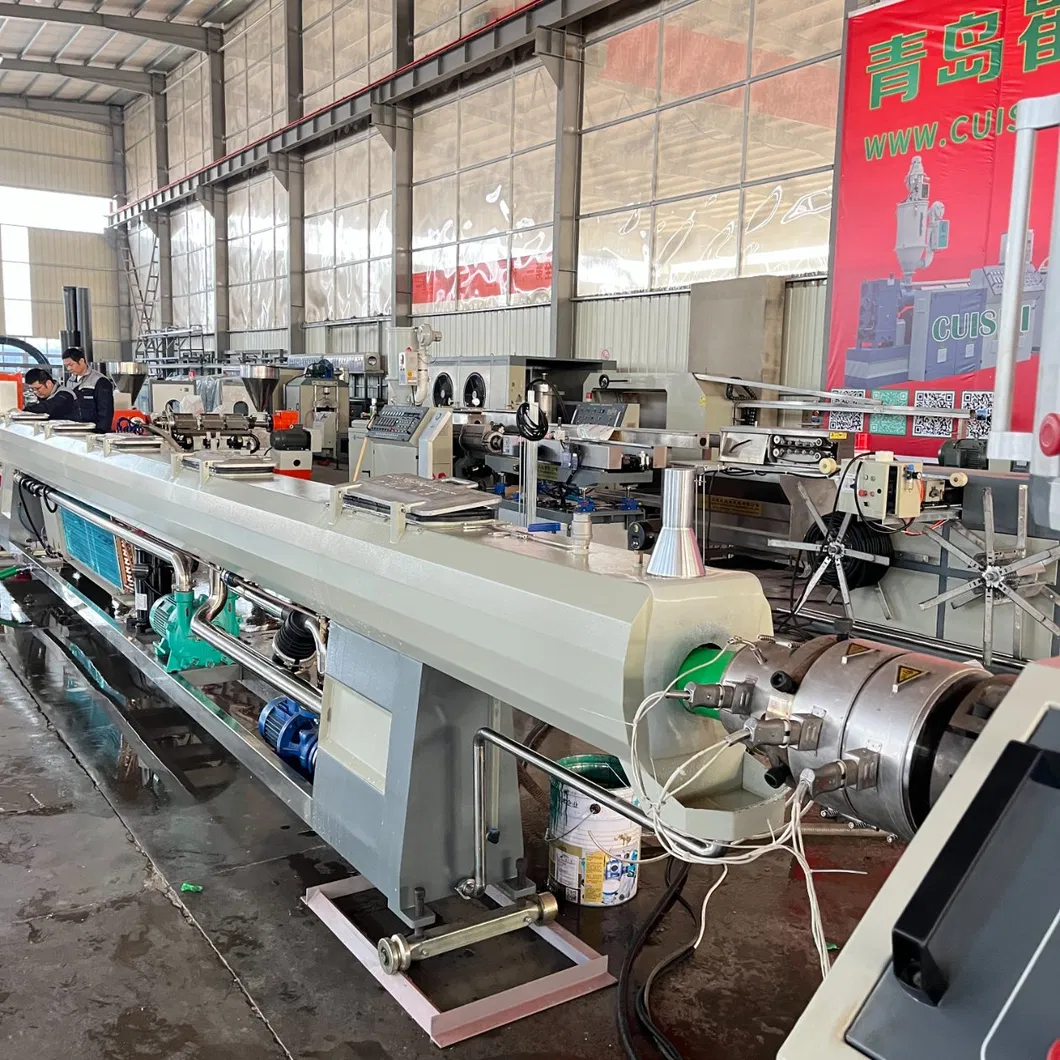

Mixing → Loading → Extruding → Moulding → Vacuum Calibration → Haul-off → Cutting → Stacking
Key Unit Specifications

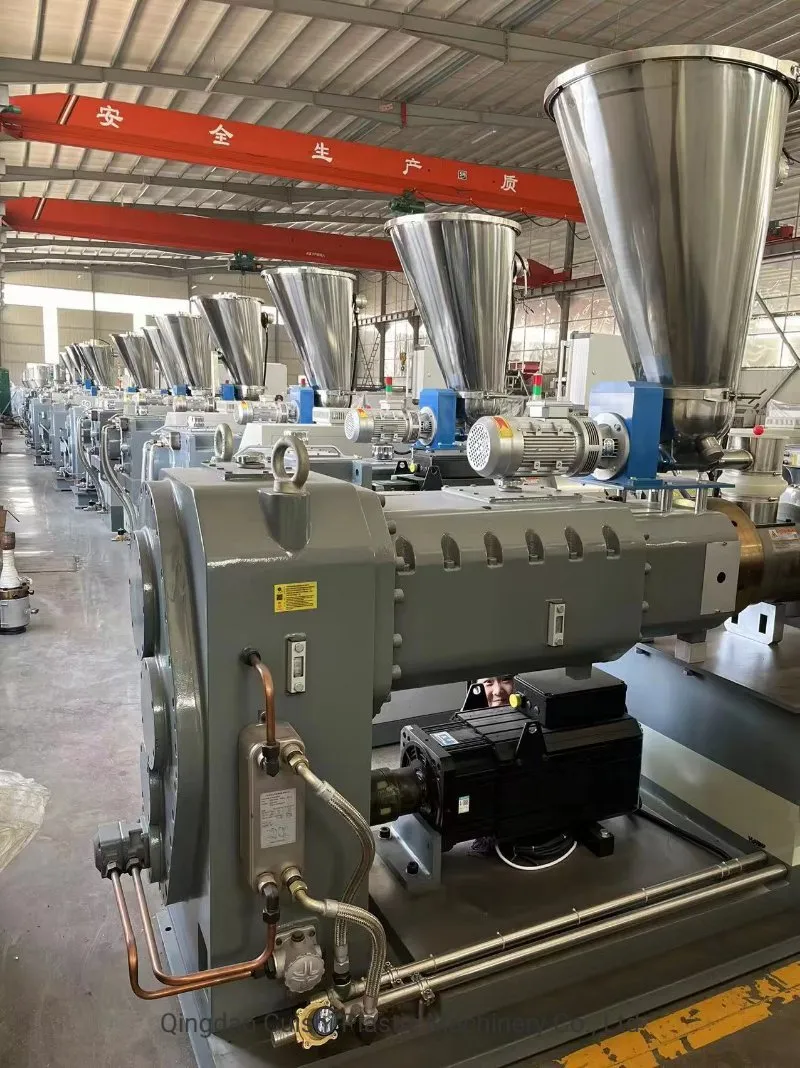

- Extruder: Bimetallic screw and barrel with world-famous electrical components.
- Vacuum Tank: Constructed from SUS304 stainless steel with specialized water spray positions for efficient cooling.

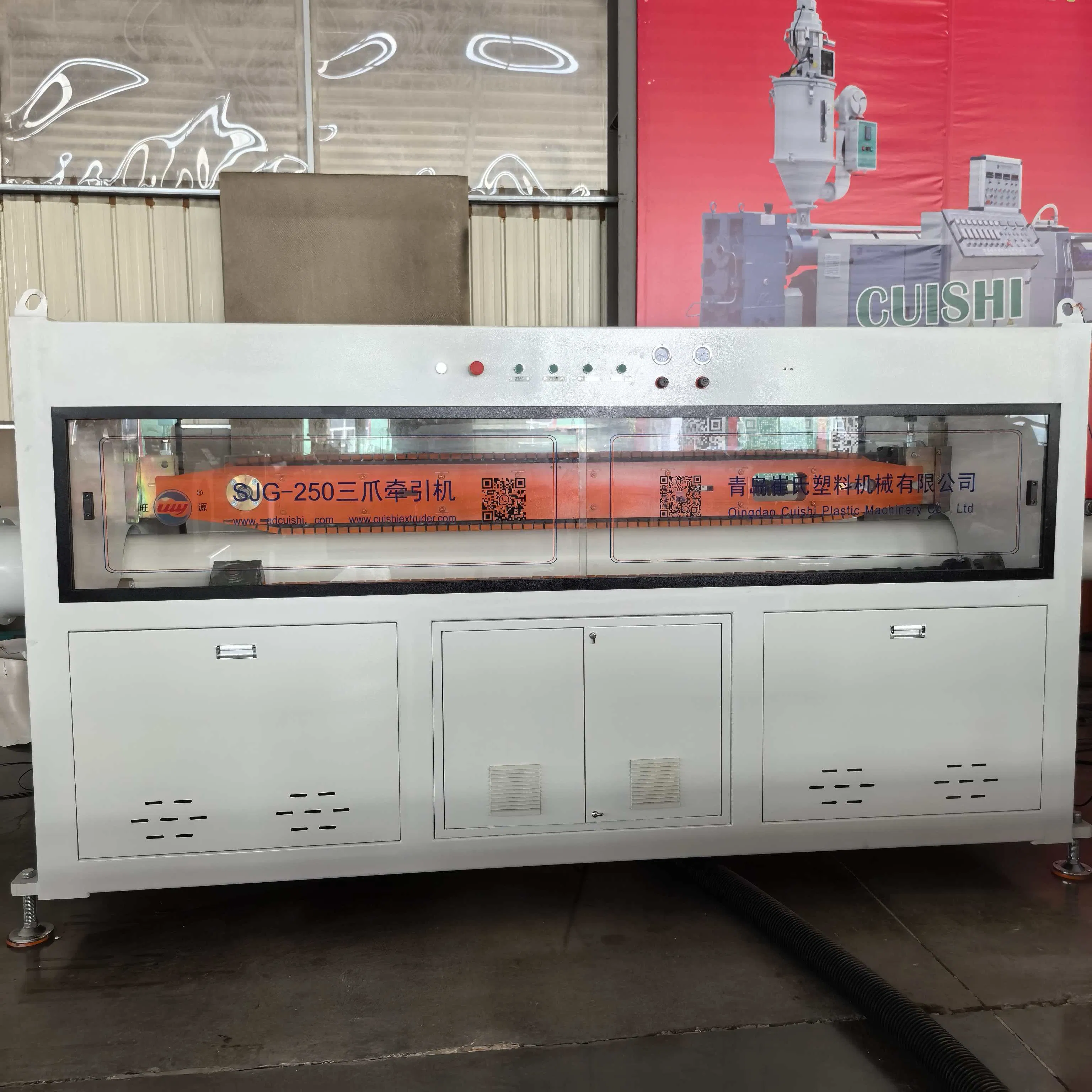

- Haul-off: High pulling force without deforming the pipe; equipped with 2-10 caterpillars based on application.
- Planetary Cutter: Fully automatic synchronization with extrusion speed, providing perfect chamfering and cutting surfaces.
Frequently Asked Questions
💡 What materials can this extrusion line process?
The machine is designed for PVC, UPVC, and CPVC materials, making it suitable for water supply, drainage, and electrical conduit pipes.
💡 What is the range of pipe diameters available?
Our production lines are versatile and can cover diameters from 16mm up to 630mm, depending on the specific model selected.
💡 Does the machine include a warranty and after-sales service?
Yes, we provide a 1-year quality guarantee and offer life-long after-sales support, including installation and training services.
💡 How is the cooling efficiency managed for high-speed production?
We use a SUS304 stainless steel vacuum calibration tank with up to 12 cooling tubes and specialized ABS sprayers to ensure rapid and uniform cooling.
💡 Is the operation system easy for new operators?
Absolutely. The line is equipped with an intelligent PLC touch screen control system (Siemens or customized) that features a human-friendly interface for easy operation.
💡 What type of cutting system is used?
Depending on the pipe size and requirements, you can choose between a saw blade cutting type or a planetary cutting type for high-precision chamfering.
