| Model NO. | MD-45*2-600 | Type | PE Film Blowing Machine |
| Raw Material | HDPE | Max Folding Width | 600mm |
| Screw Diameter | 45mm | Automation | Automatic |
| Computerized | Computerized | Certification | CE, ISO9001:2008 |
| Max Extrusion Output | 55kg/Hr | Origin | China |
| HS Code | 8477209000 | Capacity | 100 sets/Year |

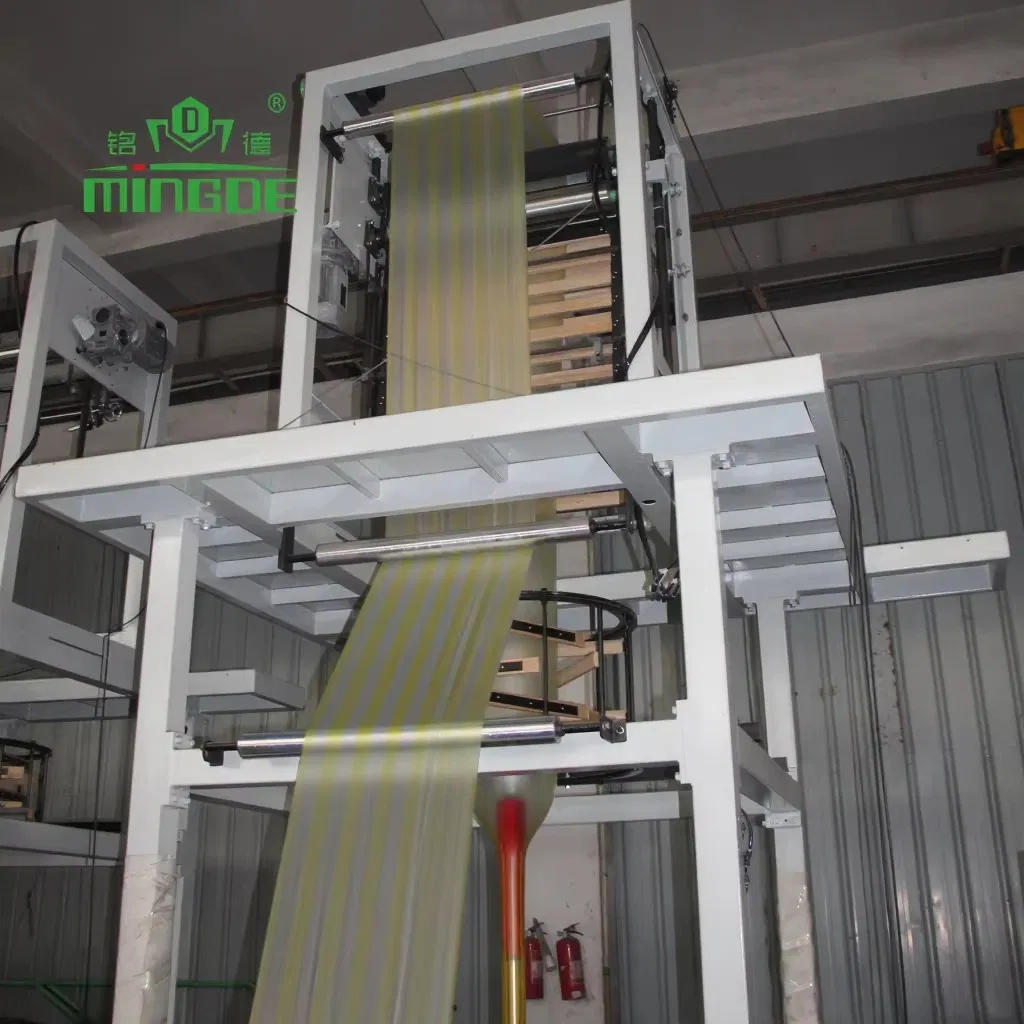

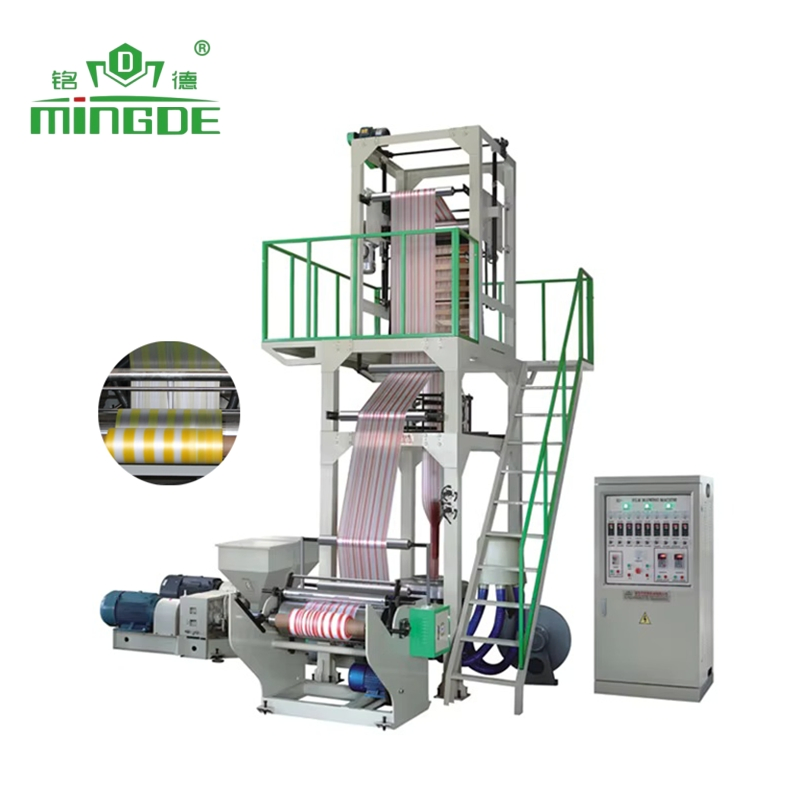

The MD-45×2-600 Double Color Film Blowing Machine represents the pinnacle of advanced film manufacturing technology, engineered for high-output production of superior quality double-layer and two-color plastic films. Designed for efficiency and reliability, it is the ideal solution for manufacturers aiming to expand their product range with vibrant, durable laminated films.
| Extrusion Unit | |
| Gear Box | 146×2 |
| Screw Diameter(mm) | φ45×2 |
| Screw L/D Ratio | 28:1 |
| Screw & Barrel Material | 38 CRMOALA |
| Driving Motor (kw) | 11*2 |
| Extrusion Die | |
| Die Size (mm) | HD:φ60 |
| Air Ring(mm) | φ620 |
| Cooling Blower(kw) | 2.2 |
| Take-UP & Winding Unit | |
| Take-UP Speed(M/min) | 10-80 |
| Type of Winder | Surface Friction Winder |
| Winding Speed(M/min) | 10-80 |
| Voltage | 380V/50HZ/3PHASE |

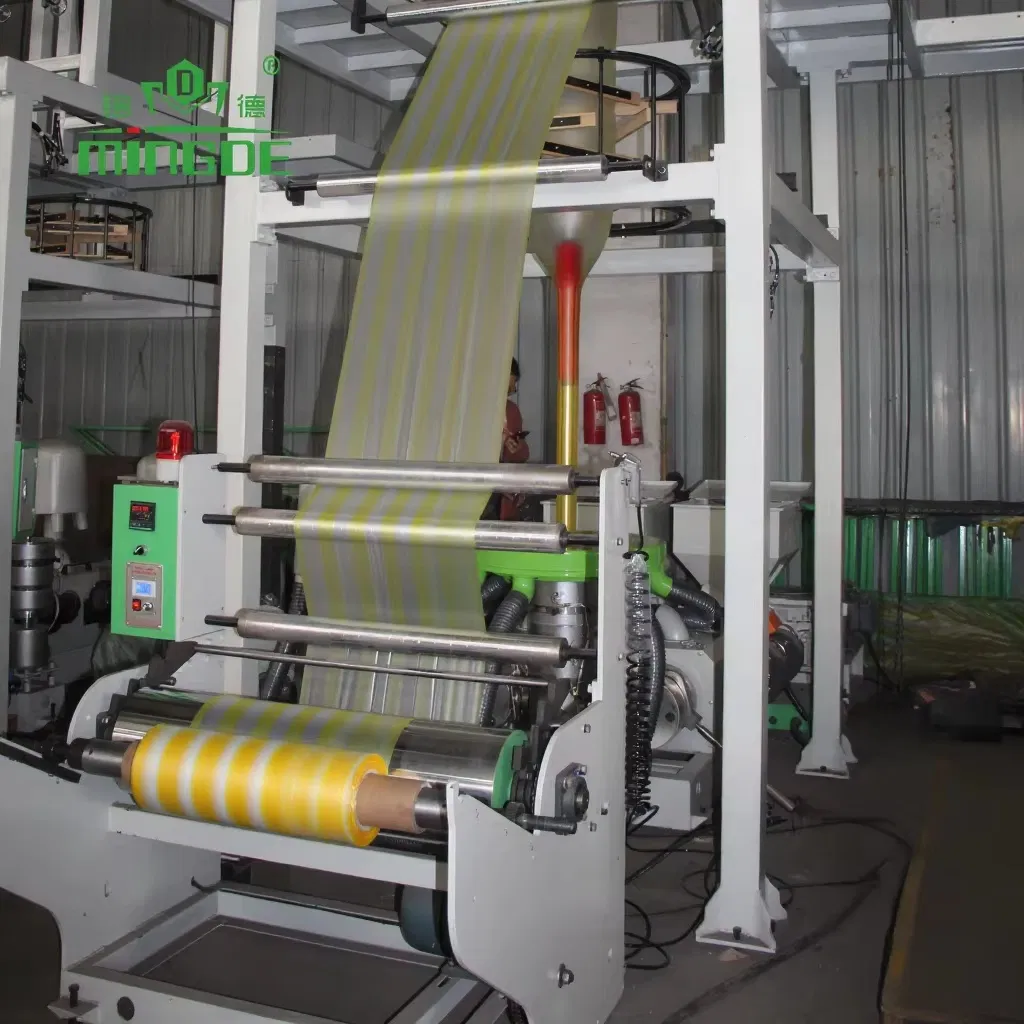

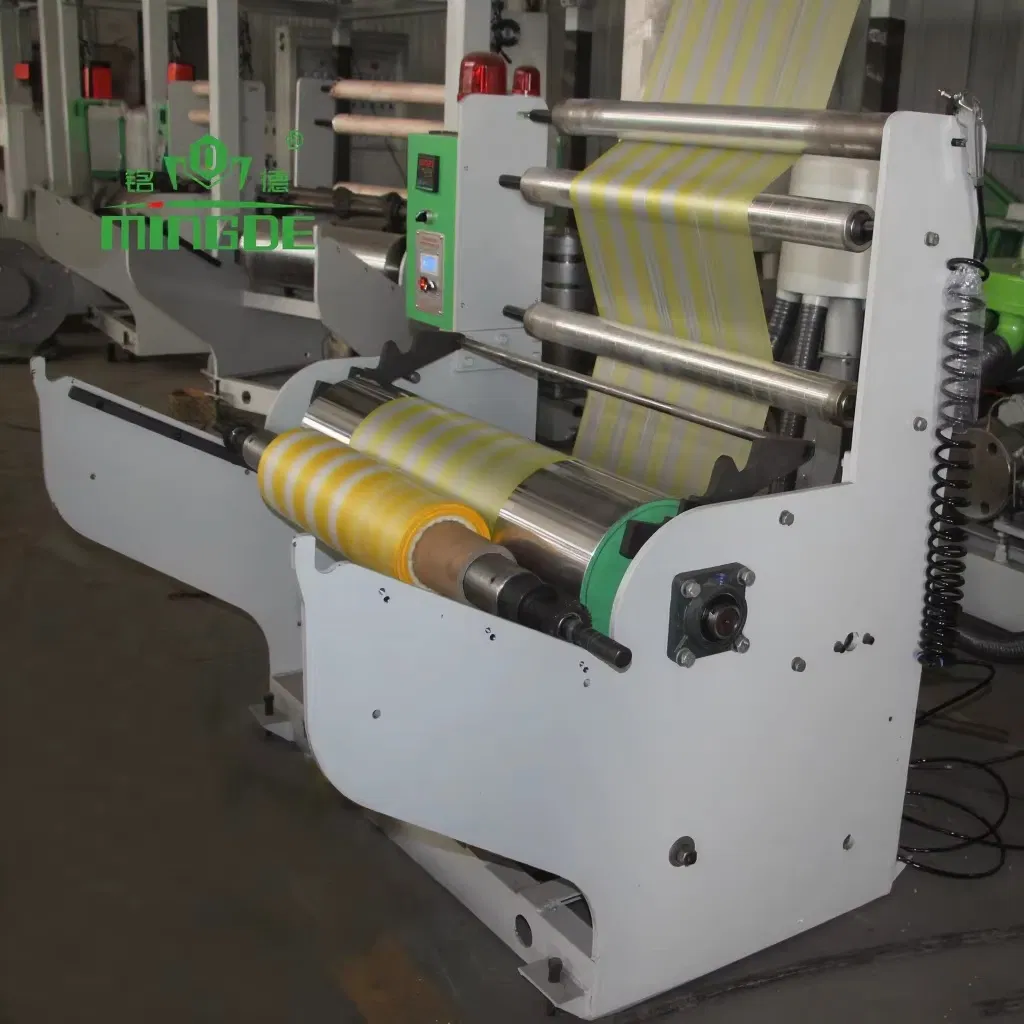

Winding Unit

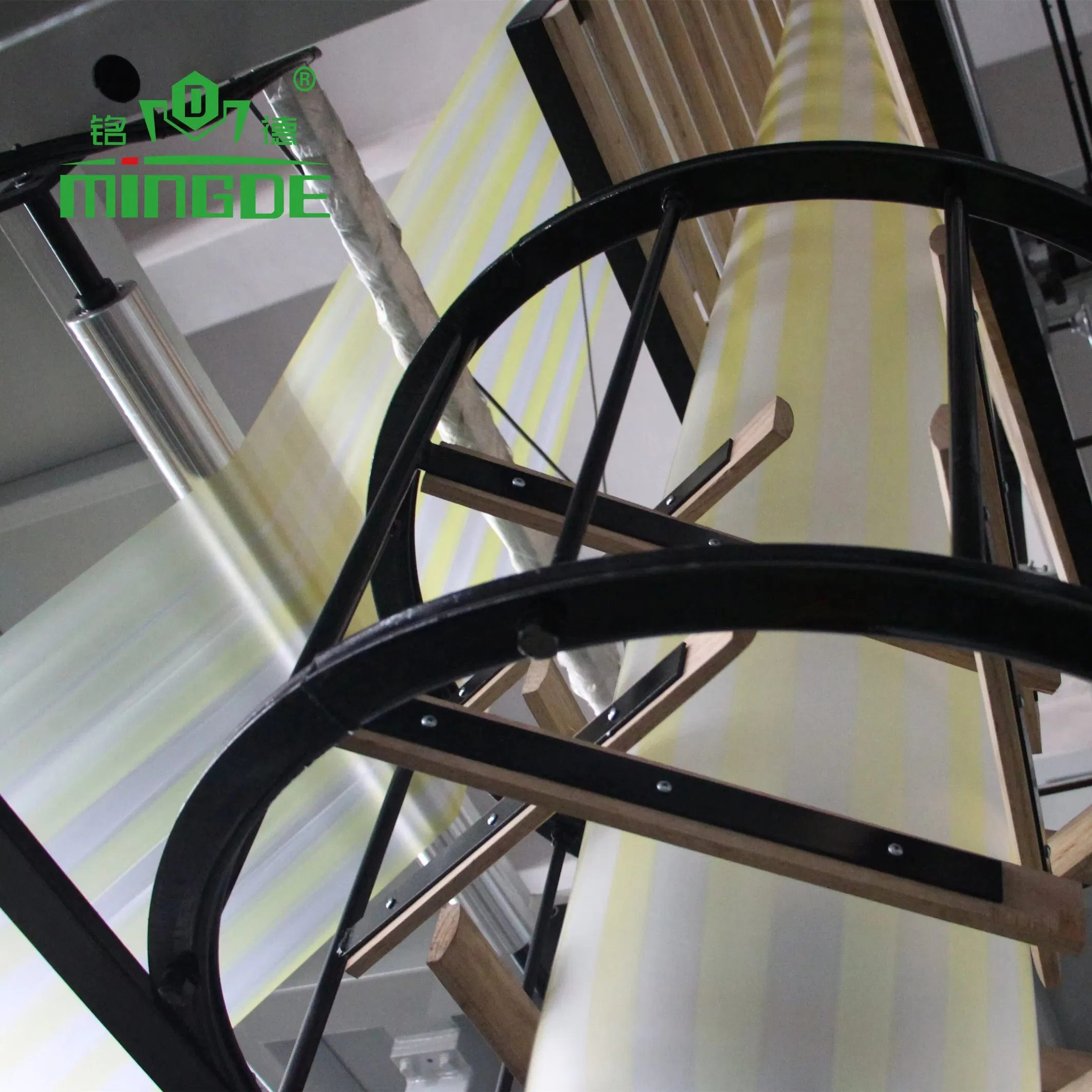

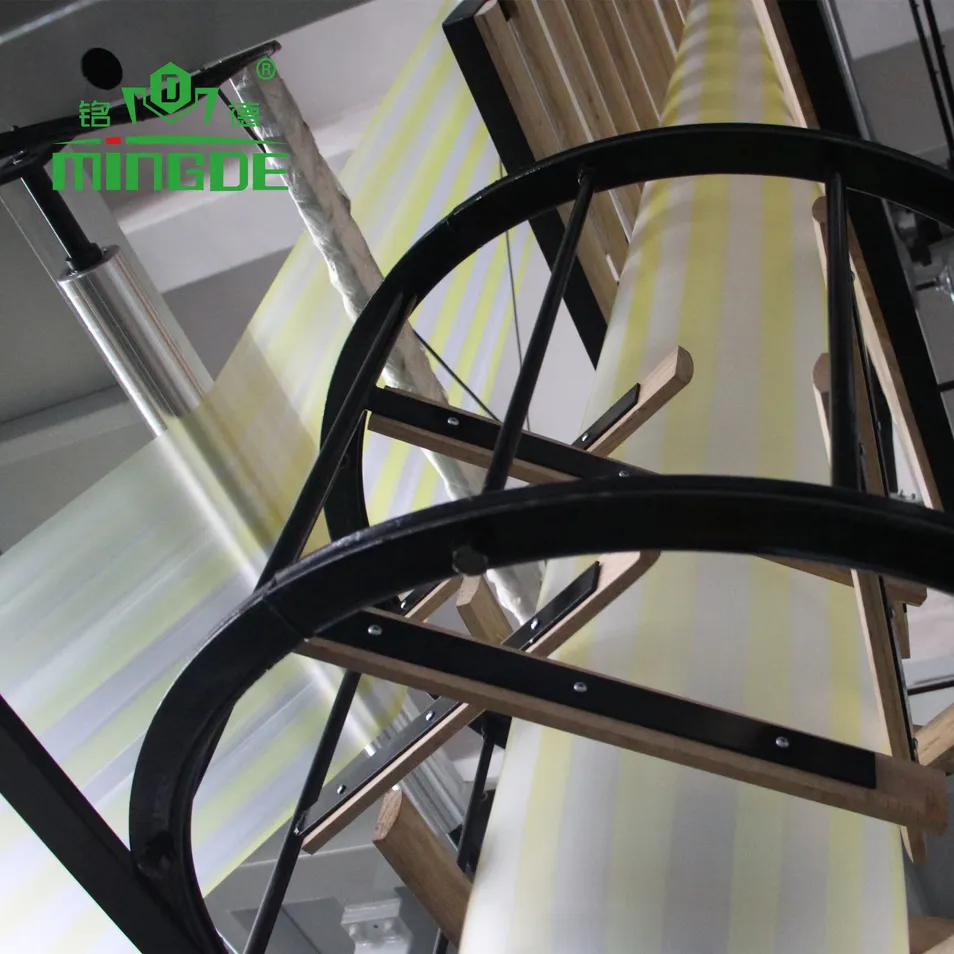

Adjustable Balloon Basket
A Form with Gusset

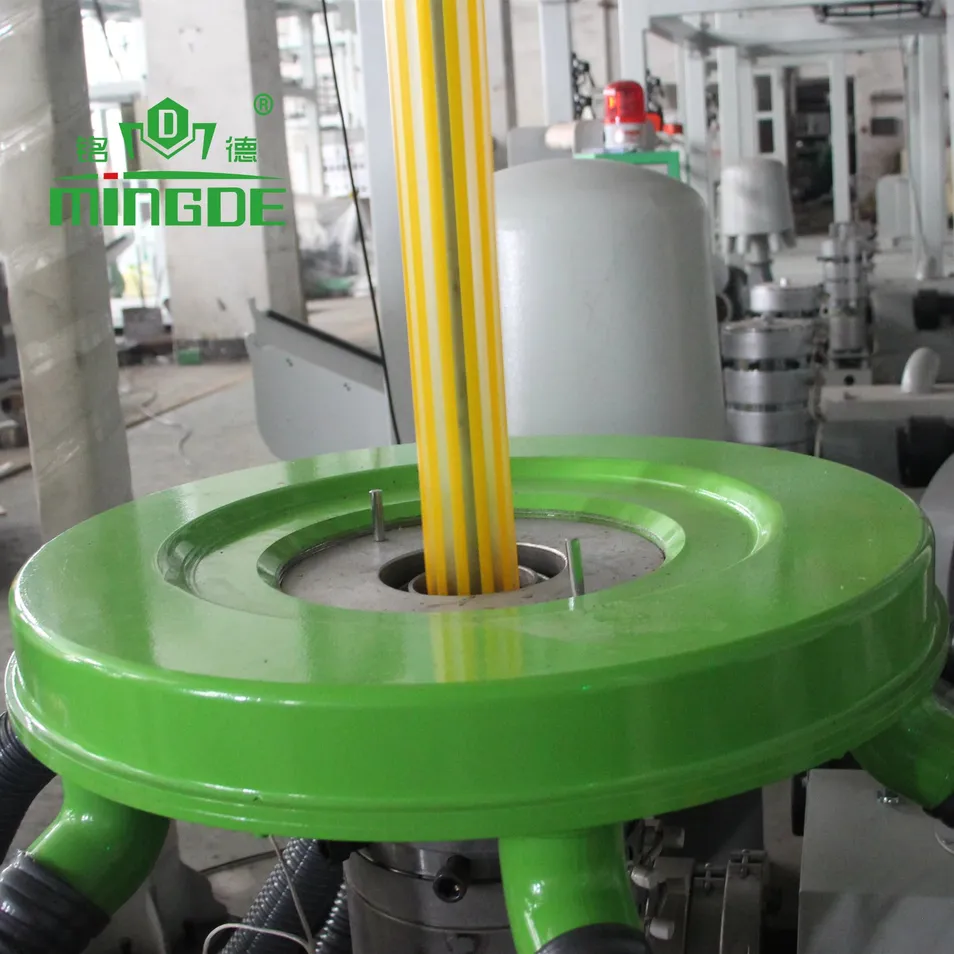

Extrusion Unit

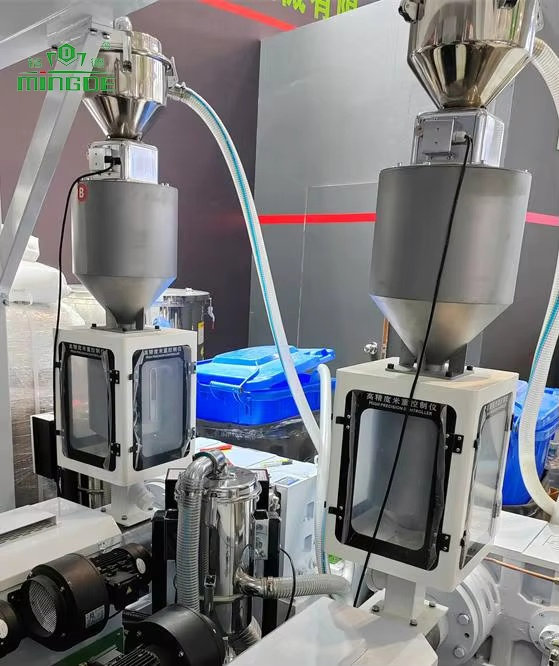

Guage Meter
Real-time monitoring and regulation of film thickness.

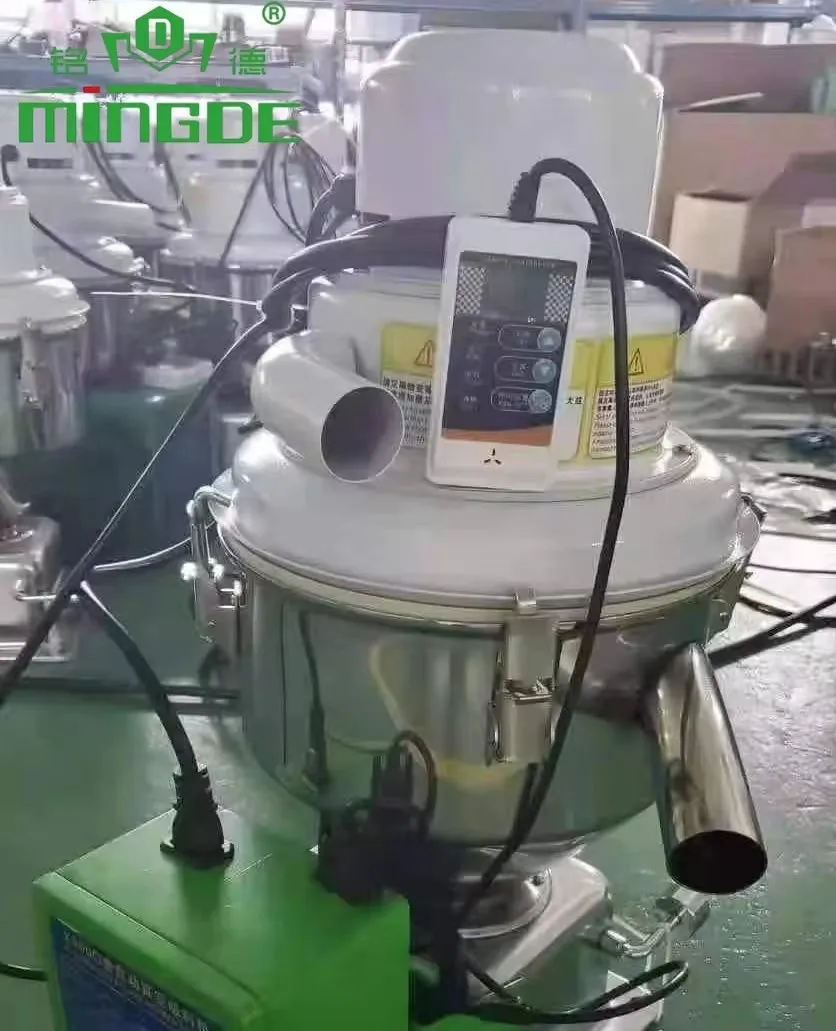

Auto Loader
Automatic transportation and supply of raw materials.

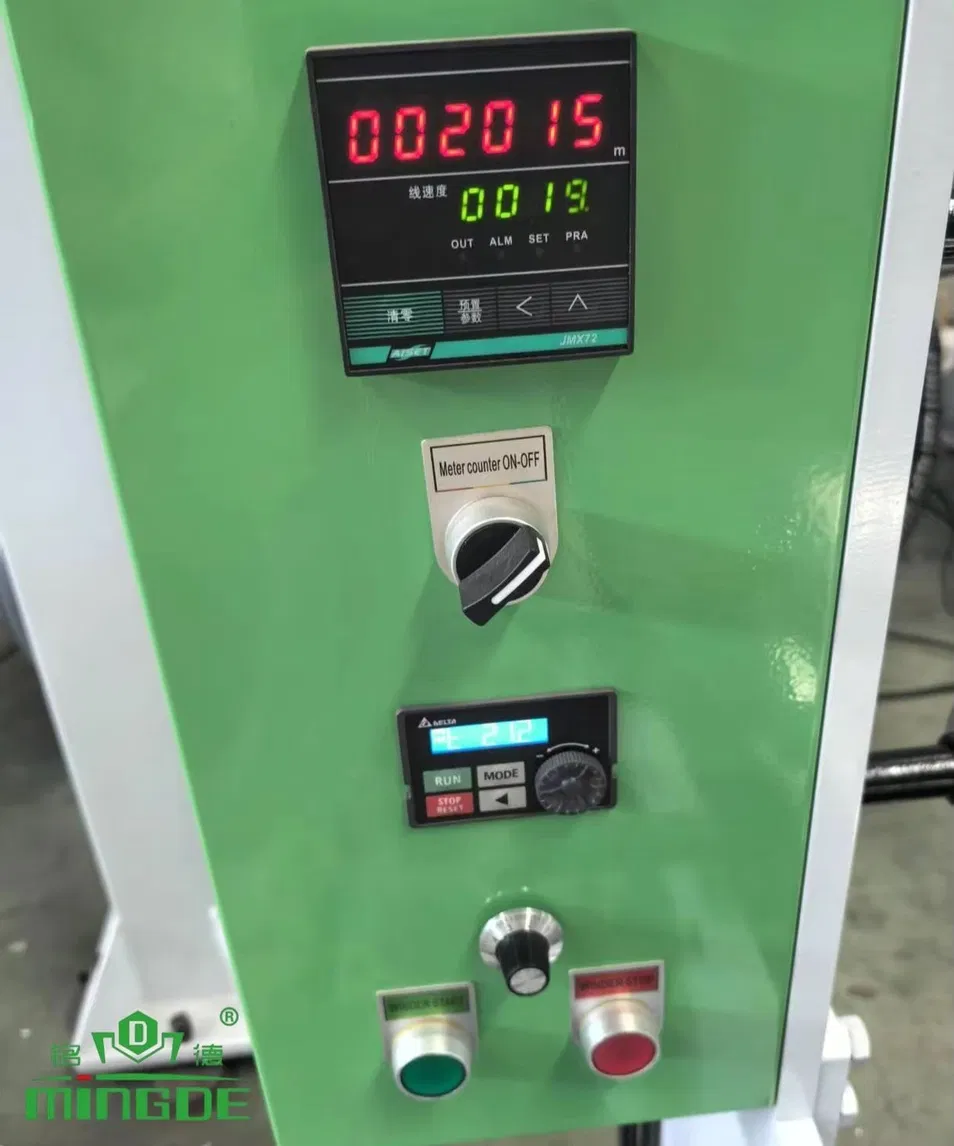

Meter Counter With Alarm
Precise measurement and intelligent early warning.
