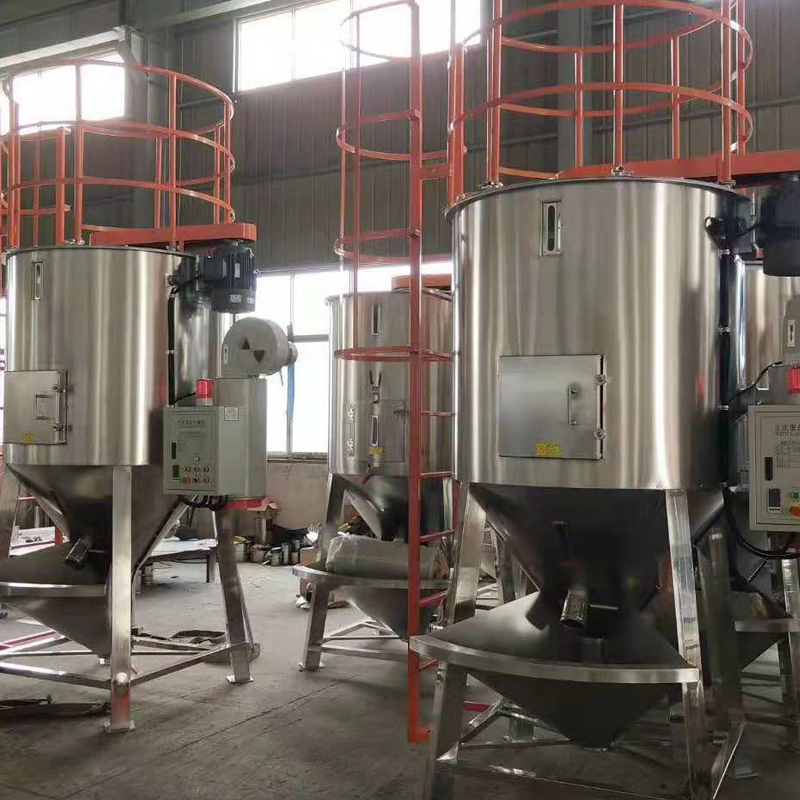

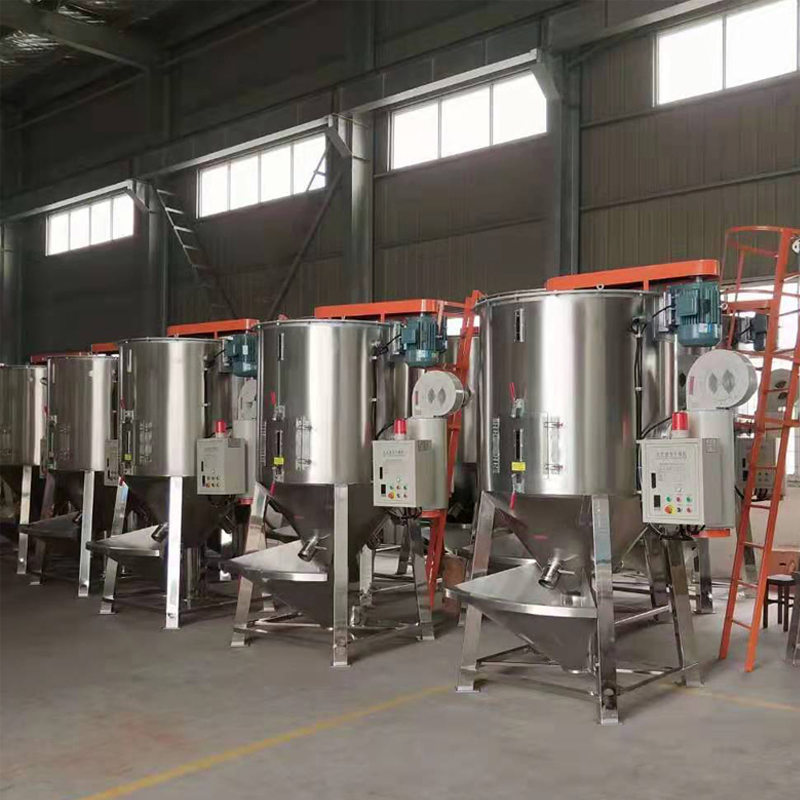

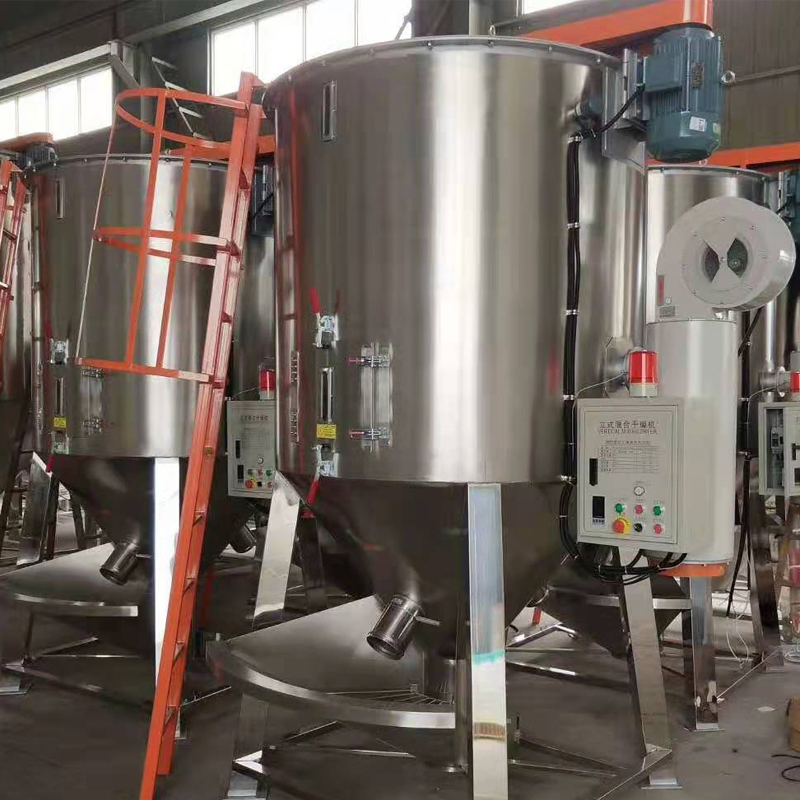

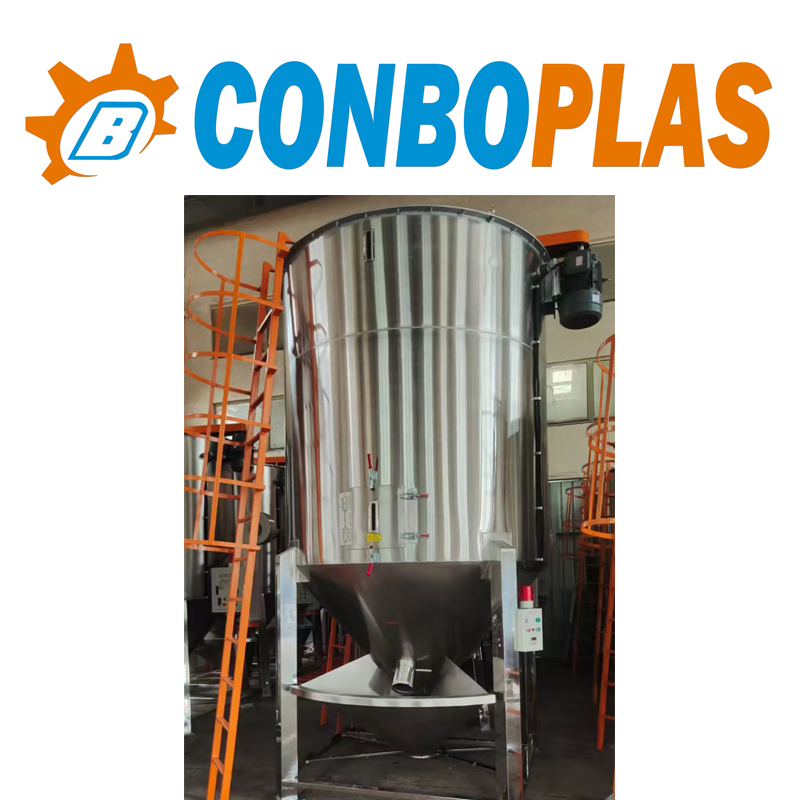

500kg 1000kg 2000kg Drying Mixing Machine for Plastic LDPE HDPE Pipe Production

Customization: Available
Additional Capabilities: Drying
After-sales Service: One Year

Product Description

Basic Information

Model NO.VM-2000
ApplicationGranules
CertificationCE, ISO
Control SystemButton Control
Main MaterialStainless Steel
Mixing Capacity1000L & Above
Speed Range60 R/min & Above
Stirring TypeSpiral
Temperature ControlWith Heating
Capacity500kg-10000kg
HS Code8477800000
GuaranteeOne Year

Packaging & Delivery

Package Size1000.00cm * 1000.00cm * 1000.00cm
Gross Weight1000.000kg
Transport PackagePlastic Film and Wooden Box
Production Period20 Days

Product Description

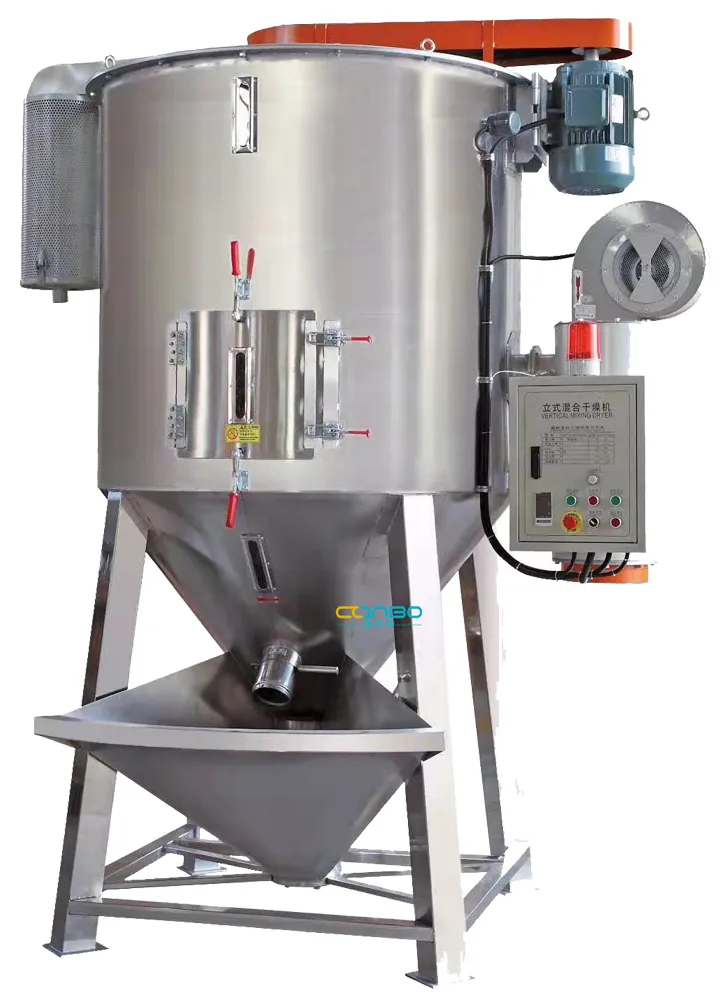

Plastic granule vertical agitating machine, made of stainless steel, the machine adopts the state-of-the-art technique--spiral mixing, allows mixing storing in large quantity (up to 10 tones). It is suitable for granular and powder forms of many materials, such as plastic and rubber raw material, animal food, wood sourced, building material, among other fields.

The spiral at center elevates materials to top of the tank and then throw them outwards all around in tank to achieve blending purpose. The plastic granule vertical agitating machine overcomes the traditional shortcomings and disadvantages, allows most even and sufficient blending. It is the great aids for plastic extrusion, animal food mixing, and building materials blending.

Figure & Function

  • Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash.
  • The frame is of framework design, solid and durable.
  • Propeller is wholly processed after welding, with high concentricity and steady operation.
  • The standing operation allows little space; mixing in a sealed manner, uniform mixing and no leakage.
  • Small horse-power, large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes.

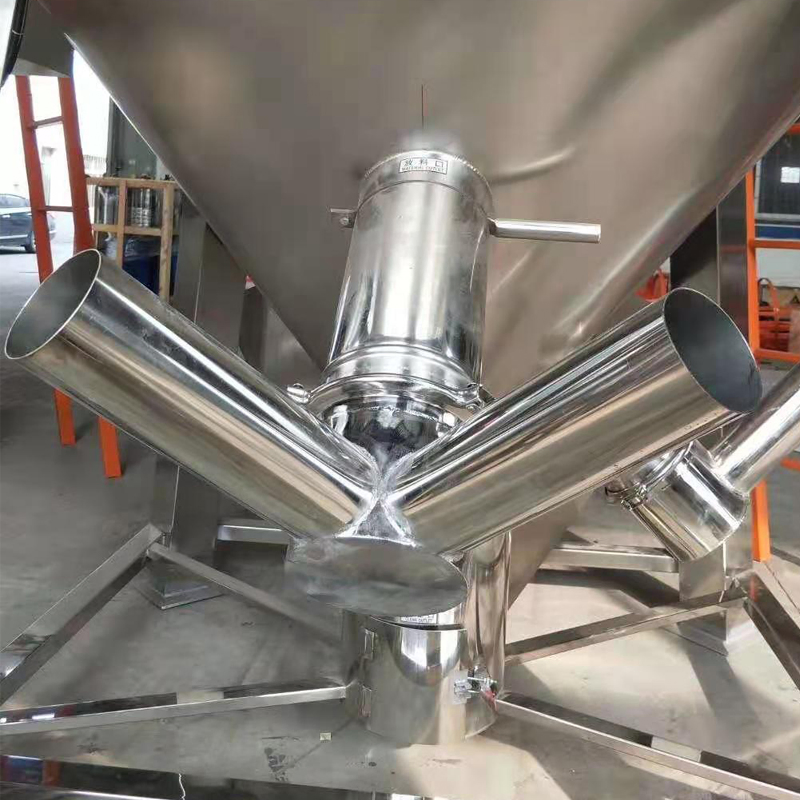

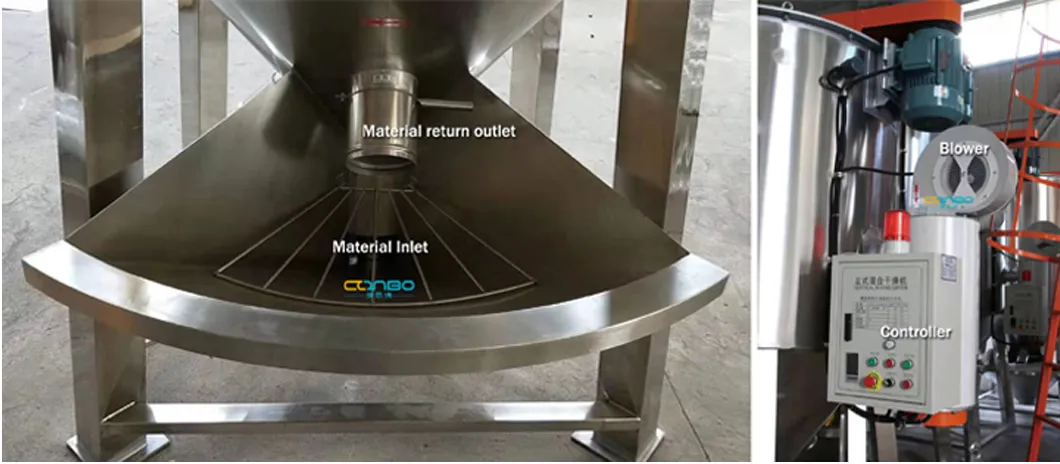

  • Oil filler and material discharging device are designed at frame bottom, with durable bearings.

Product Parameters

Model/Item Driving power (kw) Heating power (kw) Output (kg) Dimension (mm)
VM-5004155001200*2650
VM-100042010001500*2800
VM-20005.52020001800*3250
VM-30007.53030002000*3750
VM-50007.54050002400*4200
VM-6000115060002500*4500
VM-8000116080002750*5100
VM-100001170100003000*5350

Remarks: All information above is for reference only. Please contact us for exact data.

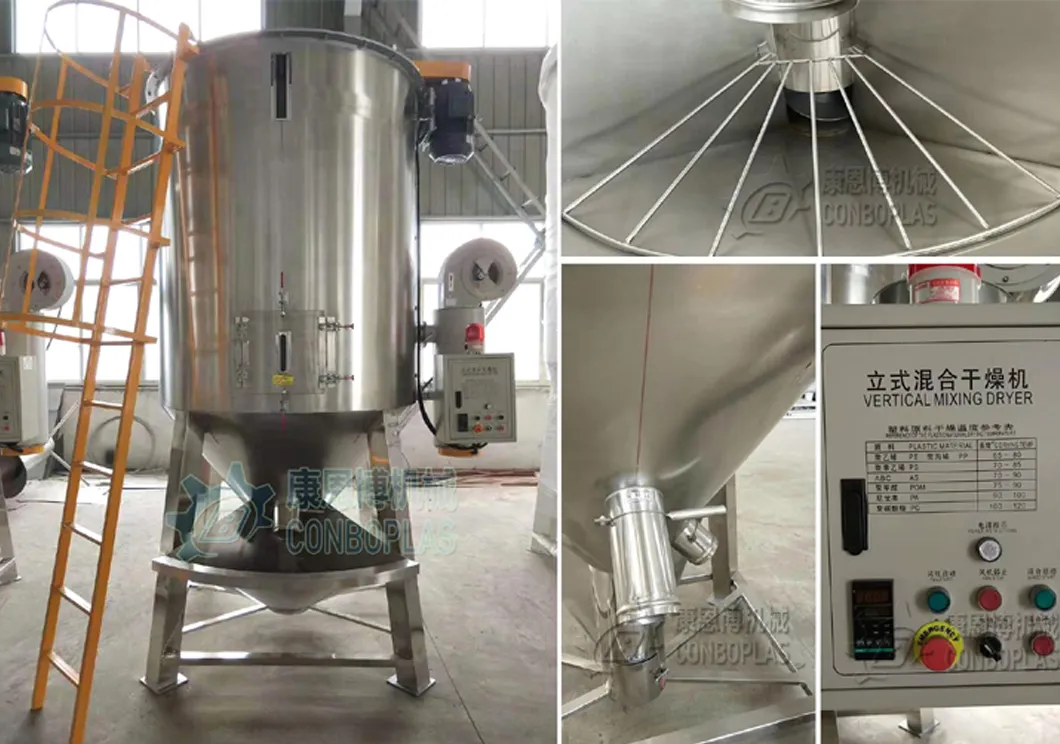

Detailed Photos

Electrical Components Quality

Frequently Asked Questions

Q1: What materials can the vertical mixing machine process? A1: It is suitable for granular and powder forms of many materials, including plastic raw materials (LDPE, HDPE), rubber, animal food, wood sourced materials, and building materials.
Q2: What is the benefit of the spiral mixing technique? A2: The spiral at the center elevates materials to the top and throws them outwards, ensuring a uniform and sufficient blend, overcoming shortcomings of traditional mixing methods.
Q3: How long does it take to complete a mixing cycle? A3: The machine is designed for high speed and efficiency, capable of achieving uniform mixing within 3 to 5 minutes.
Q4: Is the machine resistant to rust? A4: Yes, the material tank and propeller blades are made of high-quality stainless steel to eliminate rust corrosion and ensure easy washing.
Q5: Does the machine support drying during the mixing process? A5: Yes, the VM series includes an assistant drying function with electric heating power ranging from 15kw to 70kw depending on the model.
Q6: What is the maximum capacity available? A6: We offer various models with outputs ranging from 500kg up to 10,000kg (10 tons) per cycle.
