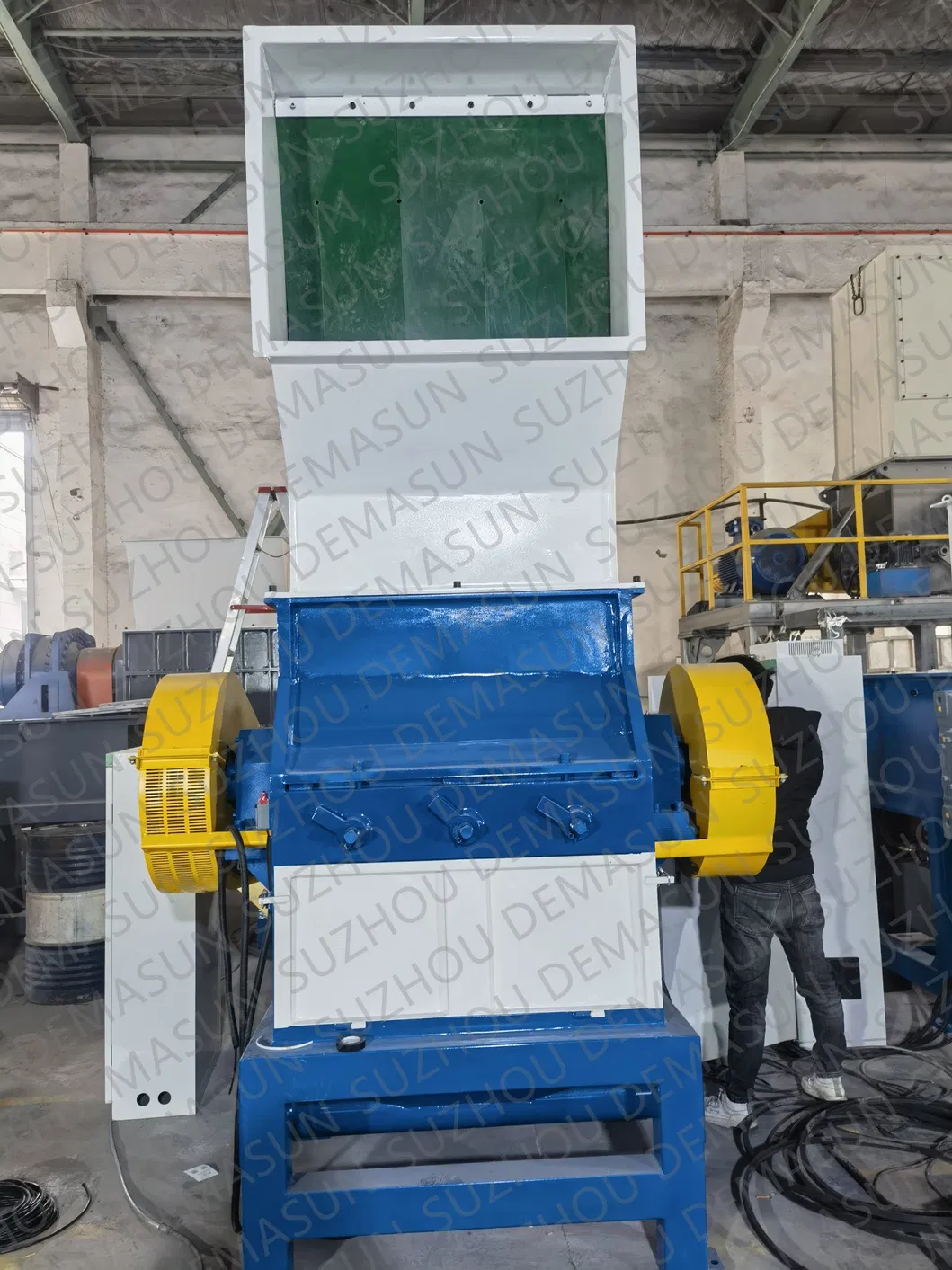

Plastic Vertical Type Crusher Machine

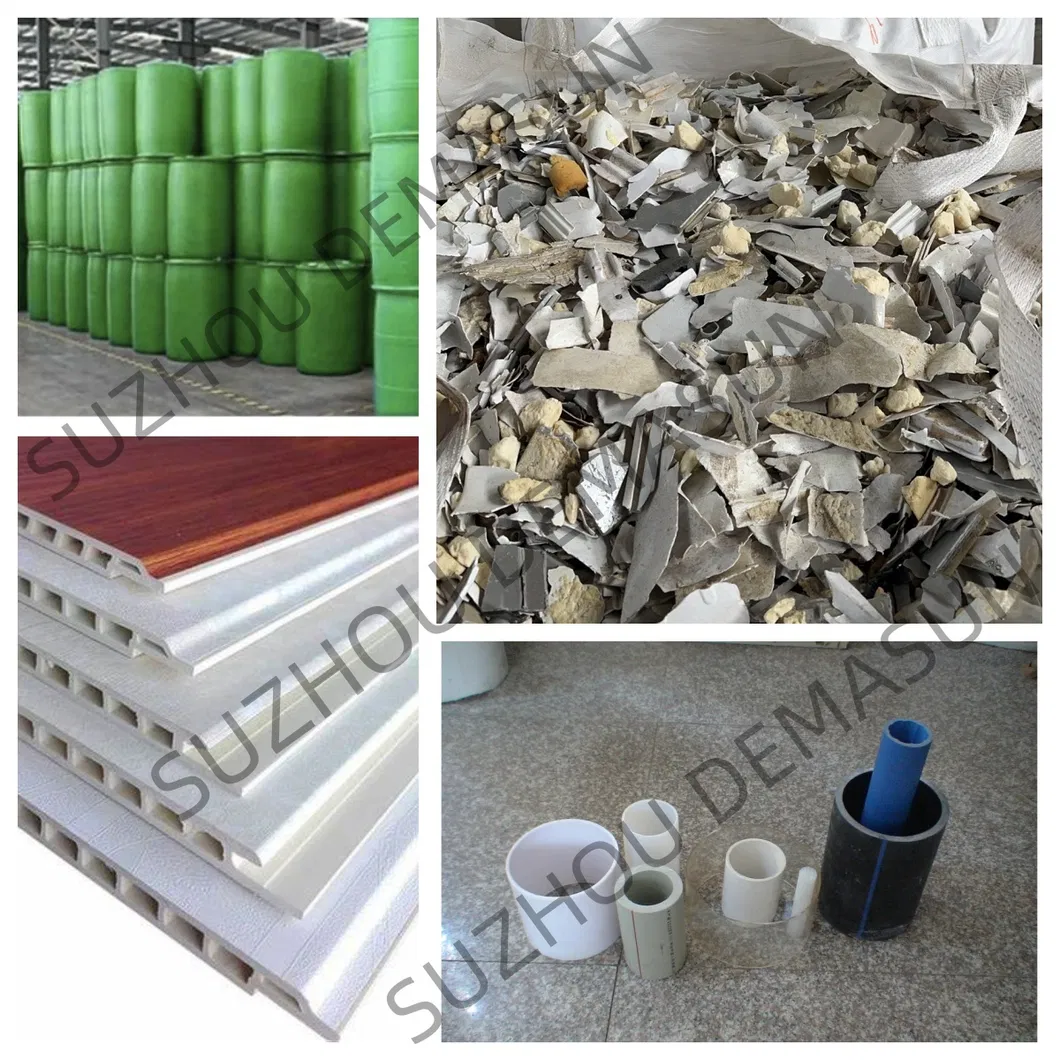

This Plastic Crusher machine is mainly used for rigid Plastic pipe, Plastic bottles, Plastic sheet, plastic drum, Injection plastic products, hard wastage plastic, and plastic film. It can be used alone or in combination with plastic washing and cleaning production lines.
| Model | Unit | YPSB600/800 | YPSB600/1000 | YPSB600/1200 |
|---|---|---|---|---|
| Motor power | Kw | 37 | 45 | 55 |

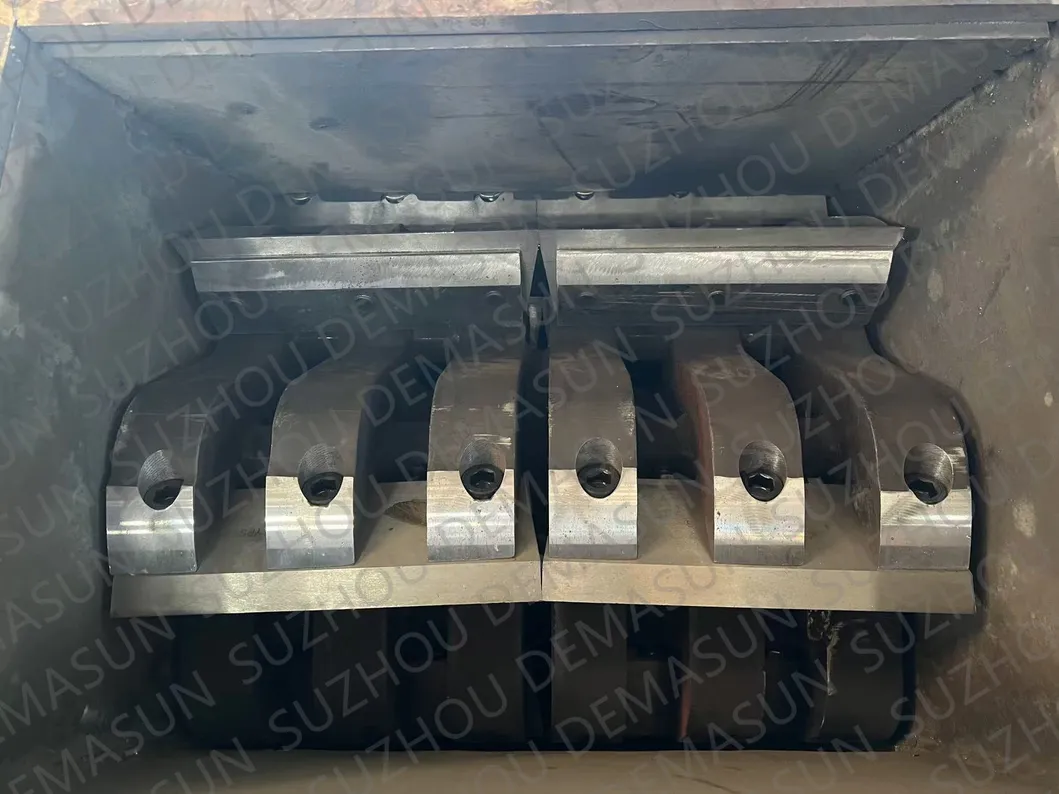

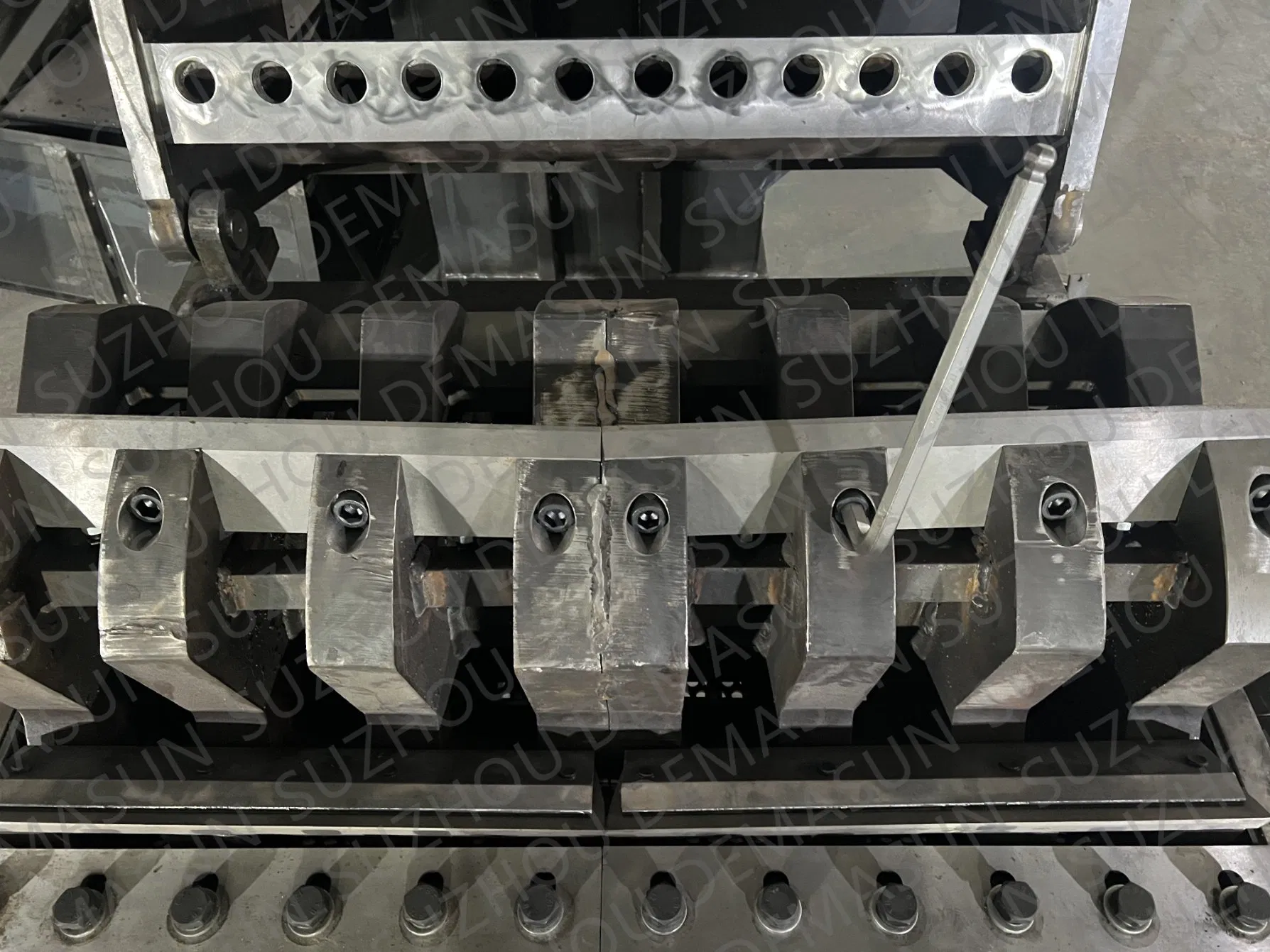

| Number of Rotor knife | pcs | 2X3 / 2X5 | 2X3 / 2X5 | 2X3 / 2X5 |
| Number of Stator knife | pcs | 2X2 | 2X2 | 2X2 |
| Crushing rotary dimension | mm | Ø600X800 | Ø600X1000 | Ø600X1200 |
| Feeding mouth dimension | mm | 600X800 | 600X1000 | 600X1200 |
| Screen Aperture/Mesh size | mm | Ø12 | Ø12 | Ø12 |
| Drive device | - | Electric | Hydraulic | Hydraulic |
| Drive Unit Power | Kw | 0.75 | 2.2 | 2.2 |
| Model | Unit | YPSG400/500 | YPSG600/600 |
|---|---|---|---|
| Motor power | Kw | 15 | 30/45 |
| Number of Rotor knife | pcs | 2X3 | 2X3 / 2X5 |
| Number of Stator knife | pcs | 4 | 4 |
| Crushing rotary dimension | mm | Ø400X500 | Ø600X600 |
| Feeding mouth dimension | mm | 600X800 | 600X1000 |
| Screen Aperture/Mesh size | mm | Ø12 | Ø12 |
| Drive device | - | Handle | Hydraulic |
