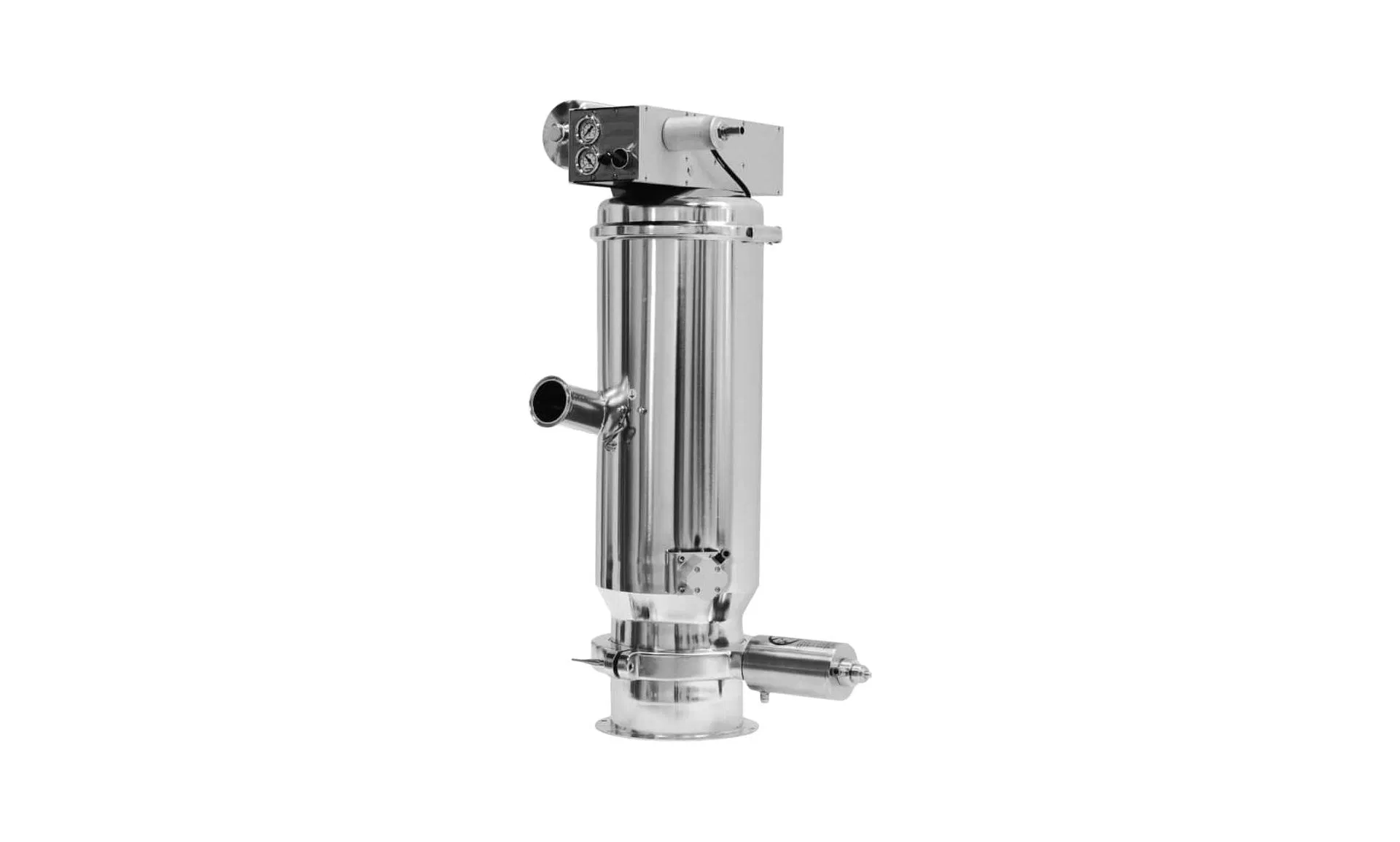

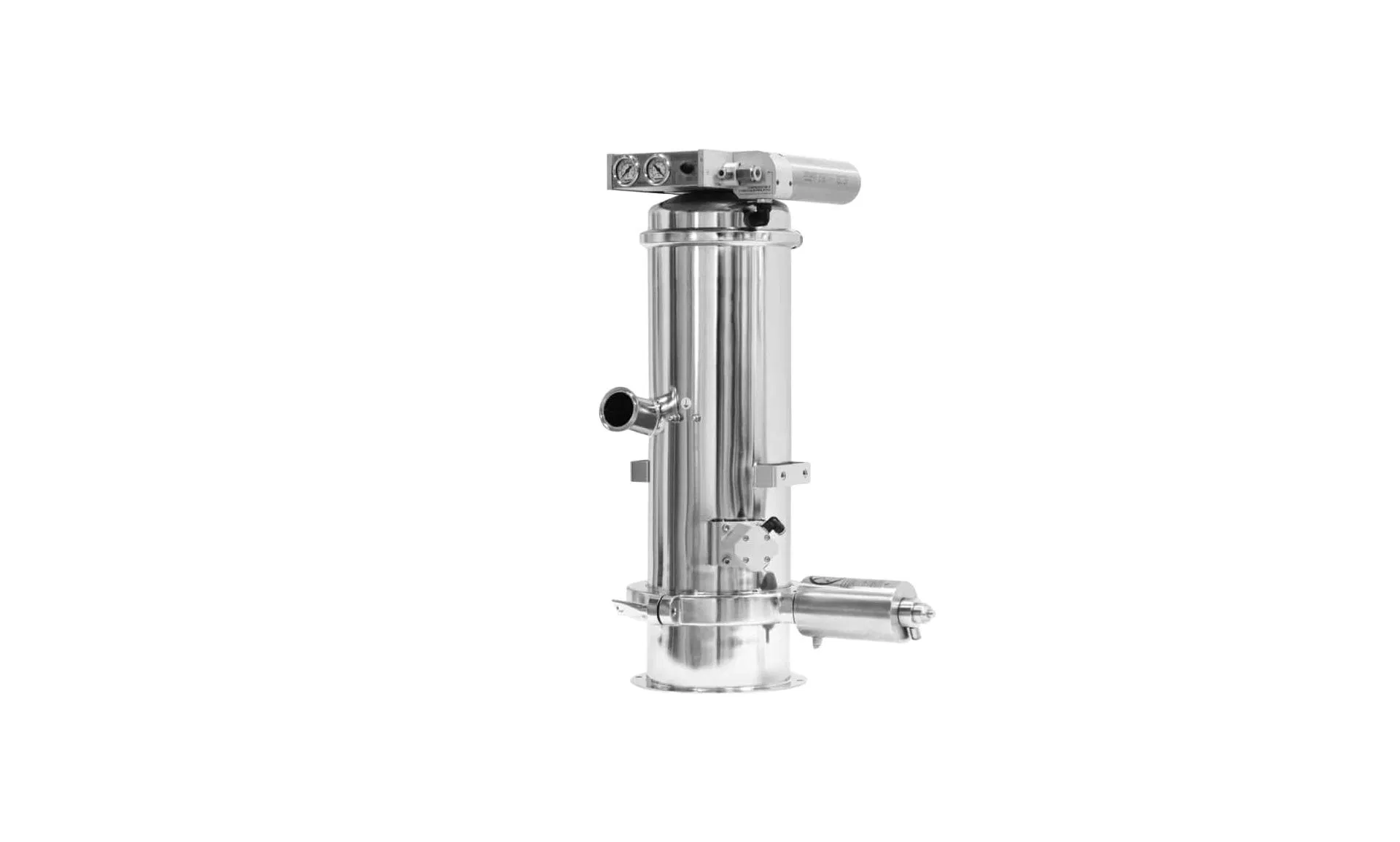

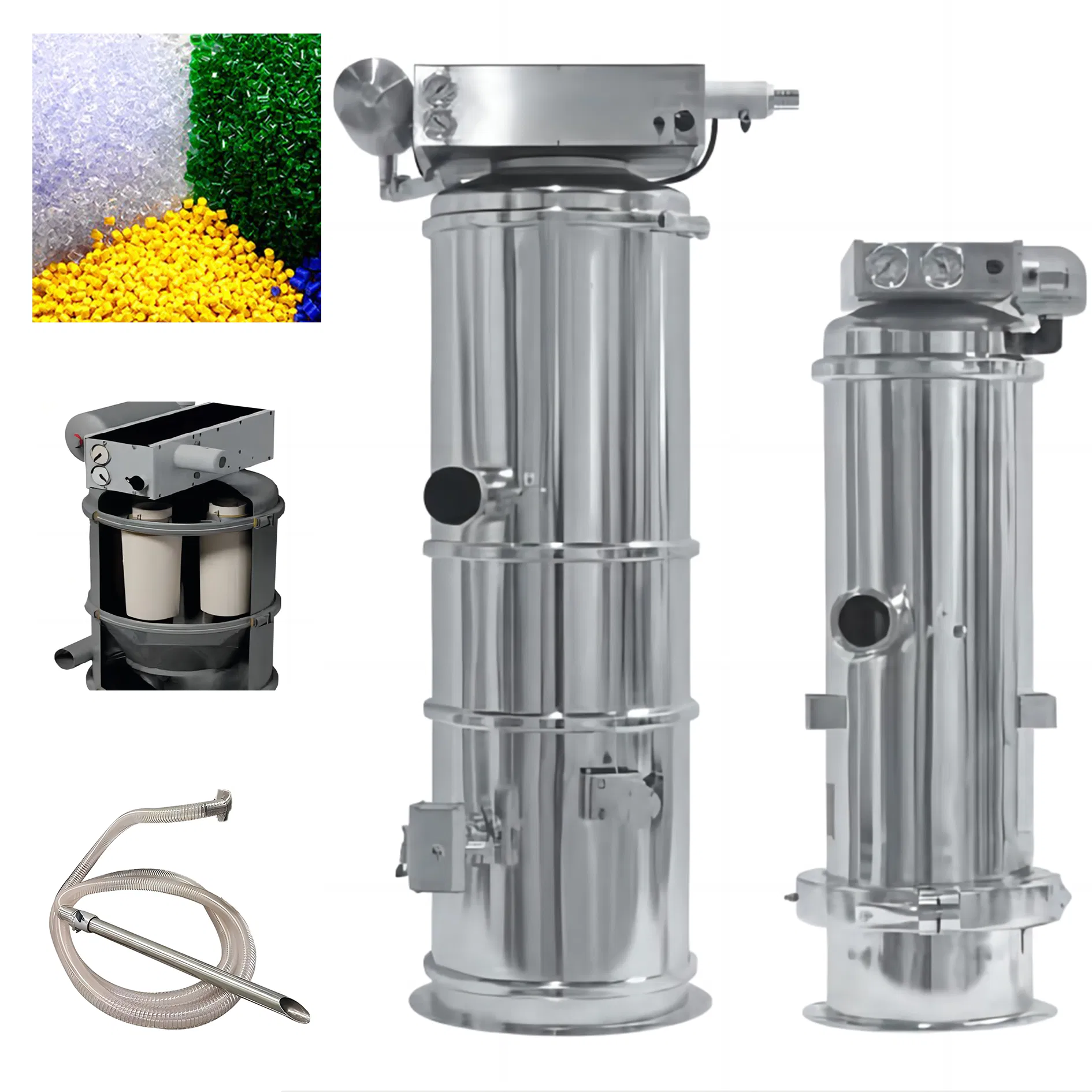

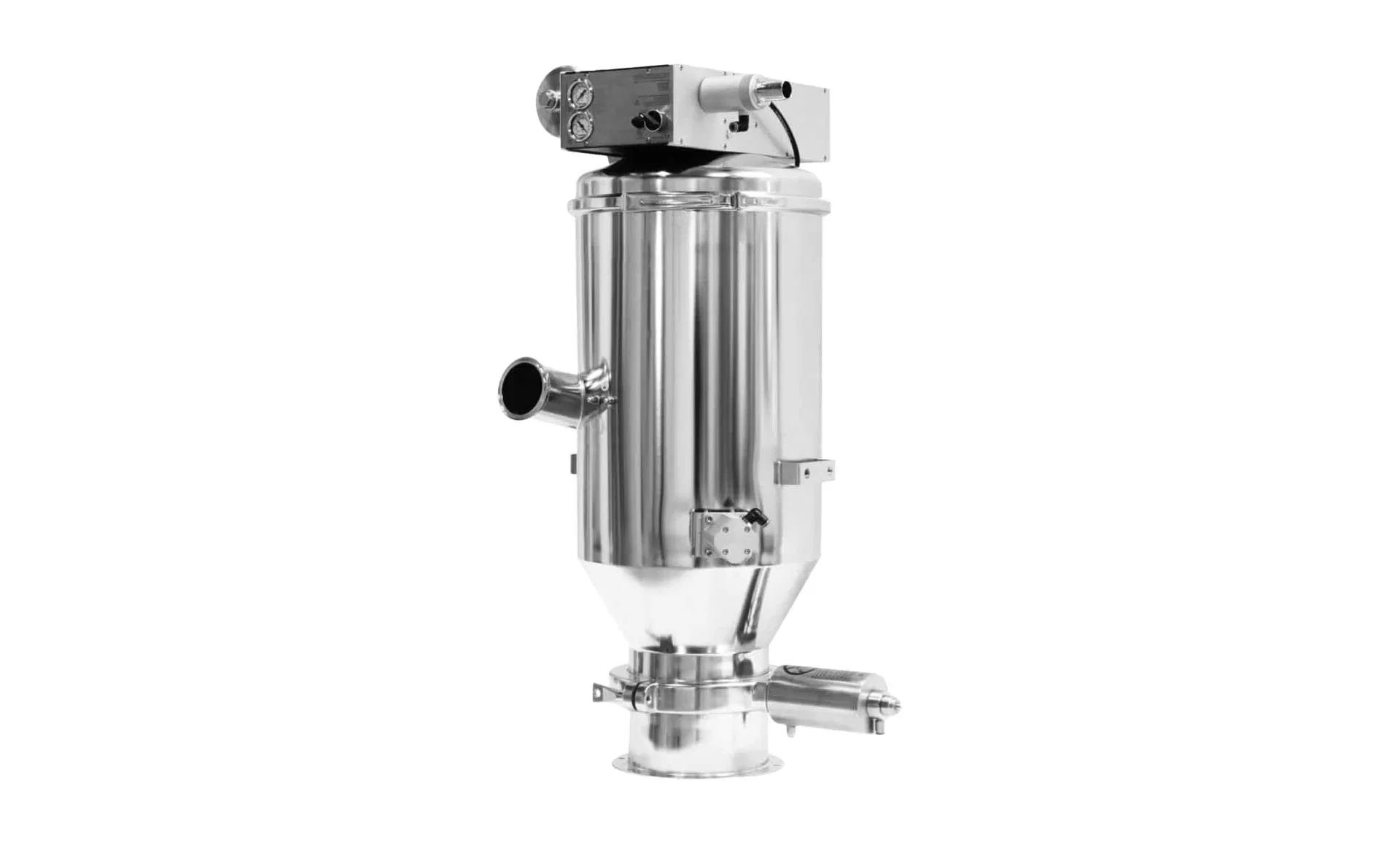

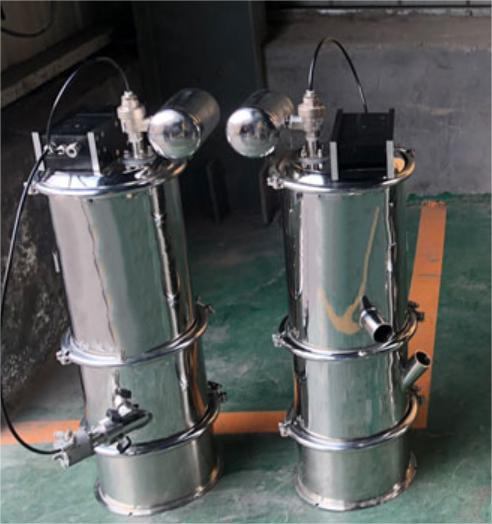

Vacuum Conveyor epitomizes cutting-edge technology and unparalleled efficiency, setting new standards in material handling solutions. Offering a completely dust-free, sealed pipeline conveying solution. Masterfully engineered, this system is designed to transport granular and powdery materials effortlessly through potent vacuum suction.
By harnessing the pressure differential between the vacuum and the ambient environment, it generates a dynamic airflow within the pipeline. This advanced method propels powdered materials at high velocities, executing the conveying process with unmatched precision.
Specialized vacuum conveying systems are available that integrate advanced cleaning and sterilization functions, along with state-of-the-art high-precision weighing capabilities.
| Model | XL-14 | XL-33 | XL-56 |
|---|---|---|---|
| Volume (L) | 14 | 33 | 56 |
| Power (W) | 200 | ||
| Air Consumption/Pressure | 100/0.6 (L/min/MPa) | 200/0.6 (L/min/MPa) | |
| Extraction Interface | 2-inch quick connector | 3-inch quick connector | 4-inch quick connector |
| Weight (Kg) | 37 | 40 | 65 |
| Dimensions (mm) [Φ×H] | Φ400×1000 | Φ400×1250 | Φ650×1350 |
[1] Excludes power for additional fans.
[2] Compressed air consumption is for backflush device only.
