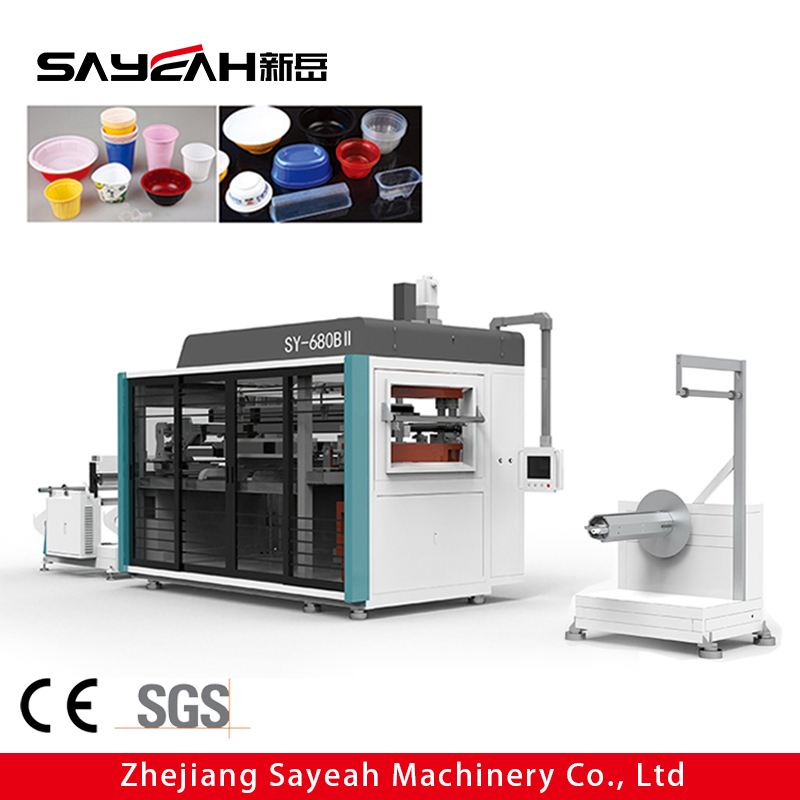

Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
1 / 5
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls
Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls

Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.
SY-680B
Certification
CE, ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
No-Load Speed
40cycles/Min
Power Consumption
40kw/H
Weight
4.5t
Max Forming Area
650X320mm
HS Code
8477409000

Product Description

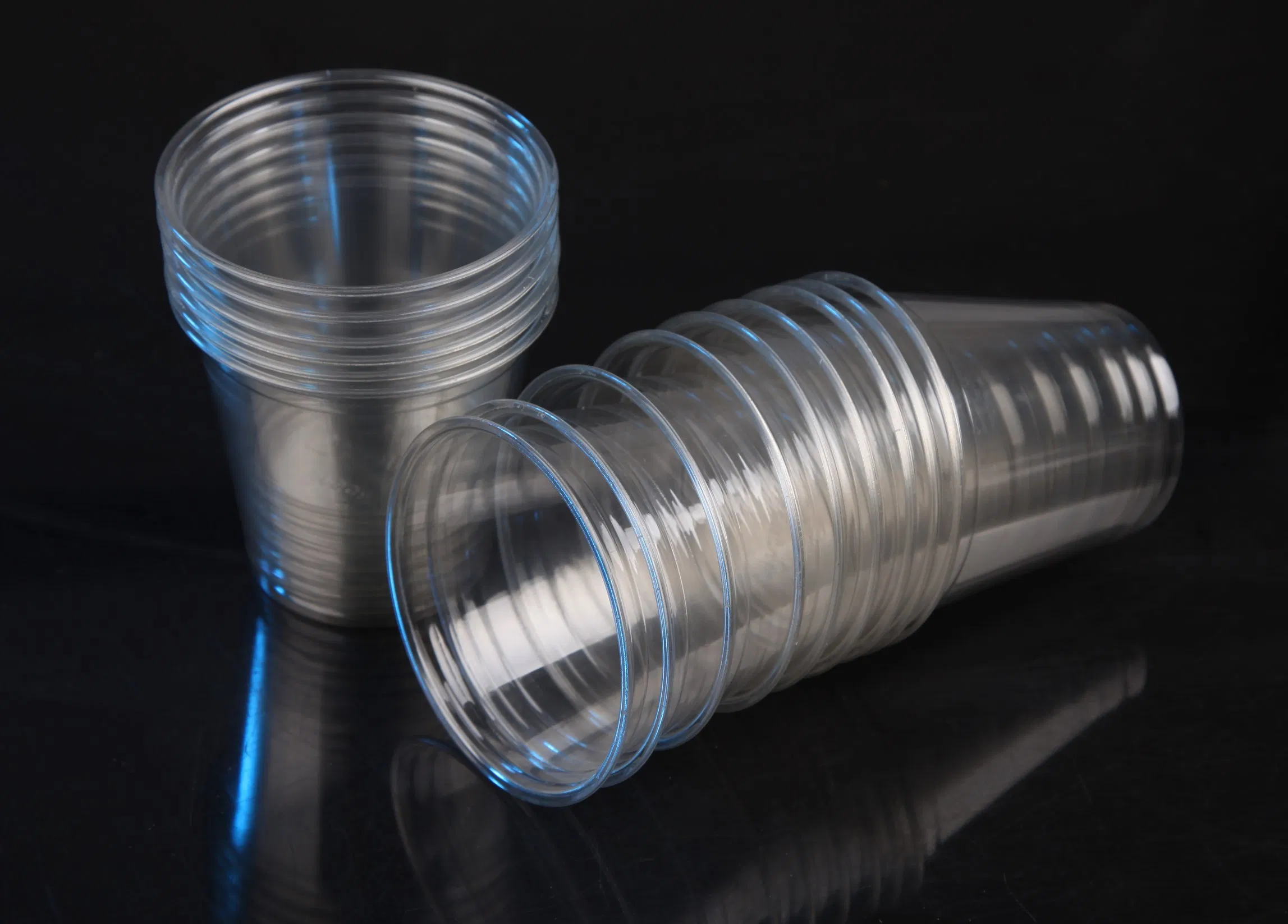

Eco-Friendly Disposable Thermoforming Machine SY-680BIII, designed for Biodegradable PET and PP Plastic water Cups, Coffee Cups and Bowls.

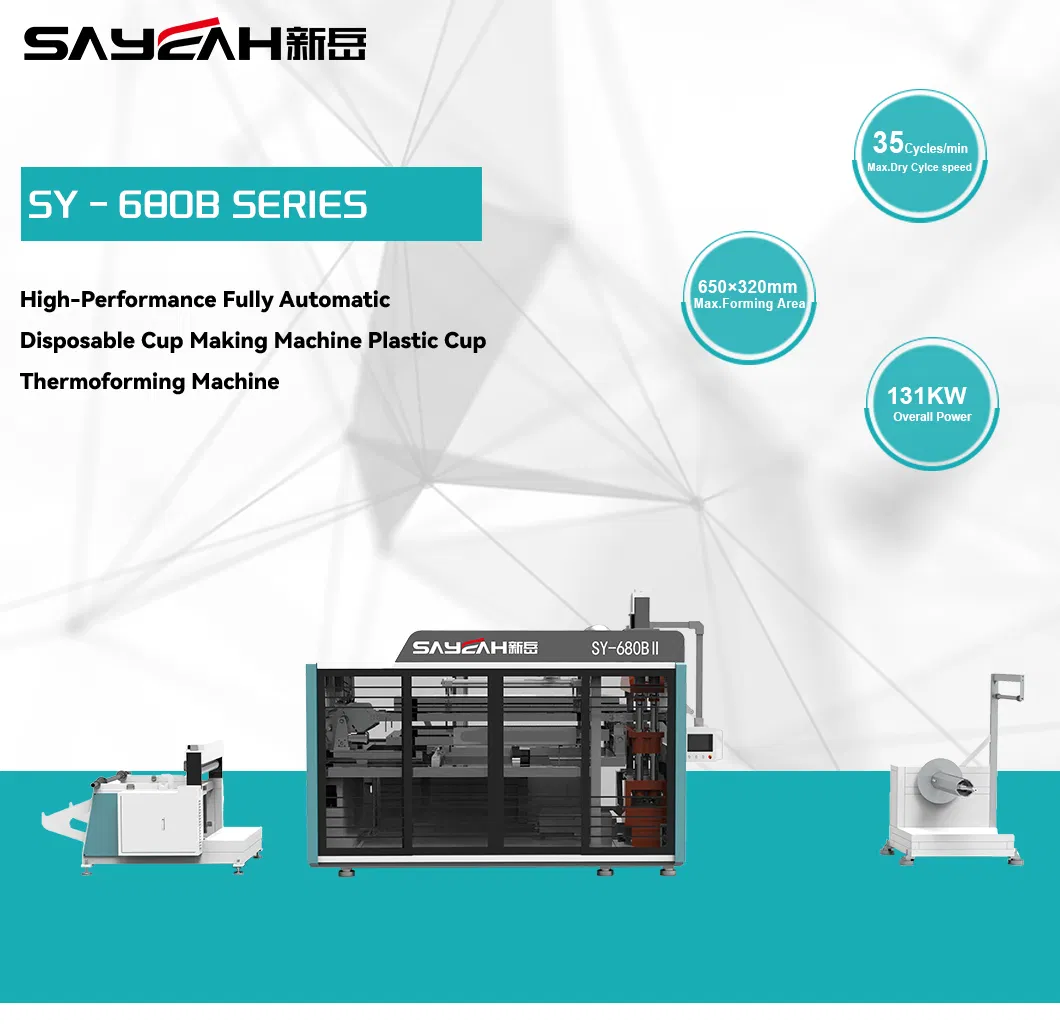

Thermoforming Machine Overview

SY-680 III is a full servo motor system plastic cup thermoforming machine. Its sheet feeding and stretching parts are driven by servo motors, capable of producing disposable products such as plastic cups, bowls, lids, and boxes. The process includes sheet feeding, heating, forming, and cutting in one station, followed by blowing. It is widely utilized for diverse customer requirements, featuring PLC programming and a manual interface for stable, low-noise, and high-efficiency operation.

Key Features

  • The operation of the machine is fully controlled by PLC and an intuitive touch screen.

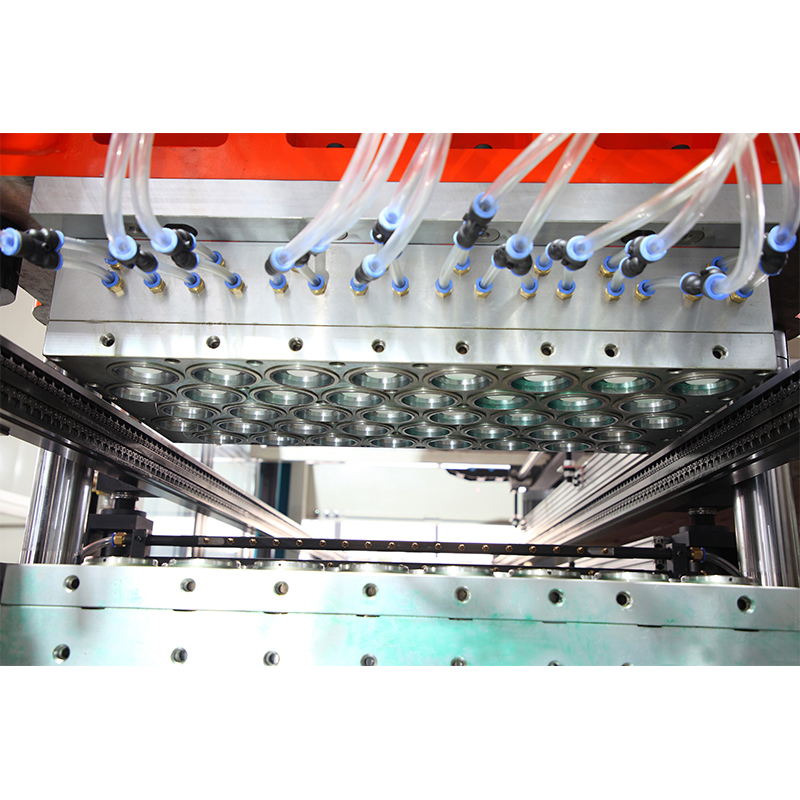

  • The mold guide plate utilizes four guide posts to ensure superior mold clamping accuracy.
  • Chain frame design incorporates fast cooling and wear-resistant materials for longevity.
  • Safety-focused mold change system reduces difficulty and improves maintenance speed.
  • Adjustable cup blowing system allows for precise control of blowing angles and air volume.

Product Parameters

Parameter Specification
ModelSY-680III
Max Forming Area650*320mm
Max No-load Speed40 cycles/min
Running/Feeding/Stretching PatternServomotor
Sheet Thickness0.2-2mm
Max Forming Depth<=135mm (robot), <=180mm (blowing)

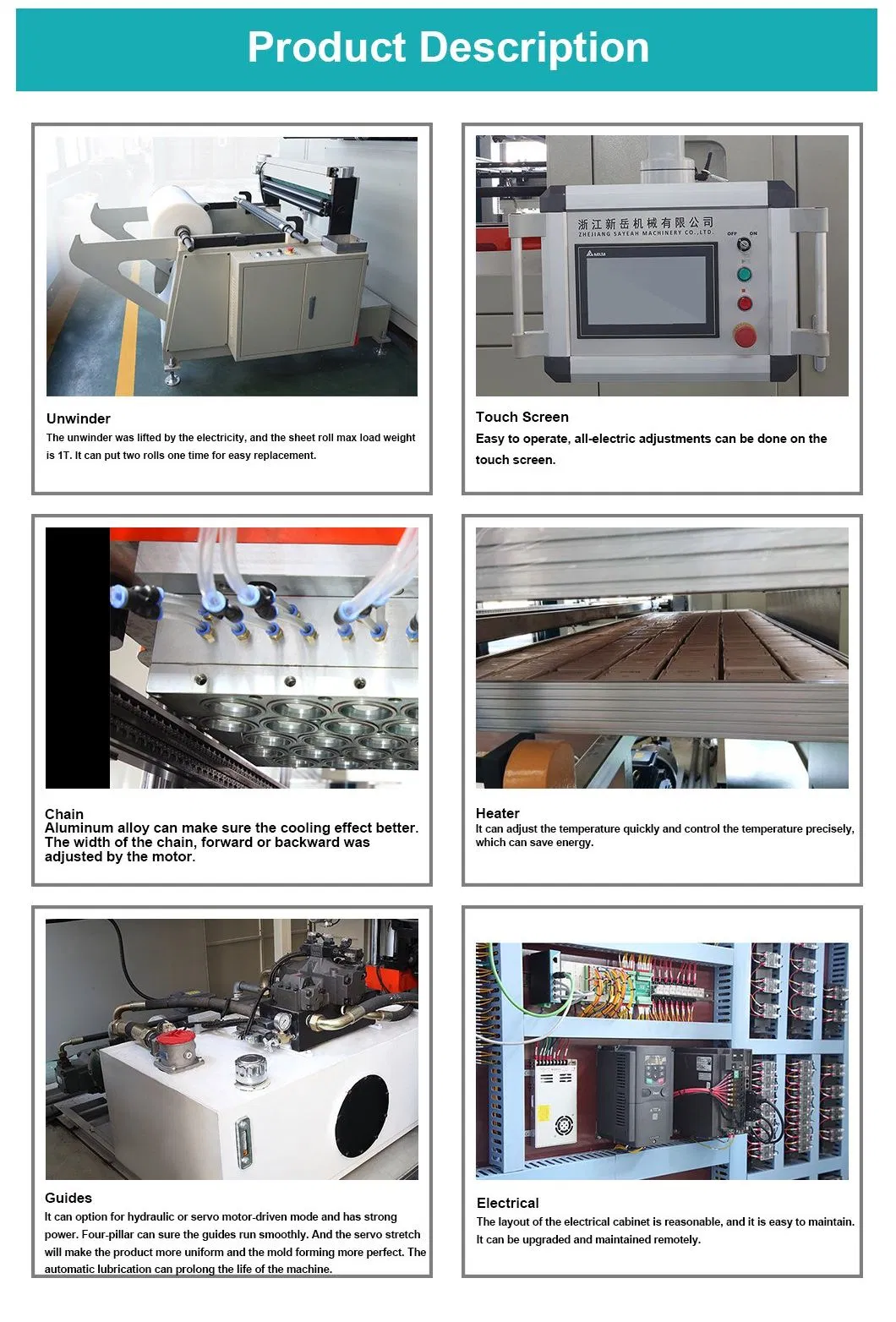

Technical Drawing

Main Electrical Components

Component Brand / Origin
Industrial Control SystemDELTA TAIWAN / Inovance
PLC & Touch ScreenDELTA TAIWAN / Inovance
Servo Motors & DrivesDELTA TAIWAN / Inovance
Vacuum PumpRUFUS, Jiangsu
Infrared Ceramic HeaterTianbao (3 years Warranty)
Pneumatic ComponentsMAC (USA) / SMC (Japan)

* Lenze system is also available upon customer requirement.

Visual Showcase

Machine Detail 1 Machine Detail 2 Machine Detail 3 Machine Detail 4 Machine Detail 5

Related Products

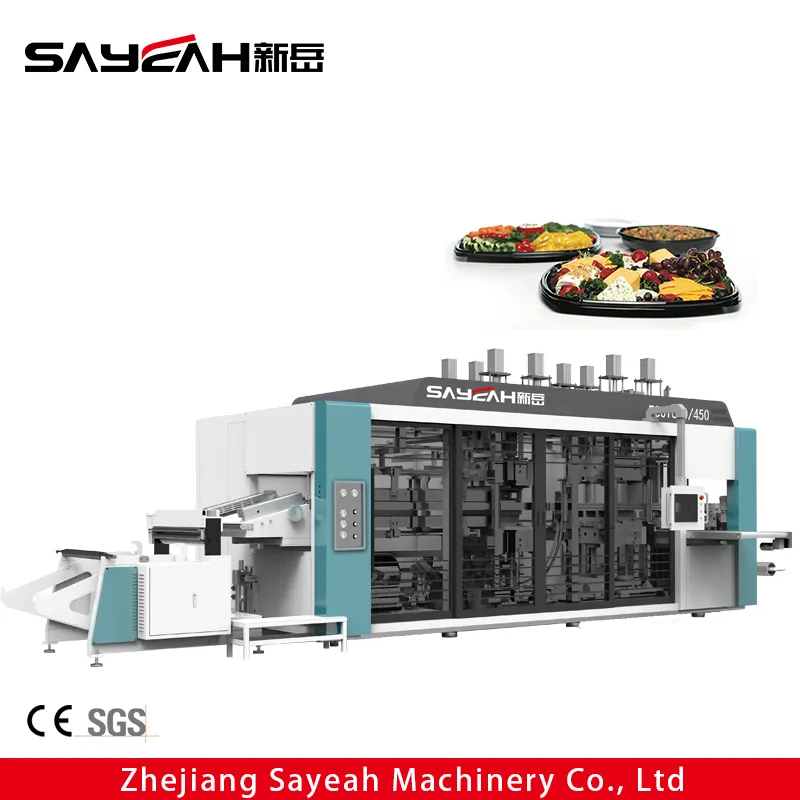

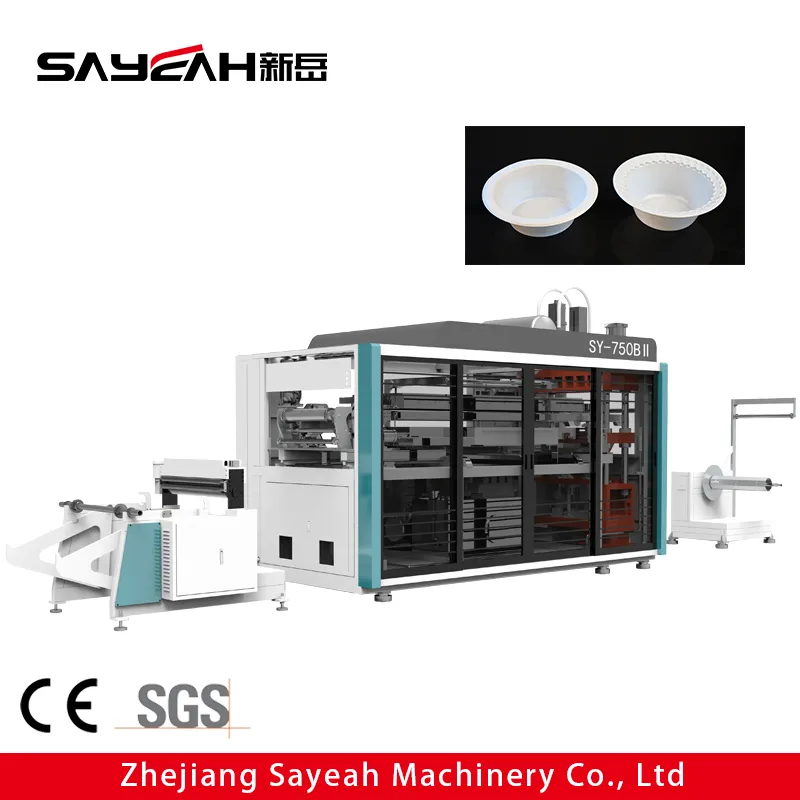

Cake Container Making Machine Cup Lid Making Machine

Frequently Asked Questions

What materials are compatible with the SY-680BIII thermoforming machine?
The machine is specifically designed to handle PET, PP, and various biodegradable plastic sheets with a thickness ranging from 0.2mm to 2mm.
What is the maximum production speed of this machine?
The SY-680BIII can achieve a maximum no-load speed of up to 40 cycles per minute, ensuring high-efficiency production for disposable cups and bowls.
Is the machine easy to maintain and change molds?
Yes, it features a specialized safe mold change system and a four-column guide plate design which significantly reduces the difficulty and time required for mold replacement.
How is the forming depth controlled?
The forming depth can reach up to 135mm when using a robot stacker, or up to 180mm when using the blowing method, providing flexibility for different product heights.
What control systems are used in the machine?
The machine standardly uses high-quality DELTA or Inovance PLC and touch screen interfaces. For specific requirements, a Lenze system from Germany can also be selected.
Is the machine environmentally friendly?
Yes, it is designed for eco-friendly production, supporting biodegradable materials and featuring an energy-efficient design with infrared ceramic heaters.
