| Model NO. | ZHD-750/650 |
|---|---|
| Certification | CE |
| Molding Method | Pressing |
| Automatic Grade | Automatic |
| Processing Type | Plastic Thermoforming Machine |
| Plastic Type | PP, PET, PVC, PS, PLA |
| Production Speed | 10-35 Mould/Min |
| Core Components | Servo Motor |
| Sheet Thickness | 0.2-2 mm |
| Heating Power | 165kw |
| Weight | 15ton |
| Dimensions | 10x2.4x2.5m |

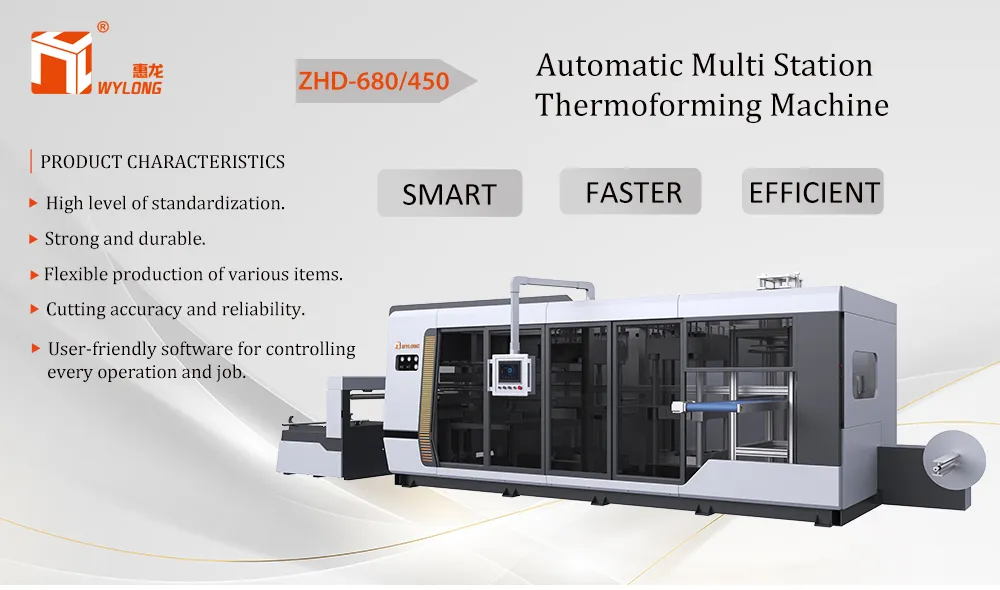

| Model | ZHD-680/450 | ZHD-750/650 | ZHD-750/850 |
|---|---|---|---|
| Max Forming Area | 680x450mm | 750x650mm | 750x850mm |
| Sheet Width | 400-620mm | 450-800mm | 500-900mm |
| Speed (min) | 15-30/min | 15-40/min | 15-40/min |
| Heating Power | 80kw | 165kw | 180kw |
| Weight | 9ton | 15ton | 20ton |
| Forming Servo Motor | Inovance |
|---|---|
| Cutting Servo Motor | Inovance |
| Magnetic Valve | Japan (SMC) / Airtac |
| PLC System | TRIO |

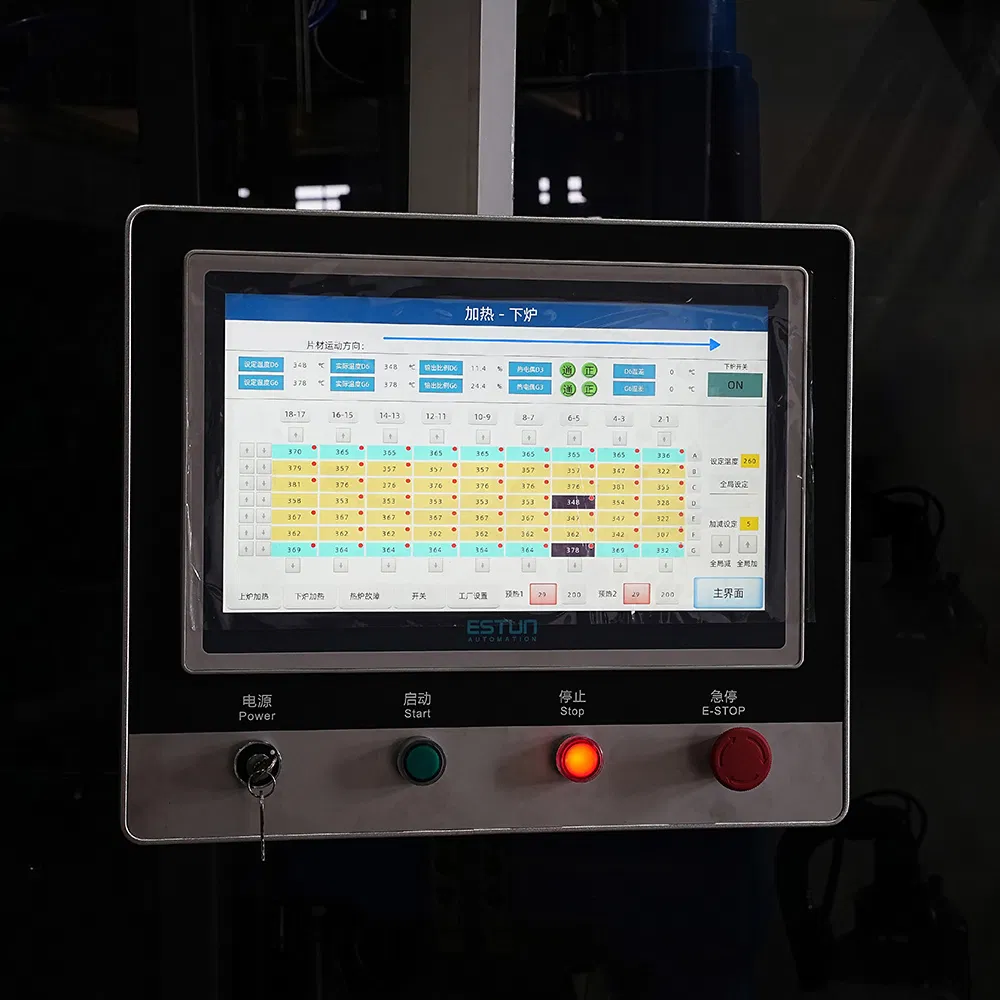

| Touch Screen | Inovance |
| Encoder | Japan (Omron) |
| Electrical Parts | France Brand |

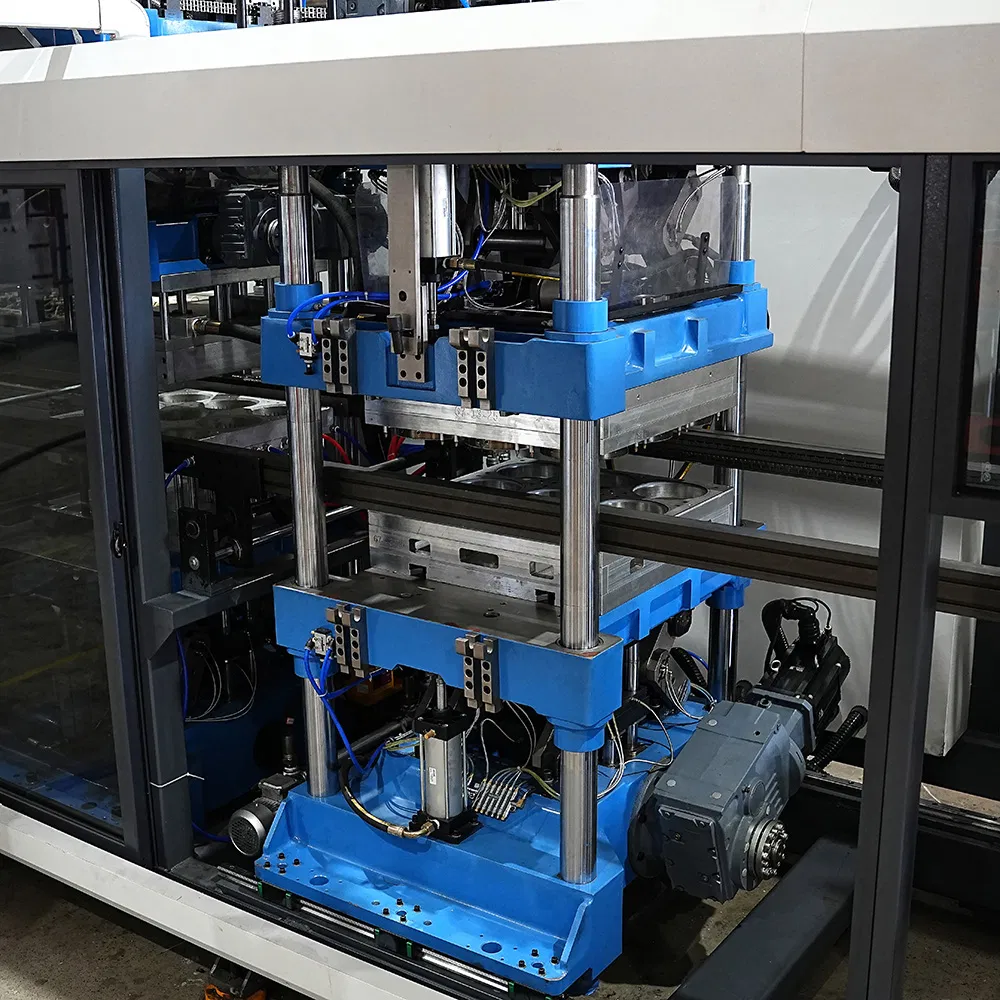

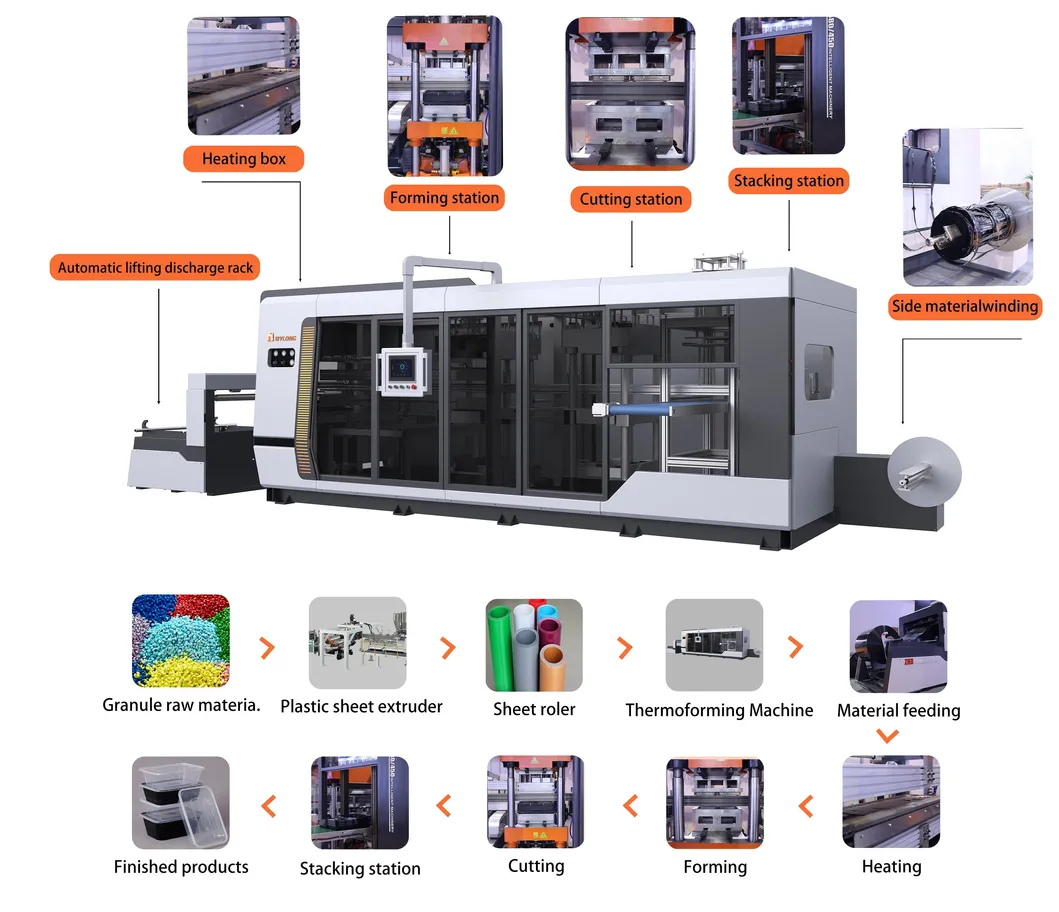

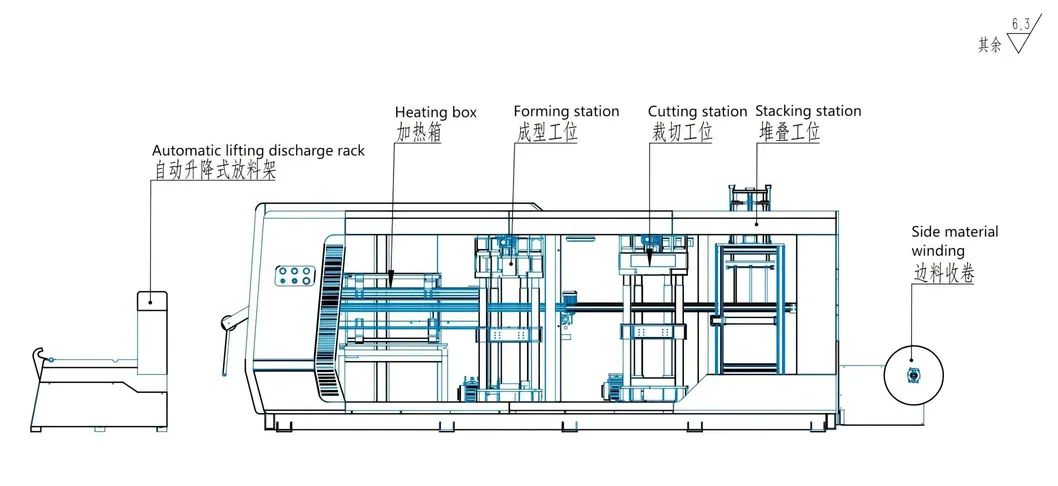

Located immediately after the oven, the forming station expertly shapes the heated sheet into the mold impression through precise stretch and air compression.
This station ensures high accuracy and speed in cutting the molded sheet, enhancing the precision and efficiency for optimal production performance.

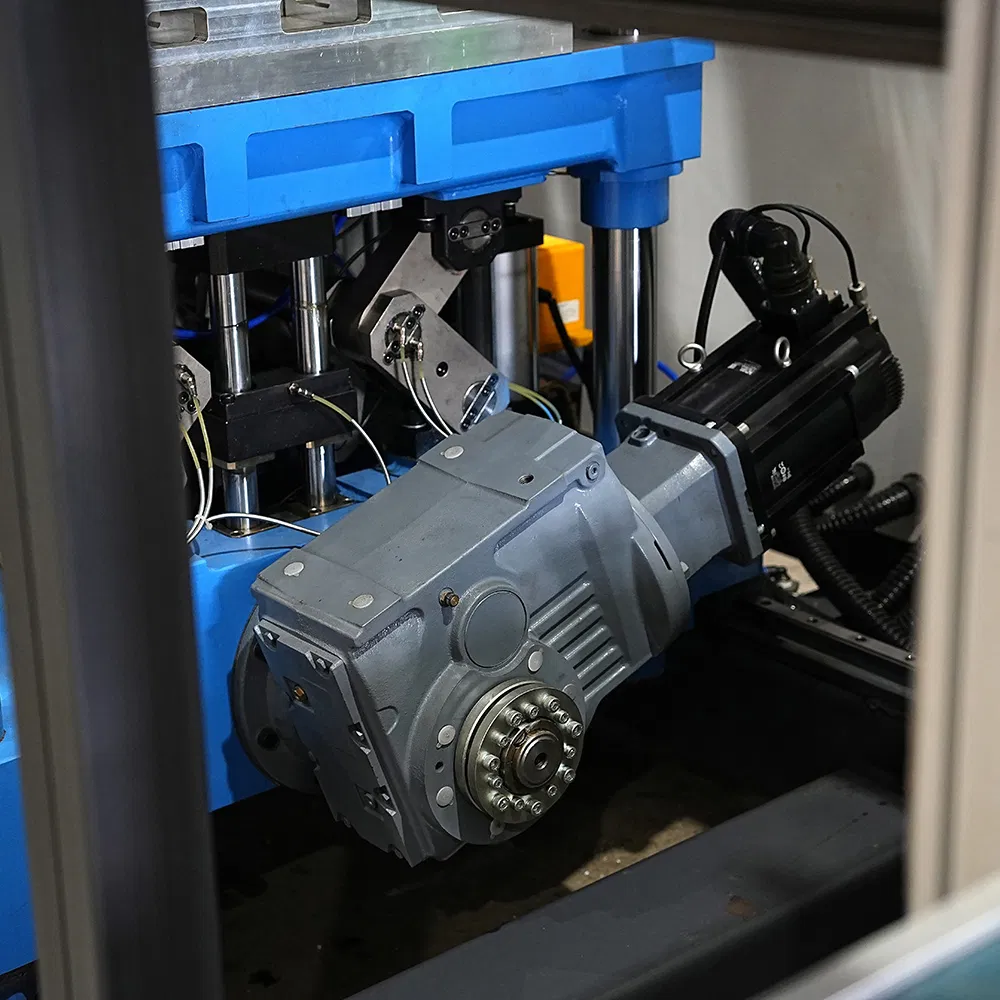

Equipped with Inovance Servo Drives, renowned for high accuracy and flawless performance over years of industrial use.

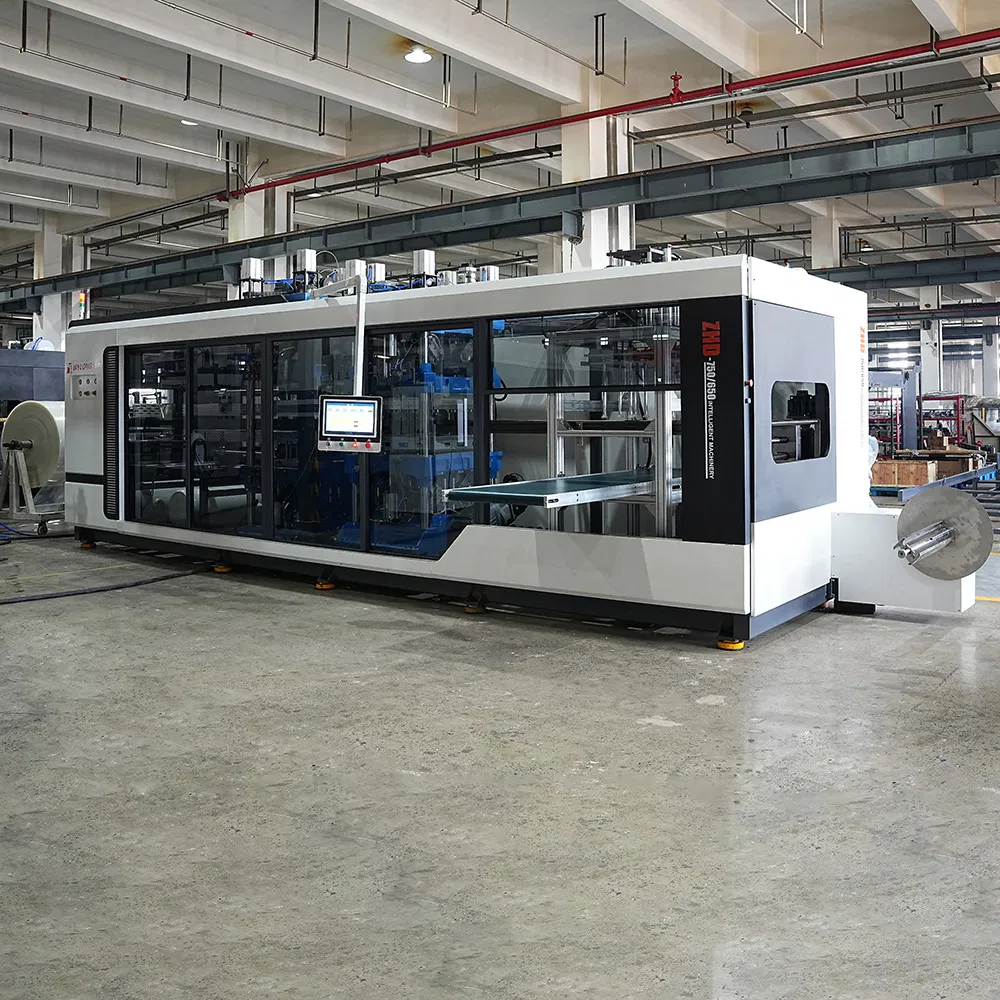

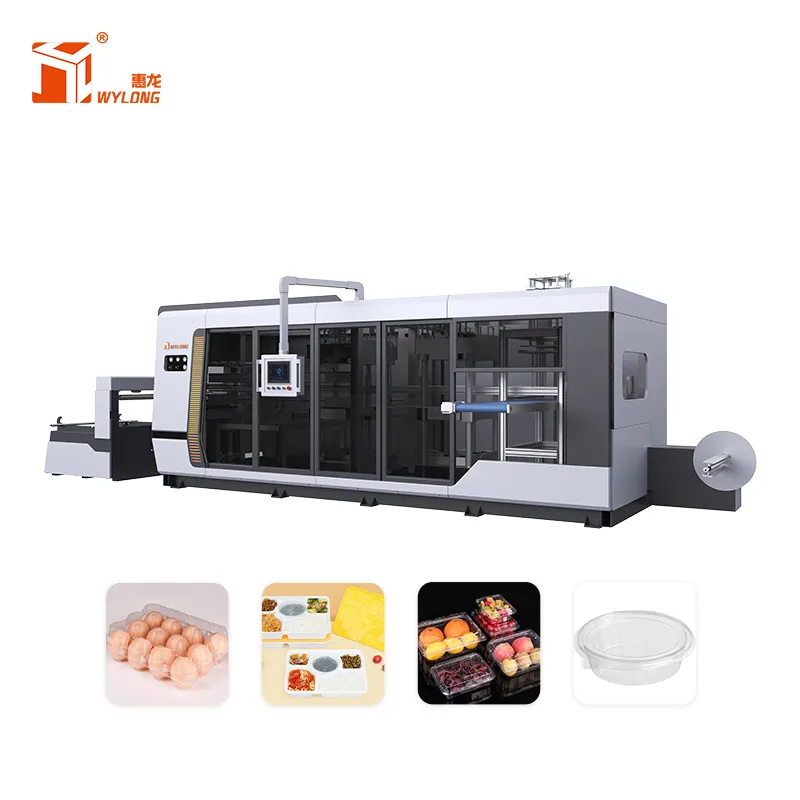

This multi-station thermoforming machine is suitable for handling diverse materials including A-PET, R-PET, PP, PLA, and PVC. It is ideal for producing trays, lids, fruit boxes, egg trays, and clamshell containers.
With 20 years of machinery manufacturing experience, our products are sold worldwide and enjoy a high reputation for scientific management and efficiency. We are ISO 9001 certified and committed to high-quality service.
