Zhida Plastic Machinery
Zhida Plastic Machinery
| Model NO. | 28-75mm |
| Product Type | Plastic Pipe |
| Screw | Single-Screw |
| Automation | Automatic |

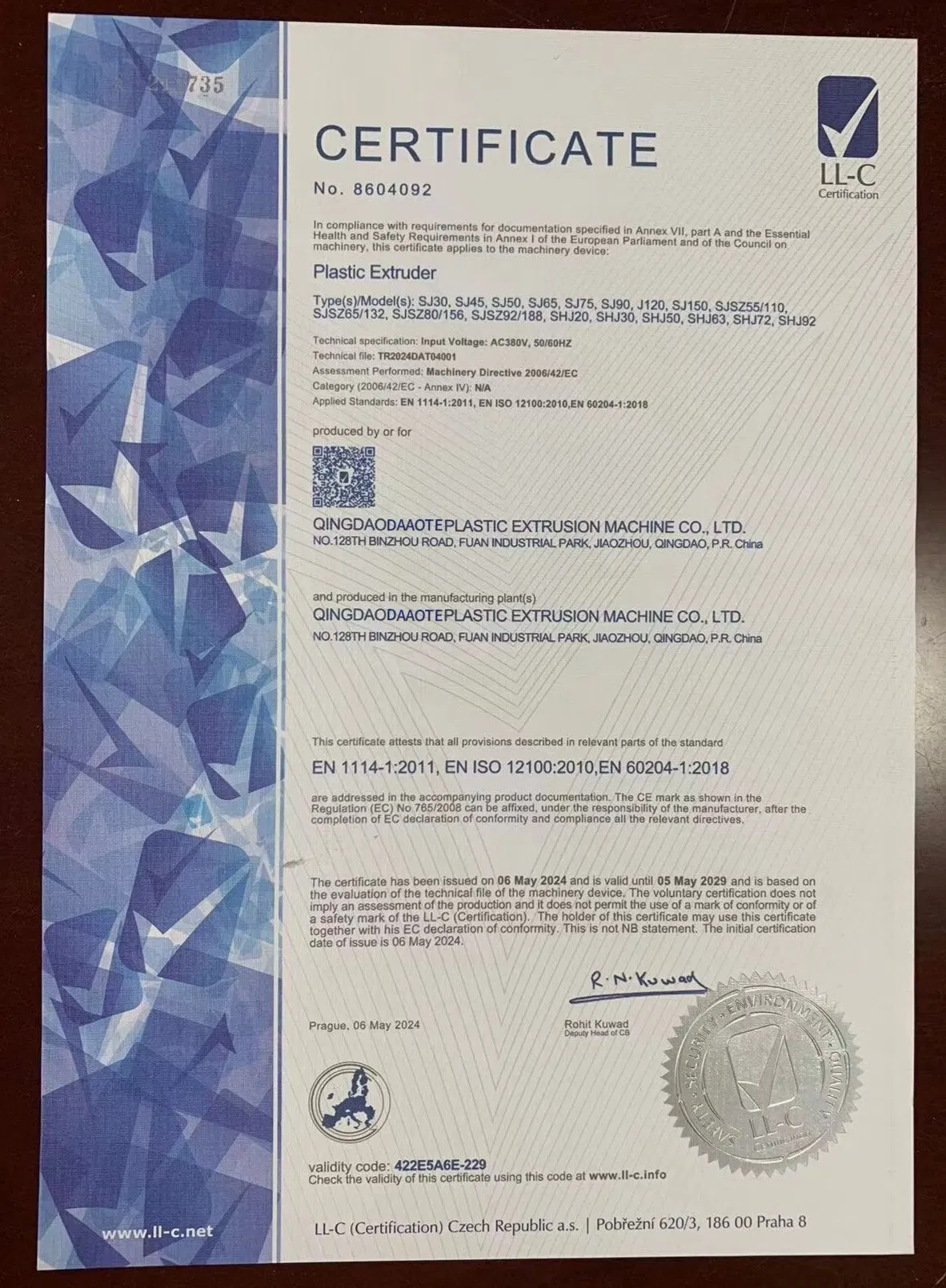

| Certification | CE |

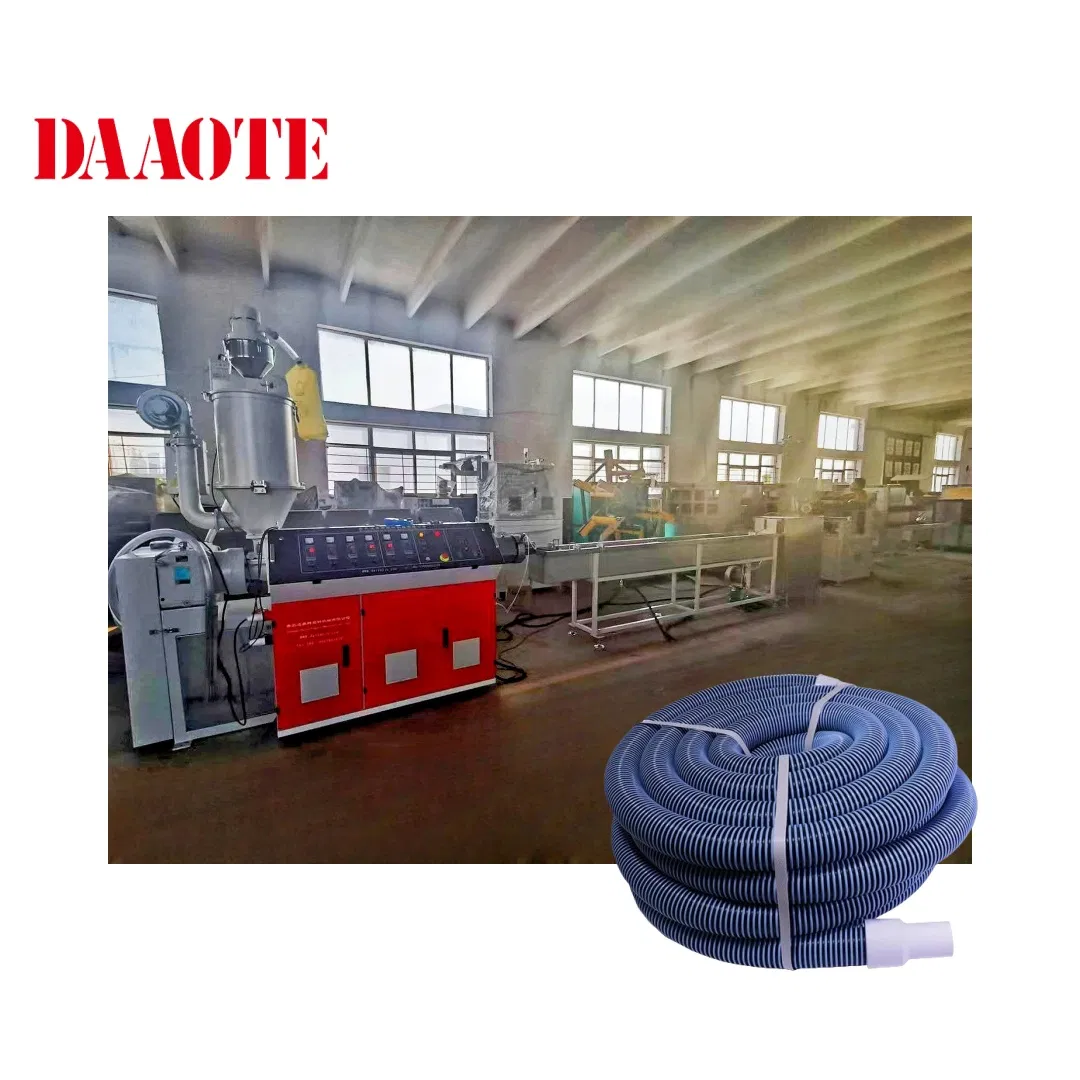

| Product Name | Swimming Poor Spiral Hose Extrusion Machine |
| Raw Material | PE EVA Granules |

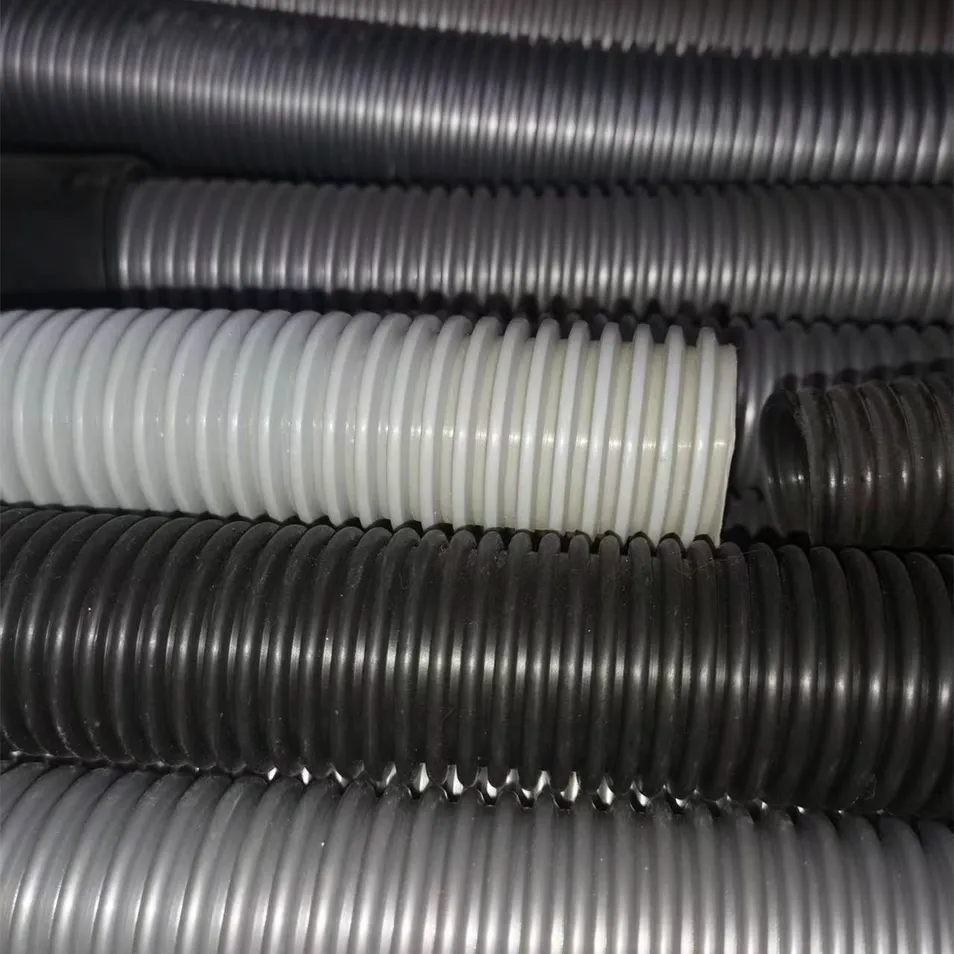

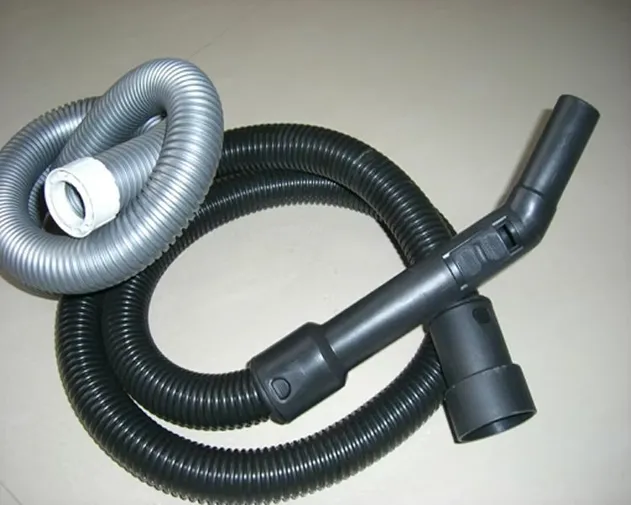

| Final Product | Suction Hose |
| Package Size | 200.00cm * 200.00cm * 100.00cm |
| Gross Weight | 5000.000kg |

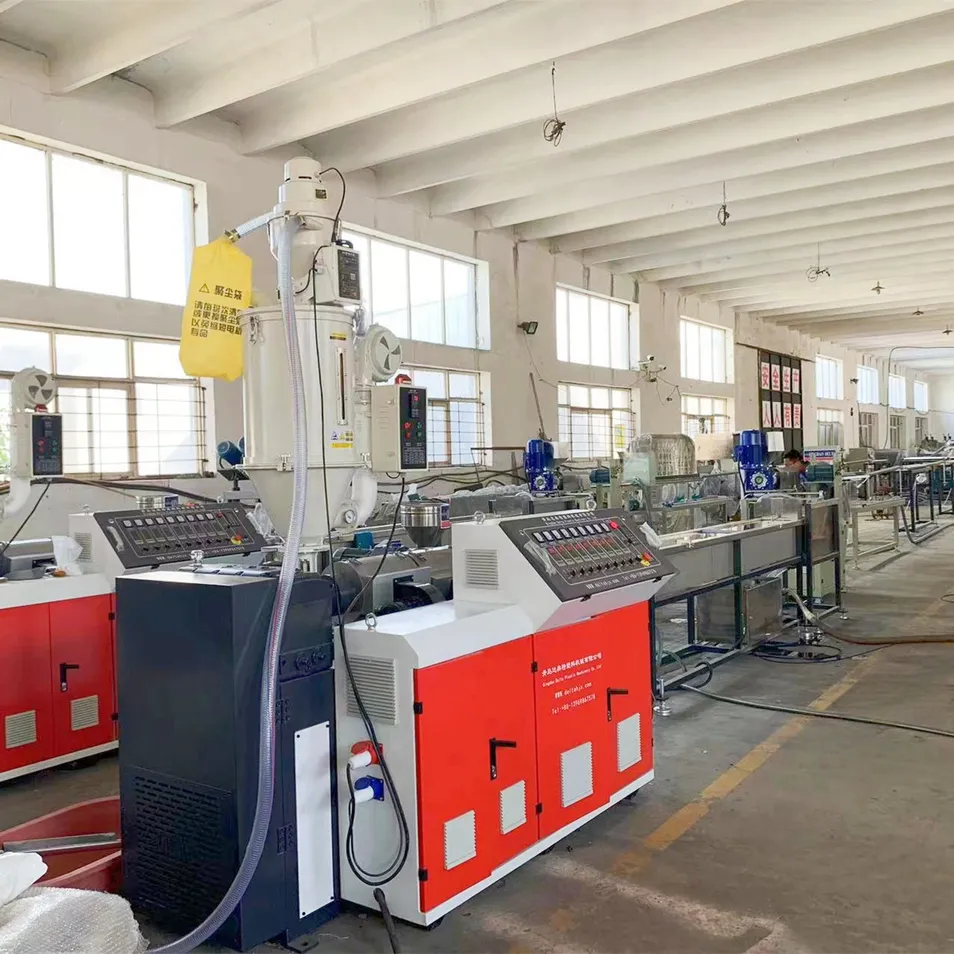

Extruder
Designed for compounding materials to make soft and flexible hoses. Features 38CrMoAIA PLC touch screen control with synchronous speed functions.

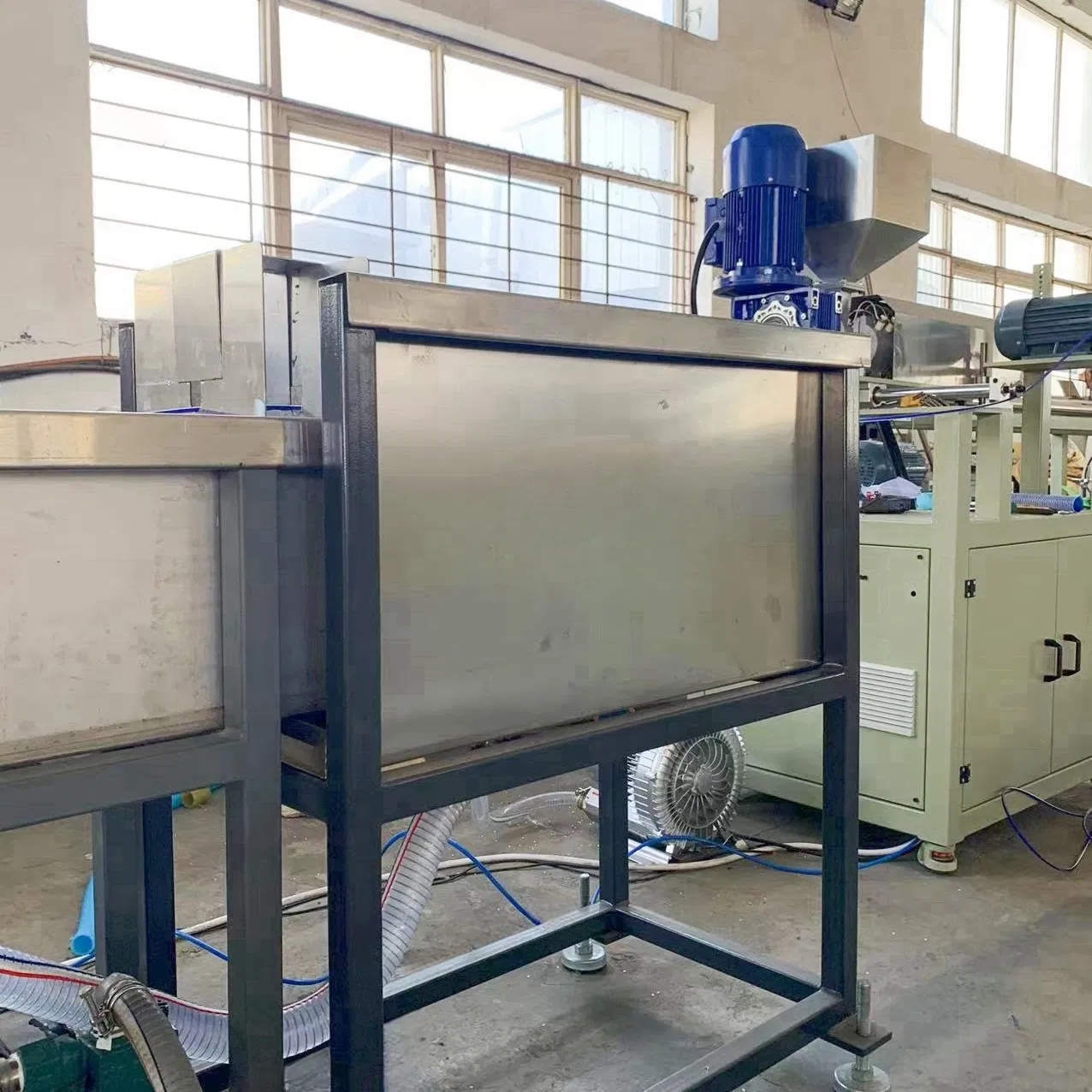

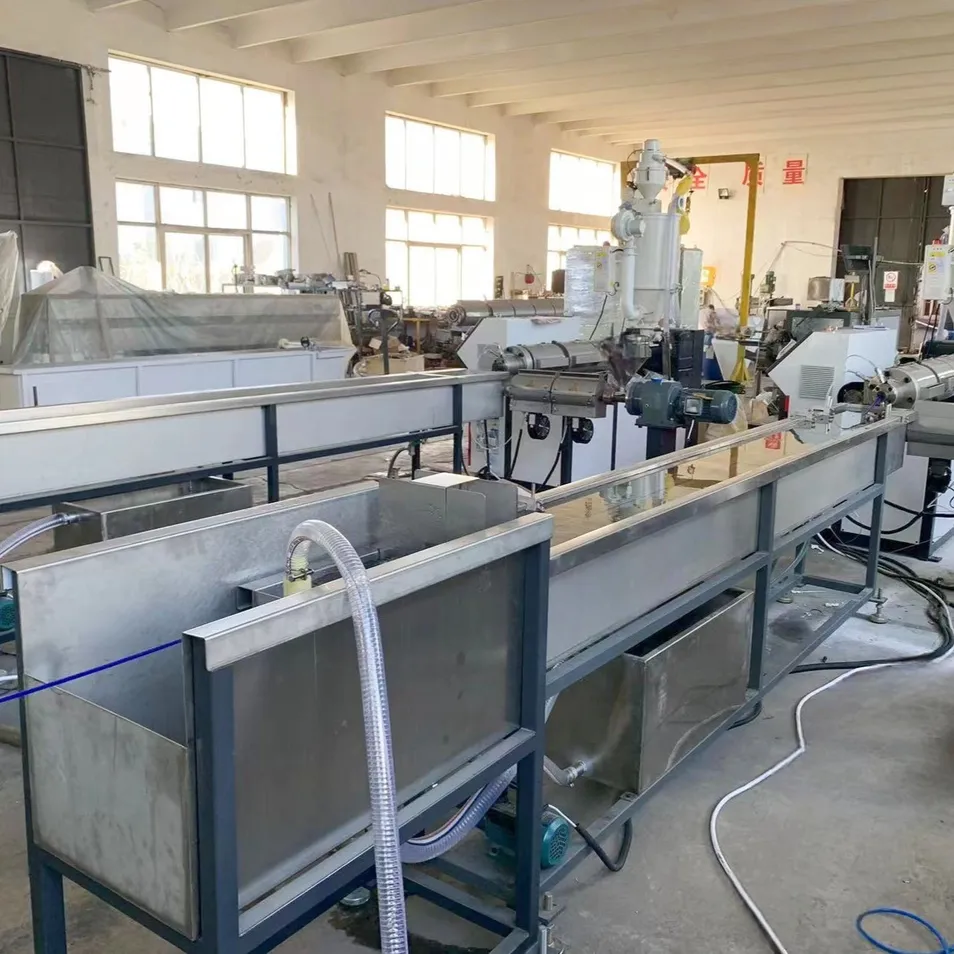

Water cooling tank with drier
Made of stainless steel, adjustable height. Includes temperature meter and high-pressure air blower/cyclone for water removal.

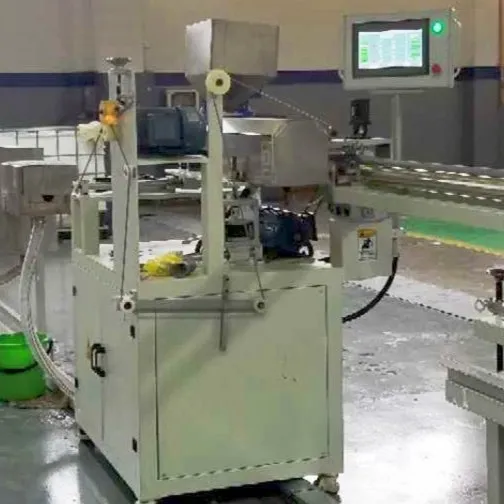

Forming unit
The core of the line. High speed (6 meters/min) and highly stable. No waste: adjust the machine in 5 minutes to start production.

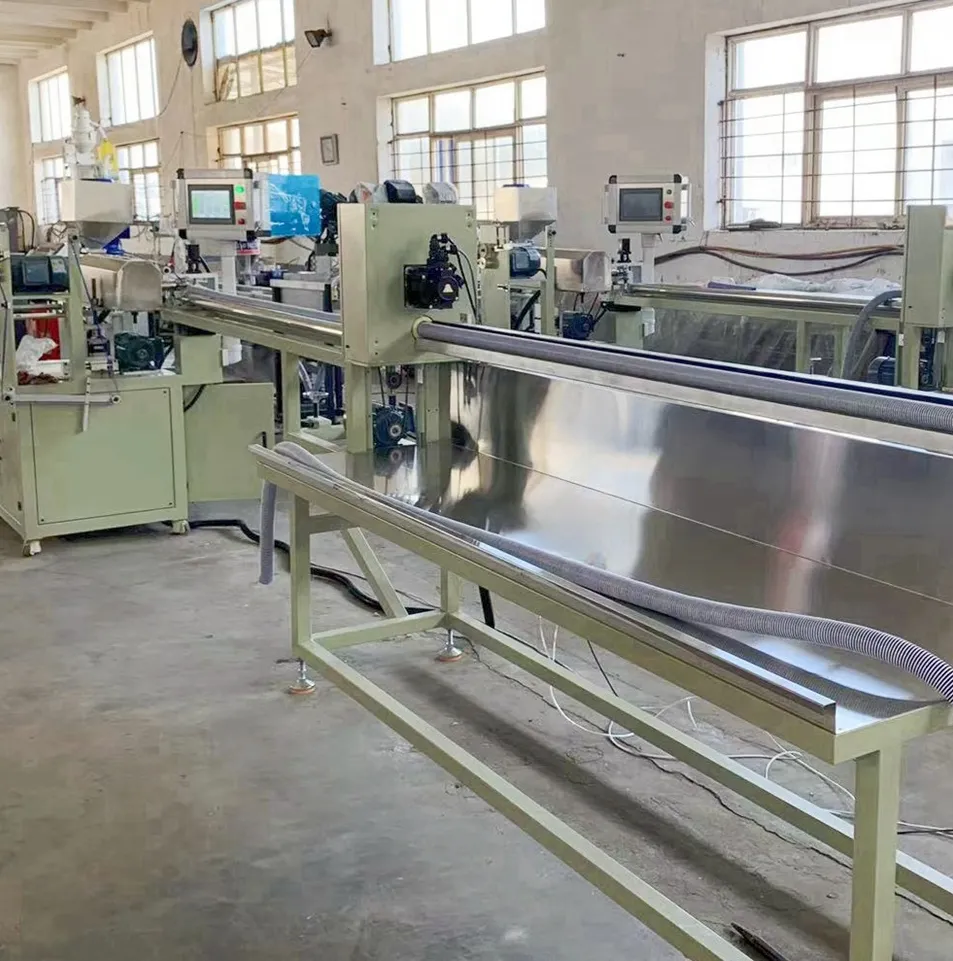

Cutting unit
Photoelectricity sensor for automatic length setting. Servo motor control allows for a 0.02 second cutting time for smooth sections.
High Speed: Max speed reaching 6 meters per minute, comparable to high-end European machinery at a fraction of the cost.
No Waste: Start production within 5 minutes. No need for repeated adjustments of the mould and spiral unit.
Easy Operation: Fully controlled by PLC. Procedures are managed via input programs, making it easy for common workers to operate.
Double Roller Forming: Latest technology combined with experience to ensure stable working and easy starts.
Servo Motor Cutting: Provides smooth and tidy hose sections. Essential for speeds exceeding 4 meters per minute.
| Items | Description of main extruder | Remark | Color Extruder |
|---|---|---|---|
| Extruder | 65mm | Special design screw | 30mm |
| Motor | 15kw | Big motor for high speed | 2.2kw |
| Speed | 4-6meters/min | High speed performance | Capacity 5-10kg/h |
| Hose Length | 30meters | Continuous production | Secondary color application |
| Cutting | Servo motor | Patent design | - |
| Control | PLC | Easy operation | - |
| Forming system | Three wheels with press wheel | Patent design | - |
Installation: We provide on-site installation services and online technology support. Questions are replied to within 24 hours.
Payment: We accept Cash, T/T, and L/C at sight in USD, EURO, and RMB.

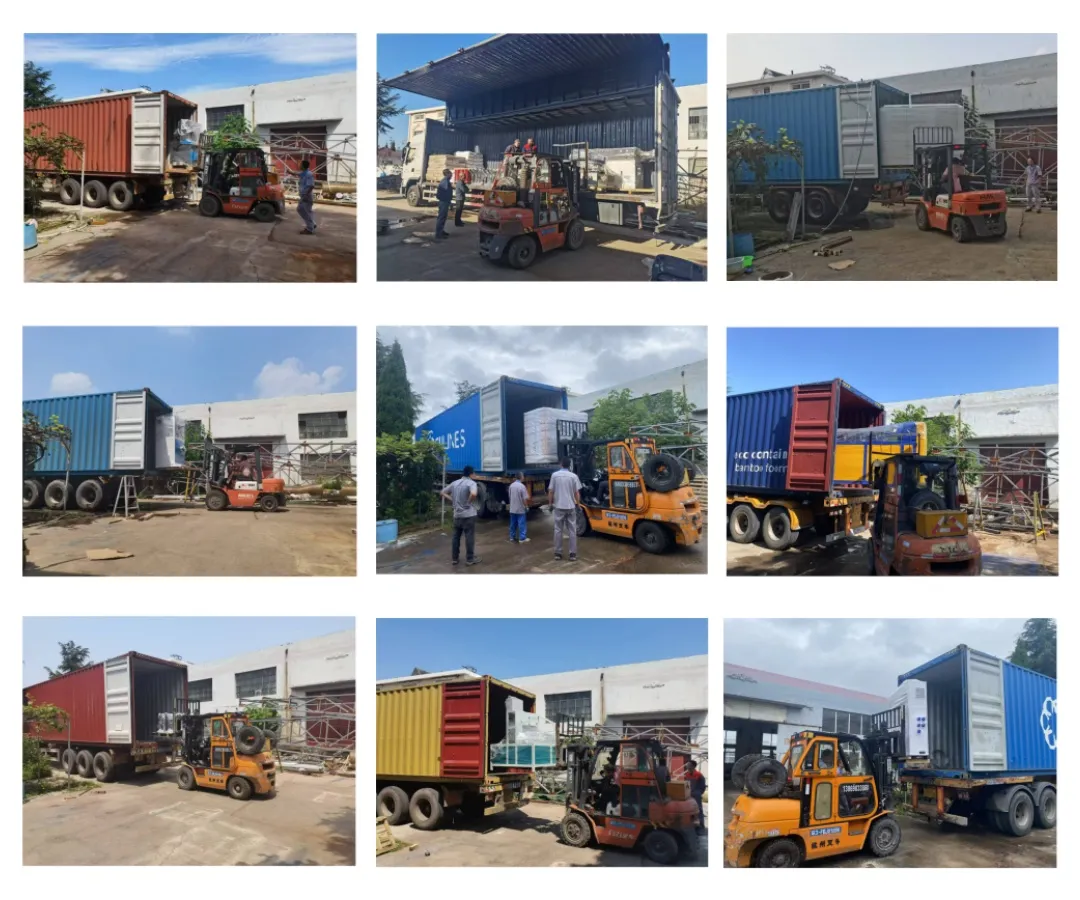

Delivery: Supports full container Ocean, Train, and Truck delivery, as well as TNT, DHL, EMS, and UPS for smaller units.
