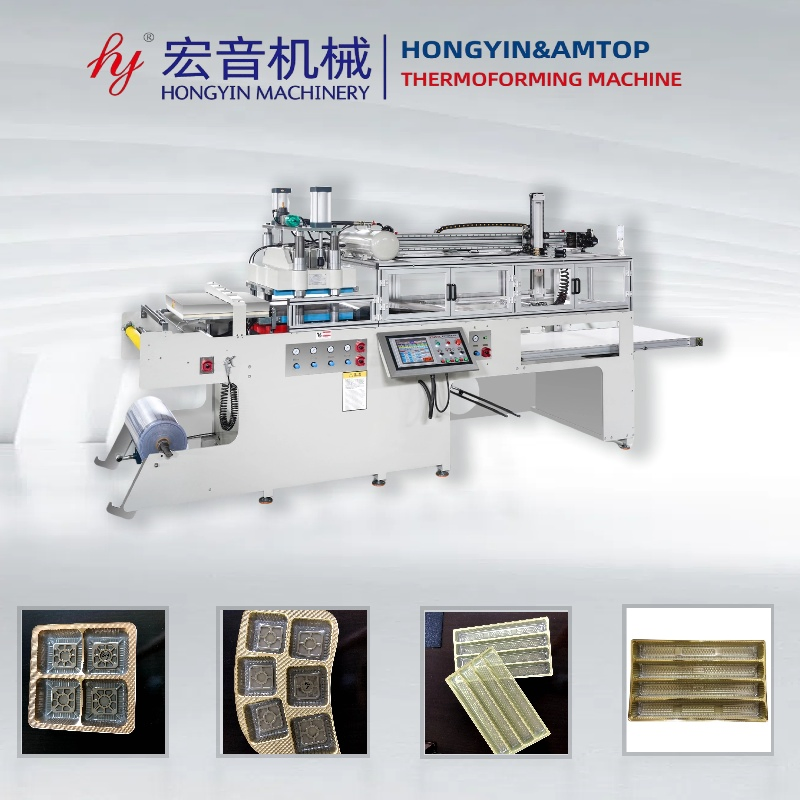

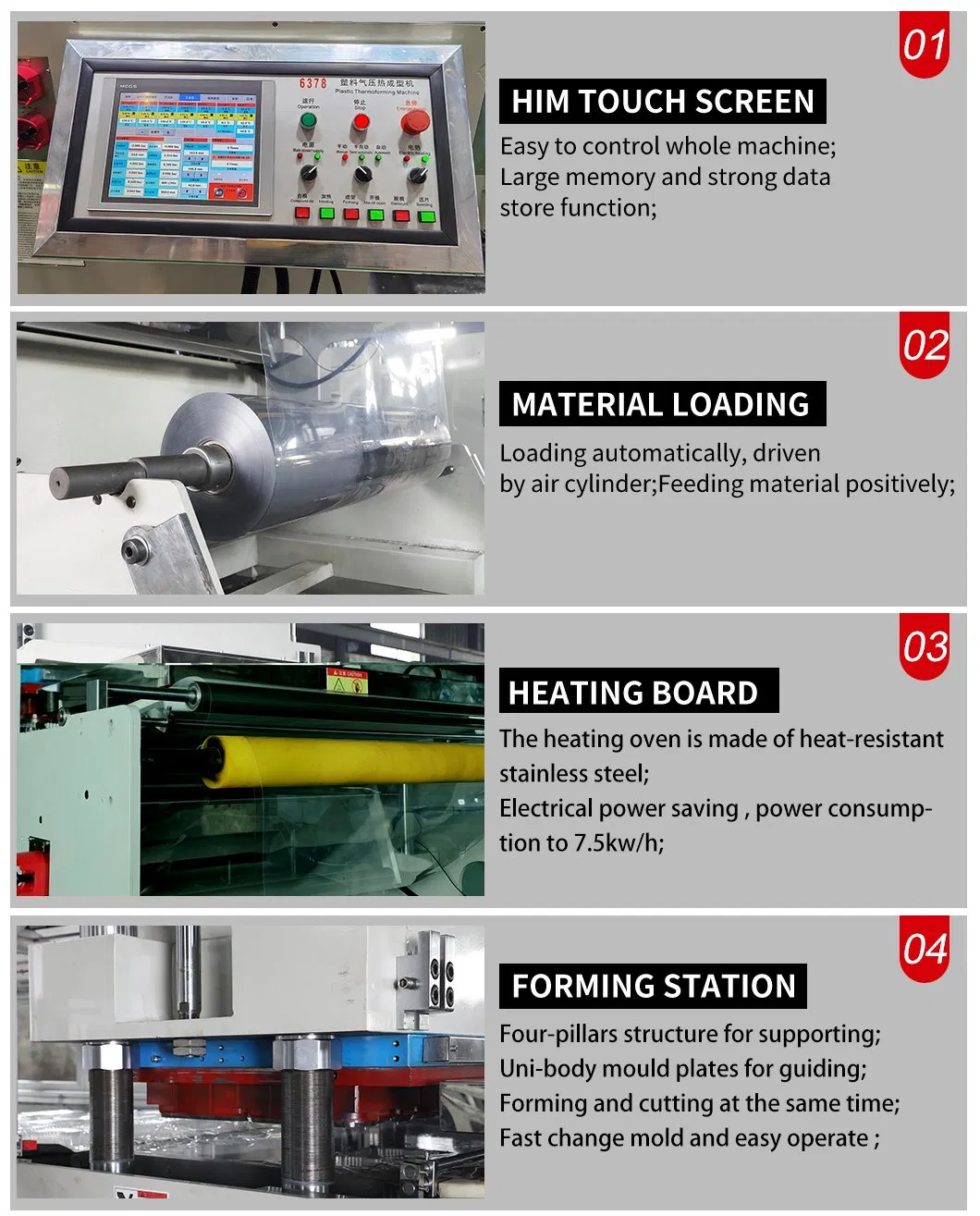

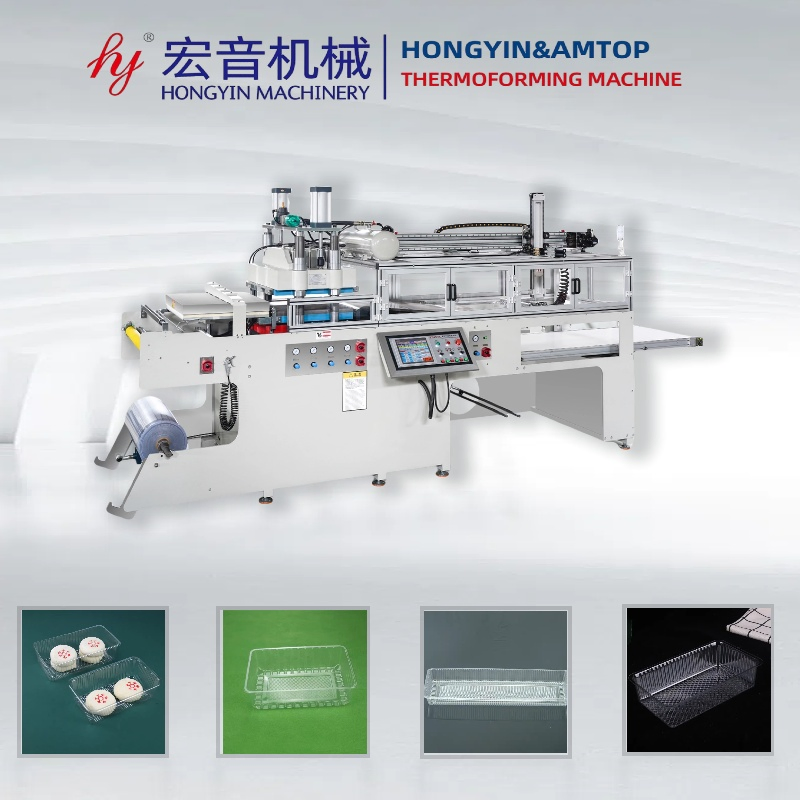

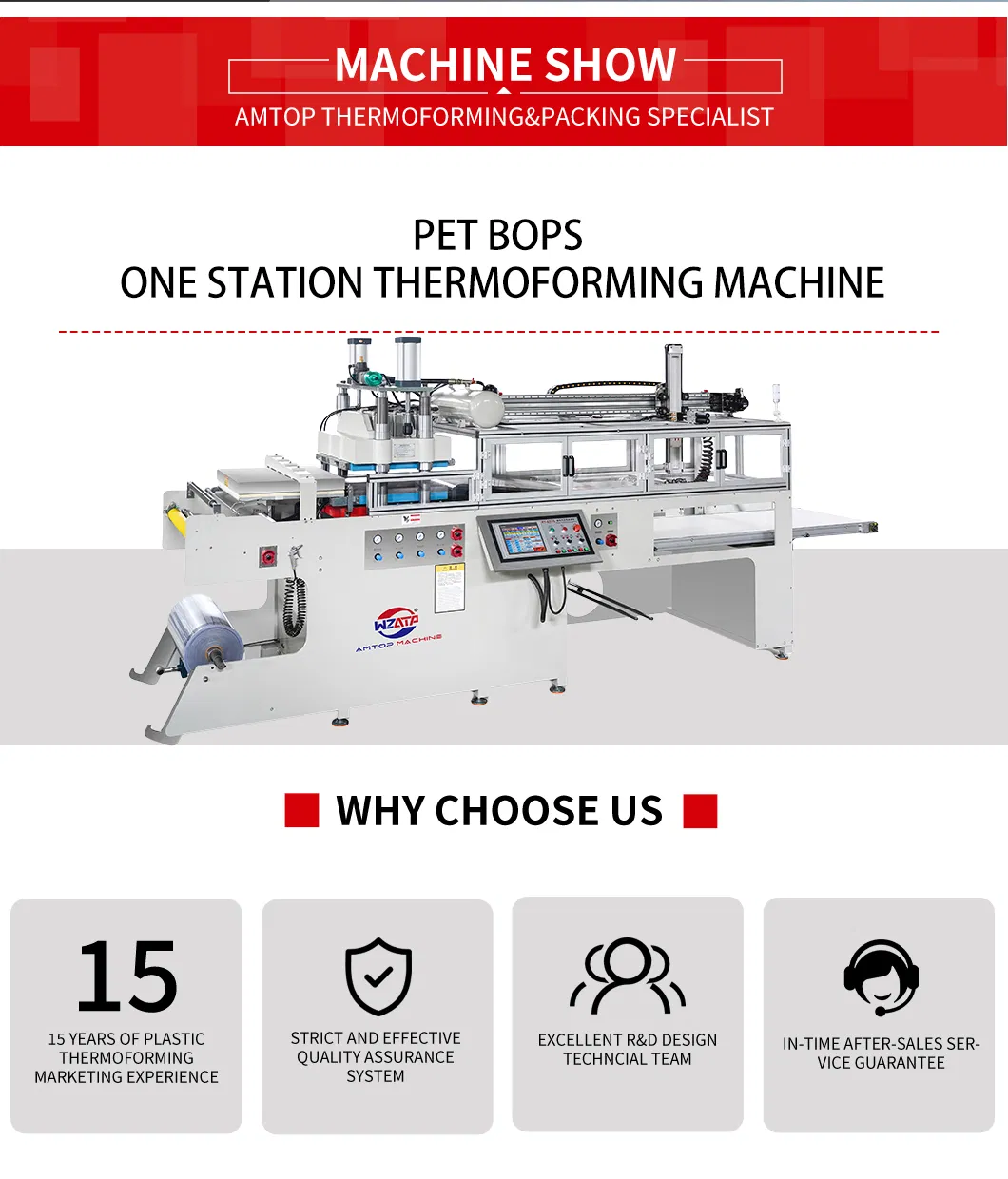

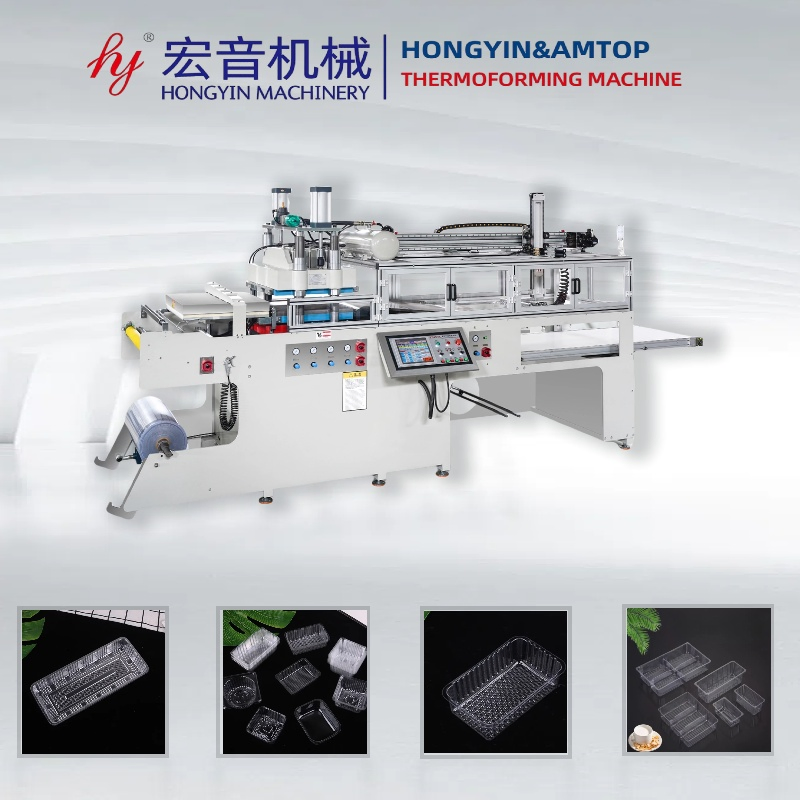

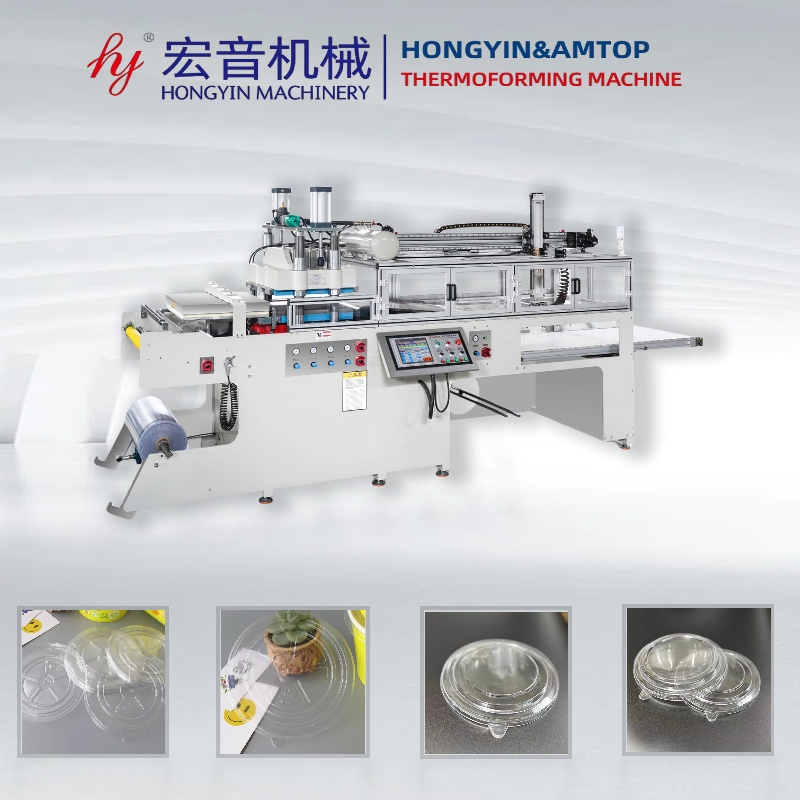

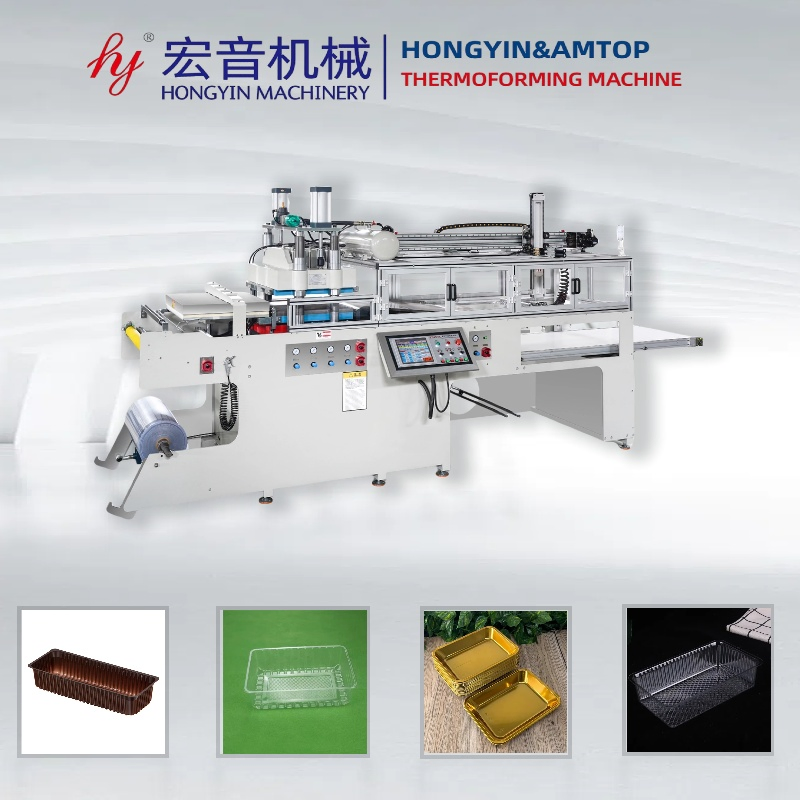

HY-63/78 is a combination of mechanical, electrical and pneumatic components, and the whole system is controlled by a micro PLC, which can be operated in man-interface.

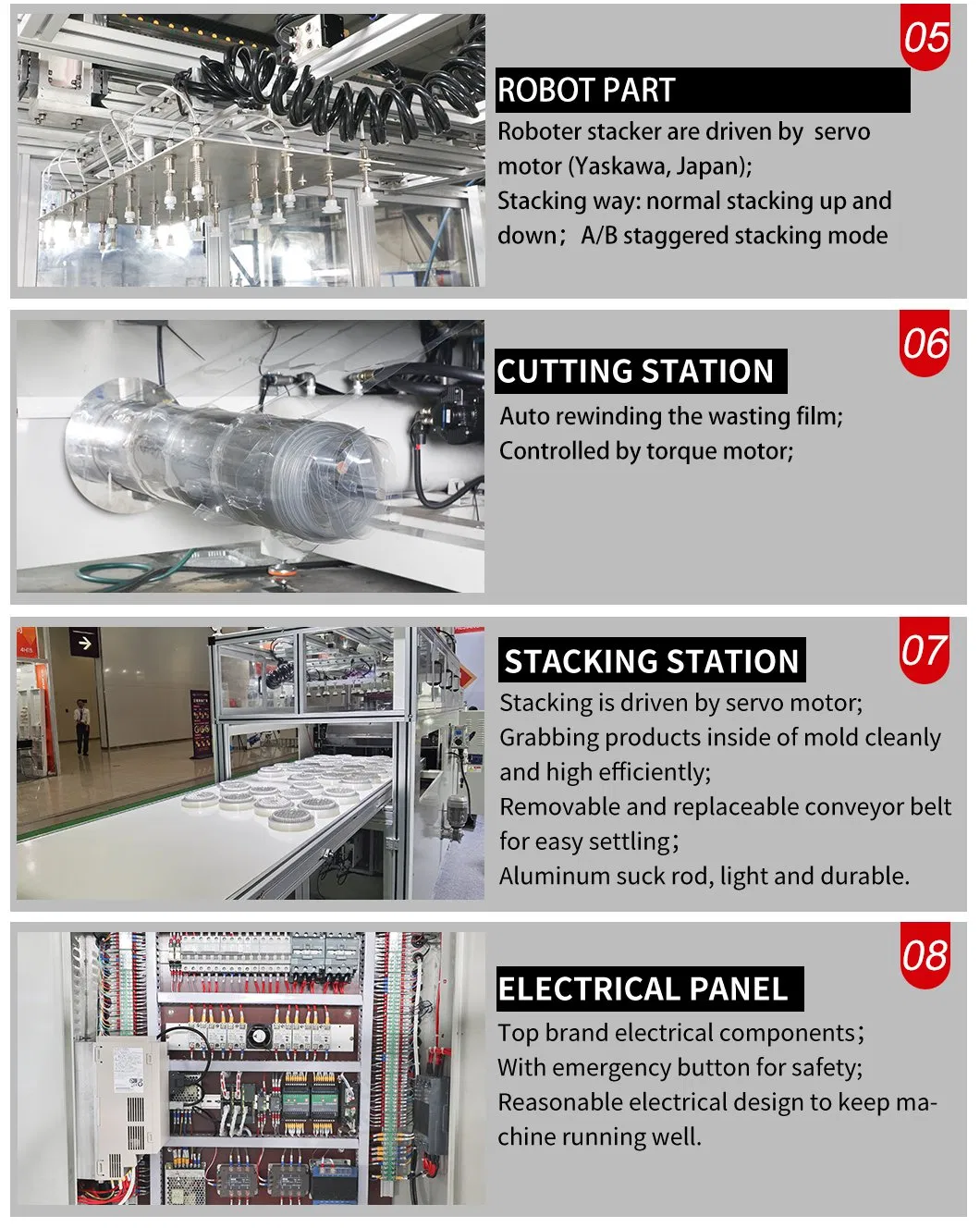

It combines the material sending, heating, forming, cutting and stacking into one process. It features three operation models: "manual", "semi-automatic" and "automatic".

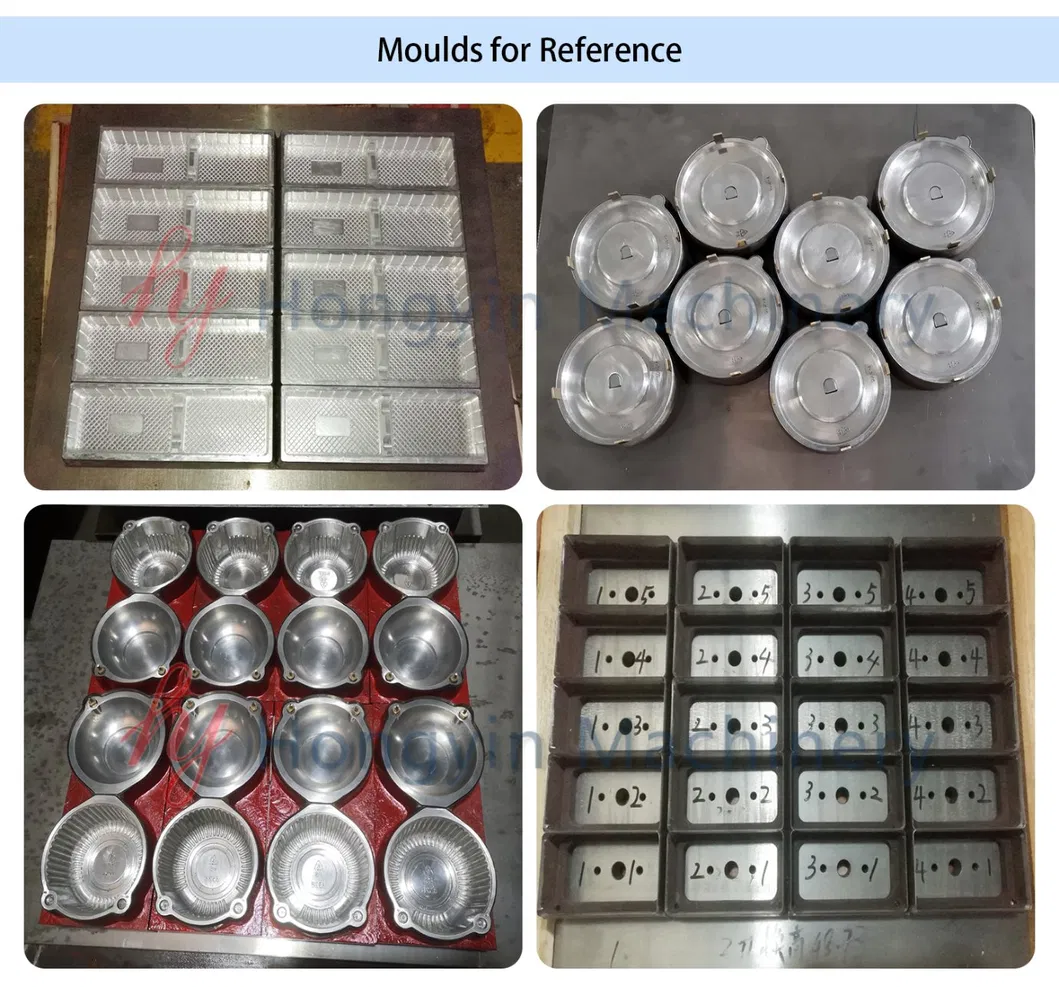

HY-63/78 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets. It is ideal for producing various boxes, dishes, trays, bowls and lids, such as:
| Forming area | 630*780mm |
| Forming depth | 125mm |
| Sheet thickness range | 0.15-1.2 mm |
| Sheet roller diameter | 800mm |
| Air pressure | 0.7 Mpa |
| Water consumption | 9 Liters/min(15-20ºC) |
| Production Speed | 600-1200 recycles/hr. |
| Heating plate power | 30 kw |
| Dimensions(L×W×H) | 6250×1750×2500 mm |
| Weight | 5200kg |
Specialized and efficient working team providing professional suggestions for the whole production process.

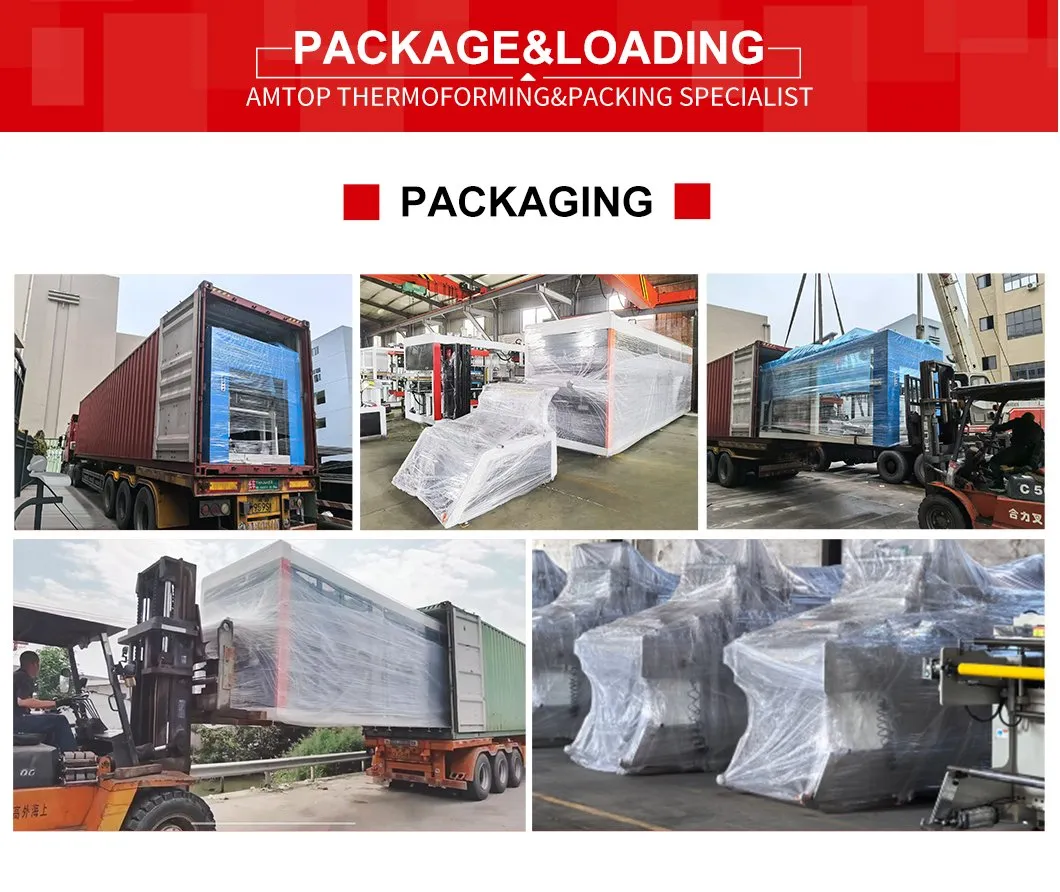

Independent department for logistics arrangement, cooperating with major shipping lines for economic delivery.
Technical dispatch available for on-site installation and machine preparation at the buyer's facility.
Hands-on training for operators to ensure smooth machine operation and maintenance.
One-year guarantee provided with essential spare parts included in the tool box.
