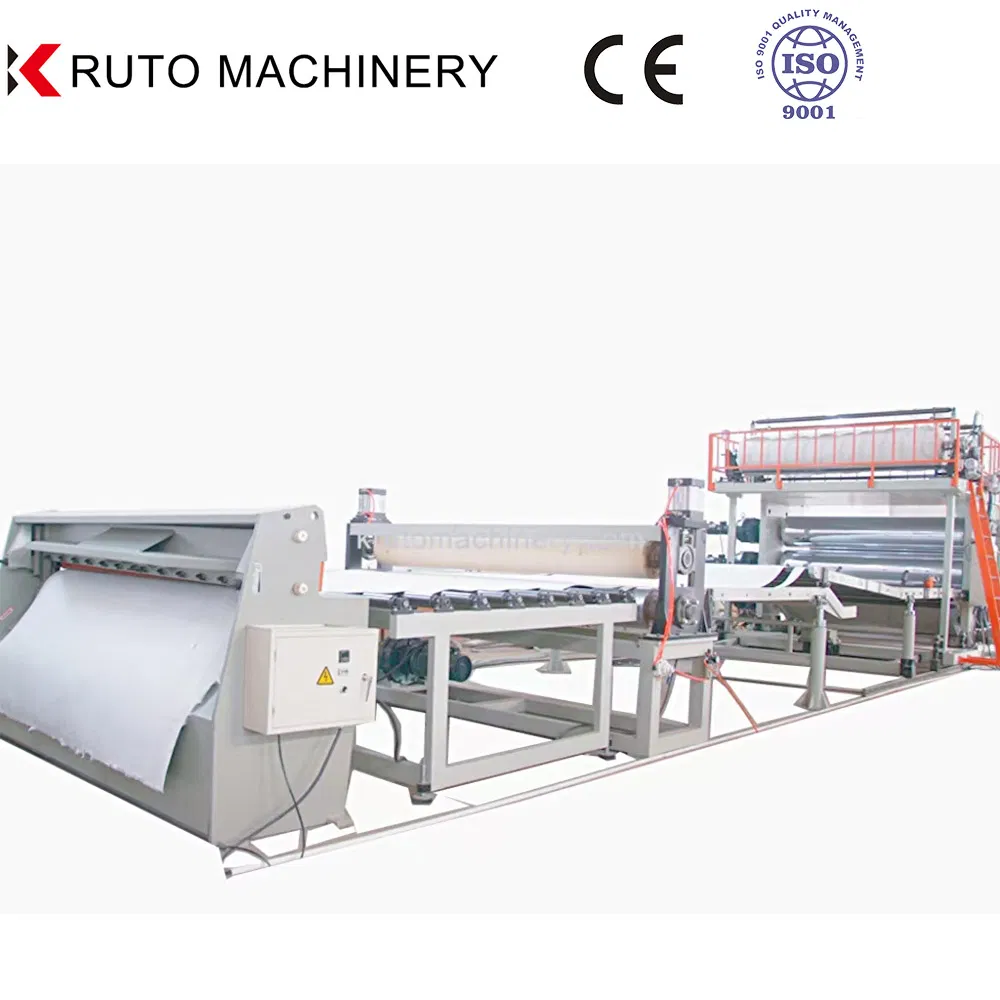

Lines for the production of sheets and geomembrane from PE, HDPE, LDPE
This extrusion line is designed for waterproofing usage in industrial and civil buildings, including green roofs, flat roofs, and sloping roofs. Underground applications include reservoirs, dams, pools, tunnels, grain depots, artificial engineering, landfills, and artificial lakes.

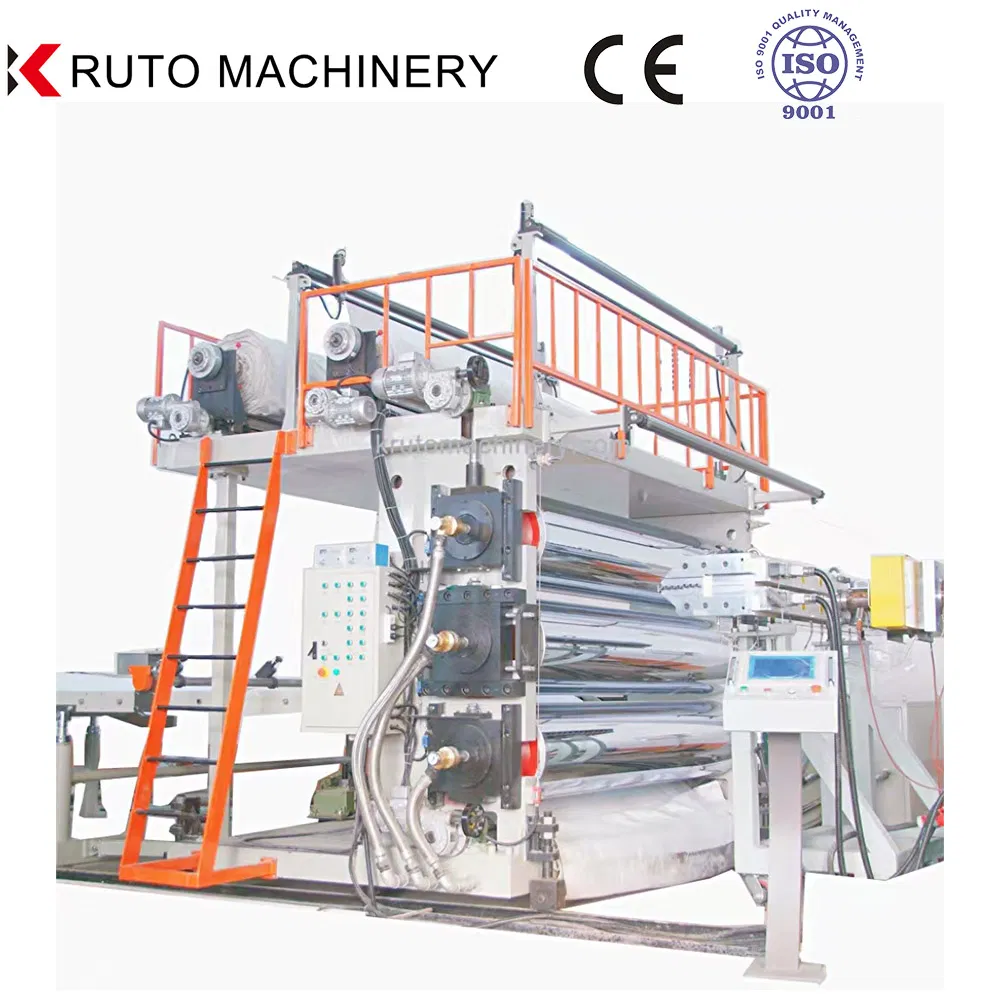

Referring to the special requests of the waterproof and geomembrane industry, our high-capacity extrusion line features low shear and energy consumption. The exclusive design of the calendar frame and roller structure optimizes the performance of extra-width geomembrane and thickness precision.

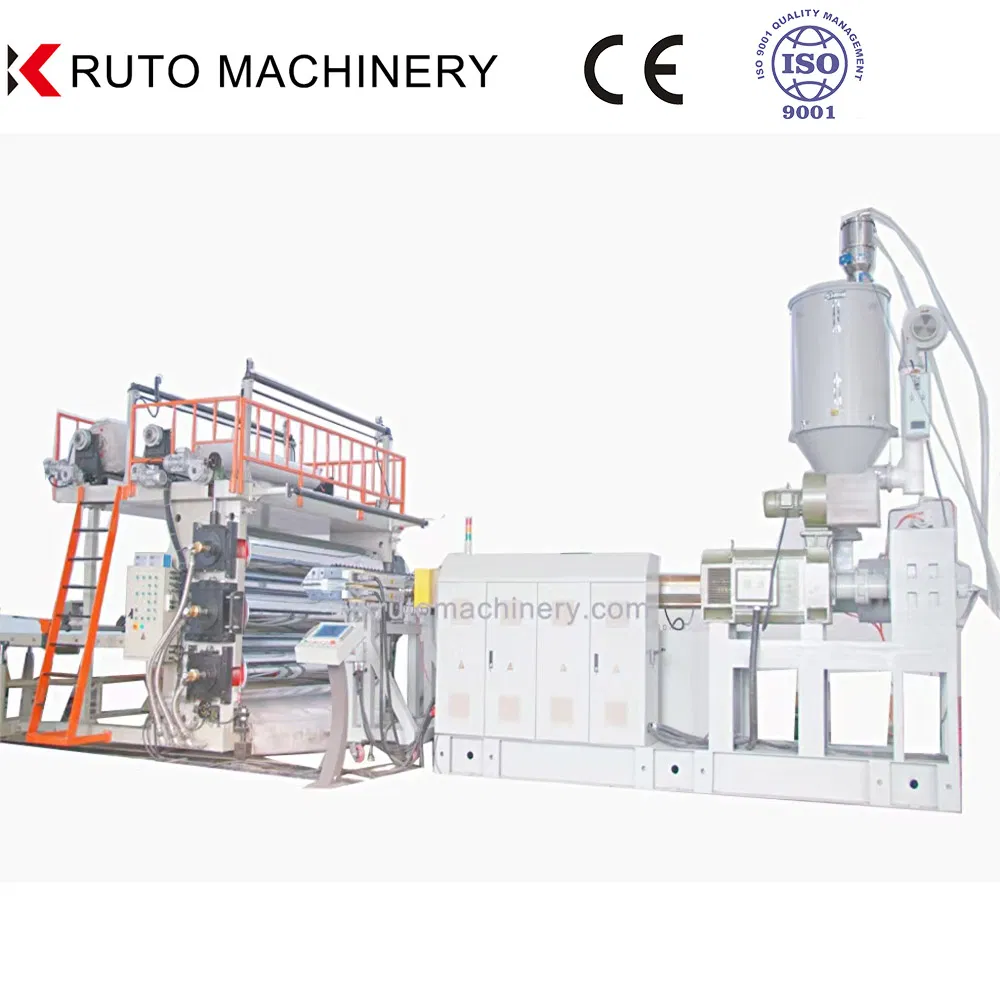

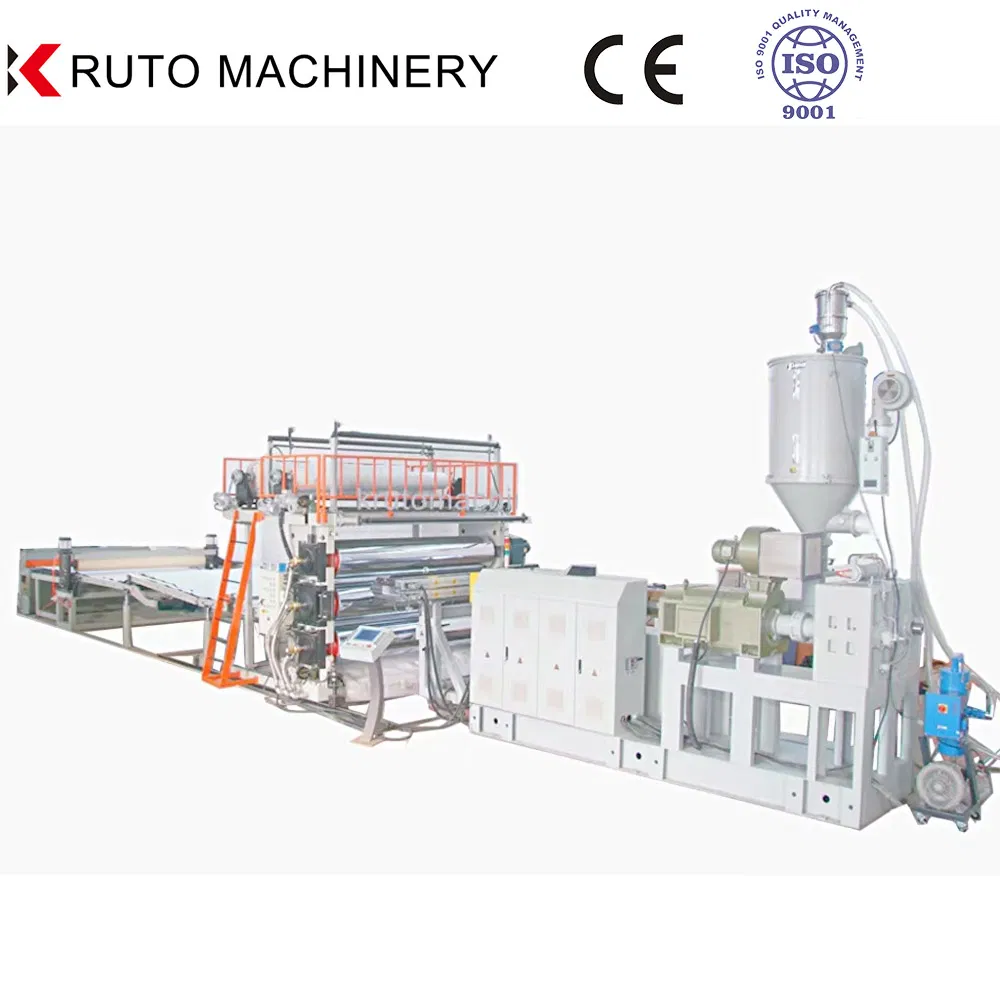

Extrusion Line Components:

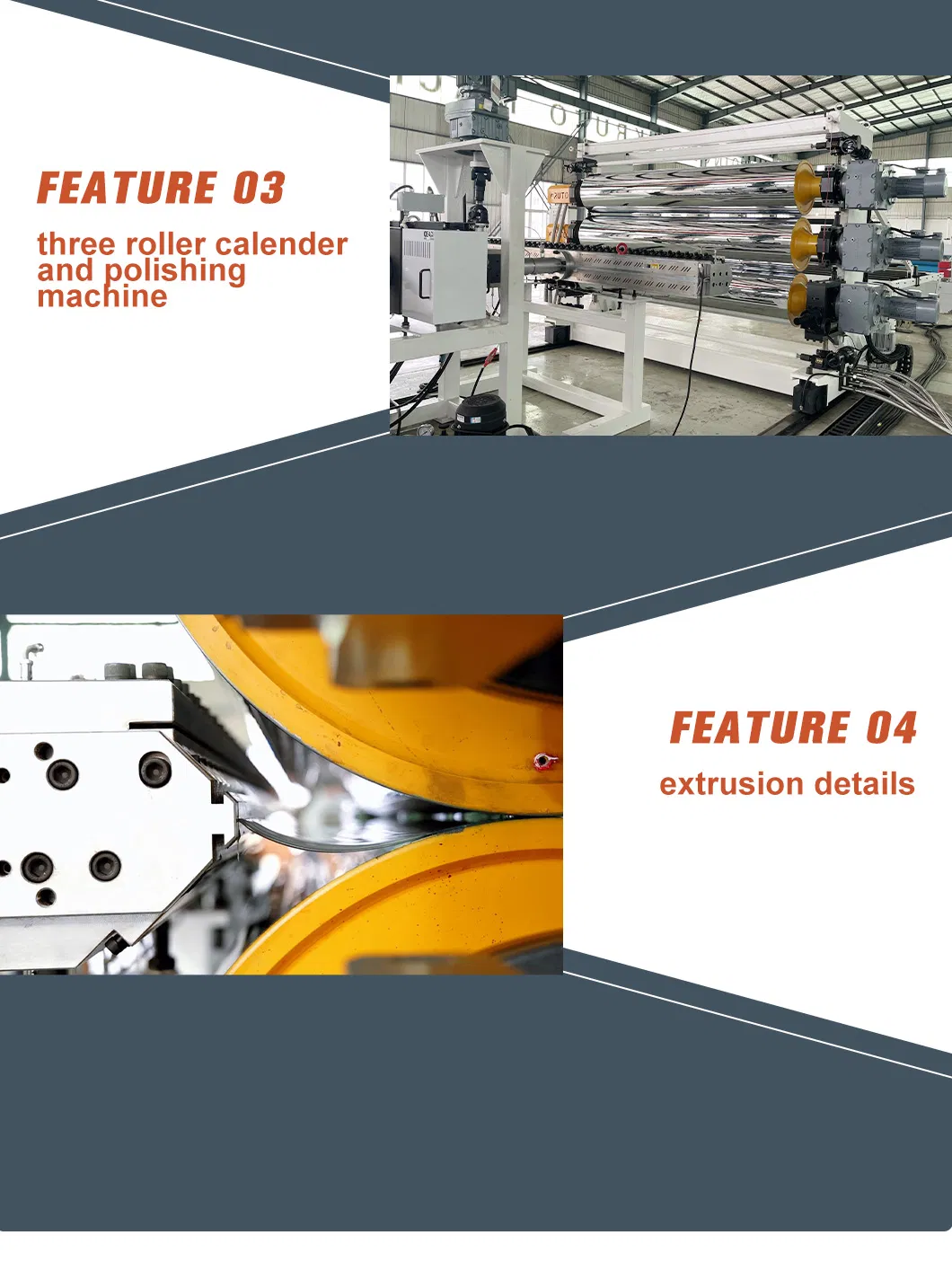

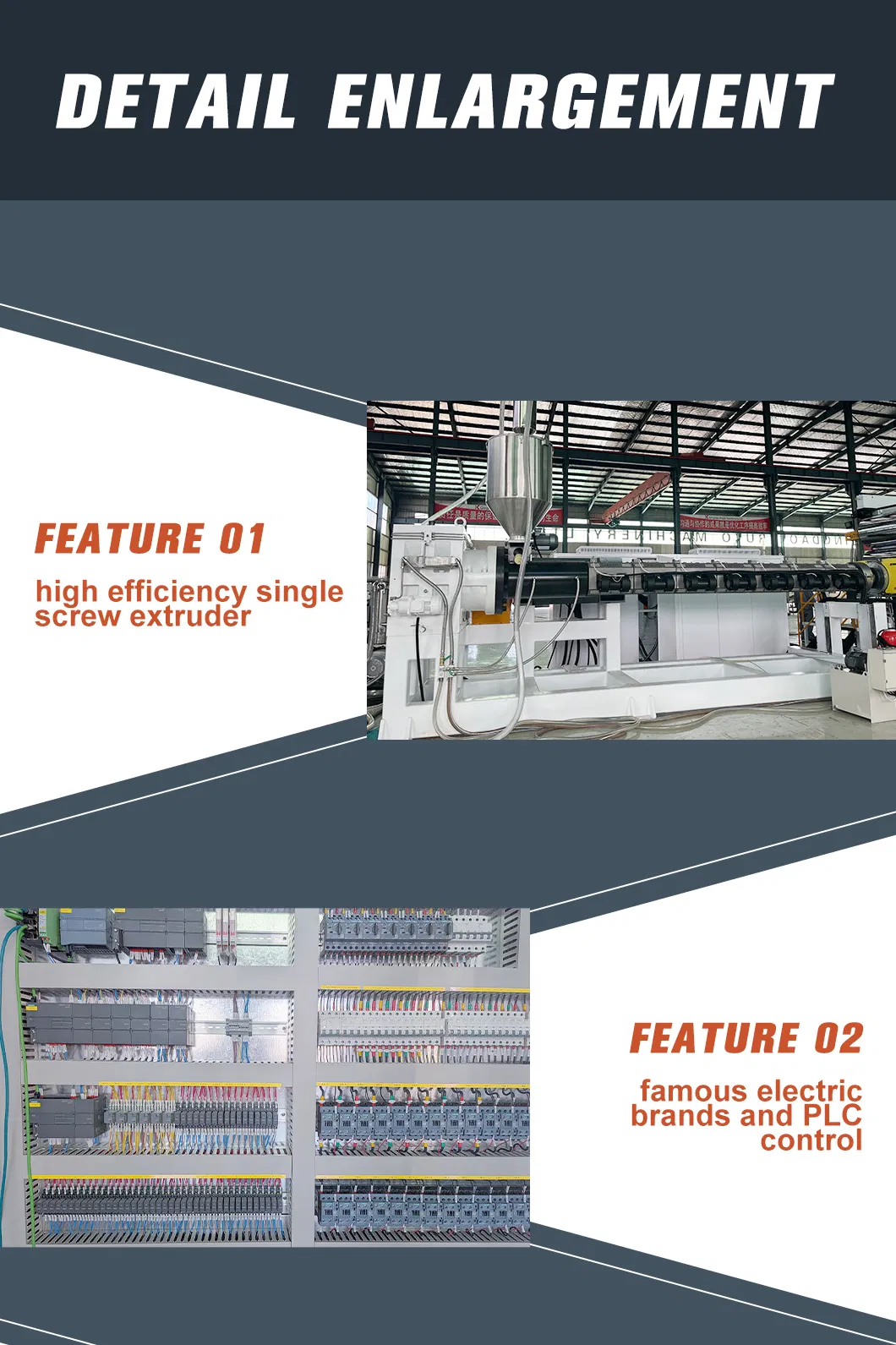

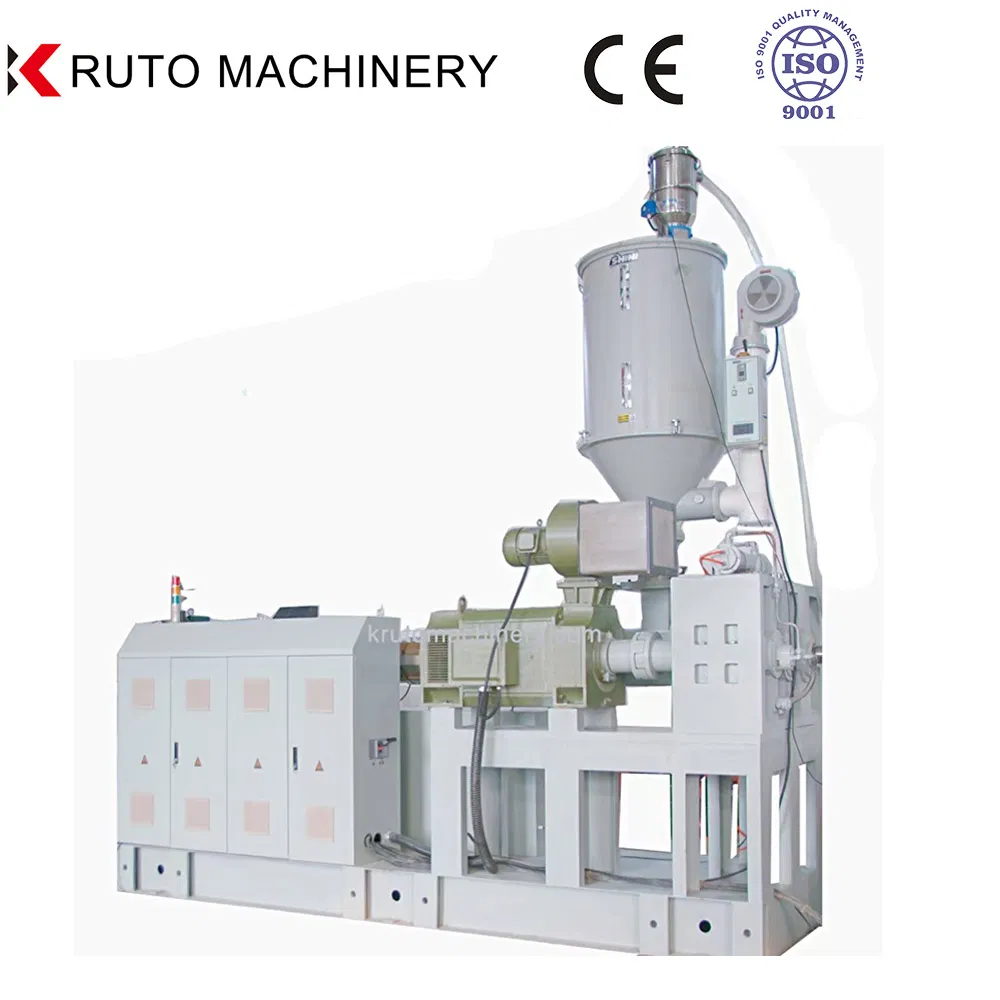

Mixer and drying machine → Spiral Loader or Vacuum Loading Machine → Single-screw extruder → Hydraulic screen exchanger → Gear pump → Die head → Three-roller calendars → Three-roller temperature control → Cooling bracket → Edge trimmed → Haul-off unit → Transverse-cutting machine → Winder
| Model | Product Width (mm) | Thickness (mm) | Composite Thickness (mm) | Capacity (kg/h) |
|---|---|---|---|---|
| KRT 4000 | 2000-4000 | 0.5-3 | 250-2000 | 500-1200 |
| KRT 6000 | 3000-6000 | 0.5-3 | 250-2000 | 800-1500 |
| KRT 7000 | 4000-7000 | 0.5-3 | 250-2000 | 900-1800 |
| KRT 8000 | 4000-8000 | 0.5-3 | 250-2000 | 1000-2000 |
* Note: The machine can be customized as required to meet specific production needs.
