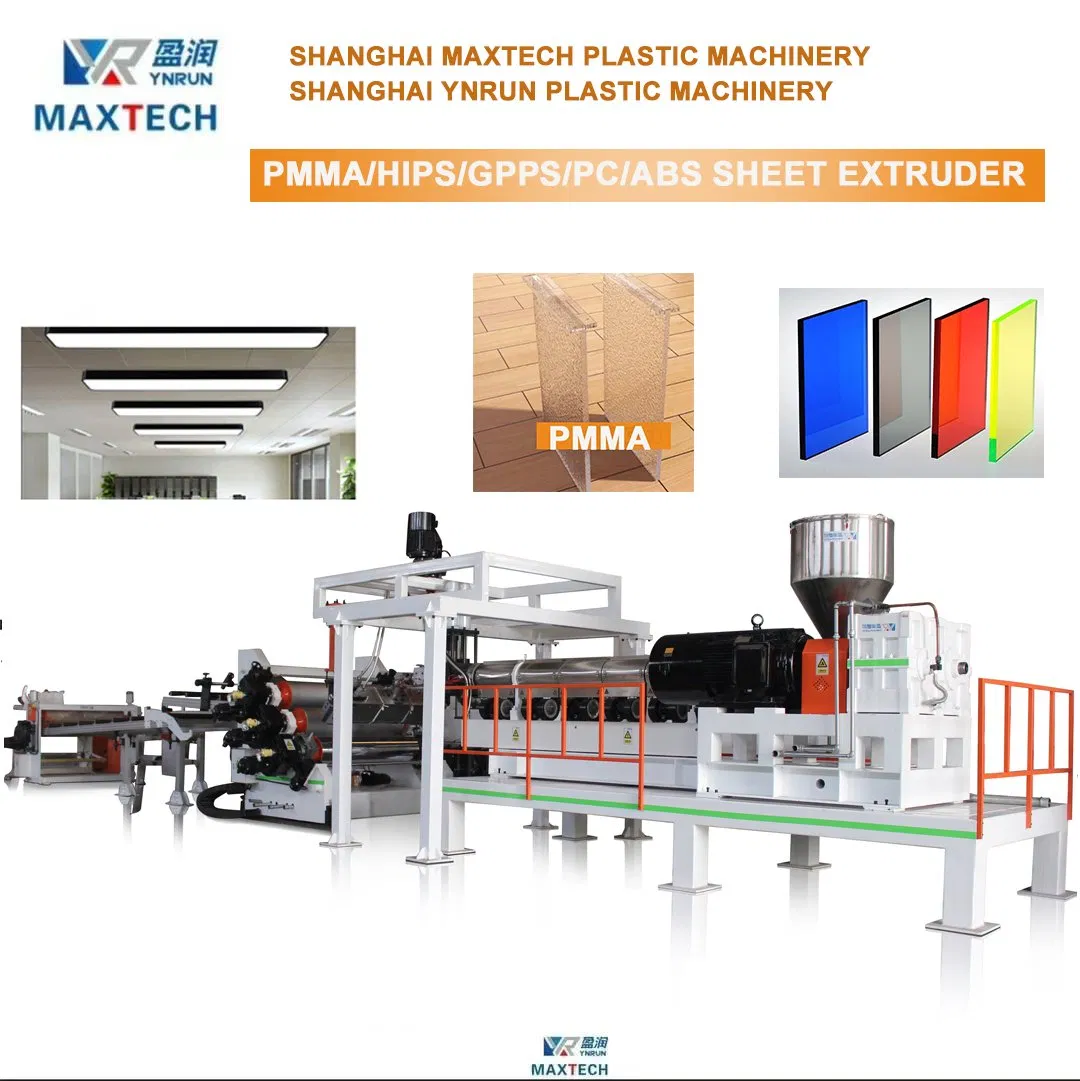

Basic Specification
Model NO.:YR120 150
Plastic Processed:PMMA/ABS/GPPS/HIPS/PC
Product Type:Extrusion Molding Machine
Feeding Mode:One Feed
Assembly Structure:Integral Type Extruder
Screw:Single-Screw
Engagement System:Full Intermeshing
Screw Channel Structure:Deep Screw
Exhaust:Exhaust
Automation:Automatic
Computerized:Computerized
Transport Package:Wood Box
Specification:20000mm
HS Code:847720
Production Capacity:200
Frequently Asked Questions
1. Which materials can be processed by this extrusion line?
This line is versatile and specifically designed for PMMA, PC, ABS, HIPS, GPPS, MS, and LGP board production.
2. What is the quality of the screw and barrel used in the machine?
The screw and barrel are made from high-grade 38CrMoAlA material with a nitriding depth of 0.5mm-0.7mm, reaching hardness levels of ≥960HV for the screw and ≥1100HV for the barrel.
3. What are the electrical and utility requirements for installation?
The machine requires a 380V/3-phase power supply (50HZ or 60HZ), compressed air capacity of 2M3/h (0.5-0.7Mpa), and cooling water recycling of 8M3/h at 20ºC.
4. What is the production speed of the extrusion line?
The extrusion line can achieve a production speed of up to 38 meters per minute, depending on the material and thickness.
5. Is the machine automated and what brands of controllers are used?
Yes, the machine is fully automatic and computerized. It utilizes high-end components including Siemens motors and ABB speed governors for precise control.

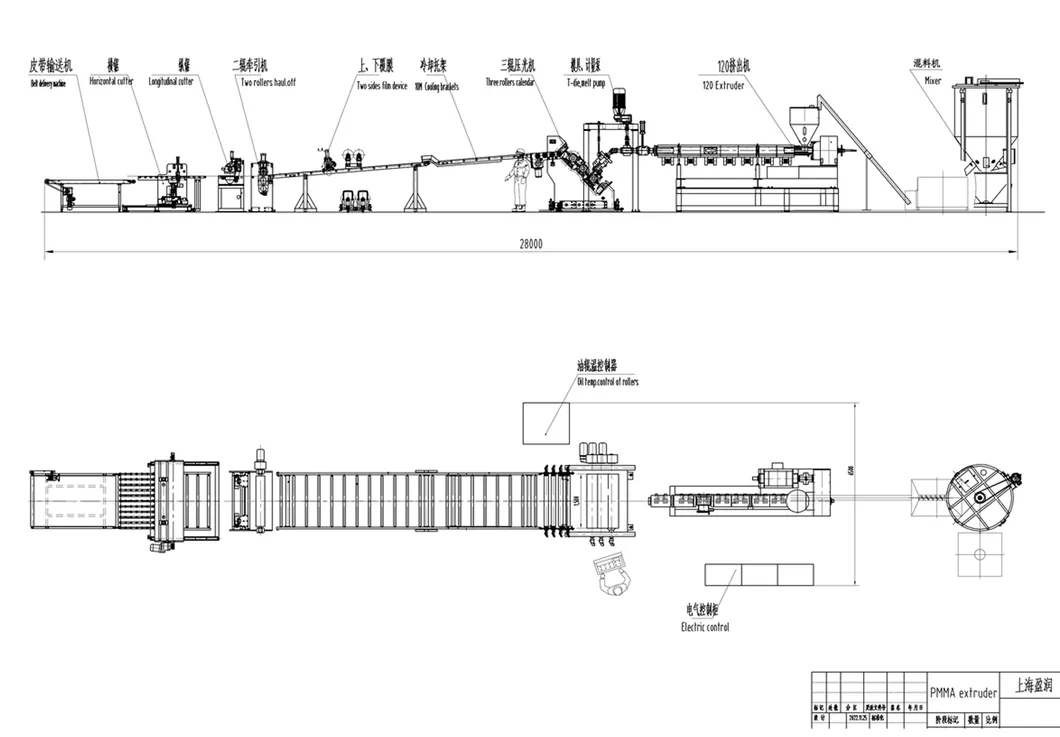

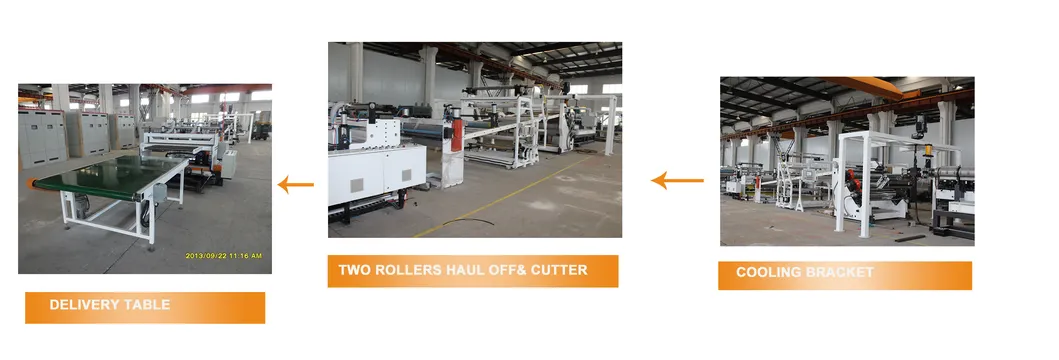

6. What is included in the full production processing line?

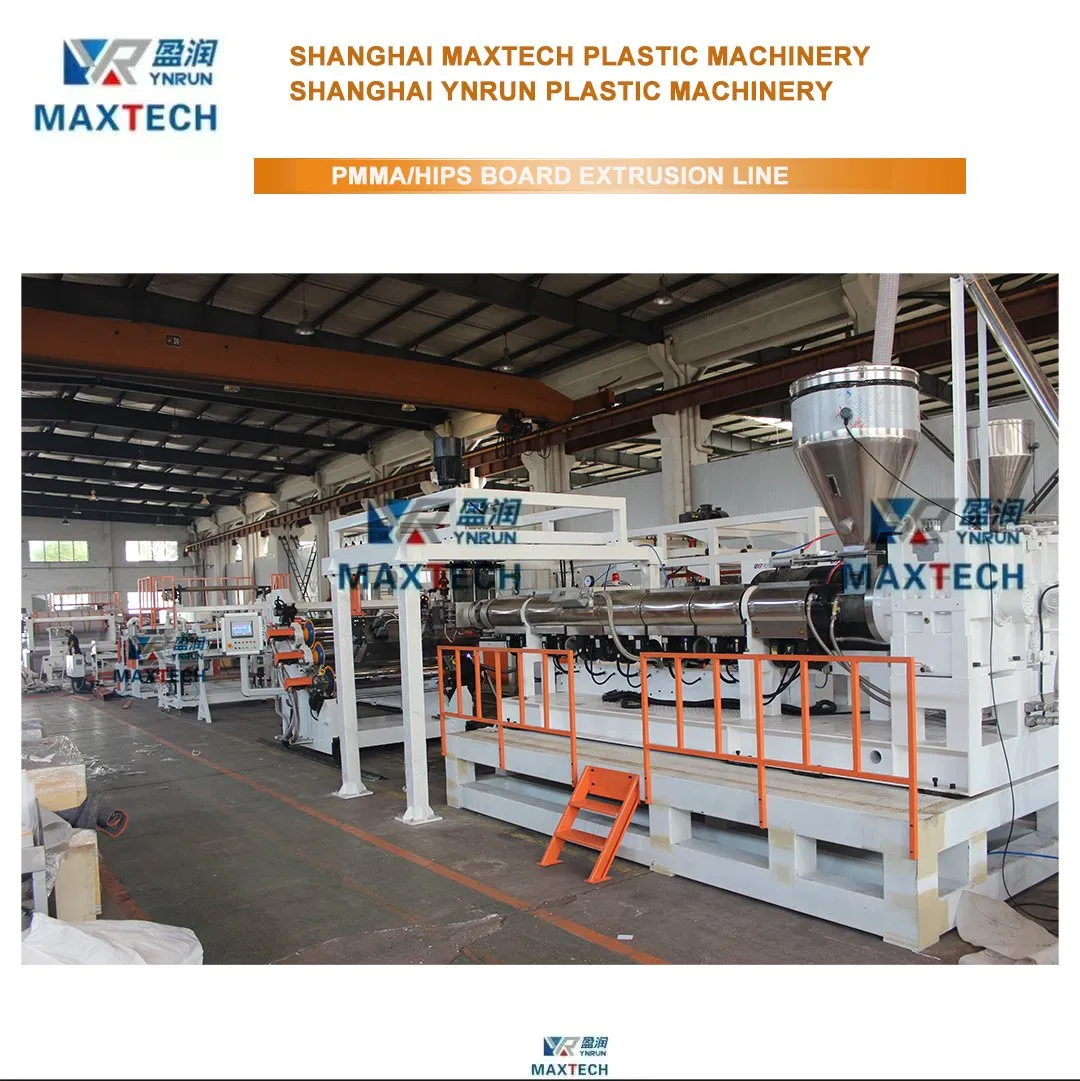

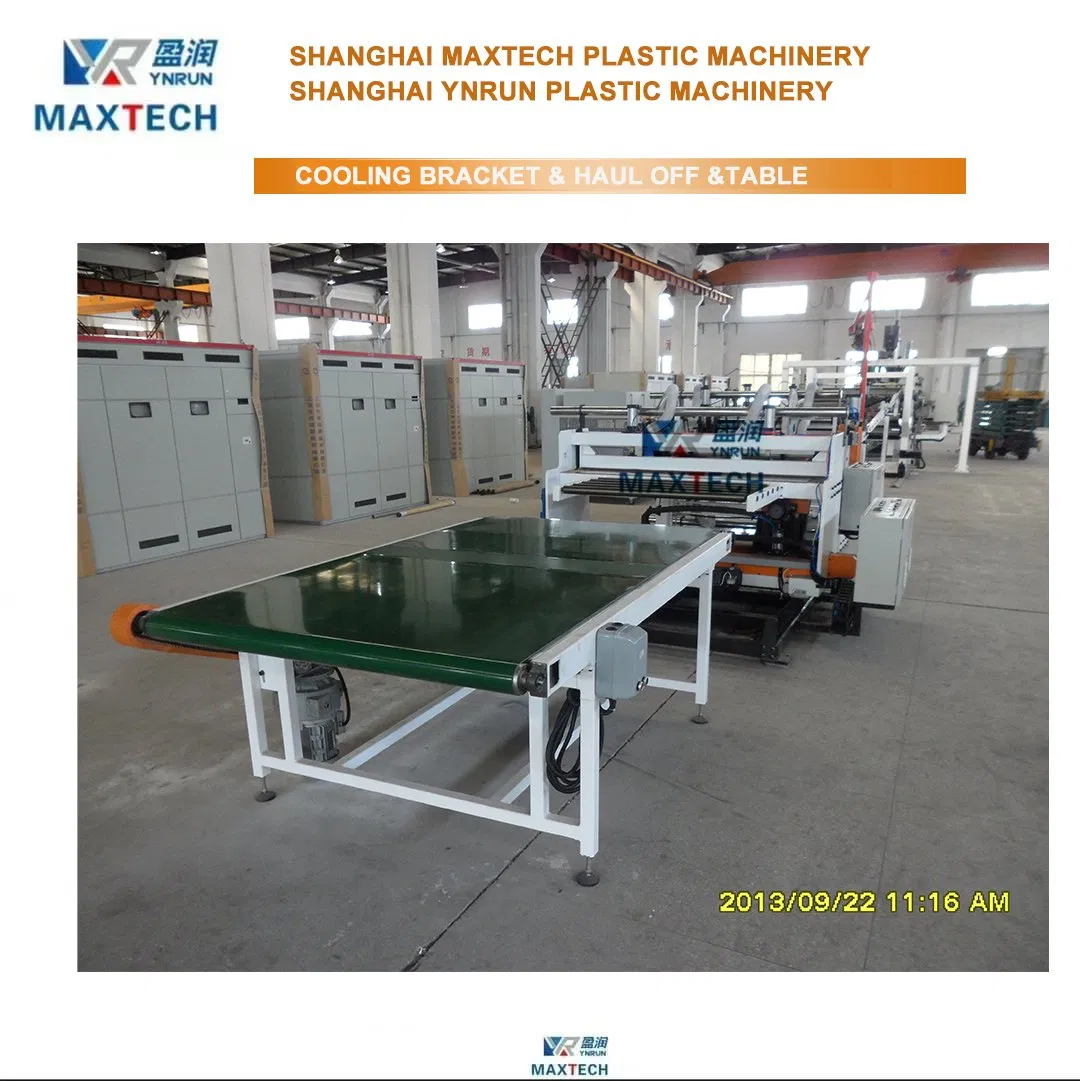

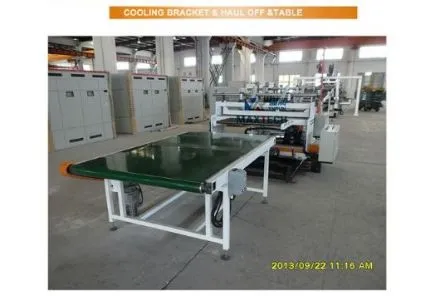

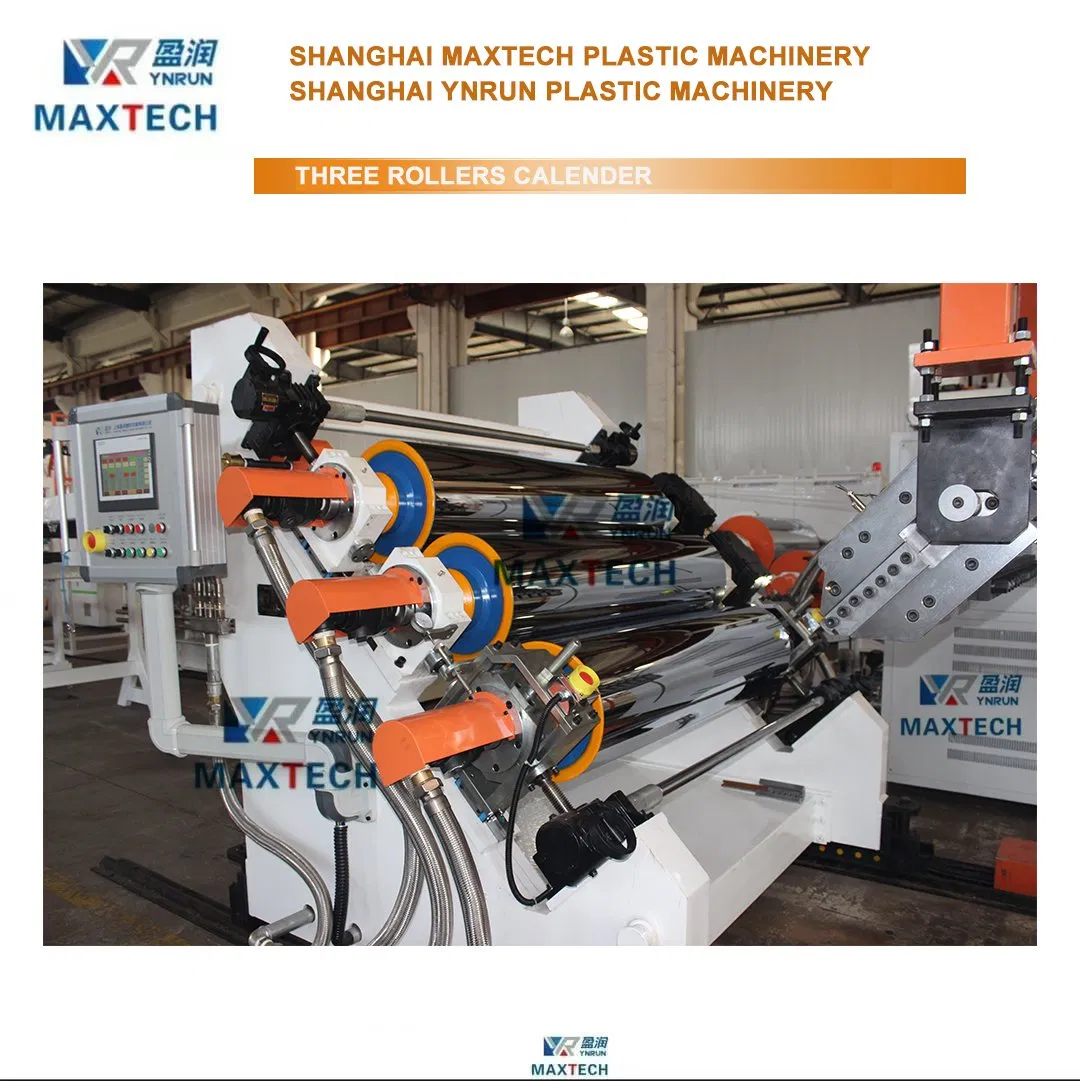

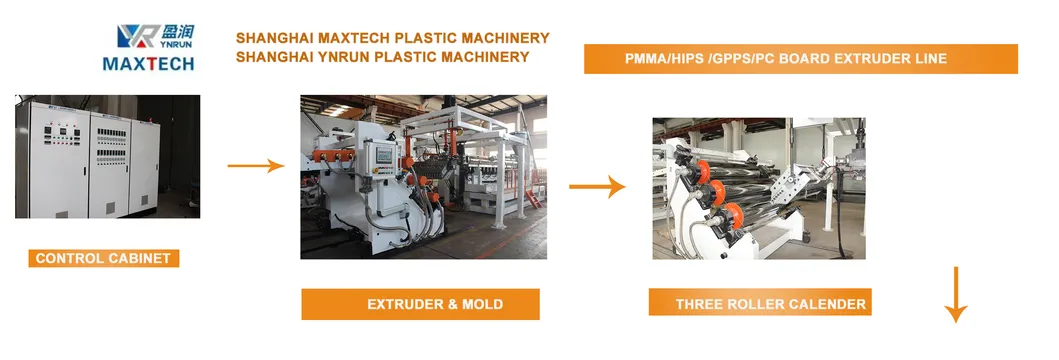

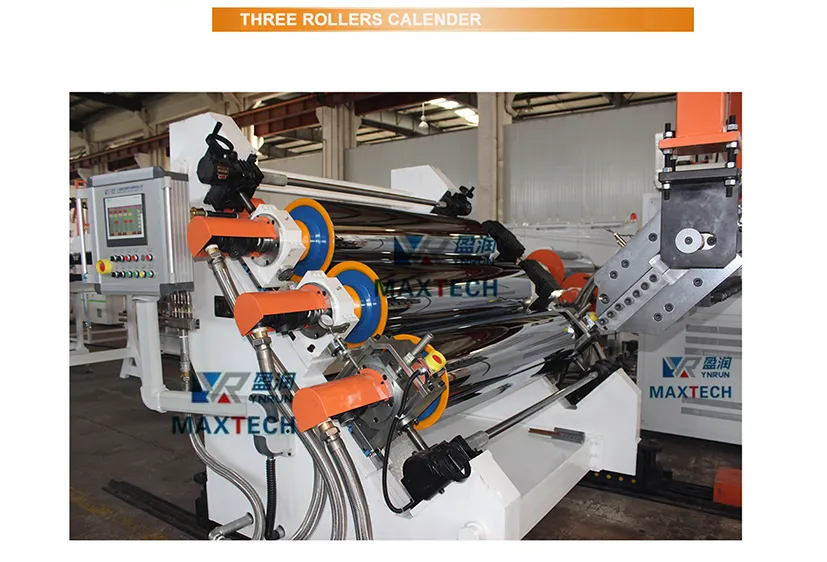

The complete line includes a dosing unit, single screw extruder, screen changer, melt pump, T-DIE mold, three-roller calender, cooling bracket, film adhesive unit, and a sawing/delivery unit.
