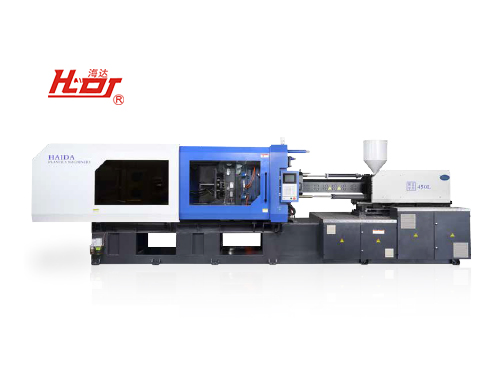

Haida 3300ton Basket Crate PVC Pipe Fittings Making Machine Plastic Injection Moulding Machine

Customization:	Available
After-sales Service:	Online Service
Warranty:	One Year

Send Inquiry

Product Description

📋 Product Overview

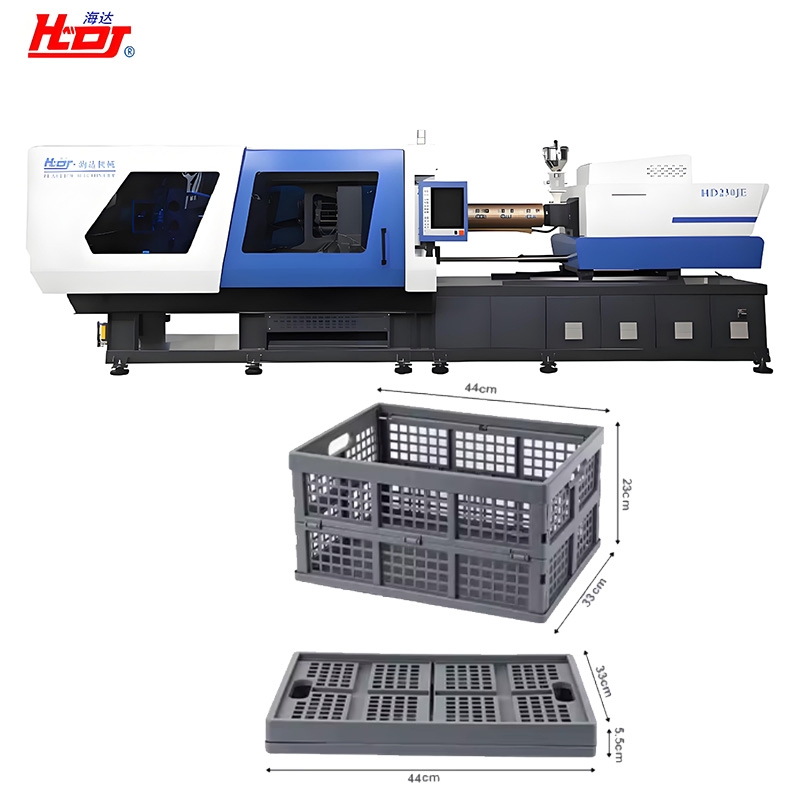

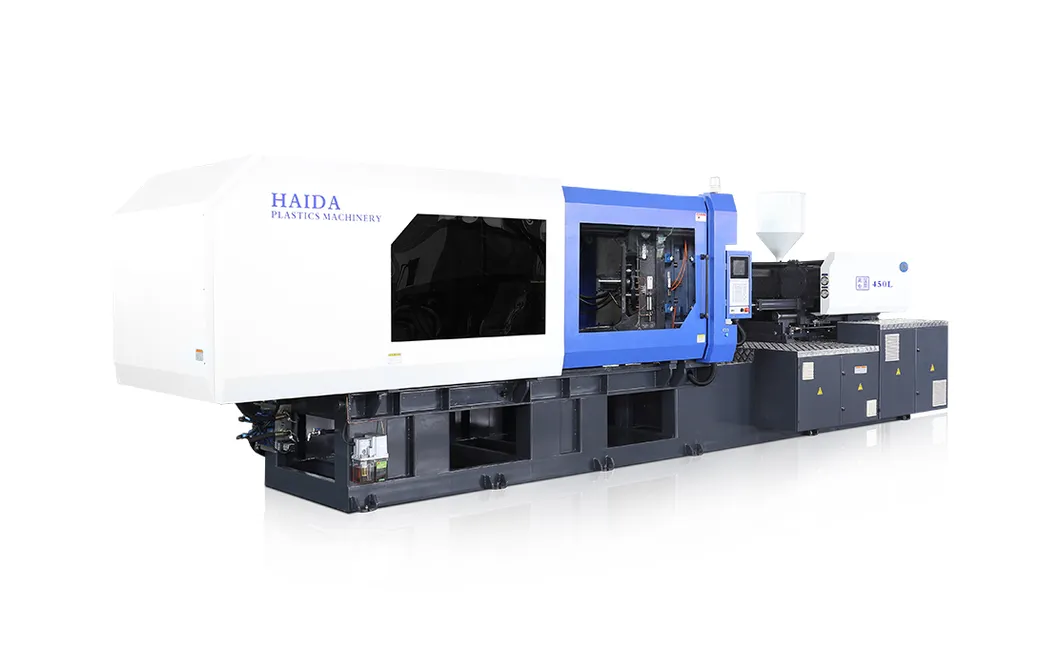

3300ton Basket Crate PVC Pipe Fittings Injection Moulding Machine
Specialized design for high-efficiency fruit basket and crate production.

High Efficiency Screw

Specially designed large diameter screw increases injection volume and shortens storage time.

Optimized Power System

Increased power for rapid injection speed, shortening production cycles and improving efficiency.

Stable Rigid Frame

New rigid frame provides obvious shock absorption and stable production performance.

Basic Specifications

Model NO.	HD390L-C	Type	Injection Molding
Structure	Horizontal	Plastic Type	Thermoplastic
Plasticizing Way	Screw Type	Clamping Way	Hydraulic
Automation	Automatic	Certification	CE, ISO9001:2008
Plastic Processed	PP, PE and recycled materials	Energy Saving	Servo Energy Saving

📷 Technical Features

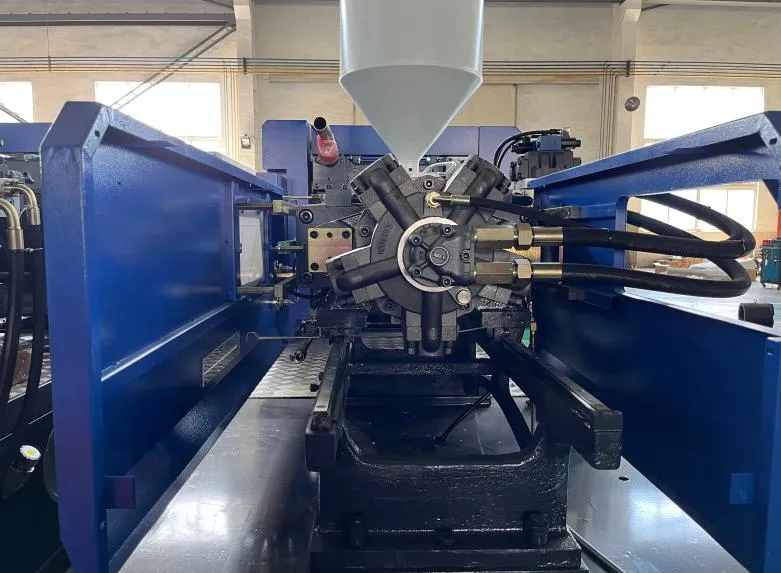

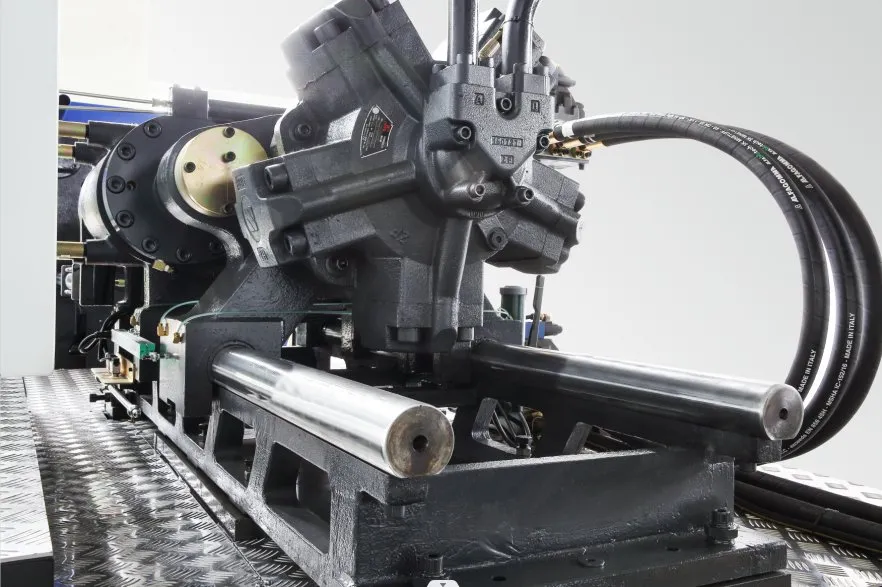

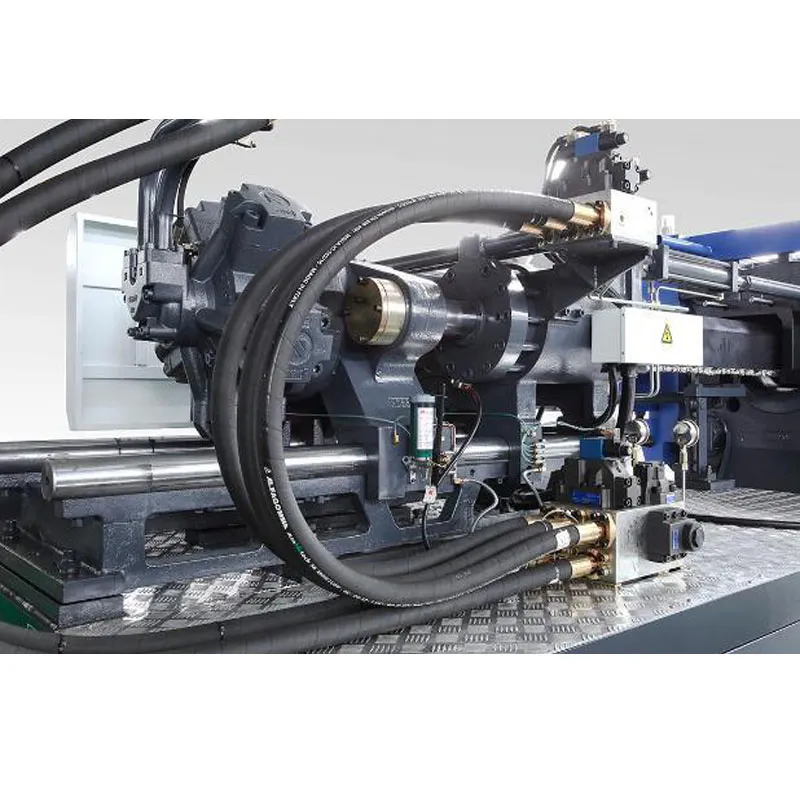

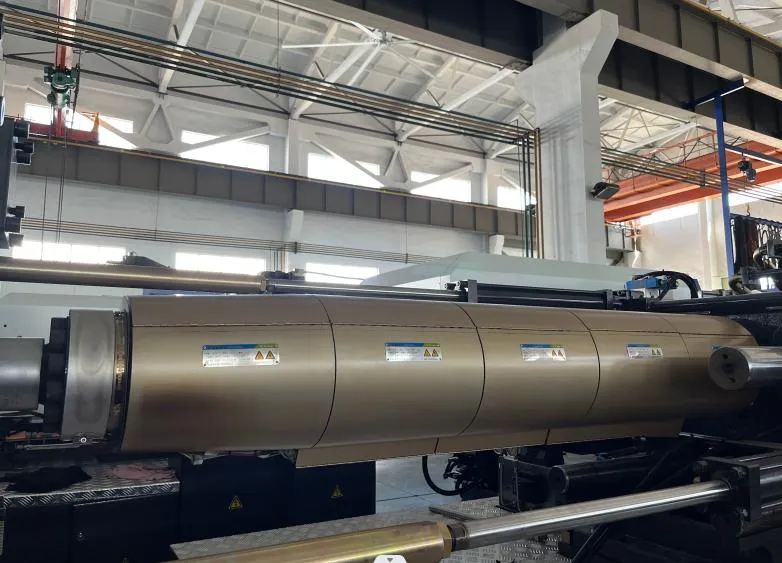

Injection & PLC System

The injection unit is optimally designed for higher accuracy and stability. The reasonable screw length-diameter ratio enhances plasticizing ability. Equipped with a water-proof and dust-proof sealed electric box for reliable operation and remote monitoring capabilities.

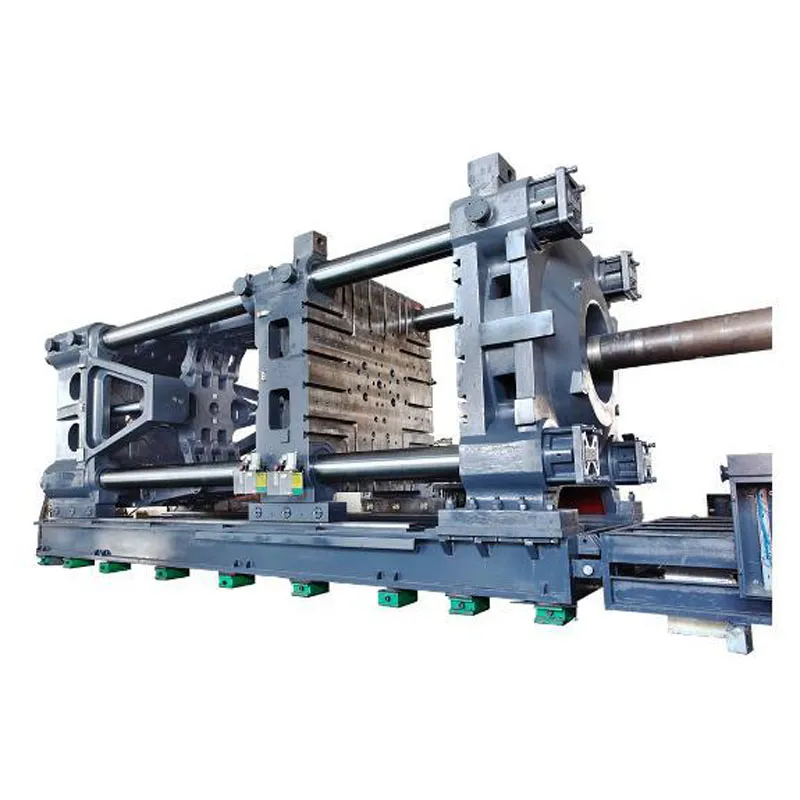

Clamping System

Adopting international advanced concepts to reduce template deformation. Features larger distance between pull rods and longer mould shifting strokes to accommodate various mould sizes.

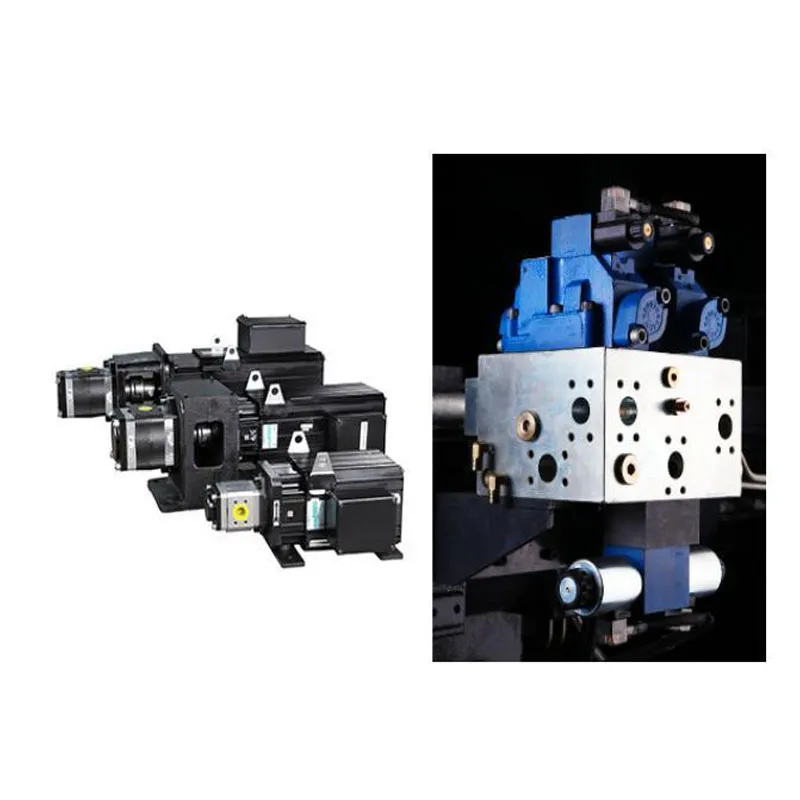

Servo Hydraulic System

Standard equipped with a servo energy-saving pump system. Using high-performance motors and reliable oil pumps to achieve high response, low noise, and low oil temperature.

📊 Product Parameters

ITEM		UNIT	HD390L-C DATA
Injection Unit	Screw Diameter	mm	90
	Injection Volume	cm³	2226
	Shot Weight (Recycled PP)	g	2380
Clamping Unit	Clamping Force	KN	3900
	Opening Stroke	mm	710
	Space Between Tie-Bars	mm	730×730
General	Motor Power	KW	41
	Machine Dimension	m	8.0×2.4×2.6
	Machine Weight	T	15.2

Application & Capacity

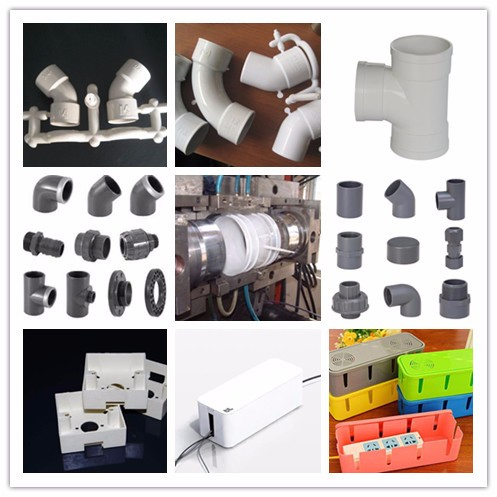

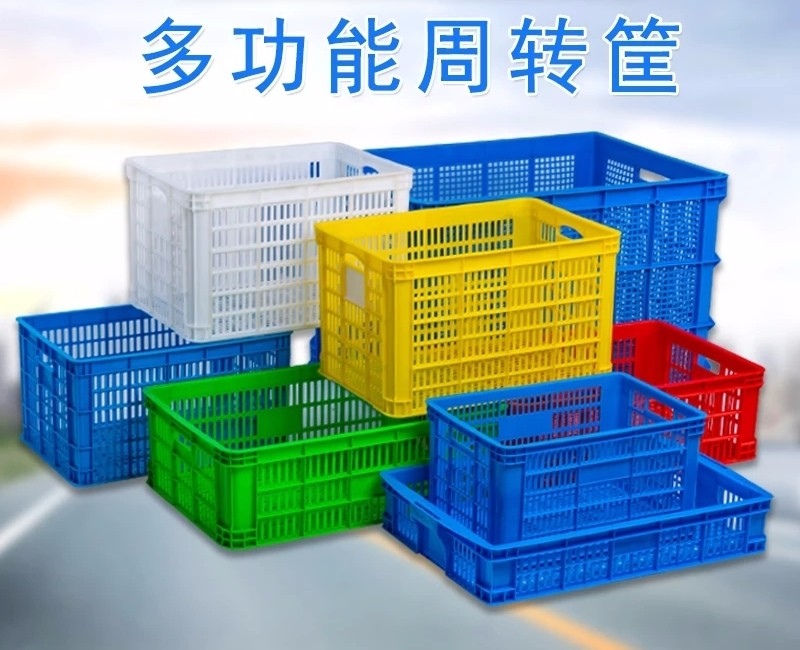

Specialized in manufacturing solutions for plastic crates, fruit baskets, and PVC pipe fittings. The production range for these machines starts from 50 Ton to 3300 Ton capacity.

📦 Packaging & Global Presence

Frequently Asked Questions

What materials can this machine process?

The machine is designed to process various thermoplastics including PP, PE, and specialized recycled materials commonly used for crates and baskets.

How does the servo system benefit production?

The servo energy-saving pump system provides high precision, high response, and significantly lower noise levels while reducing energy consumption and oil temperature.

Is the machine suitable for large-volume injection?

Yes, it features a specially designed high-efficiency screw and increased power system to handle large injection volumes and shorten production cycles.

What are the clamping advantages for fruit basket production?

The machine utilizes a high-rigidity template with professional stress distribution and a larger space between tie-bars to improve product accuracy for complex crate designs.

Does the control system support remote monitoring?

The control system is reserved for Internet management, allowing for remote real-time monitoring and maintenance diagnosis.

What are the shipping dimensions for the HD390L-C?

The machine dimension is approximately 8.0 x 2.4 x 2.6 meters with a weight of 15.2 tons. It is typically shipped using wooden pallets for protection.
