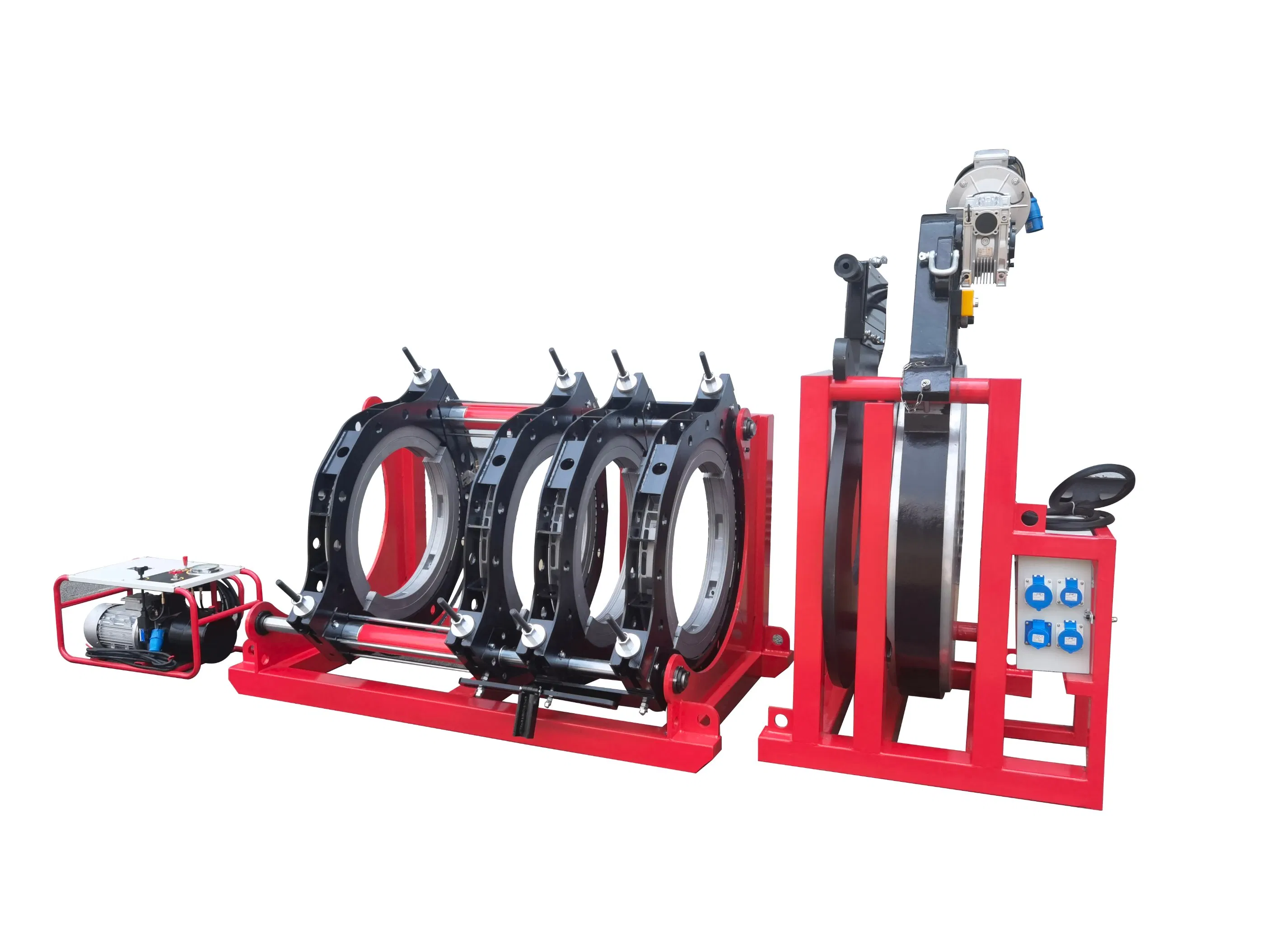

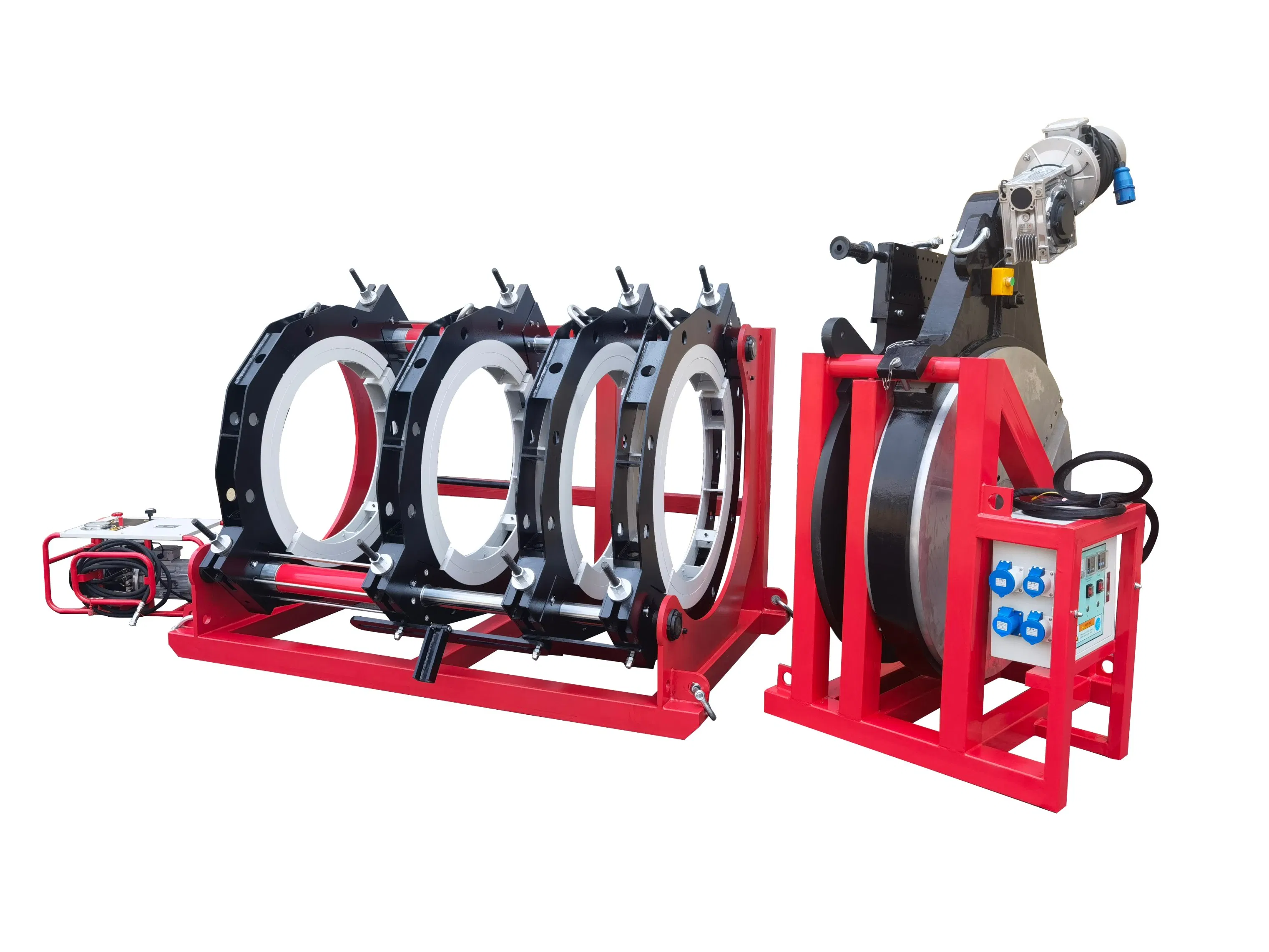

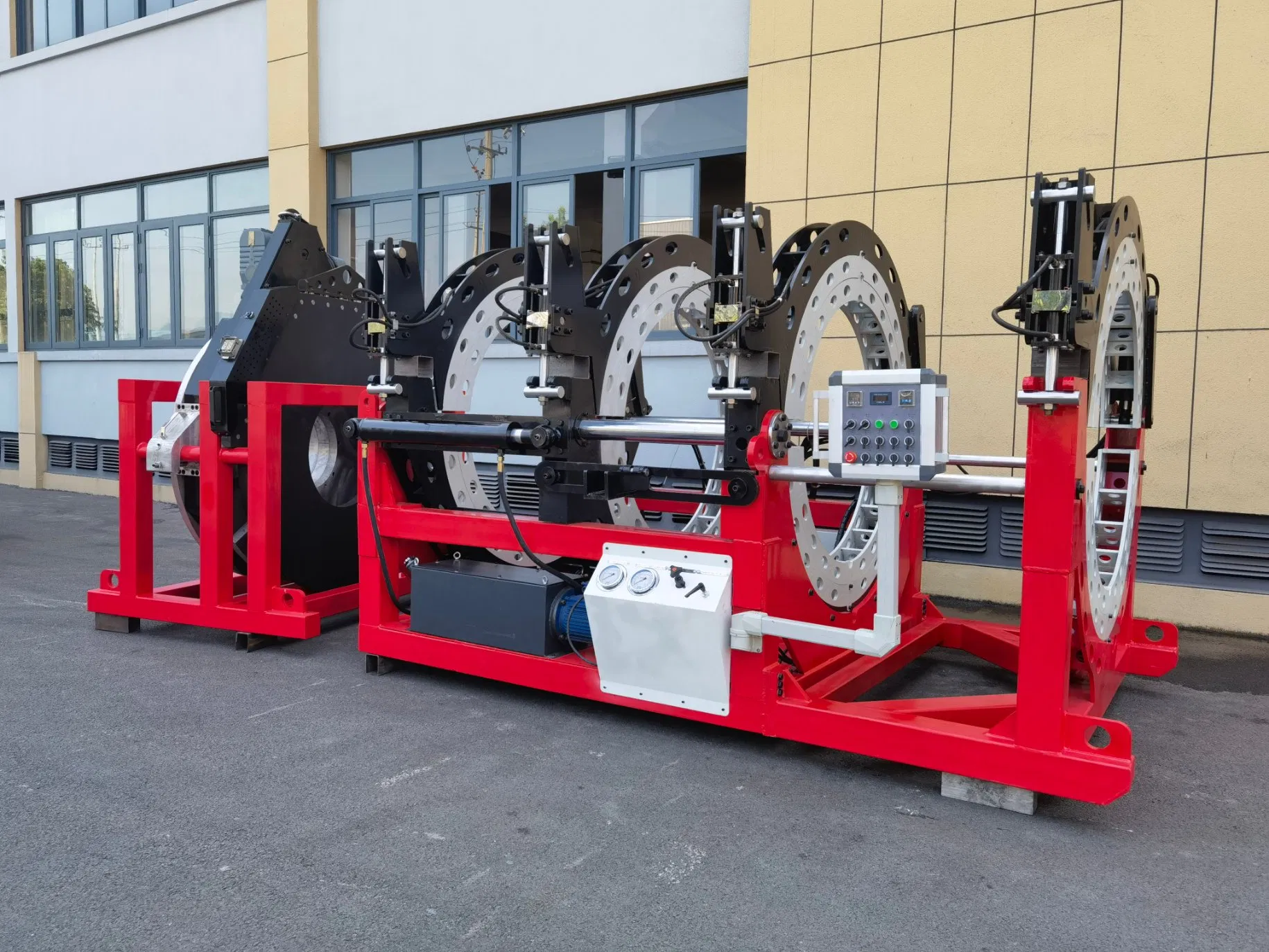

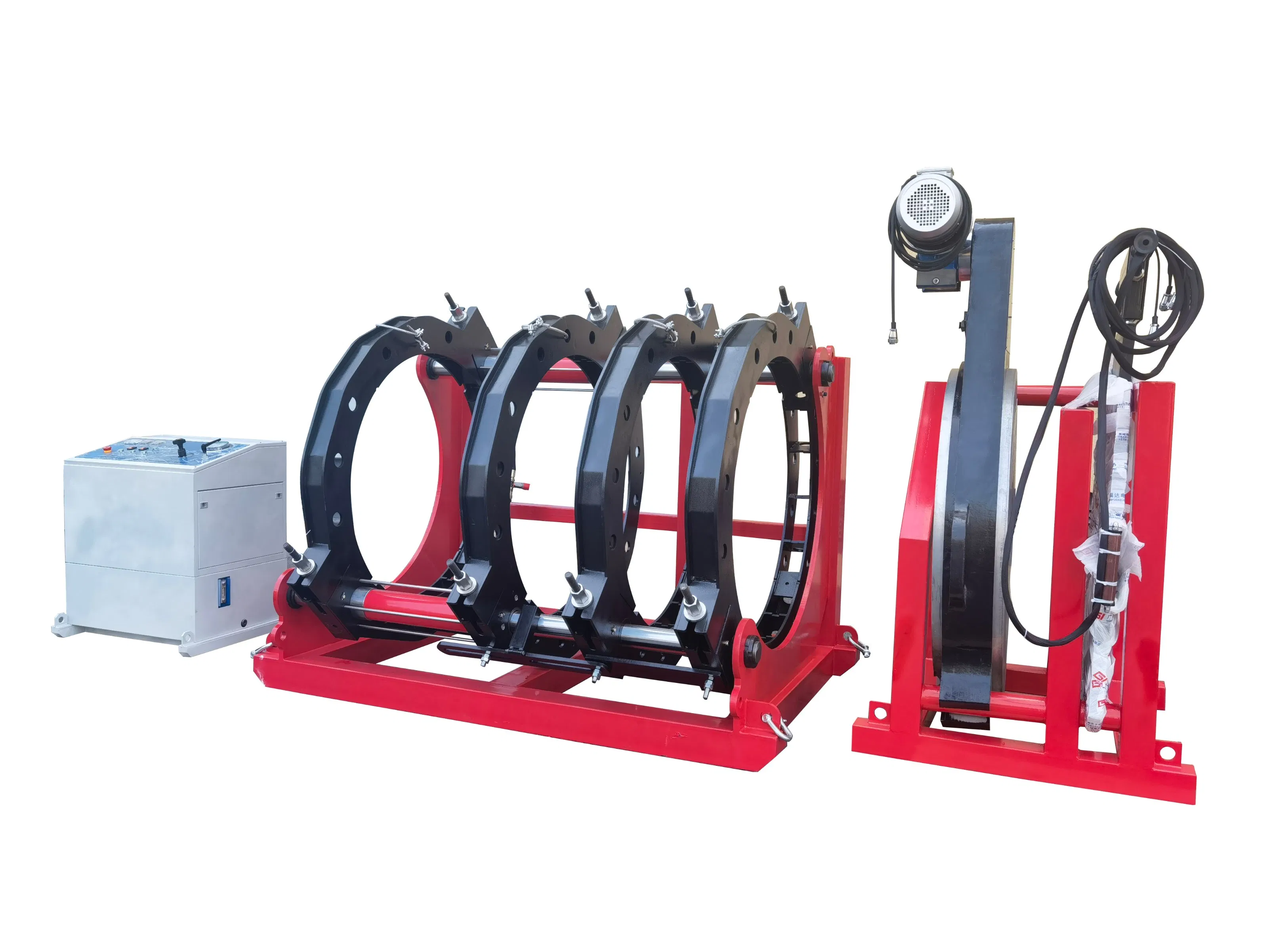

1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1 / 5
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld
1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld

1600mm HDPE, PE Pipe Butt Fusion Welding Machine/ Pipe Joint/Huajin Welder/Automatic Plastic Sheet Welding Machine/Plastic Weld

Customization: Available
Welding Range: 1600
Cooling Way: Air Cooling
Send Inquiry

Product Description

📋 Basic Information
Model NO.
1600mm
Control
Semi-Automatic
Frequency Range
Intermediate Frequency
Electric Current
AC
Type
Hot Melting
Cbm
26m³
Working Voltage
380V
Total Power
57kw
Origin
China
HS Code
8515290000
📦 Packaging & Delivery
Package Size
370.00cm * 220.00cm * 210.00cm
Gross Weight
6480.000kg
Package Type
Plywood Cases
⚙️ TECHNICAL DATA

1600mm HDPE, PE Pipe Butt Fusion Welding Machine

ModelHDC1600
Pipe size(mm)1000mm, 1200mm, 1600mm
Heating plat Max temp270ºC
Temp deviation in surface (170-250)±5ºC
Max tolerance of welding jointing0.3MM
Max working pressure hydraulic station16Mpa
Working voltage380V
Working frequency50-60HZ
Motor power/voltage of hydraulic station7.5KW / 380V
Power/voltage of heating plate42KW / 380V
Power/voltage of planning tool motor7.5KW / 380V
Total Power57KW
Overall weight of machine (kg)6480KGS
HDPE Pipe Butt Fusion Welding Machine
📸 Machine Real Shot & Capacity

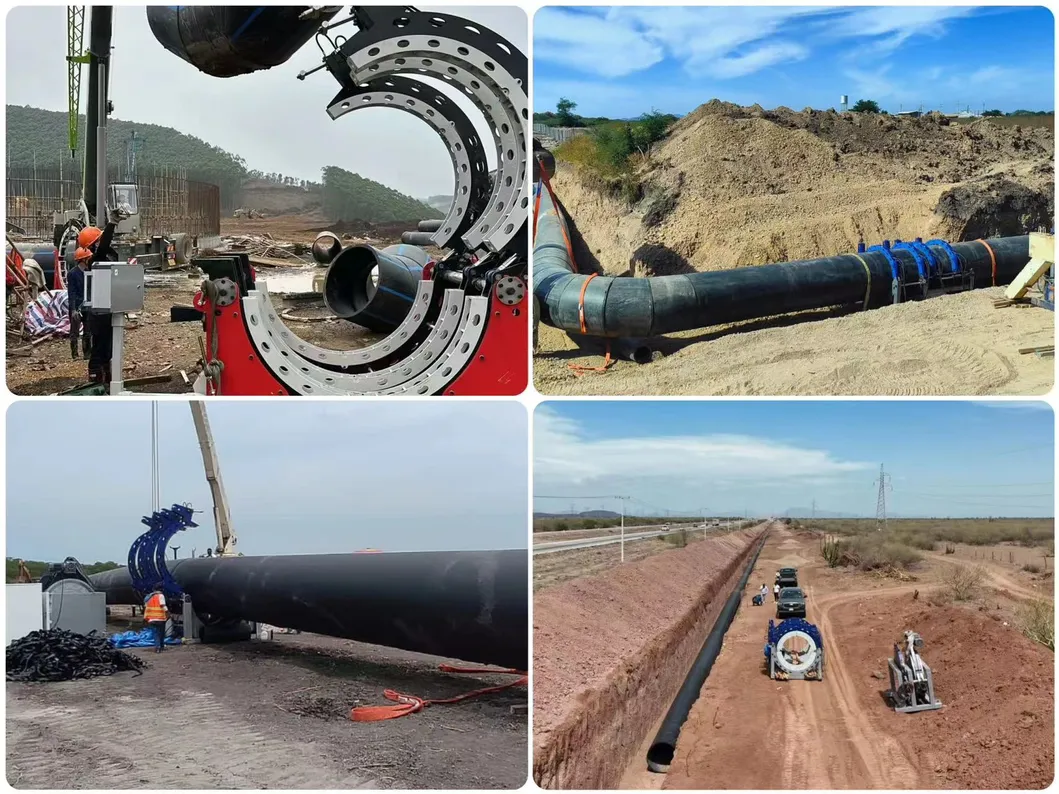

Machine Real Shot

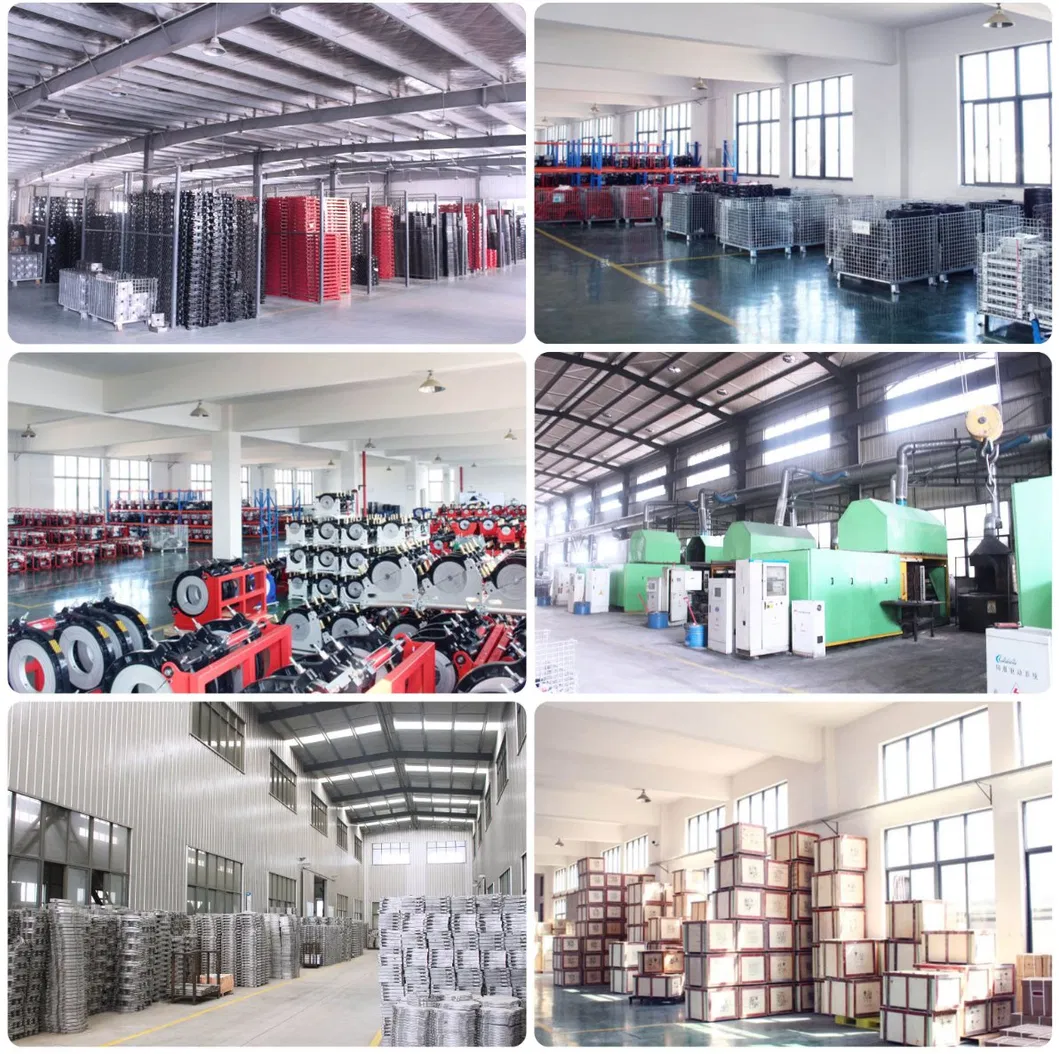

Production Capacity
🏗️ INSTALLATION PROJECTS

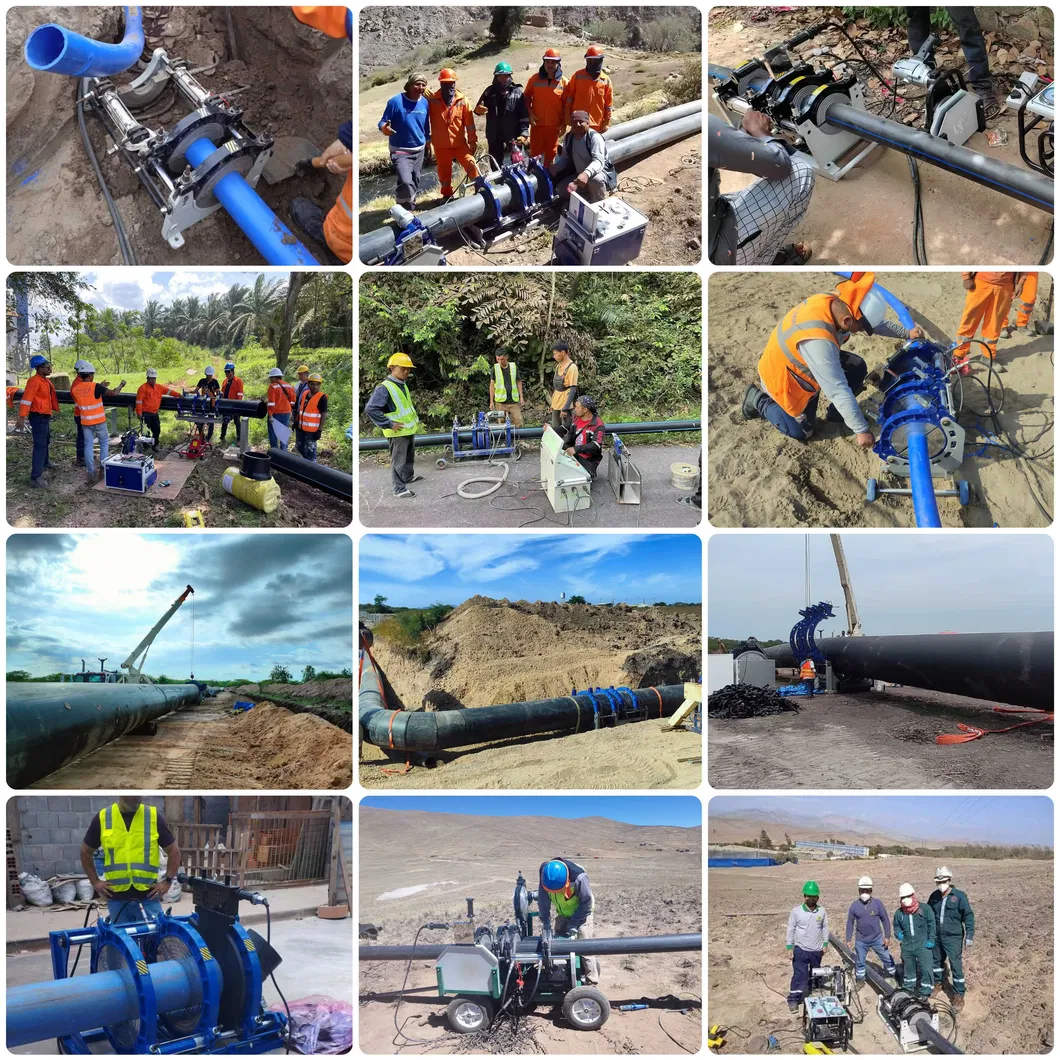

Installation Project
🌟 Application & Features
  • Consist of basic frame, milling cutter, heating plate, hydraulic unit, support.
  • Working environment must be between -40ºC ~ 40ºC.
  • Pressure adjustable range: 0-16Mpa.
  • Heating plate Max. temperature: 270ºC.
  • Suitable for material of PE, PP, PVDF.
Exhibition Photo

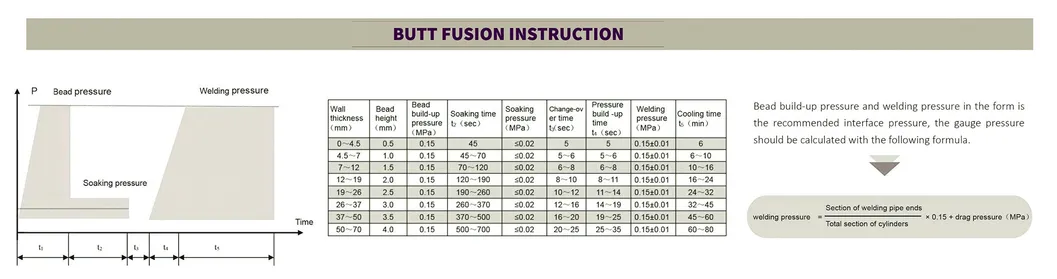

Exhibition Detail

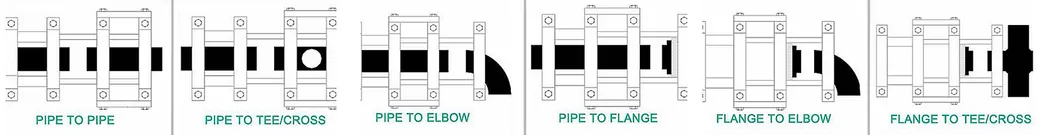

Technical Layout
Product Feature Image
❓ FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with more than 10 years of foreign trade experience. We have our own dedicated factory.
Q: How long is the delivery time?
A: The delivery time depends on the specific quantity of the order.
Q: What are your payment terms?
A: For sample orders, 100% in advance via T/T. For bulk orders, 30% deposit via T/T and 70% against the copy of B/L.
Q: Can I use my own brand for the products?
A: Yes, we welcome the use of your own brand and provide related customization.
Q: Do you provide after-sales service?
A: Yes, we supply 24-hour after-sales service. We track products every two days after delivery until received and provide technical solutions for any issues.
Q: Do you test all products before delivery?
A: Yes, all products must pass a strict inspection process before leaving our facility.
