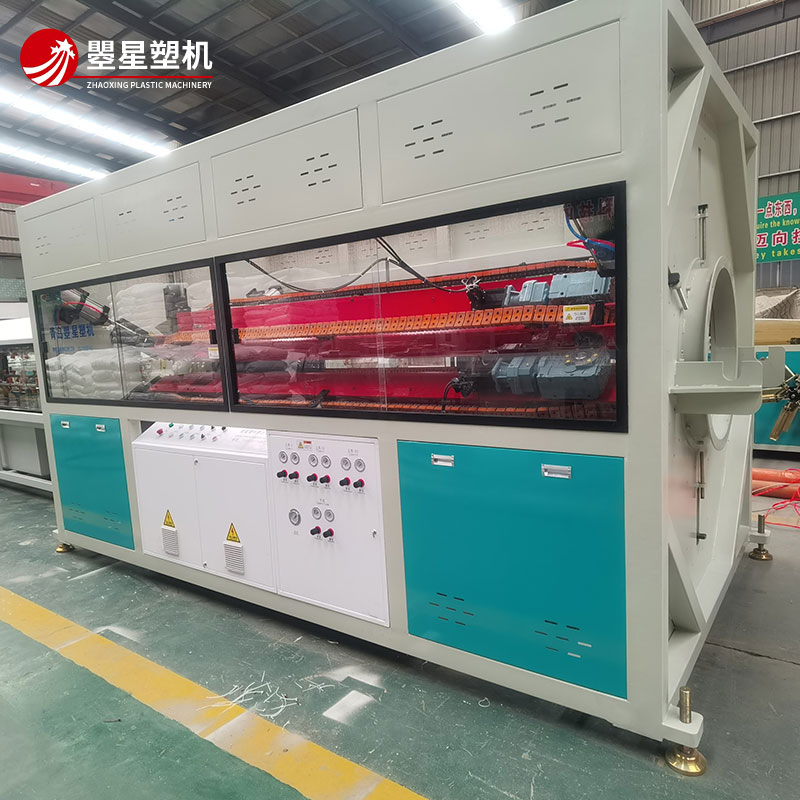

High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
1 / 5
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion

High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion

Customization: Available
Warranty: 1 Year
Product Type: PE Pipe
Send Inquiry

Product Description

Technical Specifications

Model NO.:
ZXSJ-75
Screw No.:
Single-screw
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Condition:
New
Product Name:
PE Pipe Production Line
Raw Material:
PE
Extruder Type:
High Speed Single Screw
Pipe Diameter:
20-630mm
Power:
75kw-240kw
Max. Capacity:
800kg/H
Electric Parts:
ABB, Omron, Rkc
Cutting Type:
New Type Chip-Free Cutting
Origin:
China
HS Code:
8477209000

Product Description

PE Pipe Extruder Manufacturing Machine

PE (polyethylene) pipe production line is an automated system for manufacturing high-quality thermoplastic pipes. The line typically comprises material feeding units, single/twin-screw extruders, precision dies, vacuum cooling tanks, haul-off machines, cutting devices, and stackers. Advanced computerized control systems ensure stable extrusion, uniform wall thickness, and precise diameter tolerances. Key advantages include energy-efficient operation, high output, and adaptability to produce various pipe types (HDPE, LDPE, MDPE) in multiple diameters.

PE Solid-Wall Pipe Applications:

  • Potable Water Supply Systems - Safe drinking water distribution with corrosion resistance.
  • Natural Gas and Fuel Transportation - Underground gas pipelines with high pressure resistance.
  • Industrial Fluid Transfer - Transport of chemicals and acids in factories.
  • Agricultural Sprinkler Networks - Pressurized irrigation with UV-stabilized pipes.
  • Mining and Slurry Conveyance - Wear-resistant conveyance for mining operations.

Main Model Specifications

Specifications Production Range (mm) Output (KG) Installed Power (KW)
ZXSJ4520--63100KG65KW
ZXSJ6520--110180KG95KW
ZXSJ7550--250300KG140KW
ZXSJ90160--400600KG190KW
ZXSJ120315--630800KG240KW
Detail 1
Detail 2
Detail 3

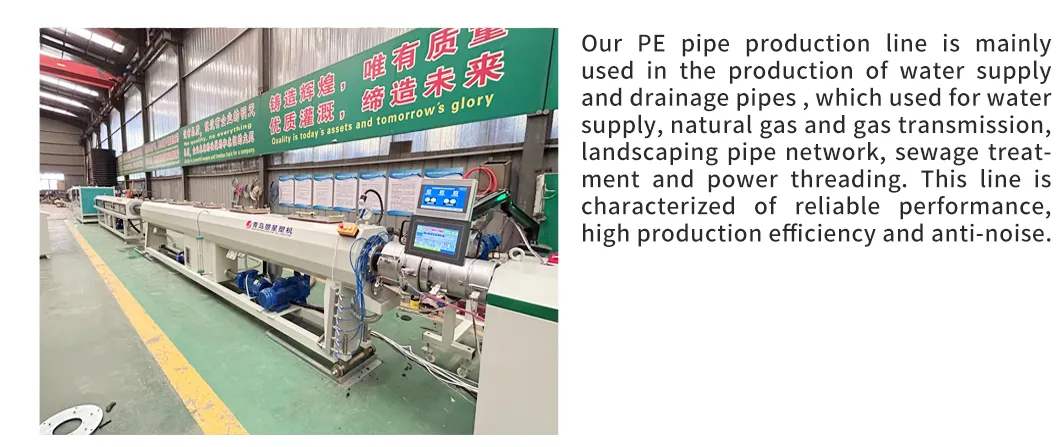

Detail 4
Detail 5

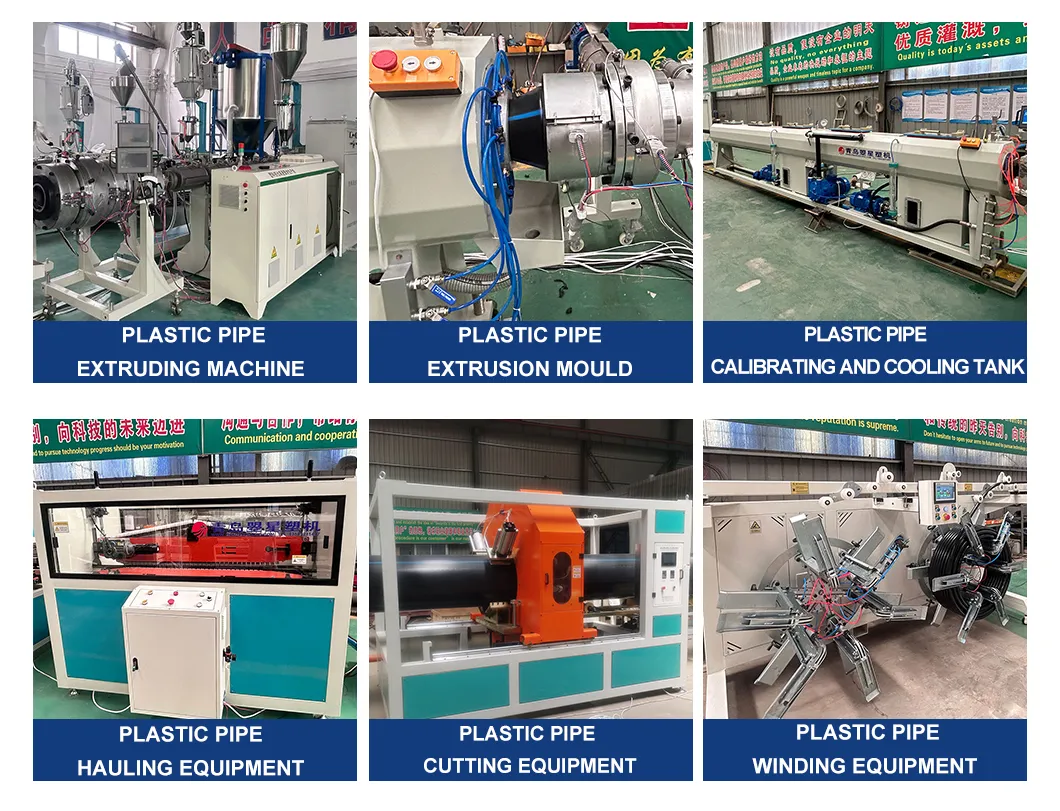

Compulsory & Optional Devices

No. Device Name Quantity/Spec
1Vacuum feeding machine1 set

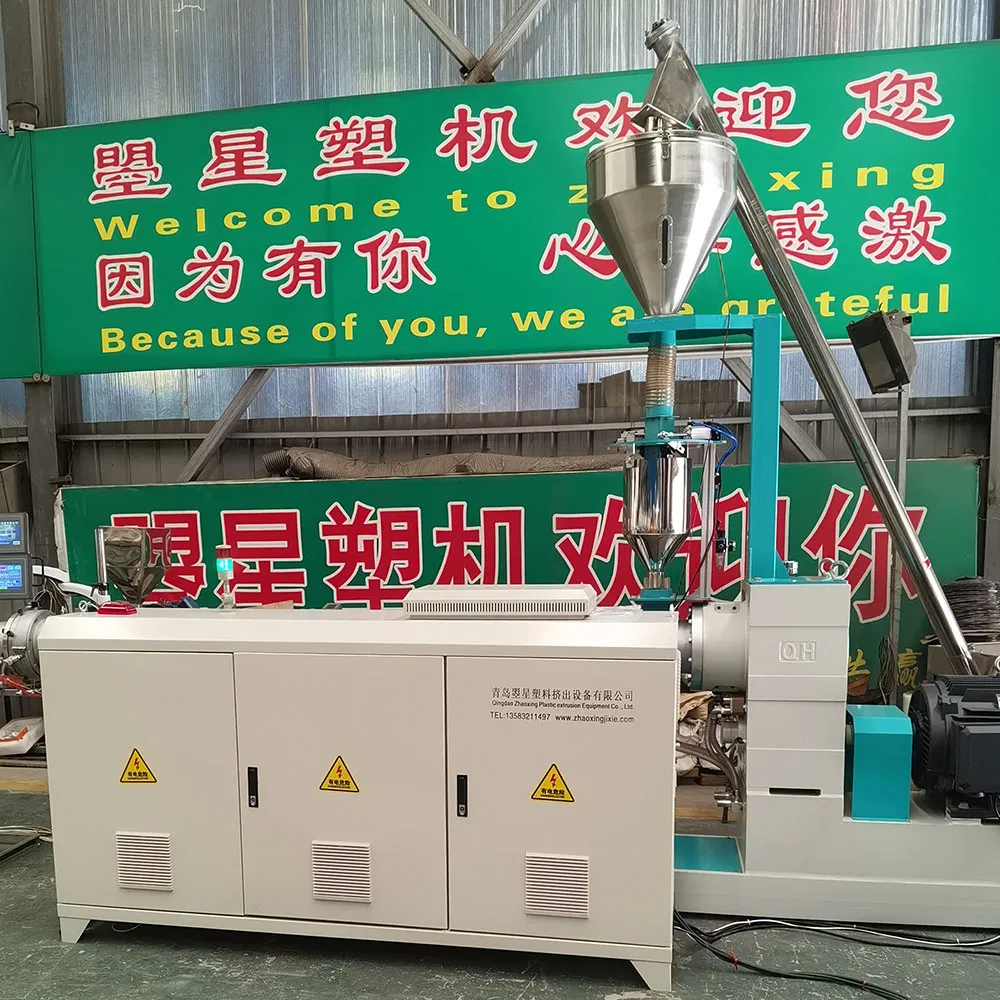

2High efficiency single screw extruder1 set

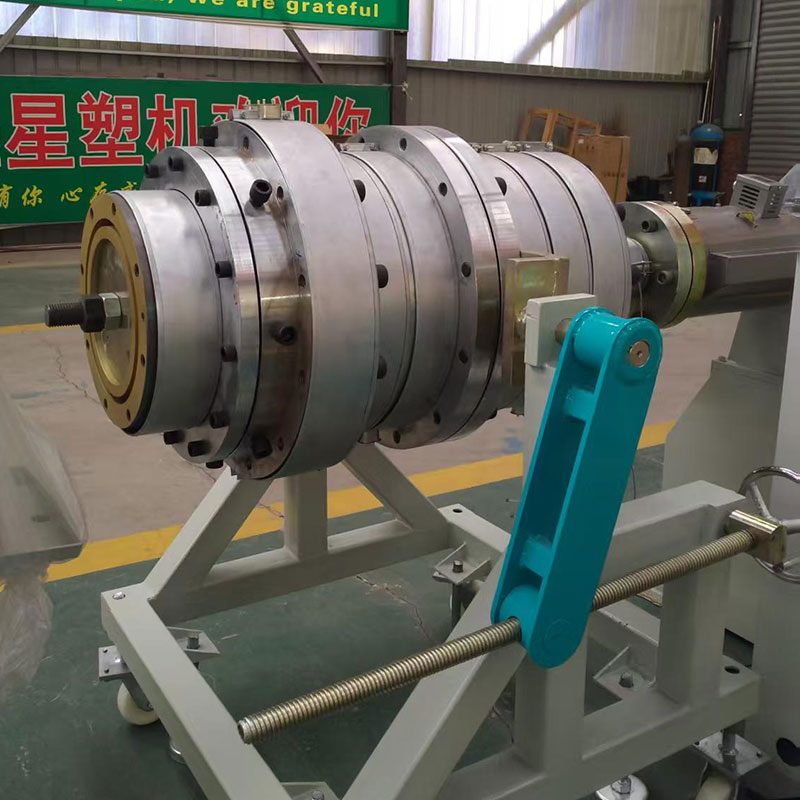

3Pipe die head16-630mm

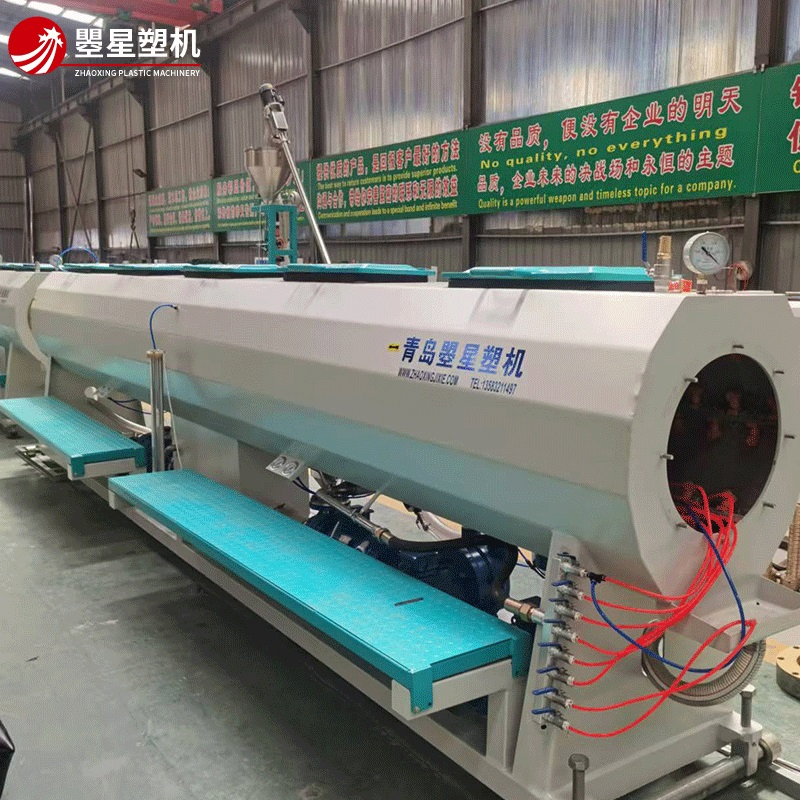

4Vacuum calibrating tank1 set or more

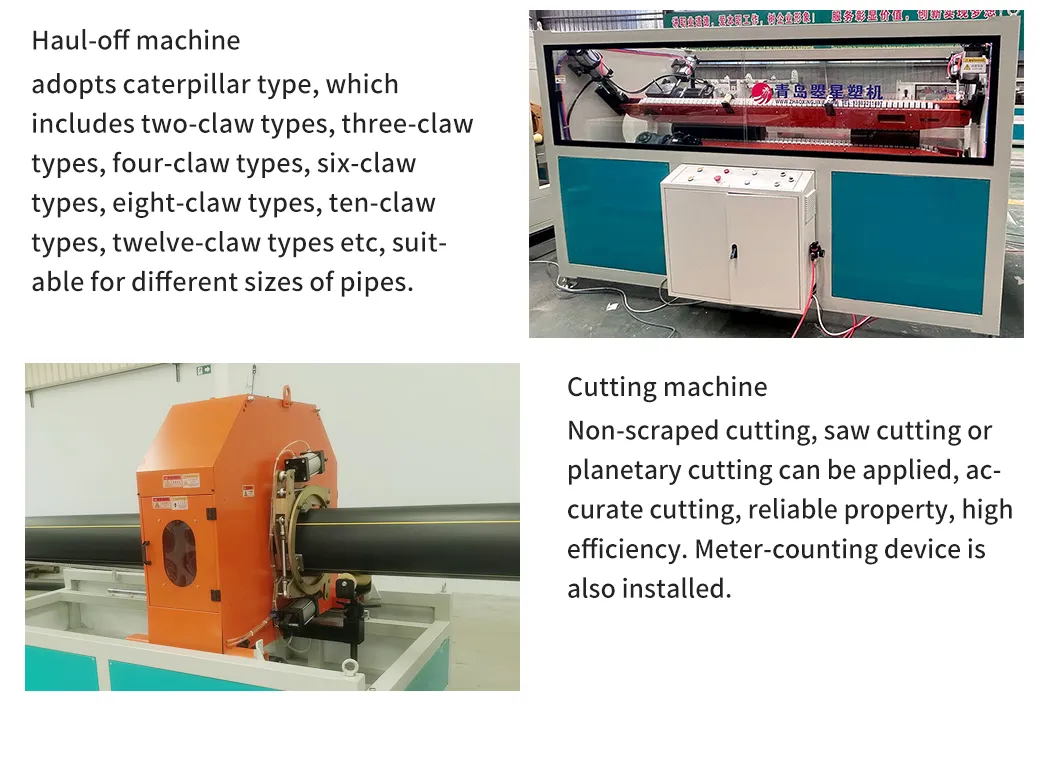

5Hauling off machine (2-12 caterpillars)1 set

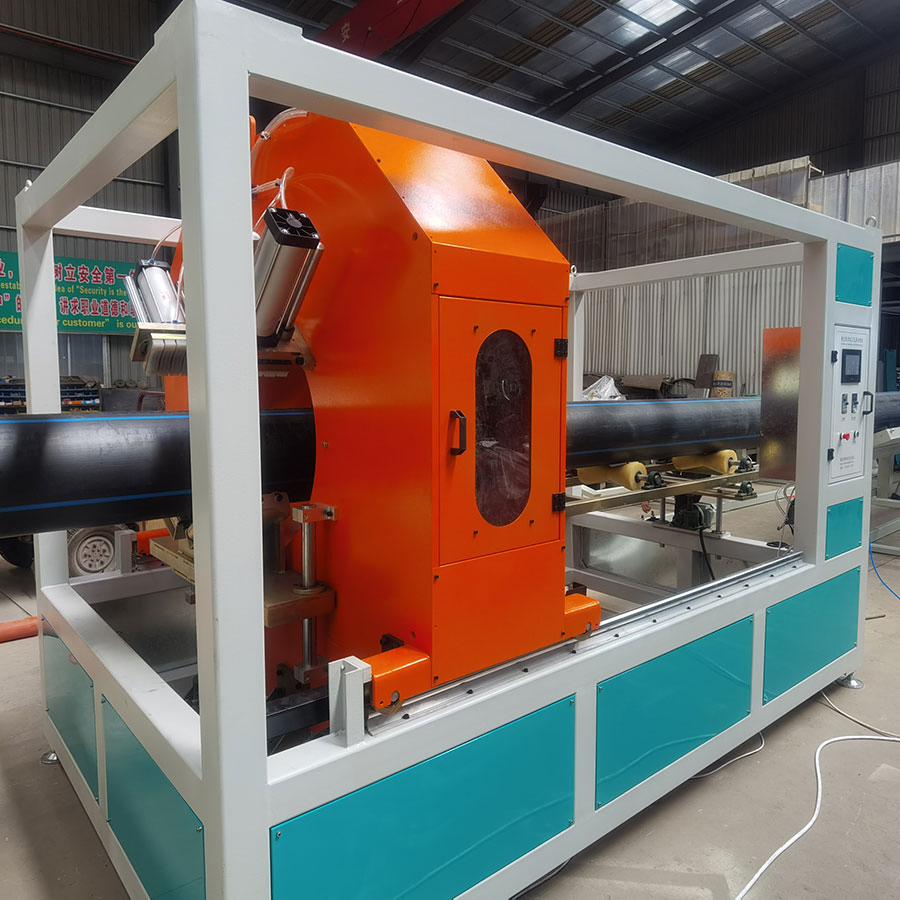

6Planetary cutting machine1 set
7Electrical cabinet (ABB, Omron, Schneider)1 set
Optional Items
8Industrial water chiller1 set
9Air compressor1 set
10Ink jet printer1 set

Service & Delivery

Payment TermsT/T, 30% Deposit, 70% balanced paid before Shipping
Delivery Time60 days after receipt of Deposit
PackingWooden cases/pallets with stretching films
Warranty18 months for mechanical parts, 12 months for electrical parts
InstallationEngineering support for installation and worker training is available

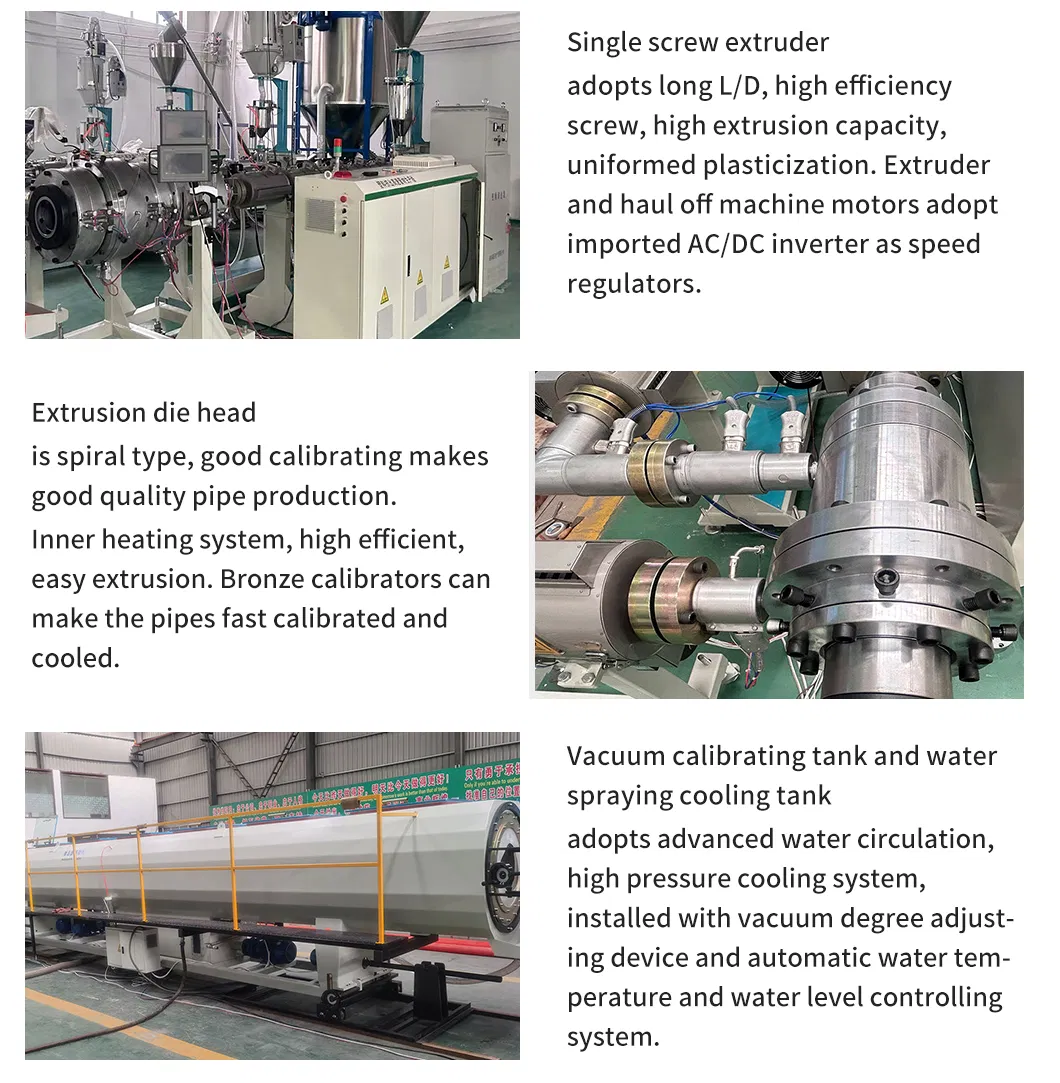

Machine View 1
Machine View 2

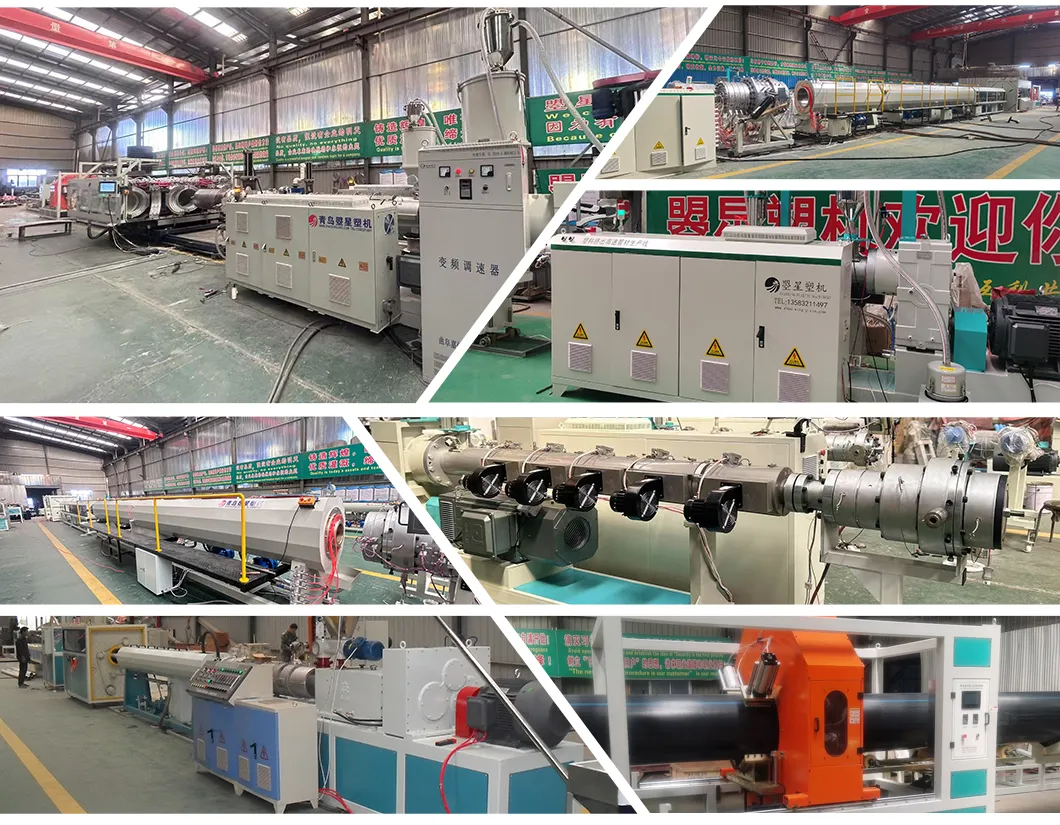

Machine View 3
Machine View 4
Production Detail 1
Production Detail 2

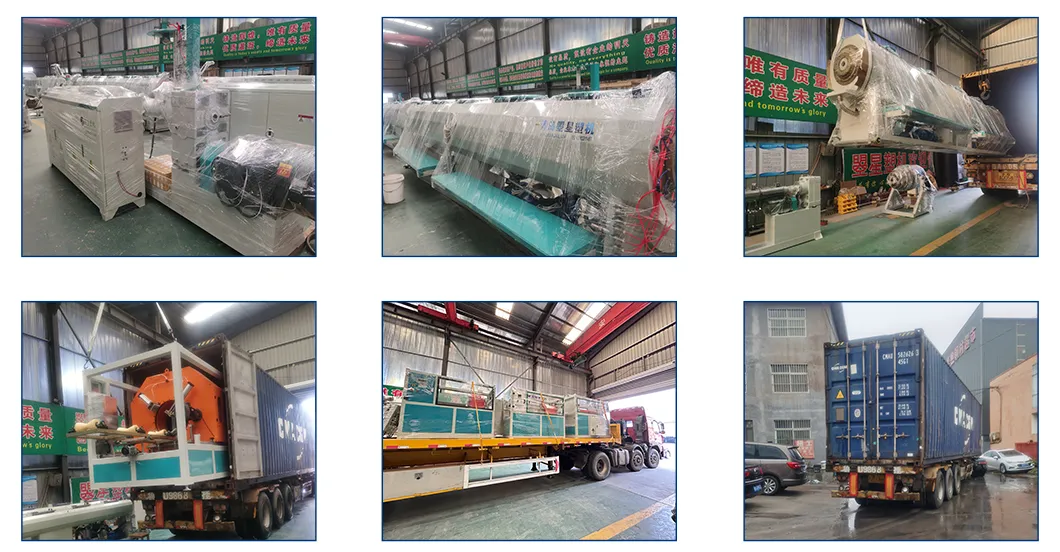

Production Detail 3
Final Product
Factory Overview

Frequently Asked Questions

What materials can this production line process?
The line is designed to process various polyethylene materials, including HDPE, LDPE, and MDPE, for high-quality thermoplastic pipe manufacturing.
What range of pipe diameters can be produced?
Depending on the model and die head configuration, the production range spans from 20mm up to 630mm in diameter.
What is the maximum output capacity of the line?
The high-speed single screw extruder models can achieve a maximum production capacity of up to 800kg/h.
Which electrical brands are used in the control system?
We use high-quality international brands for electrical components, including ABB inverters, Omron, RKC, and Schneider parts.
What is the warranty period for this equipment?
We provide a guaranteed period of 18 months for mechanical parts and 12 months for electrical components from the date of delivery.
Does the machine provide chip-free cutting?
Yes, the line is equipped with a new type of chip-free cutting or planetary cutting machine to ensure clean and precise pipe ends.
