| Model NO. | PTCS80 100 120 130 150 180 |
|---|---|
| Raw Material | PE |
| Screw | Single-Screw |
| Automation | Automatic |
| Certification | CE, ISO9001:2008 |

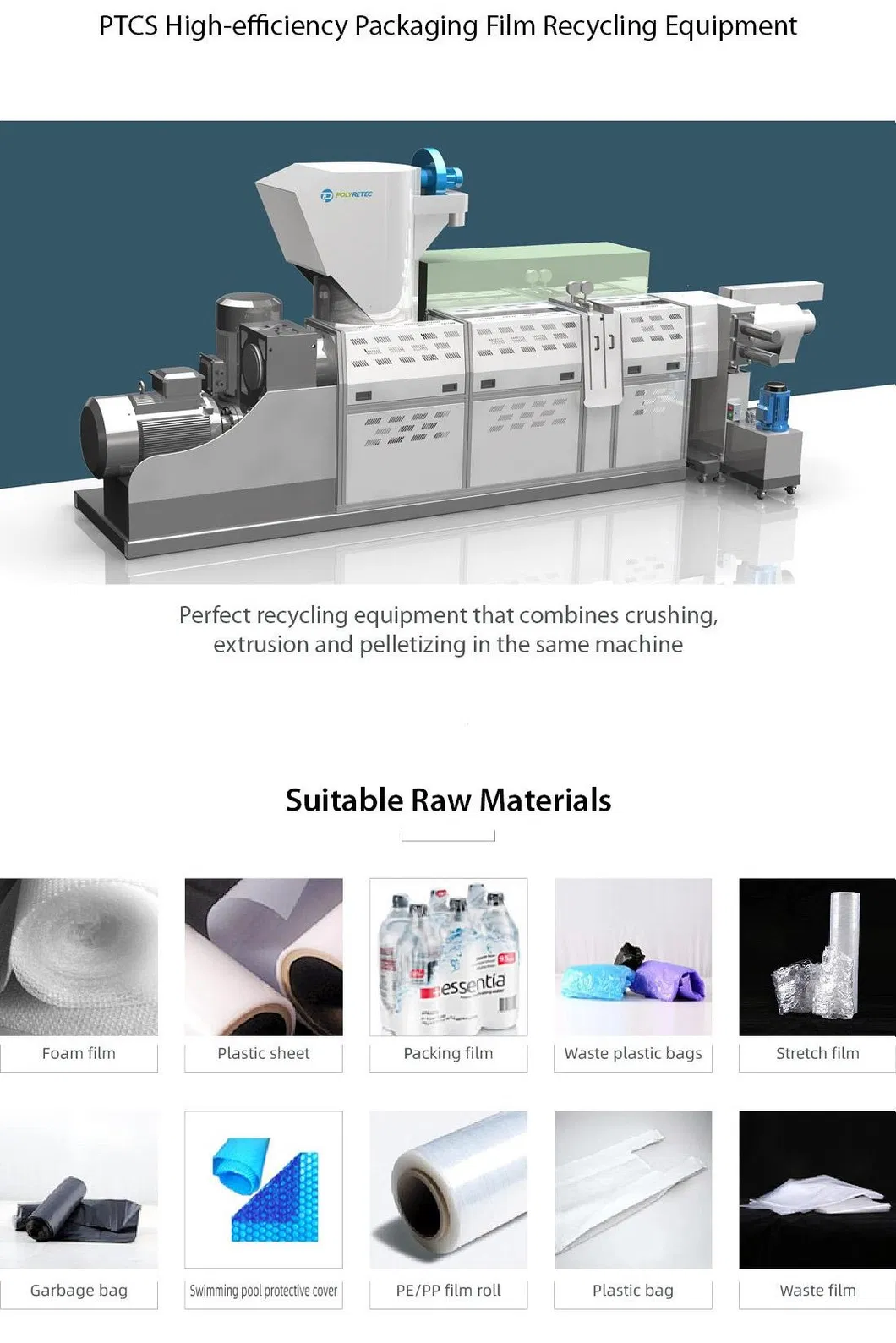

| Suitable to Recycle | PE PP Film, Agricultural Film, Greenhouse Film |

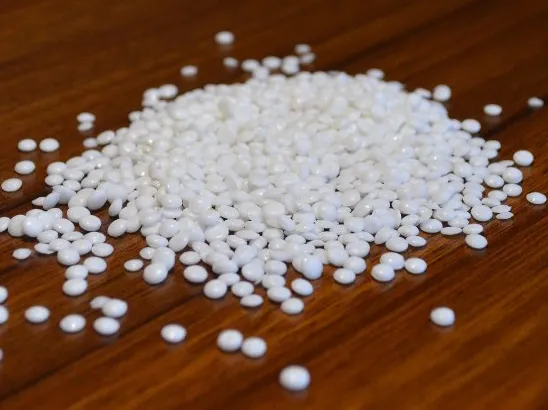

| End Product | Low Moisture, Good Compactness Pellets |
| Motor | Siemens or Wnm |
| Electrical Appliance | Siemens |
| Power Supply | 380/415/480V 50/60Hz (Customized) |
| Specification | Min. 200kg/h - Max. 1000kg/h |

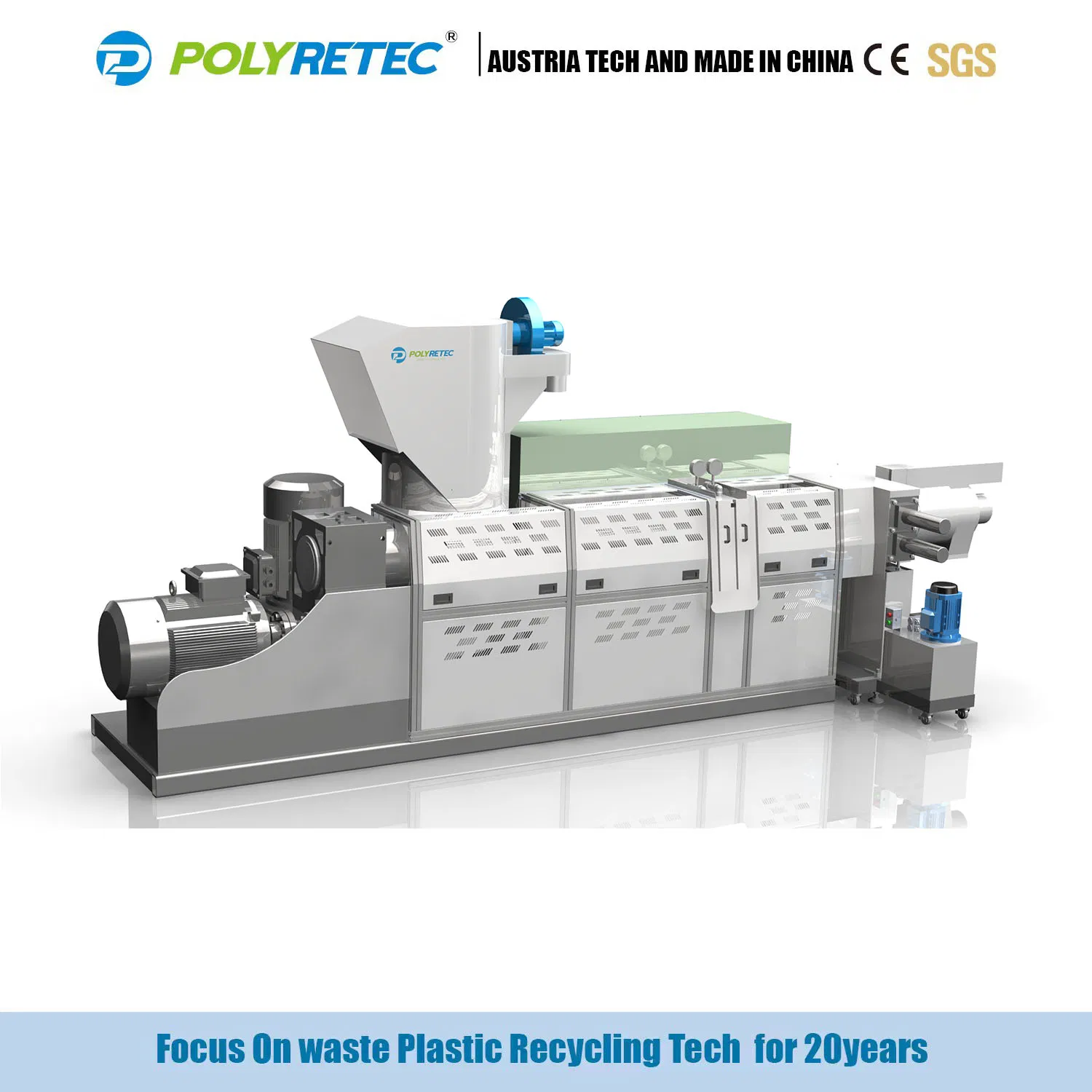

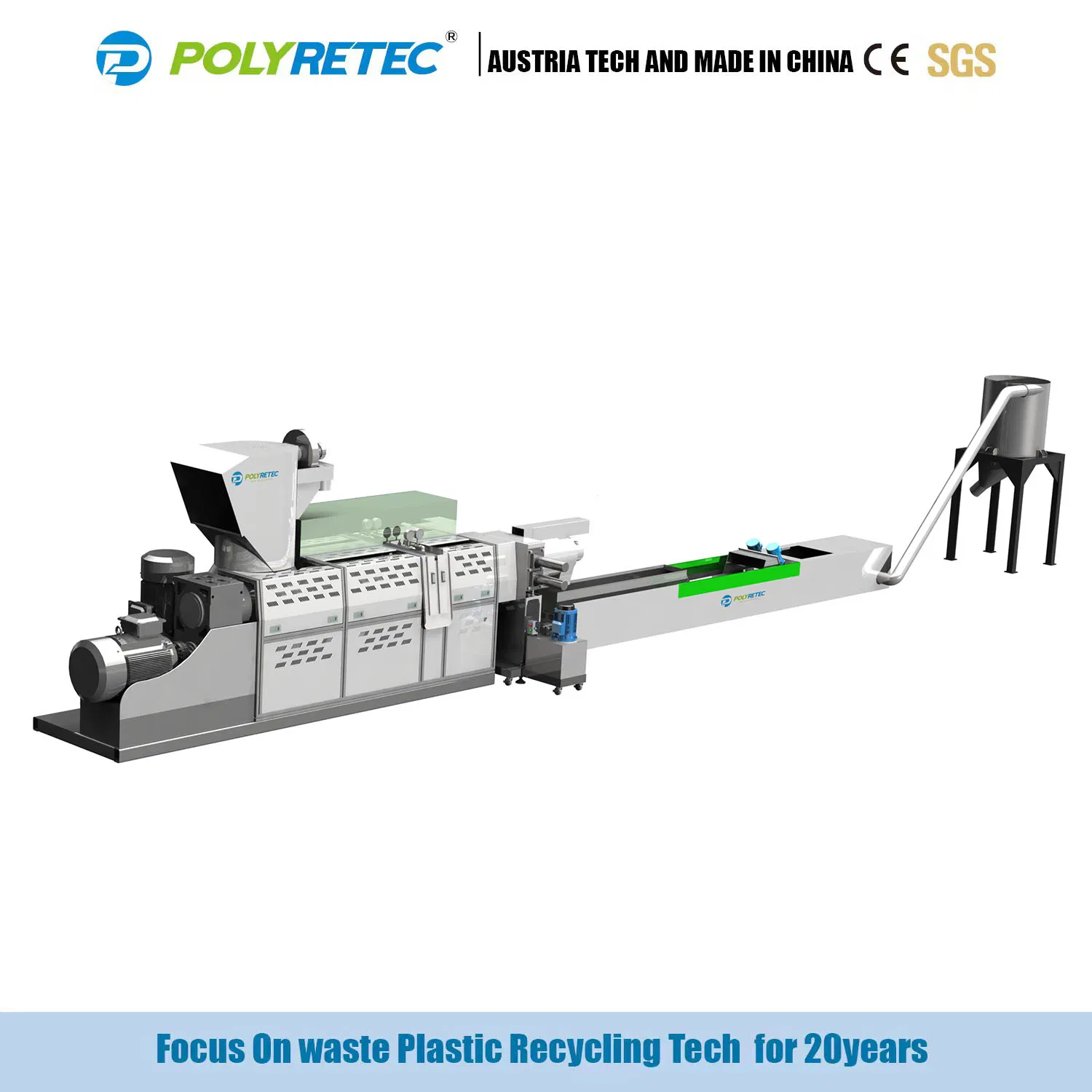

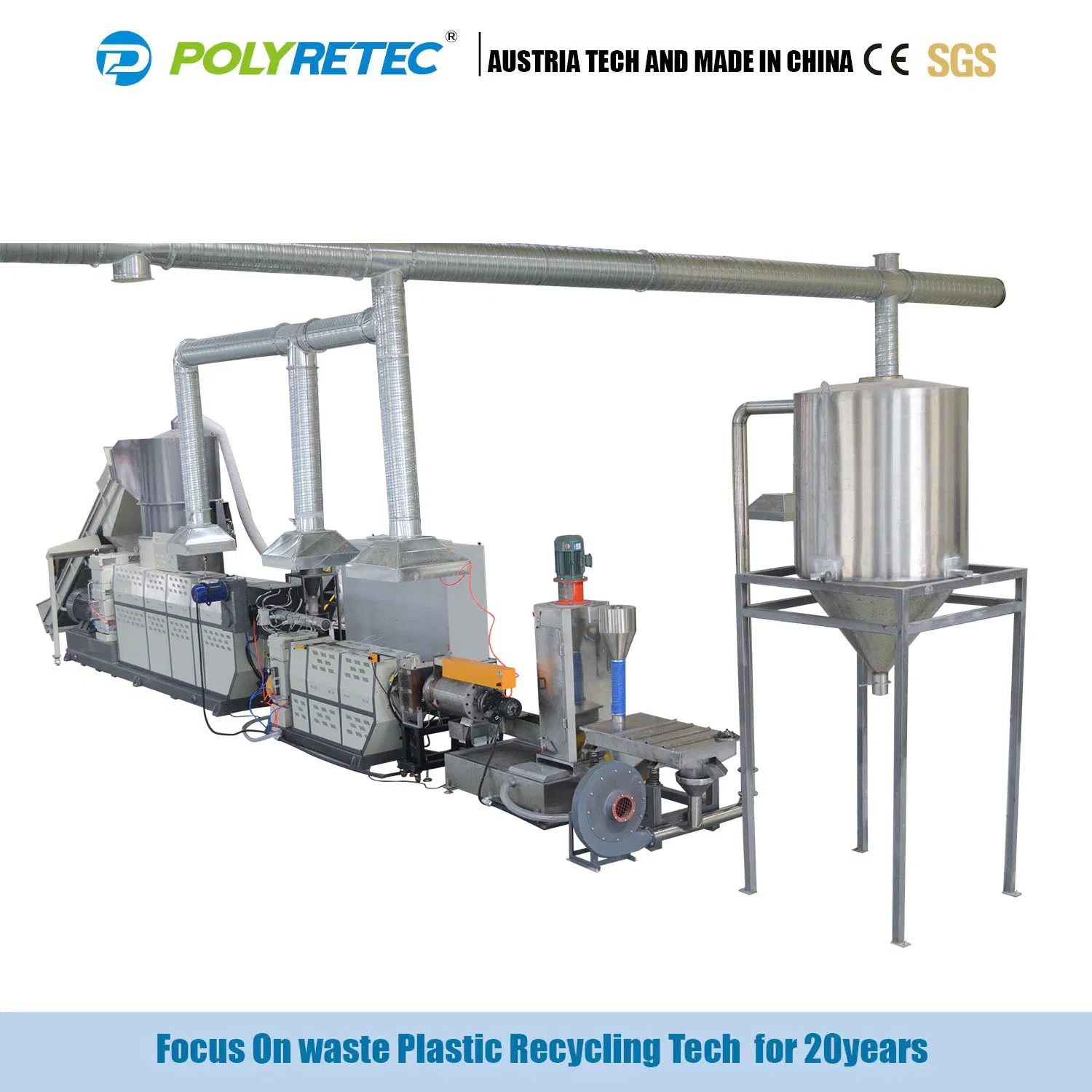

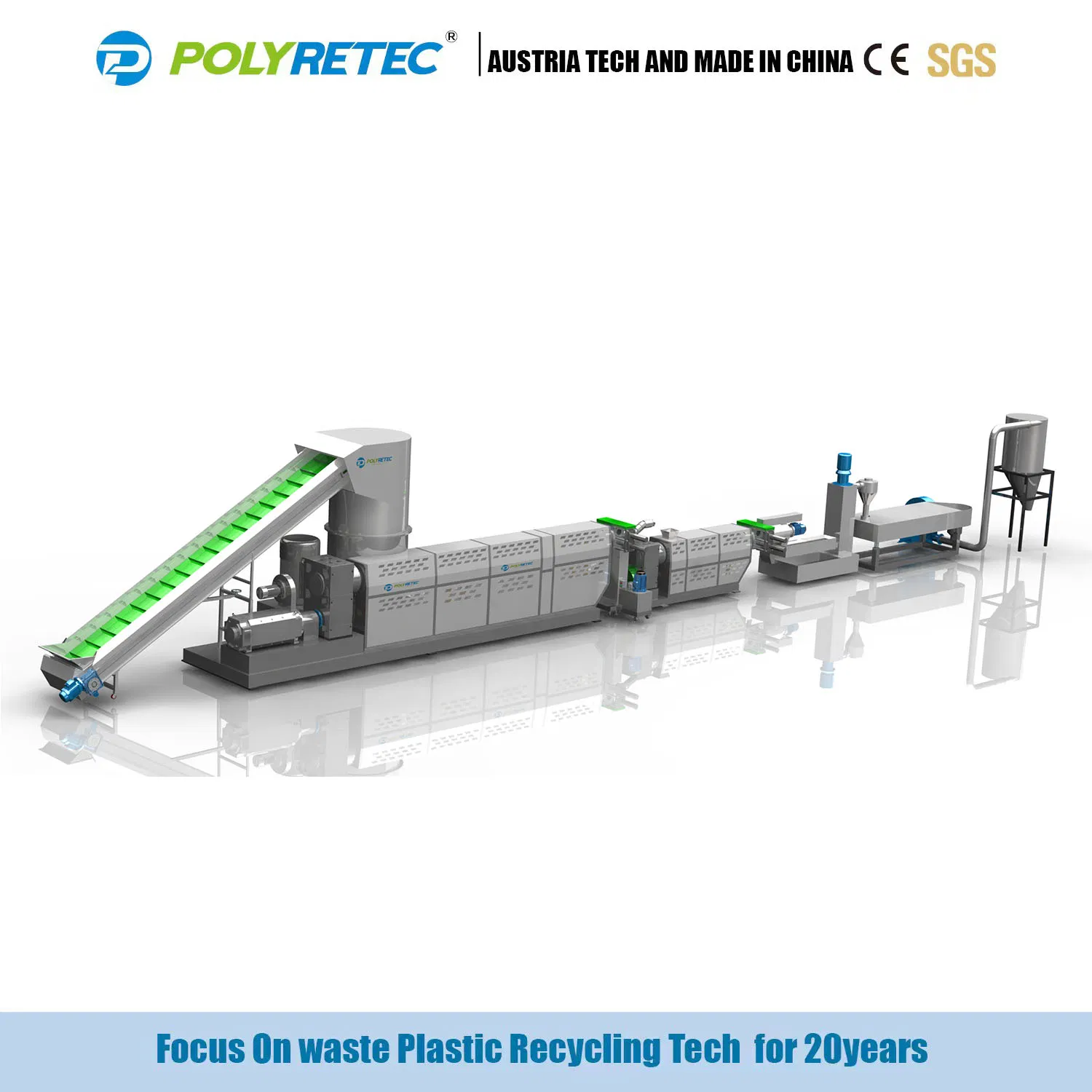

PE HDPE LDPE LLDPE Film/Bag, PP/BOPP Film Pelletizing Recycling Machine Line
This turn-key recycling system is designed for industrial waste from production lines (e.g., film/bag/sheet making machines, unused heavy printed film/bag), as well as clean dry plastic film, agricultural film, greenhouse film, and tobacco film from washing lines.
| Model | PTCS80 | PTCS100 | PTCS130 | PTCS150 | PTCS185 |
|---|---|---|---|---|---|
| Screw diameter (mm) | 80 | 100 | 130 | 150 | 185 |
| L/D | 18-42 | ||||
| Rotating speed (rpm) | 10-150 | ||||
| Output (KG/h) | 150-250 | 200-350 | 450-600 | 600-700 | 800-1200 |

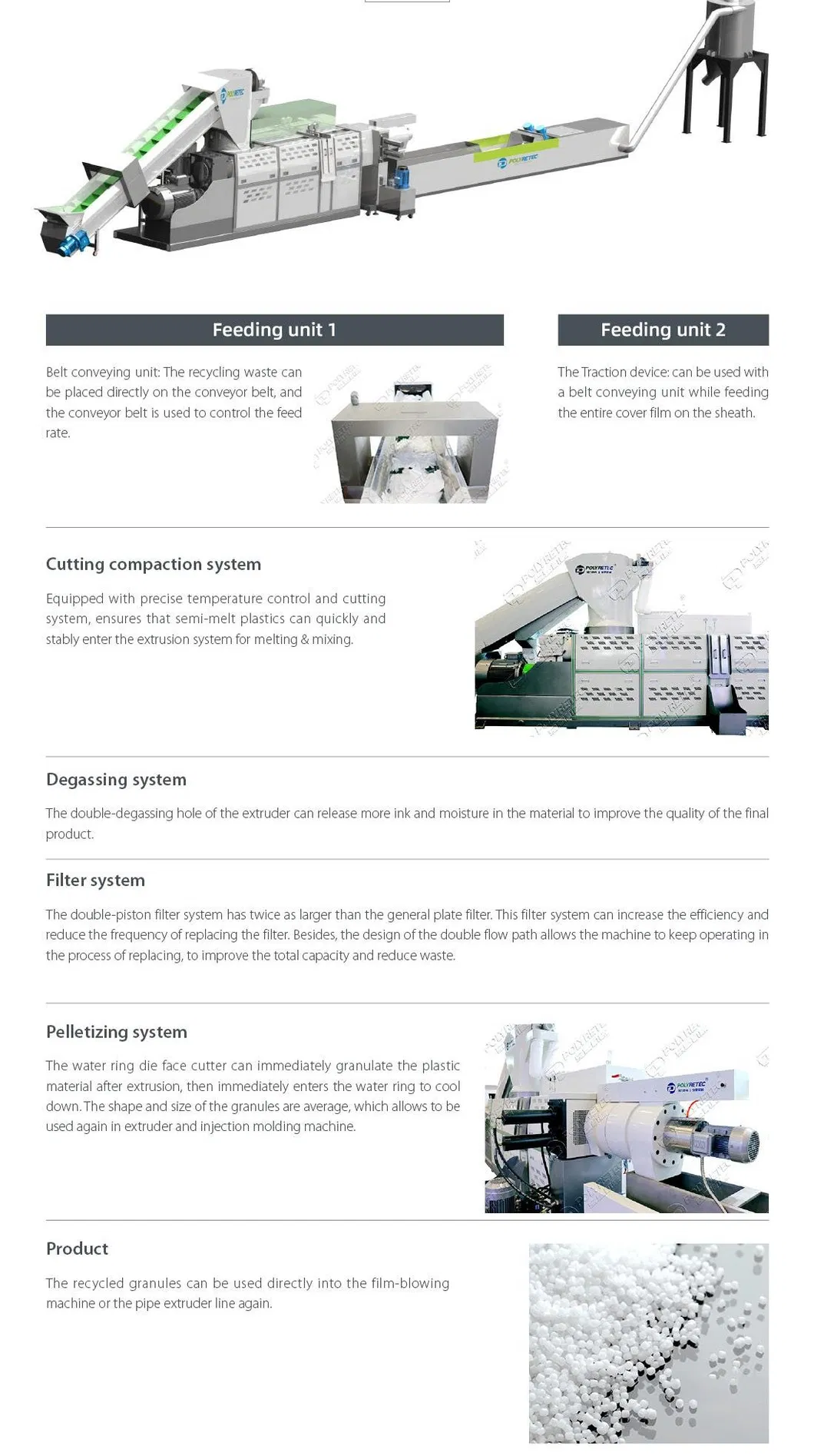

| Structure | Conveyor belt, crusher/compactor, extruder, pelletizing unit, water cooling unit, drying unit, storage drum, degassing unit, filter unit |
|---|---|
| Recyclable Materials | HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, etc. |
| Feeding System | Belt conveyor, clamp wheel set (optional) |
| Filtering System | Double-cylinder filtration |

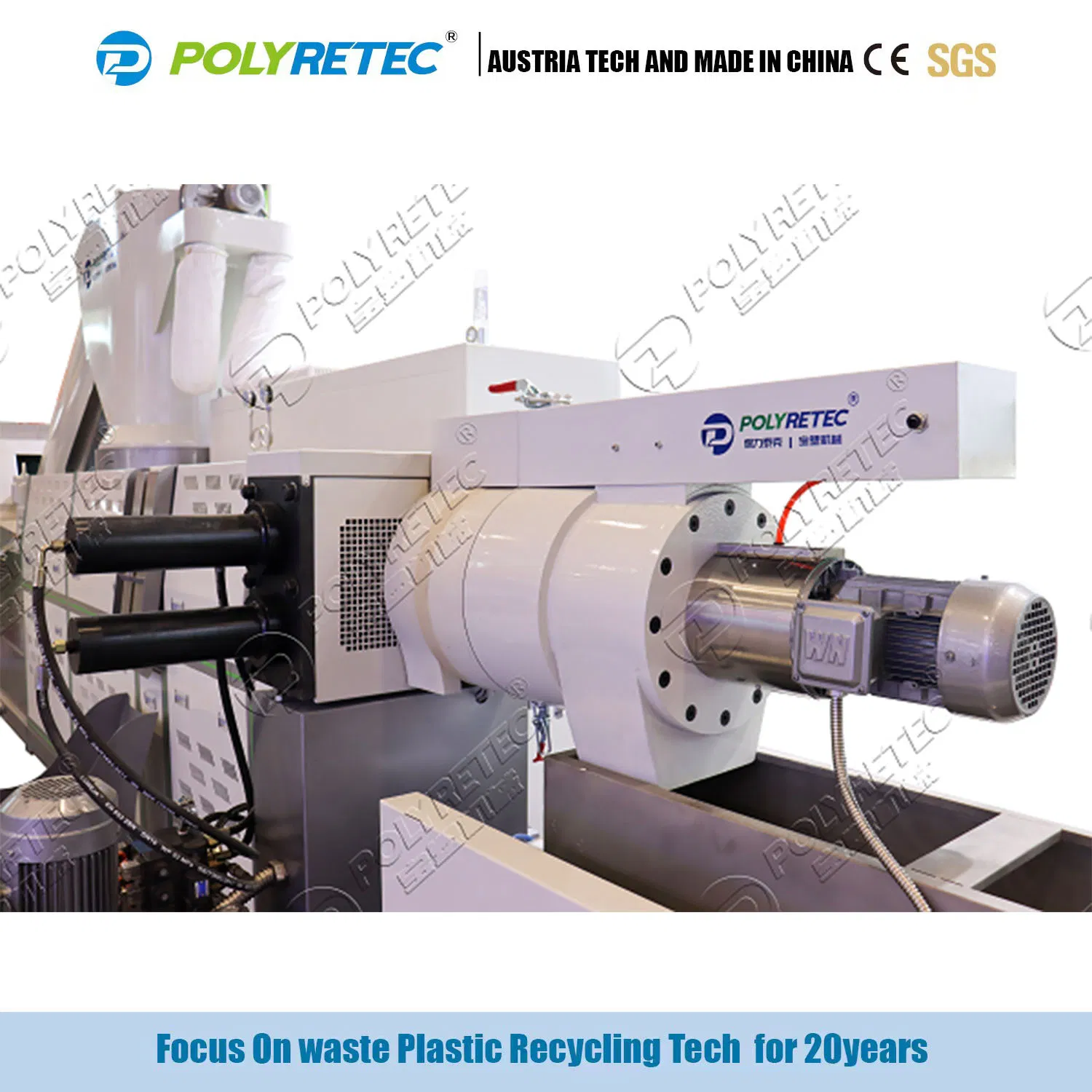

| Pellet Type | Hot die-cutting type (water-ring cutting) |
| Cooling Method | Water cooling |
| Warranty | One year |

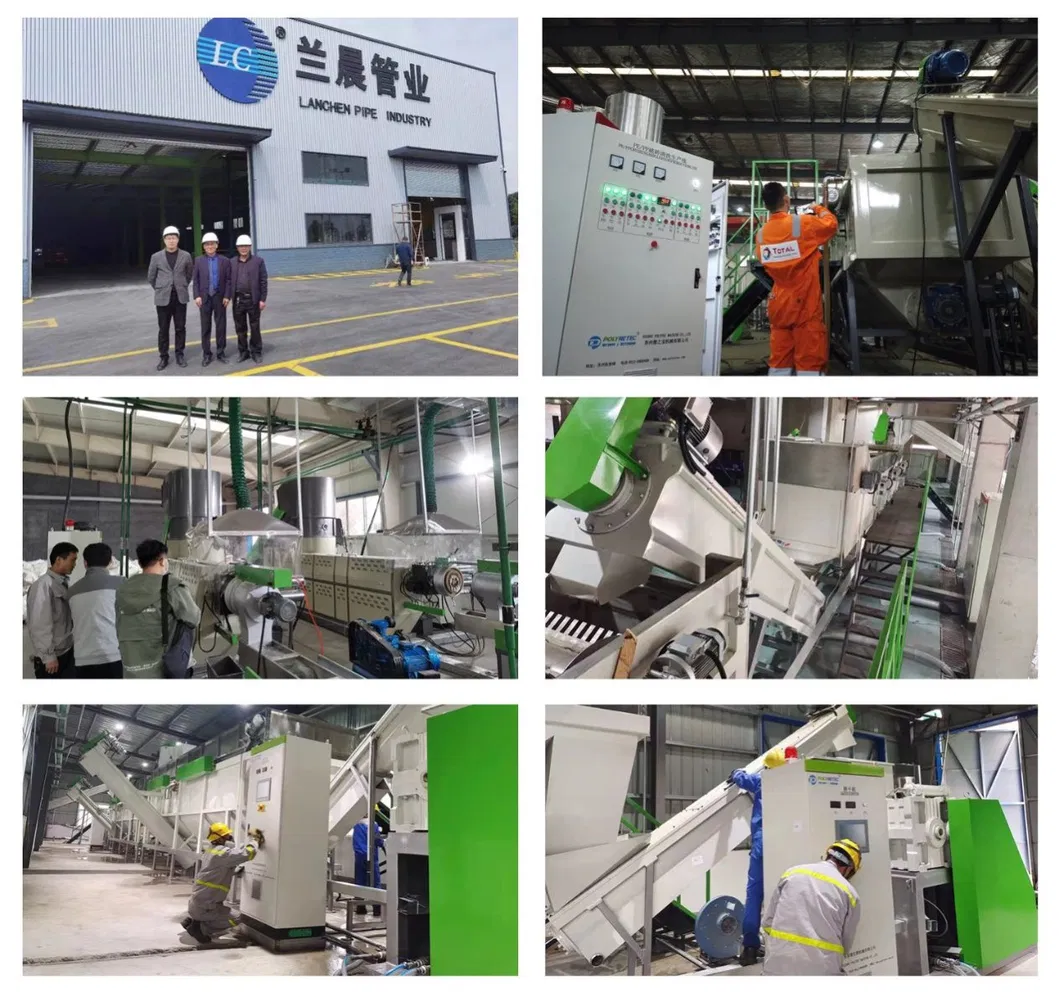

Guidance for machine installation and testing is provided to ensure normal operation. Our engineers offer on-site lessons to train operators at the buyer's facility. Support includes visa application assistance and technical guidance throughout the setup process.
