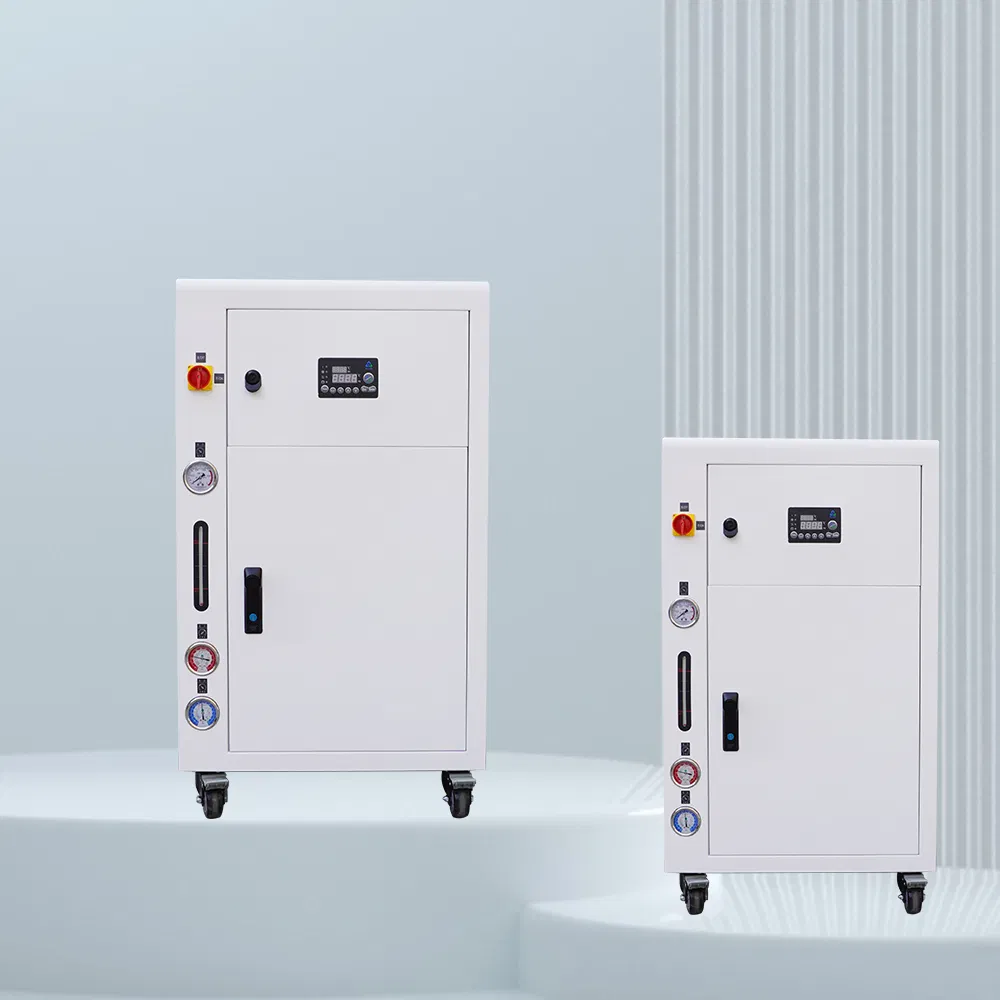

K Series chiller is specially designed for laser machine cooling, featuring double pumps and double temperature control systems. The main loop ensures efficient laser cooling, while the second loop can be set at a higher temperature for optical head cooling to prevent condensation on the optical head.
Mainly utilized in the laser industry, including laser cutting, laser welding, and laser cladding equipment.
| Type | Model | Temp. Stability (ºC) | Temp. Range (ºC) | Cooling Capacity (W) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Dimensions WxDxH (mm) |
|---|---|---|---|---|---|---|---|---|
| Room Temp High Stability | K1s | ±0.2 | 5-35 | 1200 | 25 | 1.7 | 8 | 360x475x655 |
| K2s | ±0.2 | 5-35 | 1900 | 25 | 1.7 | 12 | 430x540x720 | |
| K3s | ±0.2 | 5-35 | 2600 | 40 | 2.5 | 20 | 500x605x812 | |
| K4s | ±0.2 | 5-35 | 3600 | 40 | 3.4 | 30 | 540x705x922 | |
| Low Temp to -20ºC | K1s-20 | ±0.2 | -20-35 | 900 | 15 | 1.7 | 8 | 360x475x655 |
| K2s-20 | ±0.2 | -20-35 | 1600 | 25 | 1.7 | 12 | 430x540x720 | |
| K3s-20 | ±0.2 | -20-35 | 2200 | 40 | 2.5 | 20 | 500x605x812 | |
| Dual Temp Chiller | K2t | ±0.2 | 5-35 | 1600 | 5 | 4.5 | 18 | 430x540x720 |
| K3t | ±0.2 | 5-35 | 2400 | 20 | 3.5 | 24 | 500x605x812 |
The double temperature system is designed to provide efficient cooling for the laser via the main loop, while the second loop maintains a higher temperature specifically for the optical head to prevent condensation damage.
The chillers utilize stainless steel for the reservoir and pipe fittings. Other pipelines use PPR or corrosion-resistant materials to prevent rust and maintain water purity.

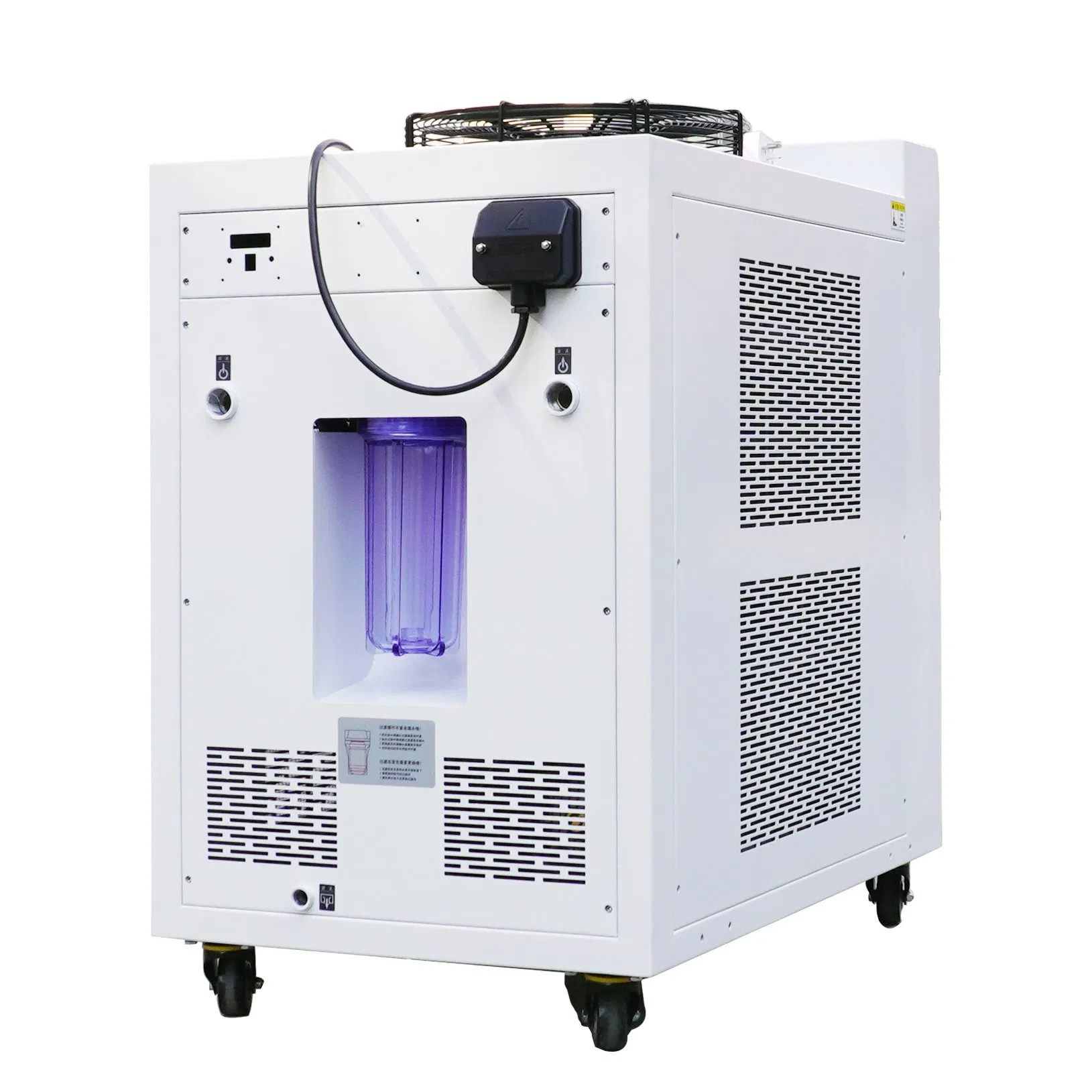

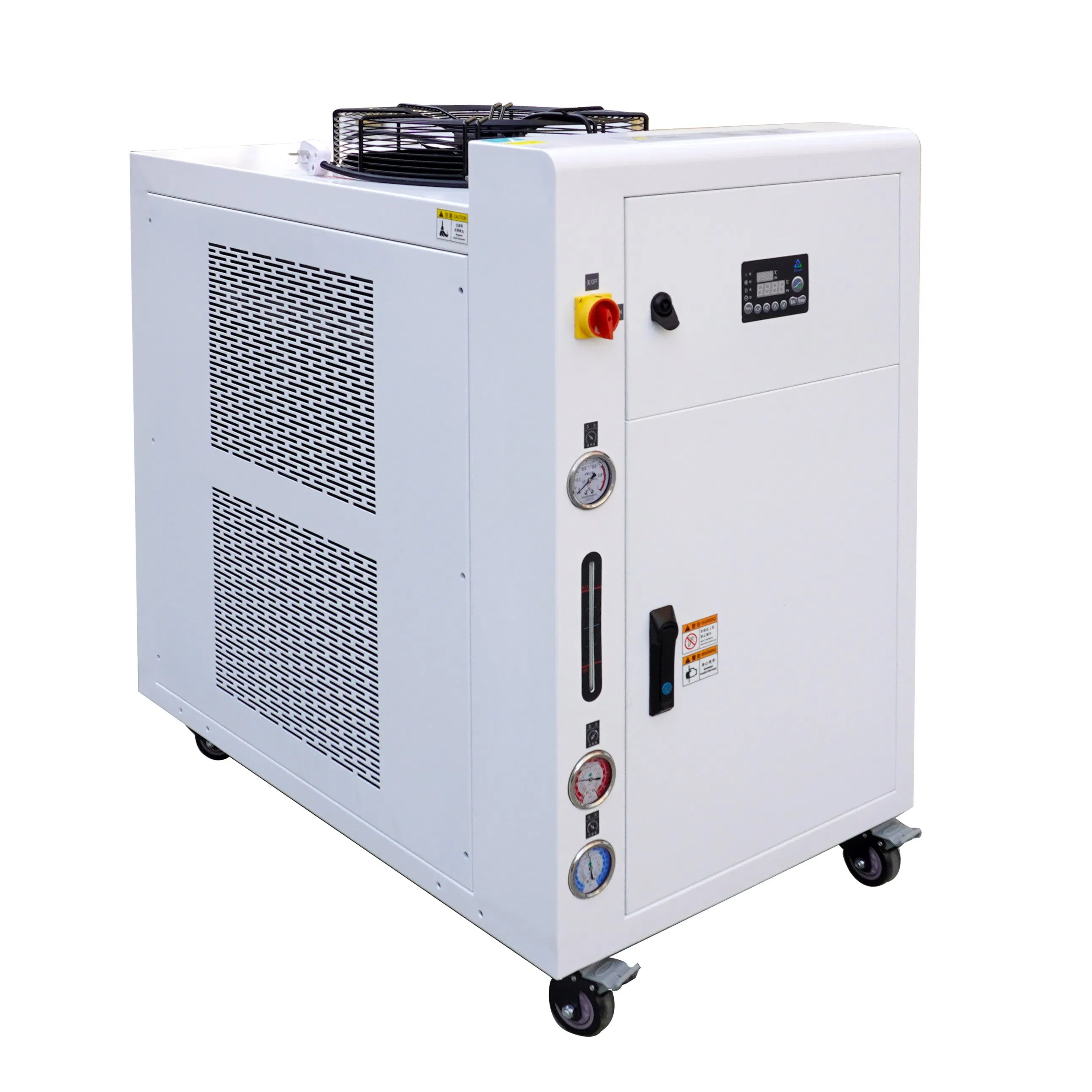

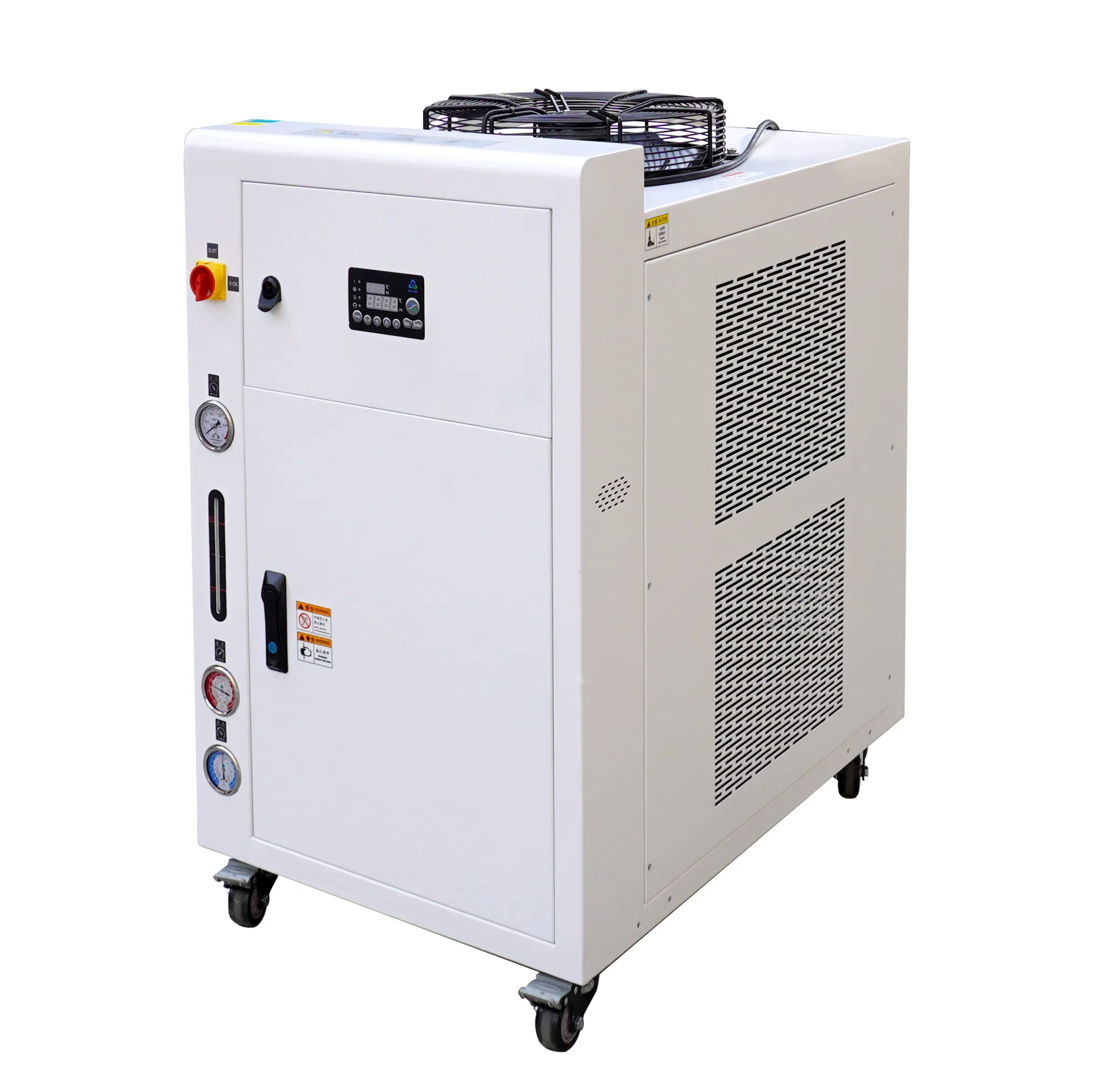

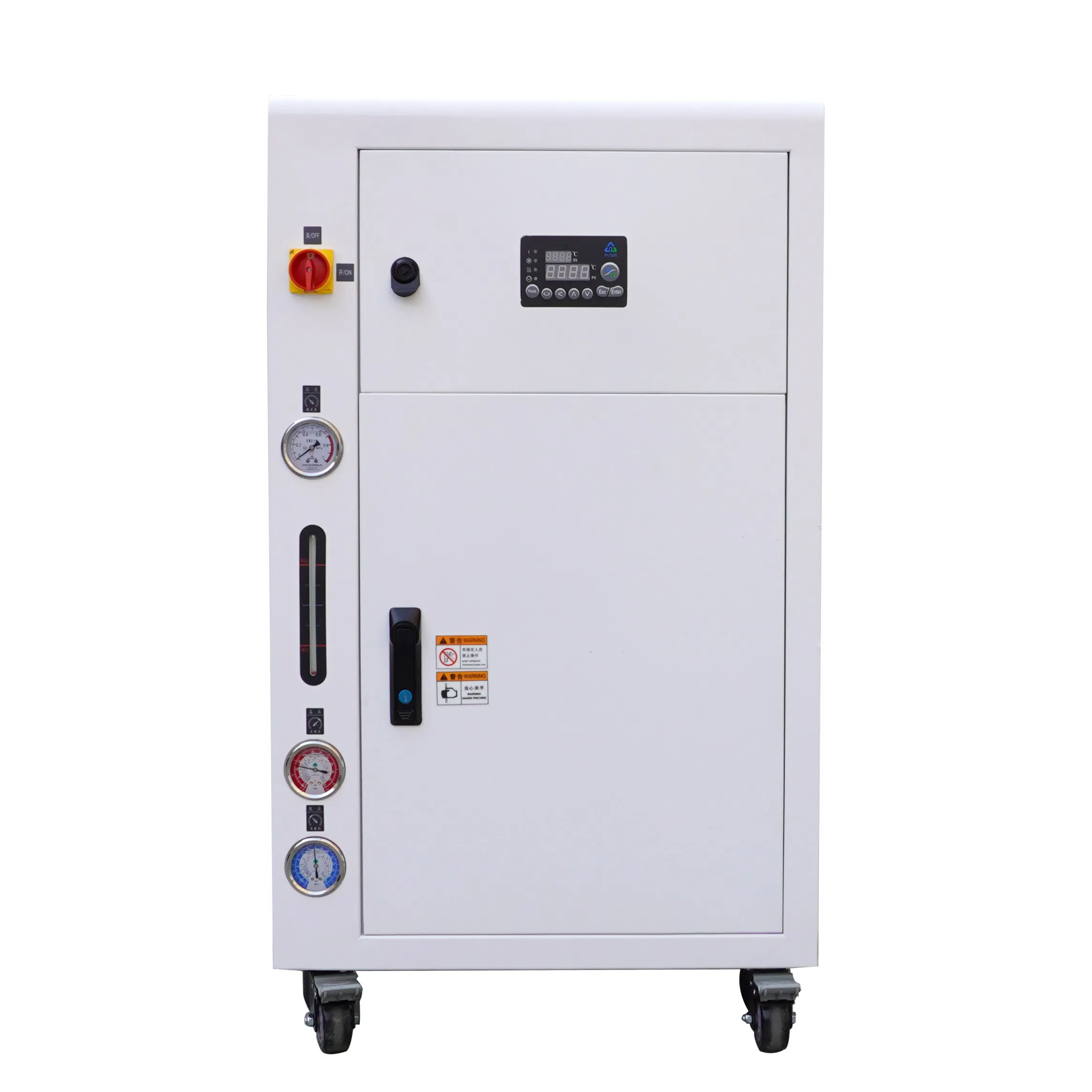

The units are equipped with a special water filter, a water pressure gauge, and a visible water level indicator, allowing operators to easily observe water quality, pressure, and levels.
They are widely used in the laser industry for applications such as laser cutting, welding, and cladding equipment.

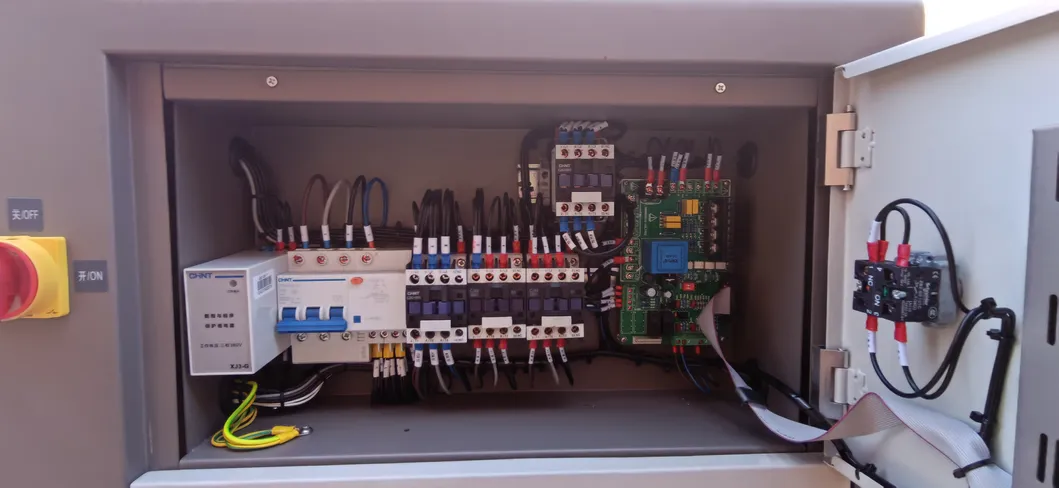

Yes, the system includes multiple safeguards such as compressor high temperature protection, delay protection, and over-current protection, along with phase sequence protection.
The K Series high stability models offer temperature stability of ±0.2ºC or ±0.5ºC depending on the specific model requirements.
