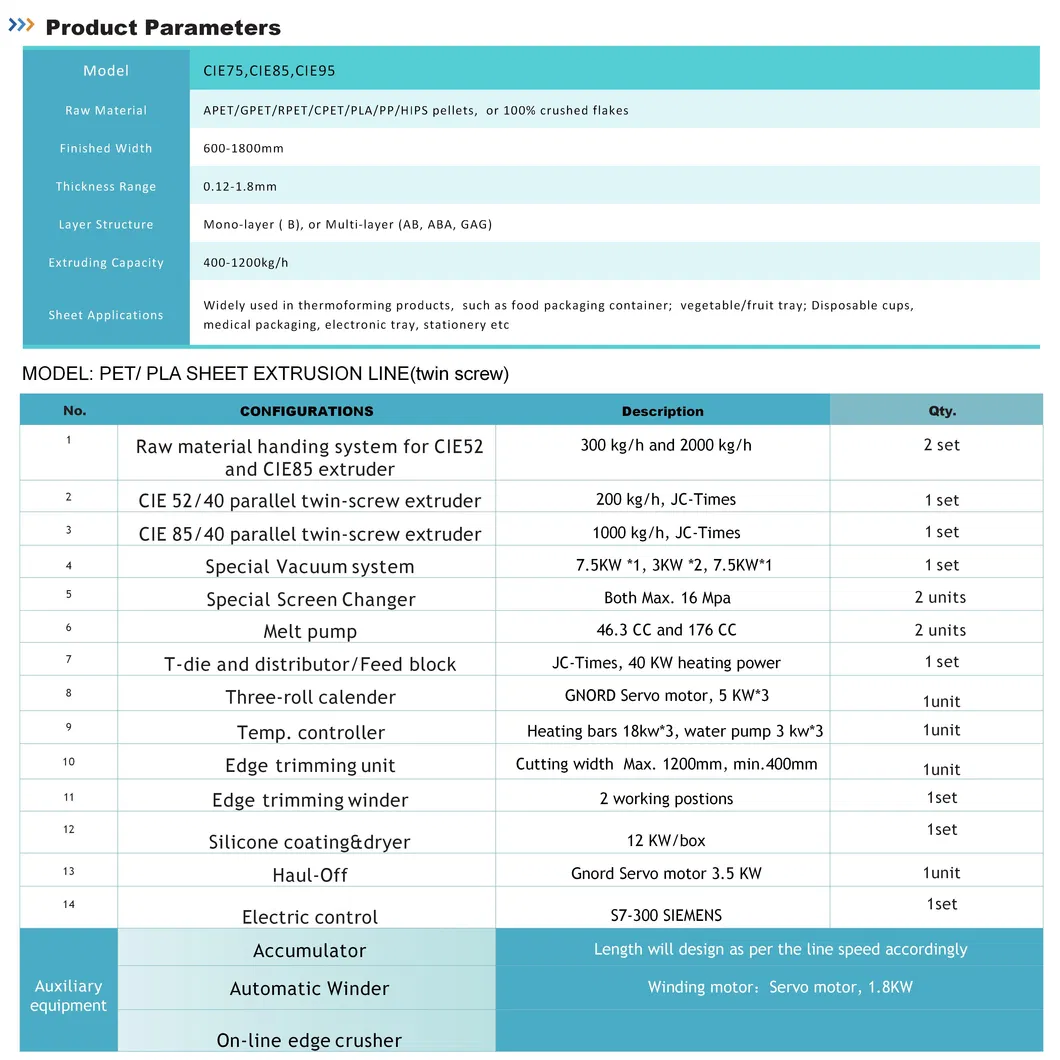

Model NO.CIE85

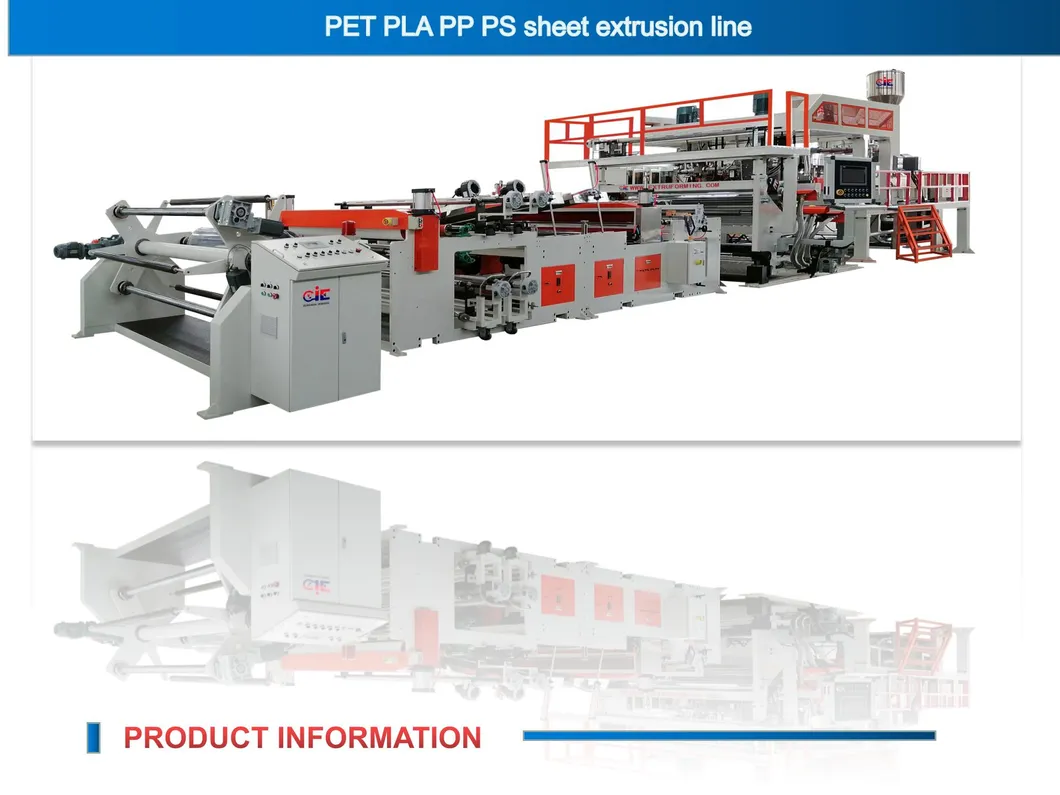

TypeSheet Extruder
Plastic ProcessedPP, PET, PS, PE, PLA
ScrewTwin-Screw (Full Intermeshing)
Feeding ModeMultiple Feed
AutomationAutomatic
Control SystemSiemens PLC Touch Screen
T-Die BrandJc-Times
Motor of ExtruderAC Motor, 200 Kw
Screw Speed400 Rpm
Vacuum Vents4 Vents
Capacity50 Lines Per Year
✔ Fully considers PET production process combined with advanced extruder technology.
✔ European advanced vacuum system for screw and barrel design.
✔ No need for crystallize and dehumidify-dryer.
✔ Universal design for 100% PET flakes or virgin + flakes mixture; also suitable for PP, HIPS, PLA.

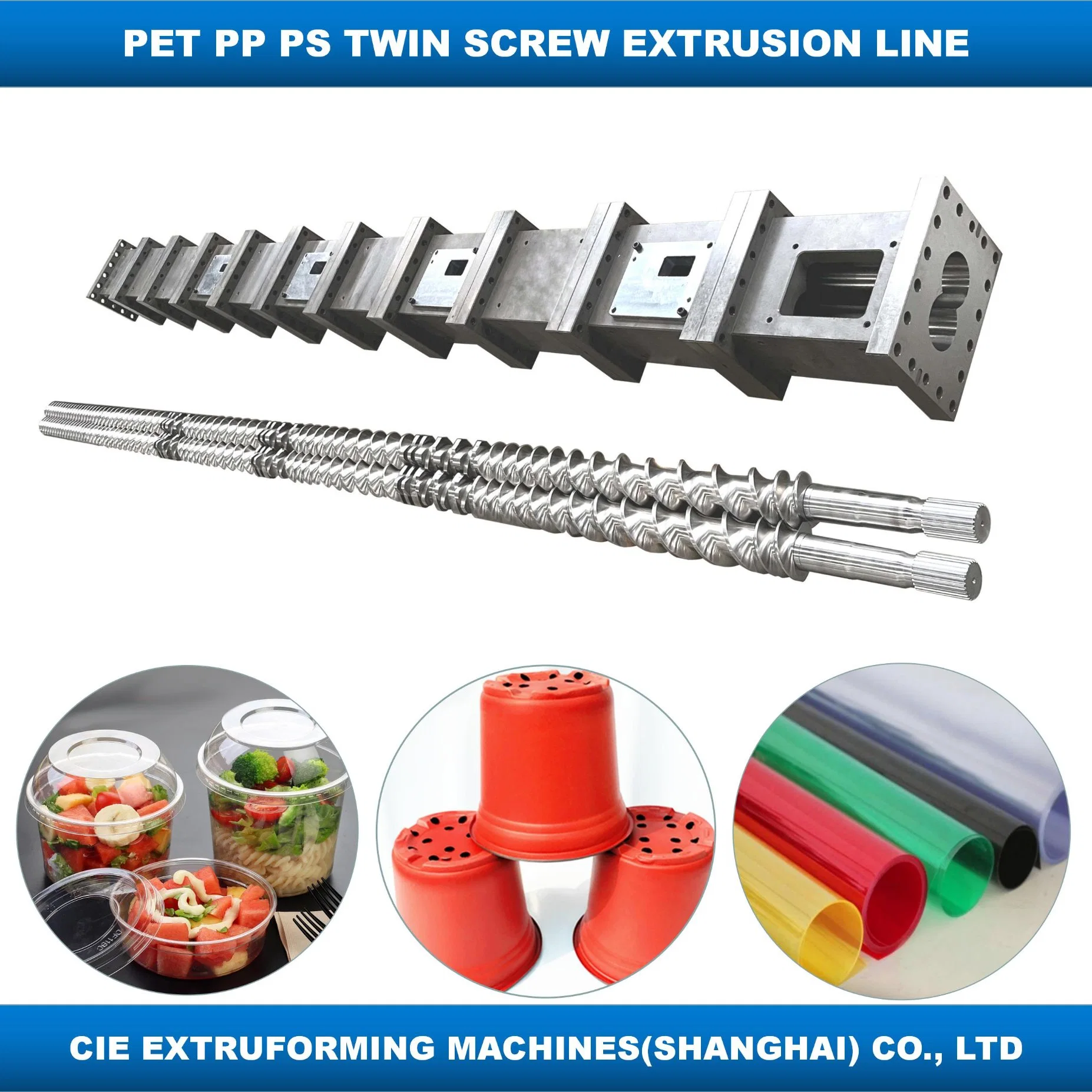

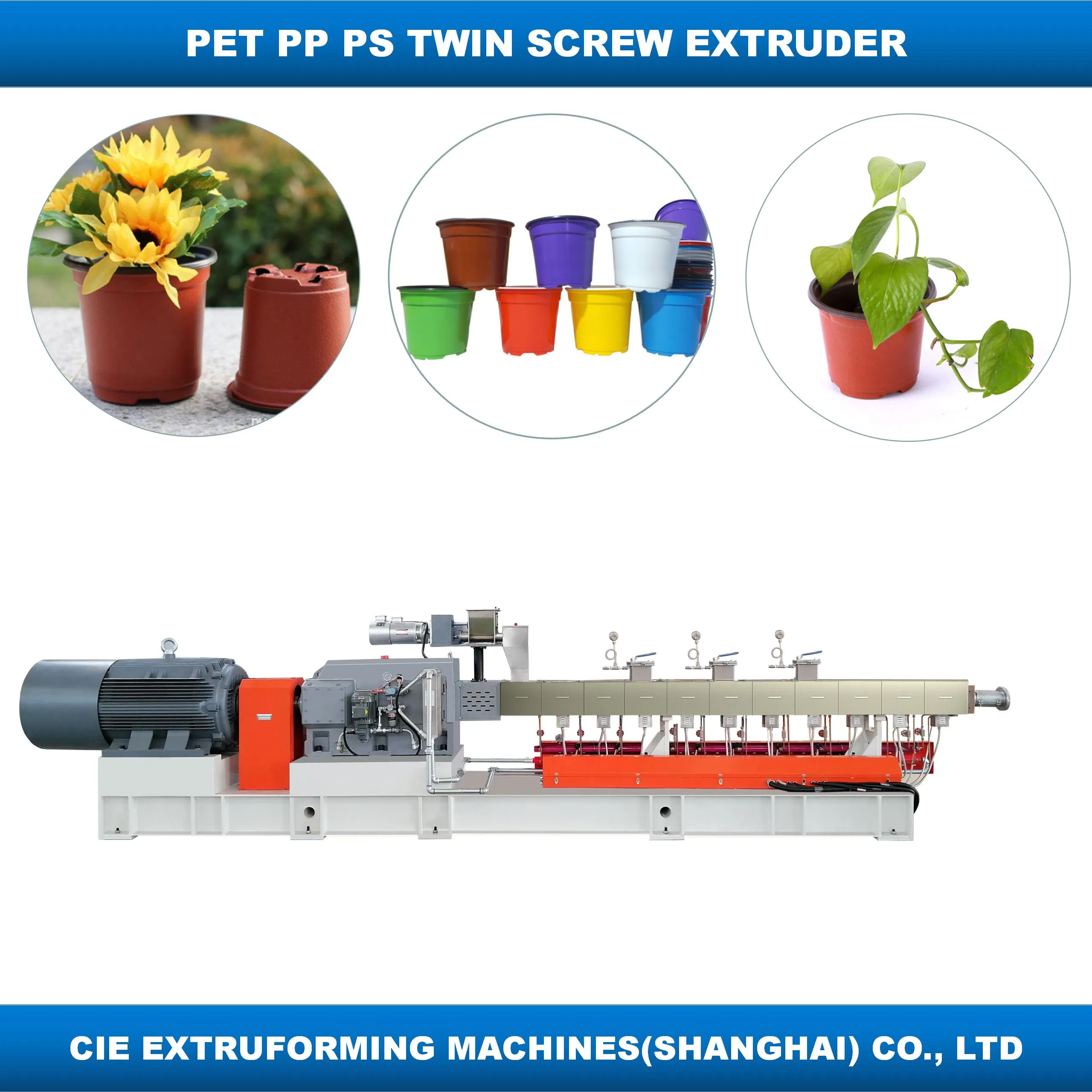

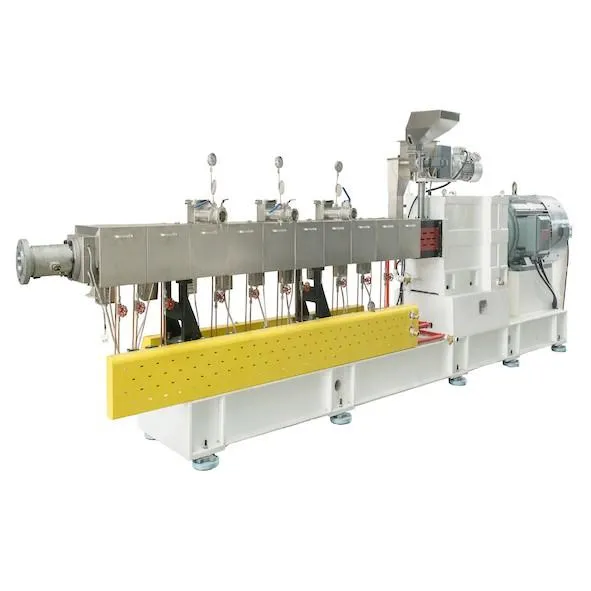

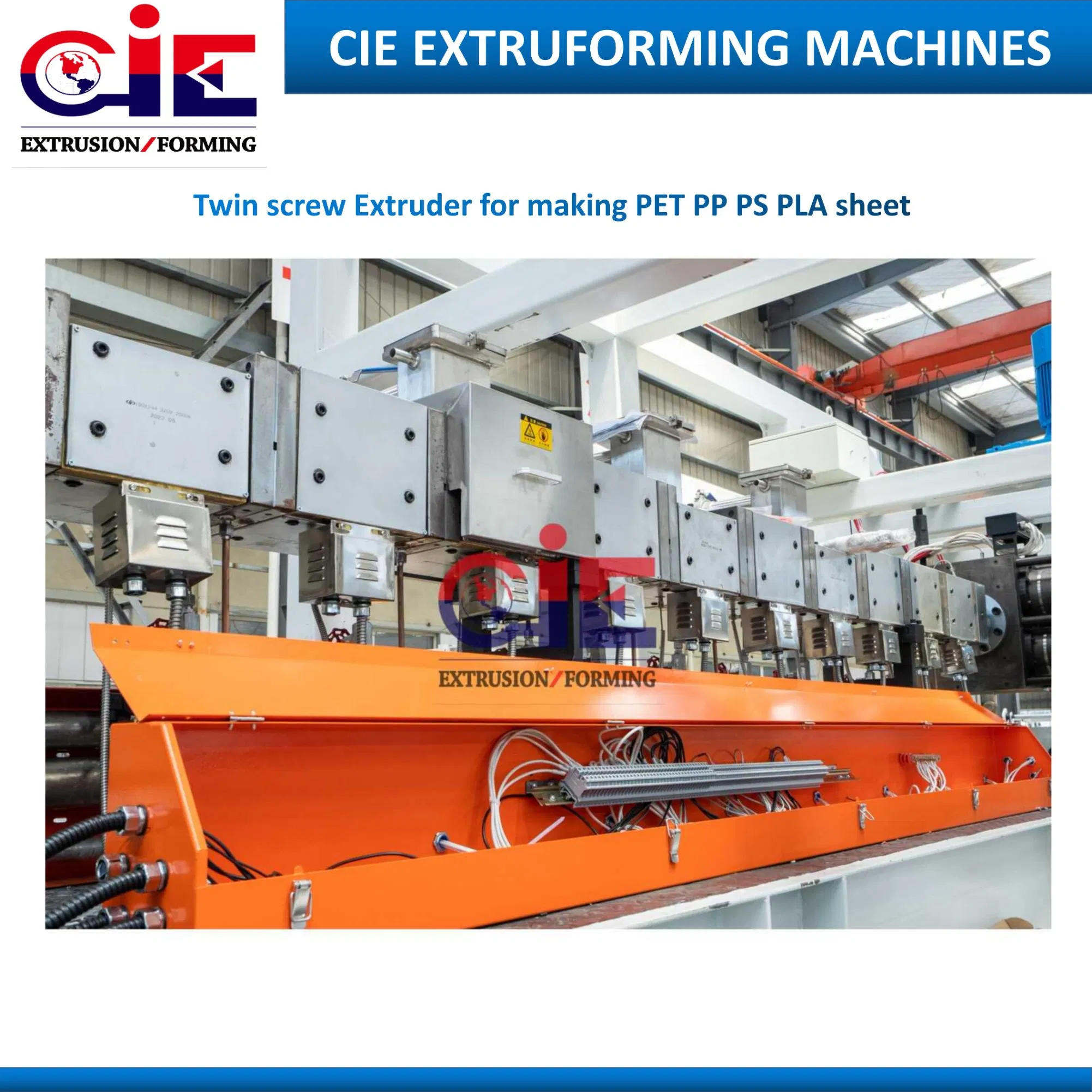

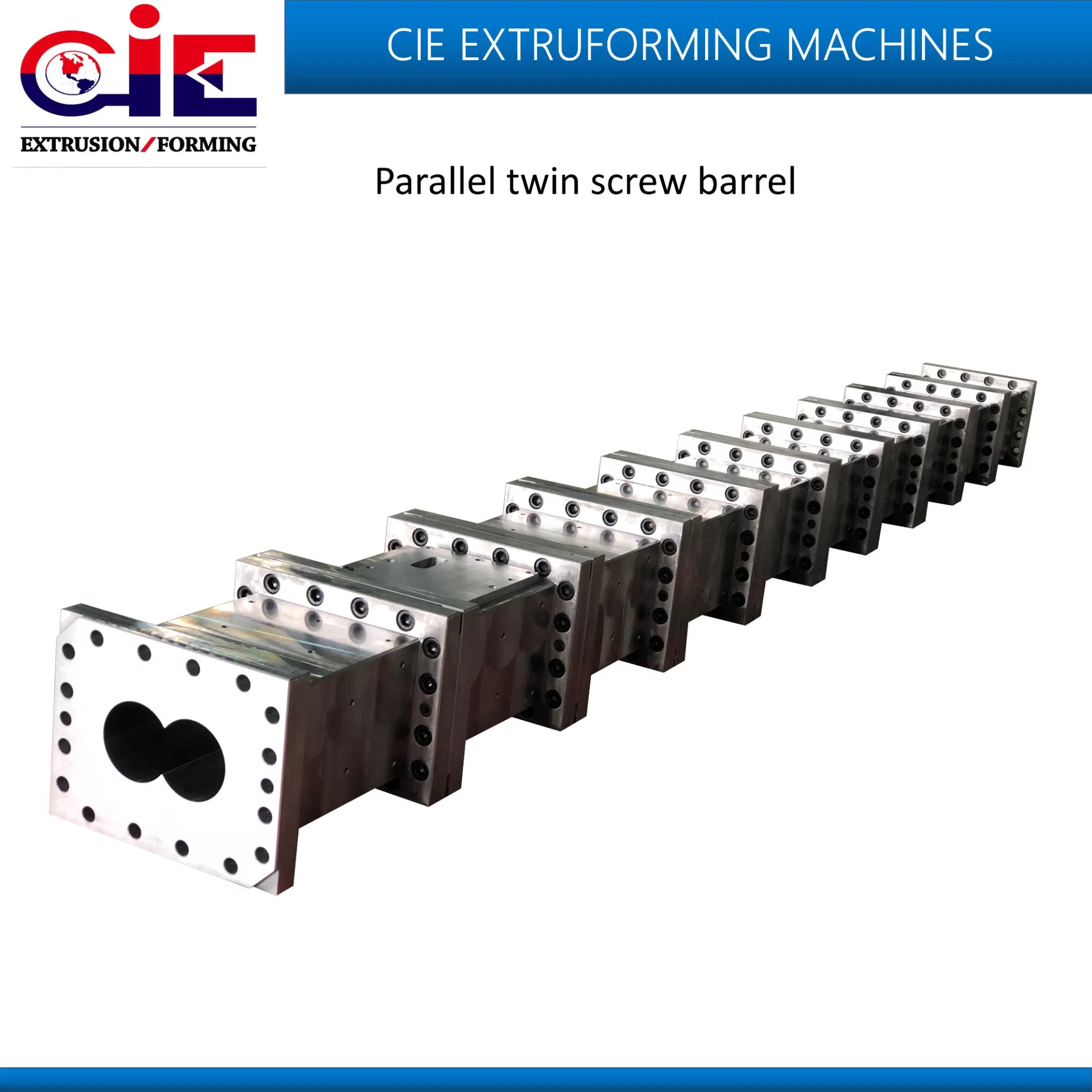

Extrusion Screws
• Special design of parallel twin-screw extruder.
• Elements screw design meets various material applications.
• Four vents of barrel matching European technology vacuum system.
• Universal design for multiple materials including PET, PP, HIPS, and PLA.

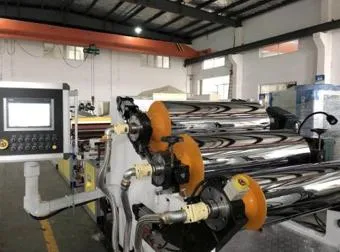

L-shape 3 roll Calender
• Fastest cooling and highest accuracy for PP/PS sheet production.
• Rolls stand standard: Vertical or Inclined.
• Customizable L-shape or horizontal designs available.
• Individually driven and synchronized roll control.

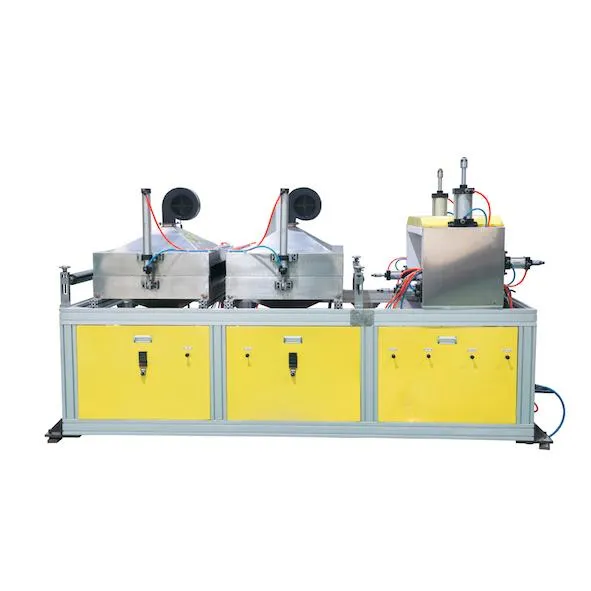

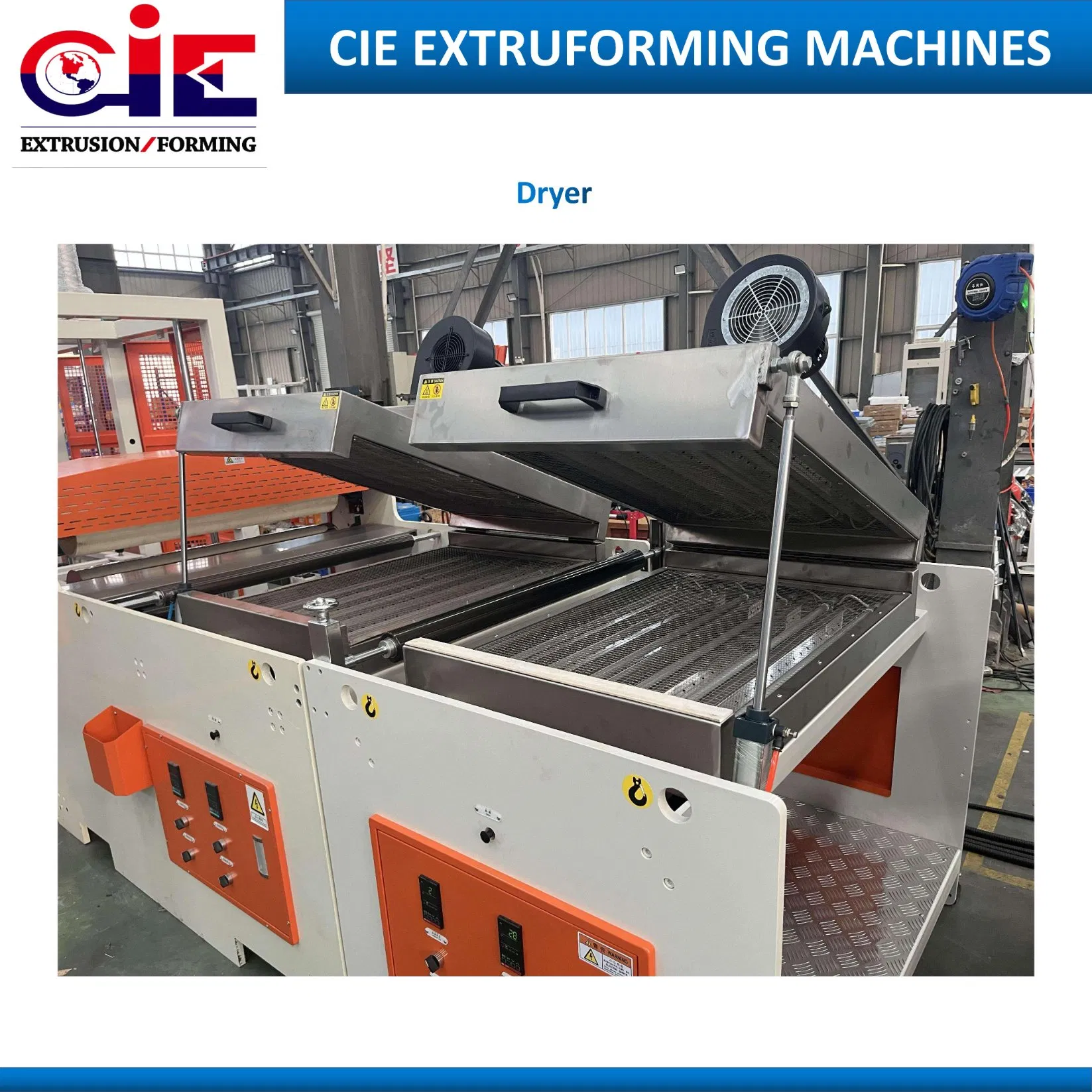

Silicone Coating & Dryer
• Air cylinder controlled coating roll and drying box opening/closing.
• Efficient recycling of coating oil.
• Specialized drying system with heating pipes and fans.

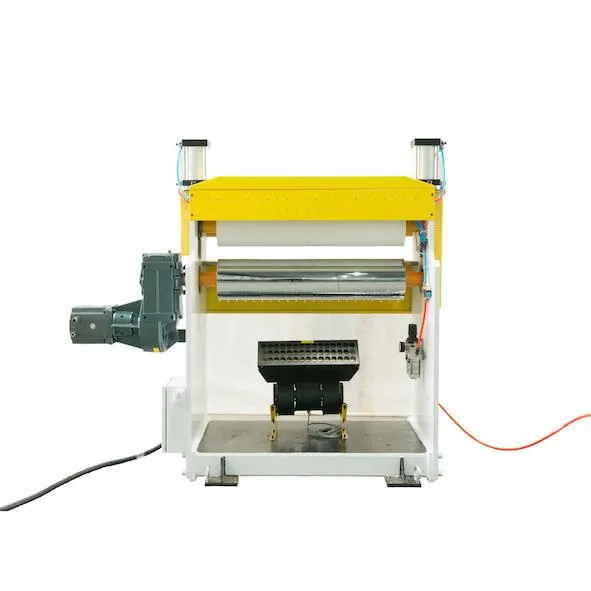

Haul Off Unit
• Servo motor speed control with calender synchronization.
• Equipped with safety line and emergency stop.
• Static remover for sheet surface quality.
• Combination of upper rubber roller and lower steel roller.

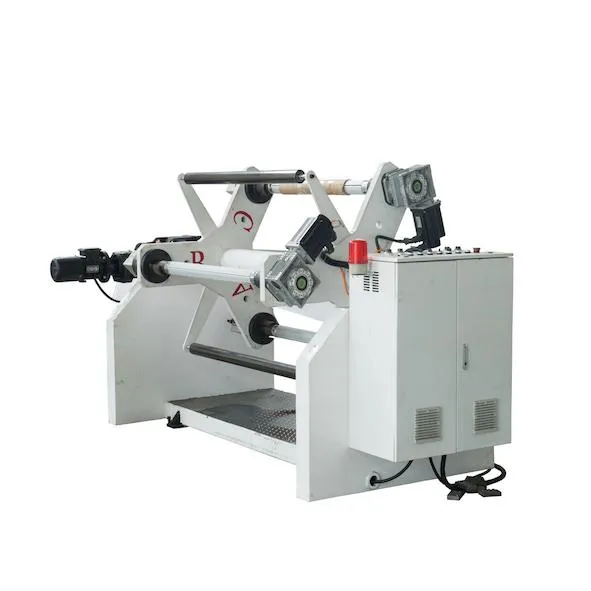

Winder
• Special accounting system for precise winding length.
• 3 working positions with max. winding diameter of 600mm.
• Servo motor driven winding and AC motor turning.

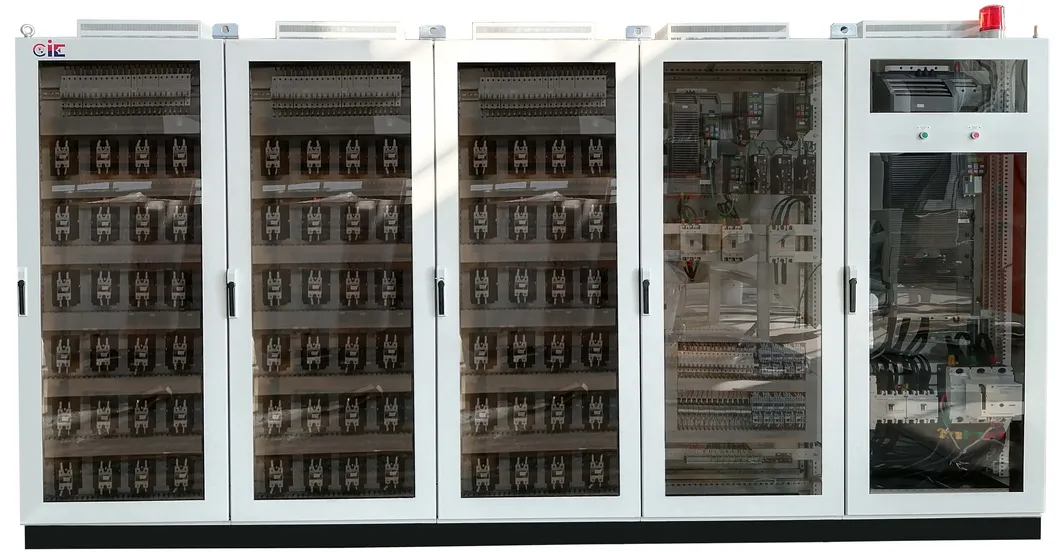

Electric Control Cabinet
• Siemens PLC (HMI) controls the entire line.
• High accuracy adjustment for thickness change; low material waste.
• Global warranty on Siemens Drivers and Servo controllers.
• Integration of international brands like ABB and Yaskawa.

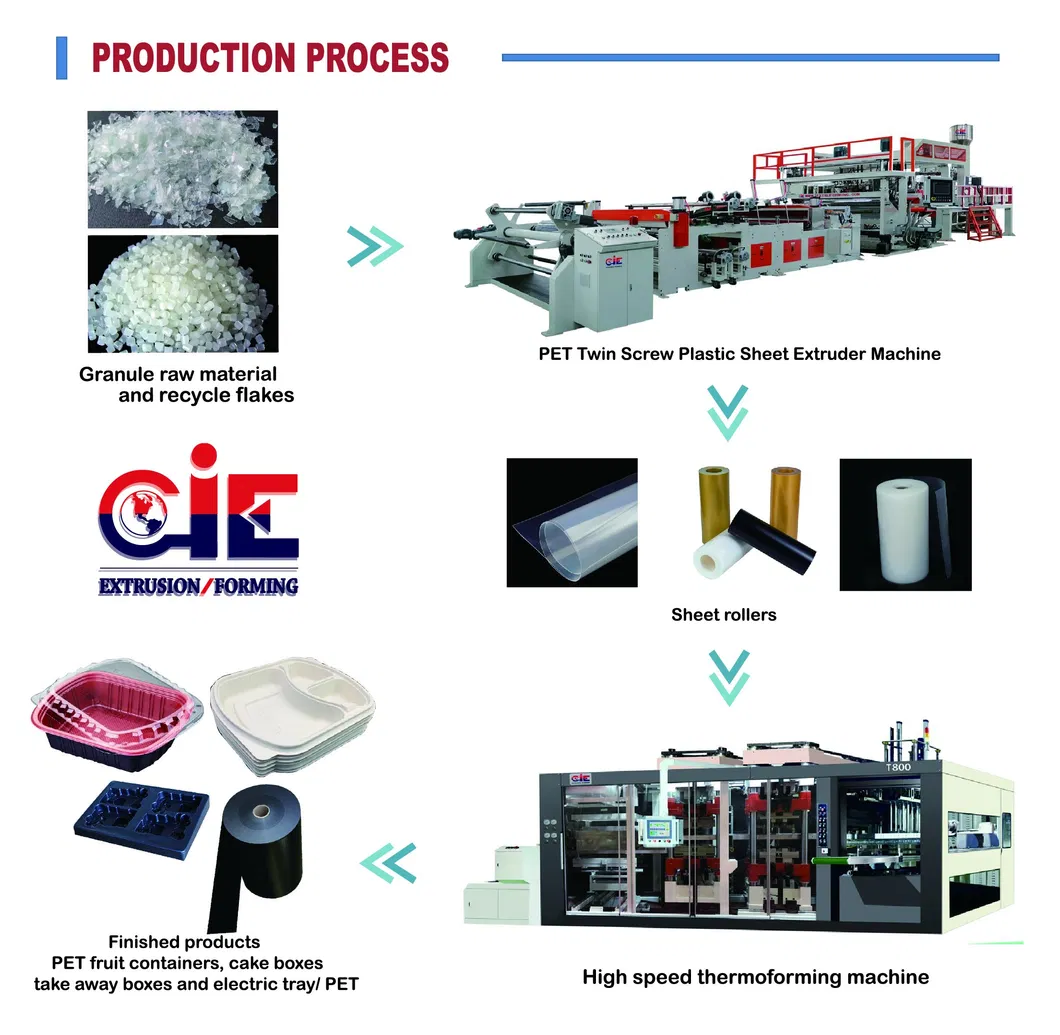

The PET/PP/PS/PLA sheets are widely used across various industries:
• Food packaging (cups, plates, containers)
• Electronic parts packaging
• Medical equipment and drug packaging
• Microwave stove plates and stationery packaging
1. Complete machine provision based on customer production requirements.
2. Factory layout and infrastructure planning assistance.
3. Raw material supply solutions if required.
4. Professional installation and staff training for stable production.
5. One-year quality guarantee with lifelong after-sales support.
Frequently Asked Questions
Q1: Which materials can be processed by this sheet extruder?
The machine is designed to process PET, PP, PS, PE, and PLA materials efficiently.
Q2: Does the PET production require a pre-crystallization or drying system?
No, thanks to the advanced twin-screw design and European vacuum system, PET flakes can be processed without pre-crystallization or dehumidify-dryers.
Q3: What brand of control system is used in the equipment?
We use a complete Siemens PLC control system (HMI), which includes Siemens drivers and servo controllers with global warranties.
Q4: What are the main applications of the plastic sheets produced?
Common applications include food containers, electronics packaging, medical equipment trays, and stationery packaging.
Q5: What support is provided for new factory setups?
We offer turnkey project services including factory layout design, machine installation, operator training, and raw material sourcing.
Q6: What is the maximum winding capacity for the finished product?
The winder features 3 working positions with a maximum winding diameter of 600mm, controlled by high-precision servo motors.
