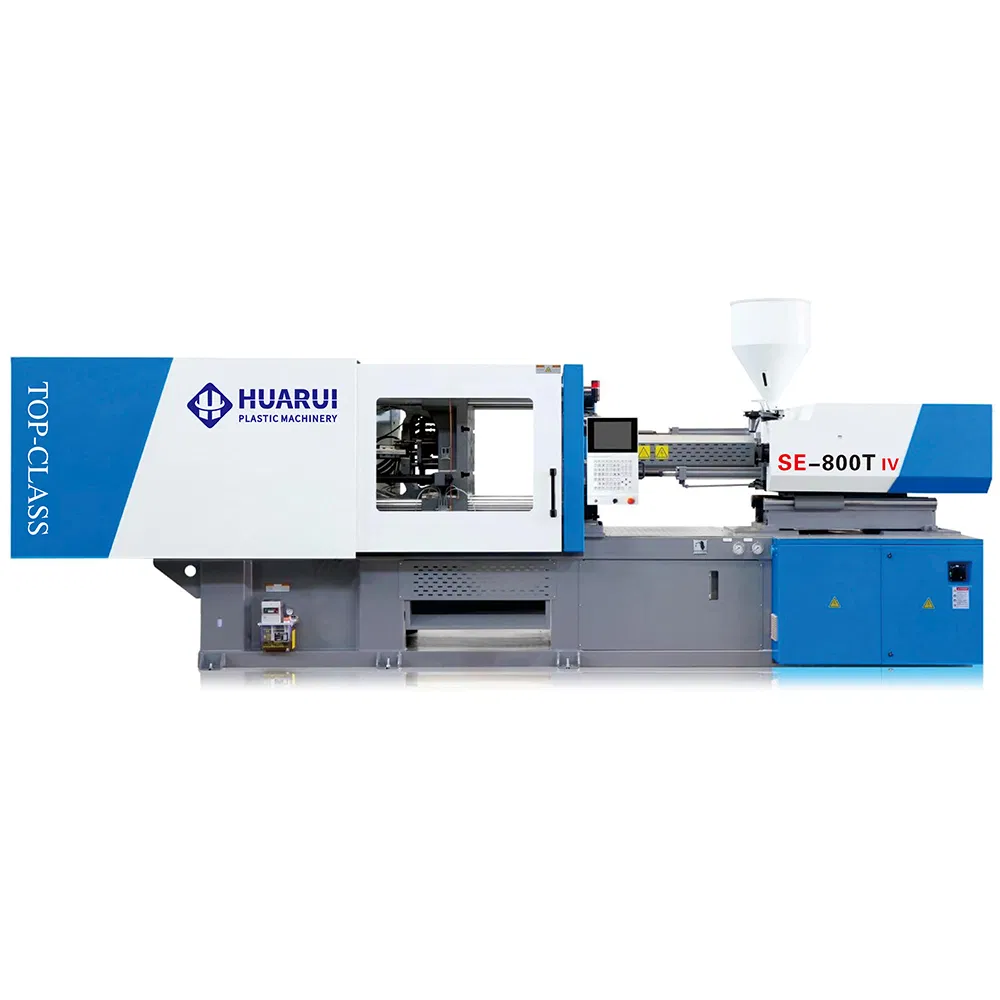

High-Precision Injection Molding Machine for Plastic Toy Making Fruit Basket

1 / 5

High-Precision Injection Molding Machine for Plastic Toy Making Fruit Basket

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

🔹 Basic Info

Model NO.

SE-800T IV

Type

Injection Blow Molding

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic & Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Product Name

Plastic Injection Molding Machine

Injection Rate

712/789/954/1136cm³/Sec

Weight

39000kg

Motor Power

68kw

Advantage

Durable

Specification

11.2*2.35*3.5m

HS Code

847710109

⚙️ Product Description

High-precision Injection Molding Machine for Plastic Toy Making Fruit Basket

SE-800T IV Plastic Injection Molding Machine Information
Item	Unit	A	B	C	D
Screw diameter	mm	95	100	110	120
Theoretical shot volume	cm³	3544	3927	4752	5655
Shot weight (PS)	g	3225	3574	4324	5146
Injection pressure	Bar	1846	1666	1377	1157
Injection rate	cm³/sec	712	789	954	1136
Clamping force	KN	8000
Open stroke	mm	1030
Space Between Tie-bars	mm	1050*1000
Mould thickness range	mm	1050
Max. motor power	KW	55+55
Net weight	KG	39000

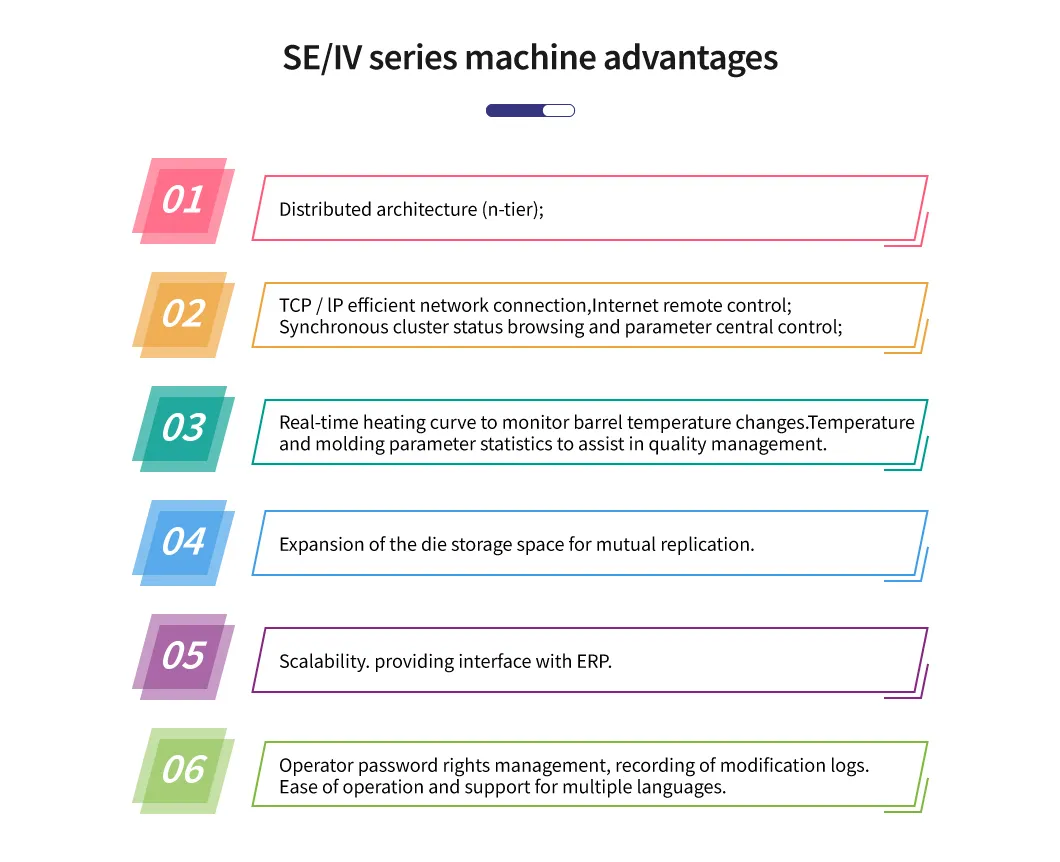

🚀 SE/IV Series Machine Advantages

Distributed architecture (n-tier)

TCP / IP efficient network connection, Internet remote control

Synchronous cluster status browsing and parameter central control

Real-time heating curve to monitor barrel temperature changes

Temperature and molding parameter statistics for quality management

Expansion of the die storage space for mutual replication

Scalability providing interface with ERP

Operator password rights management and modification logs

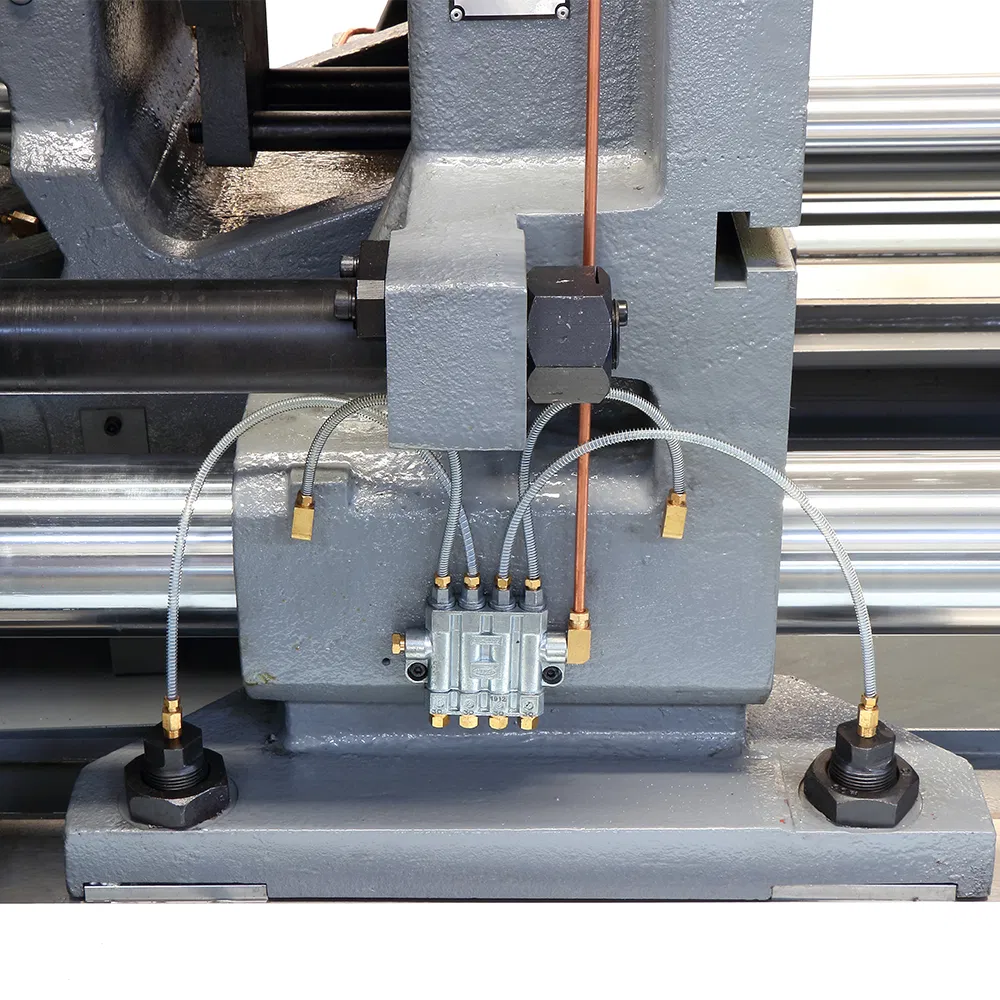

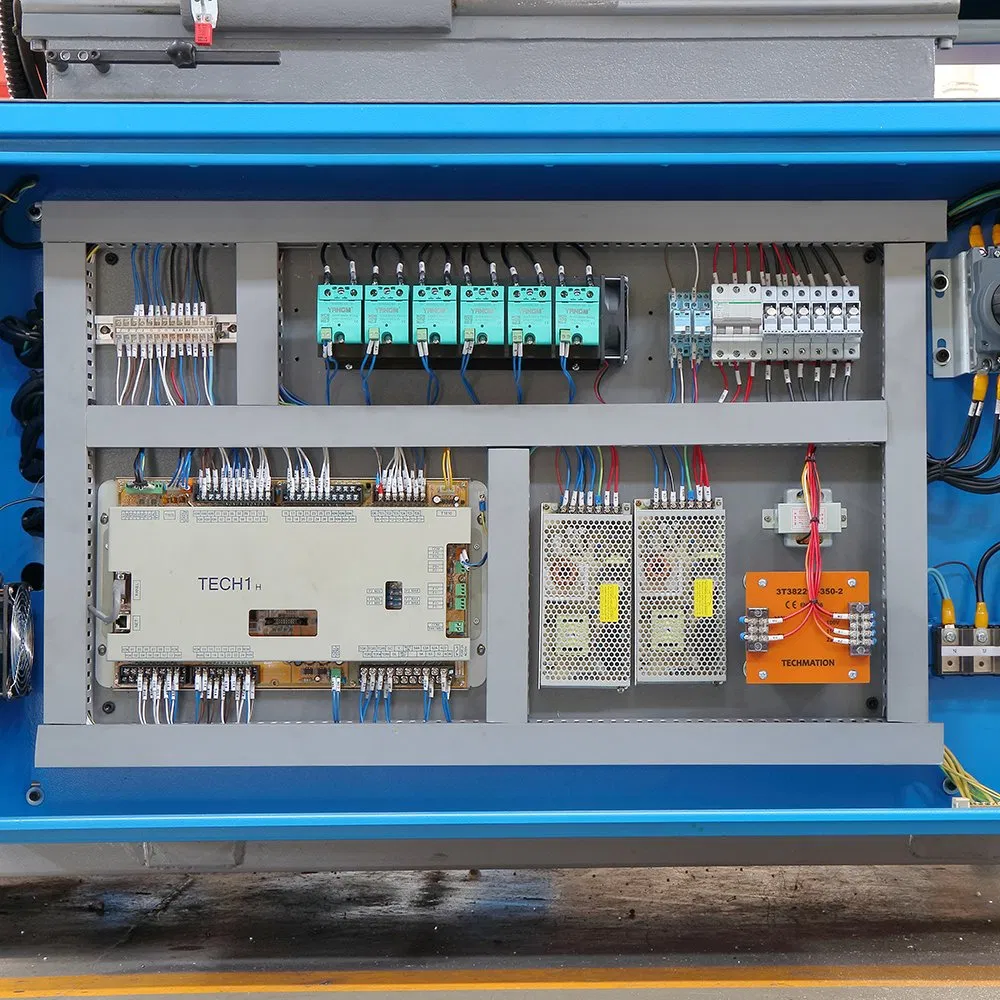

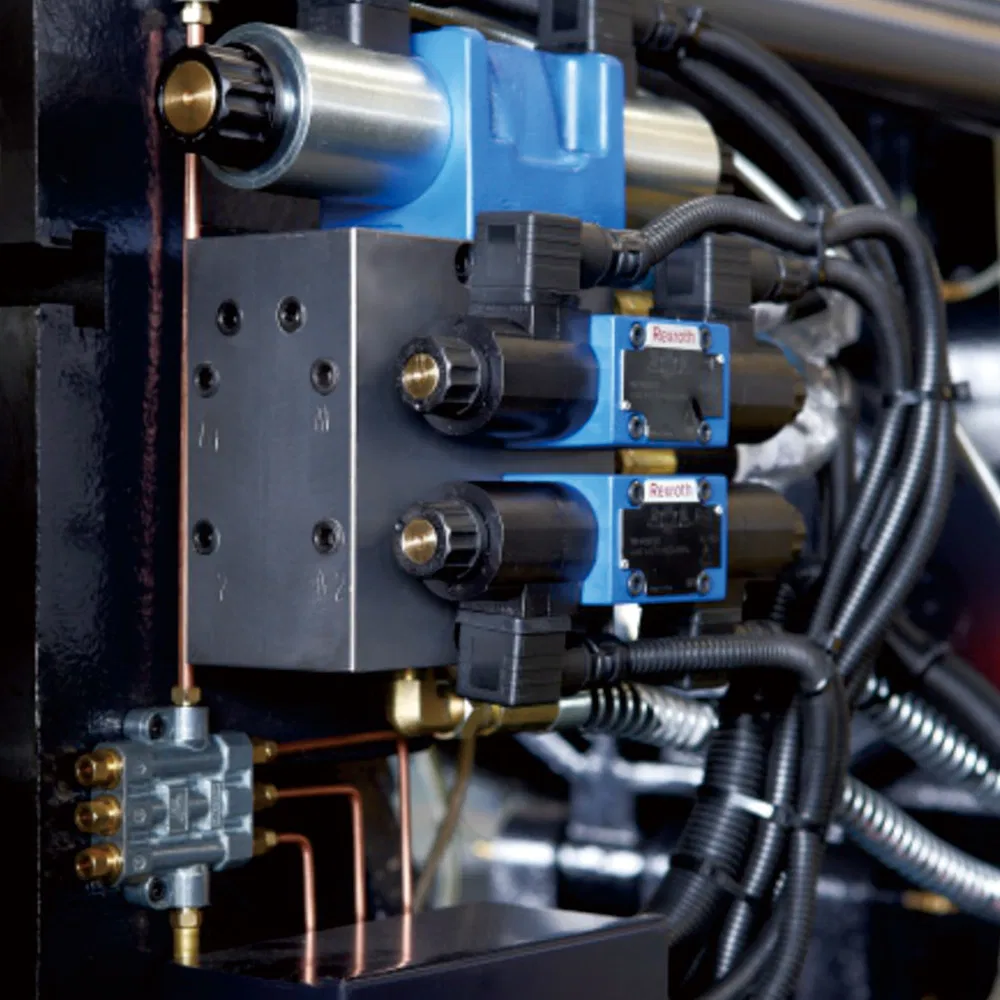

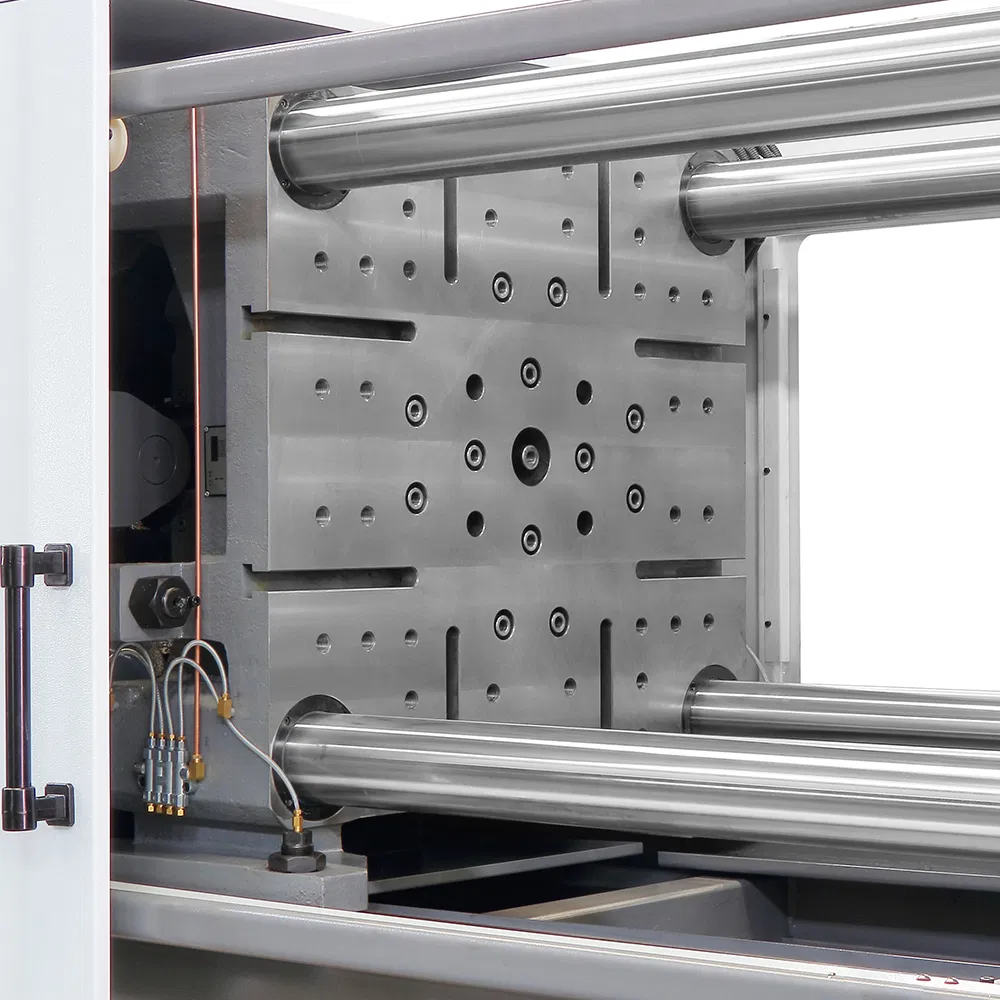

📷 Detailed Photos

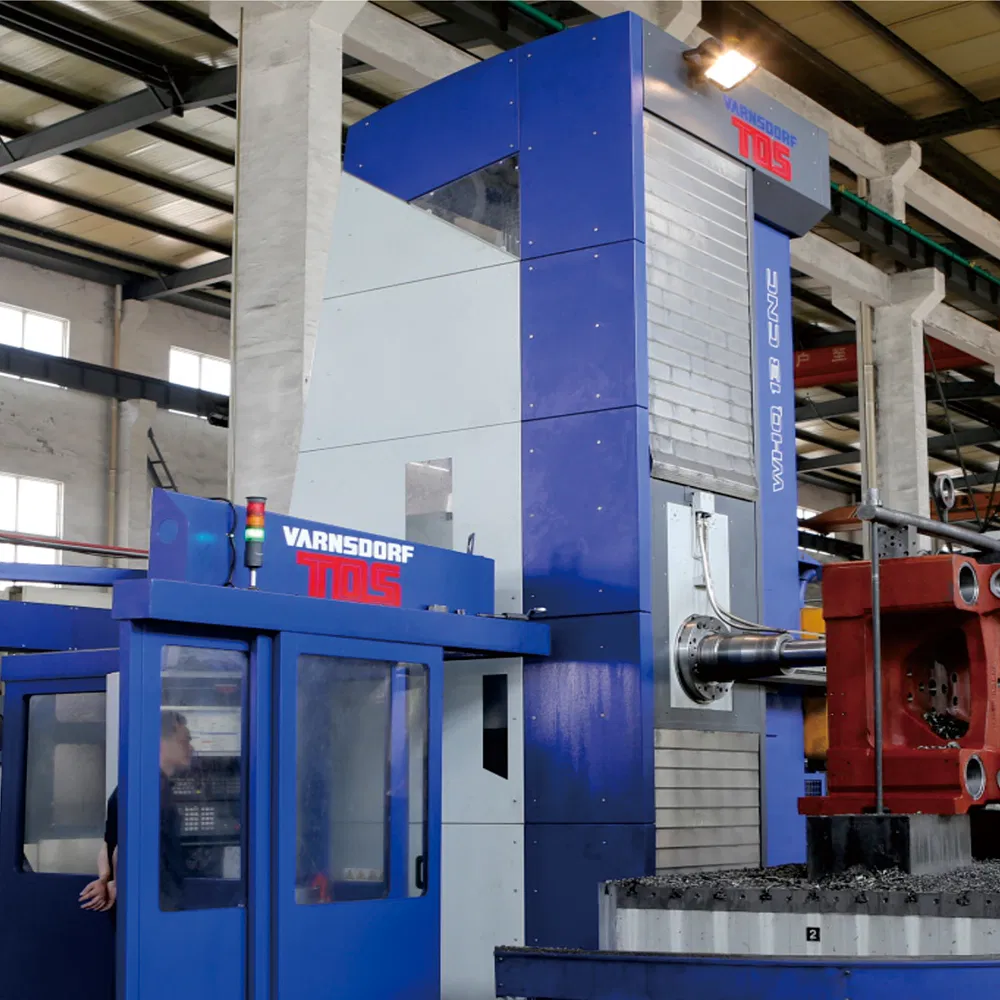

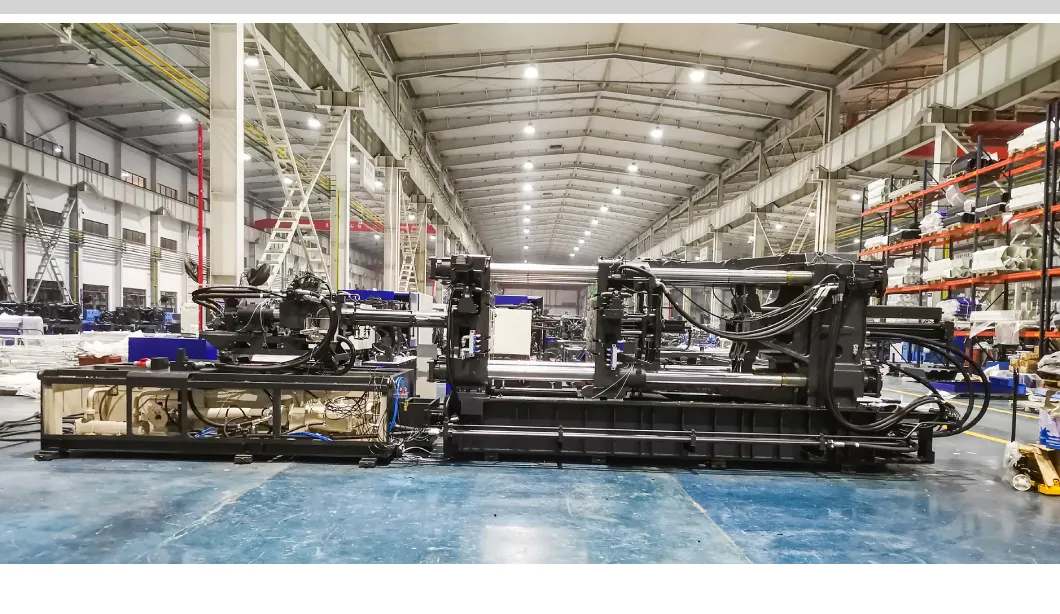

🏭 Factory & Production Process

Frequently Asked Questions

1. What is the clamping force of the SE-800T IV model? The SE-800T IV features a powerful clamping force of 8000 KN, suitable for large-scale plastic injection tasks.

2. Can this machine be monitored remotely? Yes, the machine supports TCP/IP network connection, allowing for efficient internet remote control and synchronous cluster status browsing.

3. What types of plastic materials can be used with this equipment? This machine is designed for thermoplastics and uses a screw-type plasticizing method for high-precision results.

4. What are the key certifications for this injection molding machine? The machine is fully certified with CE and ISO9001:2008 standards, ensuring international quality and safety compliance.

5. Does the control system support multiple languages? Yes, the system is designed for ease of operation and provides support for multiple languages and operator password rights management.

6. What is the physical size and weight of the machine? The machine dimensions are 11.2m x 2.35m x 3.5m, with a total net weight of approximately 39,000 kg.
