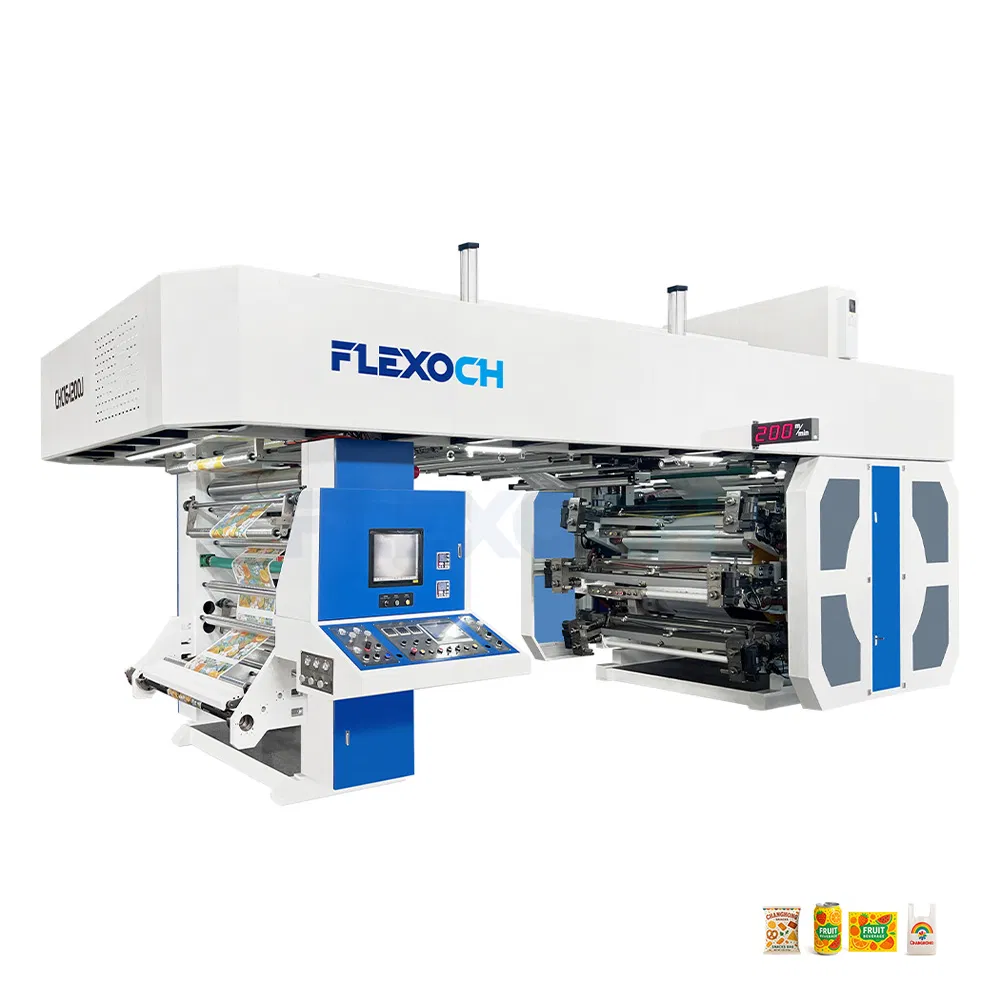

High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
1 / 5
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price
High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price

High Speed 4/6 Colour/Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Press/Flexo Printer Price

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Overview
Model NO.
CHCI-J-S
Type
Flexographic Printer
Structure
Satellite (CI)
Color
6 Color / Multicolor
Printing Speed
200m/min
Anilox Roller
Ceramic Anilox Roller

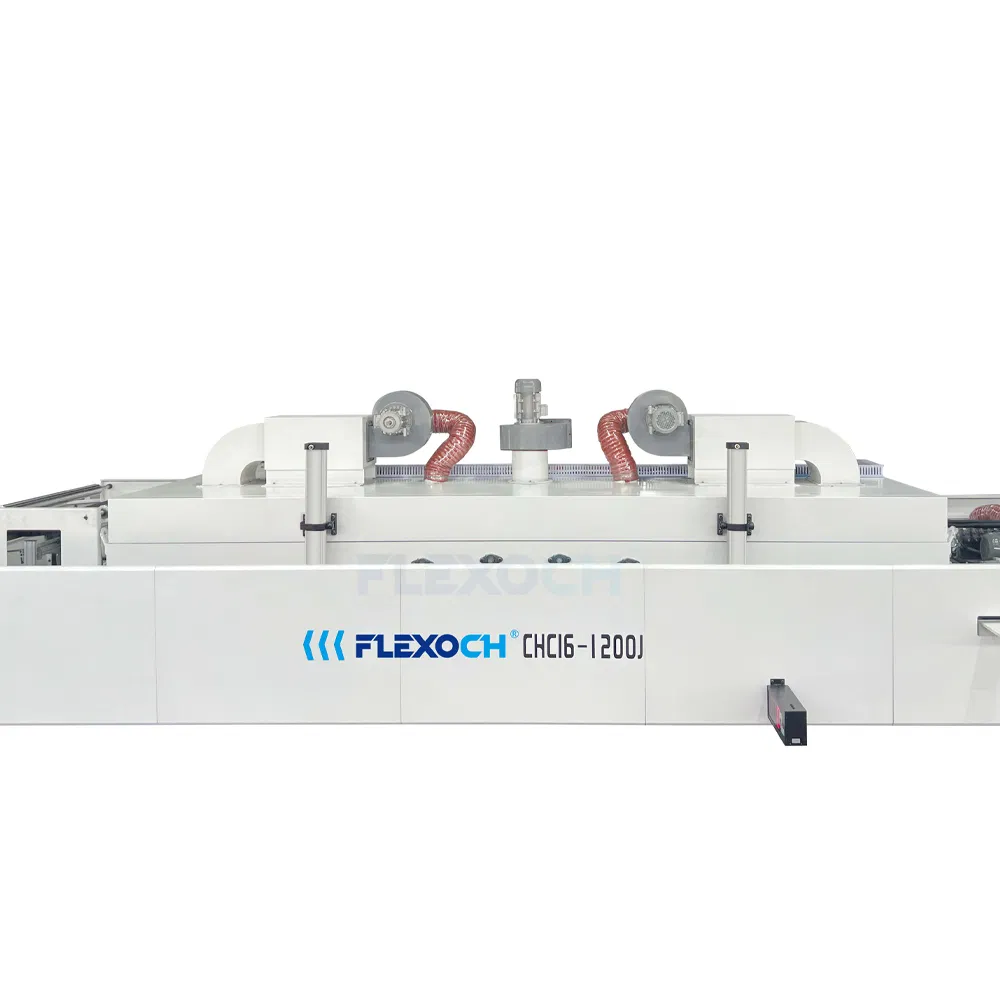

Dryer System
UV & IR
Application
Paper, Plastic Film, Pre Printed Carton
Plate Type
Photopolymer Plate
Gross Power
50kw
Weight
8000kg - 9000kg
Dimensions
7.8m * 2.4m * 3.3m

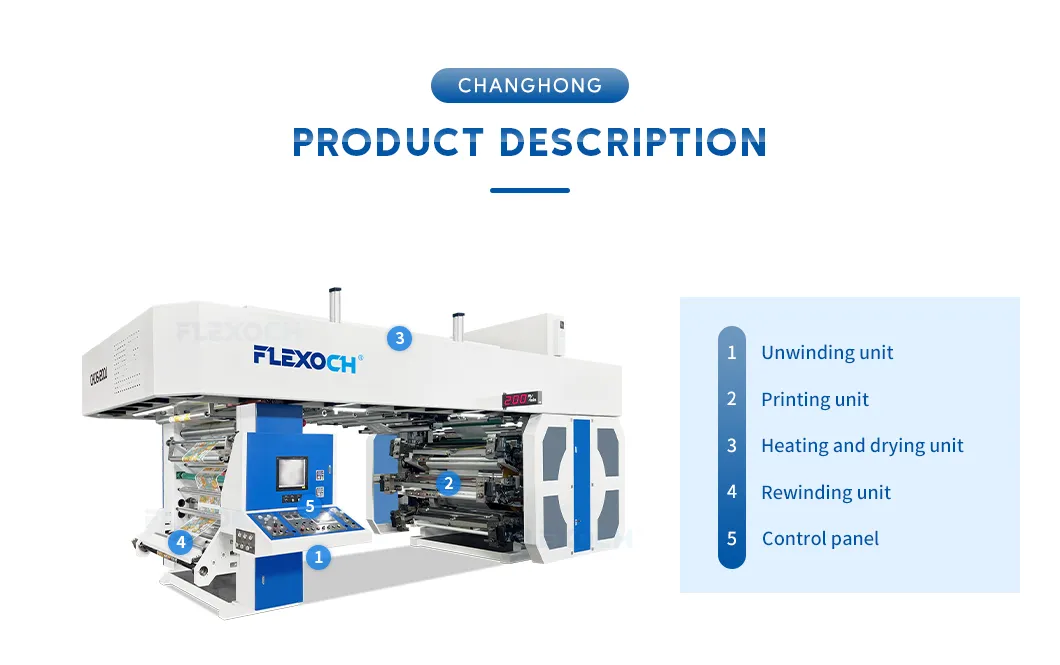

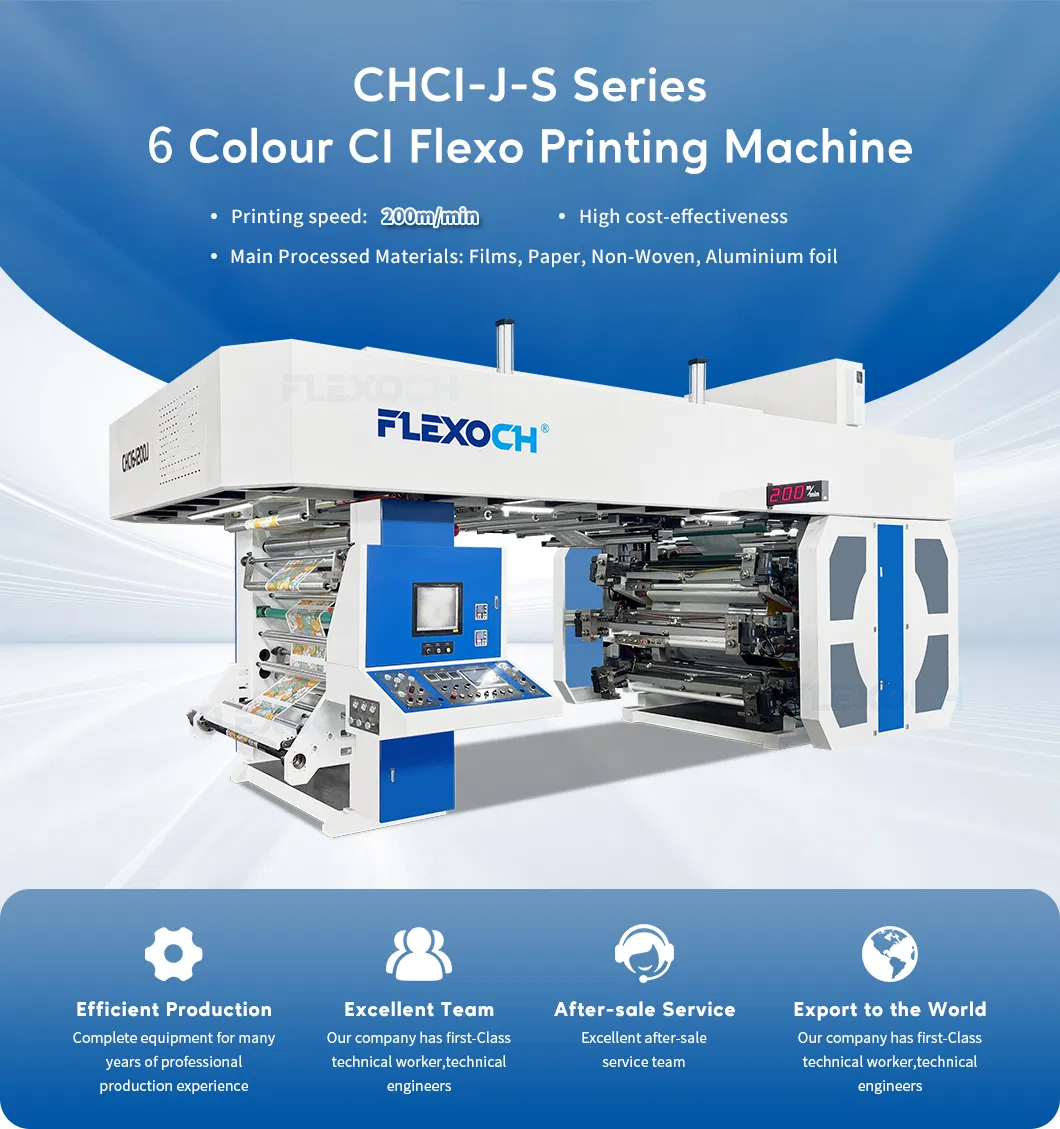

Flexo Printing Machine Overview Machine Details
Core Advantages
⚙️ High Flexibility

Suitable for various substrates like paper, films, and non-woven materials with different thicknesses.

🎯 High Accuracy

Delivers high-quality printing with accurate registration, aligning all inks precisely for sharp images.

⚡ High Speed Efficiency

Achieves speeds of up to 200m/min, enabling large volume production quickly.

💰 Cost-Effective

Requires fewer ink changes, produces less waste, and needs minimal maintenance.

🛡️ Durable Design

Built for long-term industrial use, capable of standing regular wear and tear.

🌱 Eco-Friendly

Supports water-based inks that are free of harmful chemicals, making it a green printing option.

Technical Specifications
Model CHCI6-600J-S CHCI6-800J-S CHCI6-1000J-S CHCI6-1200J-S
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 250m/min
Max. Printing Speed 200m/min
Drive Type Central drum with Gear drive
Printing Length (Repeat) 350-900mm
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Paper
Ink Type Water base ink or solvent ink

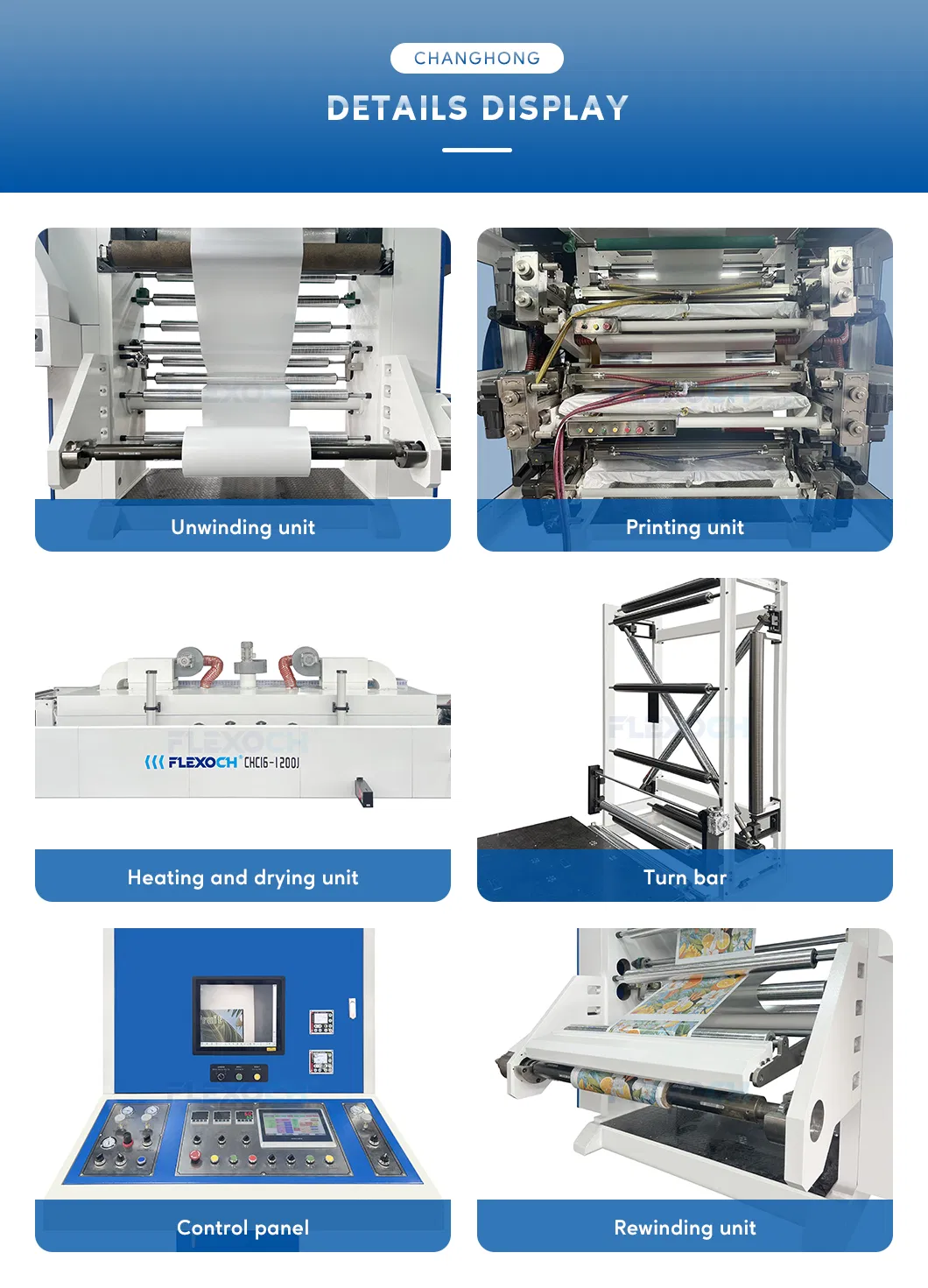

Product Detail Gallery

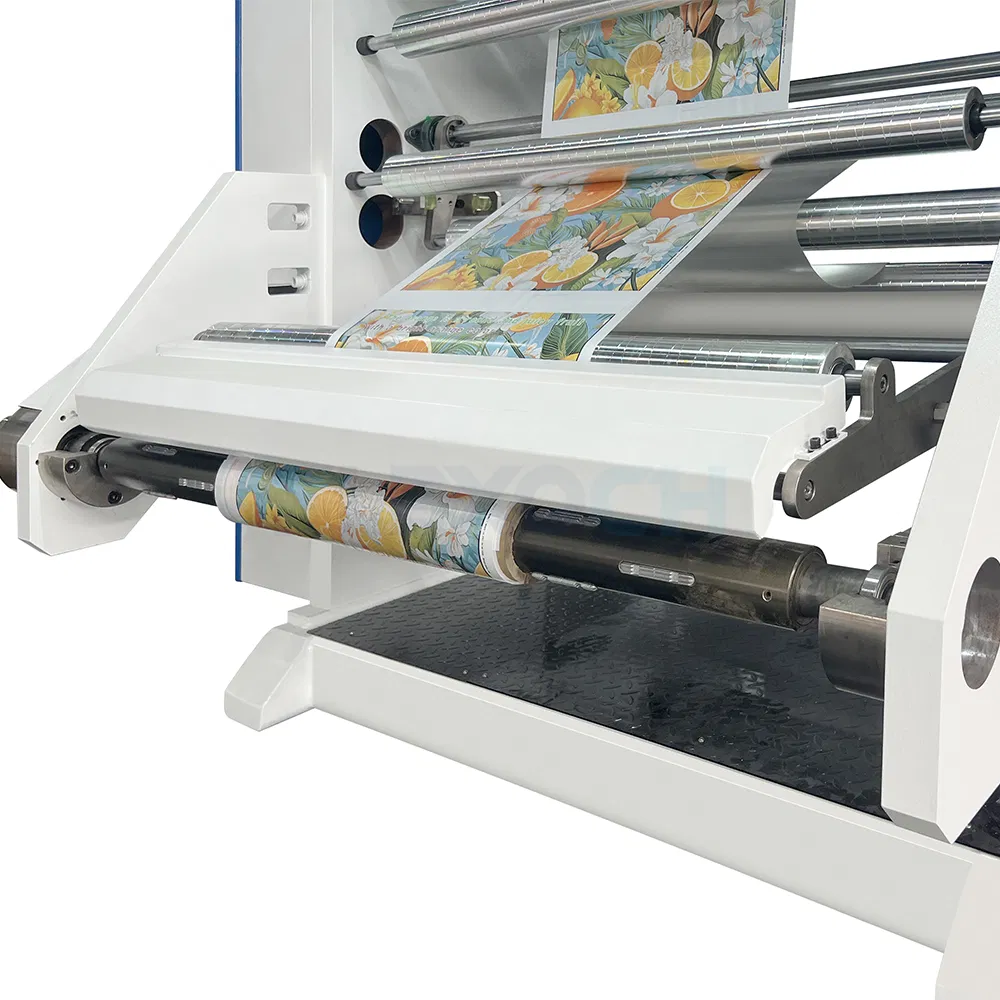

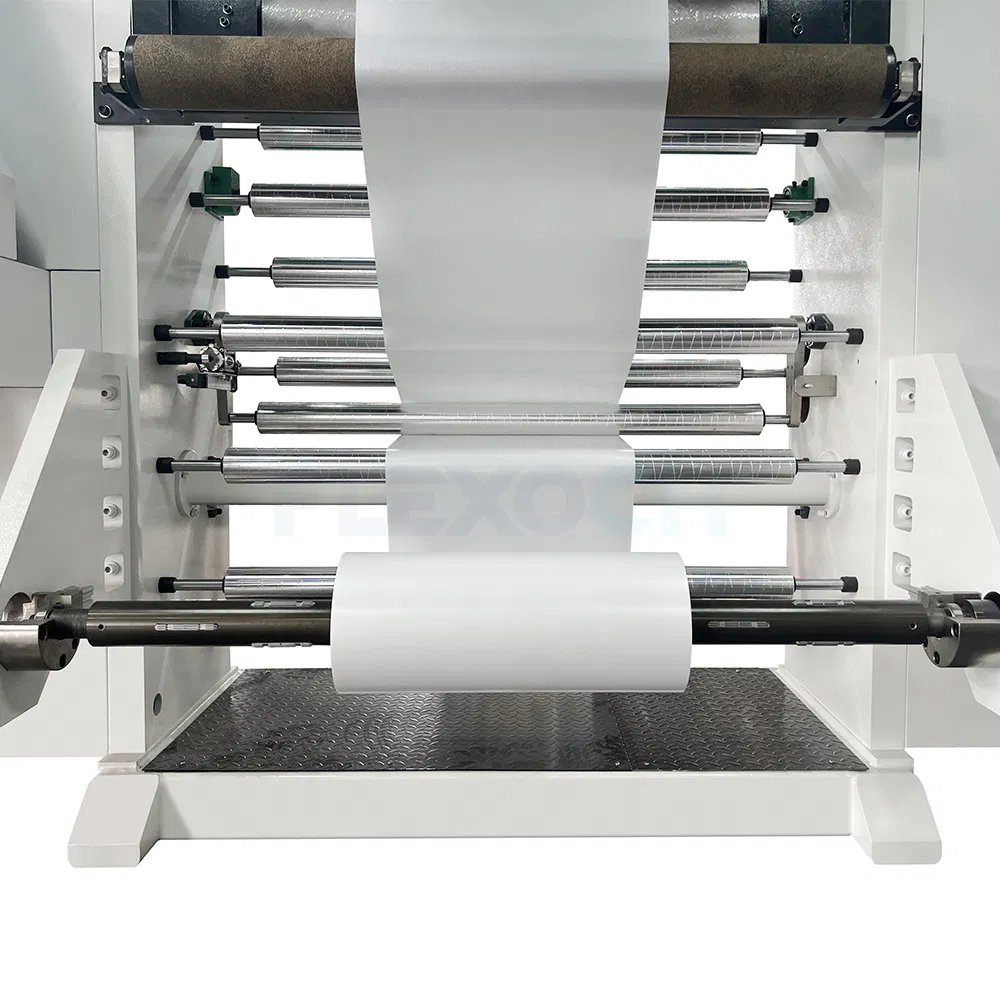

Printing Detail 1 Printing Detail 2 Printing Detail 3
Printing Detail 4 Printing Detail 5 Printing Detail 6
Frequently Asked Questions
Q1: How does the CI Flexo Printing Machine work?
The substrate is positioned over a central drum. The printing plate, mounted on a cylinder rotating around the drum, transfers ink from rollers to the substrate as it comes into contact with the central drum.
Q2: What are the main advantages of a CI (Central Impression) design?
It offers high-quality printing, faster production rates, better ink transfer, reduced waste, and consistent image placement across various substrates.
Q3: Which materials are compatible with this machine?
It can print on a wide range of materials including LDPE, HDPE, BOPP, PET, Nylon, various papers, and non-woven fabrics.
Q4: What is the maximum production speed?
While the mechanical speed can reach 250m/min, the stable printing speed is typically up to 200m/min, depending on the model and substrate.
Q5: What drying options are available for the ink?
The machine is equipped with both UV and IR drying systems to ensure efficient and fast drying for different ink types.
Q6: Is this machine environmentally friendly?
Yes, it is designed to work with water-based inks which are eco-friendly and free from harmful chemicals.
