Technical Specifications
Printing Color
1-15 Colors
Anilox Roller
Ceramic Anilox Roller
Embossing Structure
Platen Press
Application
Label and Packaging Printing
Transport Package
PE Stretch Film and Wood Pallets
Specification
Customizable
Production Capacity
100 Sets/Year
Package Size
2500cm * 1500cm * 2000cm
Product Overview

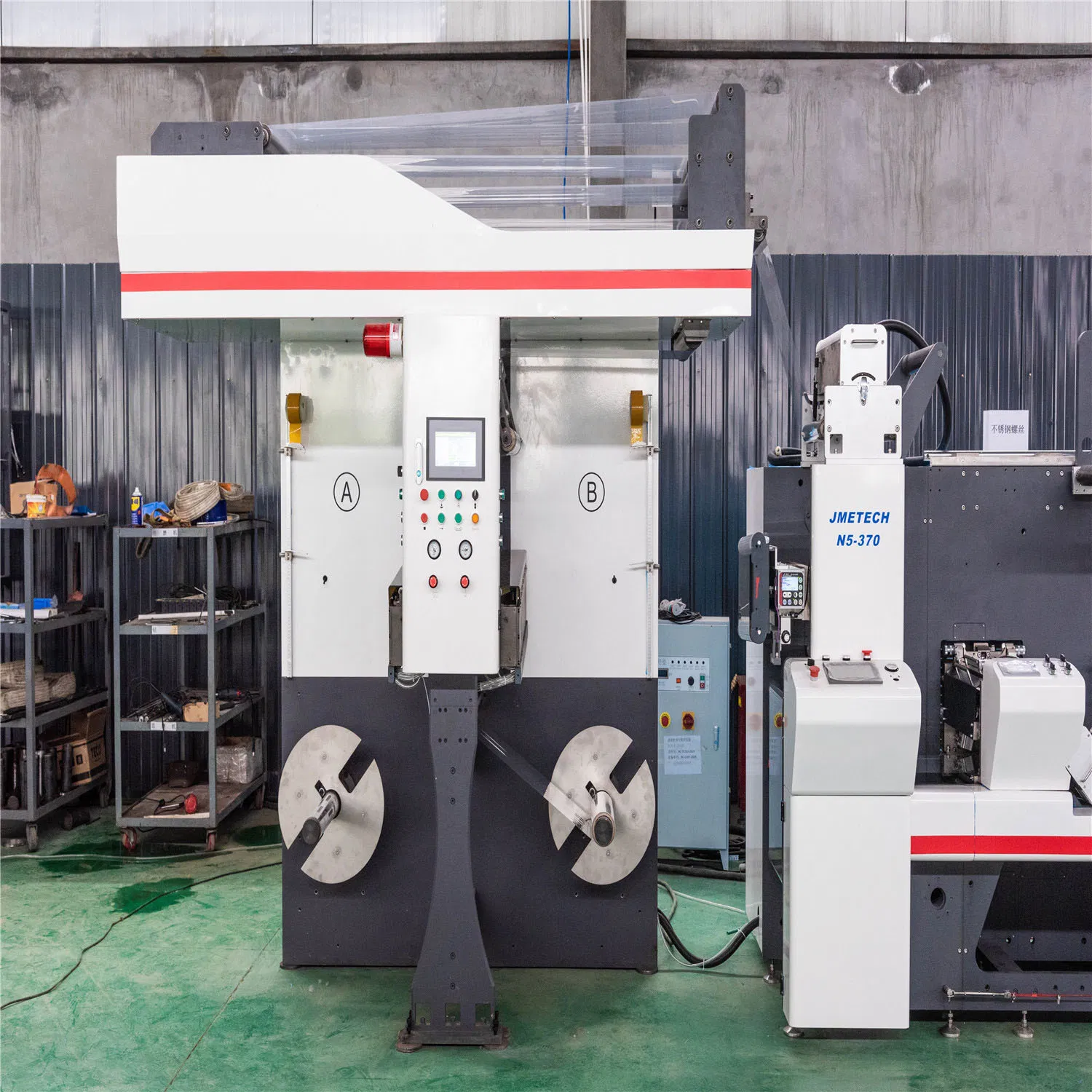

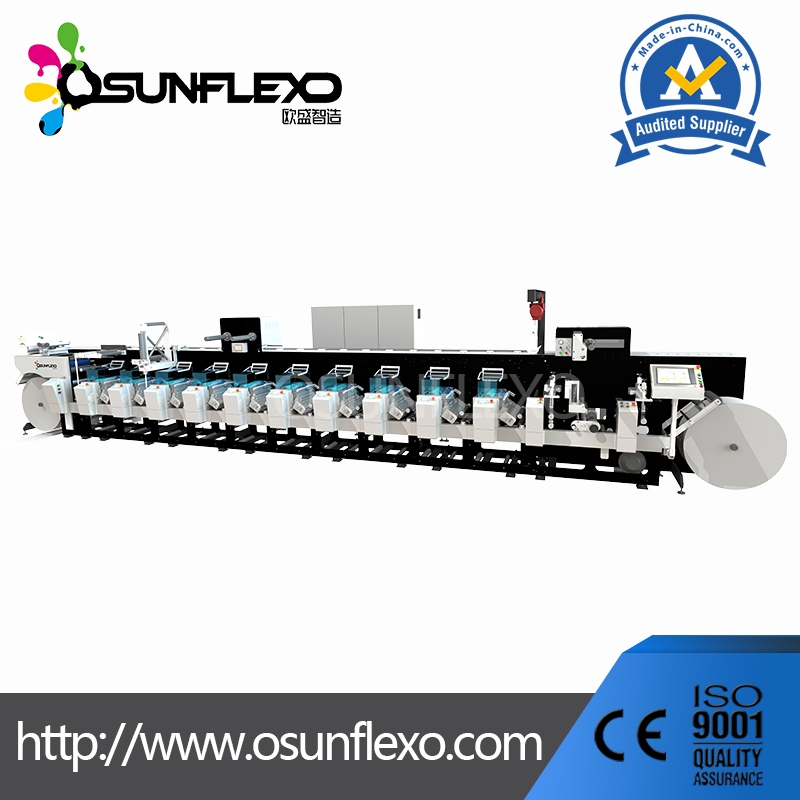

NARROW WEB FLEXO PRINTING MACHINE (370MM-670MM)
The N5 Series flexo printing machine is a highly versatile solution that can be combined with web gravure, silk screen, offset, digital (inkjet), cold foil, and hot foil stamping. It is engineered to handle a wide range of materials with precision and efficiency.
Key Features
- ✔ Shortest web path with a large chiller drum, ideal for high-quality film printing.
- ✔ Advanced full servo driven system: Unwind, infeed, printing stations, die cutting, outfeed, rewind, and cold foil stamping.
- ✔ Fast job changeover capabilities with lower waste and high printing efficiency.
- ✔ Precision technology: Automatic Pre-register, register, and Re-register systems for diverse applications.
Applicable Materials
Suitable for all kinds of adhesive labels (Paper, PET, BOPP, PVC), Paper (≥30gsm), Carton (≤350gsm), Unsupported film (PET≥12um, PVC, BOPP, PE, PA≥15um), and Foil (≥20um).
Parameter Configuration
| Specification |
14.5" (370) |
16.5" (420) |
20.5" (520) |
25.5" (650) |
| Max Web Width | 370mm | 430mm | 530mm | 660mm |
| Max Printing Width | 350mm | 420mm | 520mm | 650mm |
| Max Die-cutting Width | 350mm | 420mm | 520mm | 650mm |
| Printing Repeat | 152-610mm | 152-610mm | 152-610mm | 152-610mm |
| Die-cutting Repeat | 290-610mm | 290-610mm | 290-610mm | 290-610mm |
| Max Unwind Dia. | 1016mm | 1016mm | 1016mm | 1016mm |
| Max Rewind Dia. | 1016/762mm | 1016/762mm | 1016/762mm | 1016/762mm |
| Printing Speed | 200m/min (Single/Dual Servo Motor) |
| Drying Mode | Hot-air / IR / UV Drying |
| Applicable Ink | Water-based / UV / Solvent Ink |

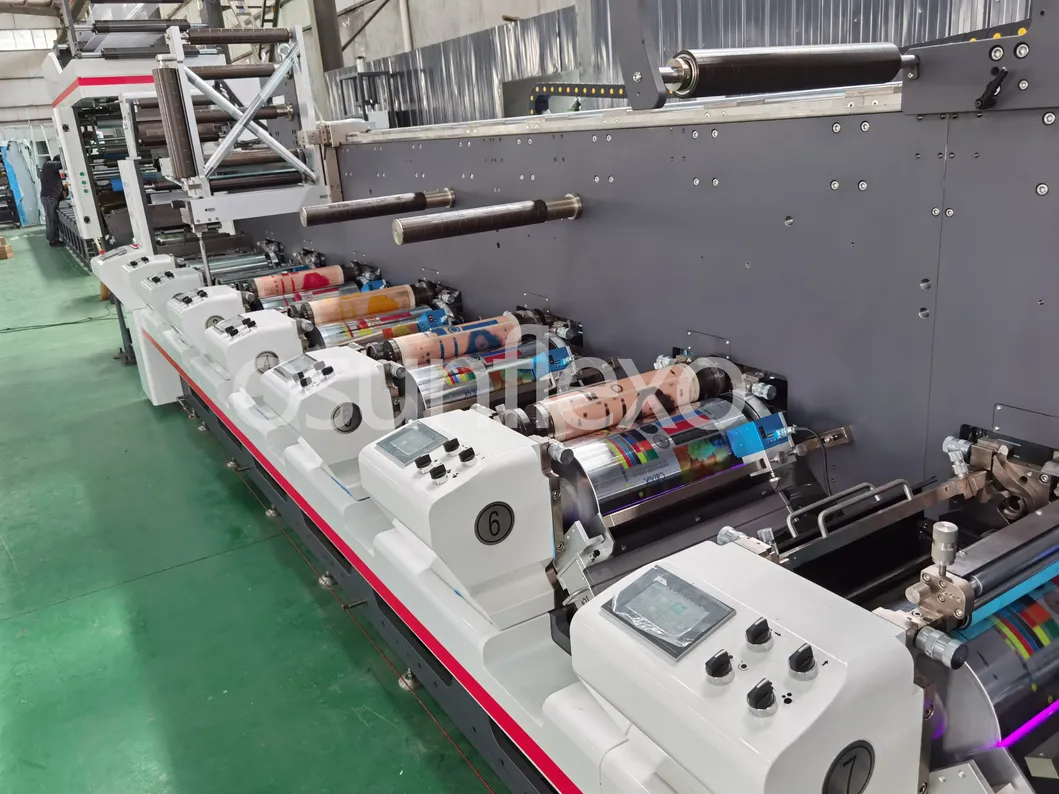

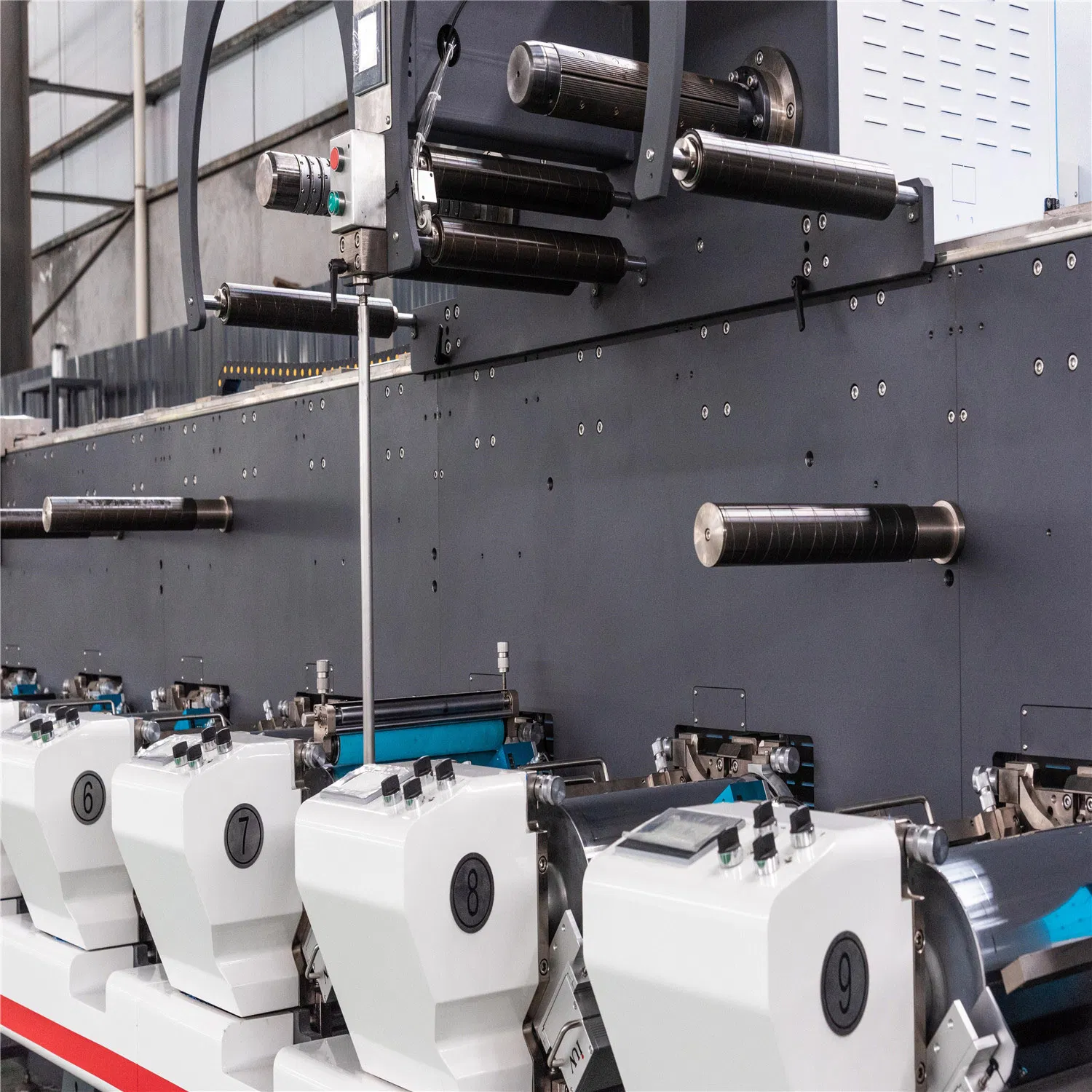

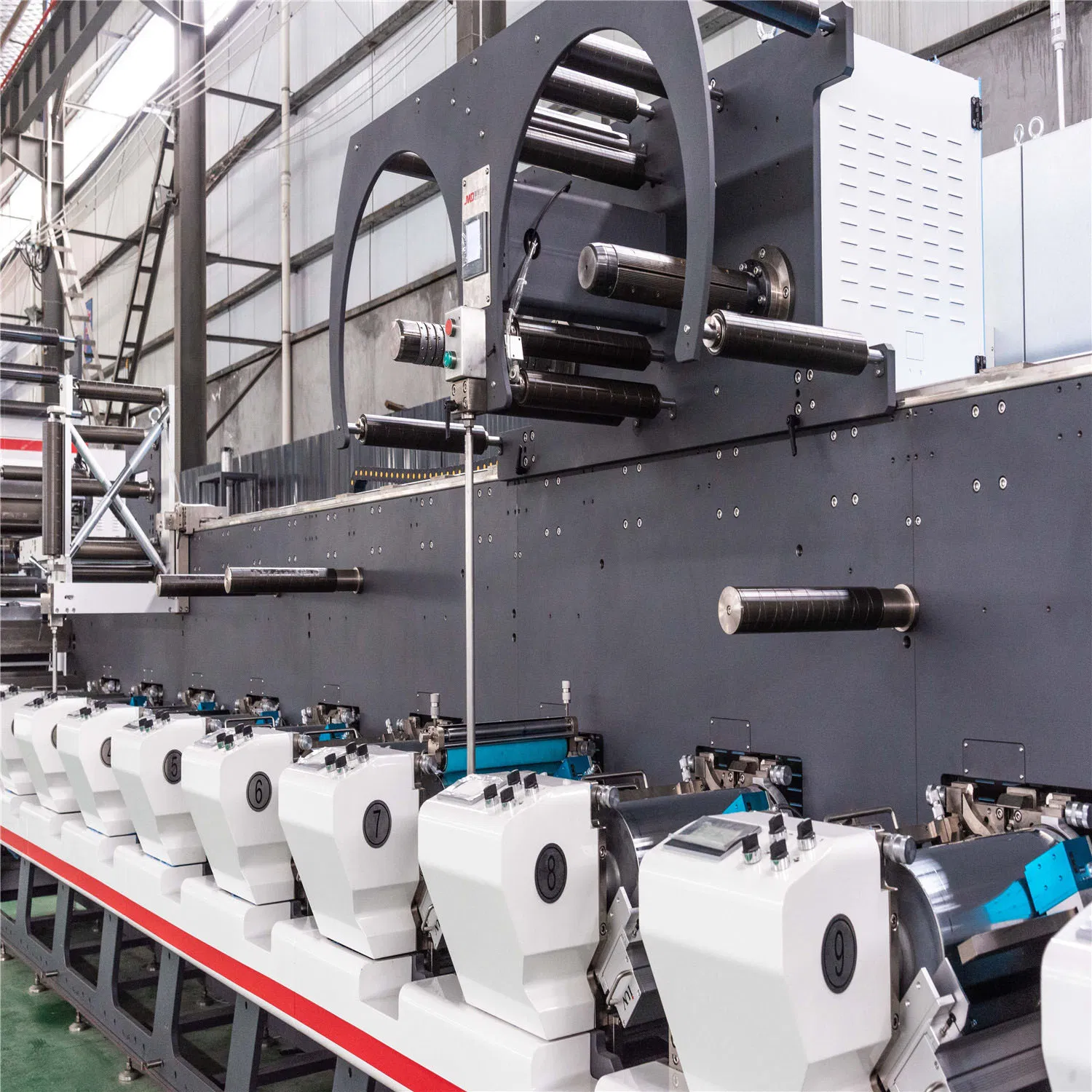

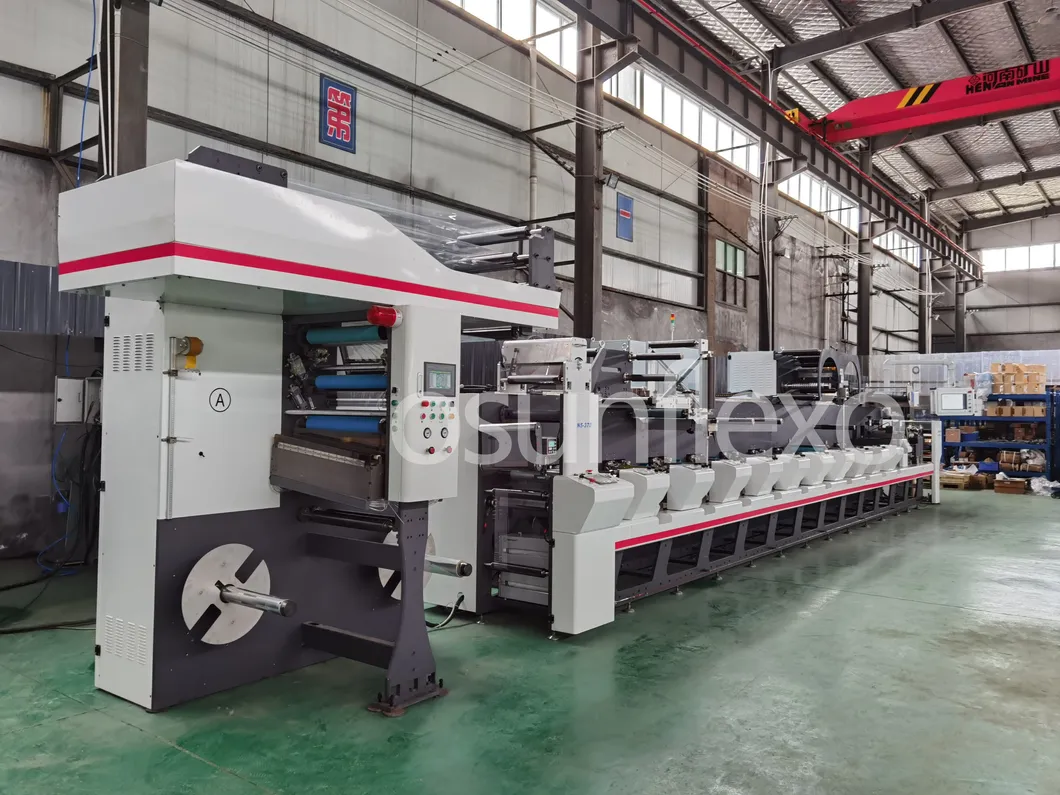

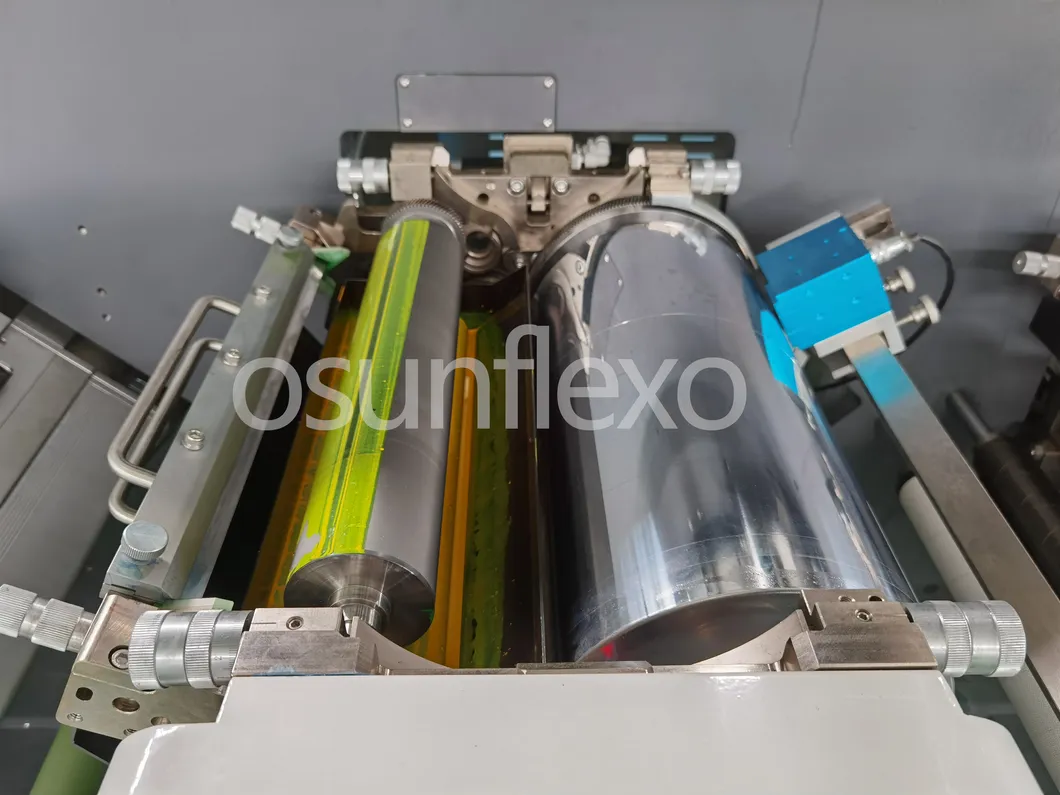

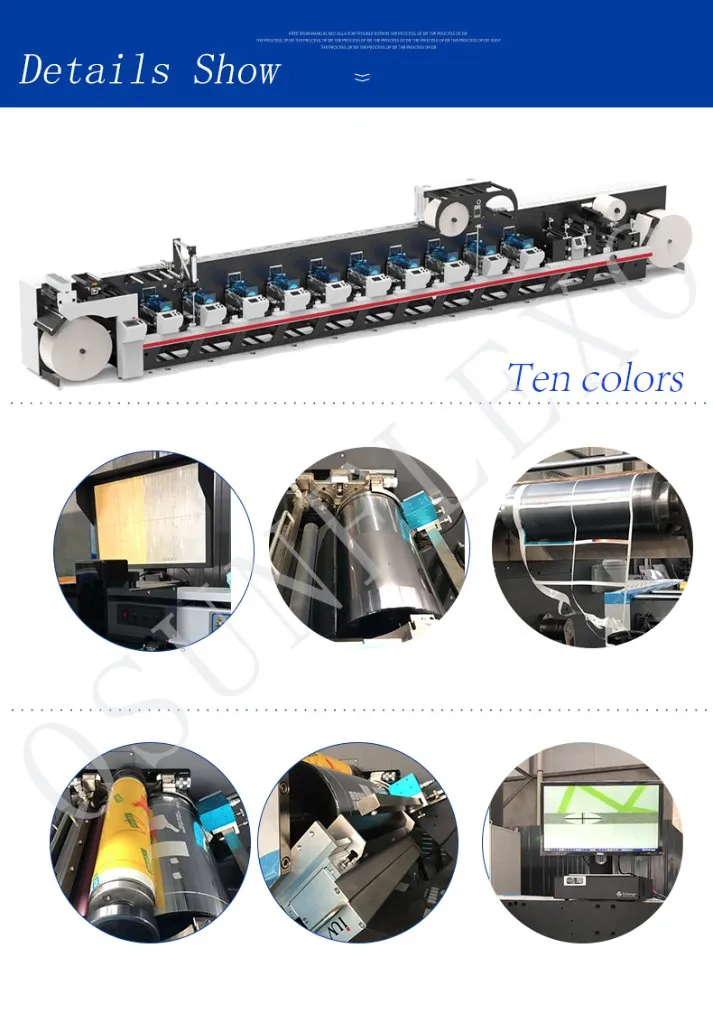

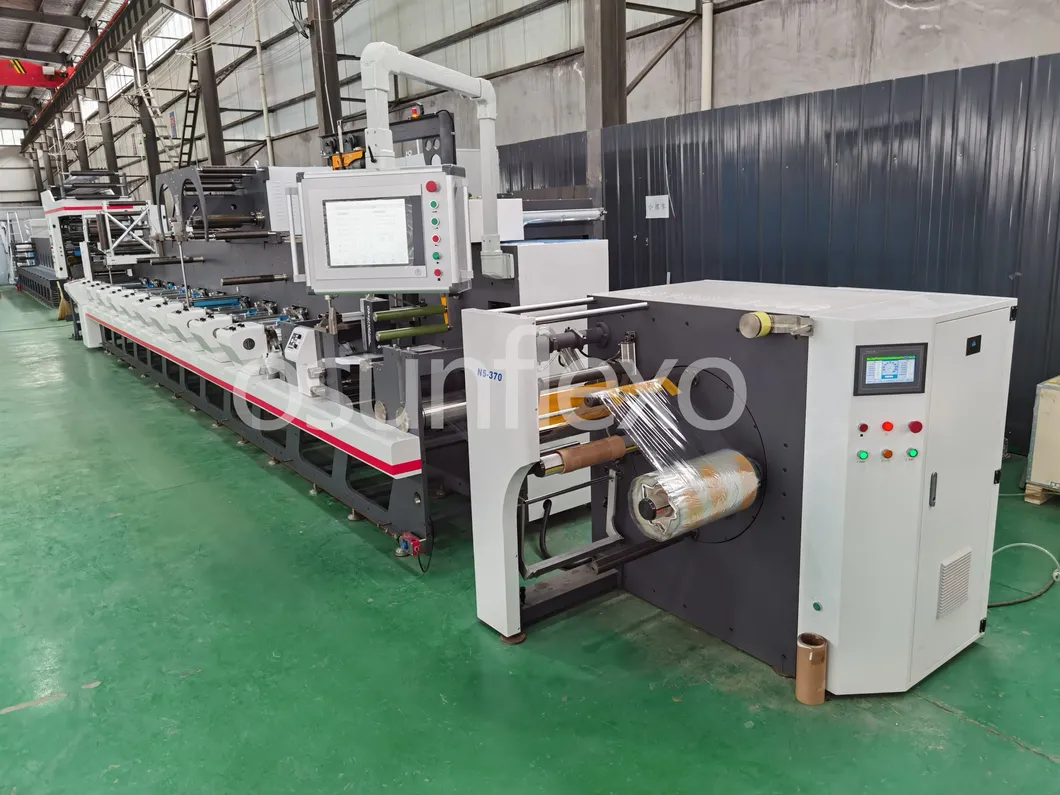

Product Display
Frequently Asked Questions
What is a flexographic printing machine?
A flexographic printing machine uses flexible relief plates to print on a variety of substrates such as paper, plastic film, and metal foil. It is widely used in packaging and labels.

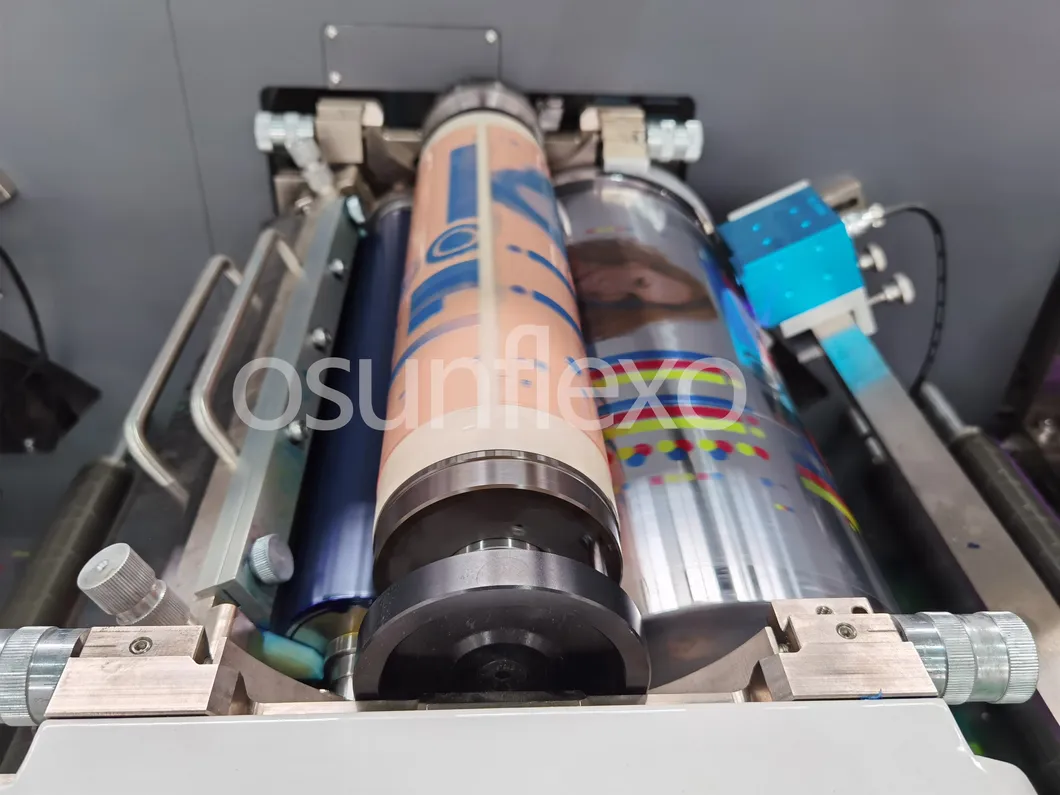

What is an anilox roller and what is its function?
The anilox roller transfers a consistent amount of ink to the printing plate. Its cell count and volume directly affect ink density and overall print quality.
What types of ink are used in flexographic printing?
Mainly water-based and UV inks. These are environmentally friendly and offer fast drying times, which is especially suitable for food-grade packaging.
How is registration accuracy maintained?
Registration is maintained through high-precision servo motors, tension control systems, and automatic registration technology that ensures perfect alignment between color stations.
What materials are suitable for this machine?
It handles plastic films (PE, BOPP), paper, aluminum foil, self-adhesive materials, and light cartons (up to 350gsm).
What kinds of products are typically printed using flexo?
Typical products include food packaging bags, beverage labels, hygiene product wraps, courier bags, and wrapping paper.
