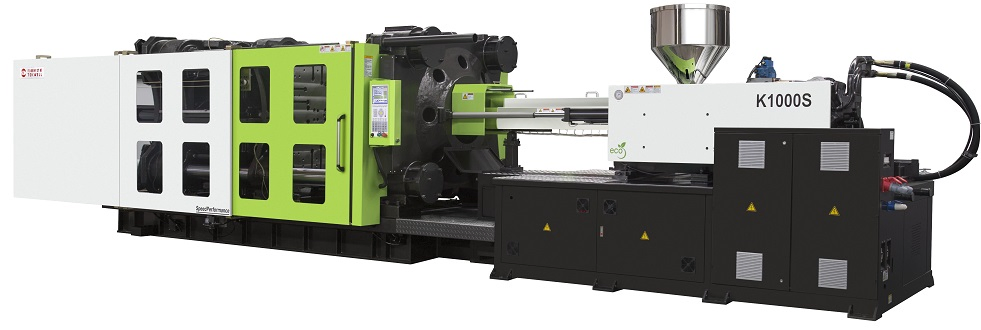

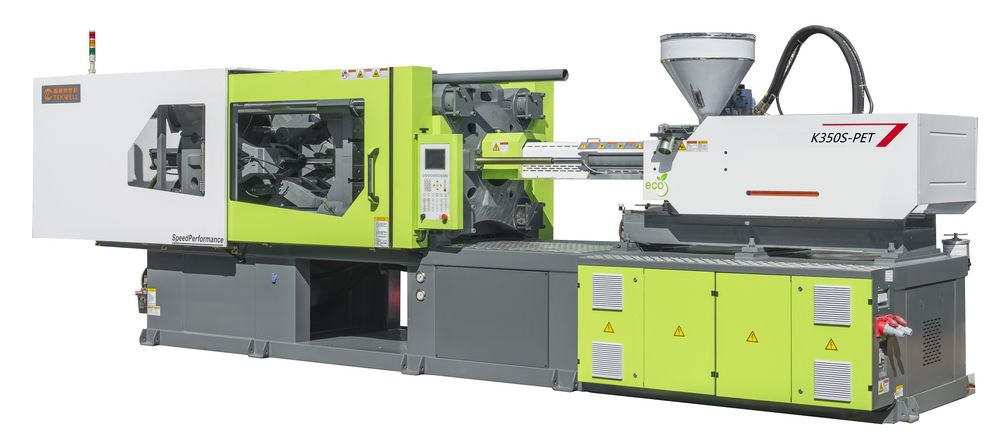

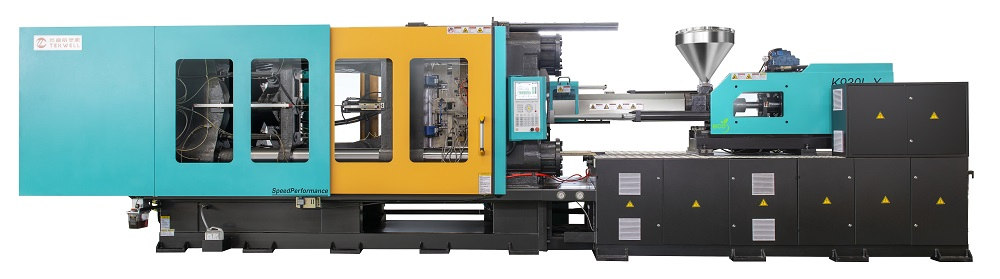

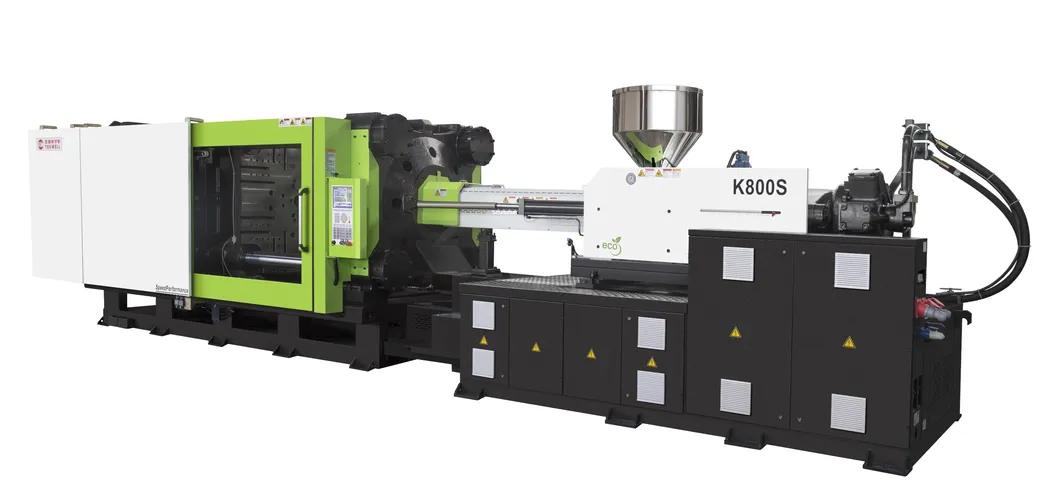

High-Tech Injection Moulding Machine Plastic Injection Molding, Injection Mould Machine

1 / 5

High-Tech Injection Moulding Machine Plastic Injection Molding, Injection Mould Machine

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

S series-001

Type

Tube Head Injection

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic & Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008, GMP, QS

HS Code

84771010

Capacity

5000PCS/Year

Machine Overview

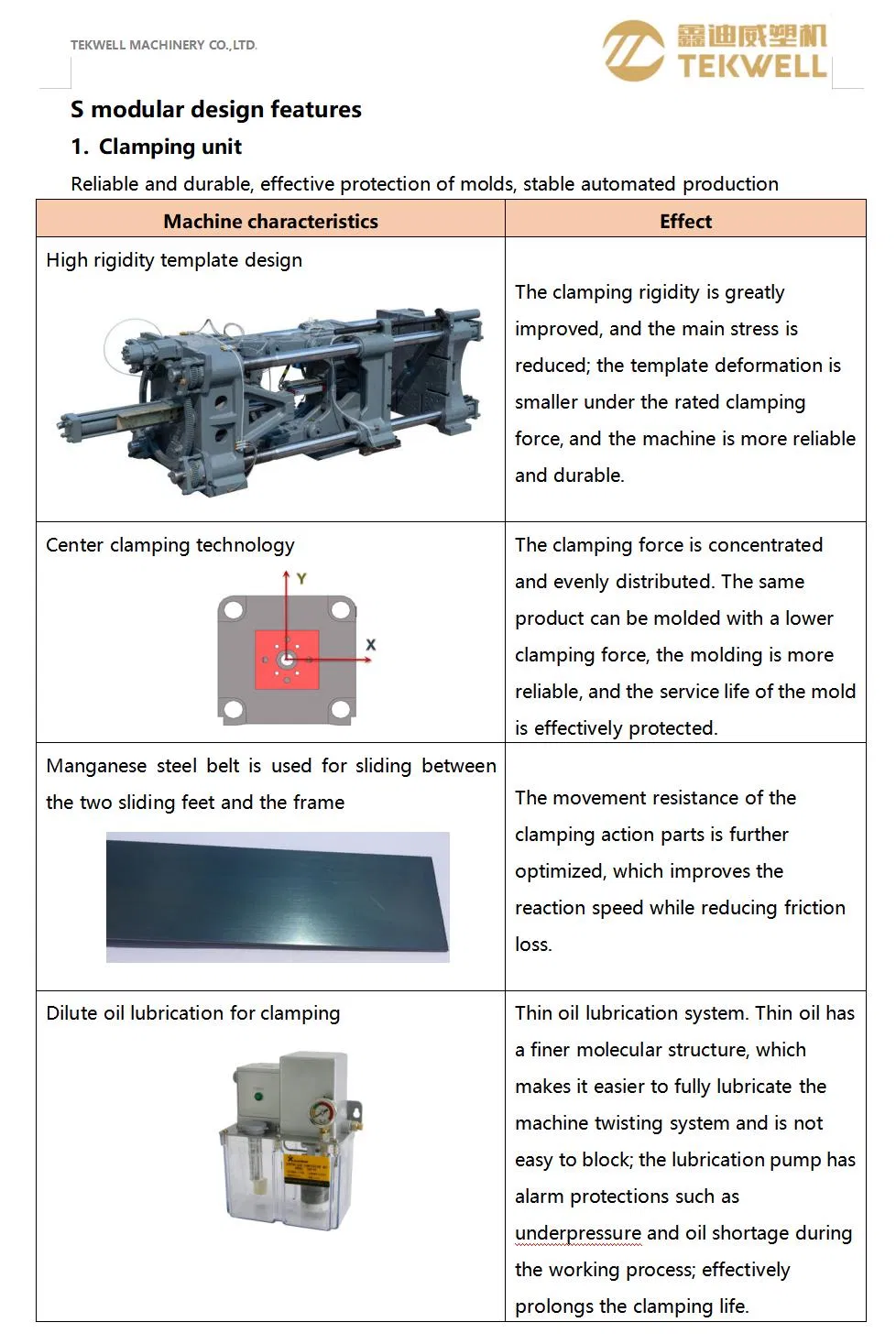

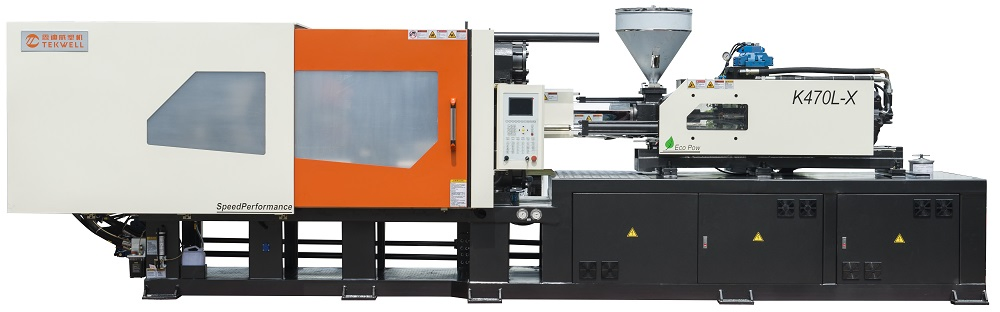

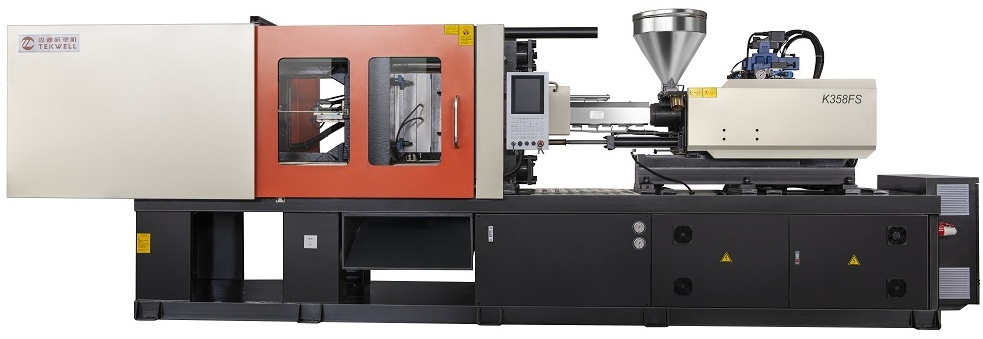

The S series high-end servo energy-saving injection molding machine is equipped with a more rigid, larger parameter toggle clamping mechanism, with parallel double cylinder injection + linear guide + parallel double cylinder injection and injection platform.

S series combines advanced design concepts, reliable software and hardware configuration. After more than ten years of innovative research and development, improvement, and perfect manufacturing experience, it has won global trust. The clamping force ranges from 900KN to 10000KN, and the injection volume ranges from 120cm³ to 6500cm³.

Project	Category	Details
Quality Control	Technical Team	Over 50 experienced injection molding machinery engineering technical teams with more than 15 years of industry experience.
	Patents	Won more than 50 national patents in the field of injection molding and casting.
	Components	100% of core components such as casting, frame and finishing are produced by proprietary high-precision equipment.
Service Advantage	Pre-sale	Investment budget: product analysis, equipment budget, and plant planning (layout, ventilation, exhaust, water).
Service Advantage	After-sales	Global network to ensure production, regular tracking, solving equipment failures, and professional process assistance.

Technology and Equipment

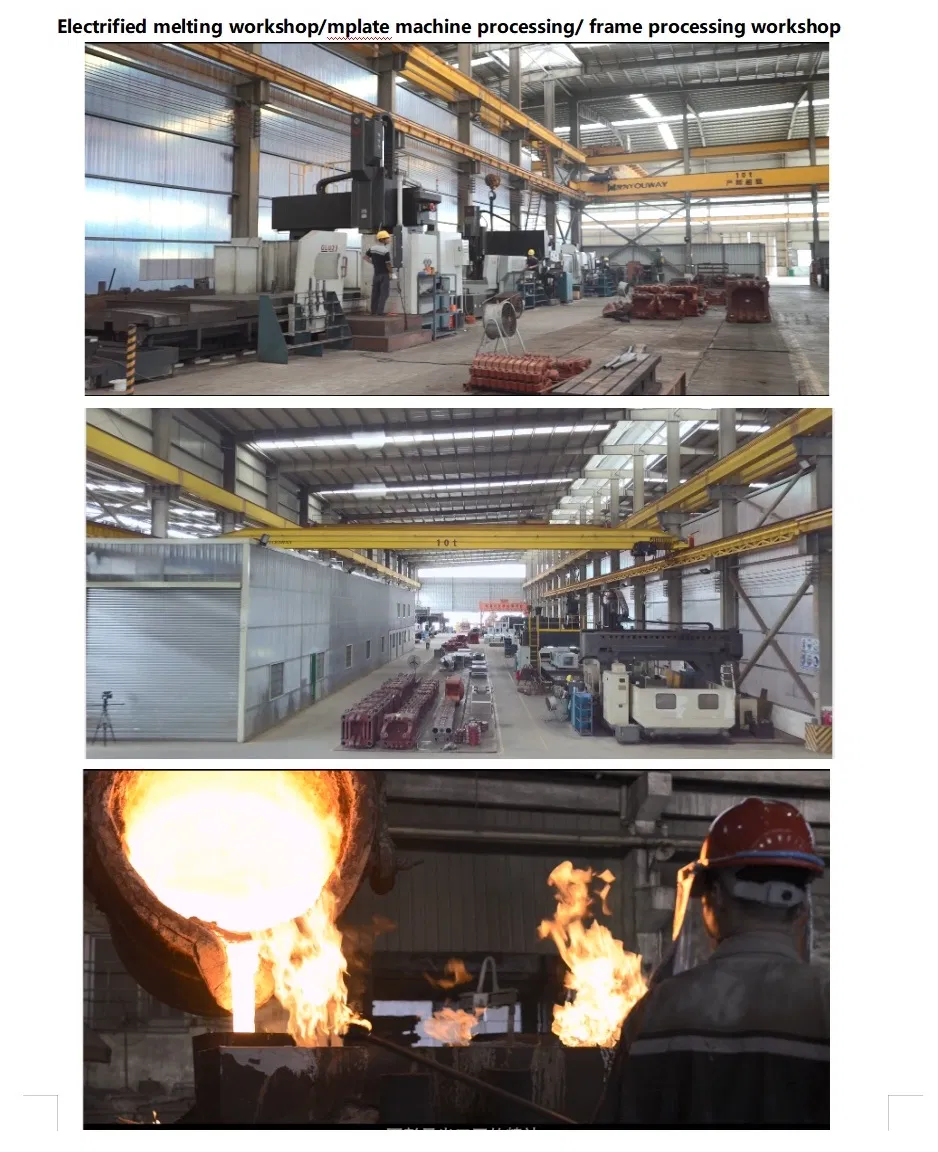

Utilizing advanced production equipment such as German ABP intermediate frequency electric furnaces, Hyundai and other CNC machining centers, and high-power laser machines. All key components are self-made, including template casting, template finishing, and steel structure machine frame welding, ensuring stable quality and performance.

⚡ Processing Workshops

🎯 S Series Design Concepts

Design Concept	Specific Contents	Actual Value
Wide Applications	Larger clamping specifications	Increase production capacity & reduce costs
Reliable & Durable	High rigidity clamping system	Stable, reliable, and durable operation
Precision	Parallel double-cylinder injection	Improved stability and accuracy

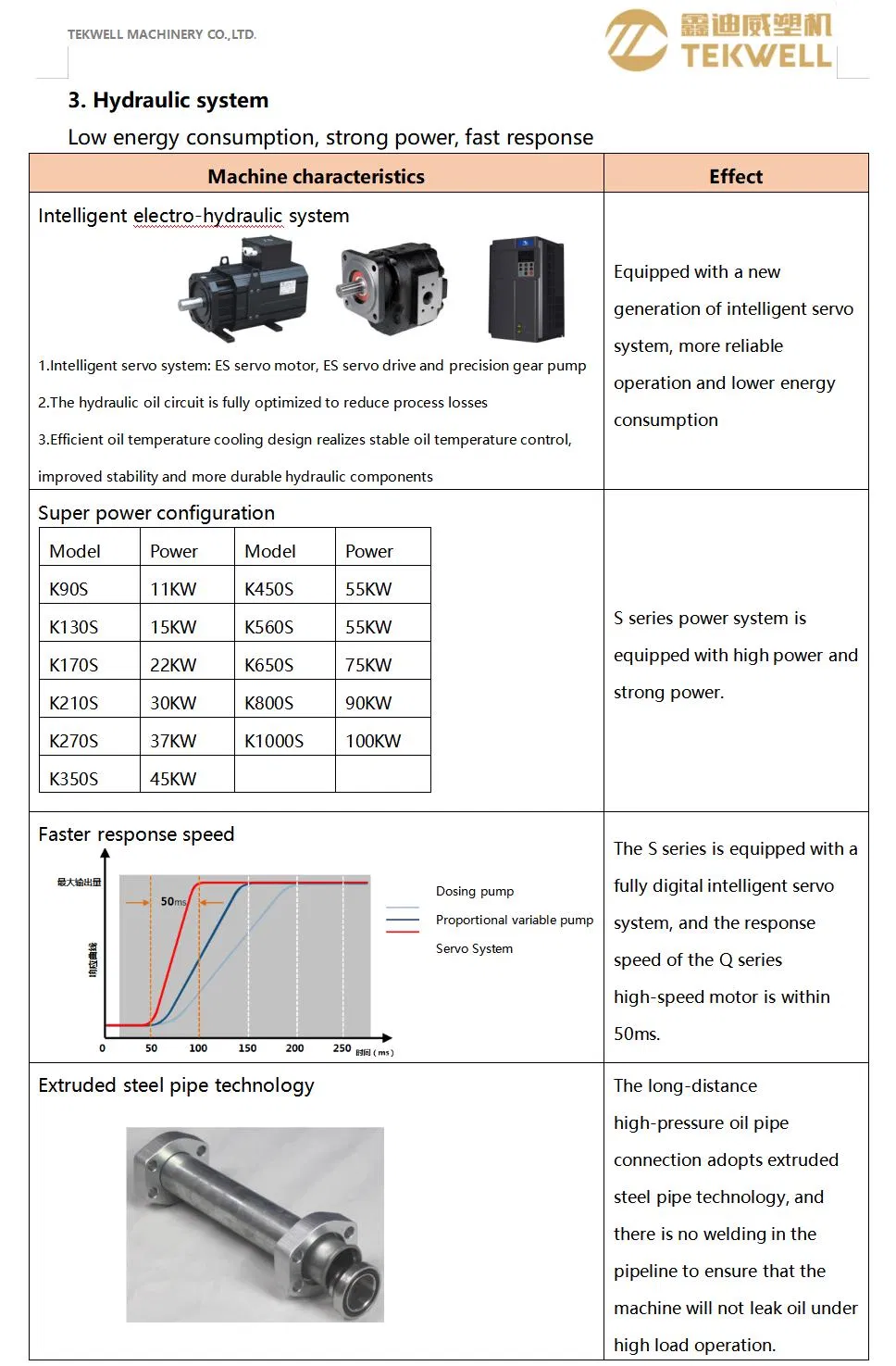

Energy Efficient	Latest servo system	Low noise, strong power, fast response

📊 Performance Indicators

✔ Injection anti-reverse detection deviation < 1 mm

✔ Melting glue weight deviation < 0.5%

✔ Template parallelism (full load) < 0.20mm

✔ Clamping force repeat accuracy < 1%

✔ Static temperature control accuracy < ±1°

Frequently Asked Questions (FAQ)

What is the range of clamping force for the S series injection molding machine?

The S series offers a wide range of clamping force, starting from 900KN up to 10000KN, suitable for various production requirements.

What are the advantages of the servo energy-saving system?

The high-end servo system provides a faster motion response speed, significantly reduces operating noise, and provides strong, consistent power while lowering energy consumption.

How is the precision of the injection process maintained?

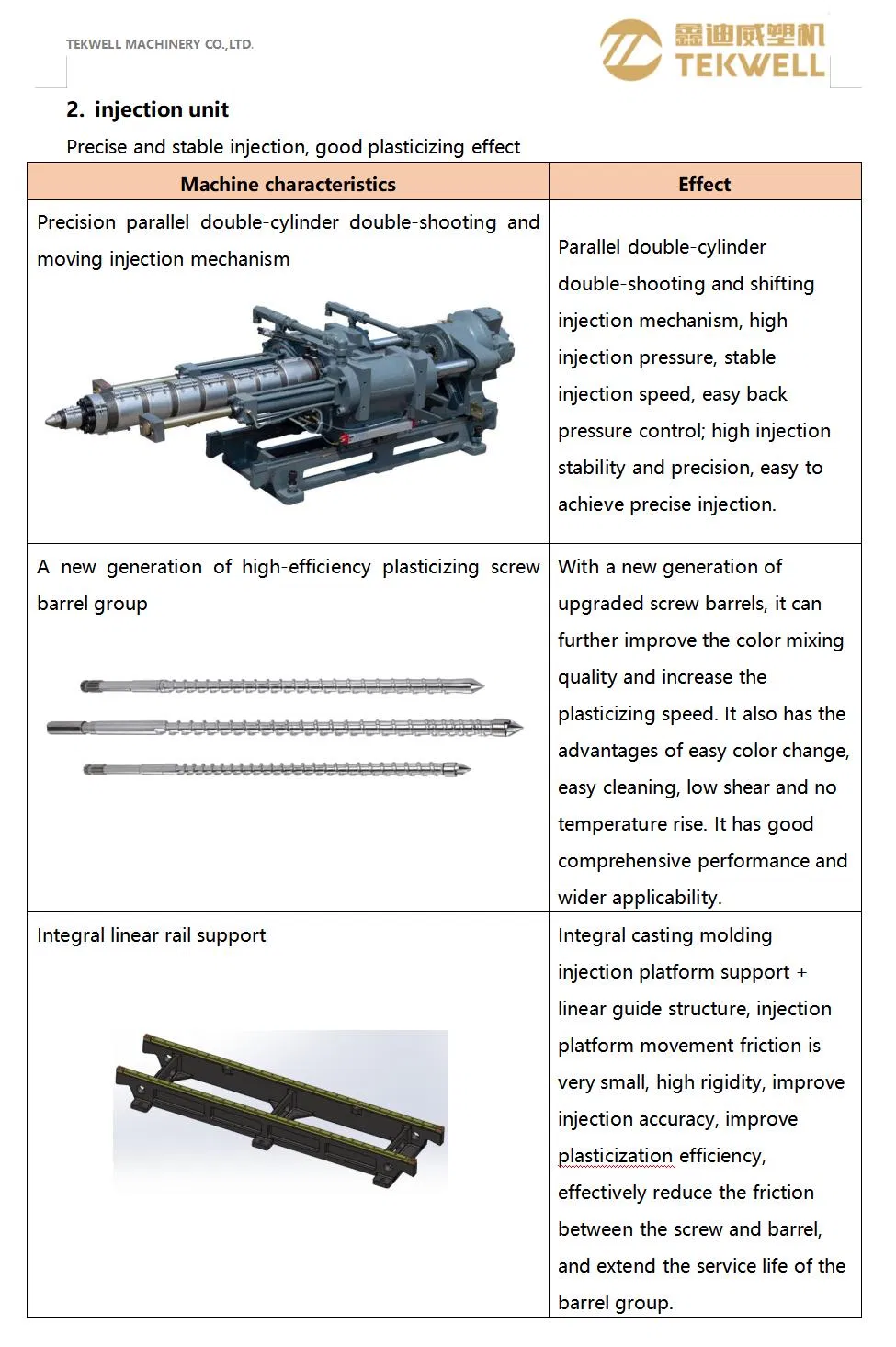

Precision is ensured through a parallel double-cylinder double-shooting injection mechanism and linear guides, resulting in an injection anti-reverse detection deviation of less than 1mm.

Can this machine handle high-precision thermoplastic molding?

Yes, it is specifically designed for thermoplastic materials using a screw-type plasticizing method, ensuring melting glue weight deviation is kept under 0.5%.

What quality certifications do these machines possess?

All machines are manufactured to meet international standards and carry CE, ISO9001:2008, GMP, and QS certifications.

What support is provided for new equipment installation?

We provide free new machine debugging, guidance for water and electricity installation, and comprehensive training for technicians and operators to ensure proficient machine use and maintenance.
