Plastic/Injection Molding/Glycol / Dairy Milk / Brewery / Food Cooling Industrial Chiller Air Cooled Water Chiller Machine with CE Certificate

1 / 5

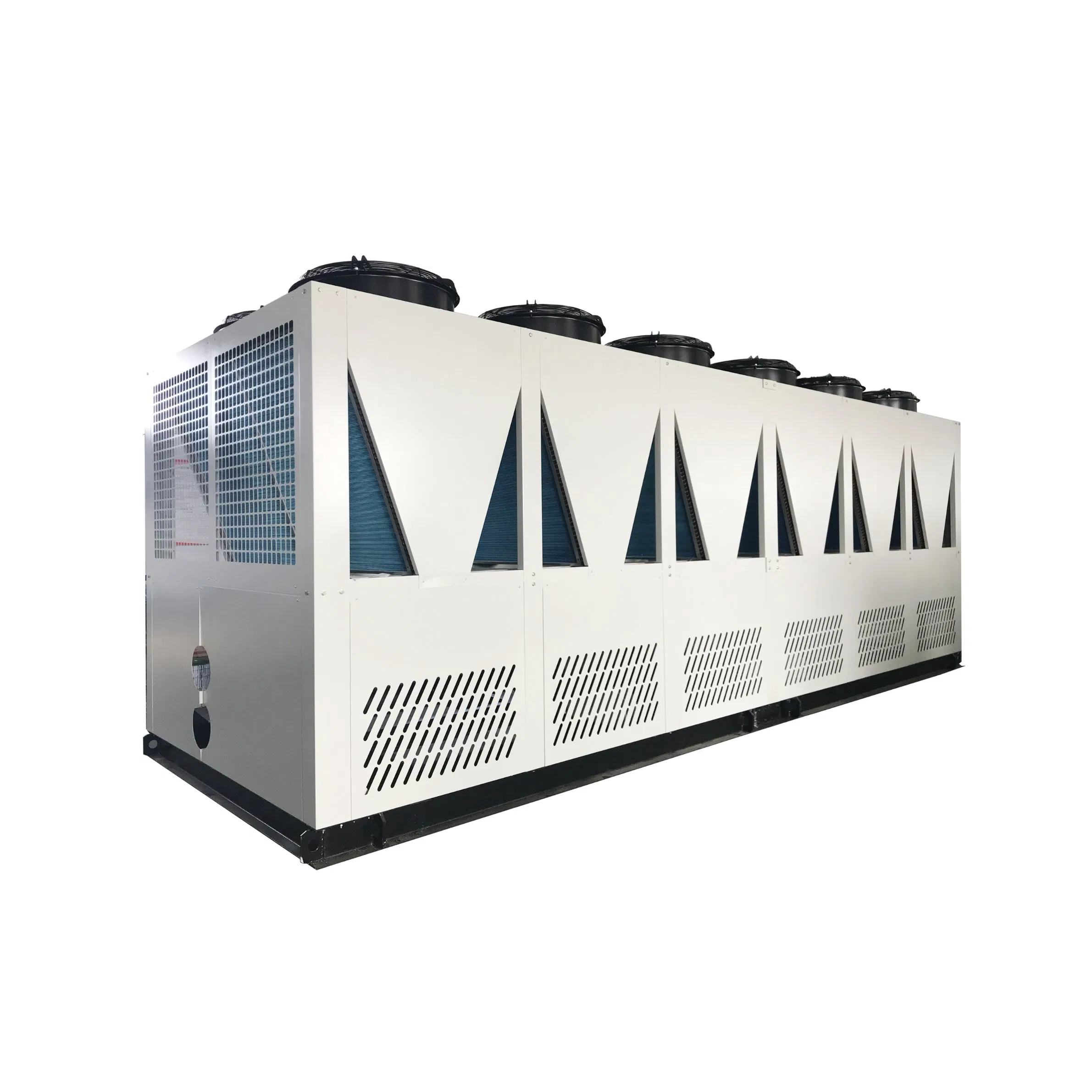

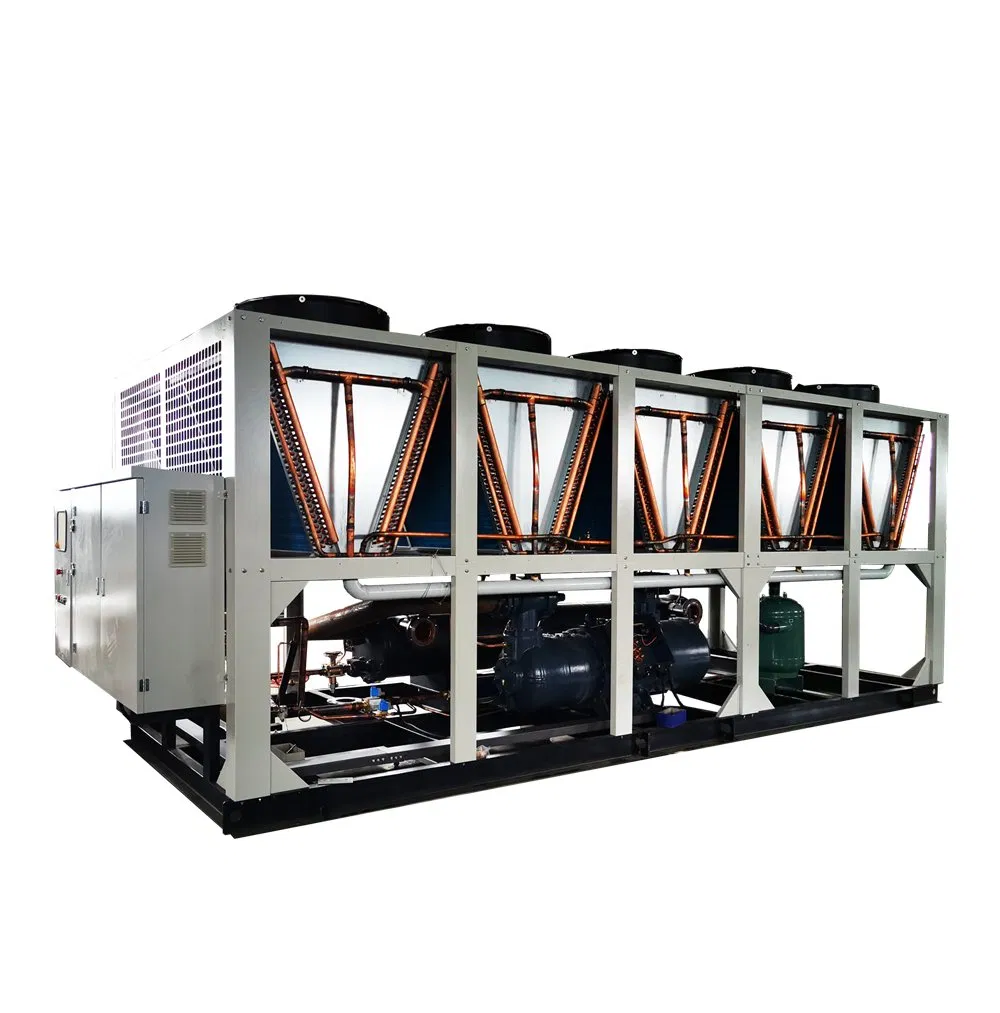

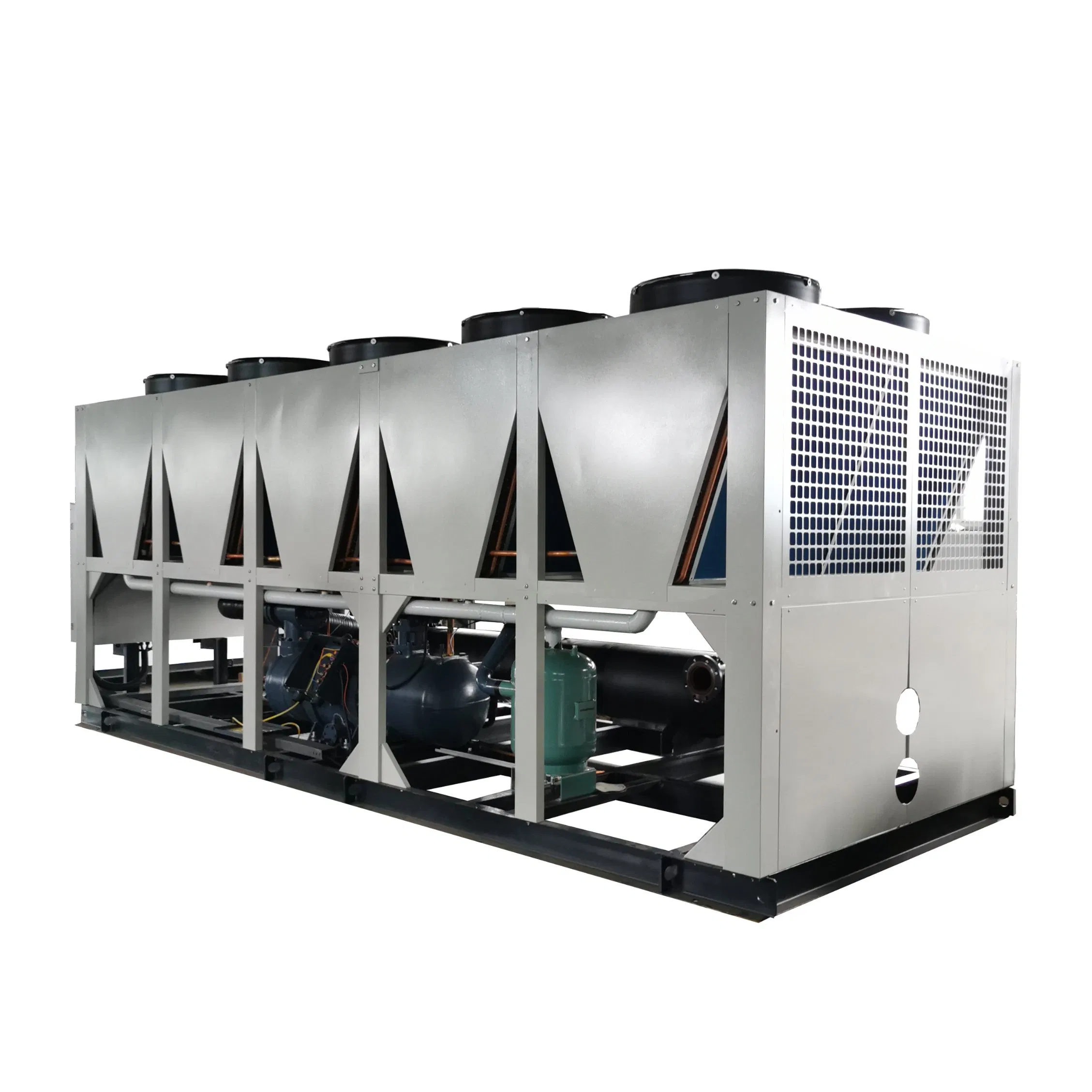

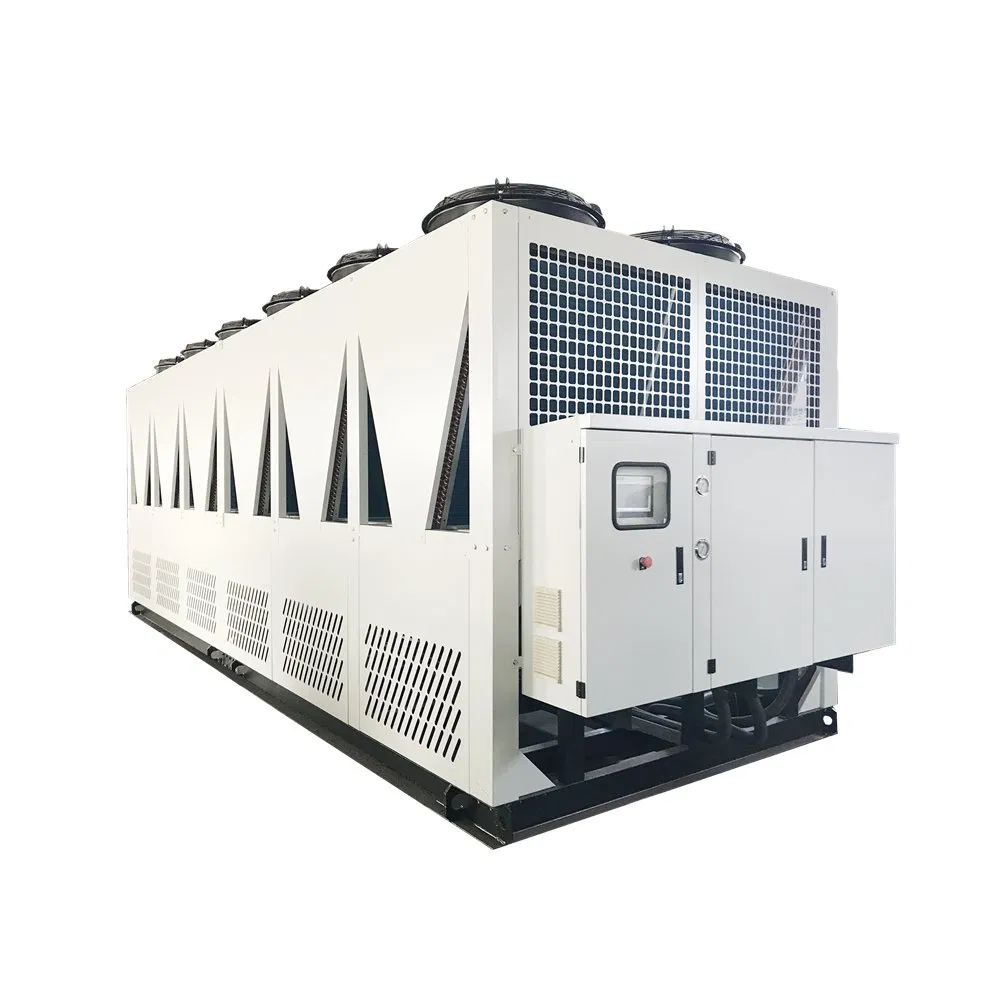

Plastic/Injection Molding/Glycol / Dairy Milk / Brewery / Food Cooling Industrial Chiller Air Cooled Water Chiller Machine with CE Certificate

After-sales Service:	Support
Warranty:	12 Months
Type:	Air-Cooled

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.

MG-350CS

Cooling Method

Air-cooled

Unit Structure

Integral

Selected Voltage

3pH-220V/240V/380V/415V/440V/460V/480V-50Hz / 60Hz

Compressor Number

Noise Level

Ordinary

Application Fields

Electroplating / Precision Machine Tool

Certification

RoHS, UR, ISO, CE, CCC

Evaporator Type

Shell and Tube

Condenser Type

Finned Aluminum Copper Fins

Compressor Type

Screw Type

Refrigerant

R407c/ R404A/R22/R134A

Water Temp Control

5°C ~ 30°C

Package Size

3500 x 1800 x 2100 cm

❄️ Product Description

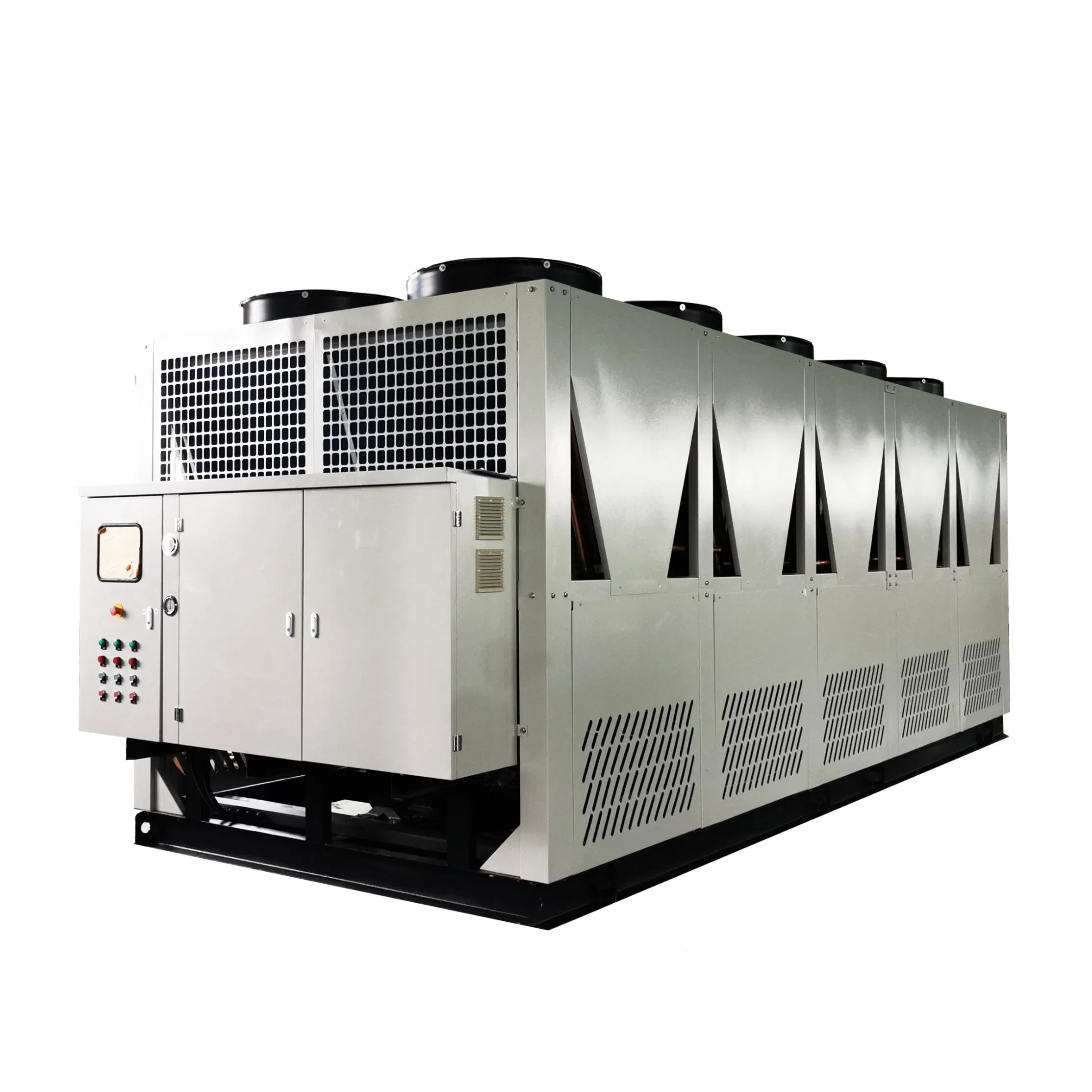

100 Ton Air Cooled Industrial Water Chiller

This air-cooled screw chiller system provides a cooling capacity ranging from 20 Ton to 150 Ton (80KW to 530KW) with a temperature control range from +30ºC to -30ºC. Designed for efficiency, these units are ideal for industrial applications requiring precise cooling without the need for a cooling tower.

Key Performance Features:

Outlet water temperature: +7 C° to 30C° (Glycol models available for below zero).
Semi-hermetic screw type compressor for 20%-30% higher efficiency.
Four-step energy control (100%-75%-50%-25%) for stable performance.
Shell and tube evaporator with high efficiency and cleanable design.
Intelligent Microcomputer or PLC Control System with LCD display.
Premium electrical systems featuring Siemens/Schneider components.

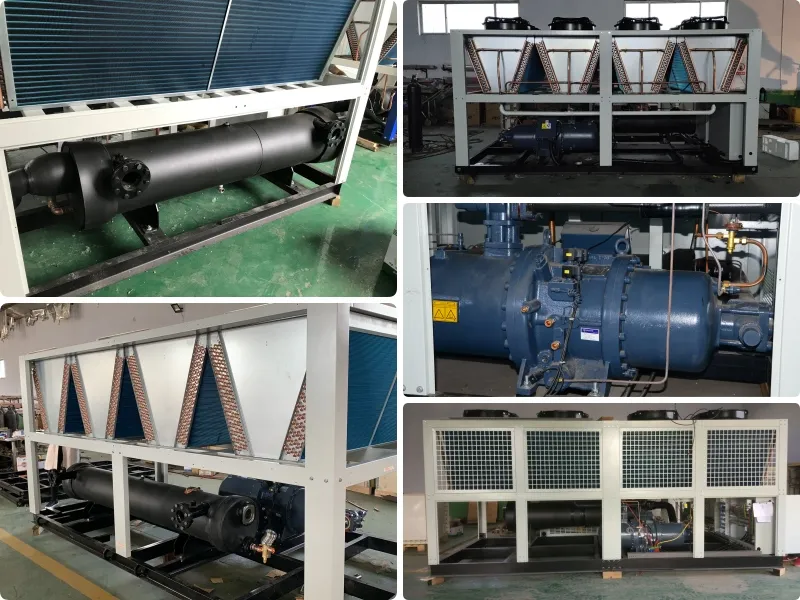

🔧 Core Components

📊 Technical Specifications (MG-350CS)

Parameter Item		Details
Power Supply	Ph/V/Hz	3PHASE, 220V, 60HZ
Total Input Power	kW	110.2
Cooling Capacity	kW / Ton	355 kW / 101 Ton
Refrigerant	Type	R407c (Expansion Valve Control)
Compressor	Type / Qty	Semi-hermetic screw / 1
Energy Control	Steps	25%-50%-75%-100%
Condenser	Type	Screw copper tube with aluminum fins
Air Fan	Qty / Power	8 Fans / 1.2kW each
Evaporator	Type	Shell and tube
Water Flow Rate	m³/h	60.8
Dimensions	LWH (mm)	4320 x 2170 x 2230

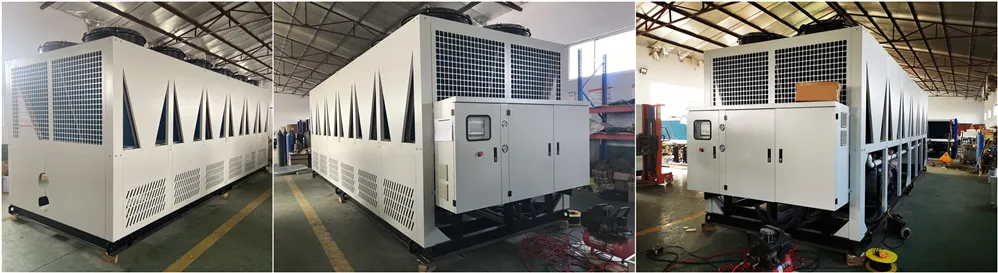

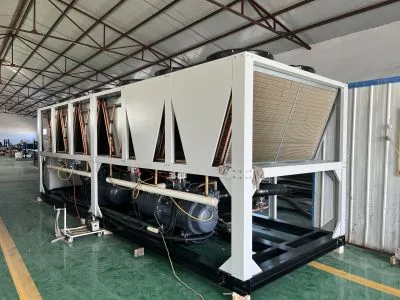

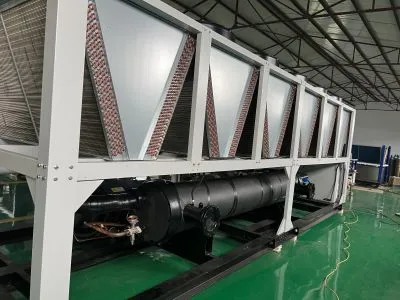

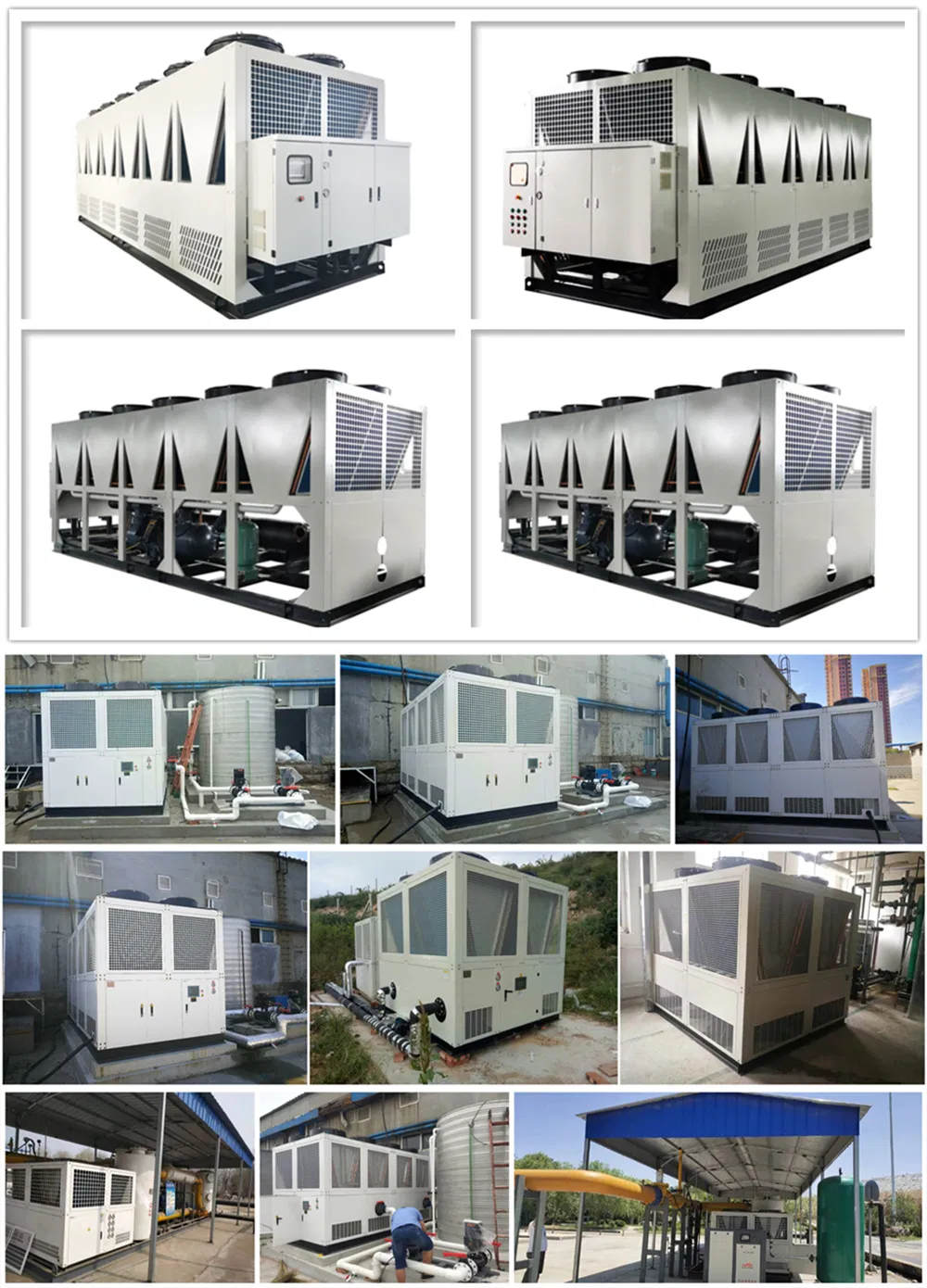

📐 Equipment Reference

❓ Frequently Asked Questions

Q1: How do I choose the correct chiller model for my application? A: You should provide the required cooling capacity (kW or Kcal/hr), the desired outlet water temperature, the power supply specifications (V/Ph/Hz), and the type of refrigerant preferred (e.g., R407C, R134A).

Q2: What is the standard temperature control range? A: The standard outlet water temperature range is +7°C to +30°C. For specialized needs, glycol systems can achieve temperatures from 0°C down to -30°C.

Q3: Do I need a cooling tower for this air-cooled chiller? A: No, air-cooled chillers use built-in fans to dissipate heat into the ambient air, making them ideal for areas with water shortages or where a simpler installation is required.

Q4: What are the benefits of a screw compressor over a scroll compressor? A: Screw compressors are highly efficient for large-scale cooling (above 20 tons), offering stepless or multi-step energy regulation (25%-100%) to match the actual load, leading to significant energy savings.

Q5: What protection features are included in the electrical system? A: The units include compressor overload protection, high/low pressure switches, phase loss/reversal protection, circulating water pump overload, and electronic time delays.

Q6: What maintenance is required for the shell and tube evaporator? A: The shell and tube design is highly durable and cleanable. Regular inspection of water quality and occasional descaling of the tubes ensures long-term heat exchange efficiency.
