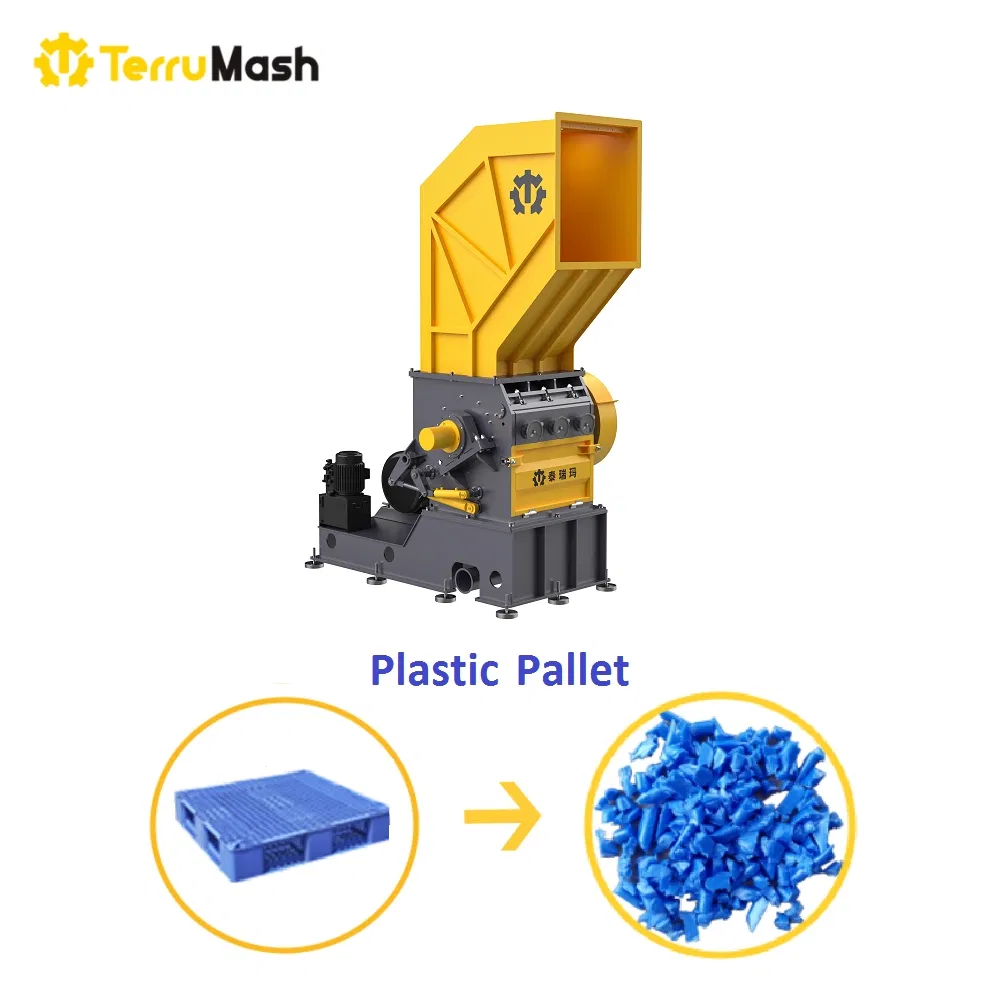

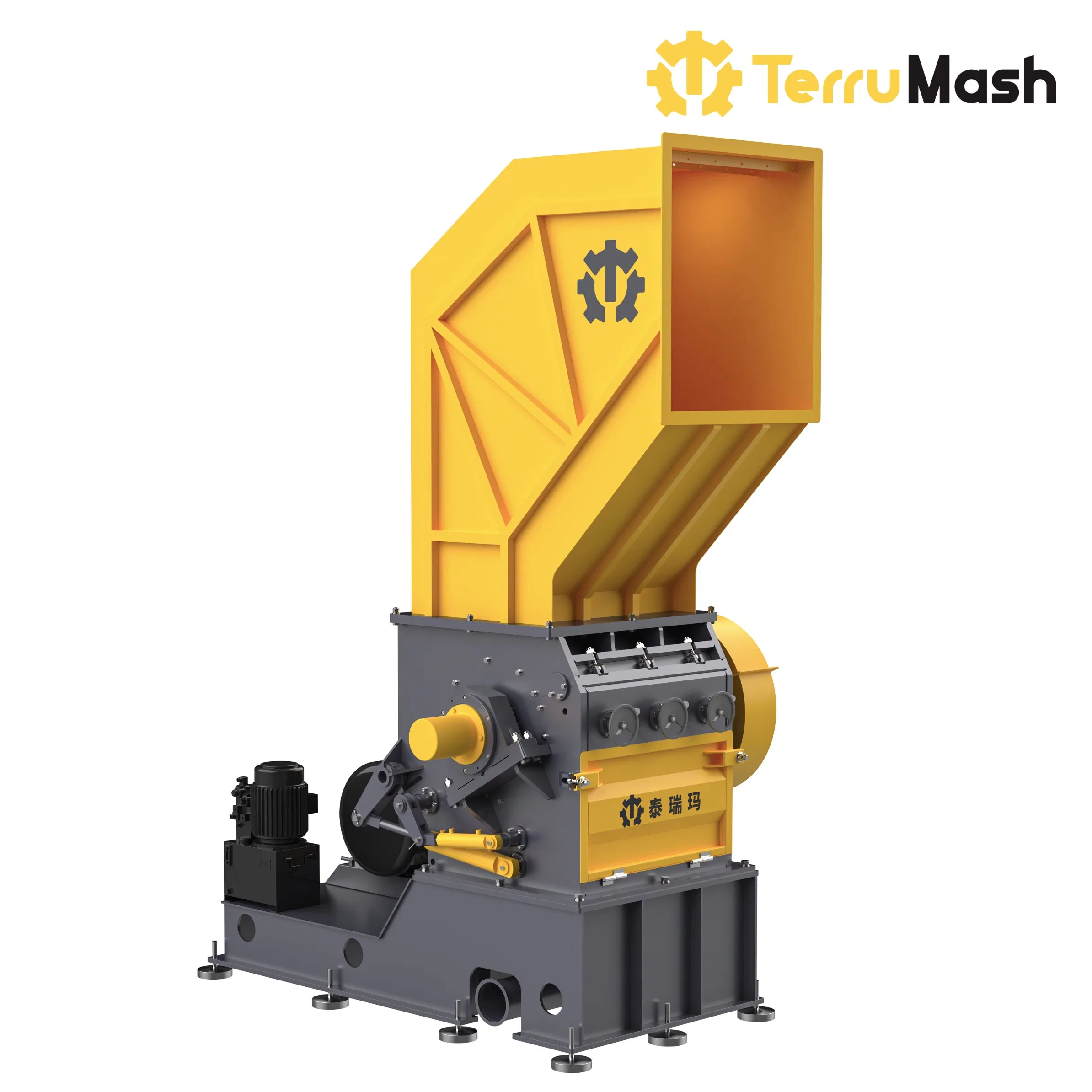

Industrial Textile Grinding Recycling Machine Plastic Block Crusher Machinery For Tire
| HFS1400/600 - Heavy Duty Crusher Specifications | |
|---|---|
| Raw material | Film, woven bags, pipes, profiles, waste material of injection machine, plastic bottle, pallet, etc. |
| Capacity | 800-2000kg/h (Depends on material condition) |
| Electric current | 3×380V, 50Hz (Customizable) |
| Particle size | 10mm - 60mm (Customizable) |
| Rotor diameter | φ600 mm |
| Rotor width | 1400 mm |
| Main shaft speed | 520 rpm |
| Motor power | 110/132 kW |
| Machine dimensions | 2300x2400x3520mm |

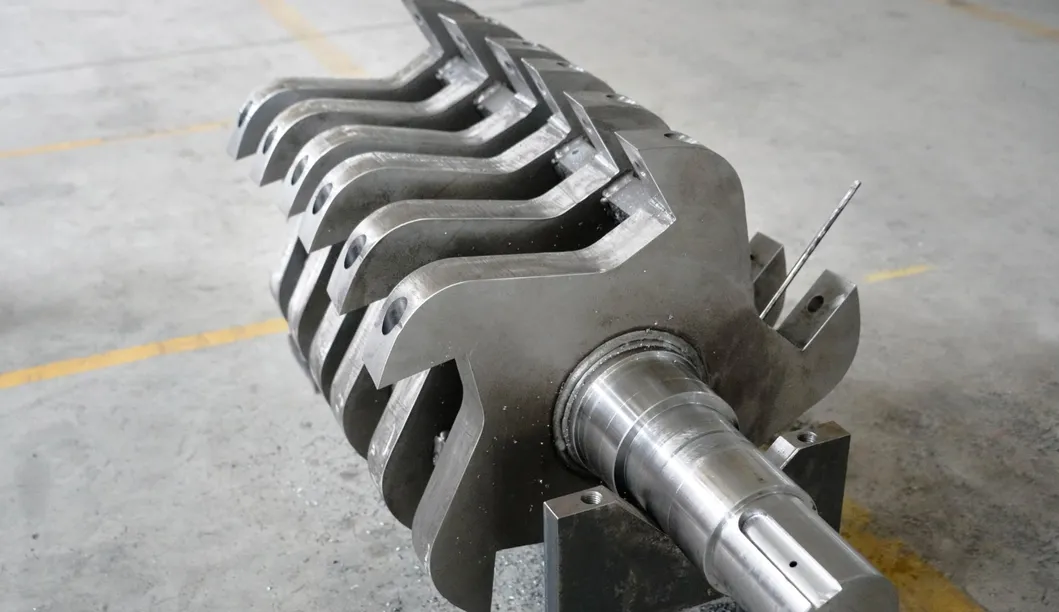

Suitable for most materials and withstands greater impact. The V-shaped arrangement effectively forms two-way shear, concentrating material in the center to avoid accumulation and reduce wear on box sides.

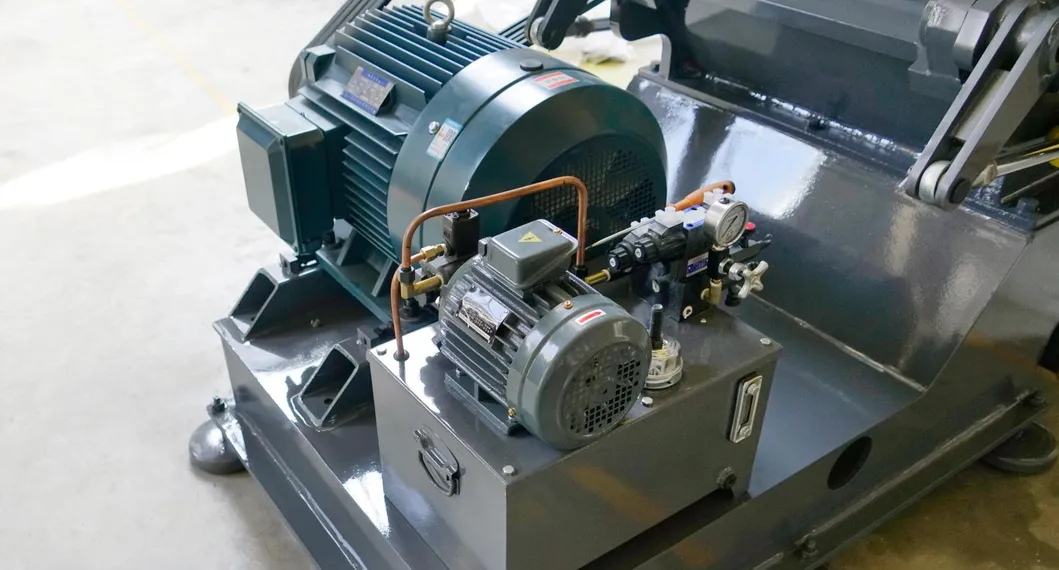

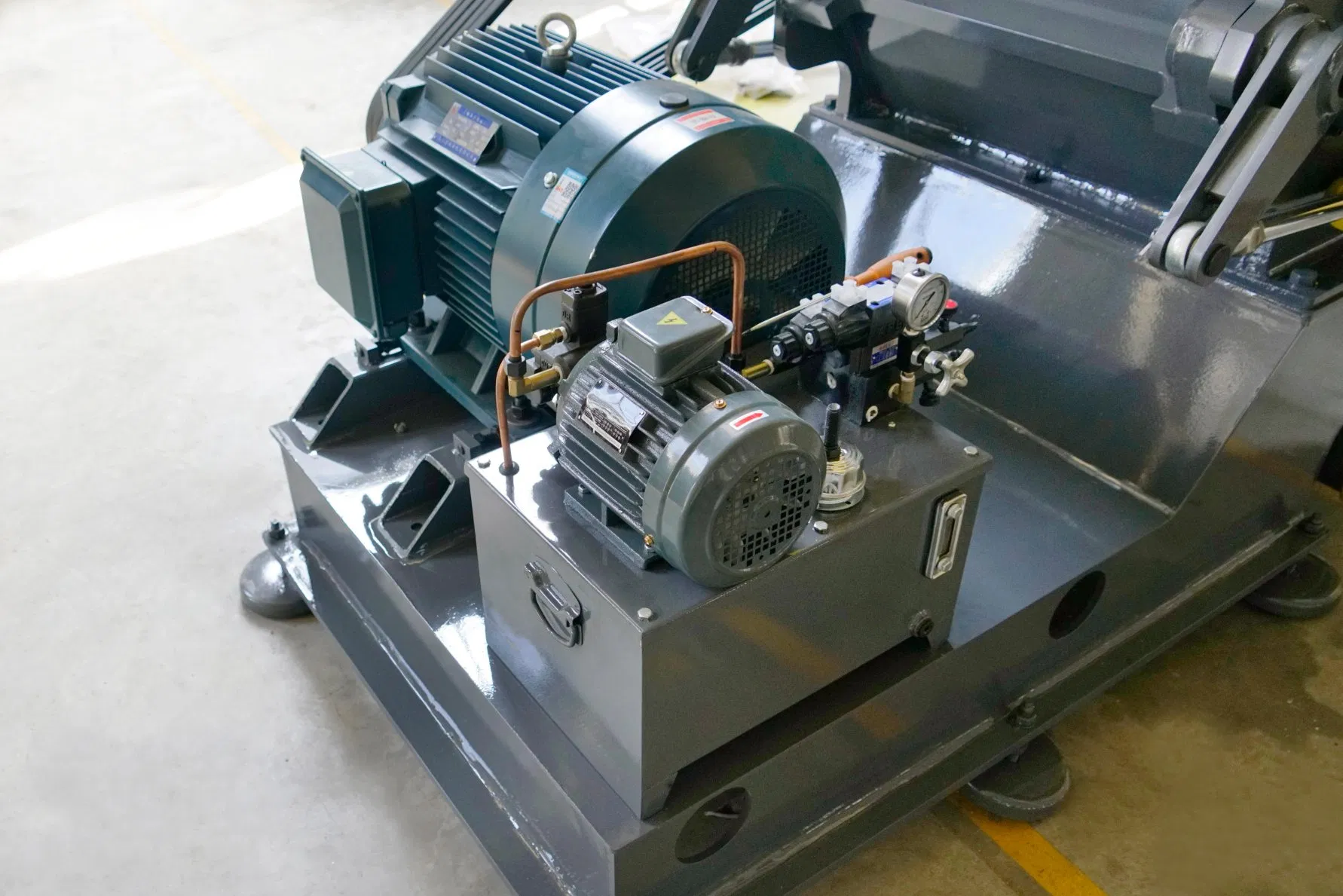

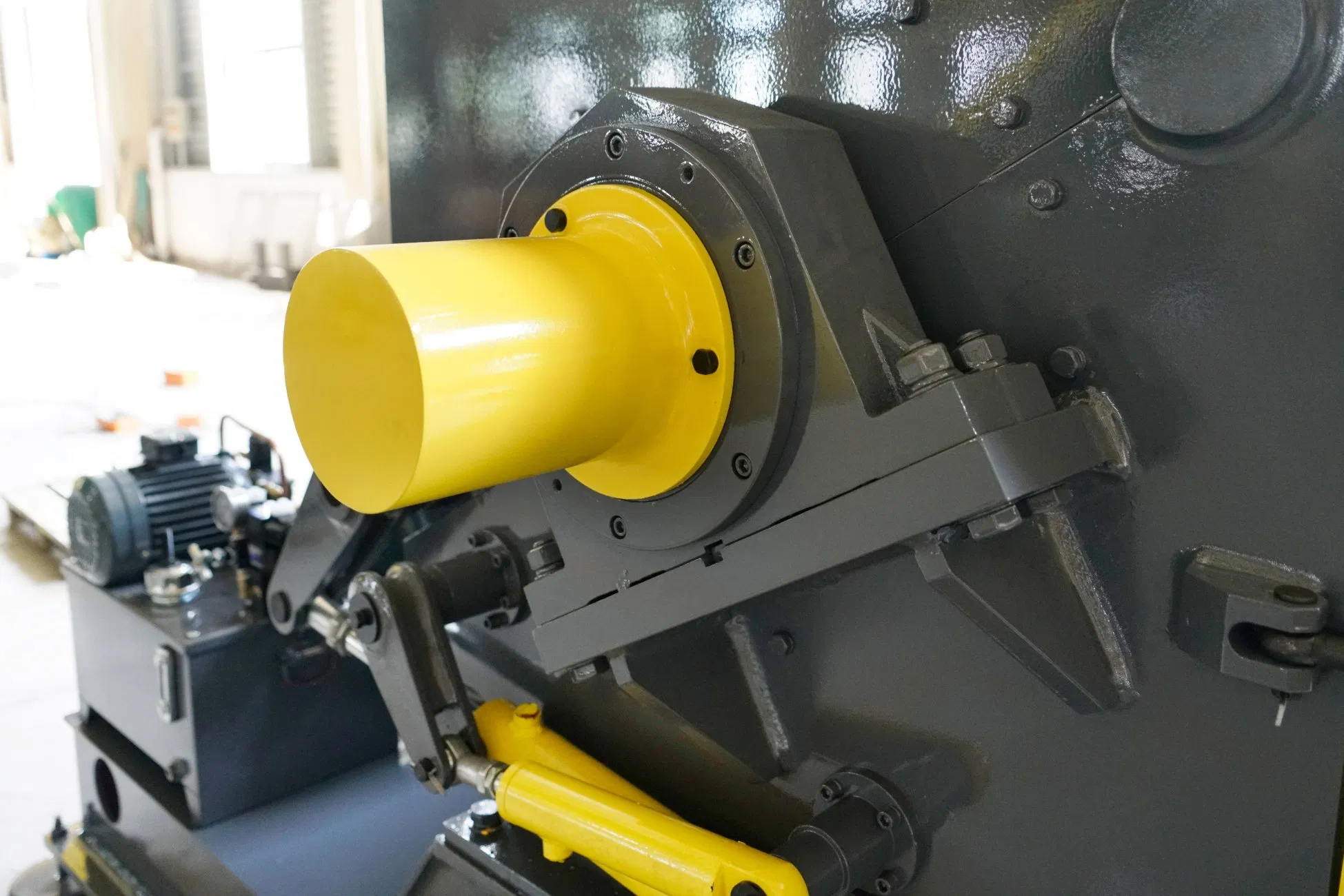

Features a hydraulic opening and closing device for blade maintenance and screen replacement. Hydraulic drive makes it fast and easy to open the chamber and screen frame.

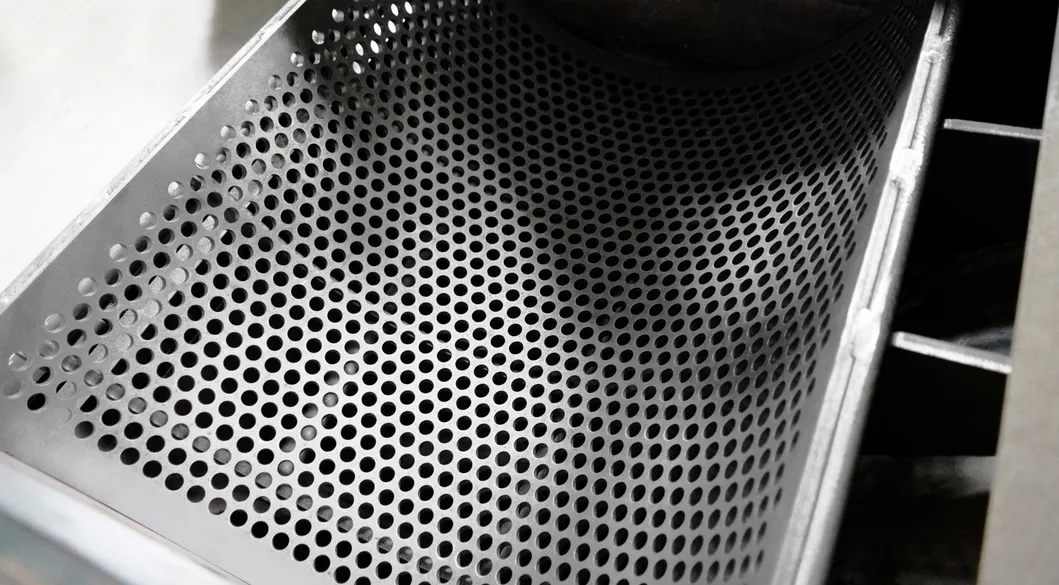

Different aperture screens can be replaced according to needs. The replacement process utilizes hydraulic drive to ensure safety and solve manpower shortages.

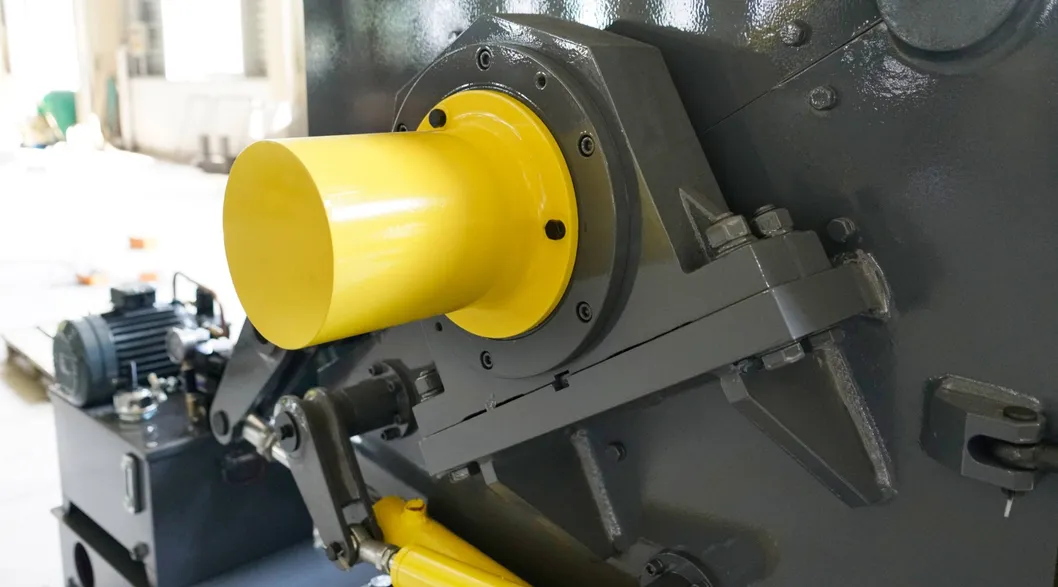

High-strength bearings are installed externally, separated from the crushing chamber. This prevents material from entering the bearing, extending service life and protecting the rotor.

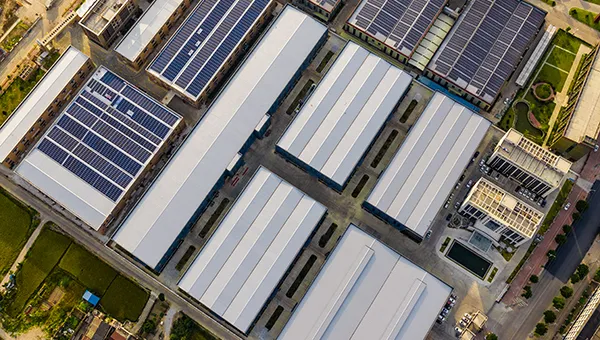

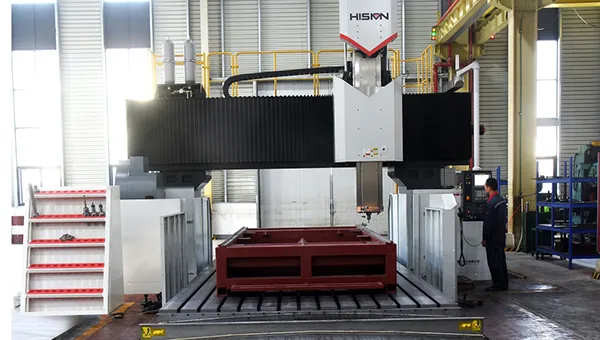

We are a professional environmental protection equipment enterprise integrating R&D, manufacturing, sales, and after-sales service. With a plant covering more than 60,000 square meters, we introduce world-class production equipment and select high-quality raw materials and accessories globally. We partner with international brands like Mitsubishi, Omron, and Delta to ensure "zero defect" production and strict quality management throughout the entire process.
