Atomization
Pressure Atomization
Material Status
Powder, Solution, Strap, Bulk
Drying Medium
Inactive Gas, Superheated Steam, Effluent Gas, Air
Operational Method
Continuous
Application Area
Heat Press, Plastic Electric Products, Wood, Glass
Main Parts
Ceramic Heating Tube & Quartz Heating
Working Power
AC 380V 50Hz
Heating Chamber
4meter Heating Area
Temperature
0-200 Centigrade
Machine Size
(L)8100X(W)1050X(H)1260mm

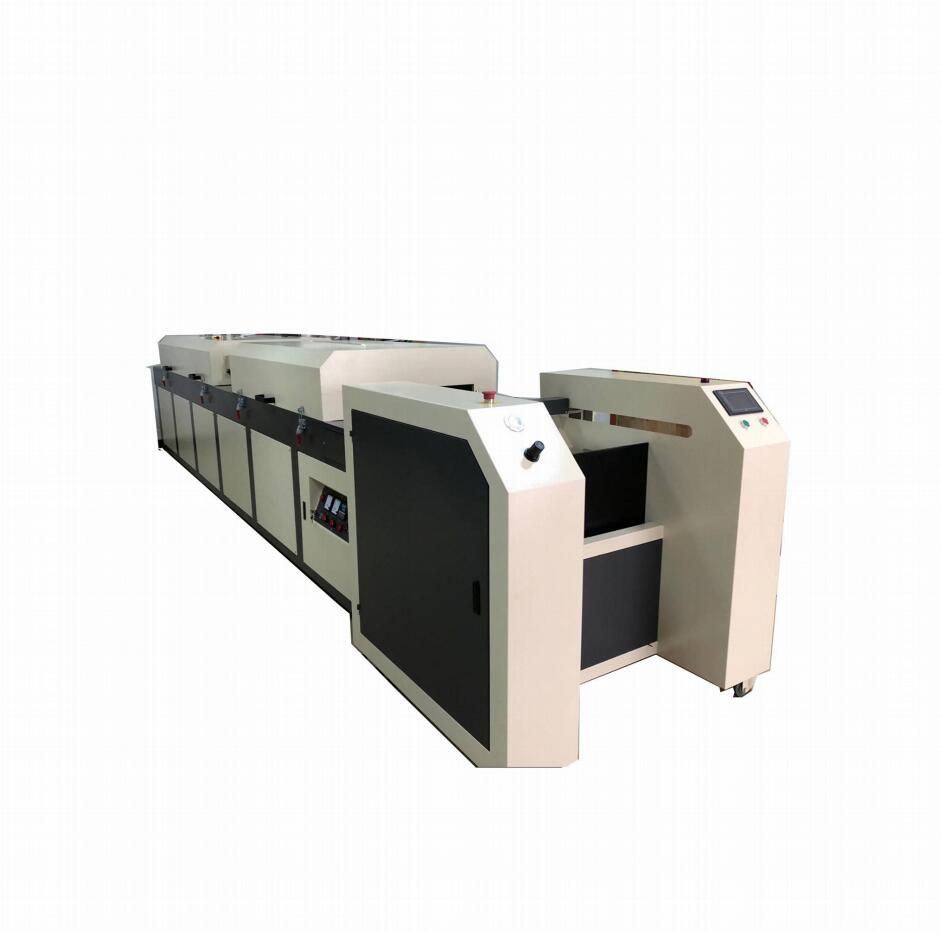

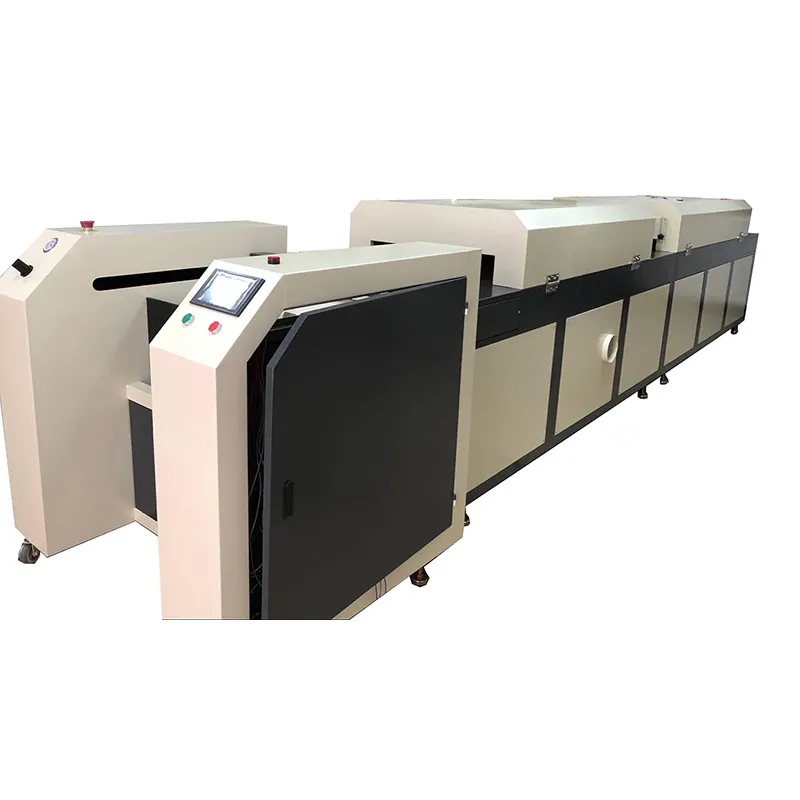

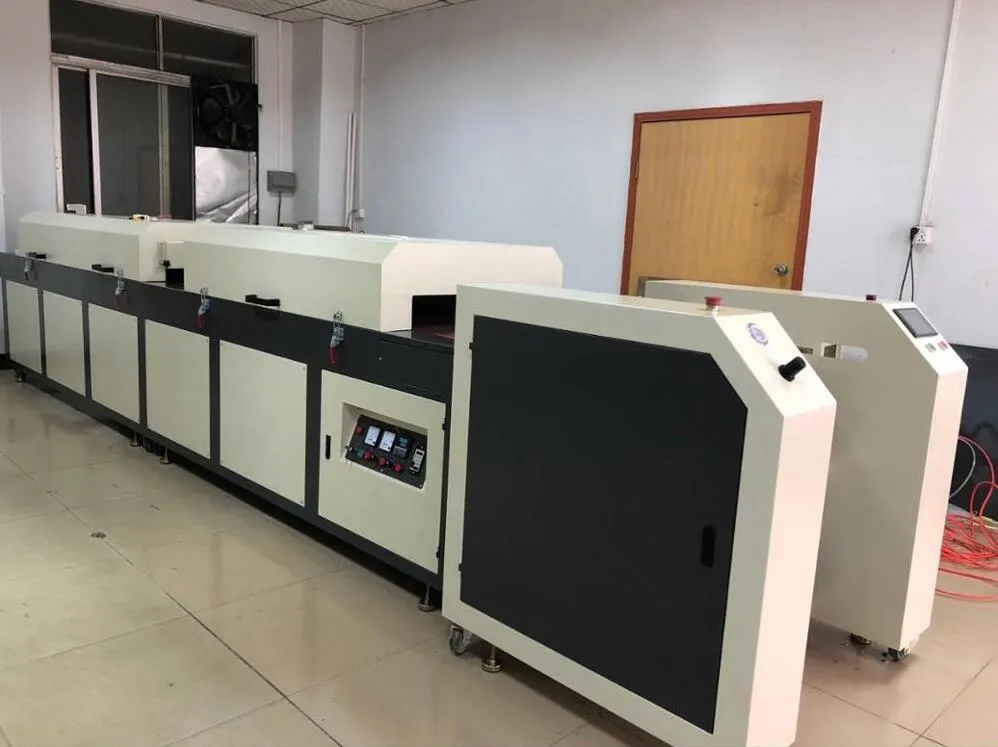

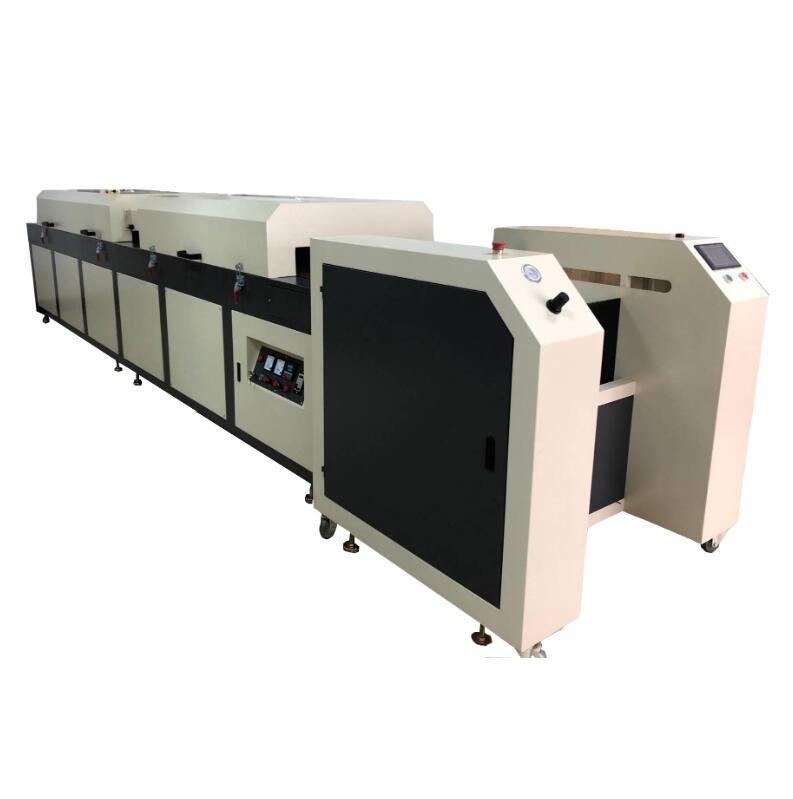

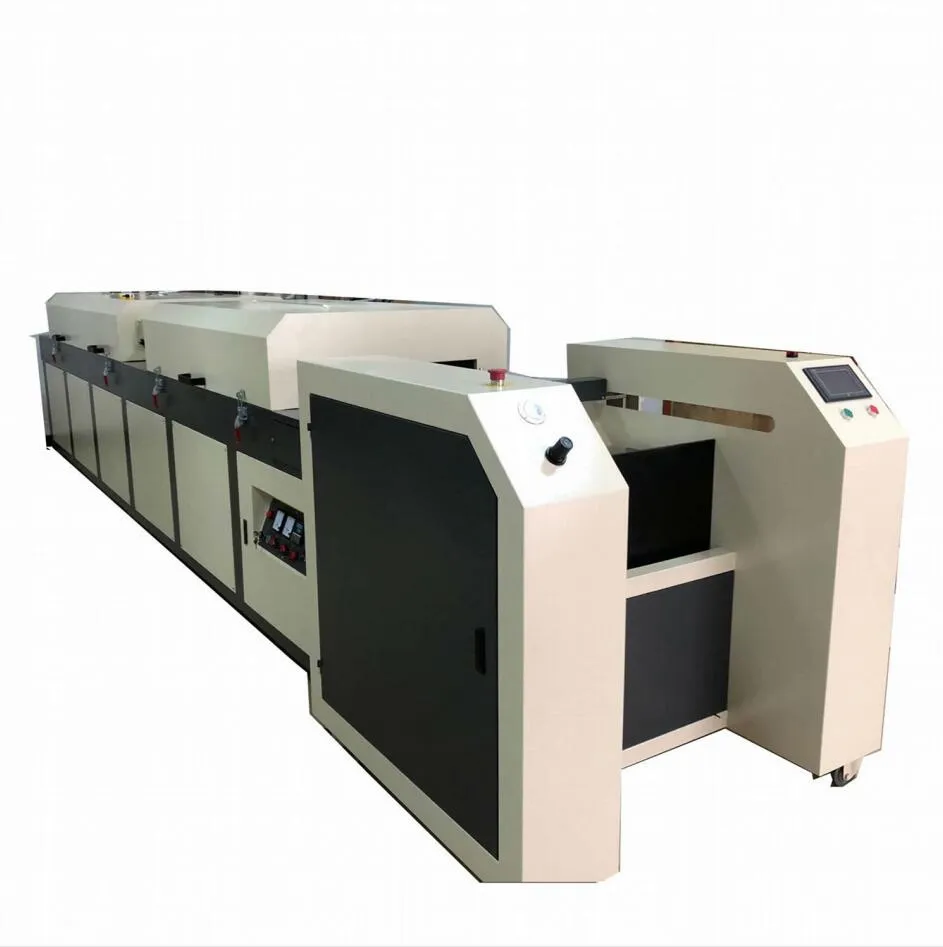

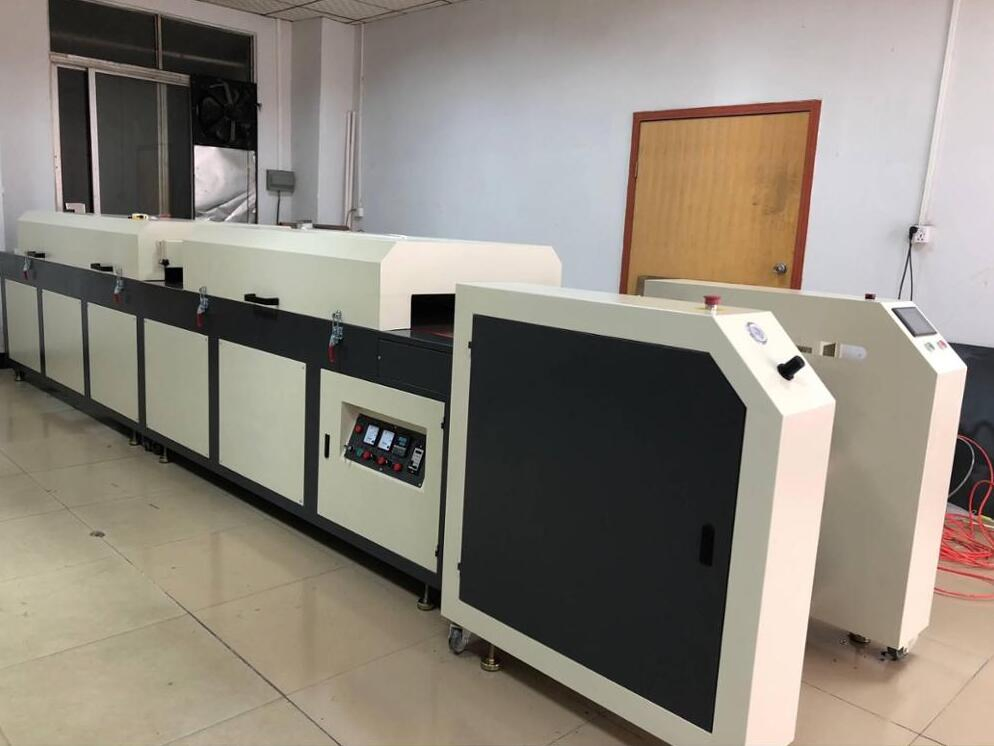

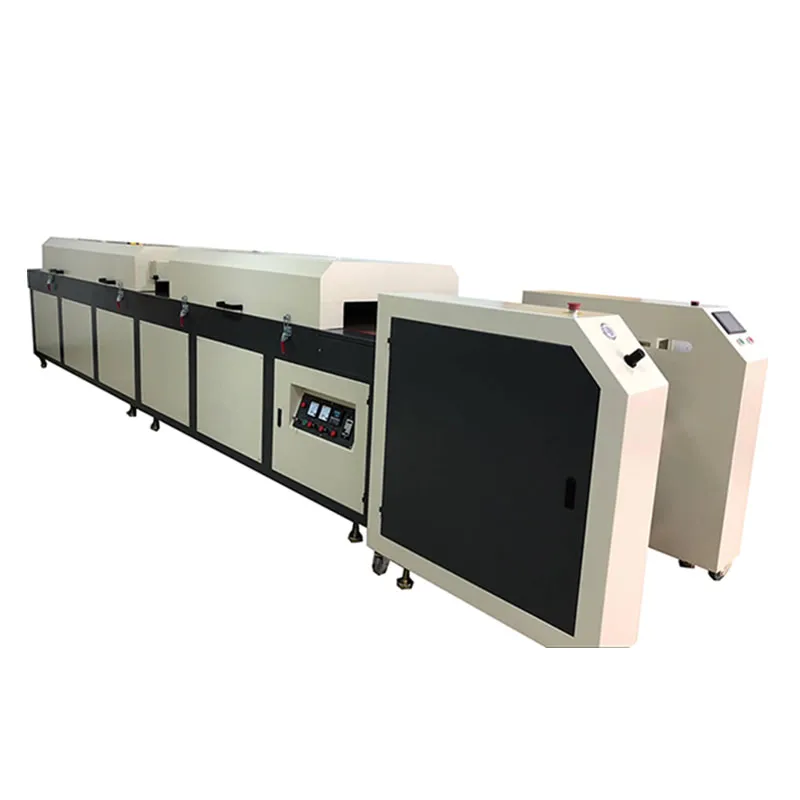

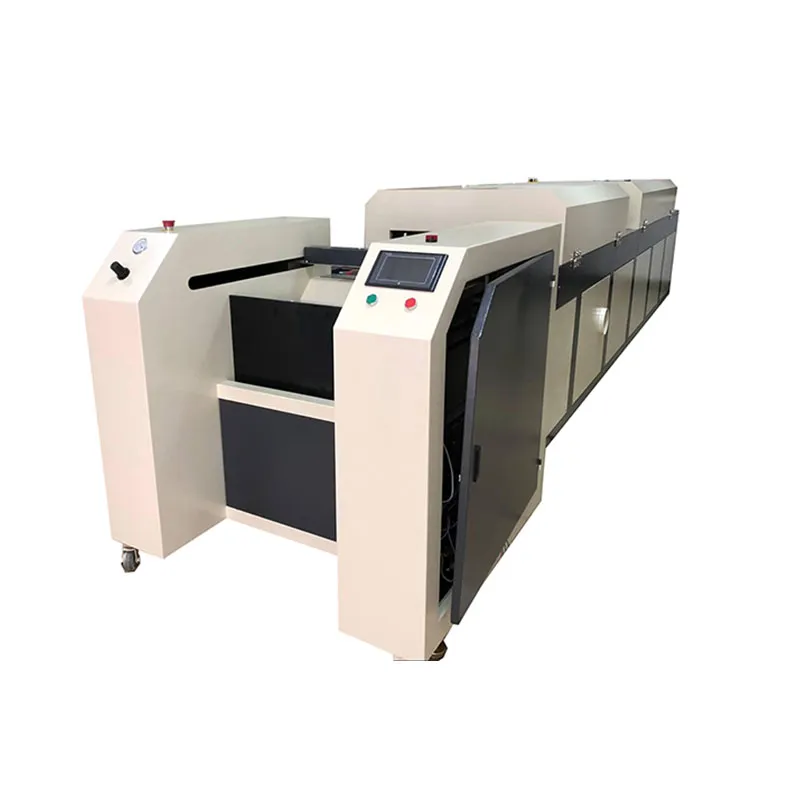

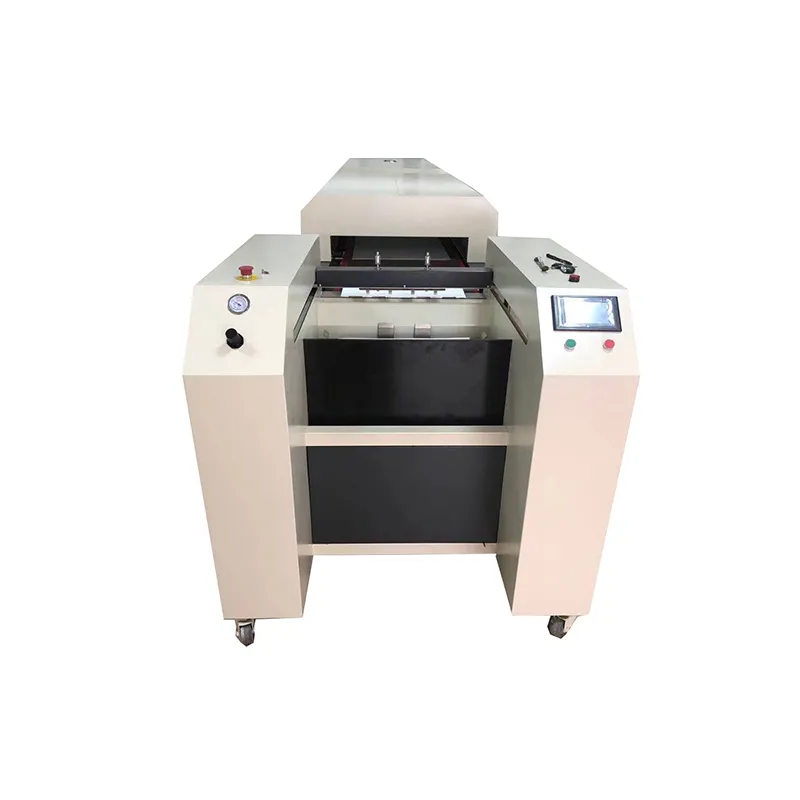

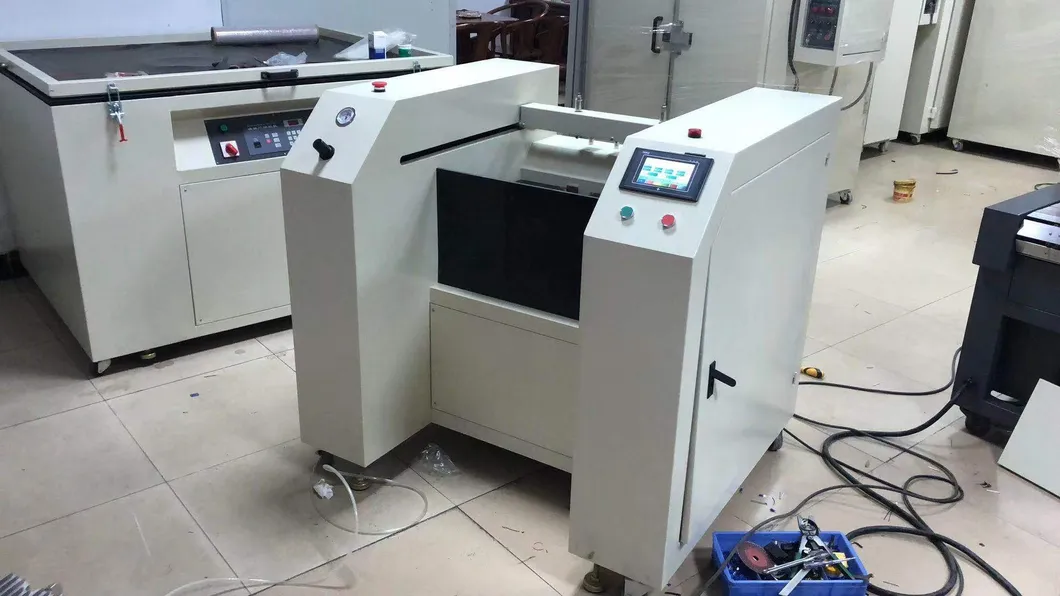

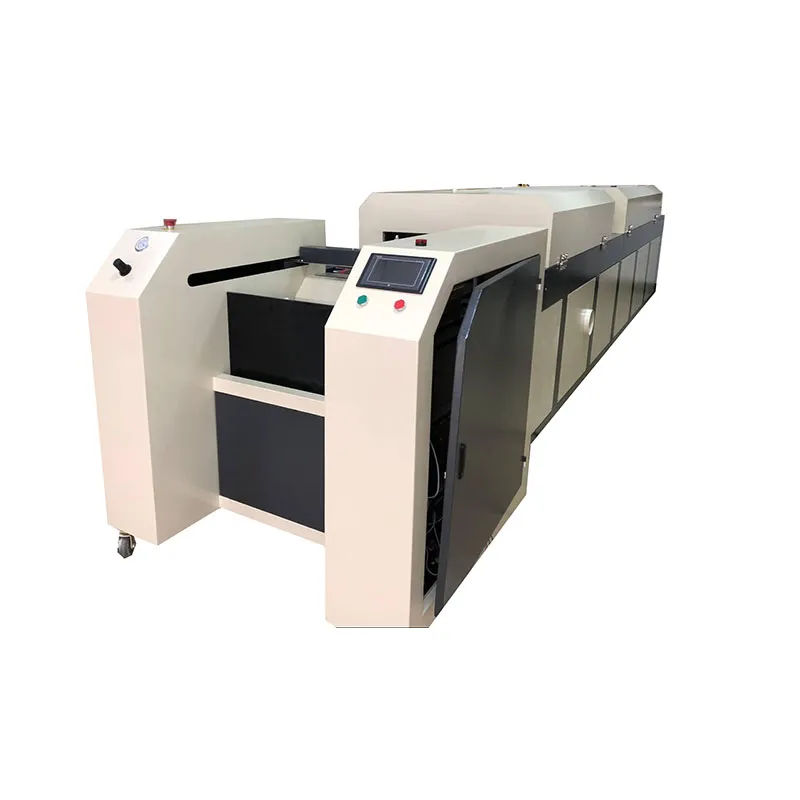

Infrared ray drying oven dryer machine with conveyor belt for clothes/ paper /wood/ plastic

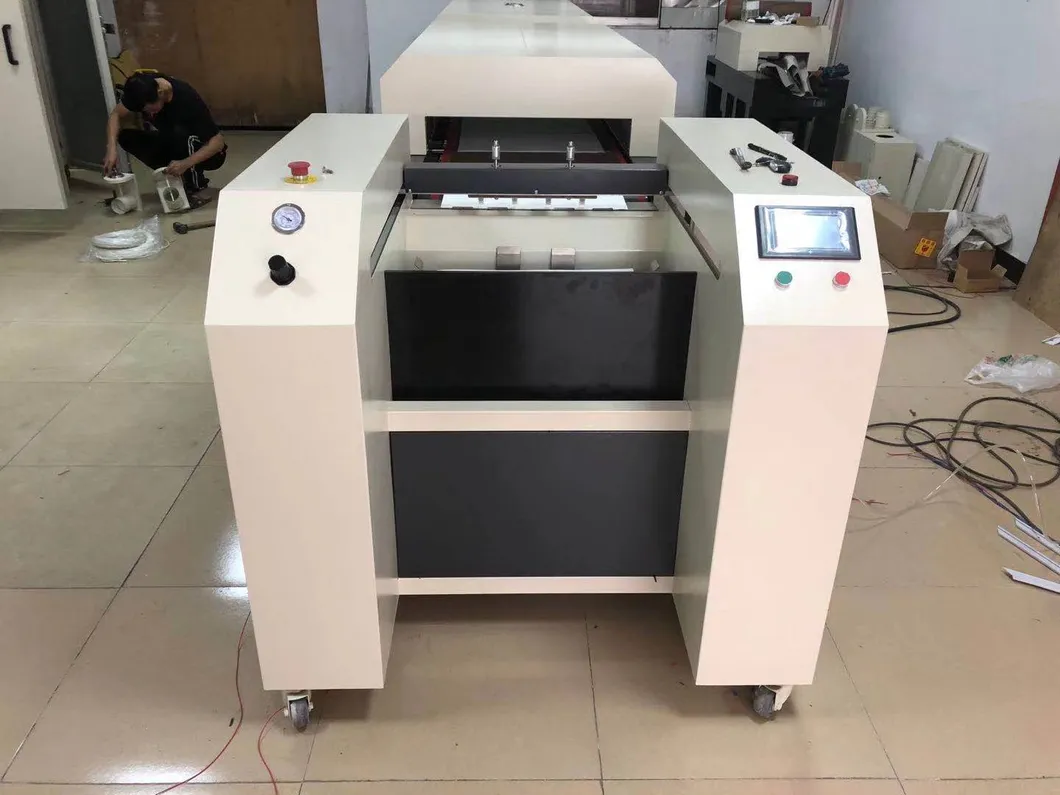

This high-efficiency drying machine features two heating zones (2M*2), a 2M cooling zone, and a robot hand automatic unloading system. It is specifically designed for a variety of industrial processing tasks including screen printing, pad printing, and spraying thermosetting ink.
Core Applications
- Ideal for heat press, silicon, and electric membrane film key press.
- Widely used in the screen printing industry for solidifying heat-set and special printing inks.
- Produces printed products with exceptional colorfastness, flexibility, and high gloss.
- Suitable for materials as thin as 0.1mm paper with the robot hand system.
Air Circulation System
The unit ensures optimal drying through advanced air circulation modes:
- Mode A: Air blow from above and suction beneath the reticular transport belt. Perfect for low-vapor inks and light materials requiring vacuum fixation.
- Mode B: Combined suction from above and beneath to ensure steady fixation and rapid water vapor removal.
| Conveyor Length | 8000mm |
| Conveyor Width | 600mm |
| Heating Area | 4m (2 sections of 2m) |
| Working Power | AC 380V 50HZ |
UV Lamp Power12PCS * 800W (Total 12KW) |
| Temperature Adjustment | 0-200 Centigrade |
| Conveyor Speed | 0~20m/min |
| Warranty | One-year warranty with life-long on-line technical support |
With 20 years of experience in research, development, and production, our printing equipment integration specializes in Pad Printing, Screen Printing, UV Curing, and IR Hot Dryer tunnels. All industrial printers have passed CE standards and the factory operates under ISO-9001-2000 certification.
- Modern design and simple operation.
- Fast adjustments and reliable continuous operation.
- Includes automatic mechanism to prevent rate decrease when transport is loaded.
- Automatic stacking device for finished materials.
Frequently Asked Questions (FAQ)
Q1: What materials can this infrared drying oven process?
It is versatile and can dry clothes, paper (down to 0.1mm), wood, plastic, glass, and electronic membrane films.
Q2: What is the temperature range of the drying tunnel?
The temperature is fully adjustable from 0 to 200 degrees Centigrade to suit various ink types and materials.
Q3: How does the air circulation system benefit the drying process?
It uses a combination of top air blow and bottom suction to ensure light materials stay fixed to the belt while rapidly removing vapors.
Q4: Is the conveyor belt speed adjustable?
Yes, the conveyor speed can be adjusted between 0 and 20 meters per minute for precise production control.
Q5: What is included in the after-sales support?
We provide a one-year warranty, free replacement parts for non-shipping related issues within the first year, and lifelong online technical support.
Q6: Does the machine include a cooling system?
Yes, the machine is equipped with a 2-meter cooling zone and ambient air fans to cool materials before stacking.
