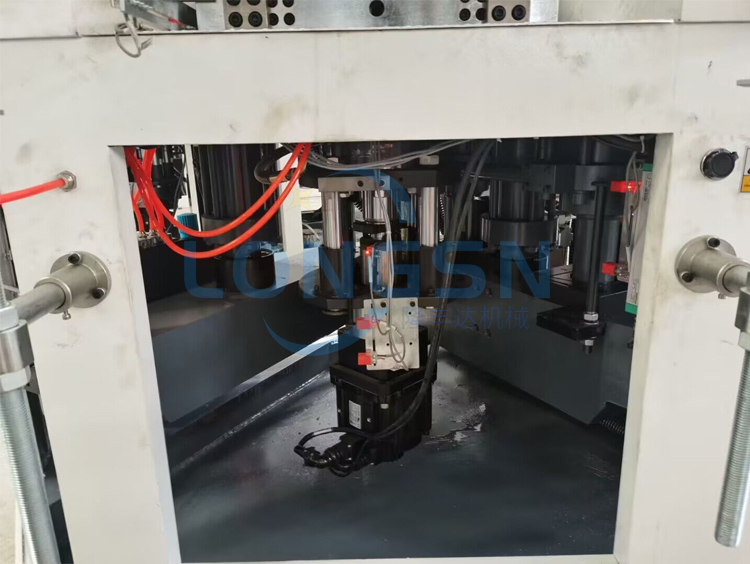

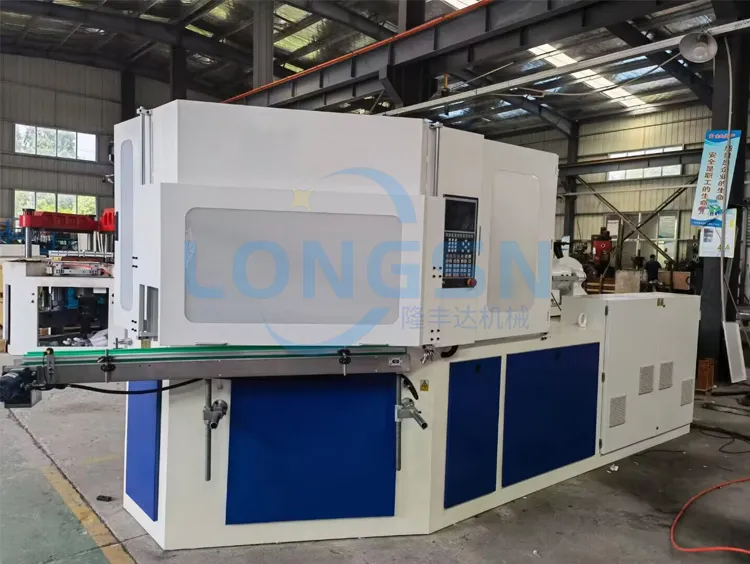

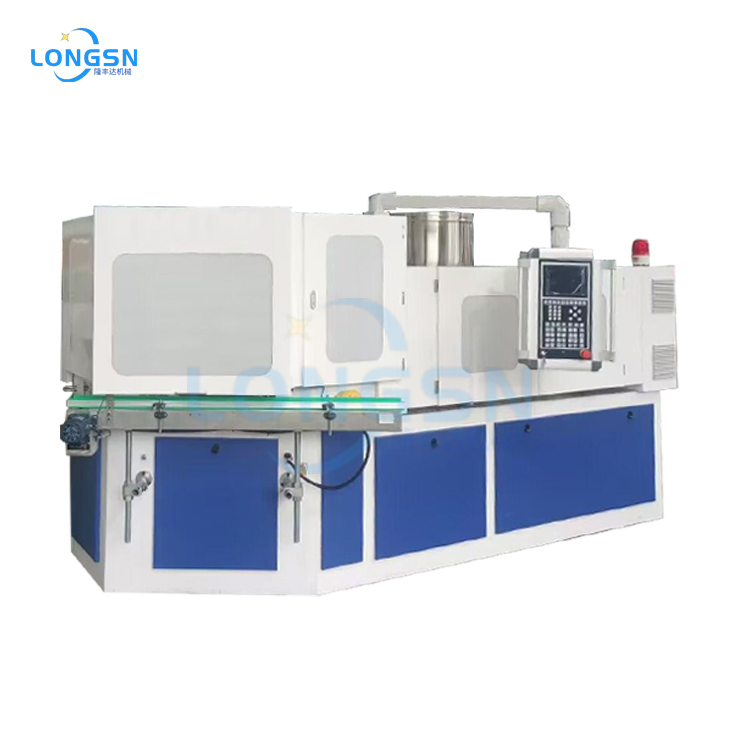

One Step Injection Stretch Blow Molding Machine PET Pharmaceutical Bottle Blowing Machine

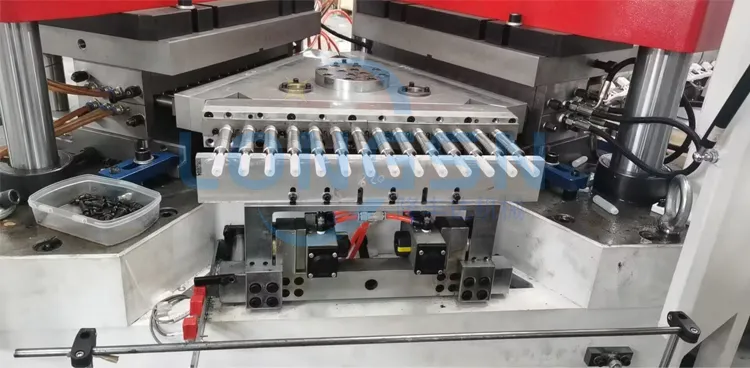

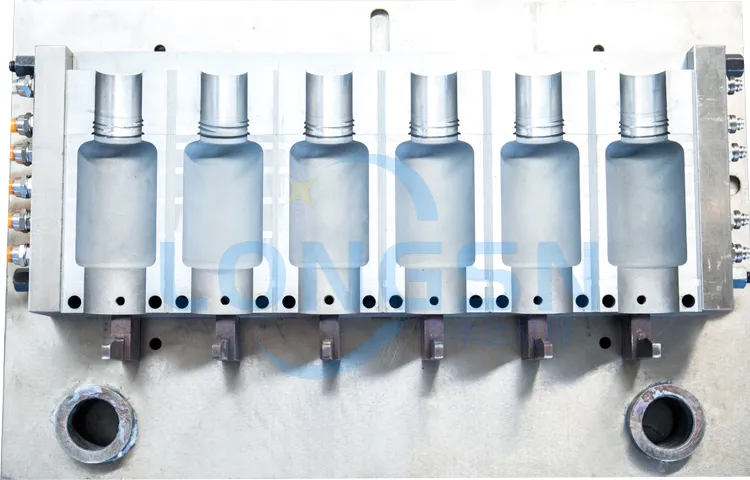

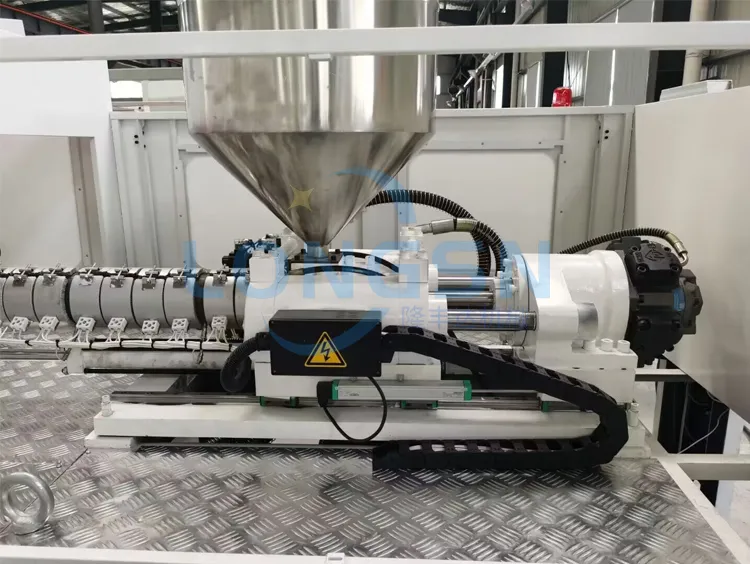

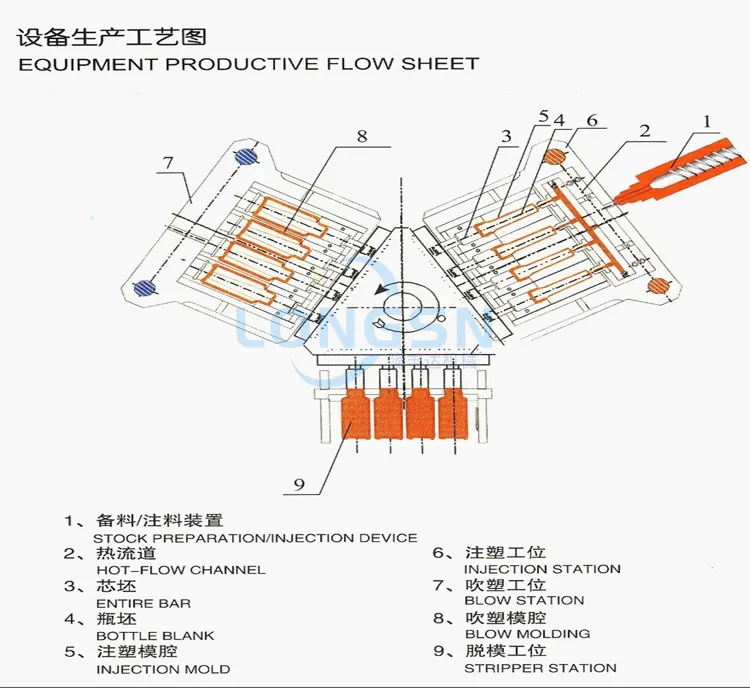

This full automatic injection molding equipment is designed for processing thermoplastic materials such as PP, PS, PE, SAN, PMMA, PC, PETG, and PEN. It is widely applied in the pharmaceutical, healthcare, food and beverage, and cosmetics industries. Featuring multi-cavity technology for continuous production, the machine utilizes a three-horizontal station rotary device, a hot runner system, and a multi-stage injection molding system. This ensures high efficiency, energy savings, and high precision for bottle necks and threads without waste.
Key Product Features:
| Name | Unit | LSN40 | LSN60 | LSN80 | LSN100 |
|---|---|---|---|---|---|
| Screw diameter | mm | 40 | 45 | 50/55 | 60 |
| L/D Ratio | - | 22:1 | 22:1 | 22:1 | 22:1 |
| Injection Capacity | cm³ | 176 | 260 | 314 | 415 |
| Heating power | KW | 7.5 | 10 | 10.8 | 12 |
| Injection mould clamping force | KN | 400 | 600 | 800 | 1000 |
| Mould clamping force | KN | 60 | 100 | 120 | 150 |
| Dry Cycle Time | s | 3.5 | 4 | 4 | 4 |
| Total power | KW | 20 | 30 | 40 | 45 |

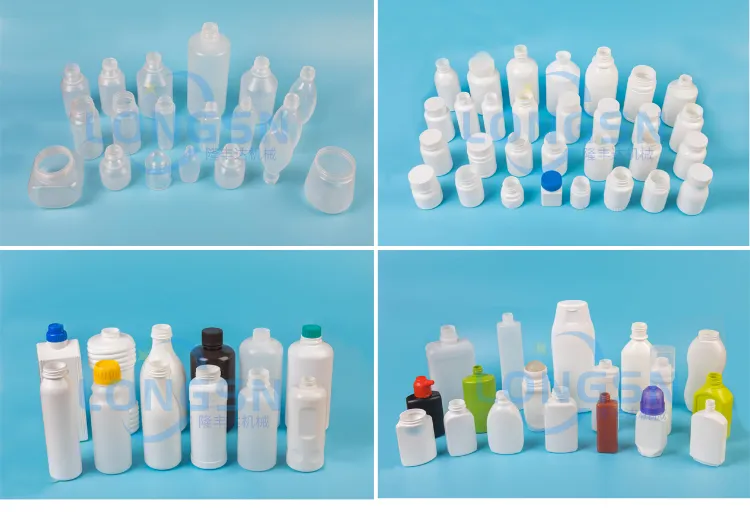

| Product volume | ml | 3-800 | 3-800 | 3-1000 | 3-1000 |
| Equipment weight | Ton | 3.5 | 5 | 8 | 10 |

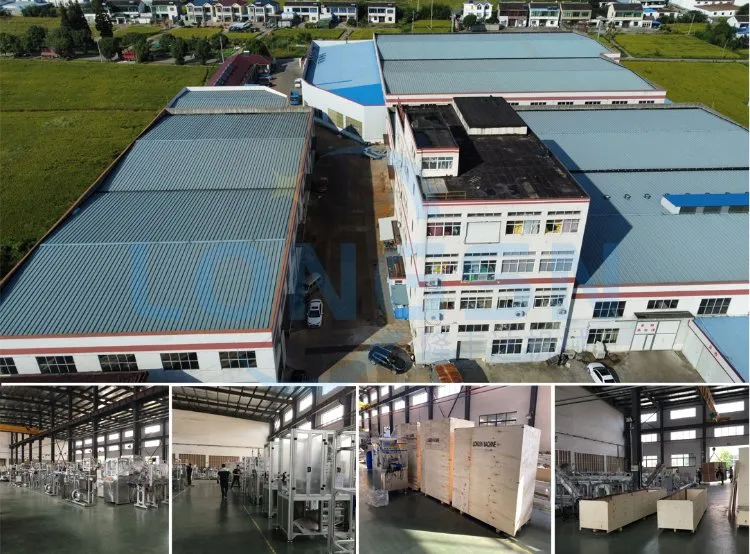

Our manufacturing facility spans 8,000 square meters, housing dedicated design teams and expert production engineers. We strictly follow international quality management systems to ensure that every machine meets high performance and durability standards. Our commitment is to provide market-oriented solutions with guaranteed technical service.
