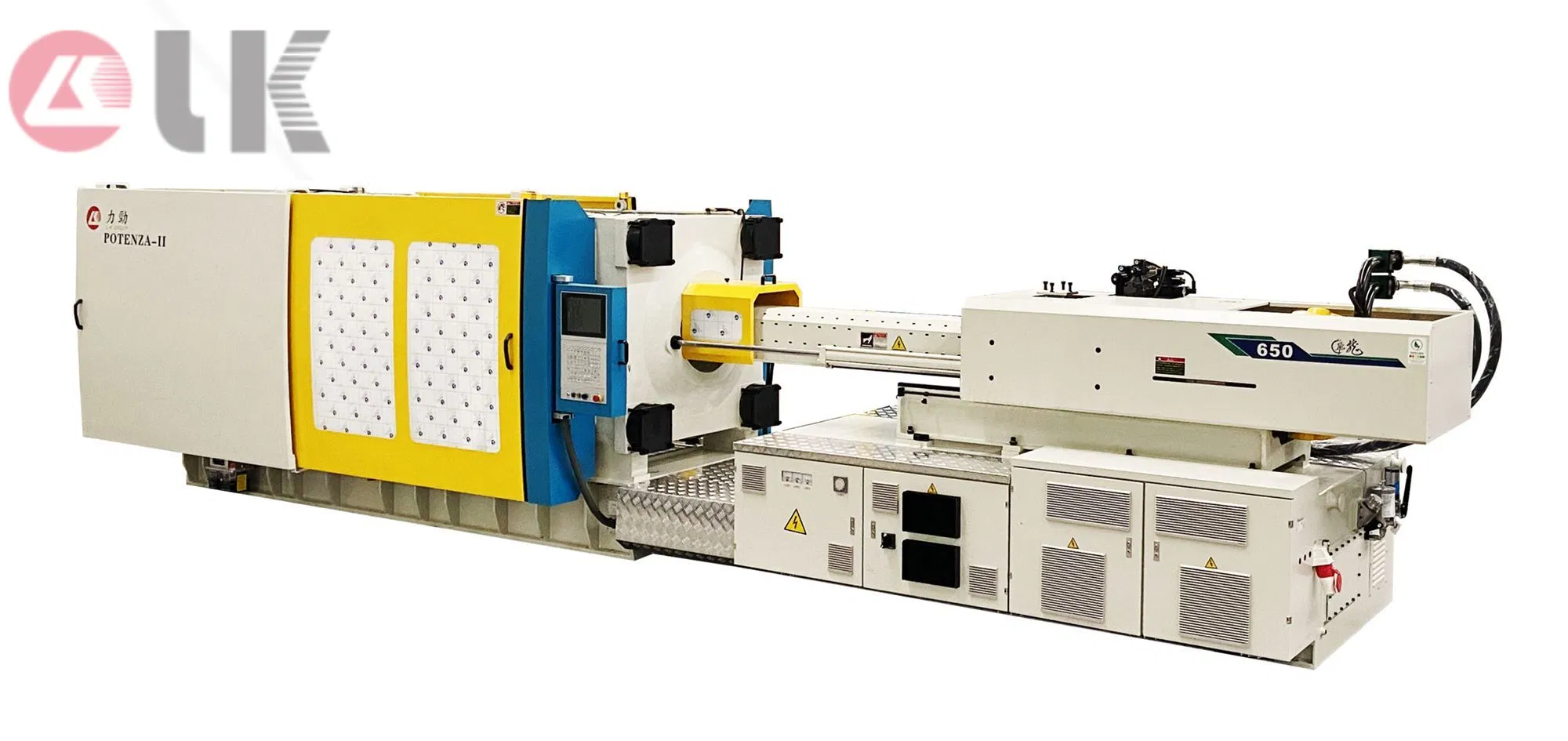

LK Potenza-II 650 Ton Plastic Injection Molding Machine

Customization:	Available
After-sales Service:	24-Hour's High -Quality After Sales Service
Warranty:	Lifetime Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

Potenza-II 650

Type

Preform Injection

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic

Automation

Automatic

Certification

CE, ISO9001:2008

Specification

9680*2260*2400

Origin

China

Brief Introduction

Potenza-II 650 Injection Molding Machine

The Potenza-II 650 represents a high-precision solution in the field of plastic injection molding. Designed for efficiency and stability, this machine integrates advanced control systems with robust mechanical structures to meet demanding industrial requirements.

Key Features

German gear pump with permanent magnet servo motor
Professional high-precision controller system
Sturdy toggle clamp system with advanced FEA engineering design
Excellent kinetic motion characteristics for high-speed operation

Main Performance Features

Template design utilizes finite element analysis for superior rigidity and high strength.
High-performance servo system with fast response and high-precision pressure feedback.
Enhanced safety with nozzle protection and double melt bucket covers.
Volume distribution lubrication system ensures long service life for moving parts.
CNC molded clamping frame with Japanese alloy material for high wear resistance.

Technical Parameter List

CATEGORY	ITEM	UNIT	PT650
Shooting Part	Screw Diameter	mm	80	90	100	110
	Shot Weight(ps)	g	2057	2604	3215	3890
	Injection Volume	cm³	2261	2861	3533	4274
	Injection Pressure	Mpa	225	178	144	119
	Injection Rate	cm³/s	557	705	870	1053
Clamping Part	Locking Force	KN	6500
	Die Height (Min-Max)	mm	350-920
	Opening Stroke	mm	900
	Space Between Tie Bars	mm	910 * 910
Others	Motor Capacity	KW	31 + 44
	Oil Tank Capacity	L	890
	Heating Capacity	KW	49.7

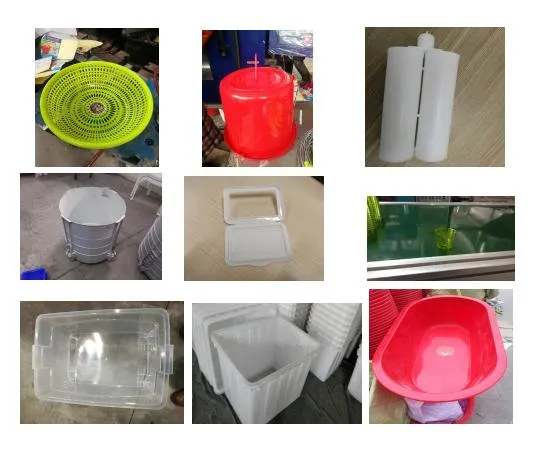

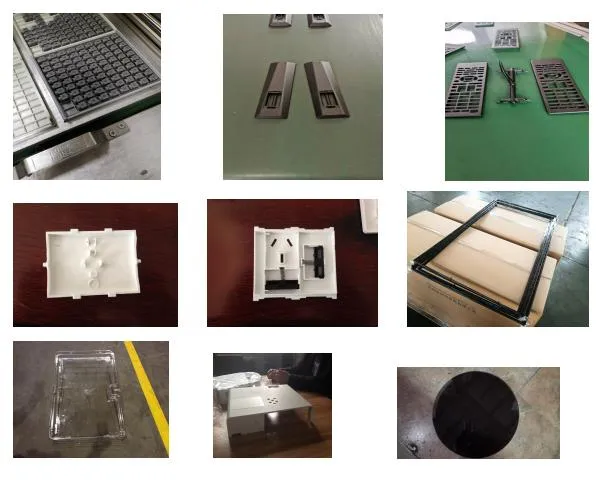

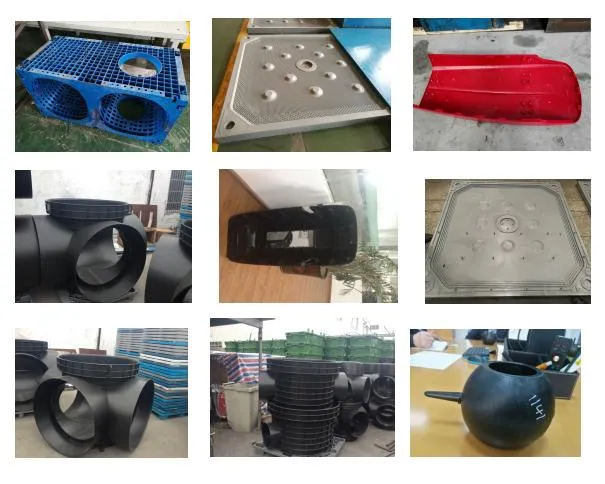

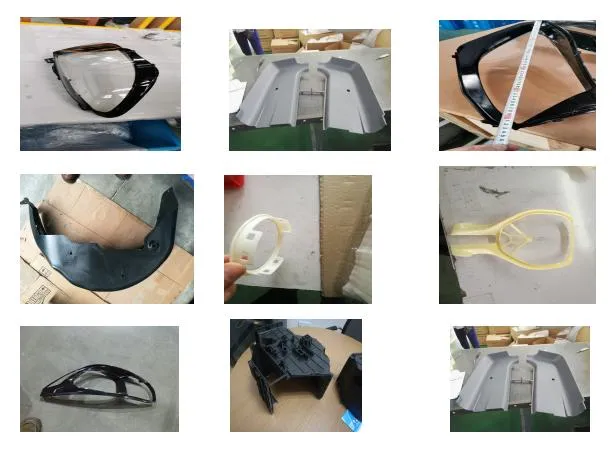

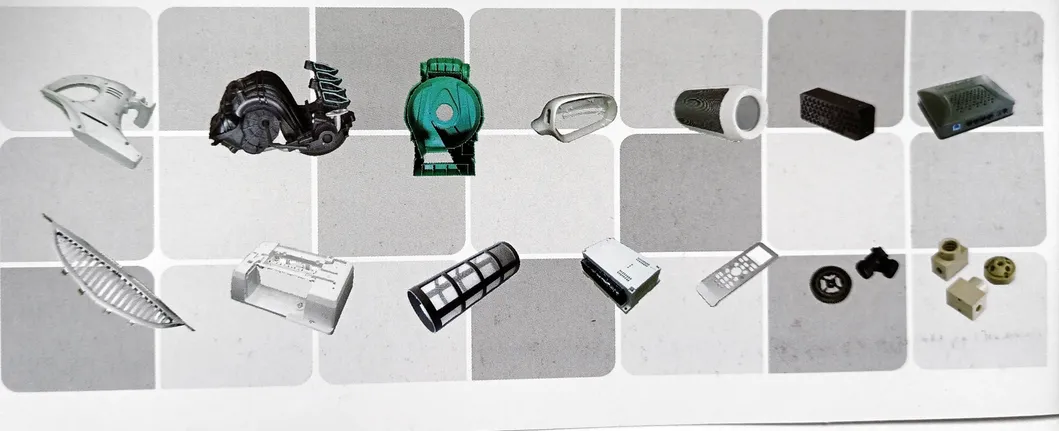

Products & Application Fields

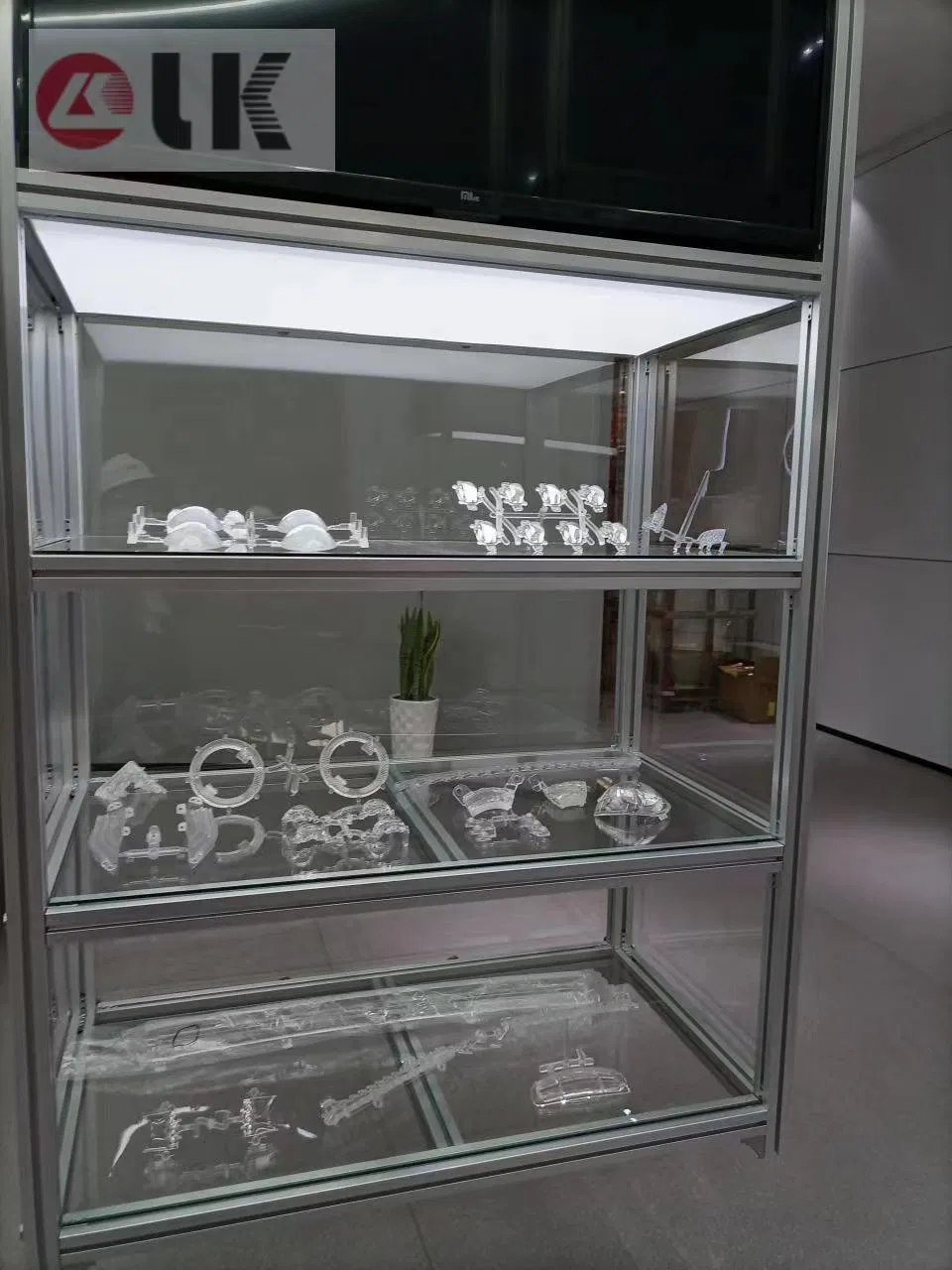

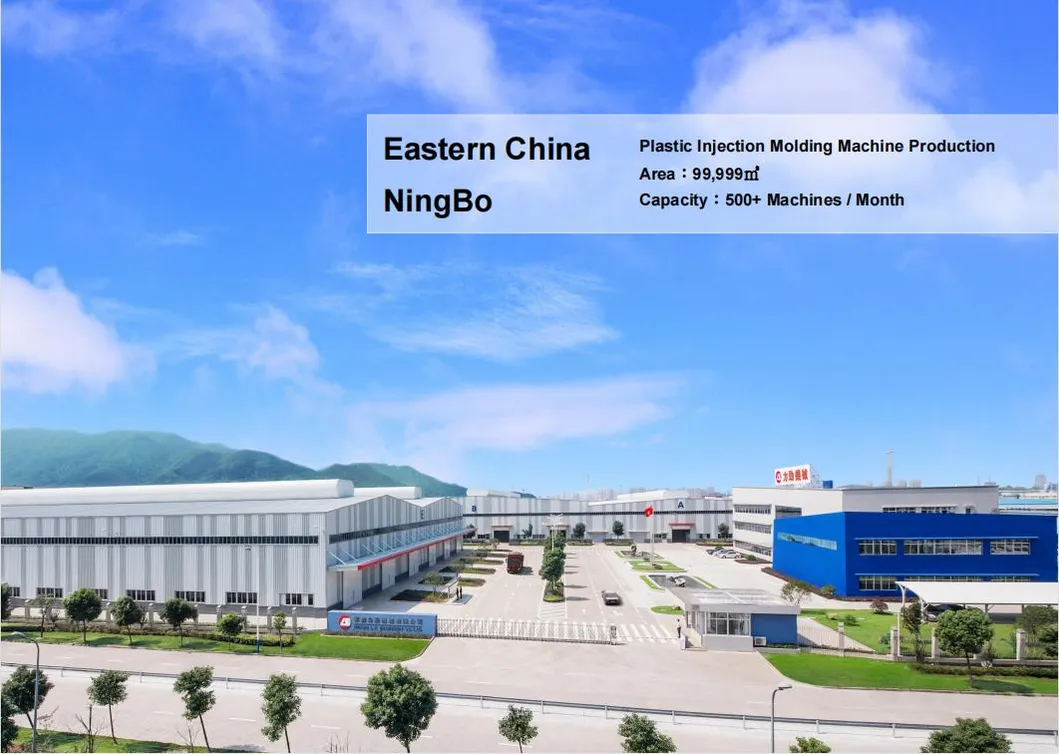

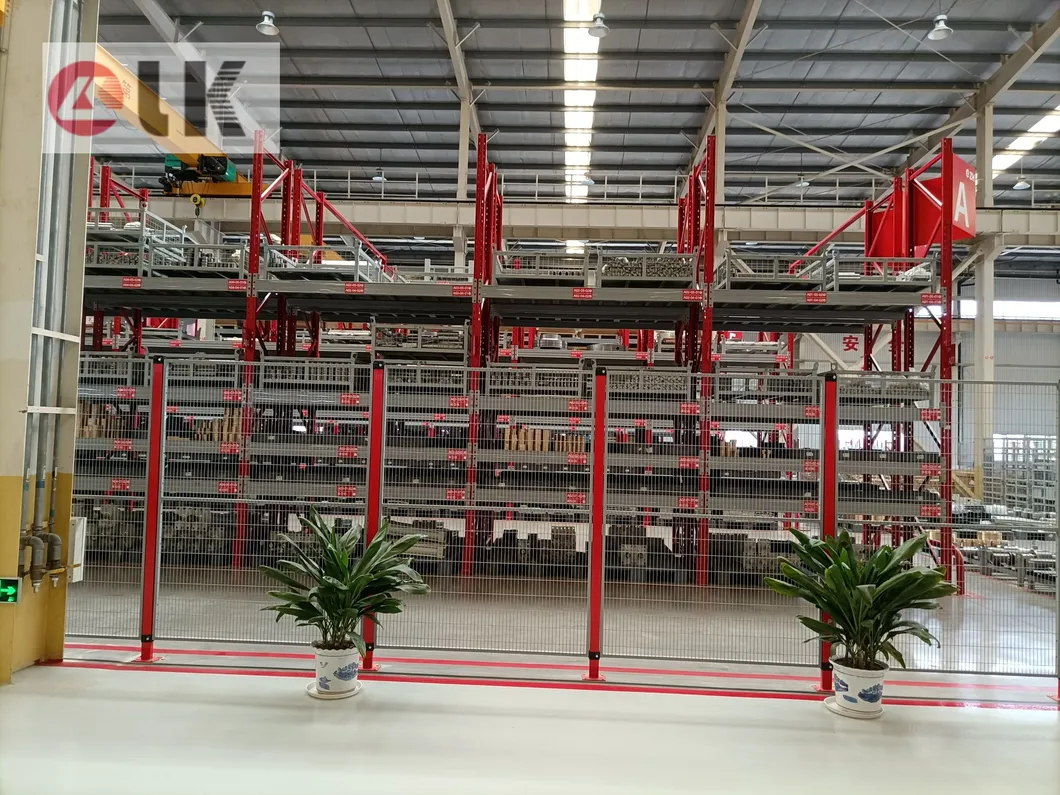

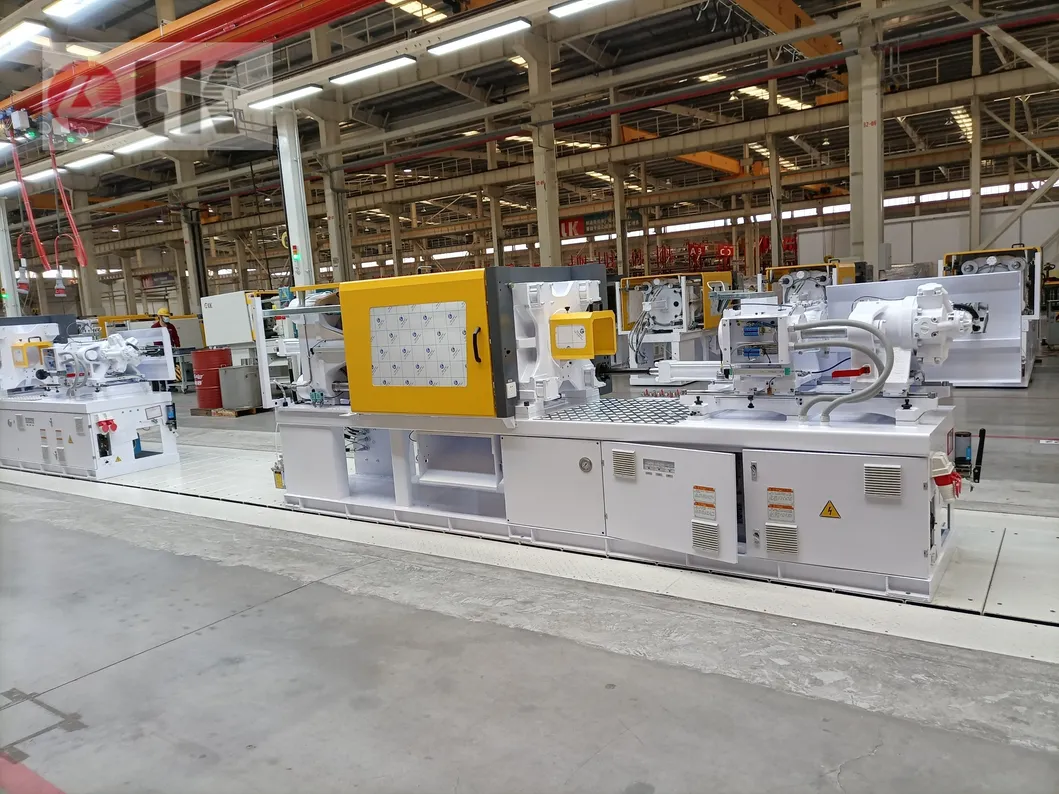

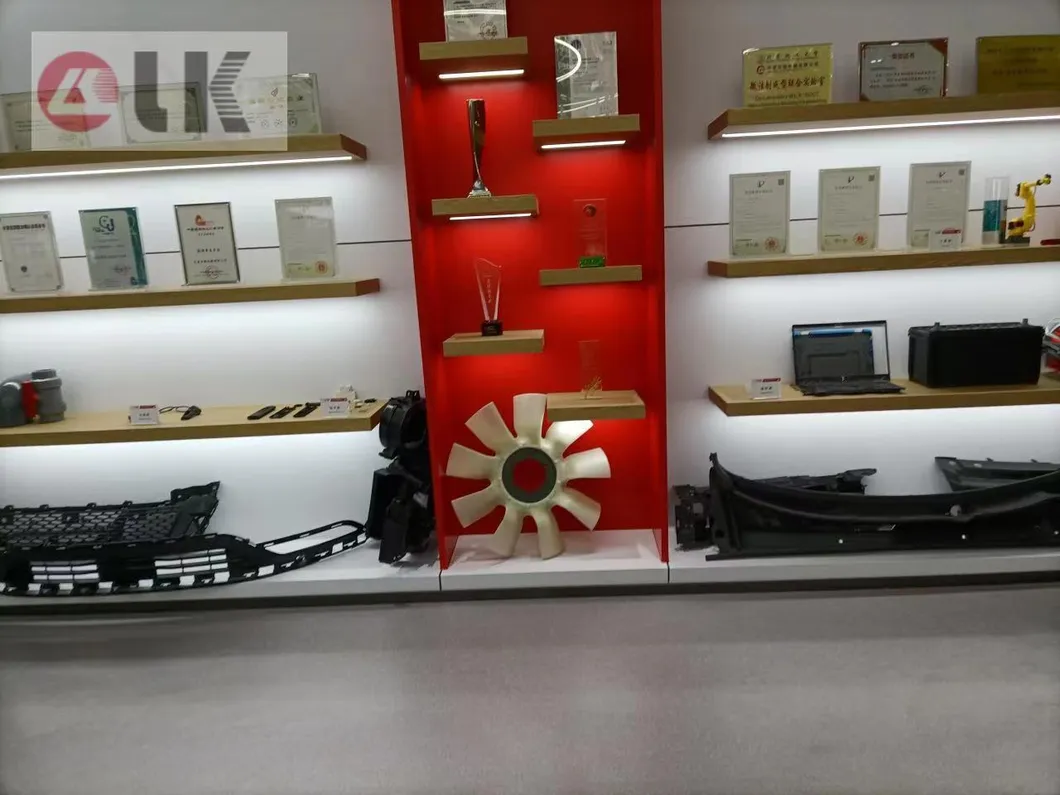

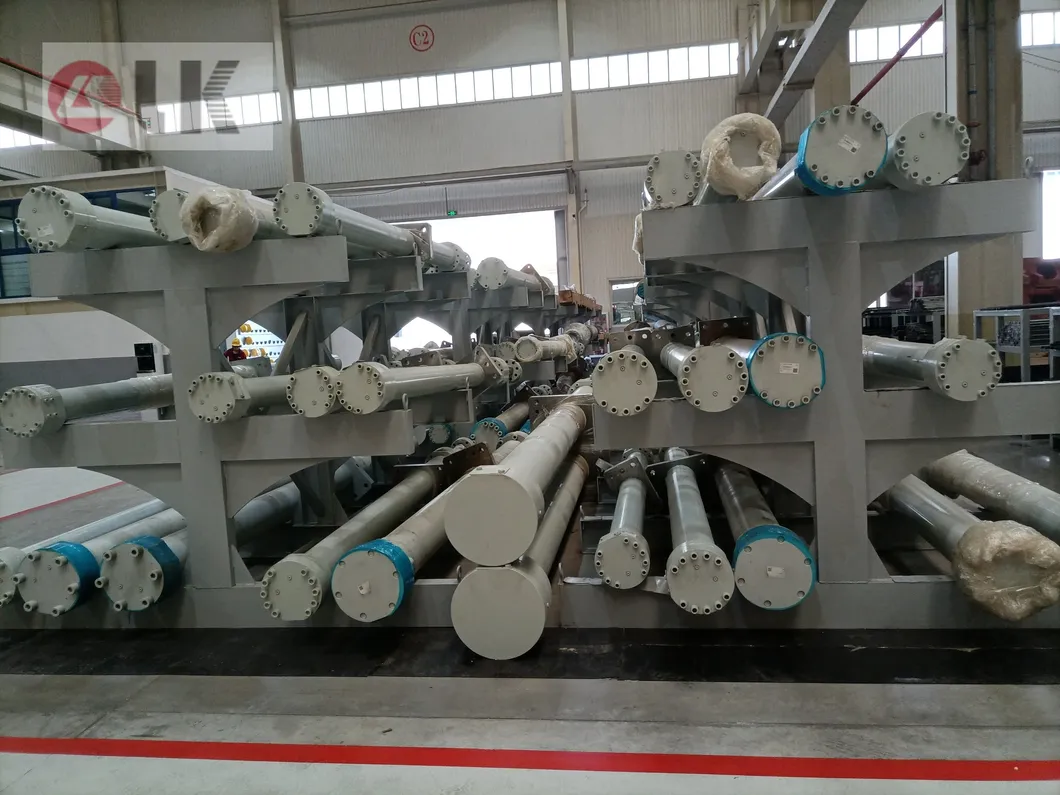

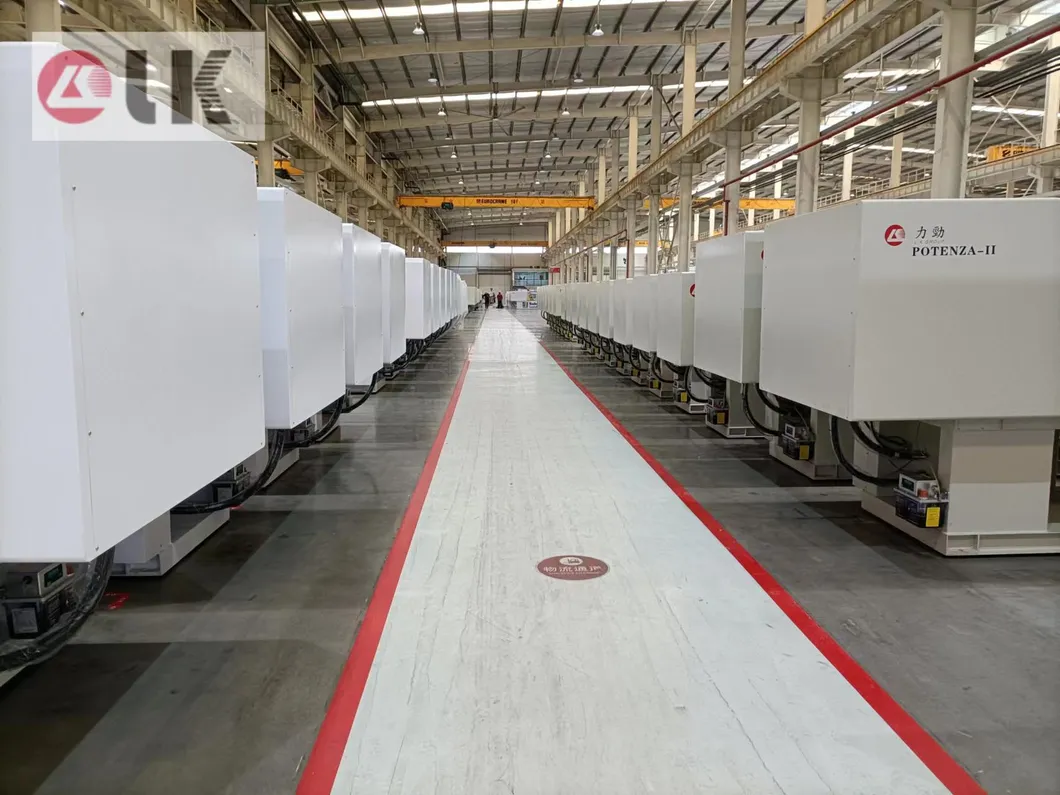

Facility & Showroom Review

Frequently Asked Questions

What materials can the Potenza-II 650 process?

The machine is designed for various thermoplastics, including PP, PE, PS, and PET, making it suitable for preform injection and a wide range of daily products.

Is the clamping system reliable for high-speed production?

Yes, it features a sturdy toggle clamp system designed via Finite Element Analysis (FEA), ensuring high rigidity, stability, and excellent kinetic motion.

How does the servo motor system benefit the production process?

The German-engineered gear pump combined with a permanent magnet servo motor provides fast response times and significant energy savings compared to traditional hydraulic systems.

What is the maximum locking force of this model?

The Potenza-II 650 provides a powerful locking force of 6500 KN, suitable for medium to large-sized mold requirements.

Does the machine come with an automatic lubrication system?

Yes, it is equipped with a volume distribution lubrication system that provides fixed-point quantitative oil supply to all moving parts, extending the machine's service life.

What safety features are integrated into the design?

The machine includes nozzle protection covers and double protection covers for the melt bucket, ensuring a safe working environment for operators.
