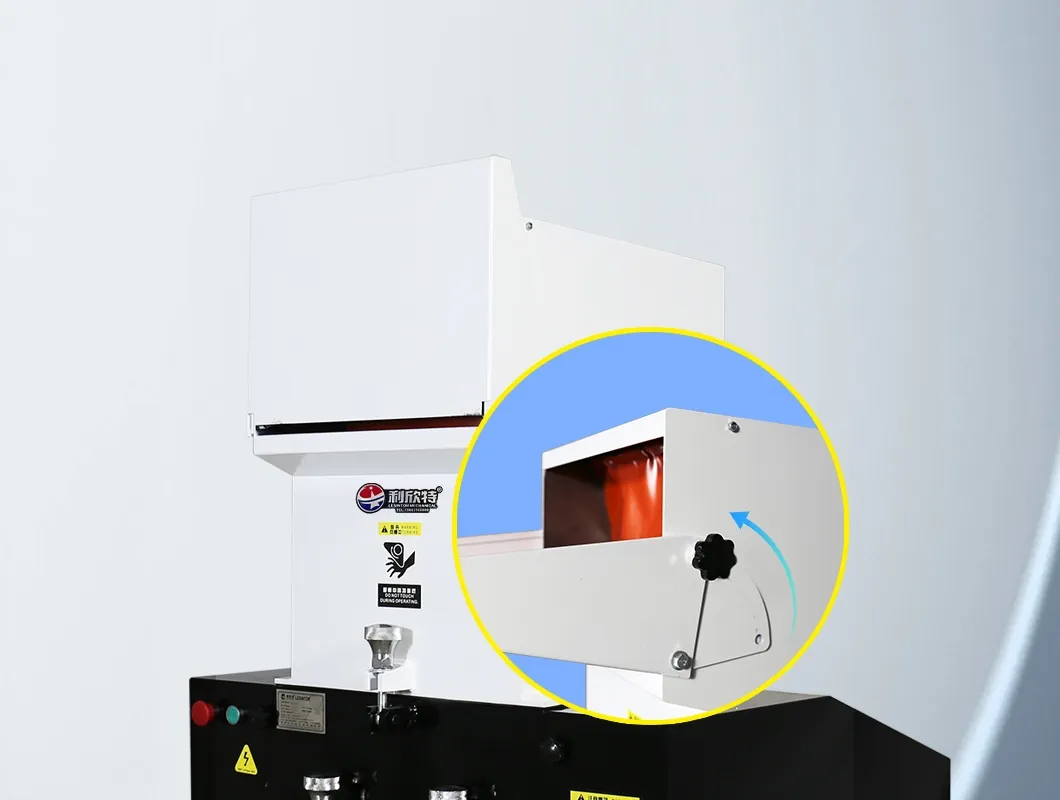

The size of the feed inlet can be adjusted and it is closed during transportation to prevent damage. Features double-layer sound insulation and double-layer thickened sheet, effectively reducing noise by 30%.

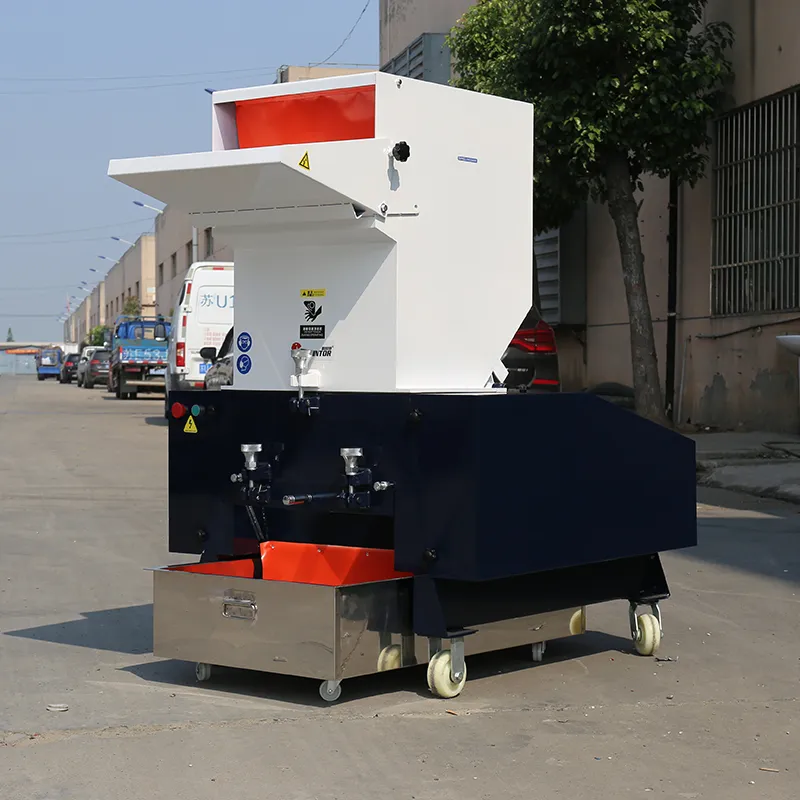

Structural Features: The feed inlet axis is perpendicular to the cutter roller axis at a 90° angle.
Applicable Scenarios: Regular block-shaped materials such as plastic lumps and wood scraps.

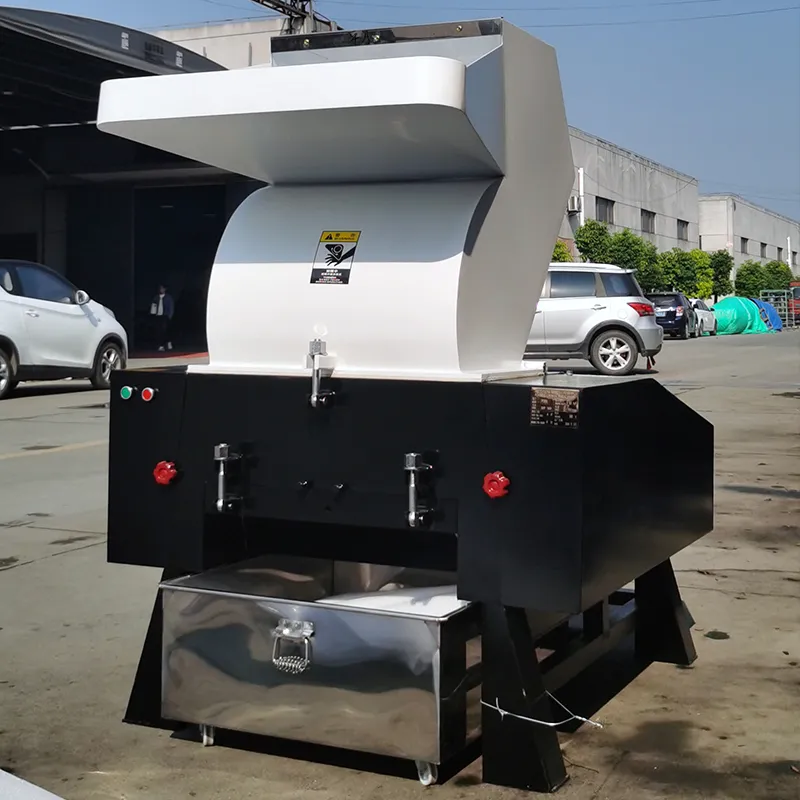

Structural Features: The feed chamber adopts an involute/logarithmic spiral curve design.
Core Advantages: Achieves material pre-compression, improving efficiency for fibrous materials by 35%.
| Model | LXT-PC180 | LXT-PC250 | LXT-PC300 | LXT-PC400 | LXT-PC500 | LXT-PC600 | LXT-PC700 | LXT-PC800 | LXT-PC1000 |
|---|---|---|---|---|---|---|---|---|---|
| Crushing (kg/h) | 50-100 | 150-200 | 200-300 | 250-450 | 400-700 | 450-800 | 500-1000 | 650-1300 | 750-1500 |
| Power (kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Rotary Blade | 9 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Fixed Blade | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |

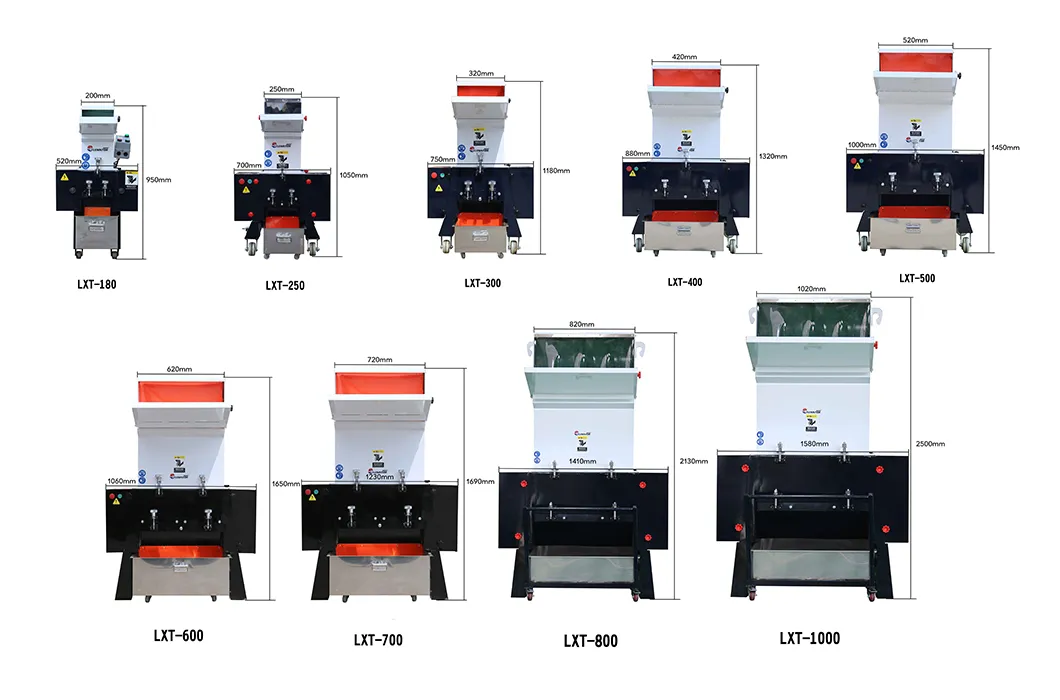

| Feed Port (mm) | 150*200 | 200*250 | 220*320 | 250*420 | 300*520 | 330*620 | 420*720 | 500*820 | 550*1020 |
| Weight (kg) | 126 | 236 | 293 | 415 | 555 | 749 | 915 | 1740 | 2800 |

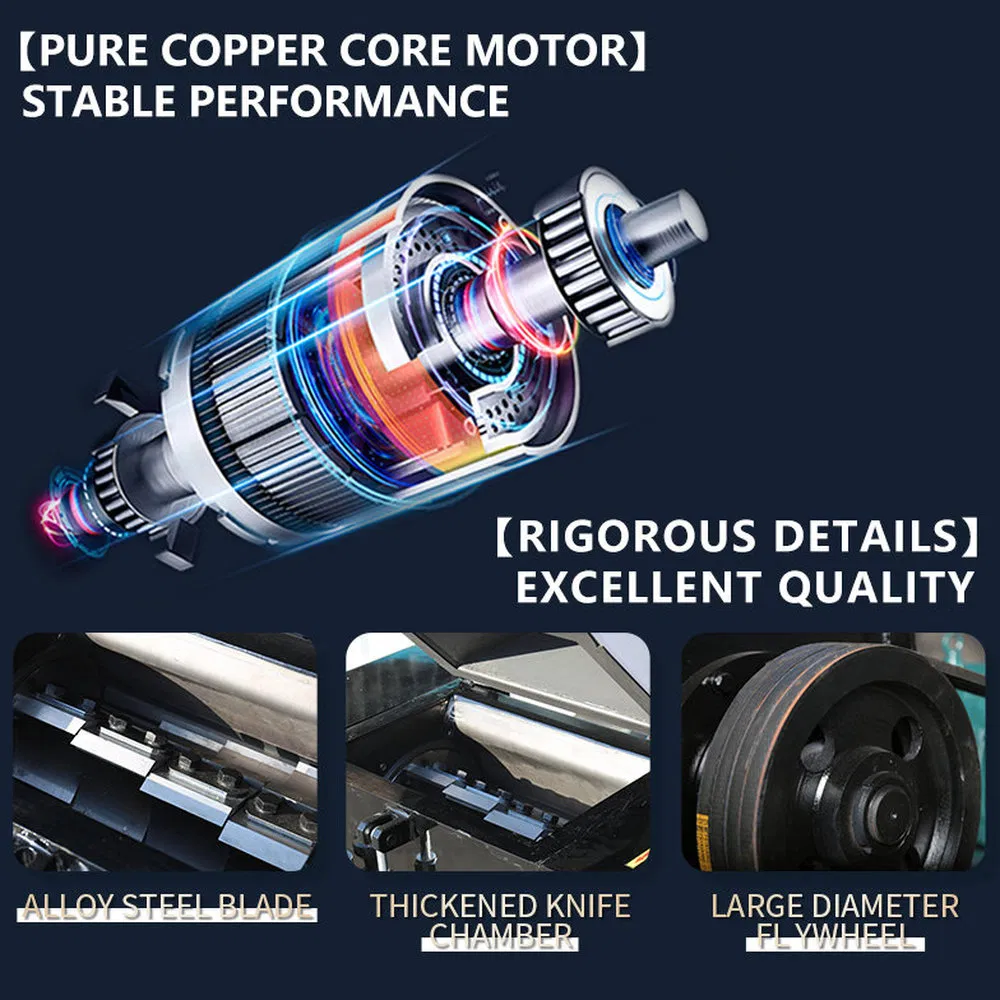

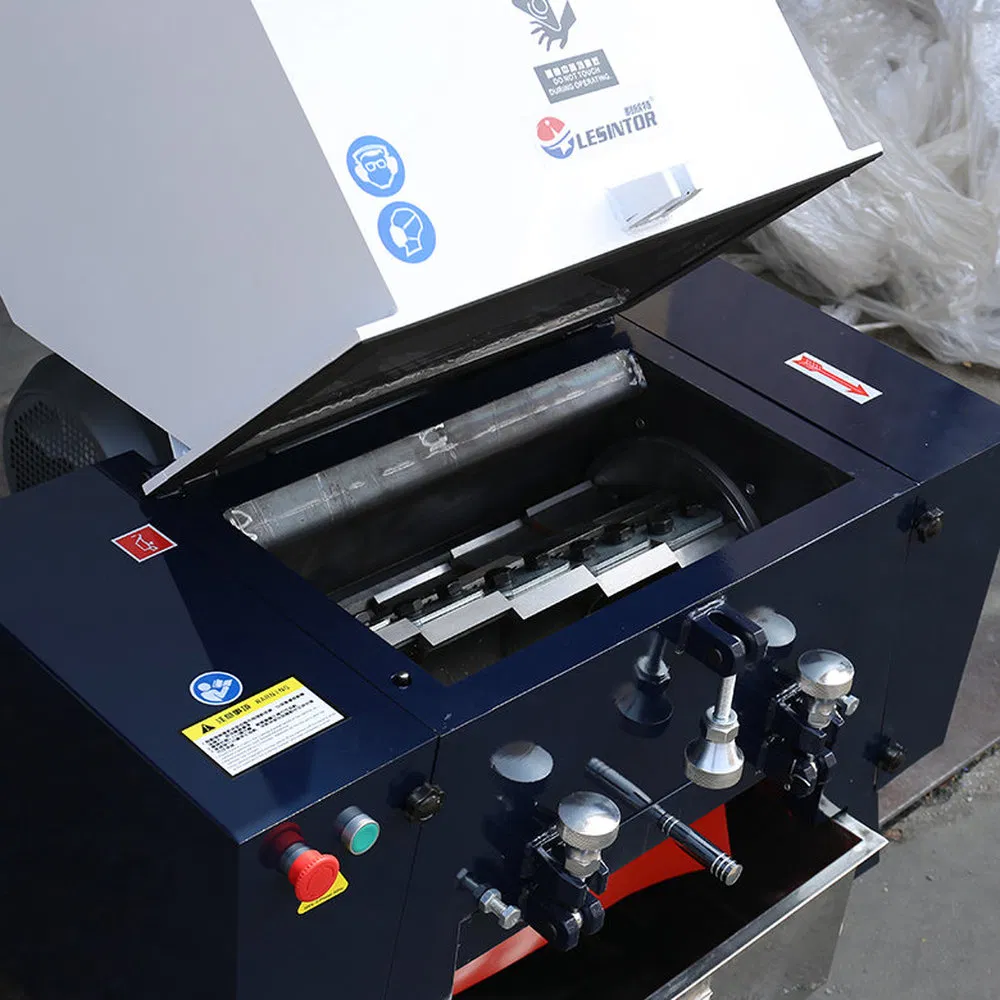

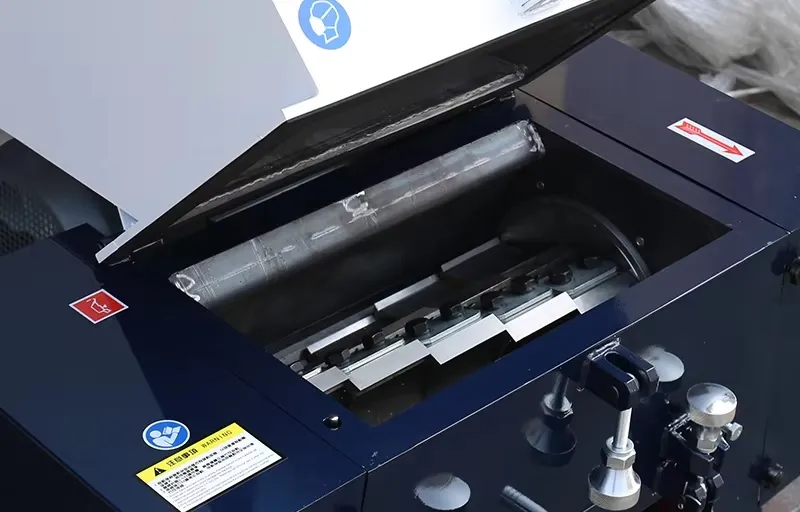

Thickened Knife Chamber: High environmental protection, prevents vibration and noise.

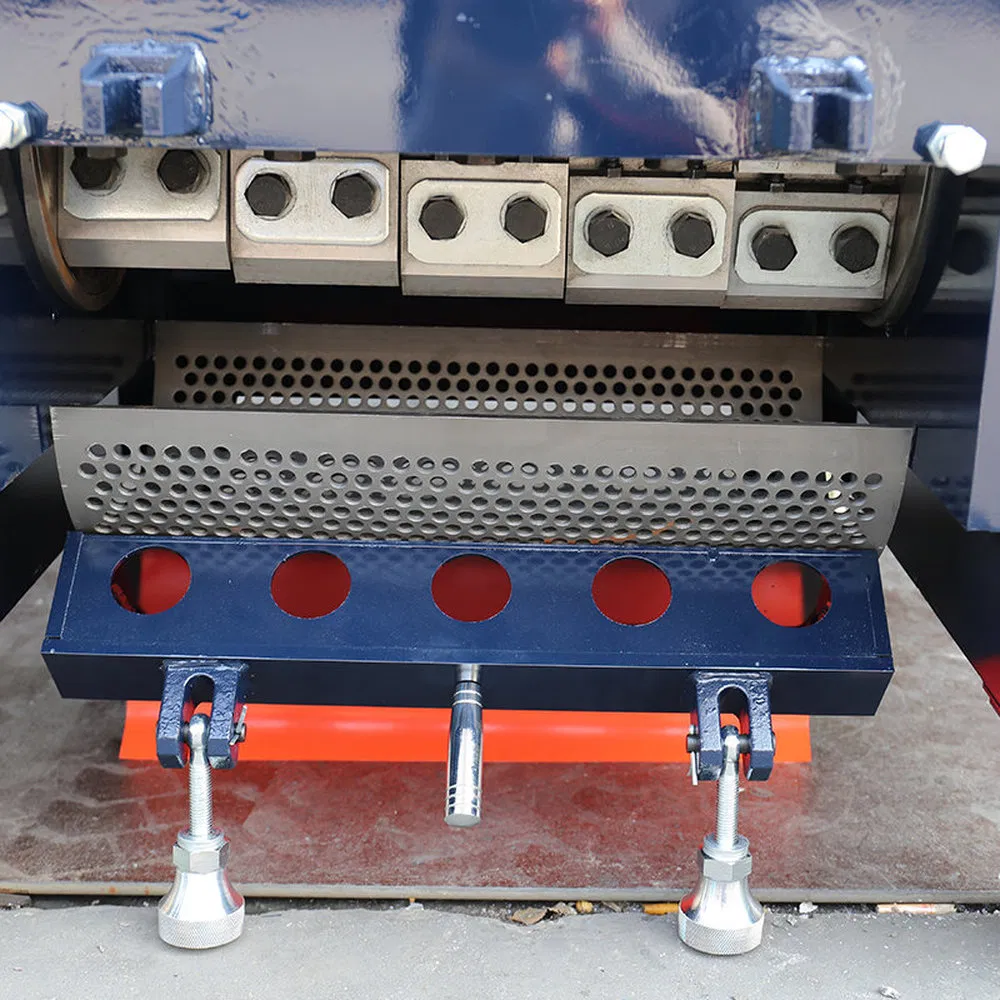

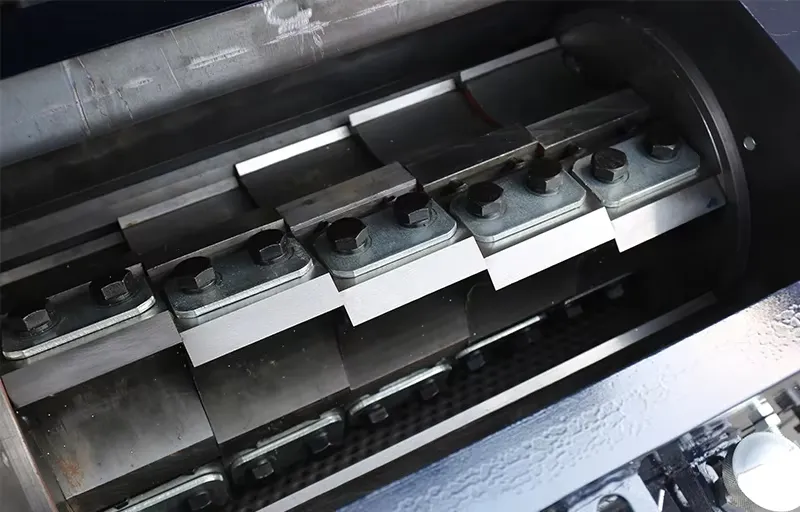

Alloy Steel Blades: Adjustable tool clearance, can be repeatedly sharpened.

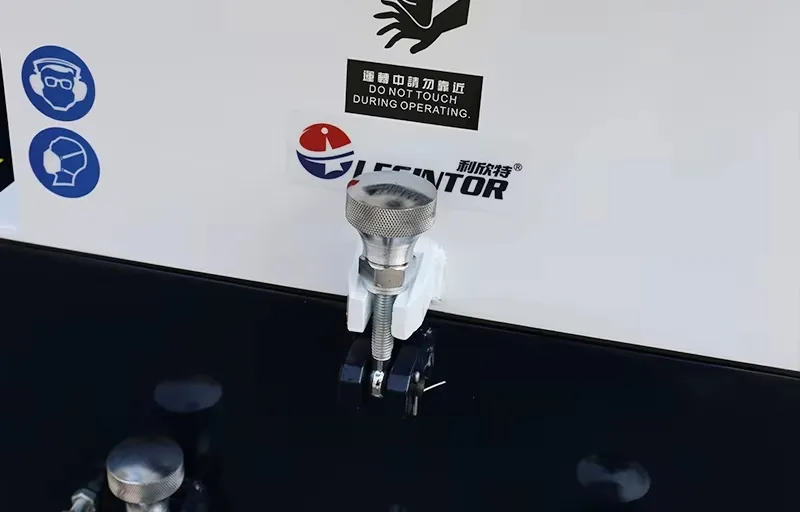

Lock Nut: Easy to operate hand-tighten design for user convenience.

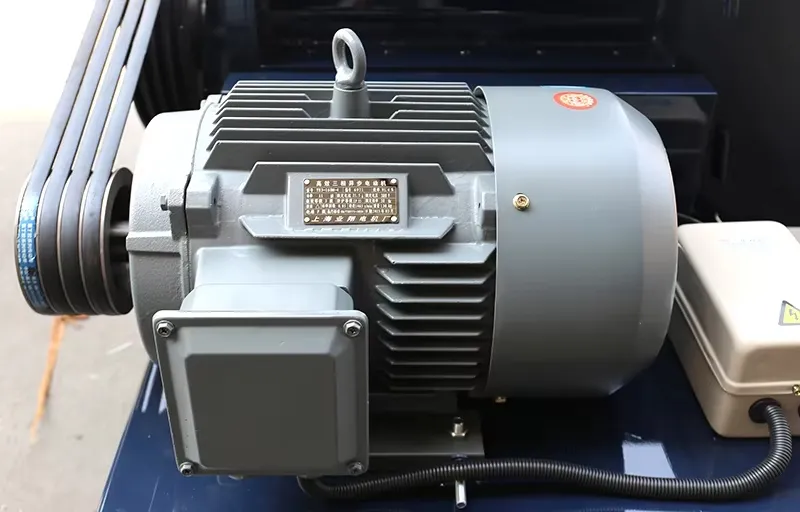

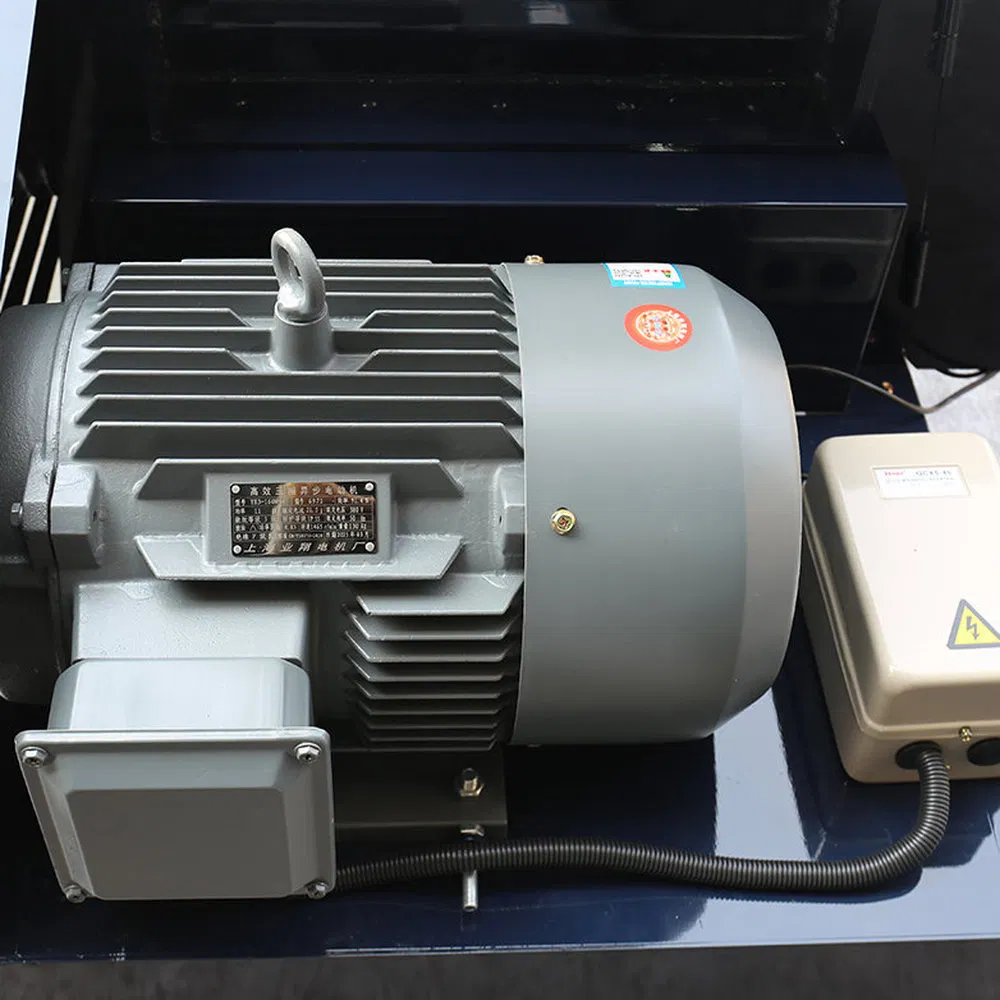

Branded Motors: Stable performance with minimal failure rate and long service life.

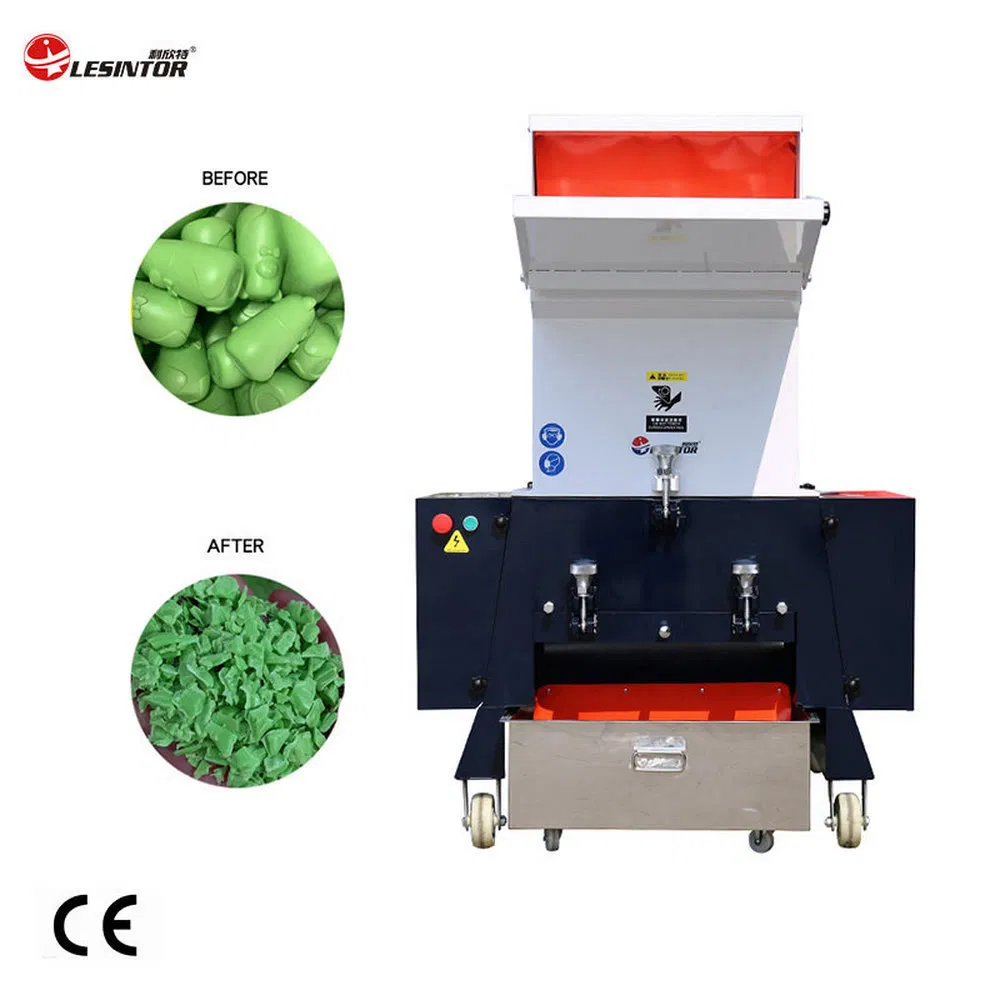

Designed for the rubber and plastic industry, this crusher is an ideal partner for blow molding machines. It efficiently processes PE/PET/PP buckets, mineral water bottles, chemical drums, and many other containers without pre-processing.
