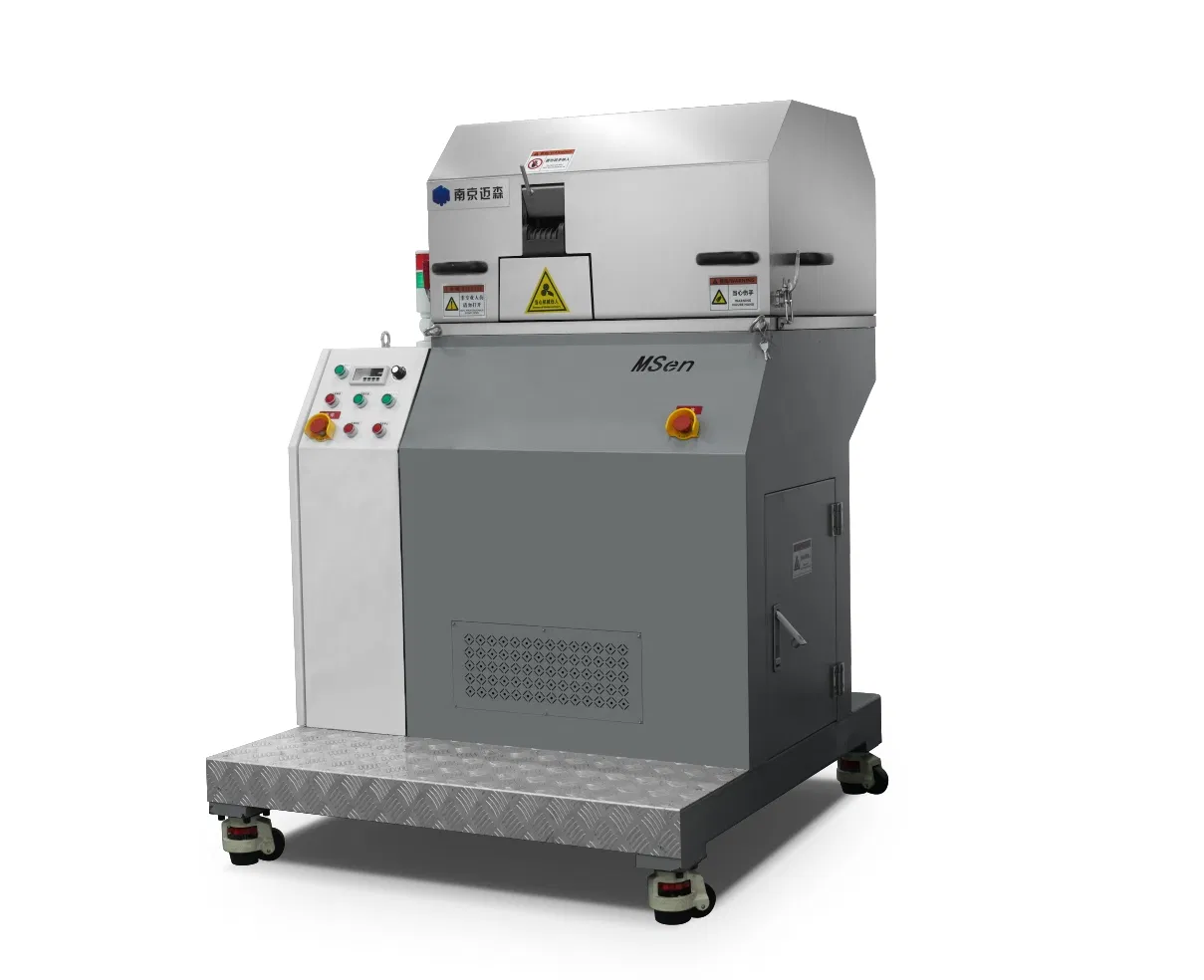

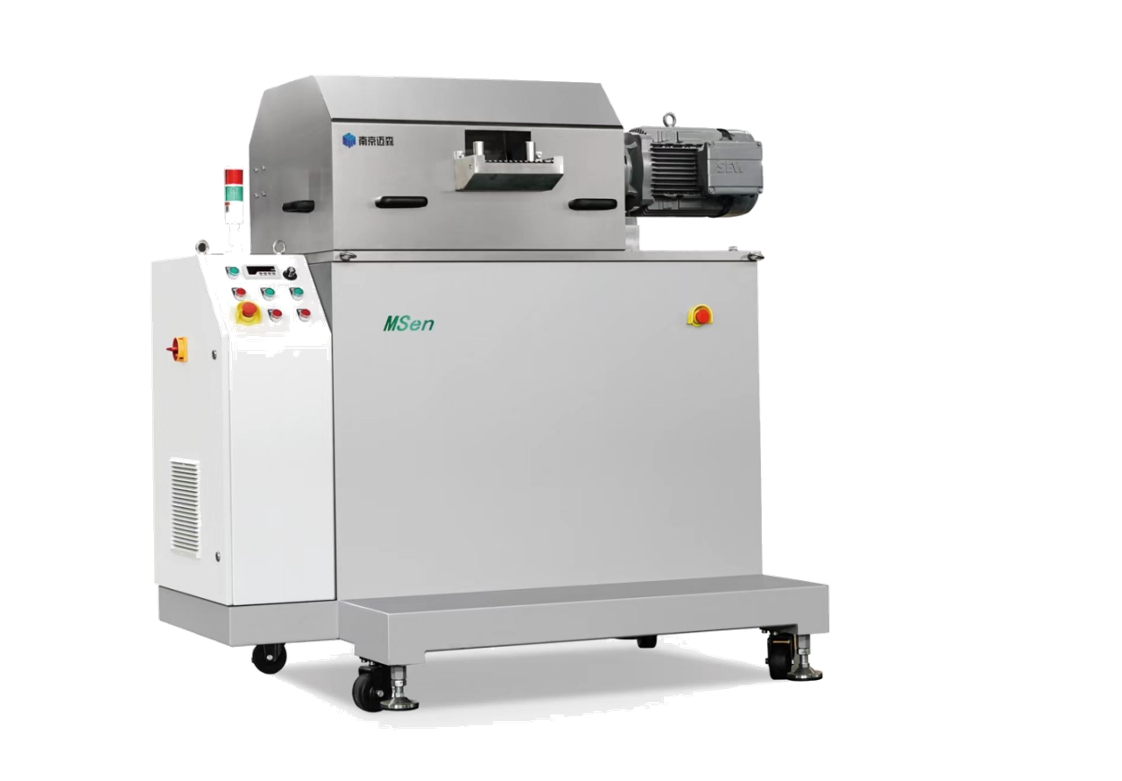

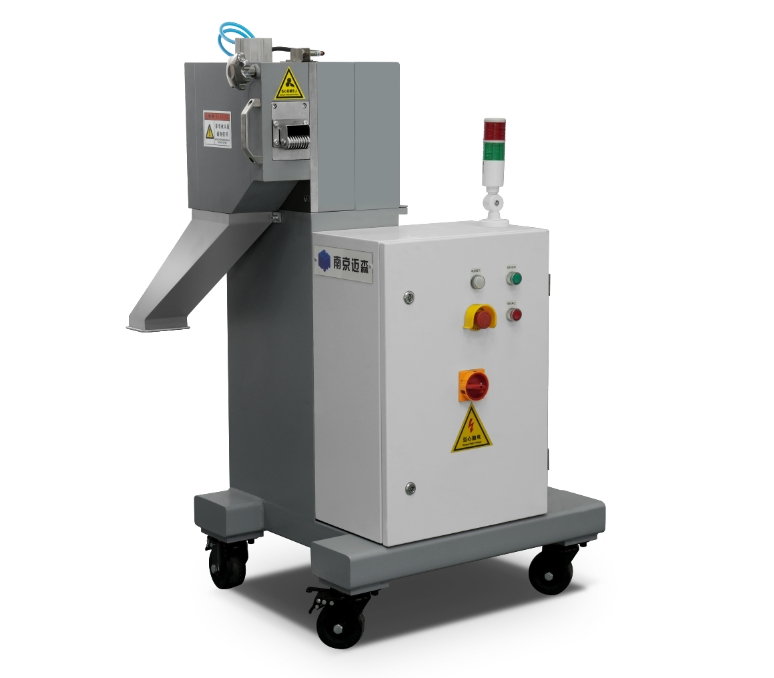

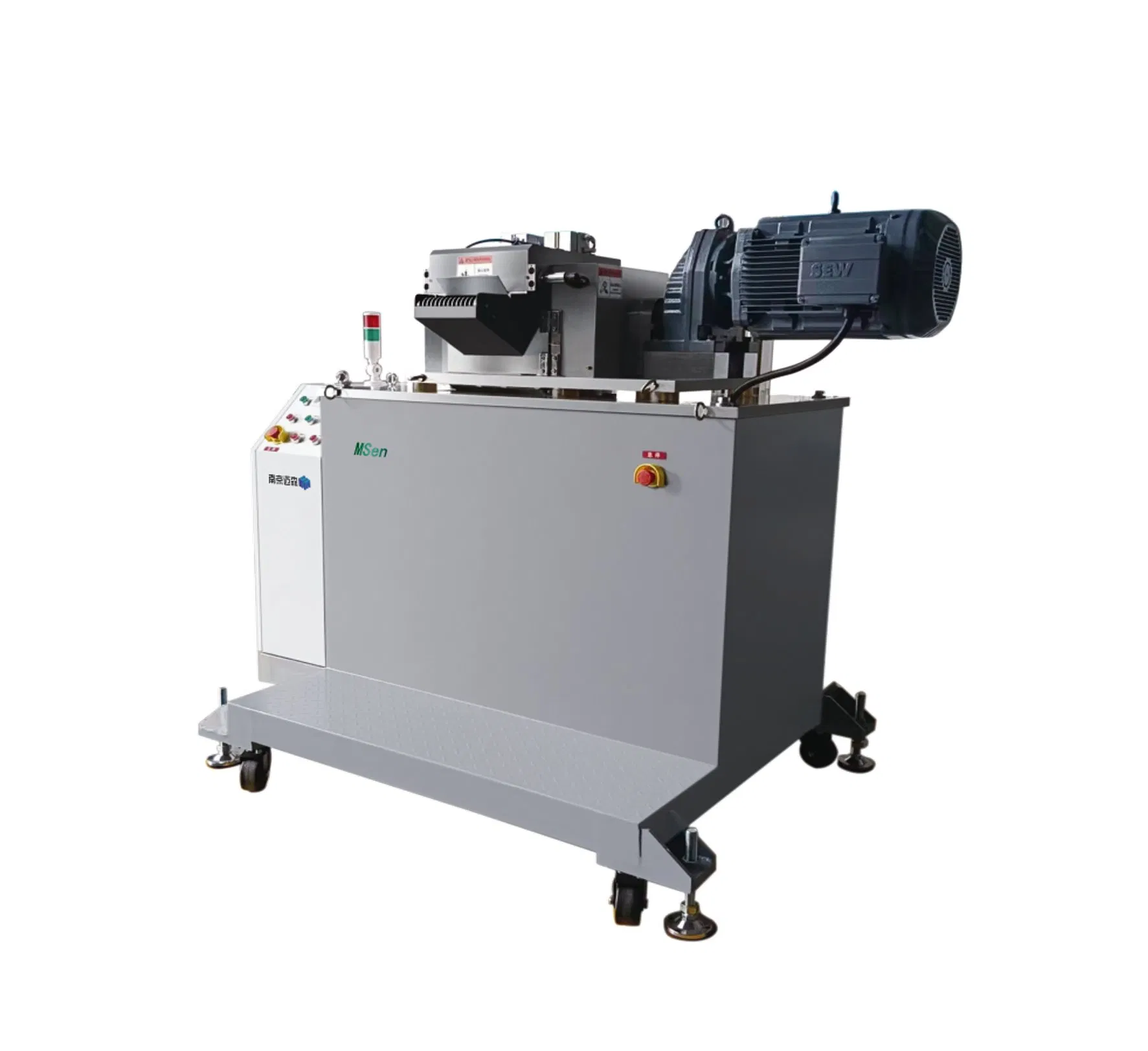

Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
1 / 5
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.
Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.

Low-Noise Direct Plastic Pelletizing Machine for PP, PA, PC, ABS.

Customization: Available
After-sales Service: Provide Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
MSM130(Direct)
Raw Material
PE, Pet, PMMA, PP, PA6, GPPS, ABS, HIPS, San
Automation
Automatic
Certification
CE, ISO9001:2008
Particle Size
φ3×3mm
Drawing Speed
30-100 M/Min
Noise
≤80dB
Production Capacity
600-800kg
🚀 Product Description
Low-Noise Direct Plastic Pelletizing Machine

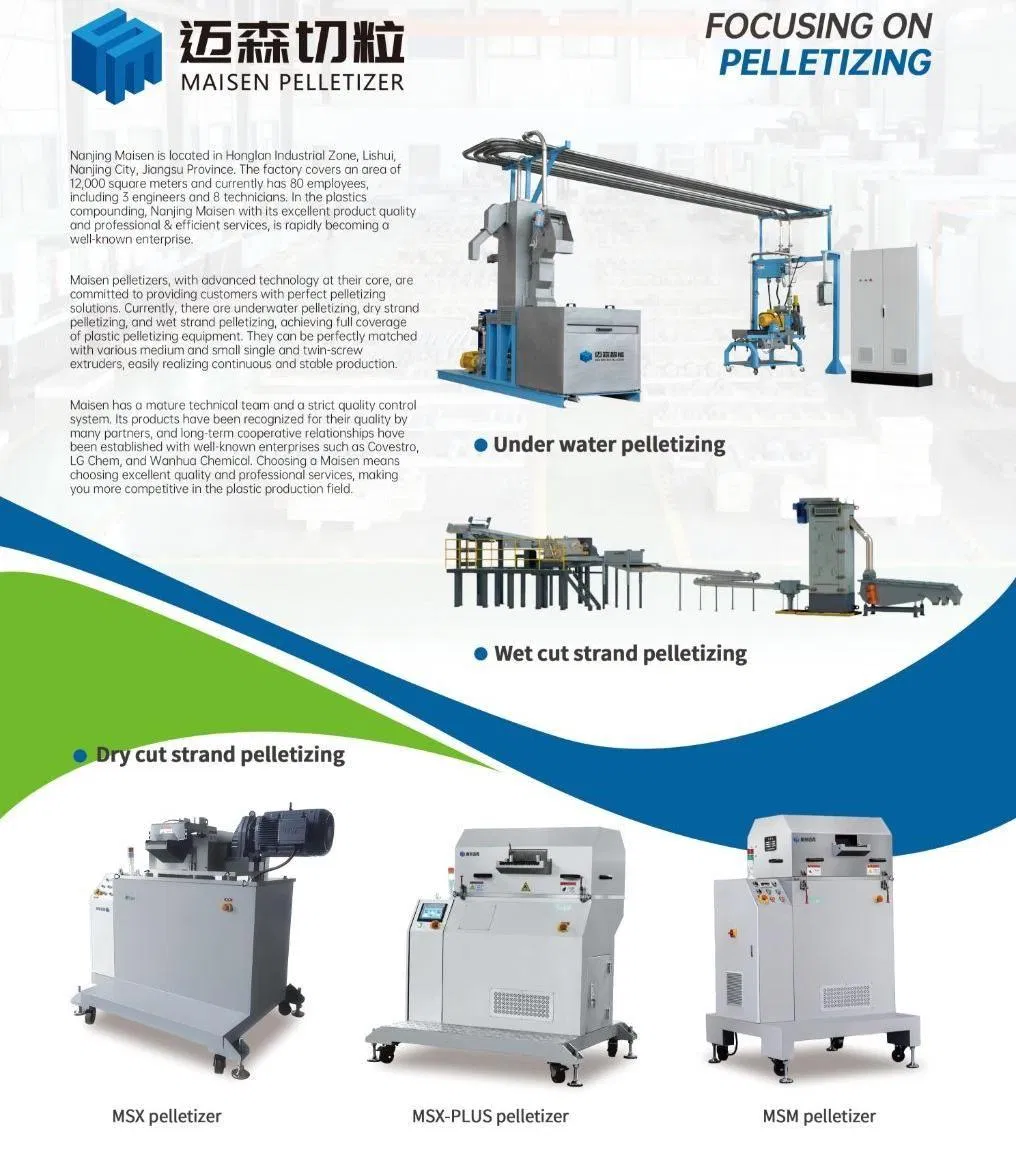

The pelletizing systems incorporate advanced core technology covering three main methods: underwater pelletizing, dry strand pelletizing, and wet strand pelletizing. Compatible with various single and twin-screw extruders, these systems ensure continuous and stable production.
Series include MSXB, MSM, and MSX for dry strand (100-2300 kg/h), MSSX for wet strand (1500-8000 kg/h), and MSUG for underwater pelletizing (100-50,000 kg/h). Key performance benefits include a stable 0.01 mm dynamic/static knife gap, low noise, and low vibration.
📊 Specifications
Model Production Capacity Number of Strips Particle Size Cutter Specs Drawing Speed Motor Inverter
MSM130 250-550KG ≤15 φ3×3mm φ162.5×130 30-100m/min 5.5Kw 5.5kW
MSM230 600-800KG ≤35 φ3×3mm φ162.5×230 30-100m/min 7.5/11Kw 7.5/11kW
MSM340 800-1200KG ≤50 φ3×3mm φ162.5×340 30-100m/min 11/15Kw 11/15kW
💡 Features & Advantages
  • Low noise operation and minimal dust generation.
  • Quick-disassemble cot support for easy replacement without tools.
  • Full-access feed inlet and guide frame for convenient cleaning.
  • Moving knife air-cooling device to extend tool service life.
  • Compact footprint with convenient mobility.
  • Micro-electric control system for enhanced operational safety.
  • Advanced fixed tool rest structure for accurate and stable adjustment.
  • Integrated safety features: extended feeding port, rubber roller locking, and double emergency stops.
📸 Detailed Photos

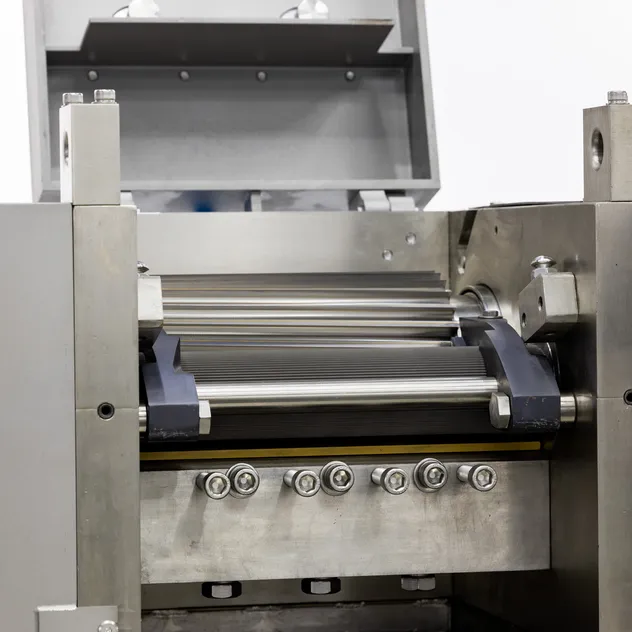

Detailed View 1

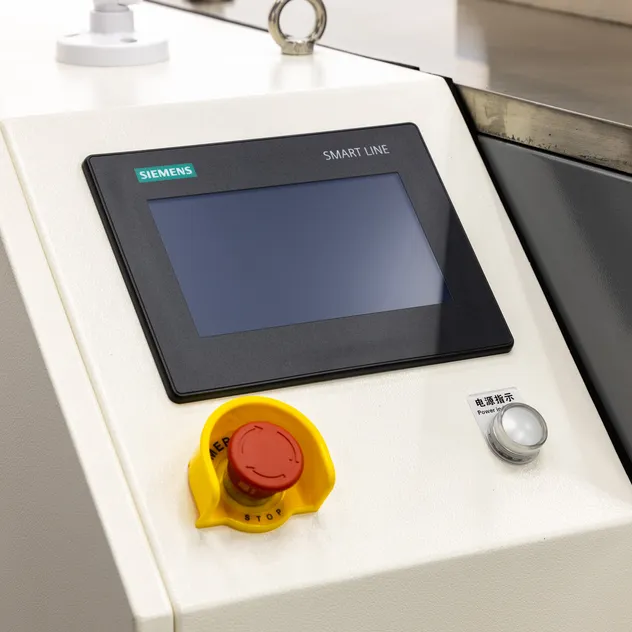

Detailed View 2

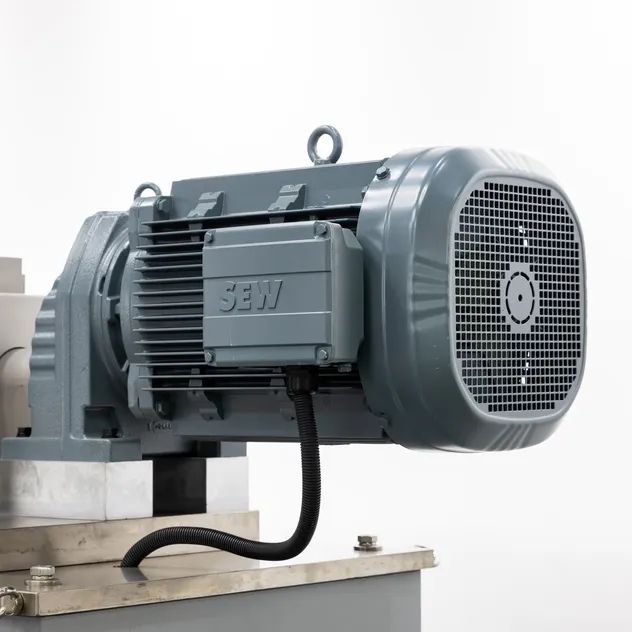

Detailed View 3

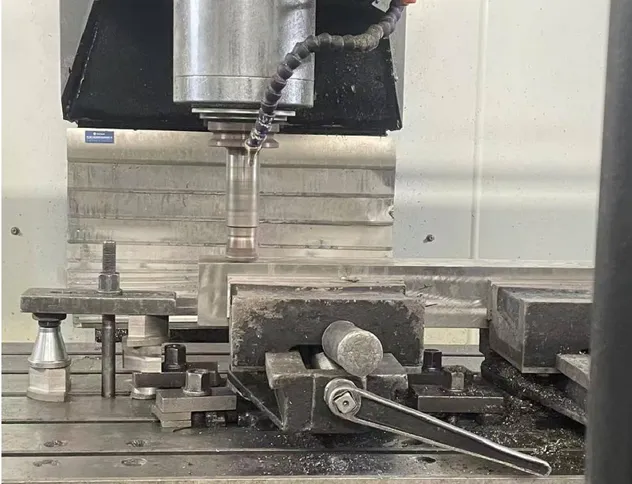

Core Components

Core Components Production

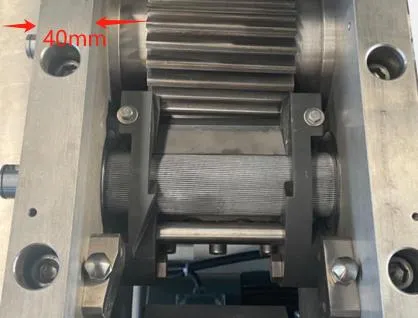

Material Selection

Wall Material Selection

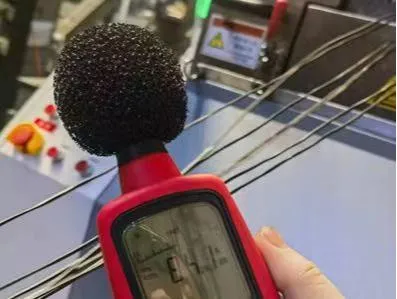

Processing Equipment

High-Quality Processing

📜 Certifications
Certification 1

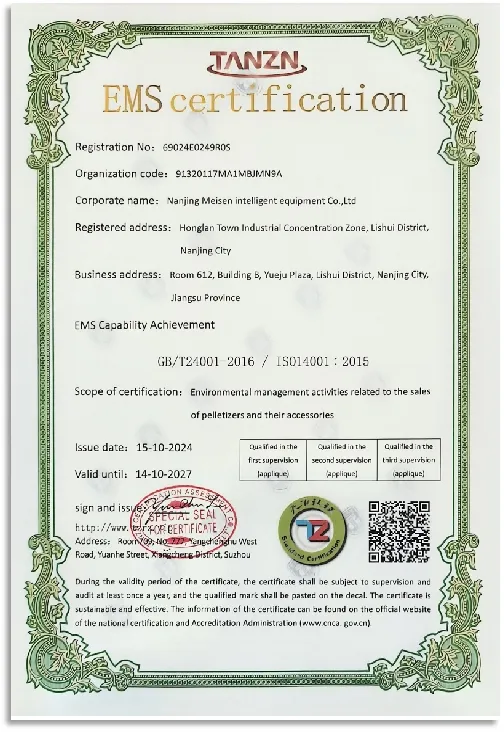

Certification 2
Certification 3
📦 Packing & Delivery
Packing Process
Shipping Container
🤝 Cooperative Company & Exhibition
Exhibition Banner
Exhibition 1
Exhibition 2

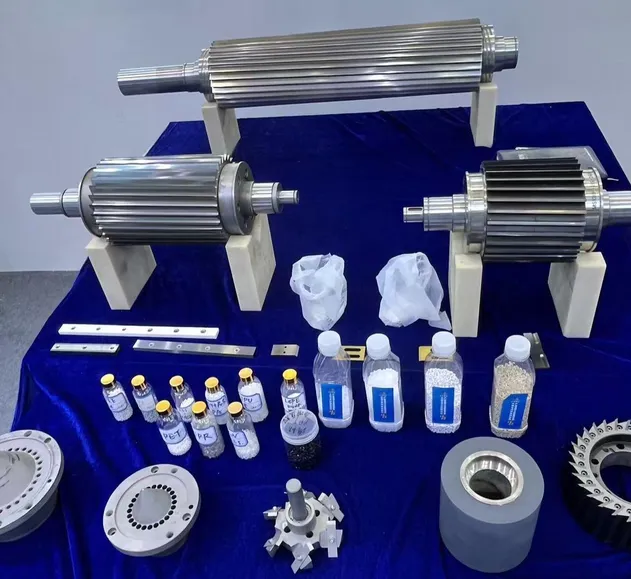

Exhibition 3
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer dedicated to developing comprehensive pelletizing solutions for all types of materials.
What is your typical delivery period?
The production period is approximately one month during the off-season and ranges from 1 to 3 months during peak seasons.
Do you offer customized services for machines?
Yes, we provide personalized customization including color, size, specific materials, and power requirements.
What are the primary materials your machines can process?
Our systems cover 95% of polymers and modified materials, including PE, Pet, PMMA, PP, PA6, GPPS, ABS, and degradable materials.
How do your spare parts compare to international brands?
Our pelletizing spare parts are fully compatible and priced at only 50% to 70% of those from well-known foreign brands, offering high cost-effectiveness.
What is the noise level during operation?
Our machines are designed for low-noise performance, maintaining levels ≤80dB for a better working environment.
