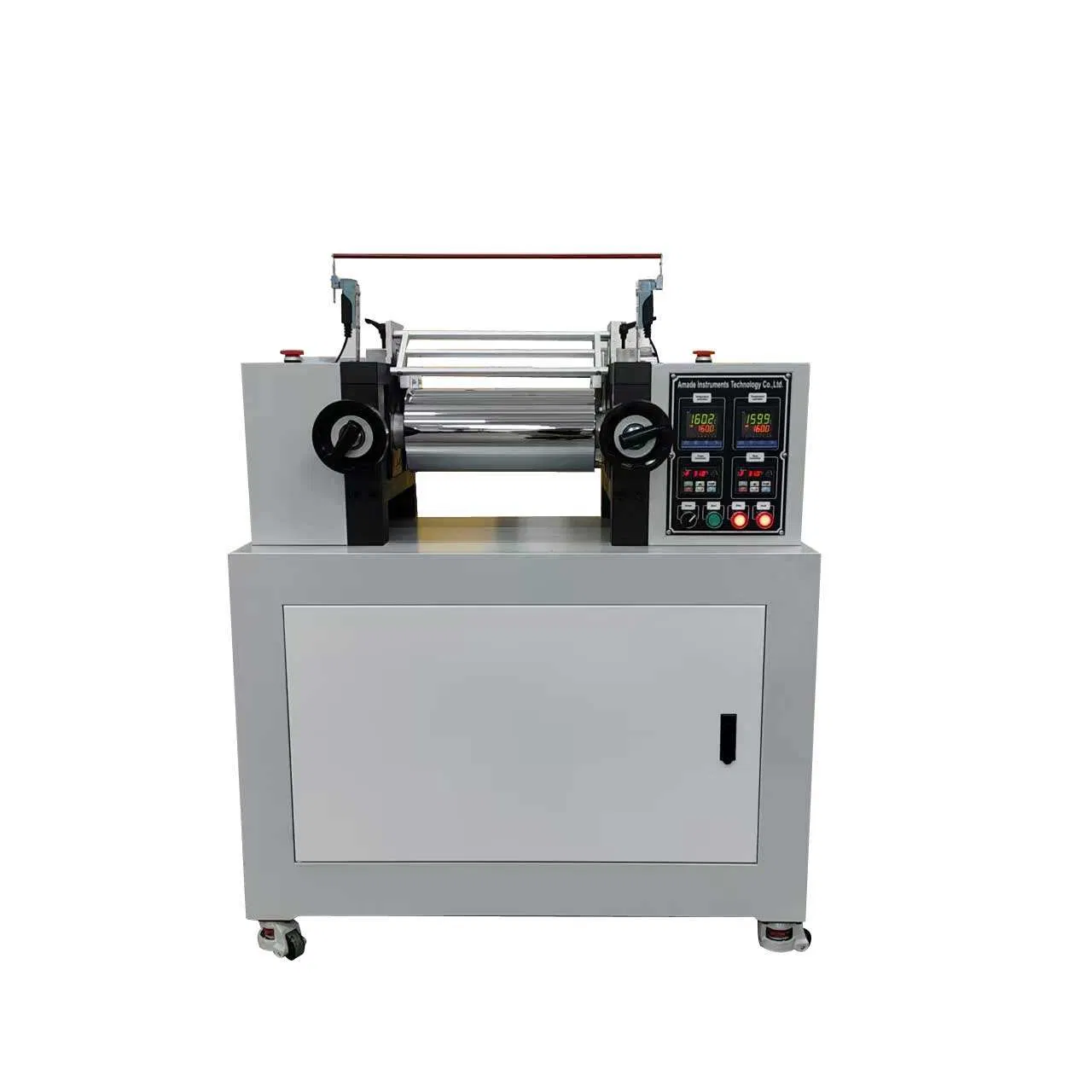

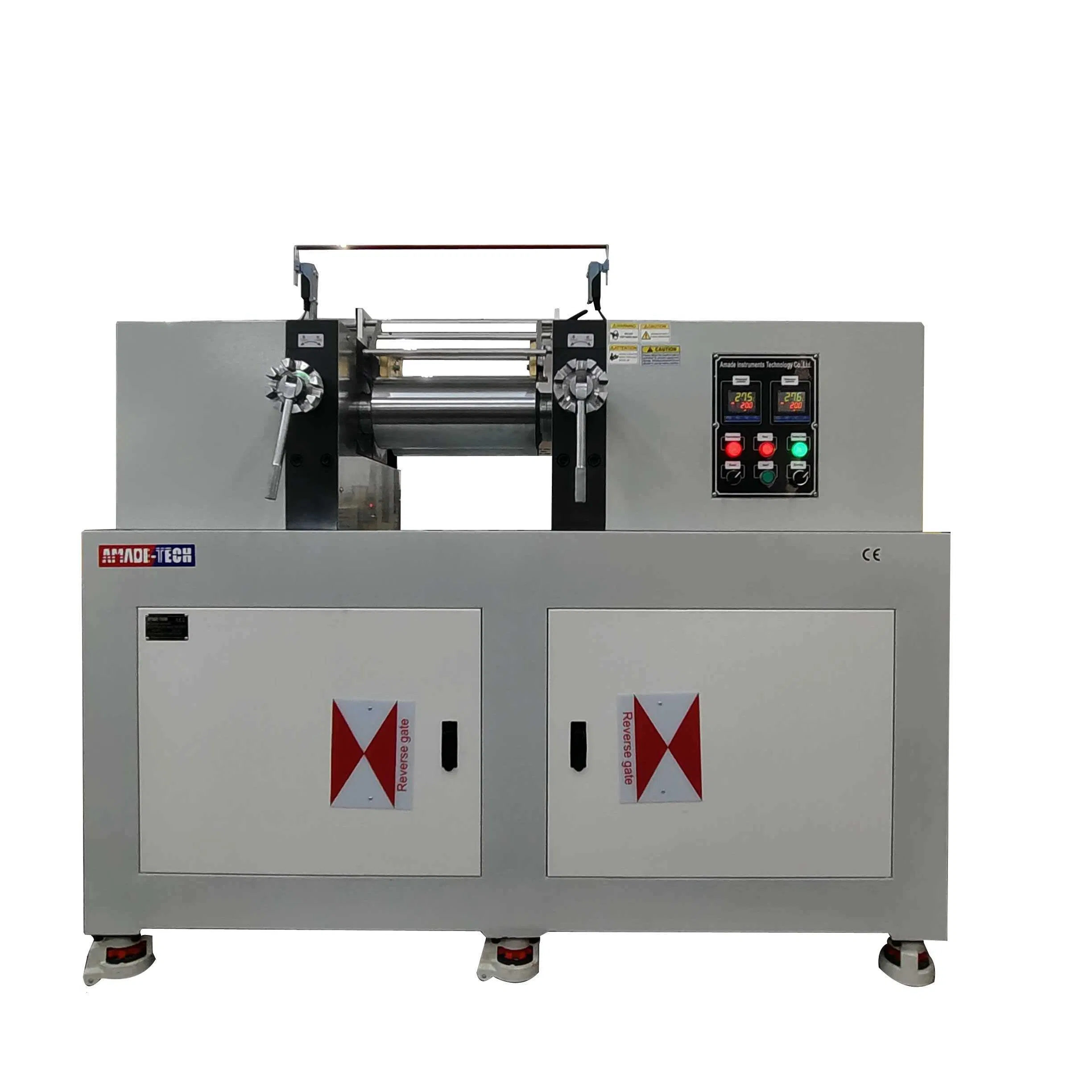

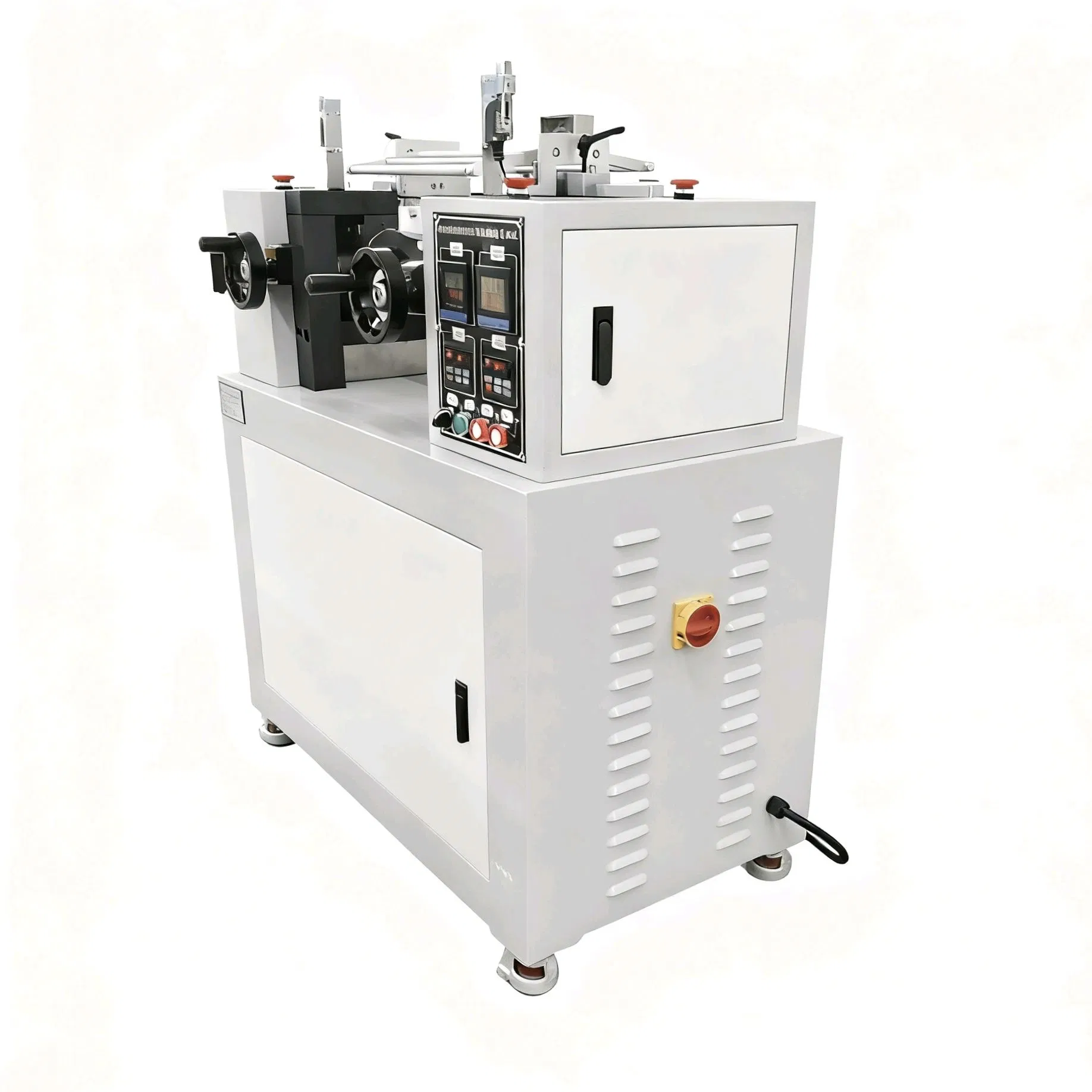

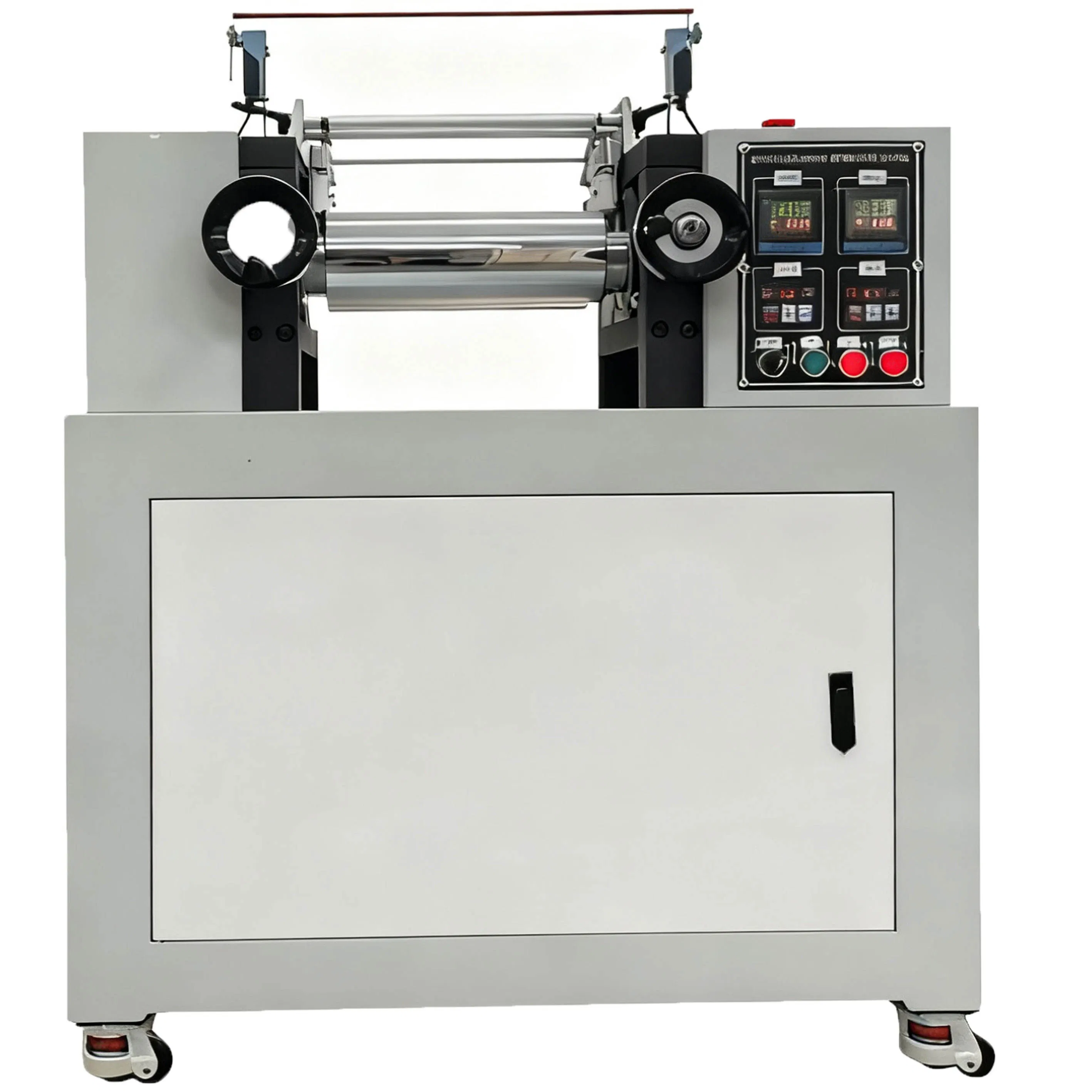

Two Roll Mill Overview:
The machine is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color. It is widely used in rubber and plastics industries, such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, and more. The main purpose is to test physical properties changes and contrast after mixing, including color dispersion and light transmission.

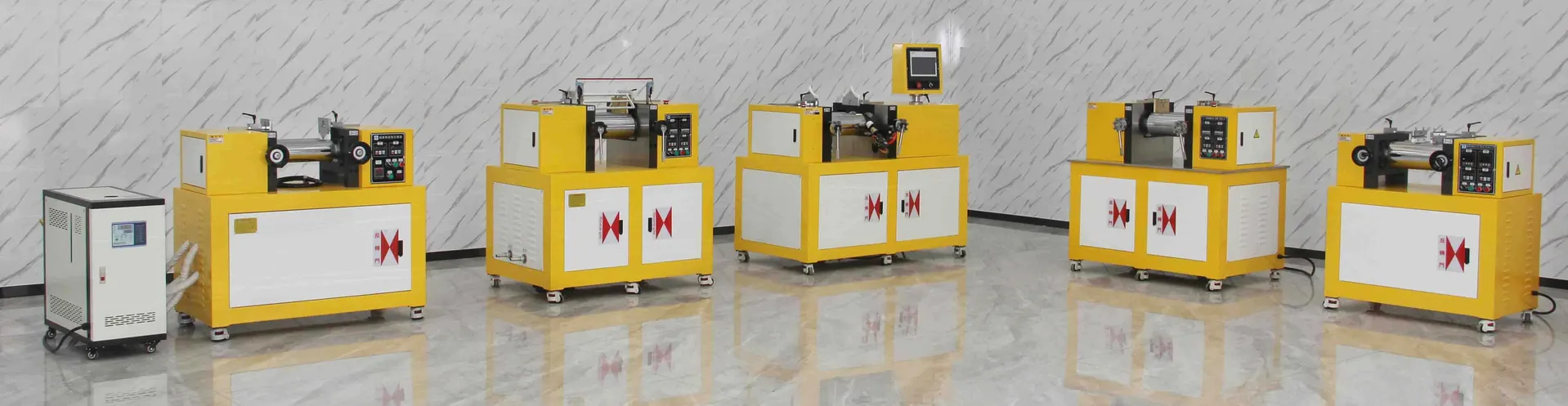

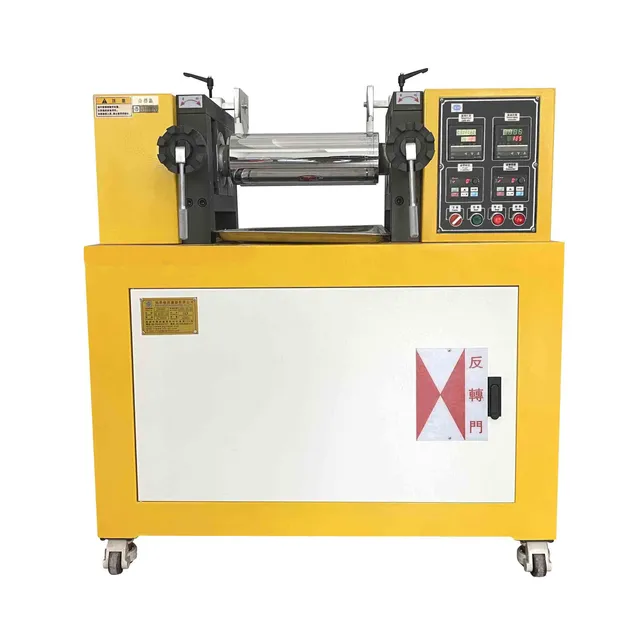

OLT-ZS-401 Electric Heating Series: Small size, easy to operate, low noise, energy-saving. Features PID self-setting for balanced roller temperature.

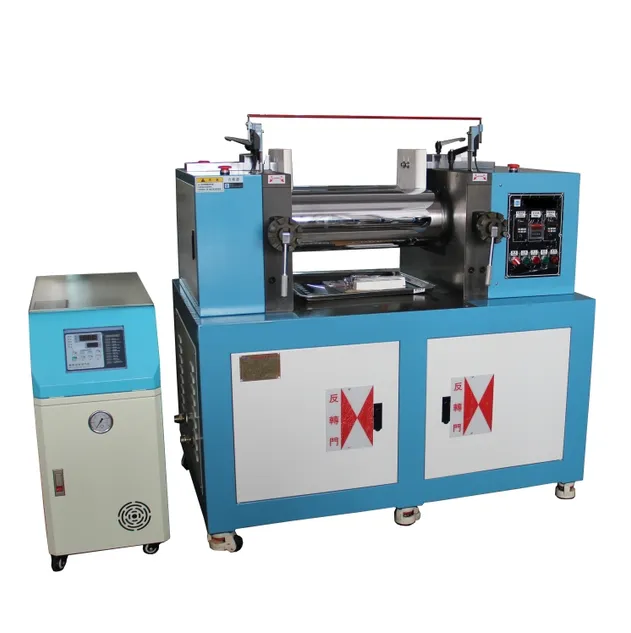

OLT-ZS-401 Oil Heating PLC Series: Used for PVC and thermal stability testing. High-temperature oil pump ensures fast heating and thermal stability.

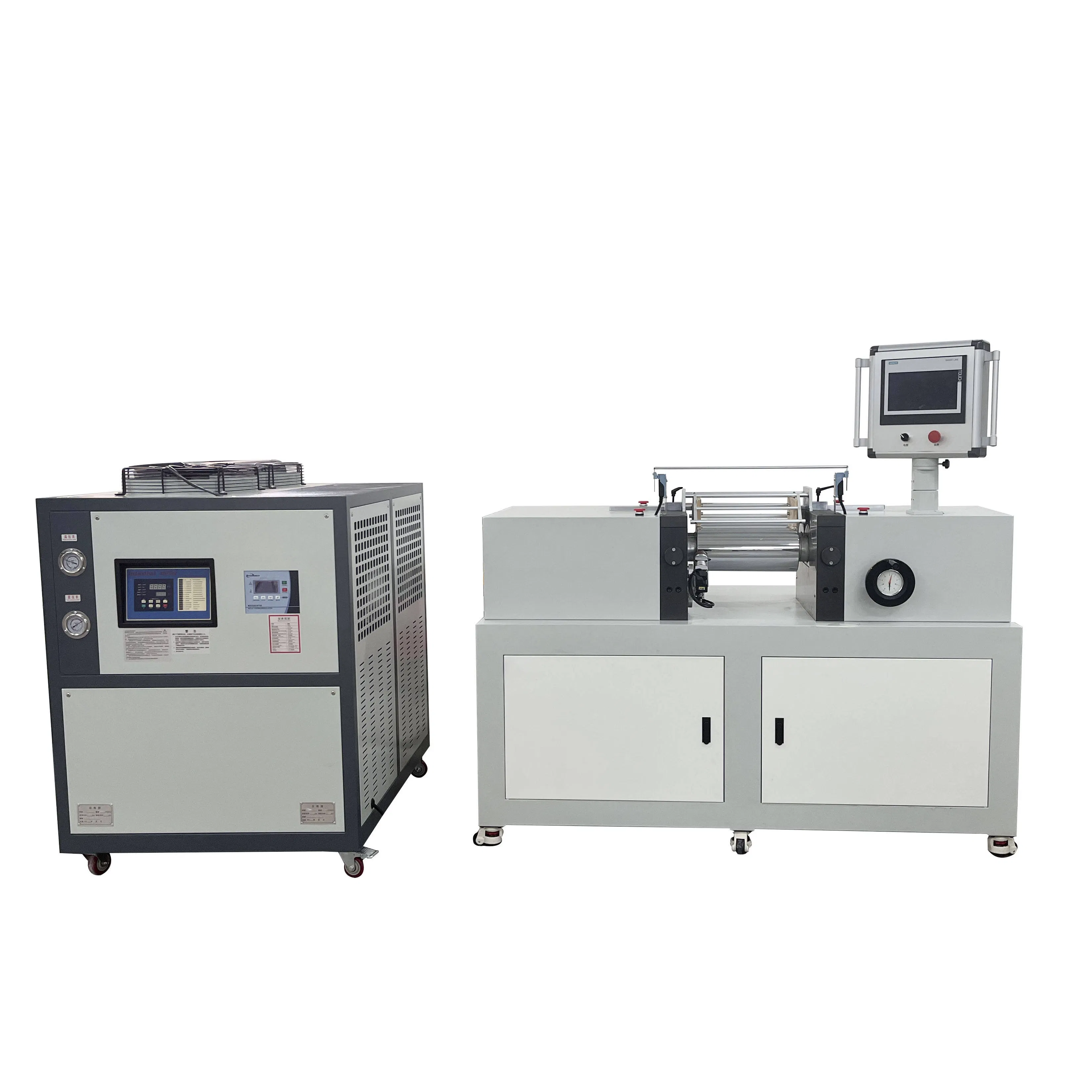

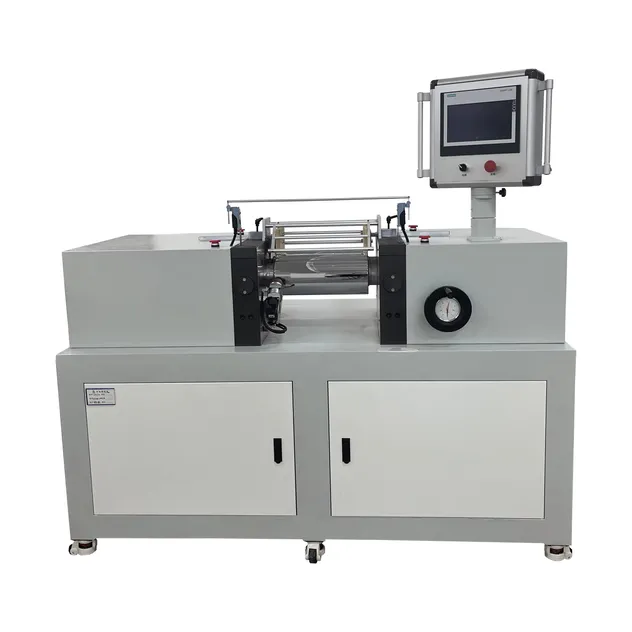

OLT-ZS-401 Automatic Rollover PLC Series: Real-time monitoring of temperature, speed, and timing. Supports automatic gap adjustment and hydraulic opening.
| Parameter | Specifications |
|---|---|
| Model | OLT-ZS-401CE160 |
| Control Mode | PID control or PLC program control |
| Mixing capacity | 0.2—3kg (customized) |
| Roller temperature | Normal temperature ~ 300℃ |
| Roller speed | Two speed regulator |
| Temperature accuracy | ±2°C |
| Roller Size | Φ160mm*L350mm |
| Motor Power | 2.2kW , 2 Units |
| Heating mode | Electrical heating |
| Cooling Mode | Tap water cooling |
Products are packed in wooden boxes to effectively protect the machine from impacts, vibrations, and environmental factors like moisture and dust during international transportation.
